Shizuoka B 3V Vertical Machining Center

5.00 out of 5 based on 1 customer rating
(1 customer review)

Out of stock

Product Description

Shizuoka B 3V Vertical machining Center

Make: Shizuoka
Model #: B-3V 410
Serial #: 68039
Origin: Japan
Condition: Great


Shizuoka B 3V Features:

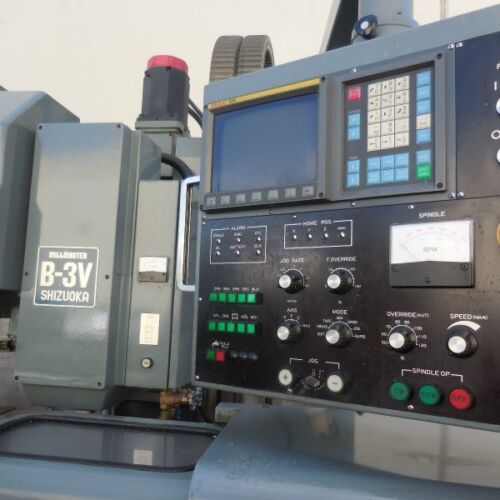

  • Fanuc OM CNC Control.
  • RS-232 Port.
  • CAT 40 Spindle Taper.

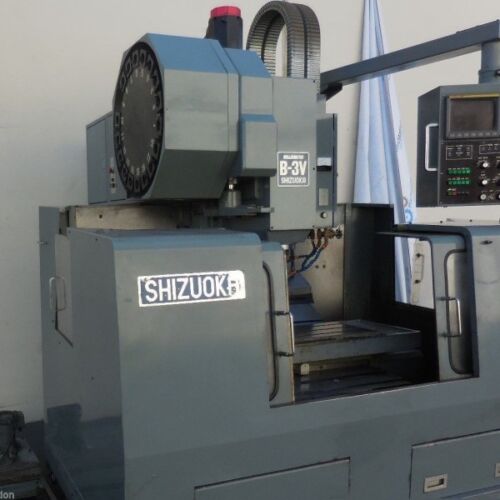

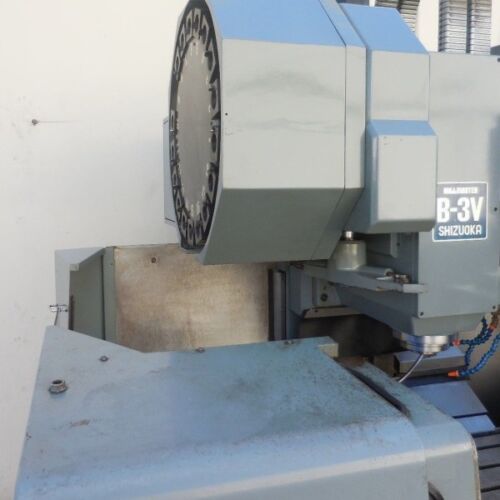

  • 18-Station Side Mount Tool Changer.
  • Large Box Ways on all Axes.
  • Manual Pulse Generator.
  • Coolant System.

Shizuoka B 3V Specifications:

Travel:X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″

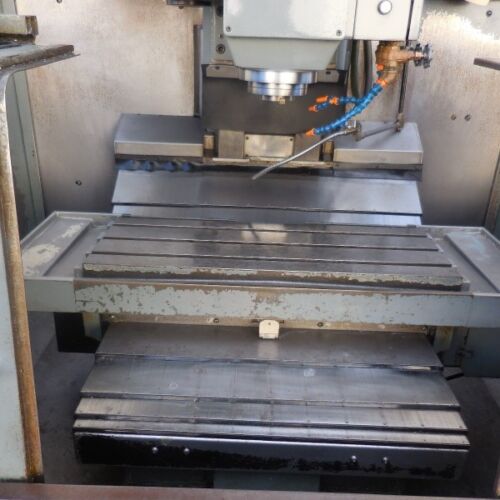

Table:Table Dimensions: 35″ x 13″
T-Slots (number x width x distance between centers): 4 x 0.71″ x 5″
Maximum Weight on Table: 1,500 lbs.

Spindle:Taper: CAT 40
Speed: 6,000 RPM
Motor: 15 HP
Spindle Center to Column: 18″

Feed Rates:Rapid Traverse Rate (X, Y, Z,): 590 in/min

Automatic Tool Changer:Tool Capacity: 18

General:Machine Weight: 10,000 lbs.

Electrical: 200/220 Volt, Three Phase, 50 / 60 Hz
Overall Dimensions: 82″ x 900″ x 100″ tall

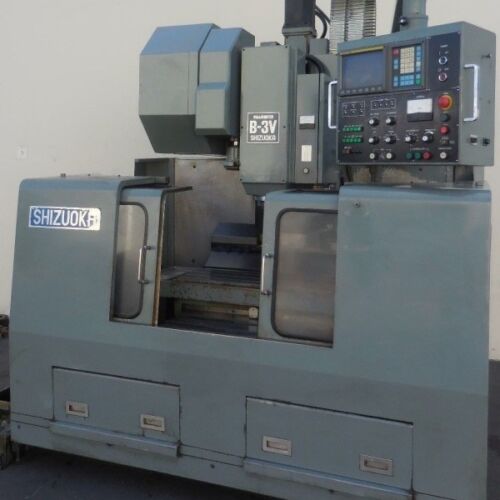

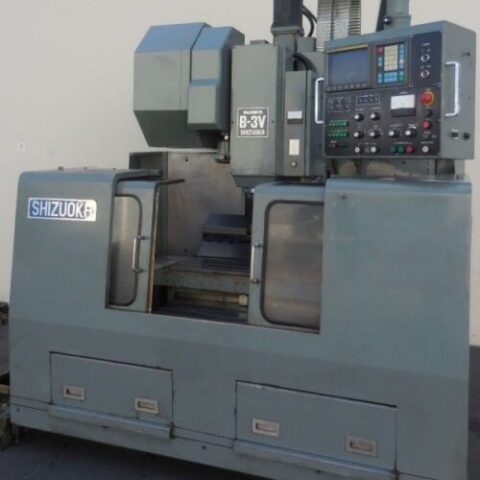

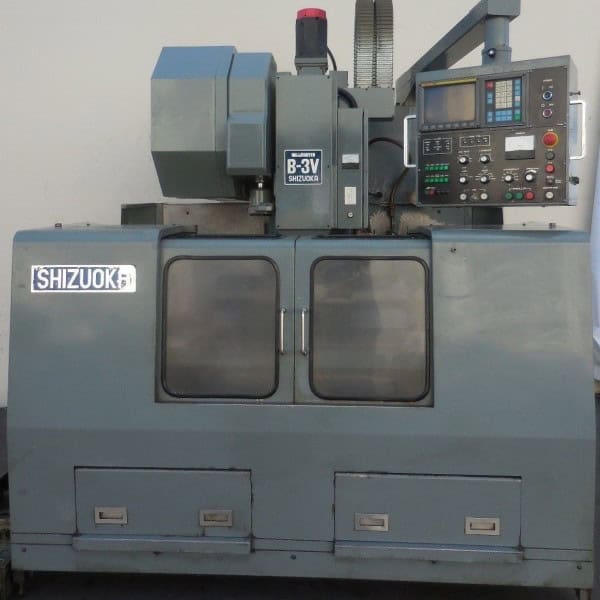

Shizuoka B3V Comes as shown in pictures.
