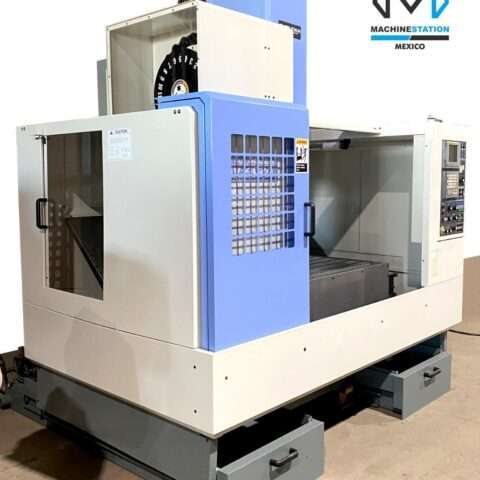

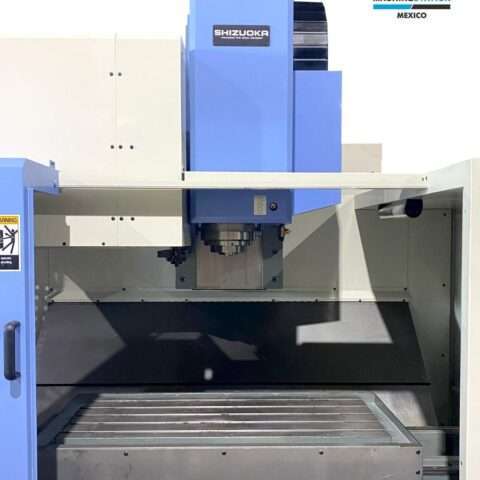

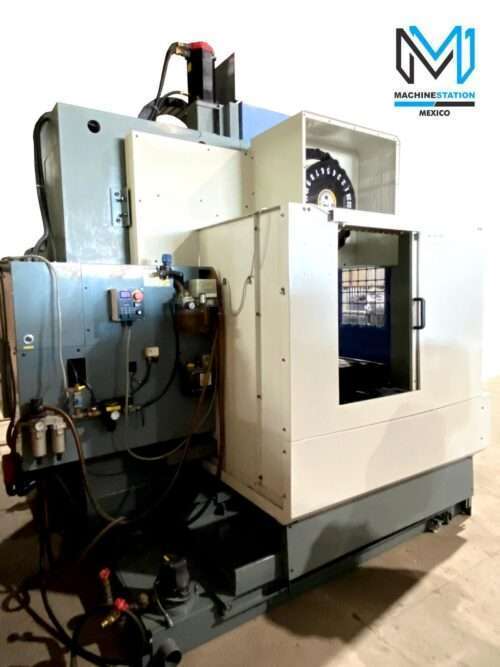

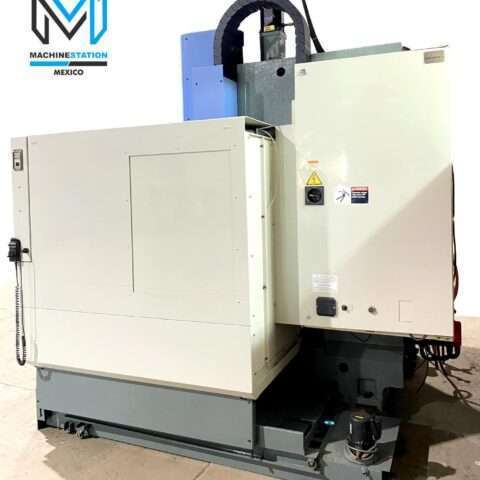

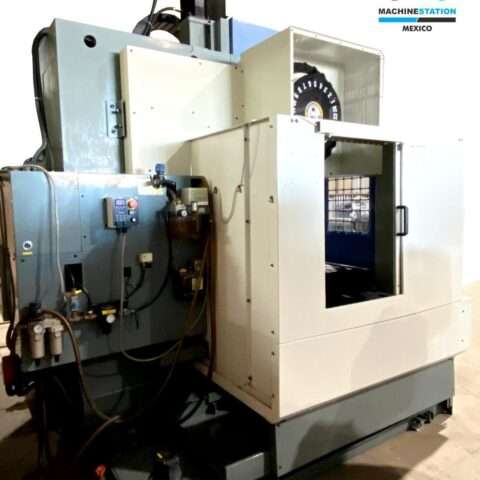

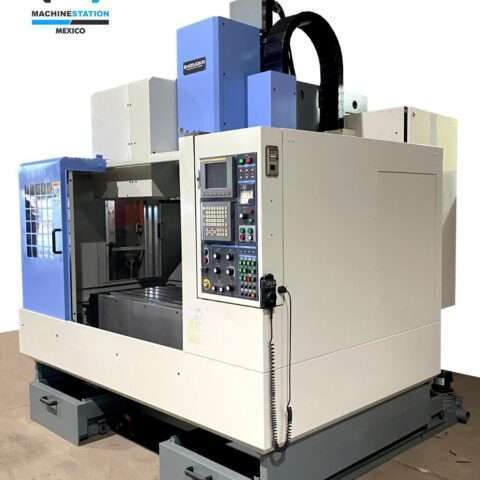

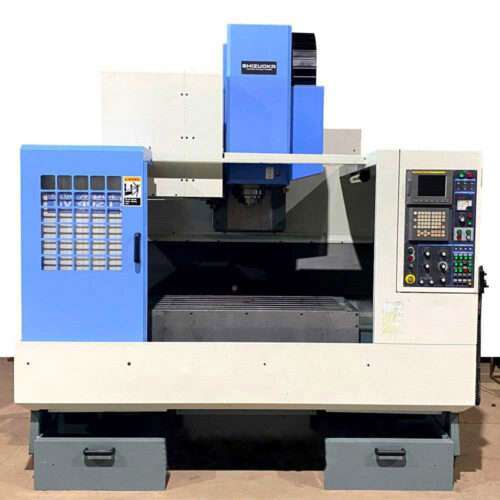

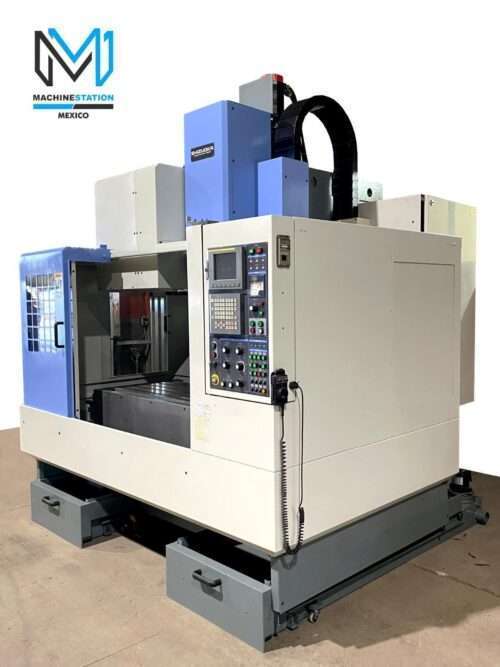

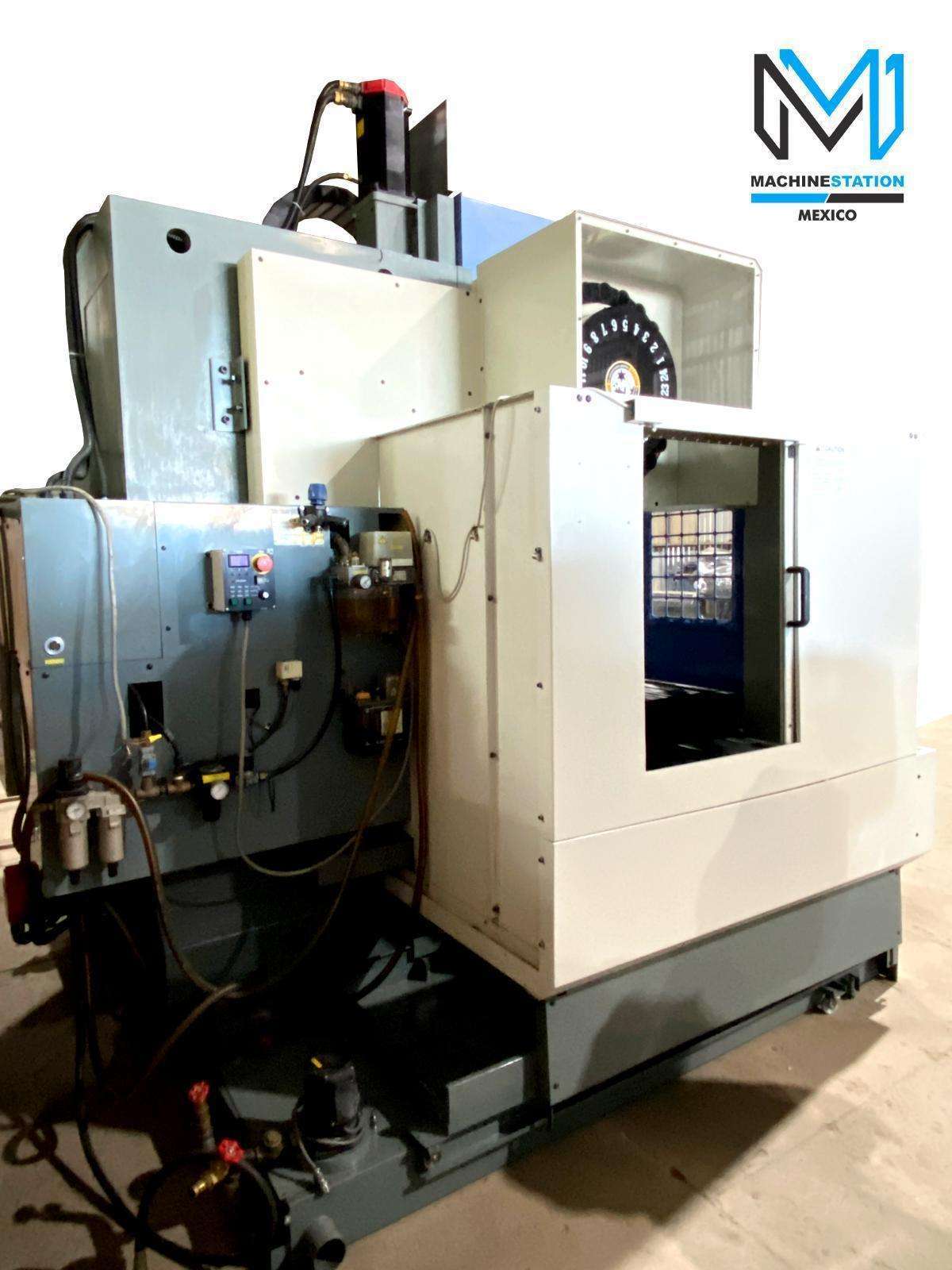

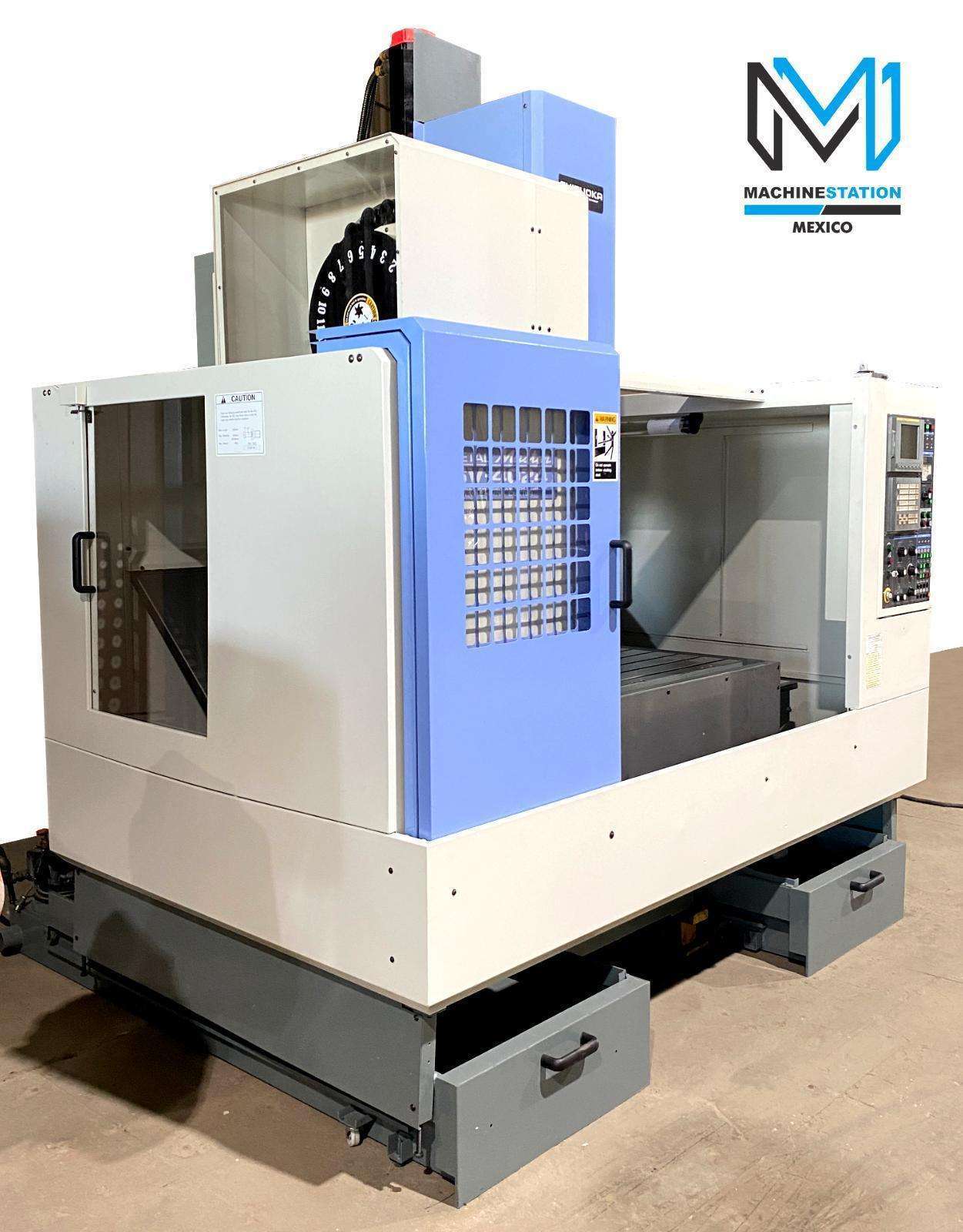

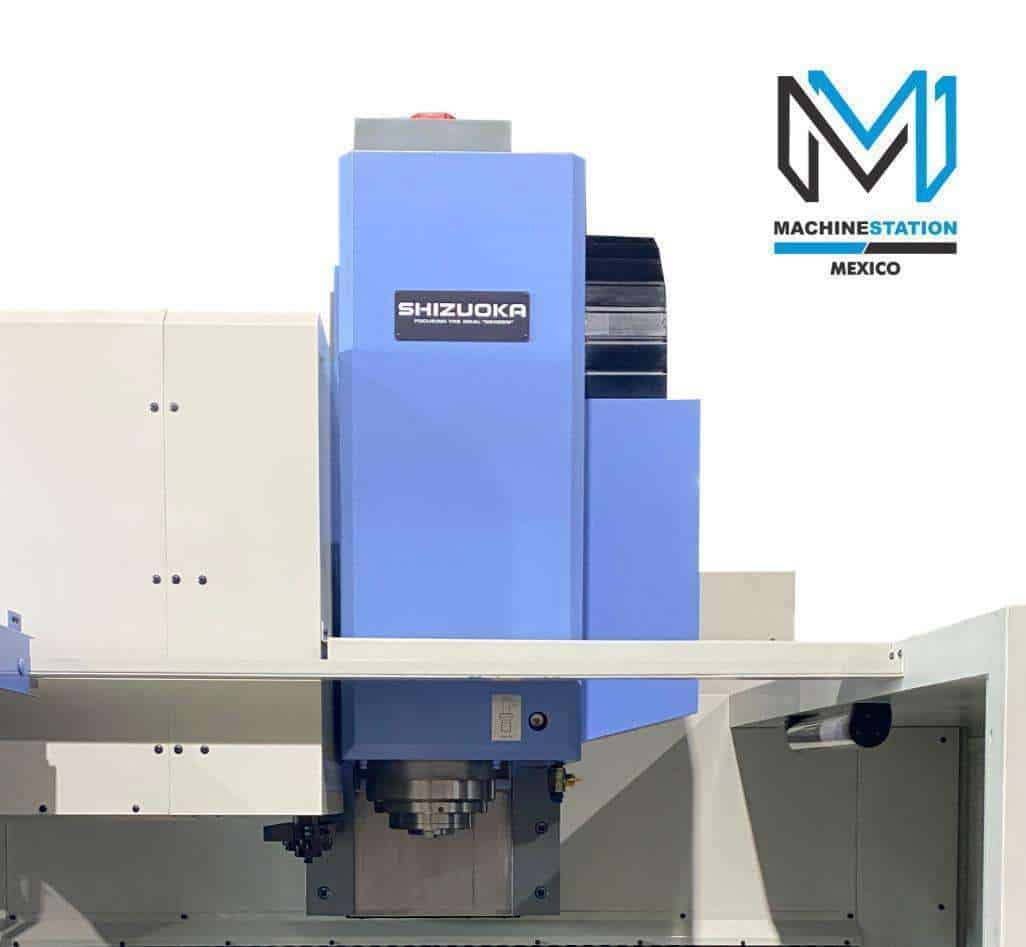

Used Shizuoka SV-4024 CNC Vertical Machining Center

Shizuoka SV-4024 CNC Vertical Machining Center

SKU 2102

Make/Model SHIZUOKA SV-4024

Video No Video

Out of stock

Used Shizuoka SV-4024 CNC Vertical Machining Center For Sale

SKU:	2102
Make/Model:	SHIZUOKA SV-4024
Video:	No Video

SKU: 2102

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	SHIZUOKA
Model:	SV-4024
Year:
Condition:	Used – Good

Features:

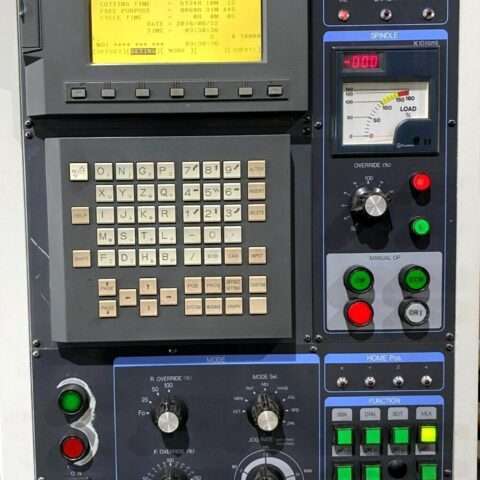

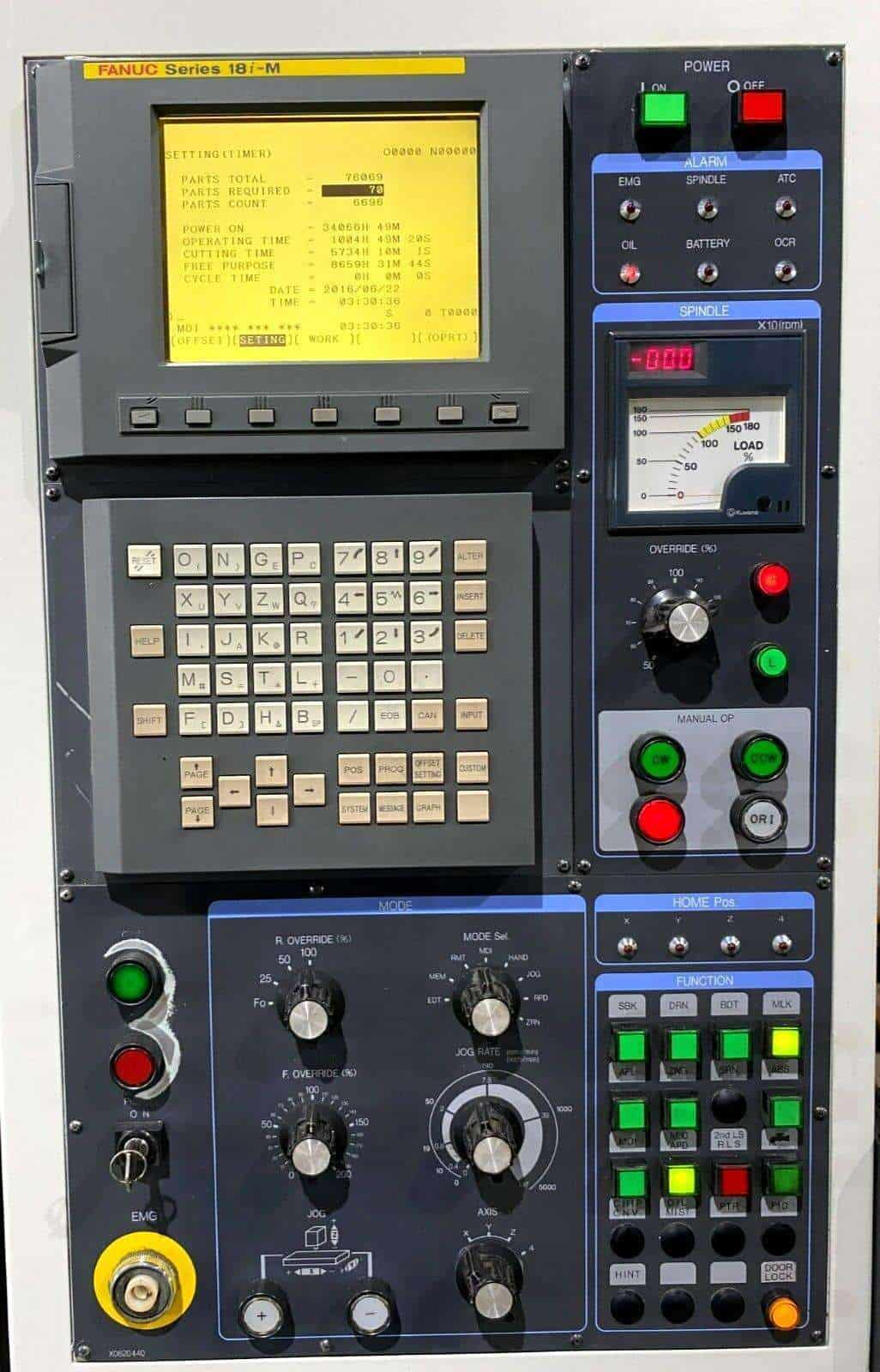

Fanuc 18iMB series CNC Control
24 Automatic high speed tool changer
12000 RPM High Torque Spindle
Through Spindle coolant
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic way covers
Flood Coolant System
Chip Conveyor

Travels:
X-Axis: 40″
Y-Axis: 24″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

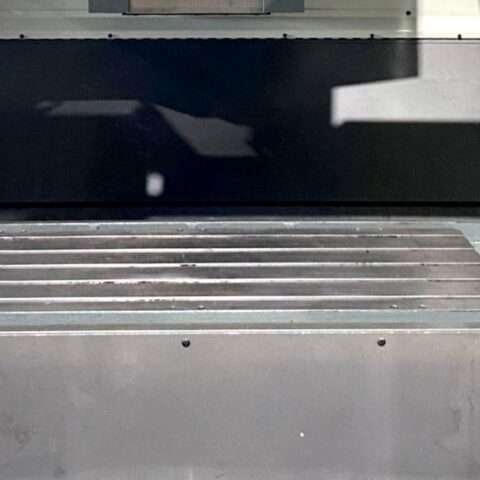

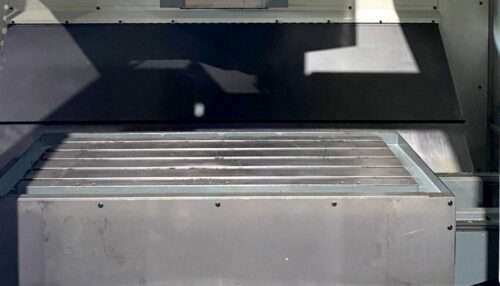

Table:
Length: 47.2″
Width: 27.6″
Max Weight on Table: 2205 lbs

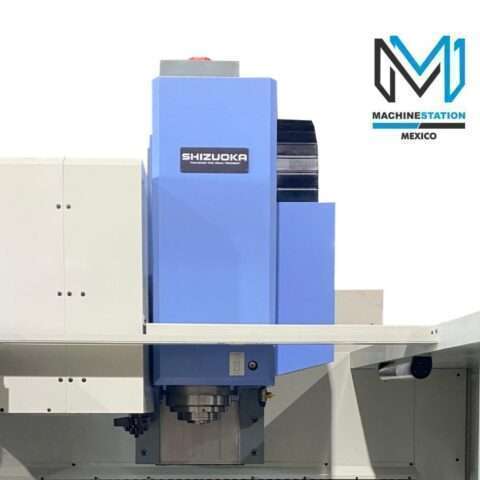

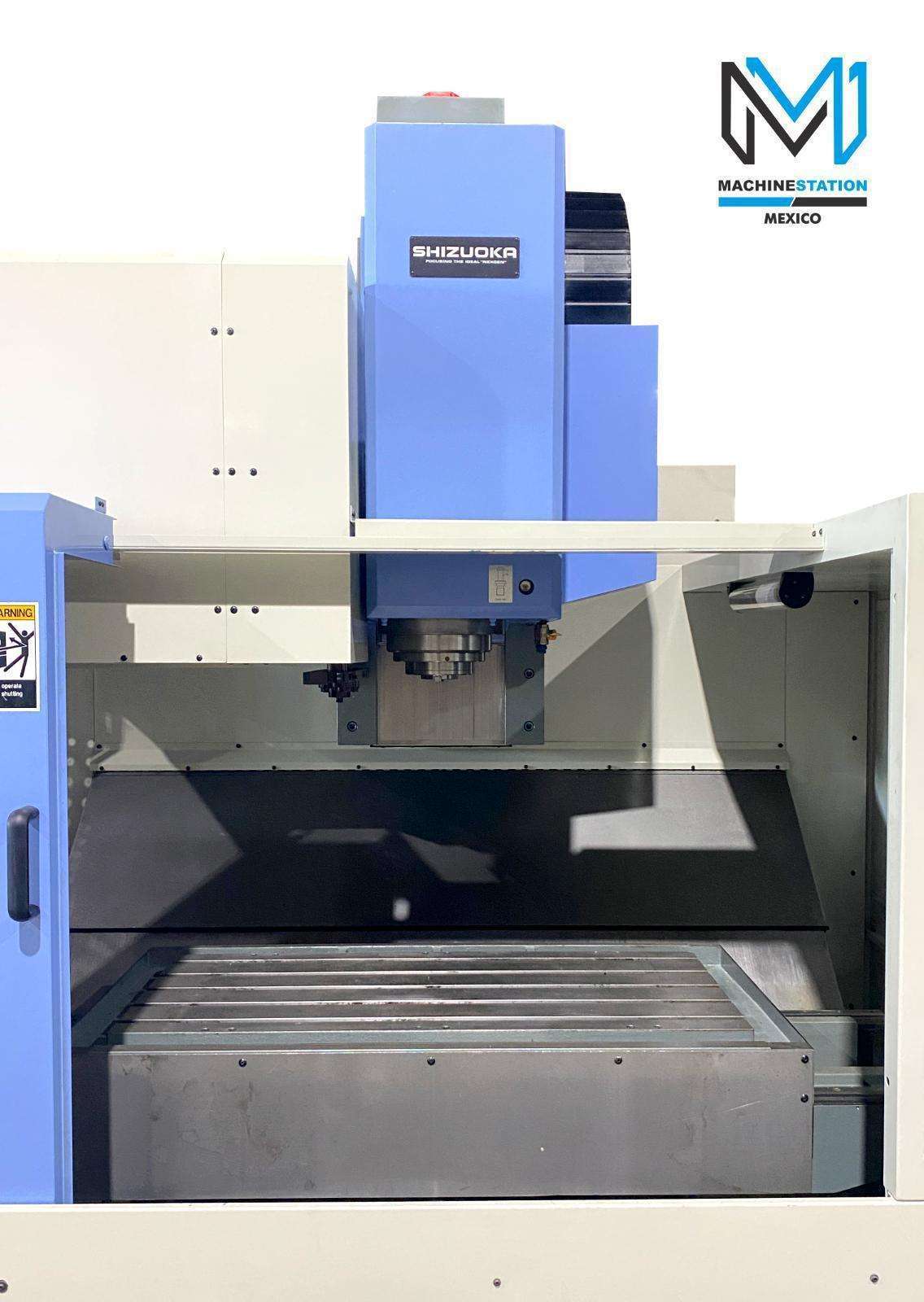

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
40 Taper
Capacity: 24 Station Side Mounted
Tool Weight: 17.6 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″

Feed rates:
Rapid Traverse rates: 1575 IPM
Cutting Feedrate: 630 IPM

General:
Air Required: 80 psi 4 scfm
Power: 220v / 3-Phase 35 Kva
Overall Dimensions: 100″ x 103″ x 117″ High
Weight: 17000 lbs

Travels:
X-Axis: 1,016 mm
Y-Axis: 610 mm
Z-Axis: 508 mm
Spindle Nose to Table (Min.- Max.): 150 mm – 660 mm

Table:
Length: 1,199 mm
Width: 701 mm
Max Weight on Table: 2205 lbs

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
40 Taper
Capacity: 24 Station Side Mounted
Tool Weight: 17.6 lbs
Max Tool Length: 381 mm
Max Tool Dia.: 110 mm

Feed rates:
Rapid Traverse rates: 1575 IPM
Cutting Feedrate: 630 IPM

General:
Air Required: 80 psi 4 scfm
Power: 220v / 3-Phase 35 Kva
Overall Dimensions: 2,540 mm x 2,616 mm x 2,972 mm High
Weight: 17000 lbs

Make	Shizuoka

Fanuc 18iMB series CNC Control
24 Automatic high speed tool changer
12000 RPM High Torque Spindle
Through Spindle coolant
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic way covers
Flood Coolant System
Chip Conveyor

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
