*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

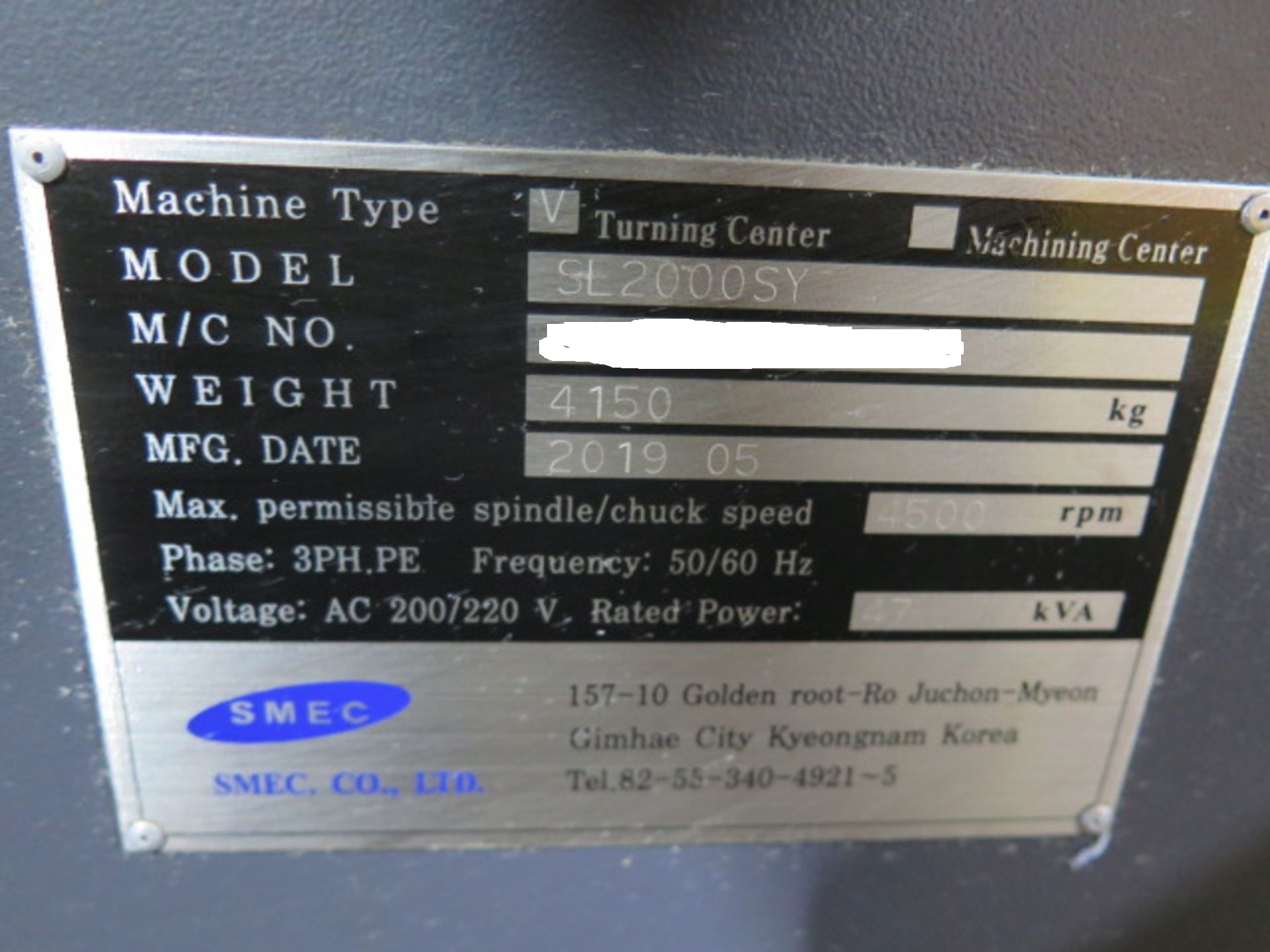

| Make: | SMEC |
| Model: | SL 2000SY |
| Year: | 2019 |

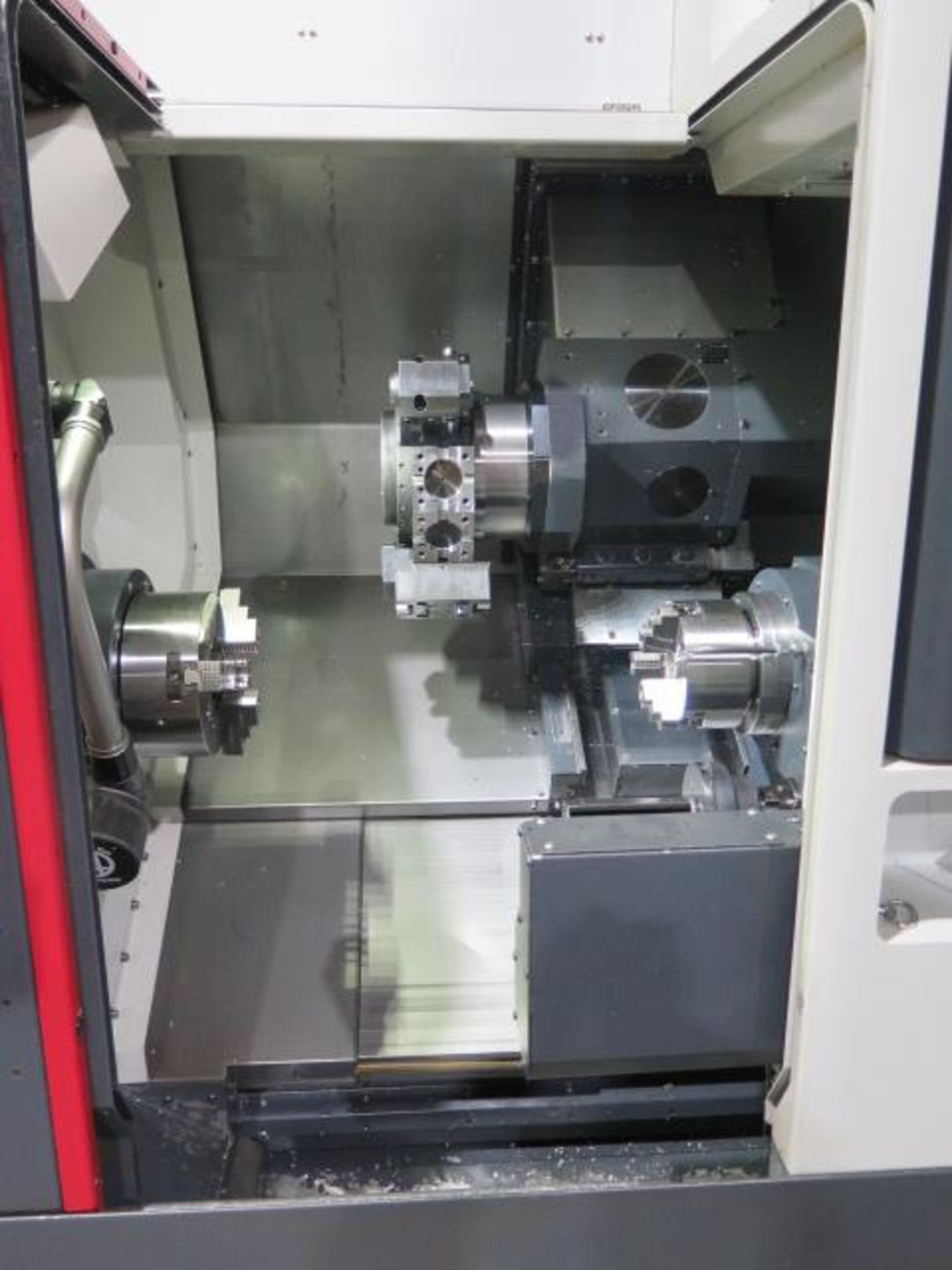

| Machine Type: | CNC Turning Center with Y-Axis & Sub-Spindle |
| Condition: | Used – Good |
| Equipped With: |
|---|
- FANUC Series CNC Control
- Y-Axis Milling Capability
- Sub-Spindle
- Live Tooling
- Servo-Controlled Tailstock
- Coolant System
- Work Light
- Safety Door Interlocks
|
| Turning Capacity: |
|---|
- Swing Over Bed: 25.59″
- Swing Over Cross Slide: 21.26″
- Maximum Turning Diameter: 15.55″
- Maximum Turning Length: 17.72″ – 19.29″ (Configuration Dependent)
|
| Axis Travels: |
|---|
- X-Axis Travel: 9.25″
- Y-Axis Travel: ±2.07″
- Z-Axis Travel: 22.83″
- B-Axis Travel: 22.83″
|
| Rapid Traverse Rates: |
|---|
- X-Axis: 945 IPM
- Y-Axis: 394 IPM
- Z-Axis: 1,181 IPM
- B-Axis: 945 IPM
|
| Main Spindle: |
|---|
- Chuck Size: 6″ or 8″ (Configuration Dependent)
- Maximum Spindle Speed: Up to 6,000 RPM
- Spindle Bore: 2.40″ – 2.99″
- Draw Tube ID: 2.05″ – 2.68″
- Spindle Nose: A2-5 / A2-6
- Spindle Motor Power: 14.7 HP (Continuous) / 24.8 HP (30-min)
|
| Sub-Spindle: |
|---|
- Chuck Size: 6″
- Maximum Speed: 6,000 RPM
- Spindle Bore: 1.77″
- Draw Tube ID: 1.42″
- Spindle Nose: A2-5
- Spindle Motor Power: 7.4 HP / 10 HP
- C-Axis: Full Contouring
|
| Turret & Live Tooling: |
|---|
- Heavy-Duty Servo Turret
- Number of Stations: 12 (24 Optional)
- Tool Interface: BMT55
- Square Tool Size: 0.98″ × 0.98″
- Boring Bar Capacity: 1.57″
- Live Tool Speed: 5,000 RPM
- Live Tool Motor: 5.0 HP (Max)
- Turret Clamp Force: 7,816 lbs
|

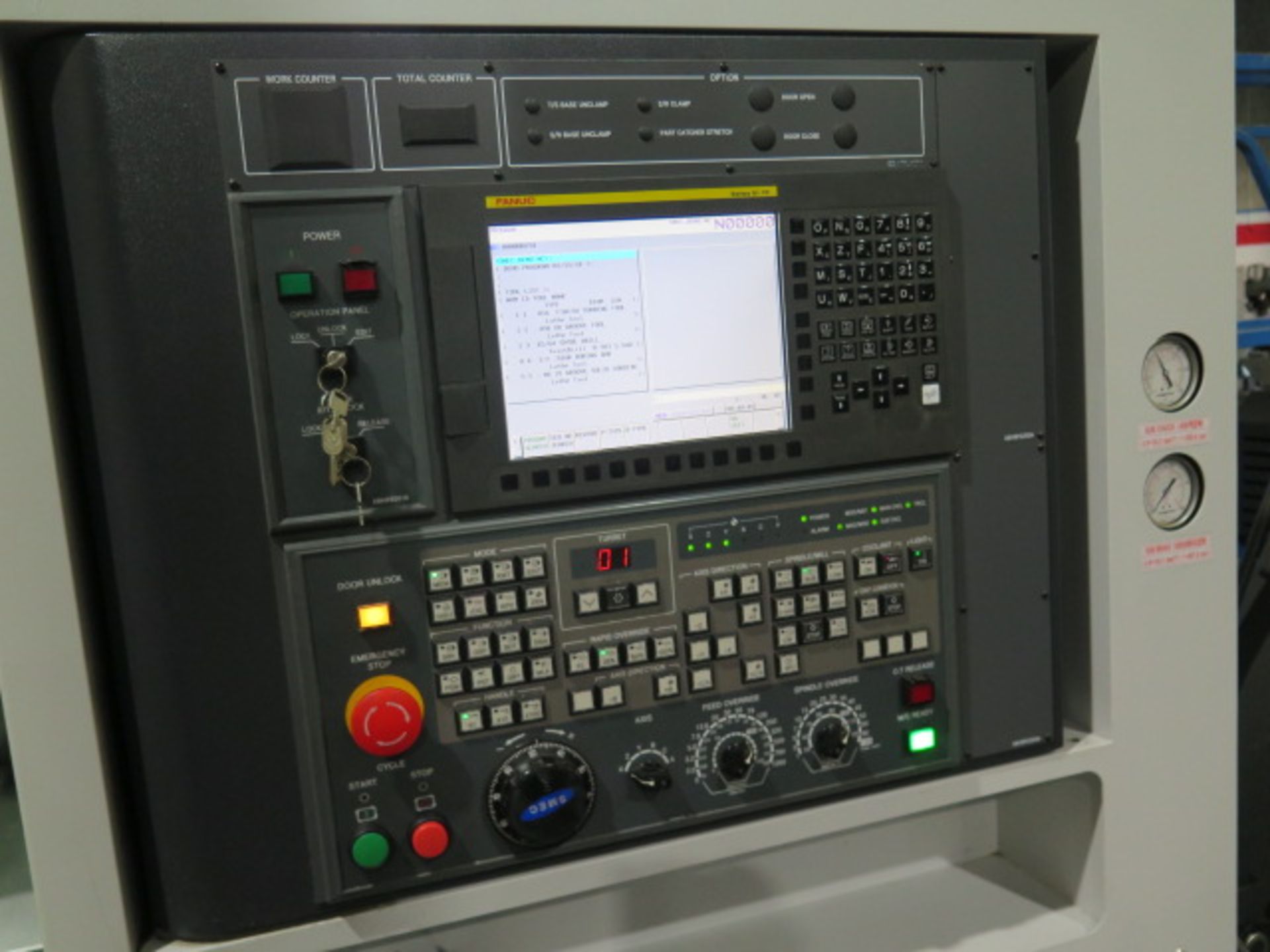

| CNC Control: |
|---|
- FANUC CNC Control
- 10.4″ Color TFT LCD
- Swivel Operation Panel (Up to 81°)
- Manual Pulse Generator
- Rigid Tapping
- Background Editing & Custom Macro
|
| Electrical: |
|---|
- Power Supply: 220V / 3-Phase / 50-60 Hz
- Power Requirement: 49 kVA
|
| General: |
|---|
- Overall Dimensions (Approx.): 109.8″ L × 69.0″ W × 82.5″ H
- Machine Weight (Approx.): 9,150 lbs
|
