*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | TRAK (Southwestern Industries) |
| Model No.: | K3SX |
| Year of Manufacture: | 2017 |
| Condition: | Used – Good |
| Machine Type: | CNC Bed / Toolroom Mill |

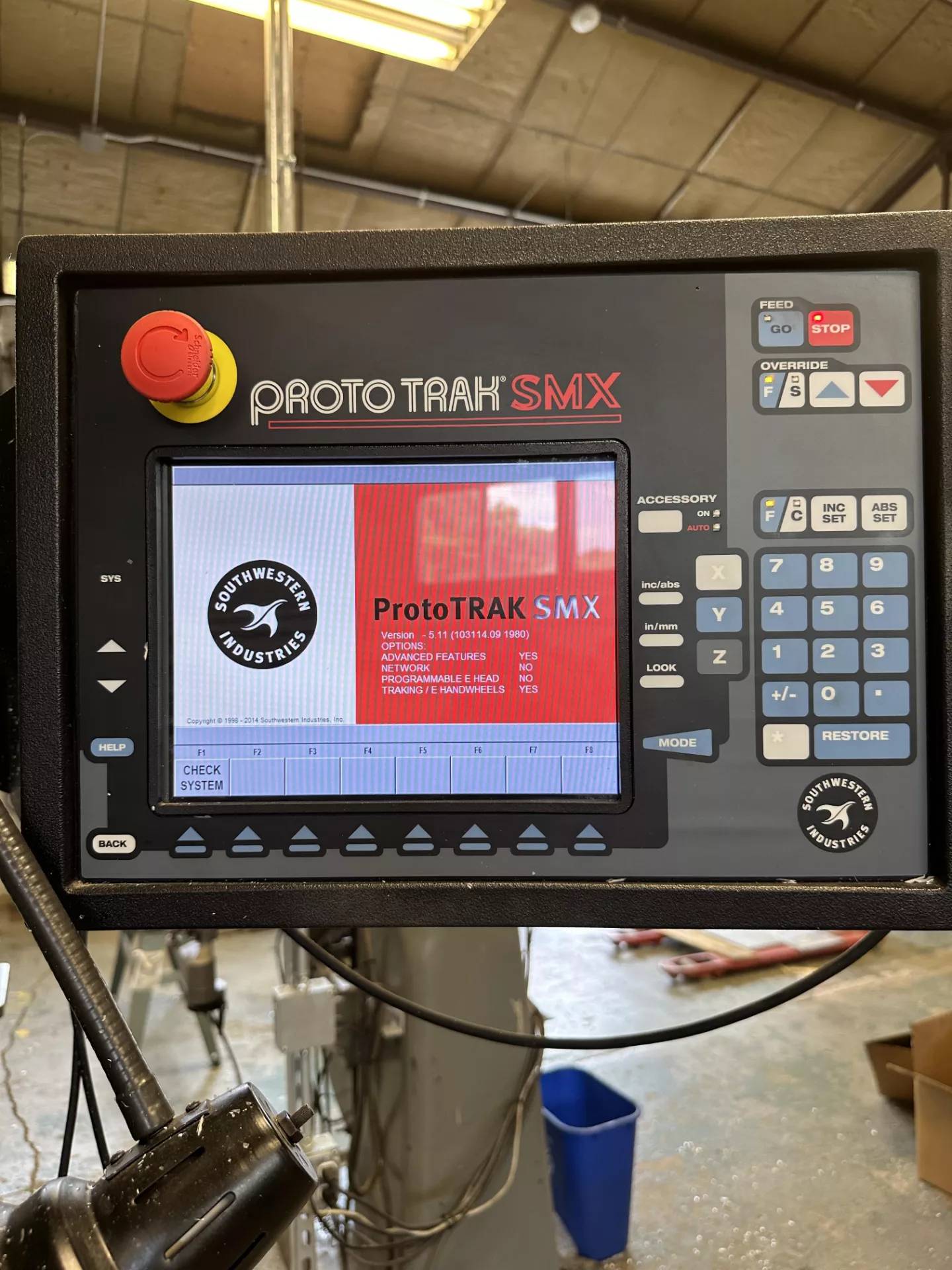

| CNC Control: | ProtoTRAK SMX CNC Control |
| Equipped With: |
|---|
| ProtoTRAK SMX CNC Control |
| 3-Axis CNC (X, Y, Z) |
| Power Drawbar |
| Table Guards |
| Spray Coolant System |
| Chip Pan |
| Halogen Work Light |
| Knee Power Feed |
| USB Ports for Program Transfer |
| One-Shot Lubrication System |
| Manual Handwheels for CNC / Manual Operation |
| Capacity: |
|---|
| Table Size: 50″ × 10″ |
| Table Load Capacity: 750 – 850 lbs |
| T-Slots: 3 |
| Travel: |
|---|
| X-Axis Travel: 32″ |
| Y-Axis Travel: 16″ |
| Z-Axis (Knee Travel): 16″ |
| Quill Travel: 5″ |
| Spindle: |
|---|
| Spindle Speed Range: 60 – 4,200 RPM |
| Spindle Motor: 3 HP |
| Spindle Taper: R8 |
| Quill Diameter: 3.375″ |
| Feedrates: |
|---|
| Rapid Traverse (X / Y / Z): 100 IPM |

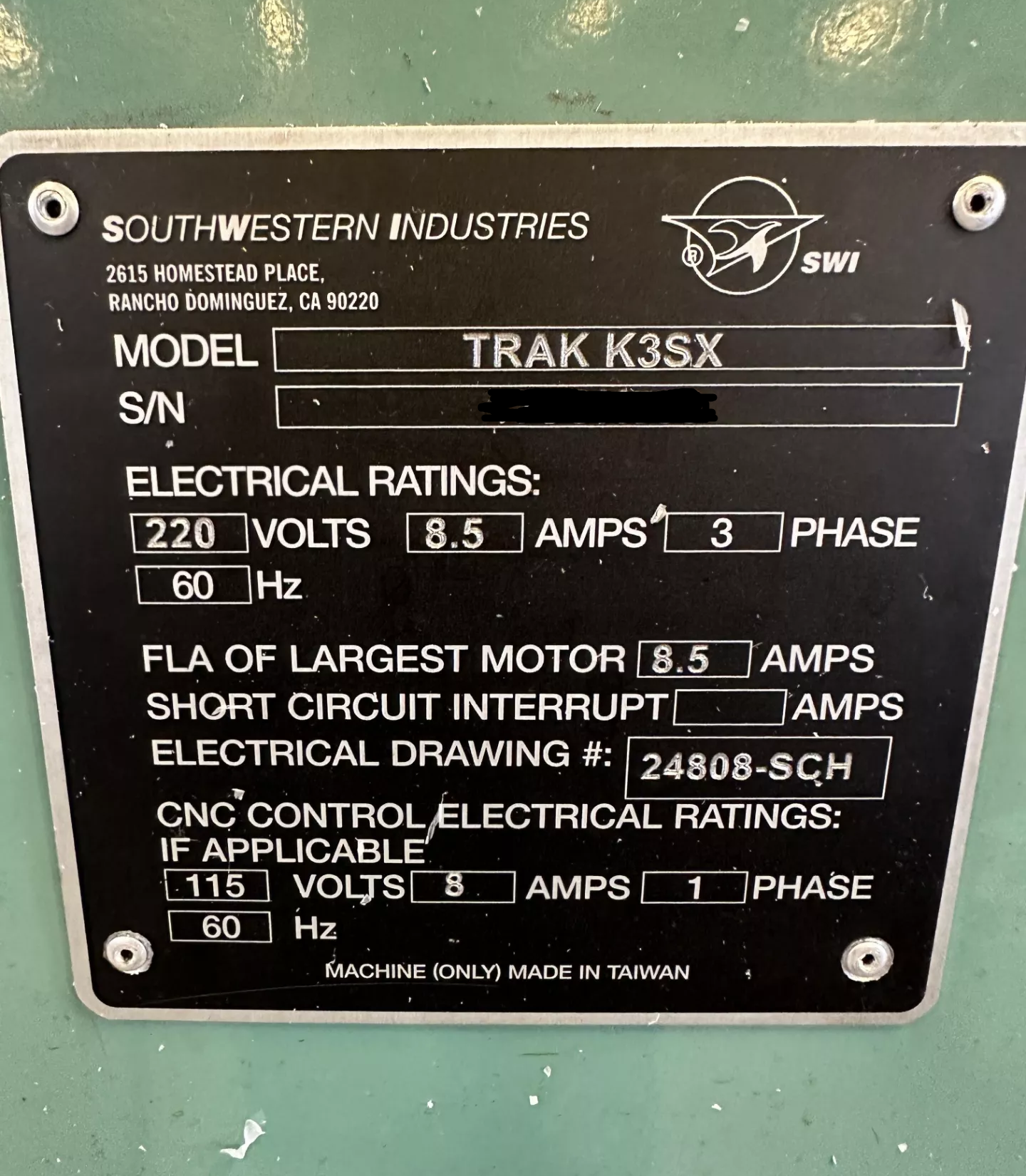

| Electrical: |
|---|
| Voltage: 220 / 440 V |
| Phase: 3-Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Dimensions: Approx. 71″ × 59″ × 84″ |
| Machine Weight: Approx. 2,800 – 3,000 lbs |
| Features: |
|---|
| ProtoTRAK conversational CNC programming for easy operation |
| Manual and CNC machining capability for flexible toolroom work |
| Rigid Meehanite cast-iron construction for stability and accuracy |
| High-speed spindle (4,200 RPM) for milling, drilling, and tapping |
| Power drawbar and coolant system for improved productivity |
| Ideal for toolrooms, prototype machining, maintenance shops, and small batch production |
