*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Star |
| Model: | SB-20R Type G |
| Year: | 2018 |
| EQUIPPED WITH: |
|---|
| Fanuc Series 0i-TF CNC Control |
| 7-Axis Swiss Type CNC Automatic Lathe |
| Guide Bushing / Non-Guide Bushing Capability |
| Main & Sub Spindle C-Axis Control |
| Independent Sub-Spindle |
| Live Tooling |
| Cross Drilling & Milling Capability |
| Chip Conveyor |
| Coolant System |
| No Bar Feeder |
| CAPACITY: |
|---|
| Maximum Machining Diameter: 20 mm |
| Maximum Machining Diameter (Optional): 22.2 mm |
| Maximum Headstock Stroke (Swiss Mode): 205 mm |
| Maximum Headstock Stroke (Non-Guide Bush Mode): 50 mm |
| MAIN SPINDLE: |
|---|
| Main Spindle Power: 3.7 kW |
| Main Spindle Speed: 10,000 RPM |
| C-Axis Main Spindle |
| SUB SPINDLE: |
|---|
| Sub Spindle Power: 1.1 kW |
| Sub Spindle Speed: 9,000 RPM |
| C-Axis Sub Spindle |

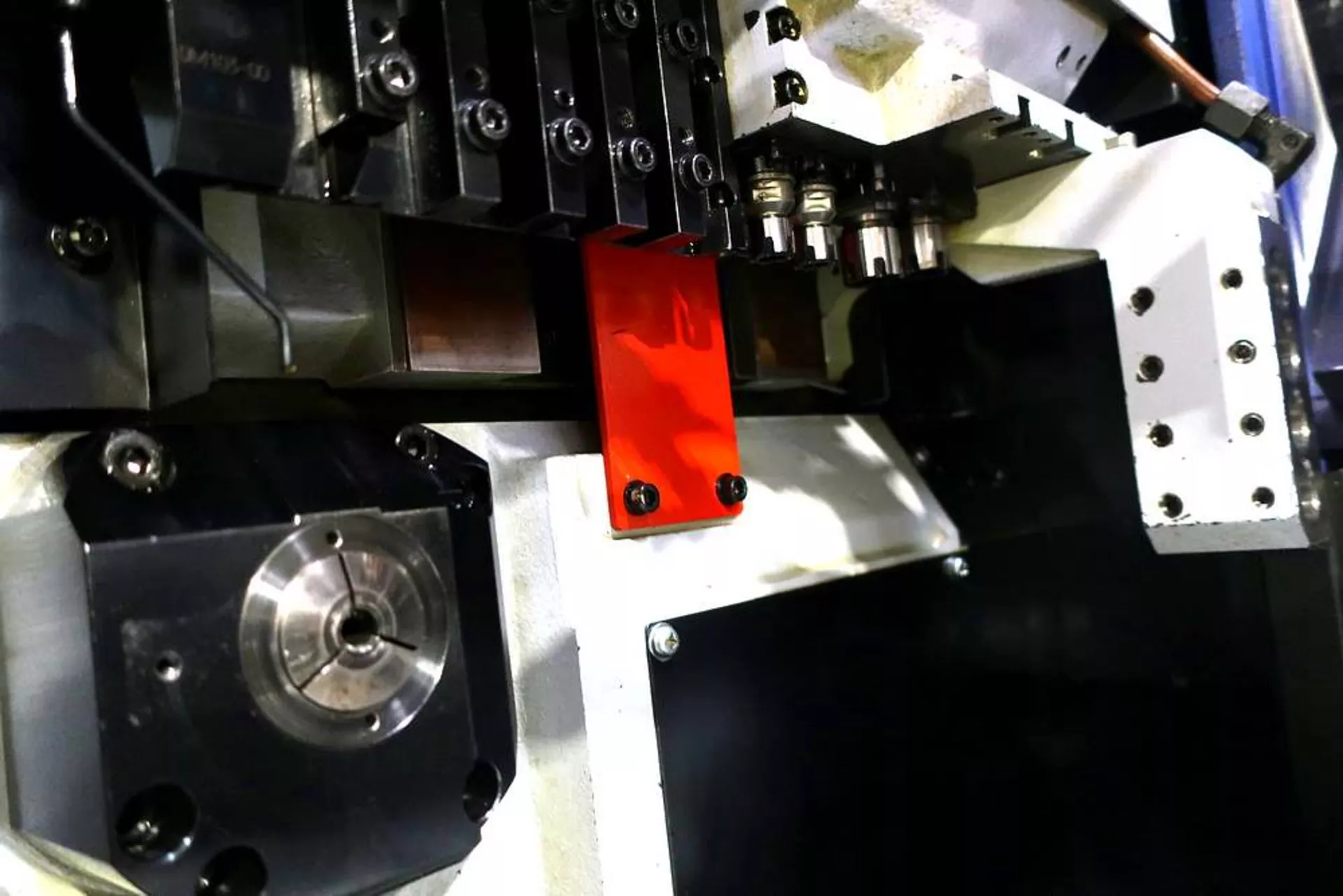

| TOOLING: |
|---|
| 6 Turning Tools (12 mm Square) |
| 4 Drill Sleeve Holders (ER16) |
| 2 Fixed High-Speed ER11 Live Tool Stations |
| 3 Modular Live Tool Stations |
| Maximum Live Tool Speed: 10,000 RPM (ER11) |
| Maximum Live Tool Speed: 6,000 RPM (ER16) |

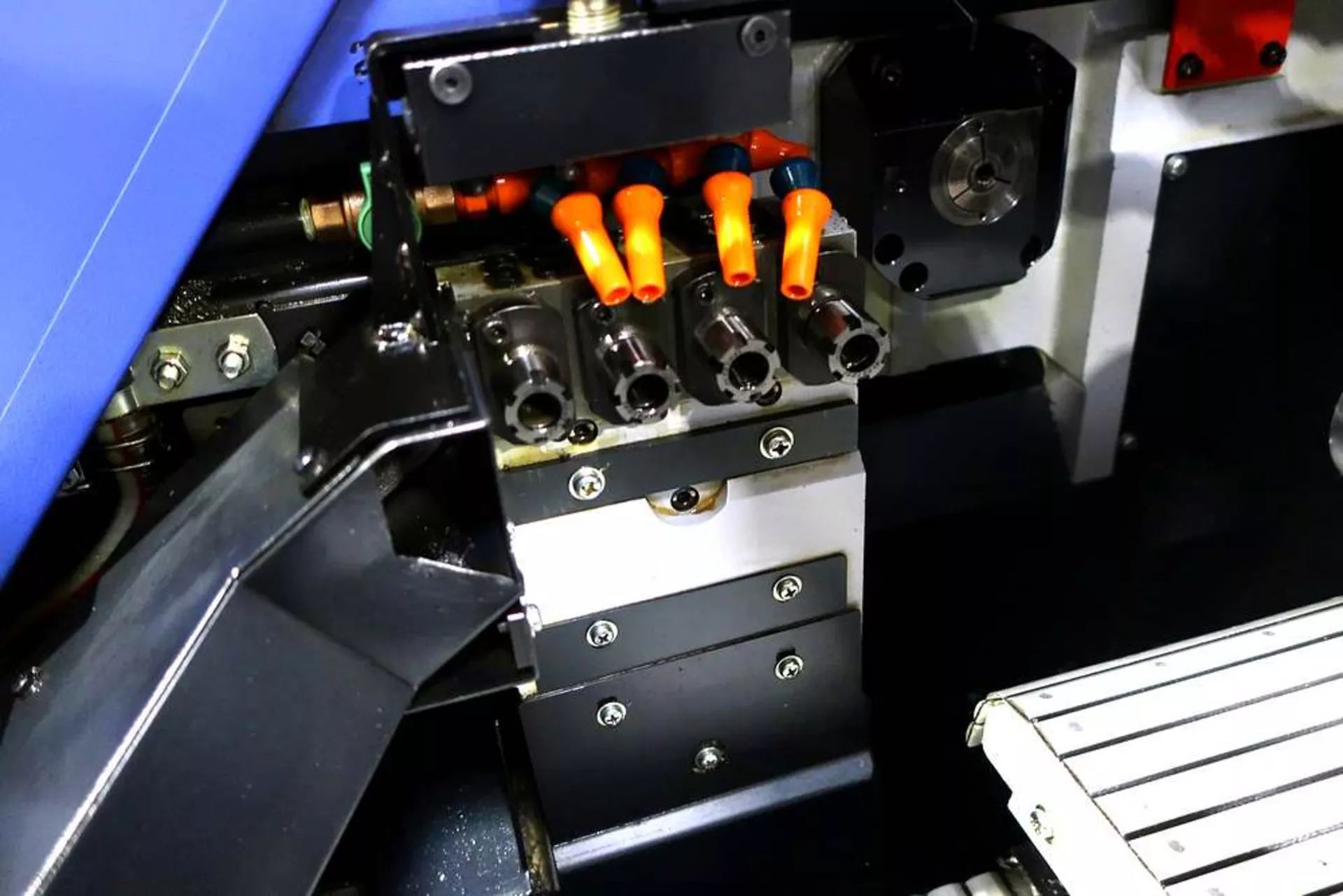

| 4 Back Working Live Tool Stations |
| Maximum Back Working Tool Speed: 8,000 RPM |
| GENERAL: |
|---|
| Number of Axes: 7 |
| Machine Weight: 1,750 kg (Approx.) |

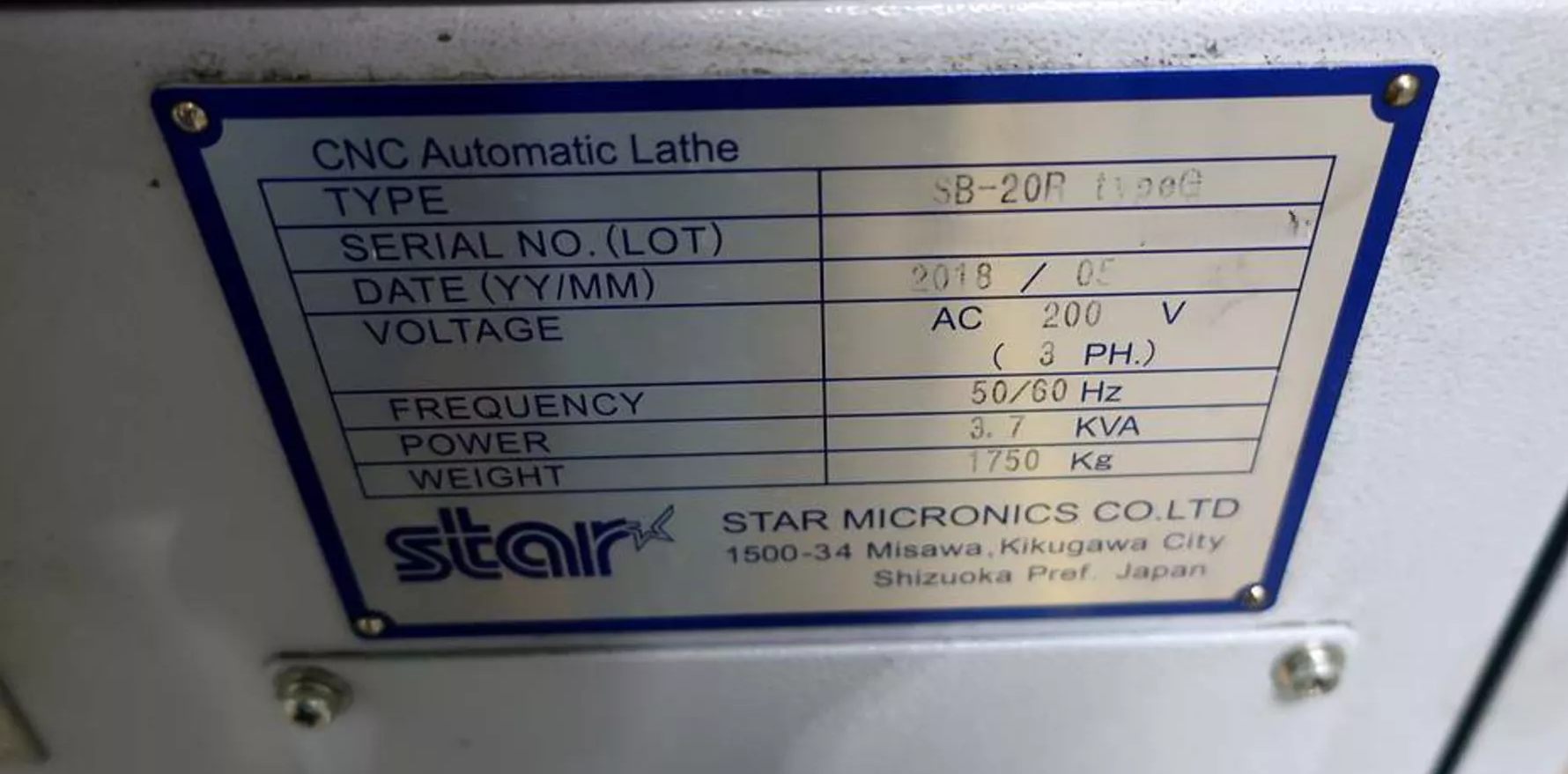

| Power Requirement: 200V / 3 Phase / 3.7 kVA |
| Cutting Time: 3,859 Hours |
