*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

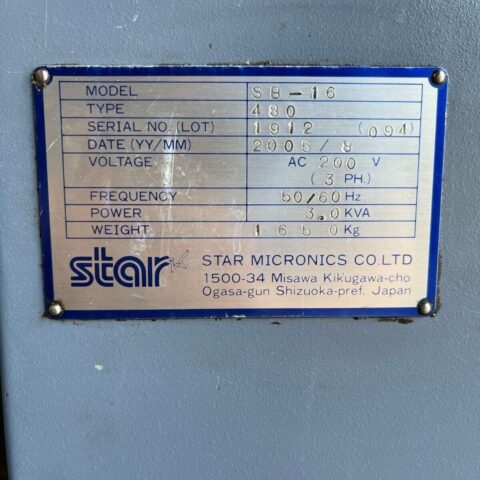

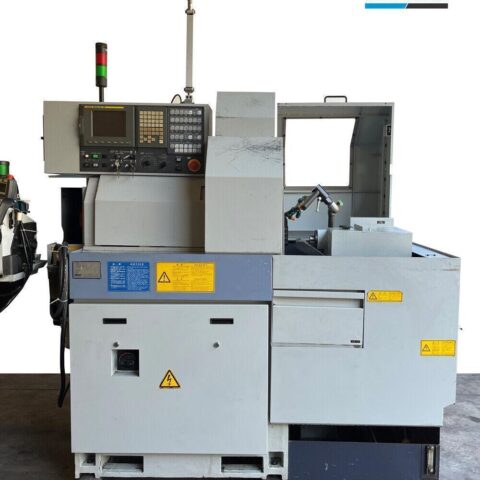

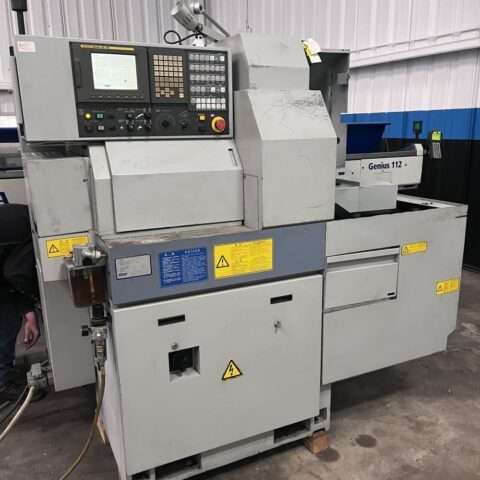

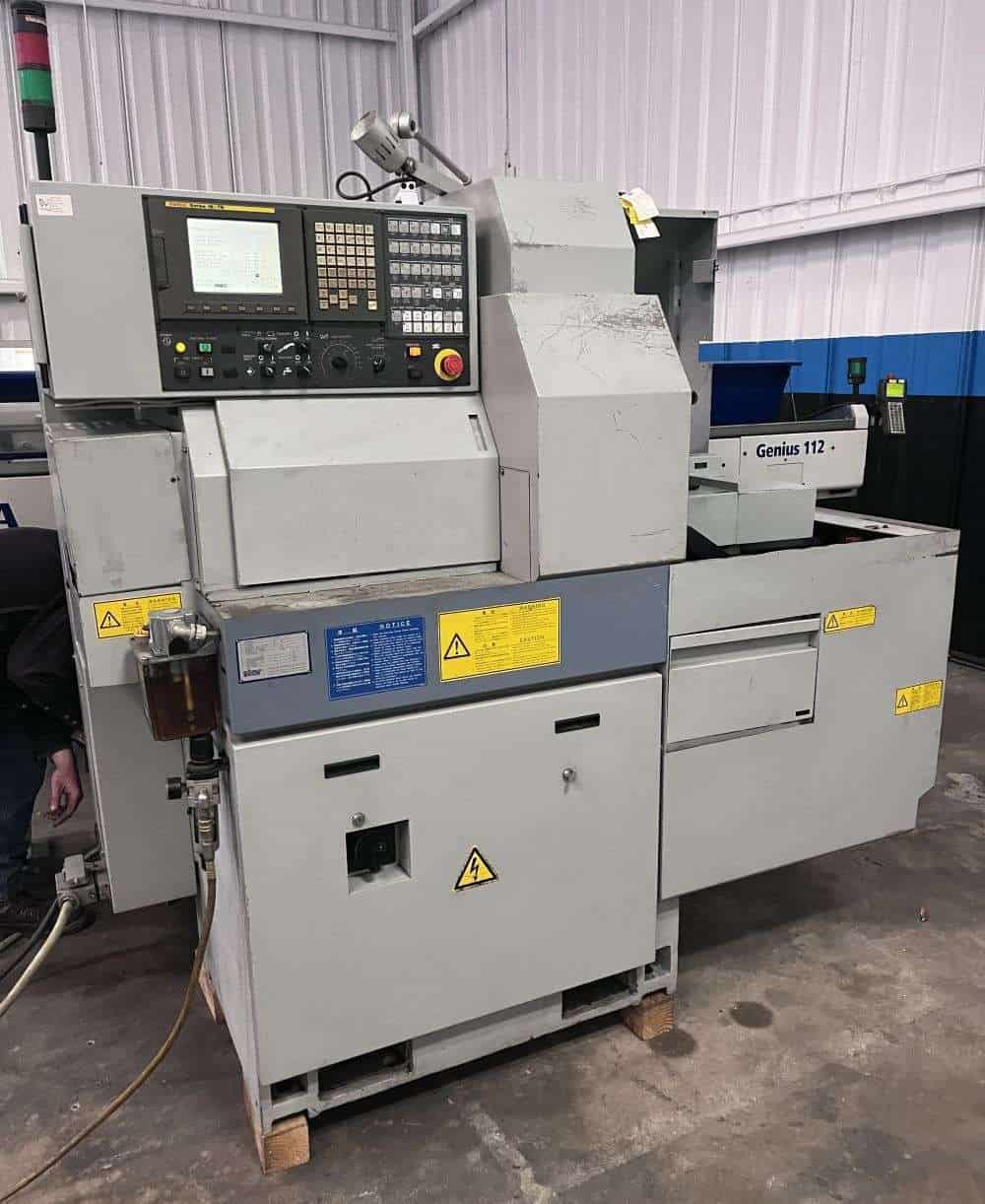

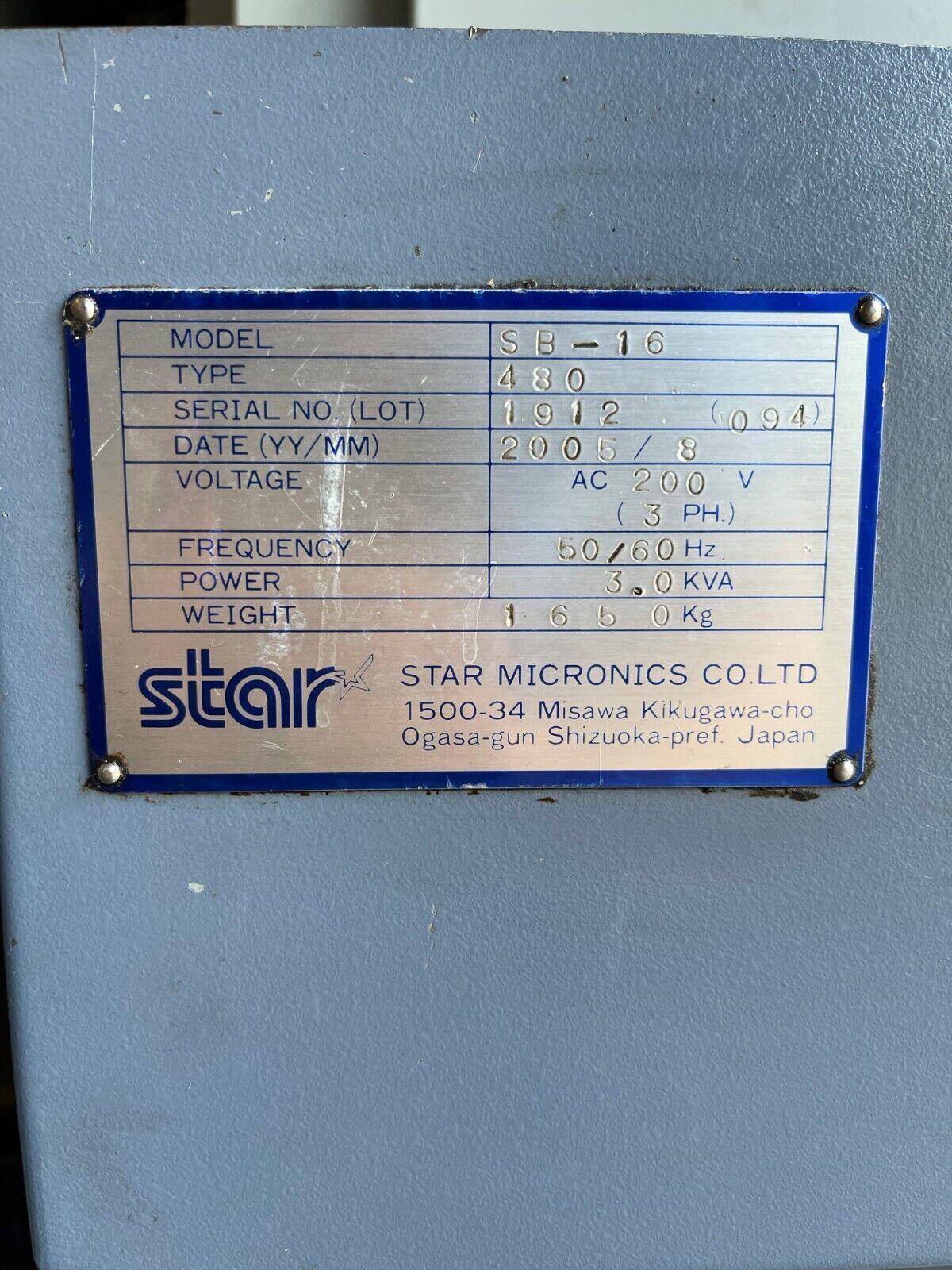

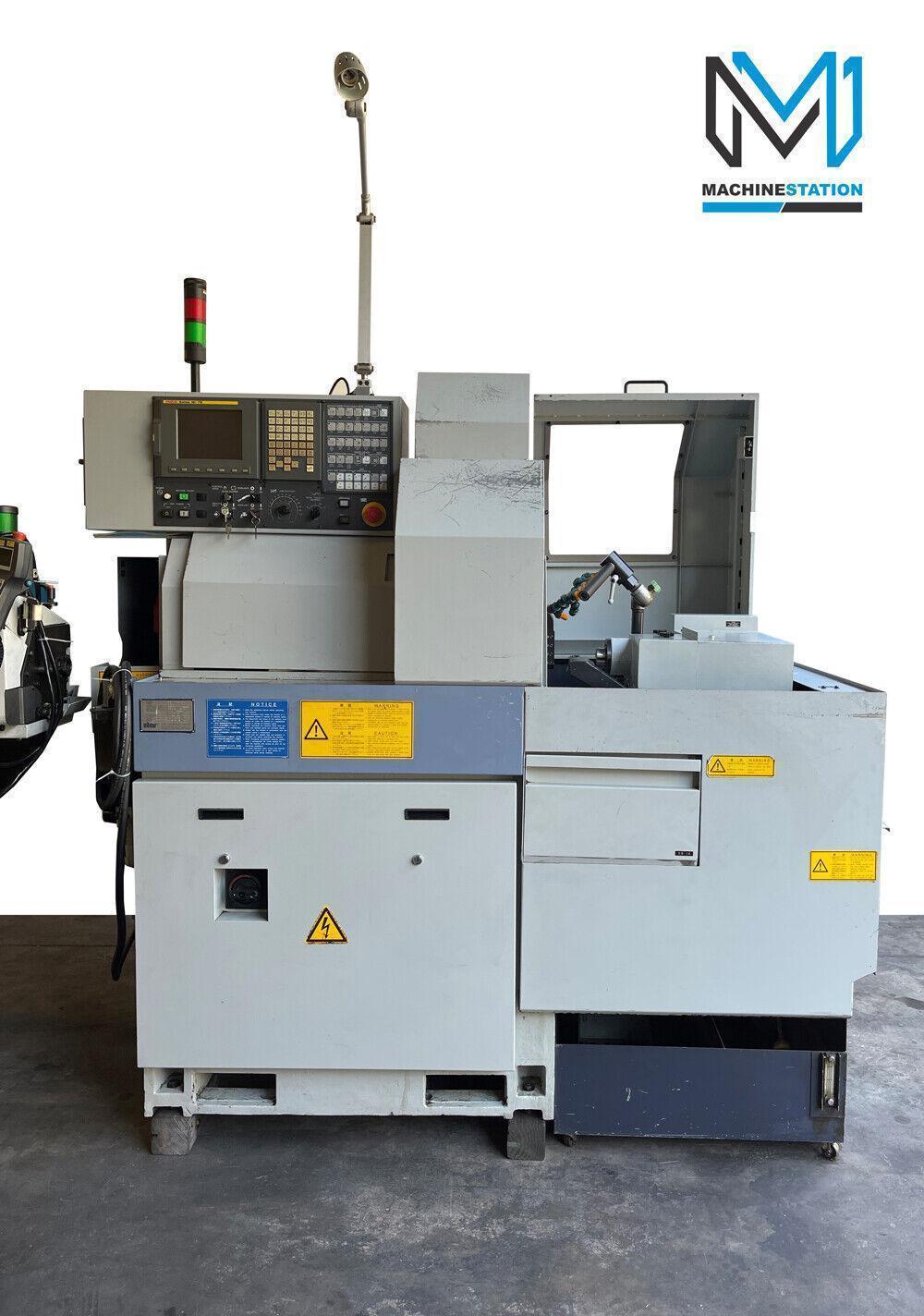

| Make: | STAR |

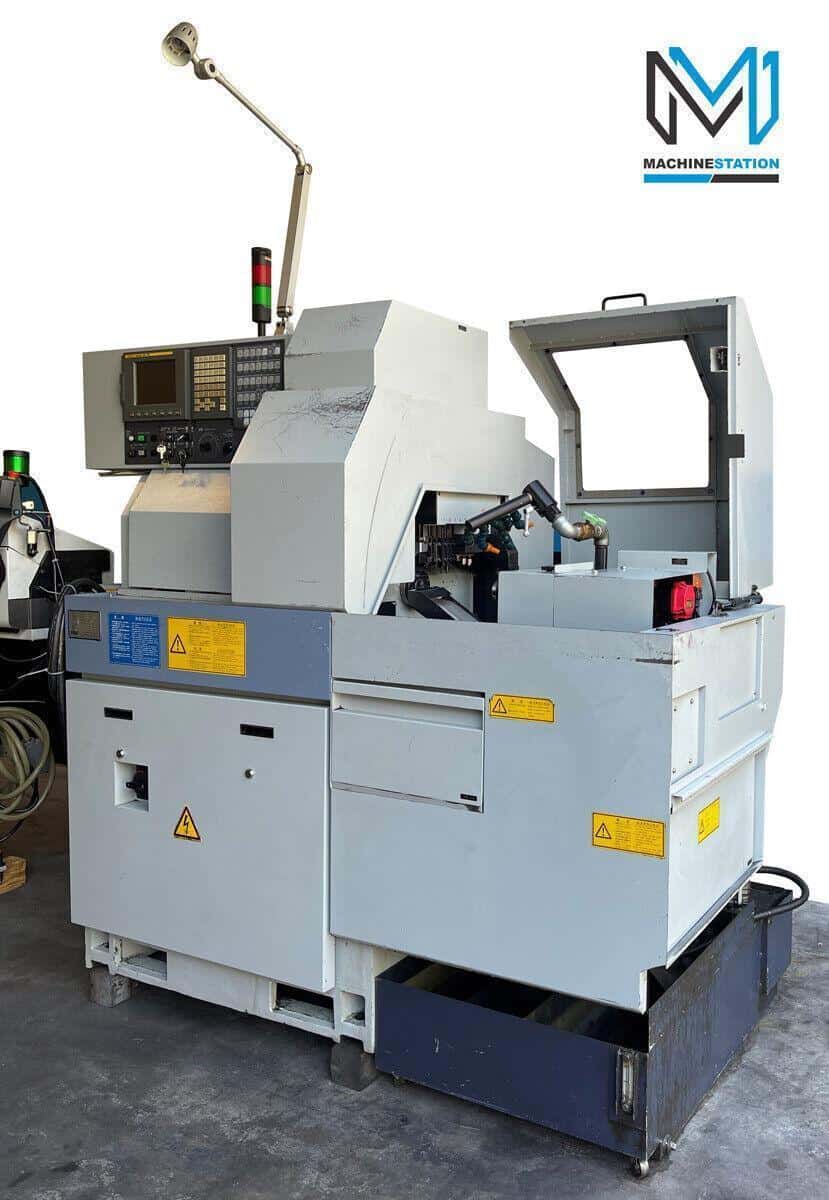

| Model: | SB-16 |
| Year: | 2005 |
| Condition: | Used – Good |
| Equipped With: |
|---|

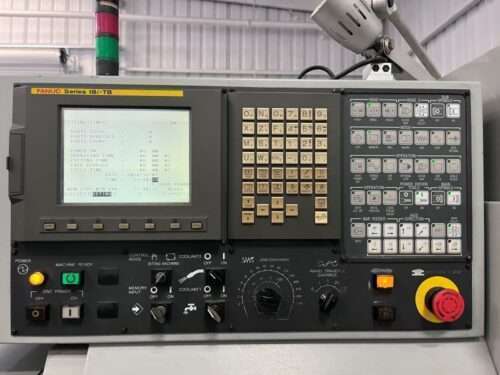

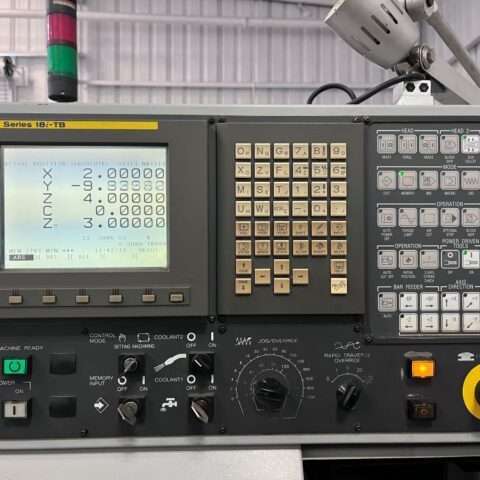

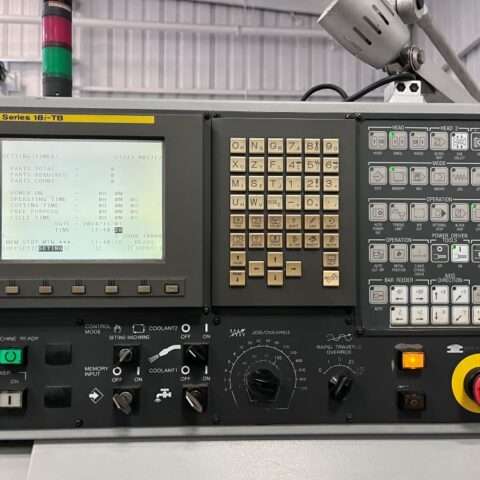

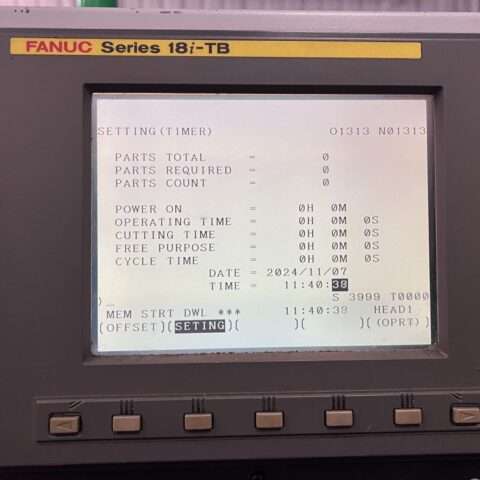

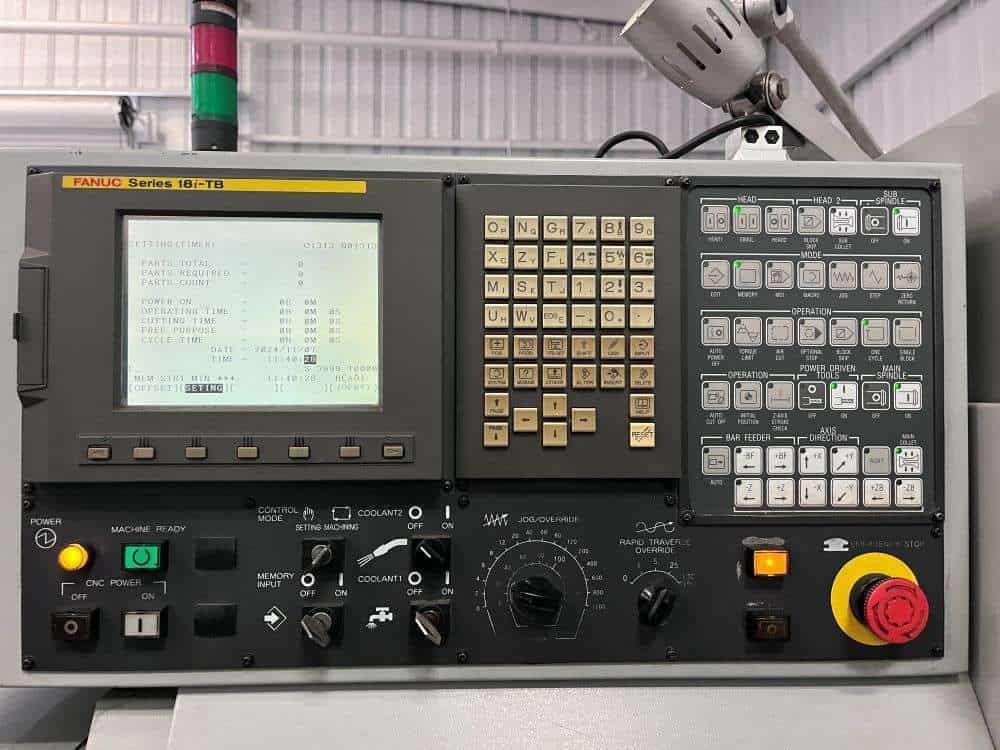

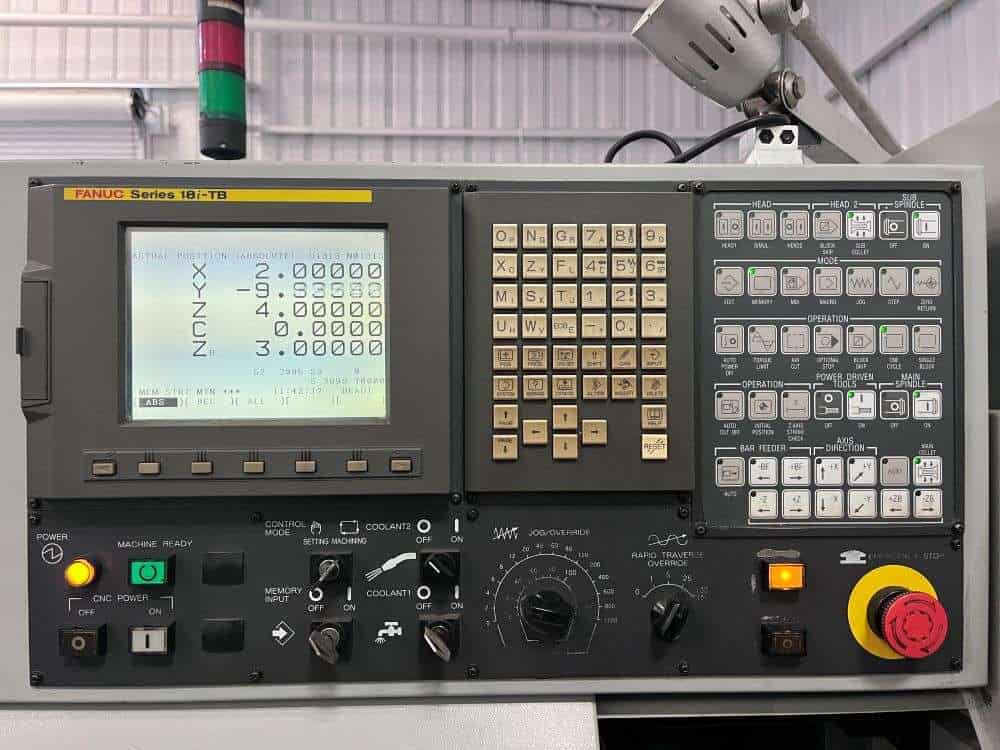

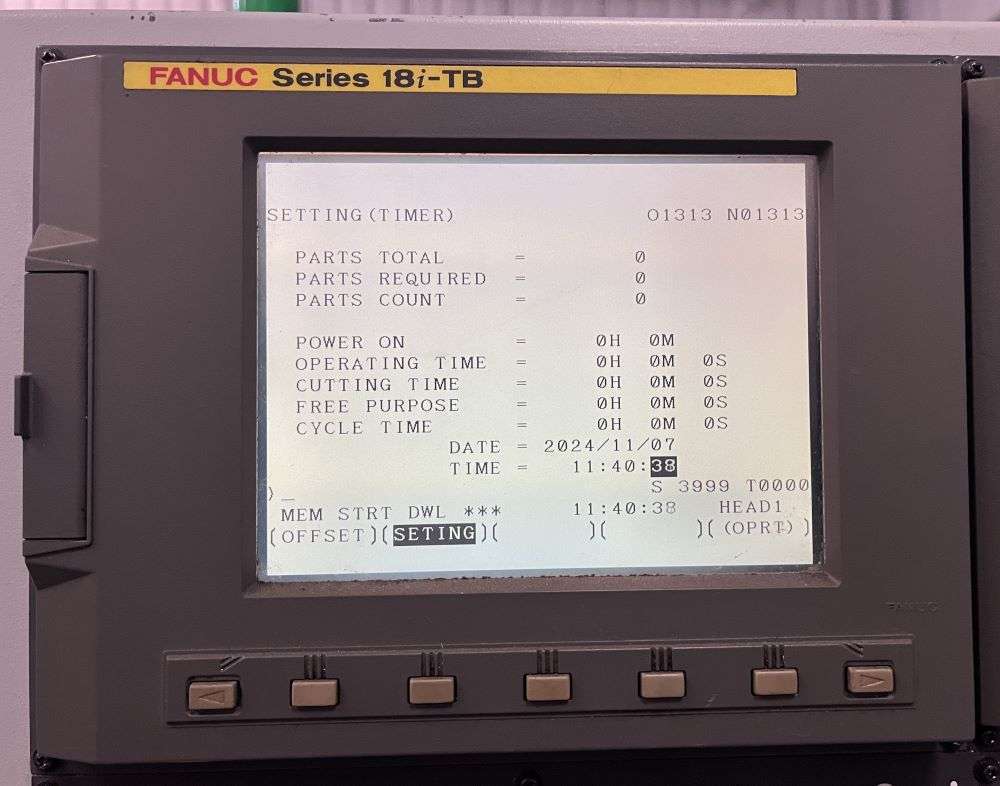

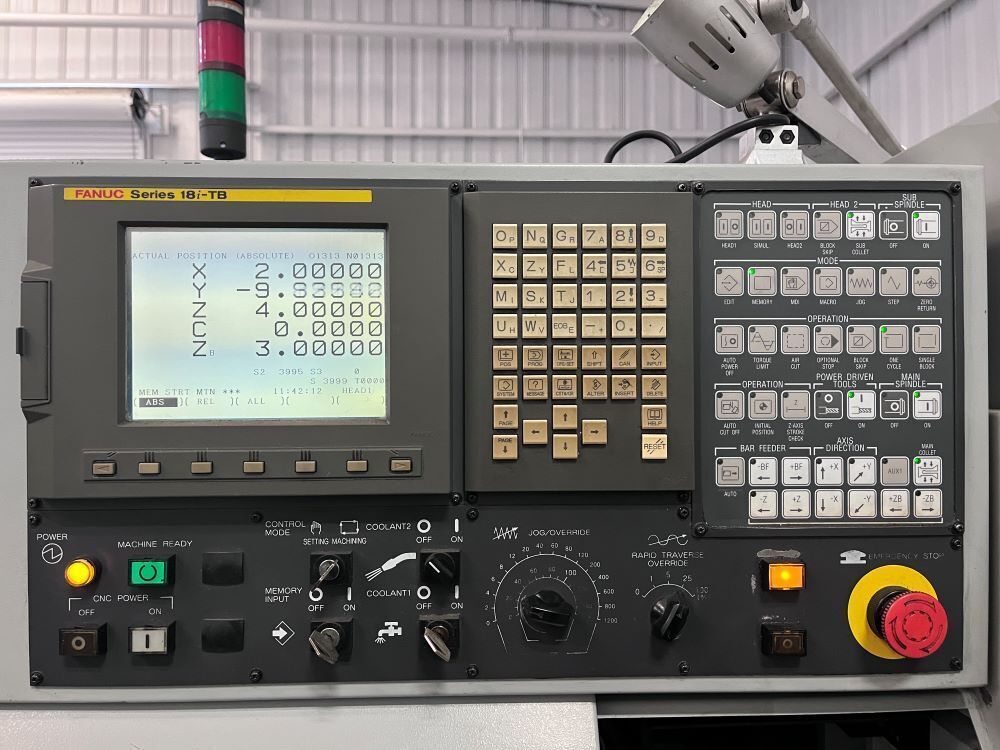

| Fanuc 18i-TB CNC Control |

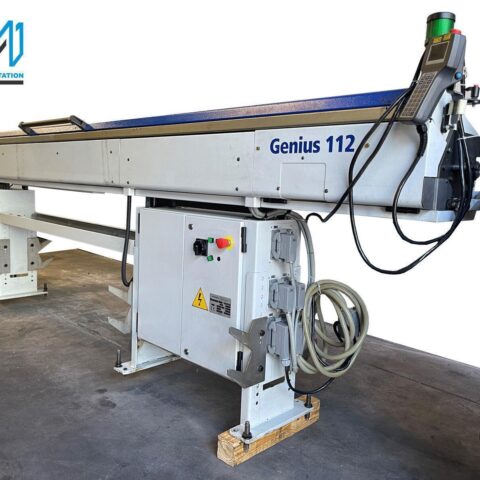

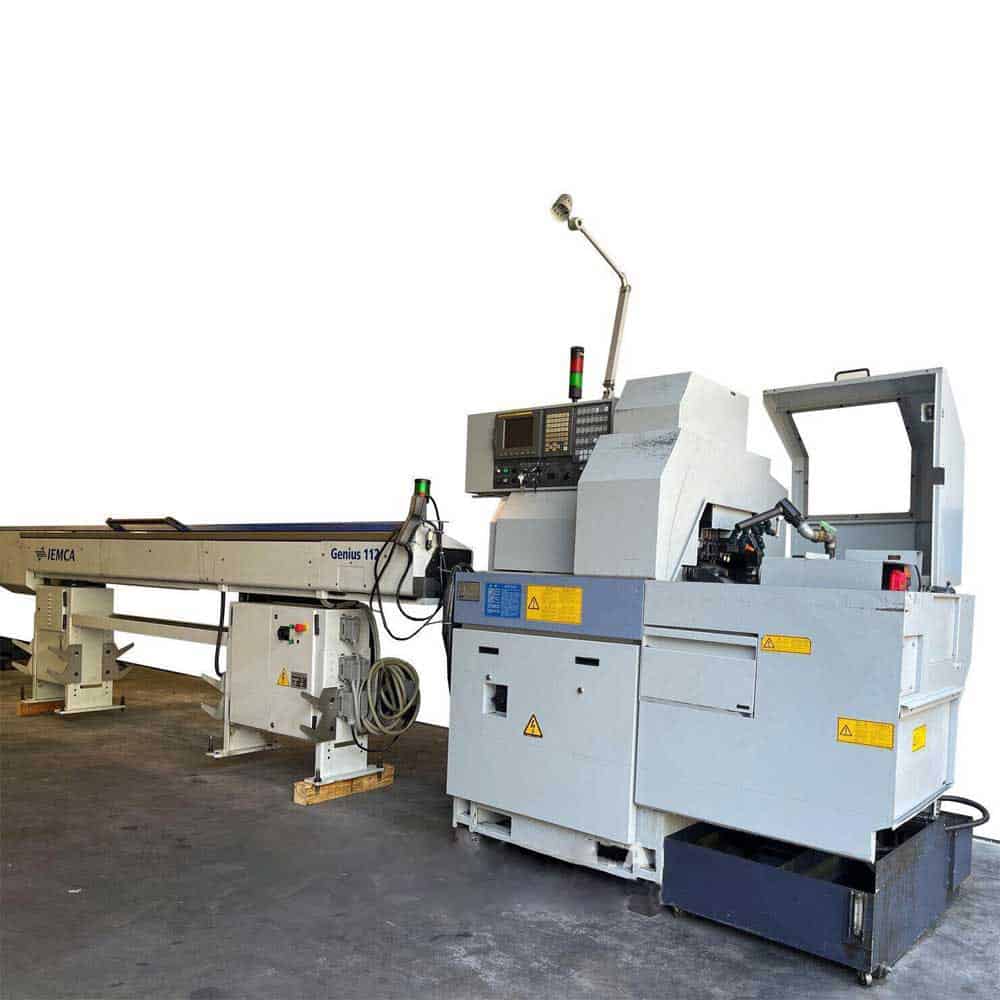

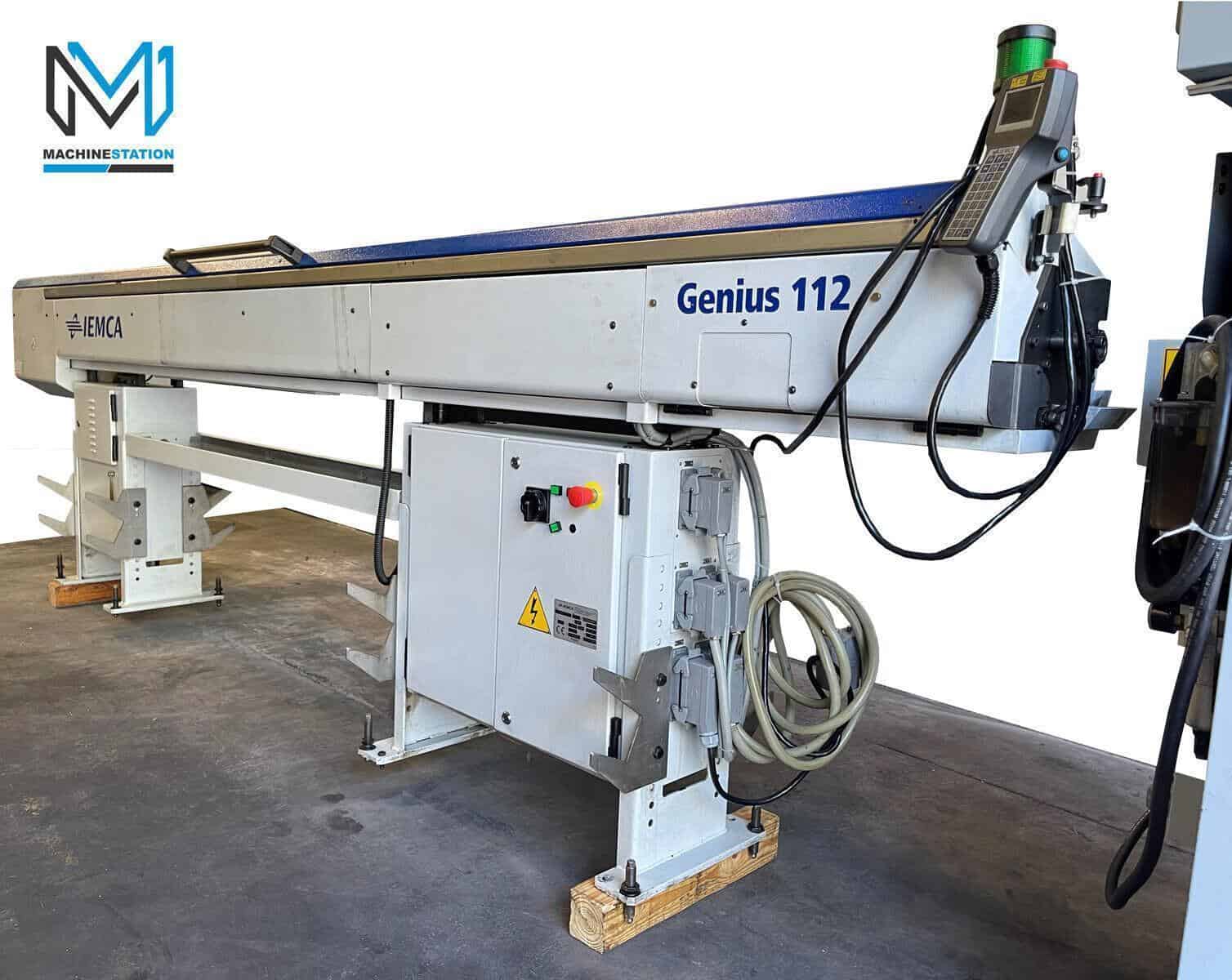

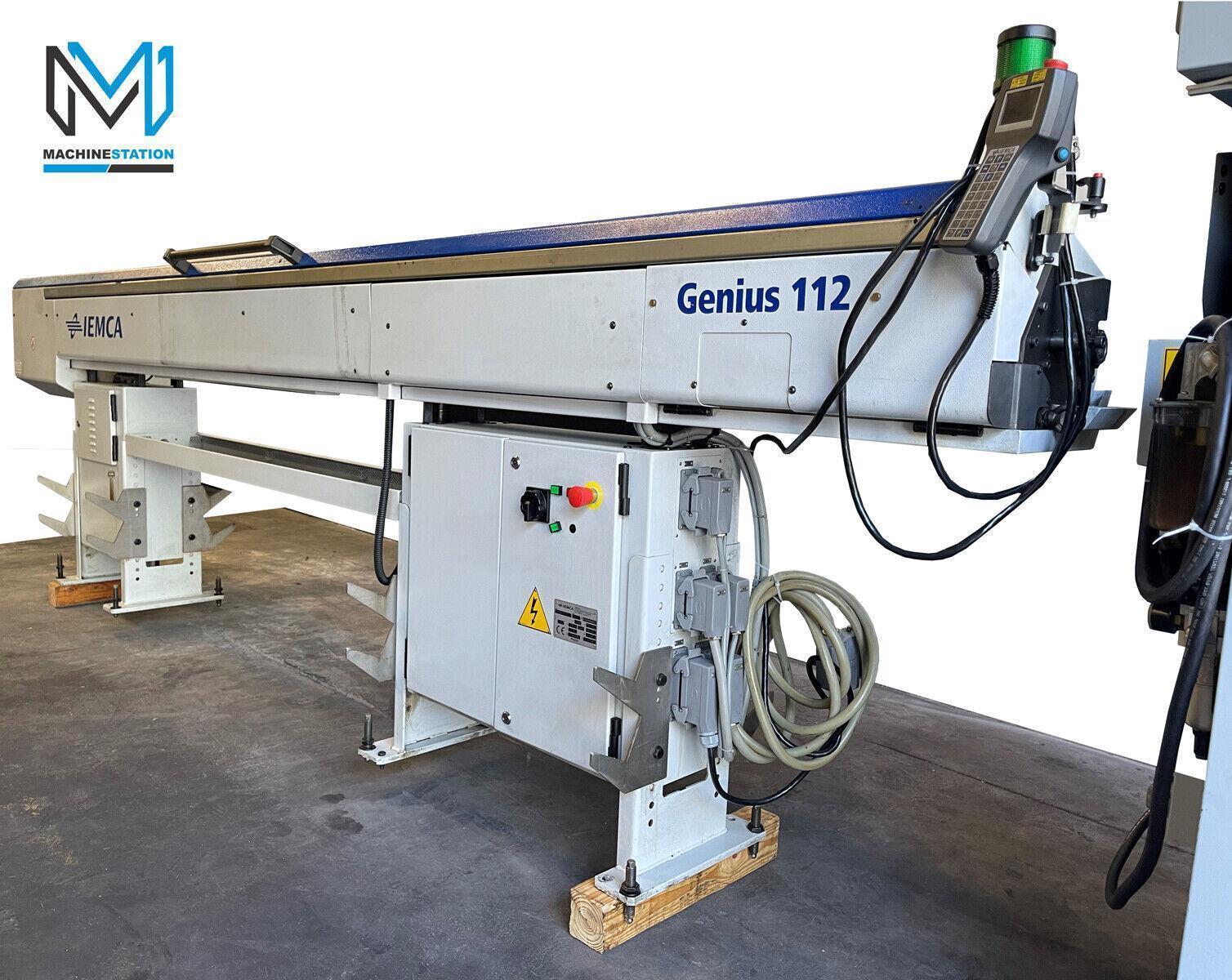

| Comes with IEMCA Genius 112 Bar Feeder |
| Full C Axis and Live Tools Capable |
| Long Parts Capable |
| Main & Back Spindle Synchronization |
| High Speed Rapid Travers: 741 IPM |
| High Speed Program Processing |
| Absolute Position Detection |
| Automatic Lubrication System |
| Coolant System |

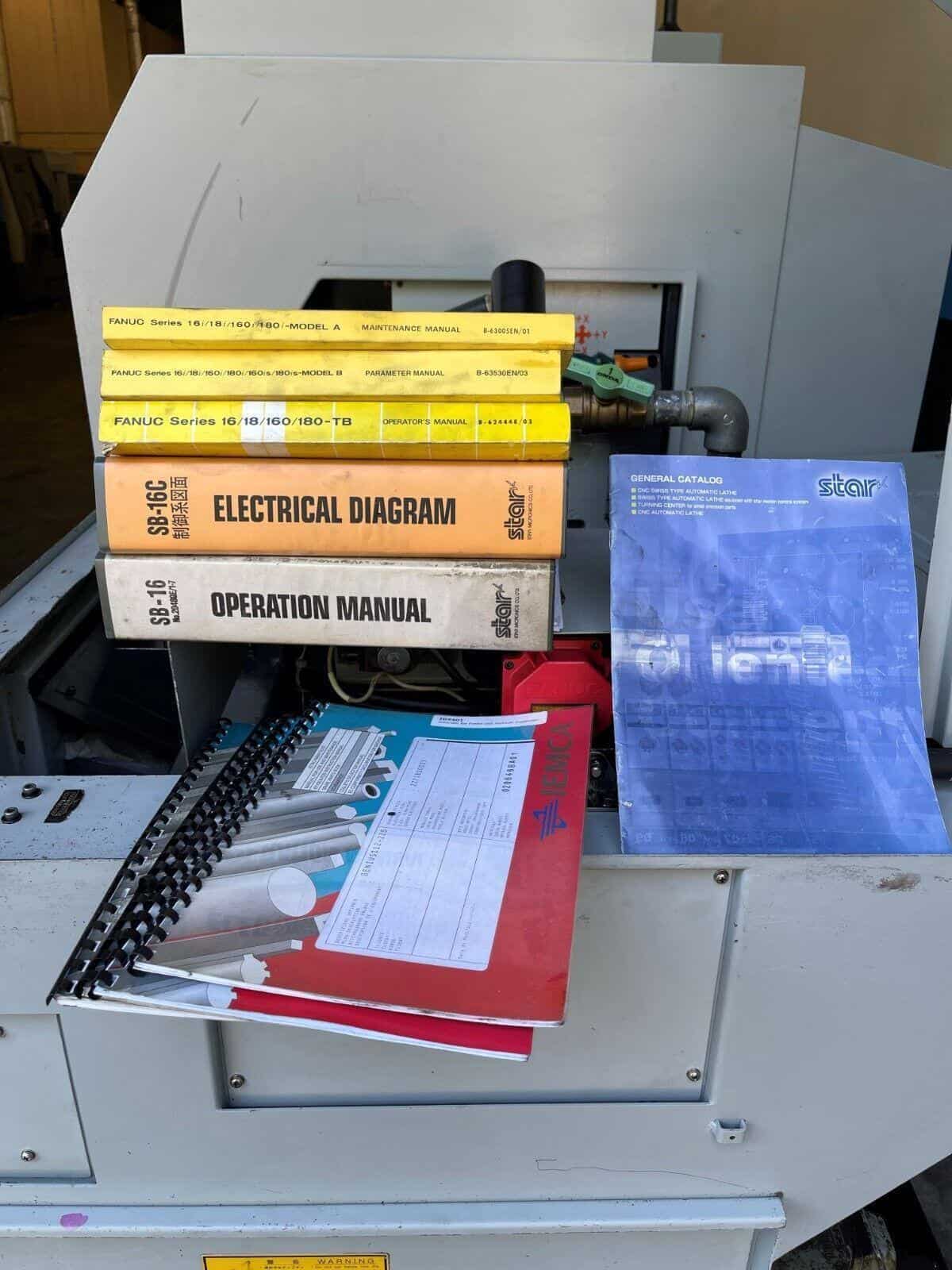

| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 5/12″ (16 mm) |
| Max Turning Length: 8″ (205 mm) |
| Max Turning Length with Gripping Unit: 6.3/19″ (155 mm) |
| Max Bar Capacity: 5/12″ (16 mm) |
| Tool Capacity: 12 |
| Spindle: |
|---|
| Main Spindle Index: 0.01 Degree (C-axis control) |
| Main Spindle Bore: 5/12″ (16 mm) |
| Main Spindle Speed: 10,000 RPM |
| Back Spindle Motor: 3.7 kw |
| Back Spindle Index: 1 Degree |
| Back Spindle Speed: 8,000 RPM |
| Back Spindle Motor: 1 kw |

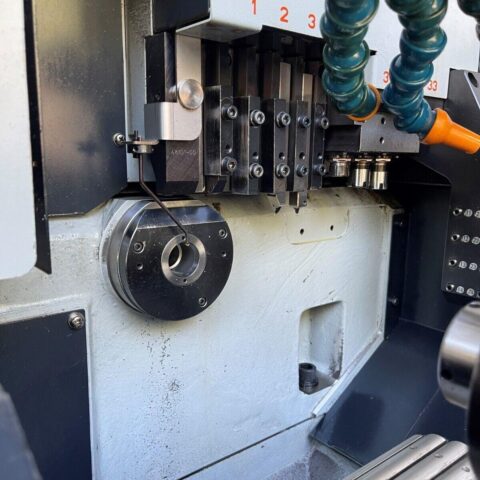

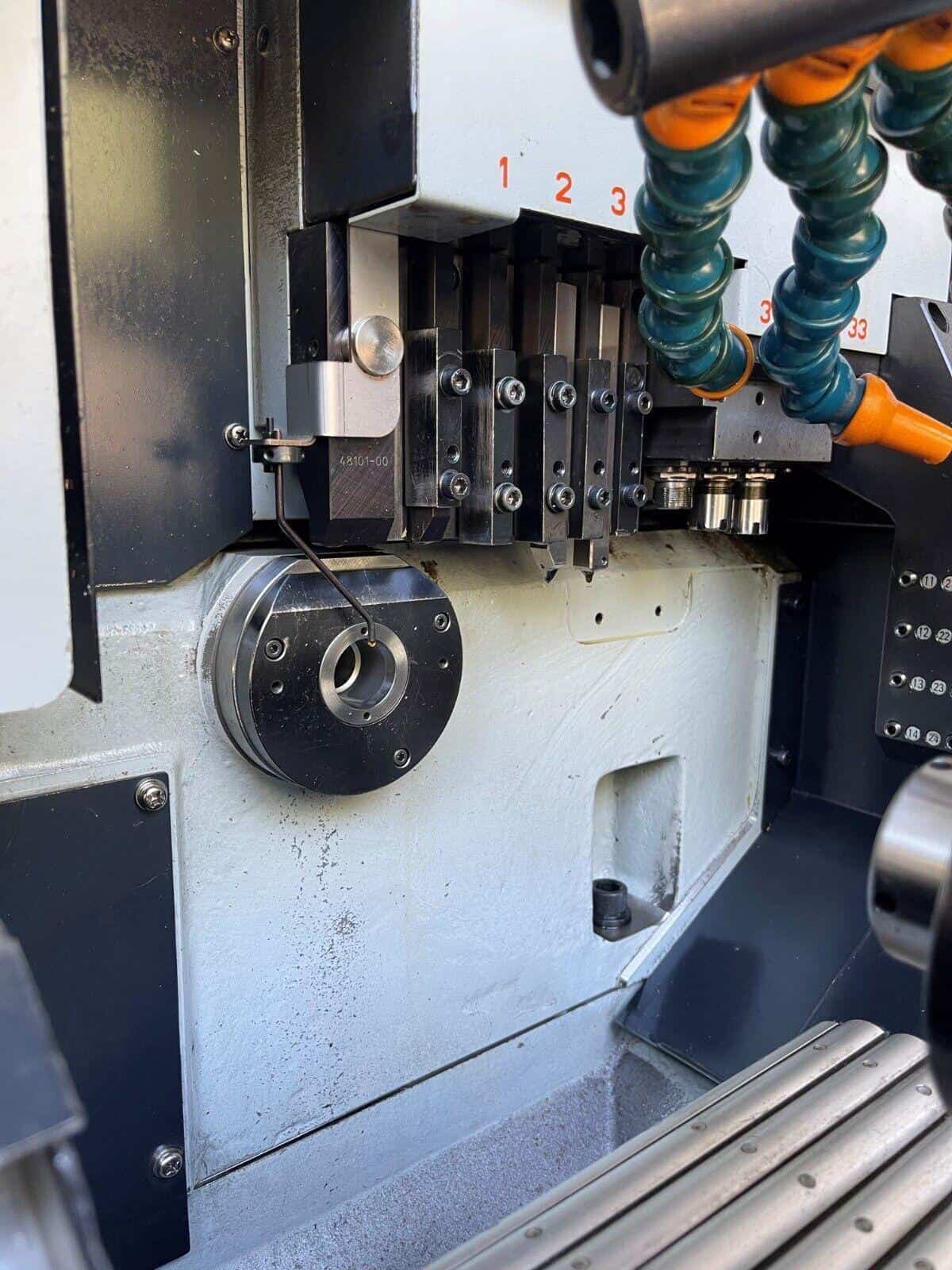

| Standard Tools: |
|---|
| Turning Tools: 5 |
| Stationary Tools: 8 |
| Max Drilling Capability: 25/64″ (10mm) |
| Max Tapping Capability: M8 x P1.25 |
| Die Cutting Capability: M8 X P1.25 |
| Power Driven Tools Attachment: |
|---|
| Power Driven Tools: 3 |
| Max Front Drilling: 15/64″ (6 mm) |
| Max Front Tapping: M6 x P1.0 |
| Max Front Milling: 15/64″ (6 mm) |
| Driven Tool Speed: 5000 RPM |
| Driven Tool Motor: 0.4 kw |
| General: |
|---|
| Power Source: AC 220 V/ Three Phase/ 60 Hz |
| Overall Dimensions: 74″ x 42″ x 70″ High without Bar feeder |
| Weight: 3638 lbs Approx. |
