*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

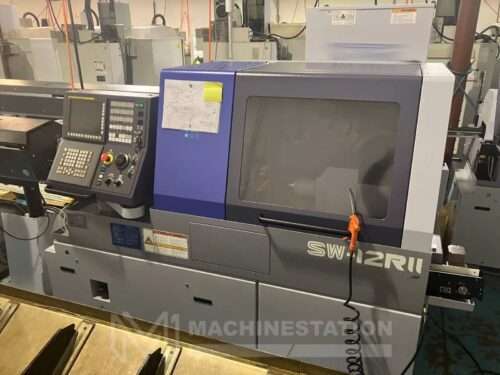

| Make: | STAR |
| Model: | SW12RII |
| Year: | 2022 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

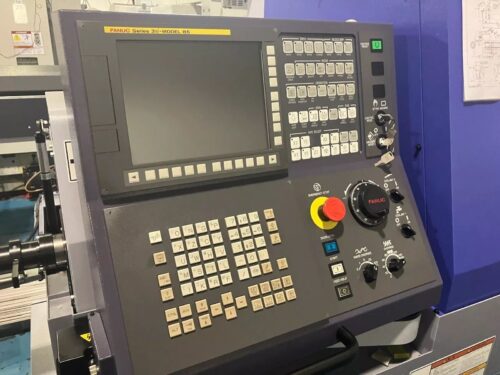

- Fanuc Series 31i Model B5 CNC Control
- Controlled Axes (Liner Axes) X1, X2, X3, Y1, Y2, Y3, Z1, Z2

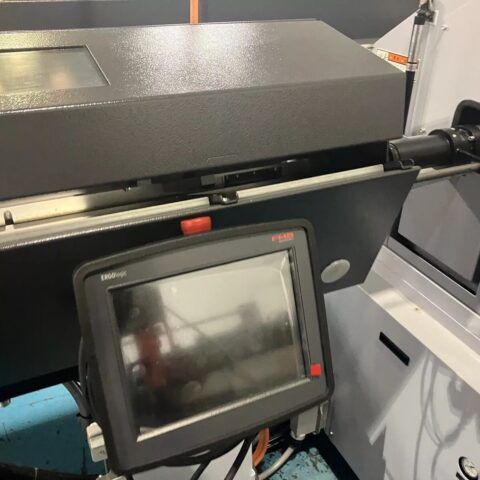

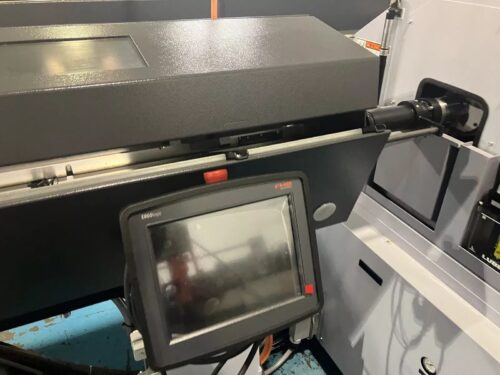

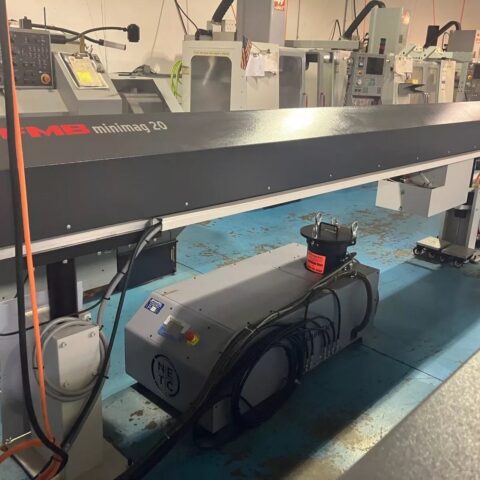

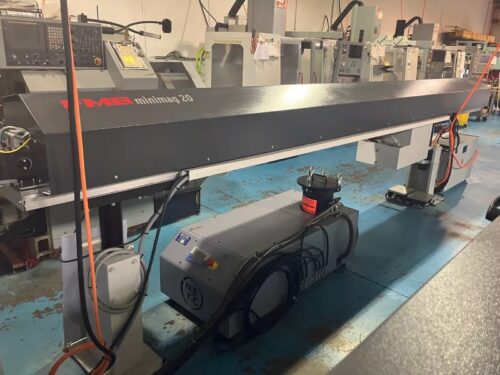

- Edge Tech FMB Mini Mag 20 12′ Bar Feeder (Upgraded $30,880 Value Included)

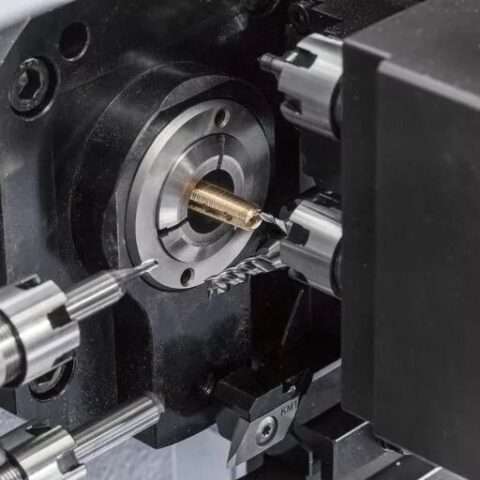

- Rotary Magic Guide Bushing (Upgraded $4,900 Value Included)
- Pneumatic Unit (Upgraded $1,200 Value Included)
- NETC Pressure Pump (Upgraded $11.900 Value Included)
- High Pressure Pump (Upgraded $1,500 Value Included)

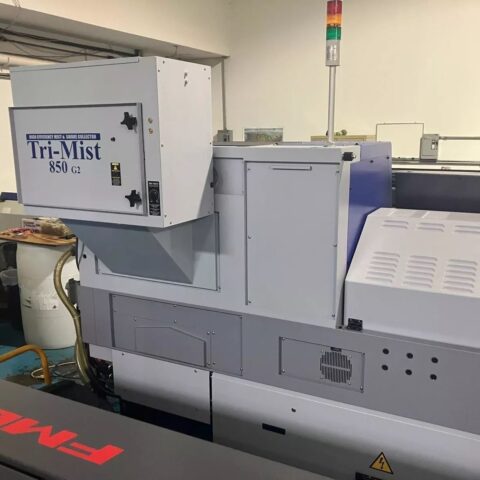

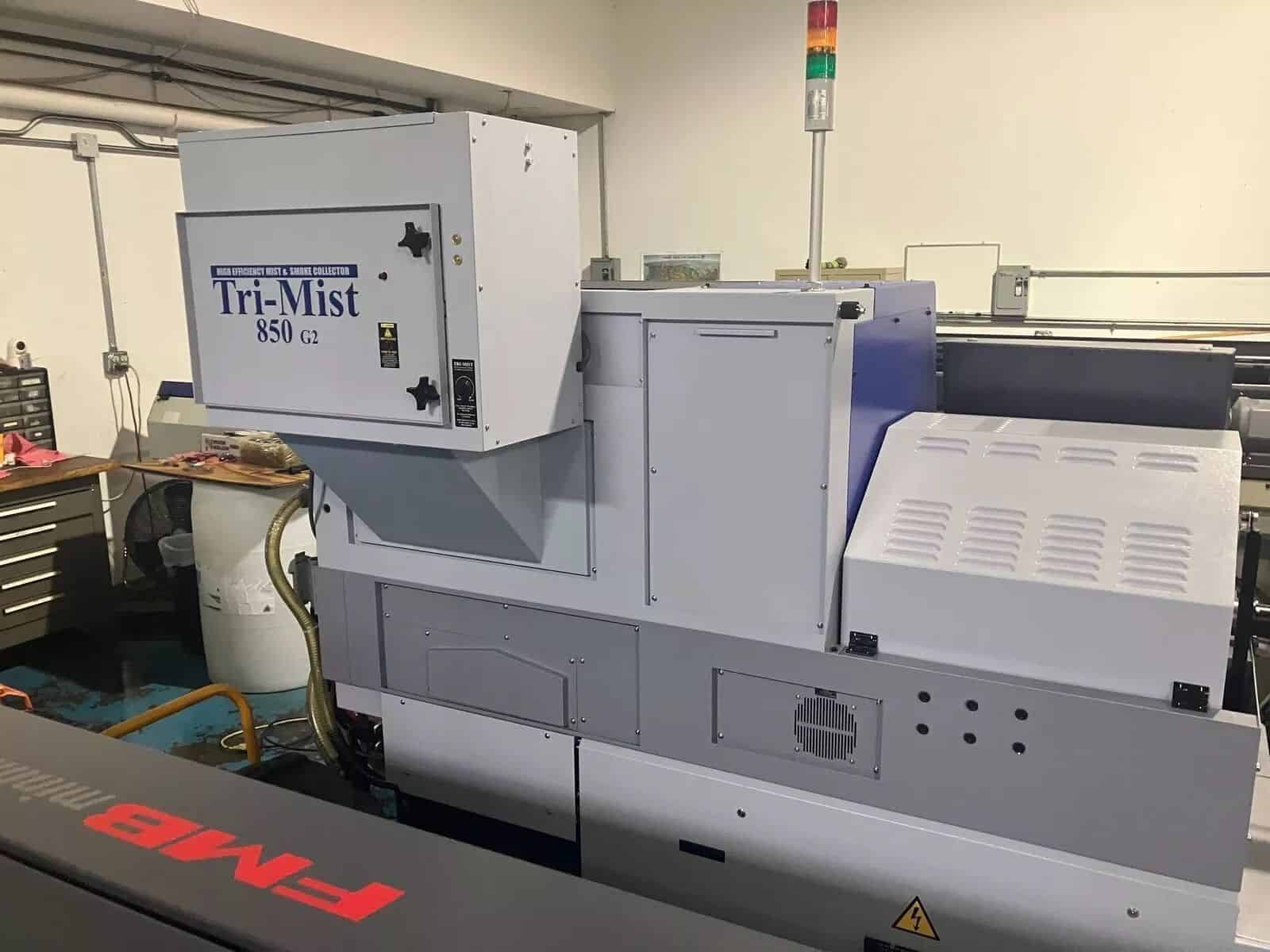

- Mist Buster Unit (Upgraded $2,900 Value Included)
- Axial Shift Device (Upgraded $2600 Value Included)
- 15000 RPM Man & Back Spindle
- Live Tools Capable
- Long Parts Capable
- C & Y Axis Capabilities
- MPG Control
- Main & Back Spindle Synchronization
- Part Catcher
- Coolant System
|
| Capacity: |
|---|
- Max Machining Diameter: 33/64″ (13 mm)
- Max Headstock Stroke (Guide Bushing): 5-5/16″ (135 mm)
- Max Headstock Stroke (Non Guide Bushing): 1-3/16″ (30 mm)
- Max Bar Capacity: 0.472″ (12 mm)
- Max Tool Positions: 28
- FRONT Turning tool + Power-driven tool
- REAR Turning tool + 4-spindle sleeve holder + Power-driven tool
- Max. Drilling Capacity: 5/16″ (8 mm)
- Max. Tapping Capacity: M8 x P1.25
- Max. Chucking Diameter: 33/64″ (13 mm)
- Max. Length For Front Ejection: 3-5/32″ (80 mm)
- Max. Parts Projection Length: 25/32″ (20 mm)
|
| Main Spindle – Frontworking Attachment: |
|---|
- Main Spindle Indexing: 360° (Full C-Axis)
- Main Spindle Speed: 15000 RPM
- Main Spindle Motor: 3.7 kw
- Tools:
- Number of Tools Front : 5
- Number of Tools Rear: 2
- Tool Shank: 5 (10mm)
- 4-Spindle Sleeve Holder:
- Number of Tools Front: 4
- Number of Tools Rear: 4
- Max Drilling Capacity: 5/16″ (8 mm)
- Max Tapping Capacity: M8 x P1.25
- Power Driven Tools Attachment:
- Number of Tools Front: 3
- Number of Tools Rear: 3
- Max Drilling Capacity: 3/16″ (5 mm)
- Max Tapping Capacity: M4 x P0.7
- Max Speed: 12000 RPM
- Power: 1.2 kw
|

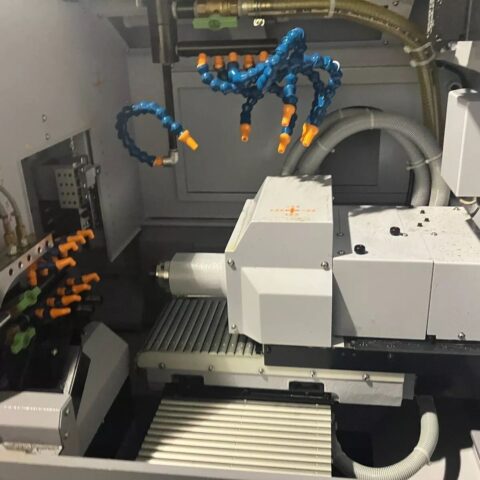

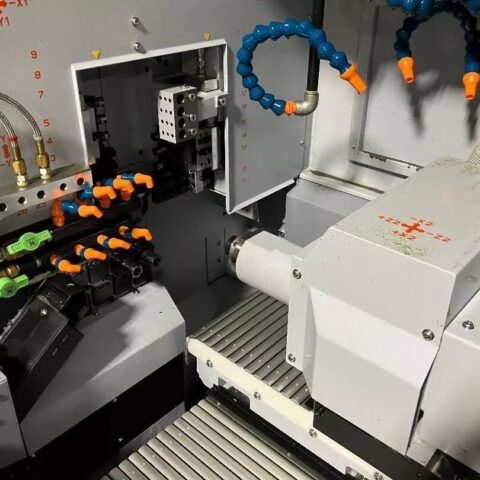

| Sub Spindle – Backworking Attachment: |
|---|
- Sub Spindle Indexing: 360° (Full C-Axis)
- Sub Spindle Speed: 15000 RPM
- Sub Spindle Motor: 3.7 kw
- Max Chucking Diameter: 33/64″ (13 mm)
- Max. Length For Front Ejection: 3-5/32″ (80 mm)
- Max. Parts Projection Length: 25/32″ (20 mm)
- Stationery Tools:
- Number of Tools: 8
- Max Drilling Capacity: 8/16″ (8 mm)
- Max Tapping Capacity: M6 x P1.0
- Power Driven Tools Attachment:
- Number of Tools: 8
- Max Drilling Capacity: 3/16″ (5 mm)
- Max Tapping Capacity: M4 x P0.7
- Max Speed: 12000 RPM
- Power: 1.2 kw
|
| Rapid Feed Rates: |
|---|
- X2, Y1, Y3, Z1, Z2: 1378 IPM
- X1, X3, : 945 IPM
- Y2, : 590 IPM
|
| General: |
|---|
- Power Source: AC 220v / 3-Phase /60 Hz
- Power Requirement: 4.4 kva
- Overall Dimensions: 78.54″ X 36.22″ X 66.92″ High without Bar Feeder
- Weight: 4630 lbs. Approx.
|
