All specifications are approximations and are subject to verification.
| Equipped With: |
|---|

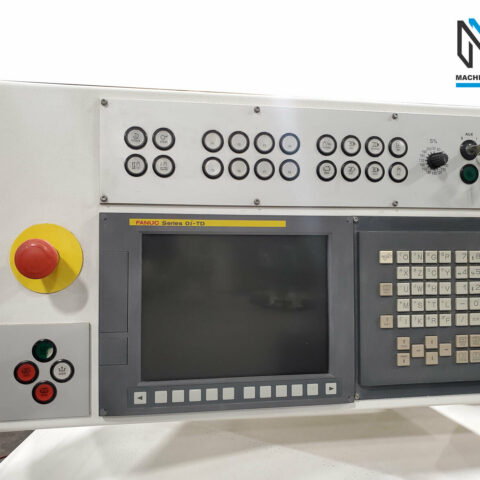

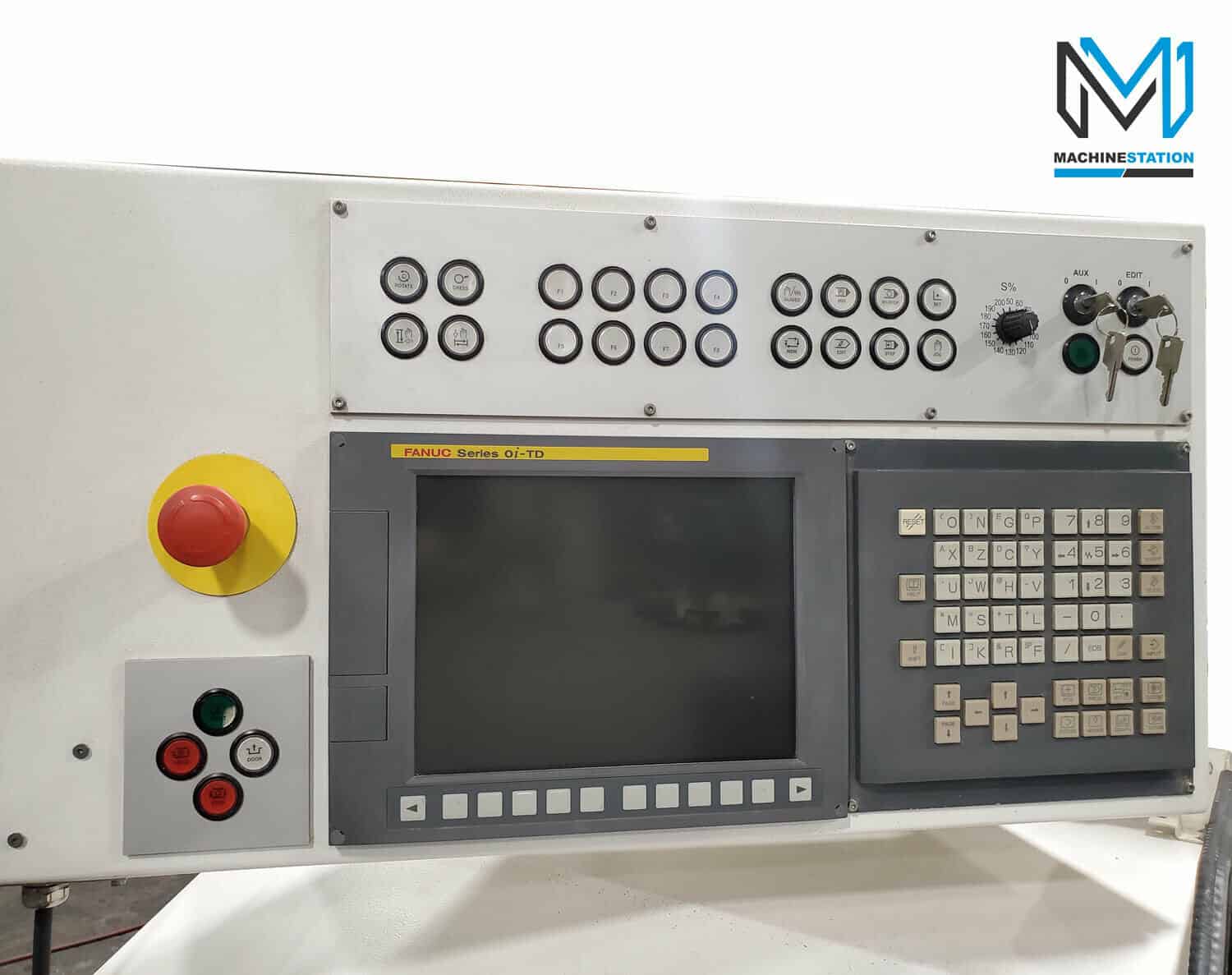

| Fanuc Oi-TD Control |
| StuderGRIND programming software |

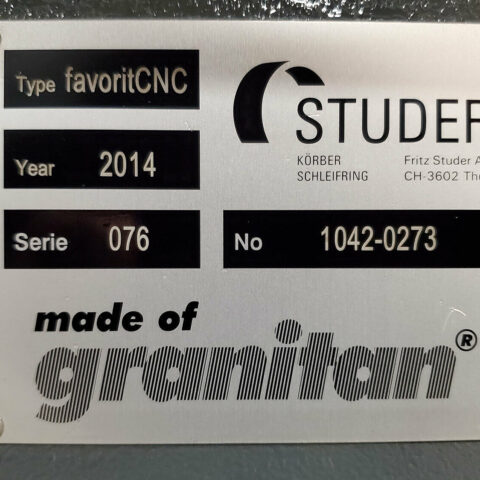

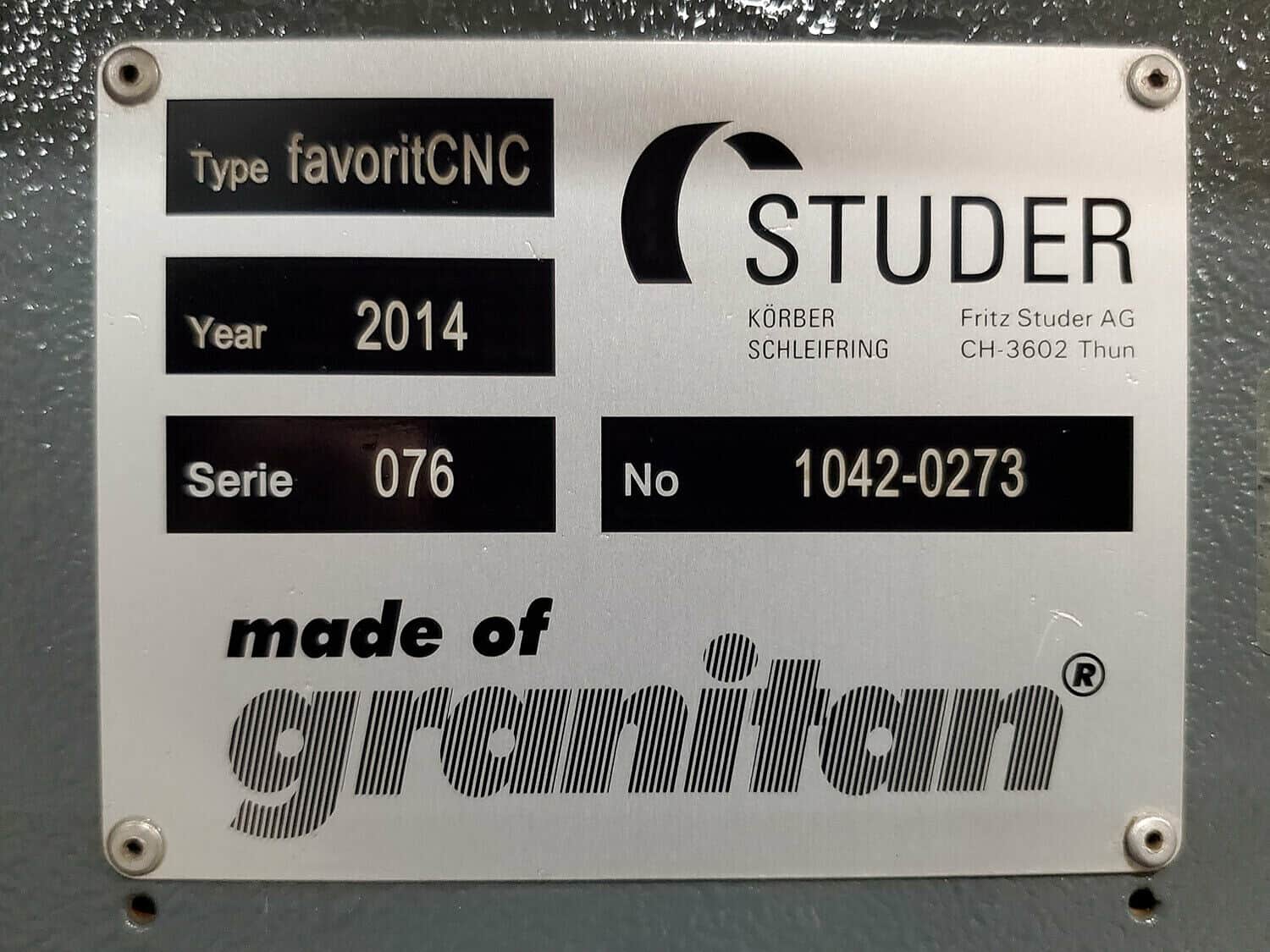

| Granitan® S103 mineral-casting |
| Absolute/Incremental Combined Programming |
| Swivelable Table |
| MPG Control |
| PCMCIA Card Port |
| 2 X Grinding Wheel Hubs ( $ 7000 Value ) |
| Inch / Metric Conversion |
| Automatic Acceleration & Deceleration |
| Automatic Lubrication system |
| CE-conform |
| Books & Manuals |
| Specifications: |
|---|
| Capacity: |
| Max Grinding Diameter: 13.75″ |
| Max Grinding Length: 25.59″ |
| Max load Capacity: 330 lbs |
| Swing Over Table: 12.59″ |
| Center Height: 6.89″ |
| Distance Between Centers: 26.0″ |
| X Axis, Infeed Travel: 11.81″ |
| Z Axis Travel: 31.49″ |
| Grinding Wheel: |
|---|
| Speed: 44 Meters Per Second |
| Wheel Size: 20″ X 3.2″ X 5″ |

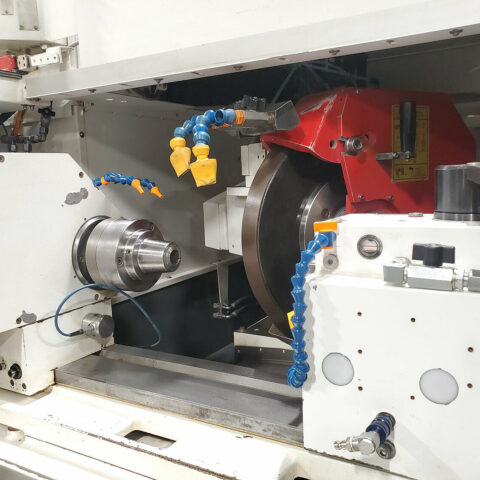

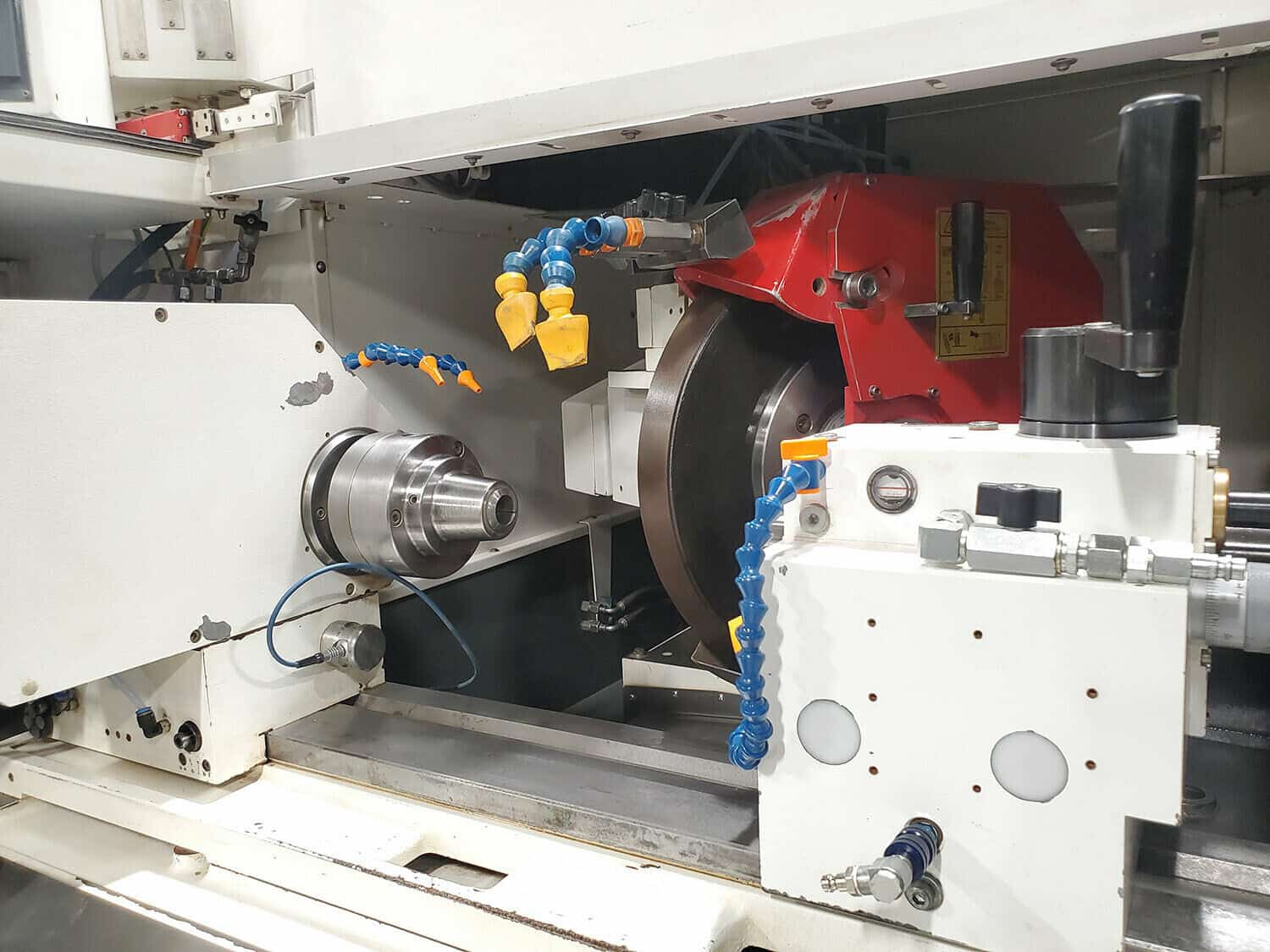

| Wheelhead: |
|---|
| Index: -15° to +195° |
| Index Accuracy: 2.5° |
| X Axis, Infeed Travel: 11.81″ |
| Rapid Feed Rate: 590″ |
| Least Travel Increment: 0.0001” |
| Rapid Feed Rate: 158″ |
| Cont. Feed Rate: 0.0001″ to 158″ |
| Motor: 12 HP |

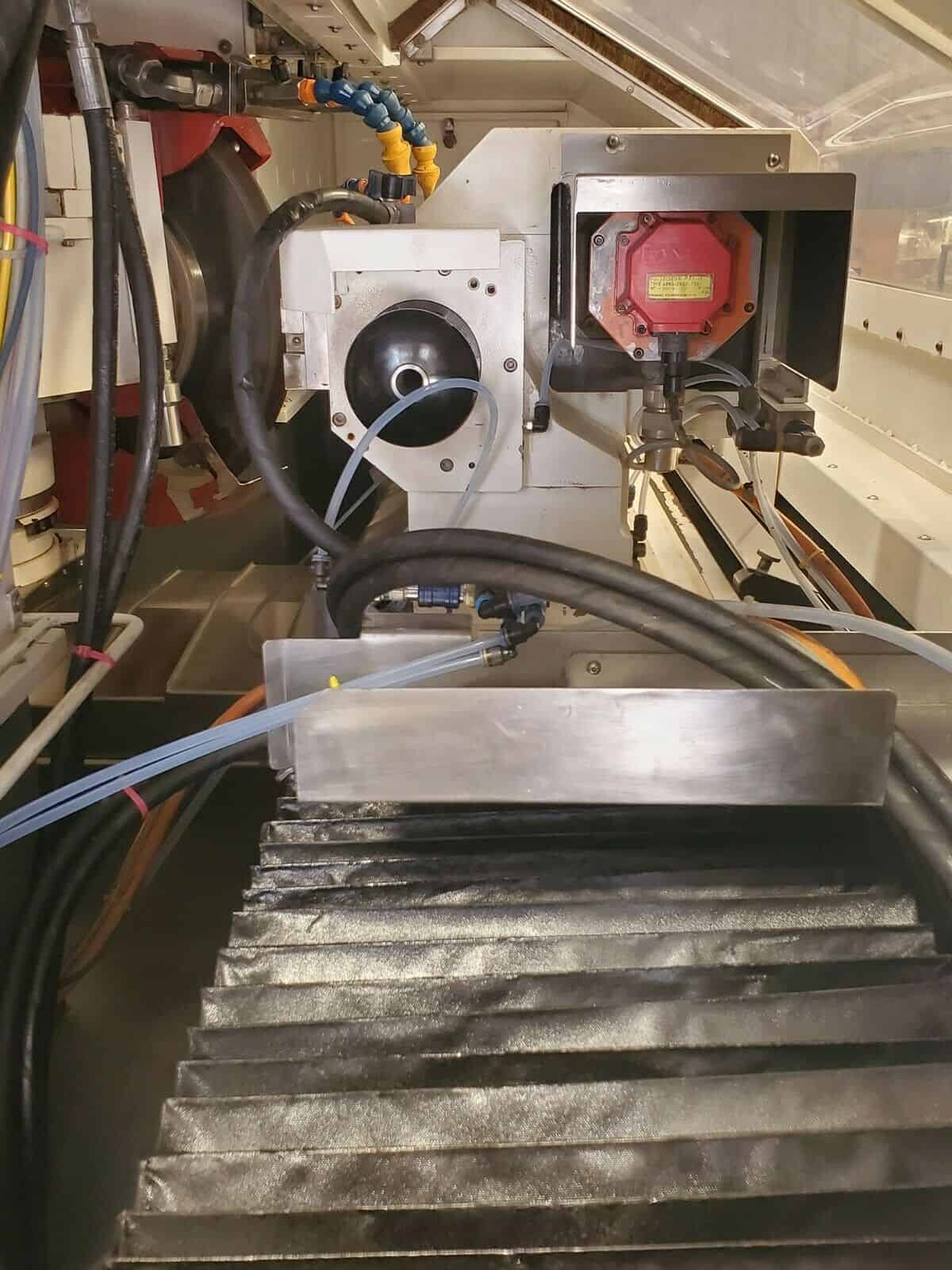

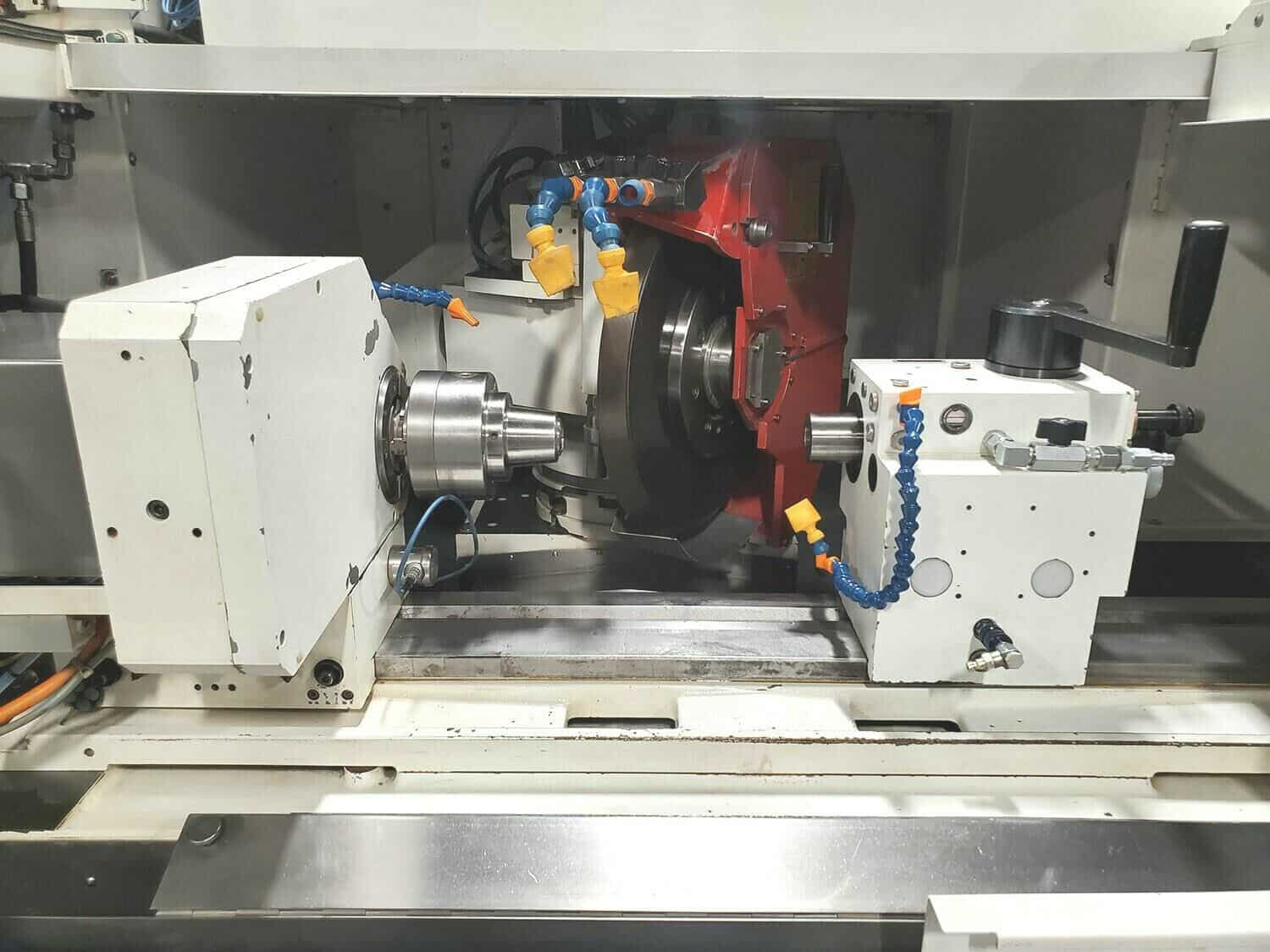

| Workhead: |
|---|
| Center Taper: MT-5 |
| Spindle Bore Dia.: 1.08″ |
| Speed: 10-1500 RPM |
| Motor: 5 HP |
| Table: |
|---|
| Z Axis Travel: 31.49″ |
| Index: 0° to 8.5° |
| Least Tavel Increment: 0.0001” |
| Rapid Feed Rate: 787″ |
| Cont. Feed Rate: 0.0001″ to 393″ |
| Tailstock: |
|---|
| Tailstock Quill Stroke: 1.18″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 400 V, Three Phase, 60 Hz |
| Power Requirement: 20 kva |
| Overall Dimensions: 145″ x 85″ x766″ High |
| Weight : 11200 lbs Approx. |
