| Make | SUPERMAX |
| Model No. | YC-2VAS |

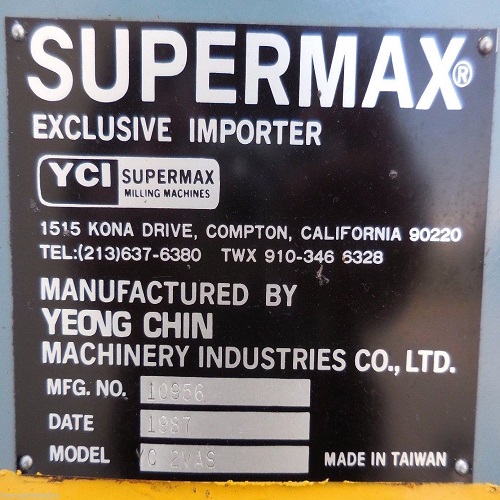

| Mfg: | 10956 |
| Condition | Very Good |
| SUPERMAX YC 2VAS Features: |
|---|

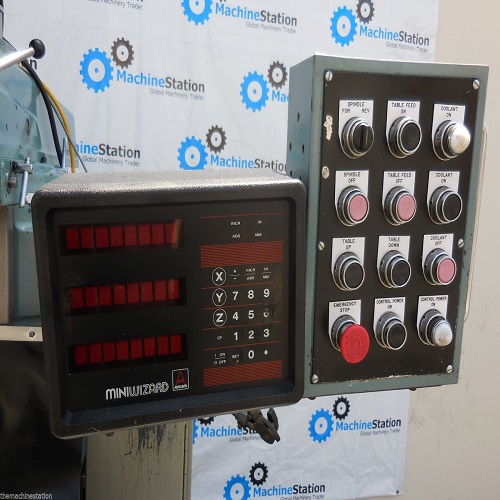

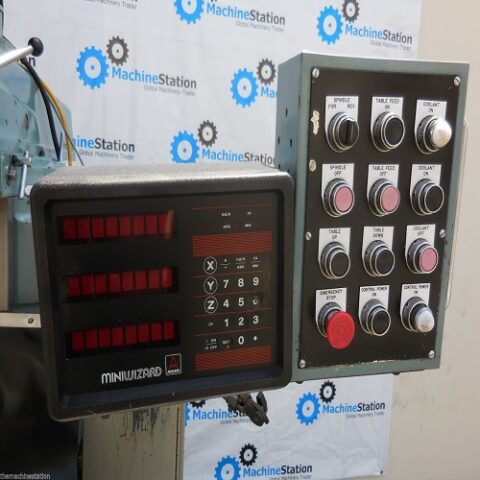

| Anilam Miniwizard Digital Readout System |
| 3-Axis Digital Readout |
| Infinitely Variable Spindle Speeds |
| SUPERMAX YC 2VAS Specifications: |
|---|

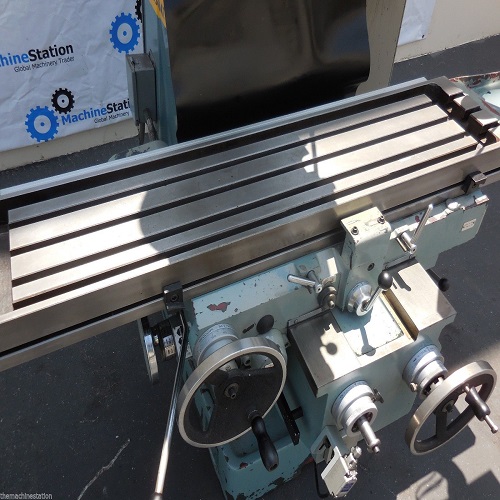

| Work Table: |
| Surface Area: 52″ x 11″ |
| T-Slots: 3 |
| Travels: |
|---|
| X-Axis Table Travel: 40″ |
| Y-Axis Table Travel: 16″ |
| Z-Axis Table Travel (knee): 18″ |
| Quill Travel: 5-1/2″ |
| Feeds: |
|---|
| Longitudinal & Cross (12): 5/8 to 28-3/4 IPM |
| Rapid Traverse Rate, Longitudinal & Cross: 118 IPM |
| Rapid Traverse Rate, Vertical: 1/3 of Longitudinal Rate |
| Spindle Nose to Table: 0″ to 22-3/4″ Max/Min Distance |
| Spindle Center to Face of Column: 27-11/16″ to 6-11/16″ Max/Min |
| Distance Ram Travel (Approx): 21-1/4″ |
| Turret Rotation: 360 Degree |
| Head Tilt Left to Right: 90 Degrees |
| Quill Diameter: 4-3/8″ |
| Power Quill Feeds (3): 0.0015, 0.003, 0.005 IPR |
| Infinitely Variable Spindle(2 Ranges): 85 to 3800 RPM |
| Spindle Nose: #40 NST |
| Equipped With: |
|---|
| Hardened and Ground Square Ways |
| Power and Longitudinal Feeds |
| Power Rapid Traverse for Longitudinal, Cross and Knee Feeds |
| Swivel Over Ram |
| Work Light |
| Pendant Control |
| Coolant System |
| Electrical Controls |
| General: |
|---|
| Weight (Approx): 4,650 lbs |

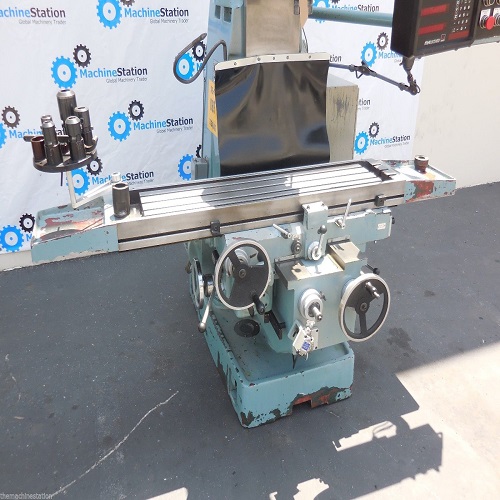

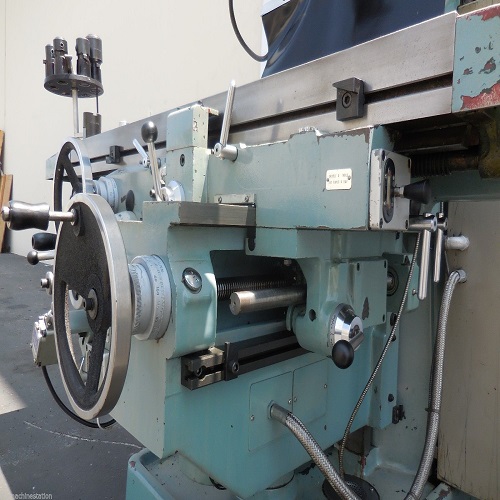

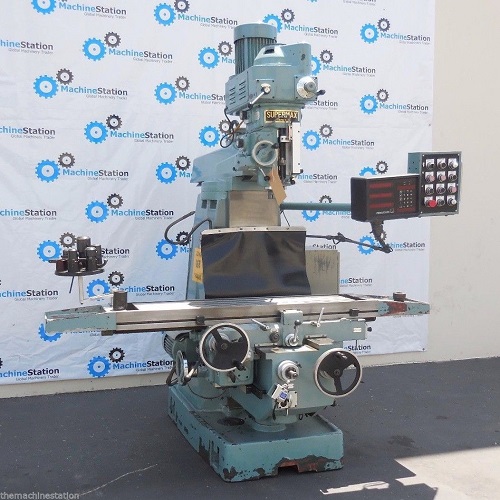

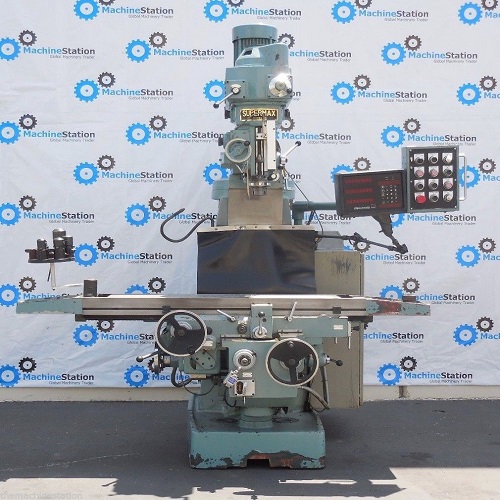

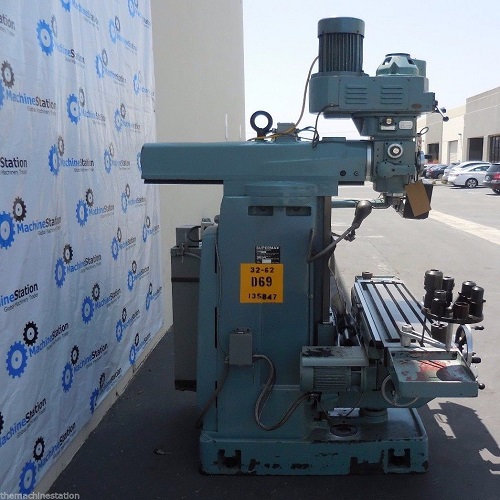

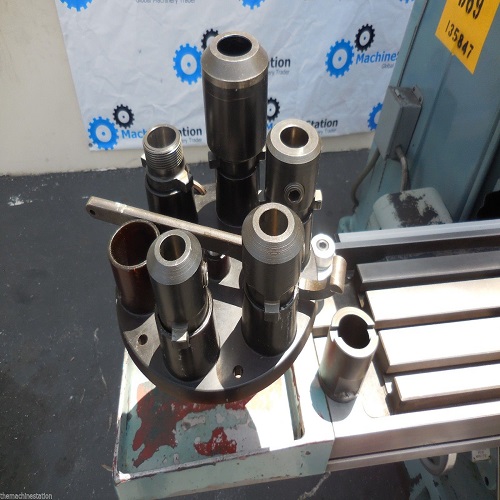

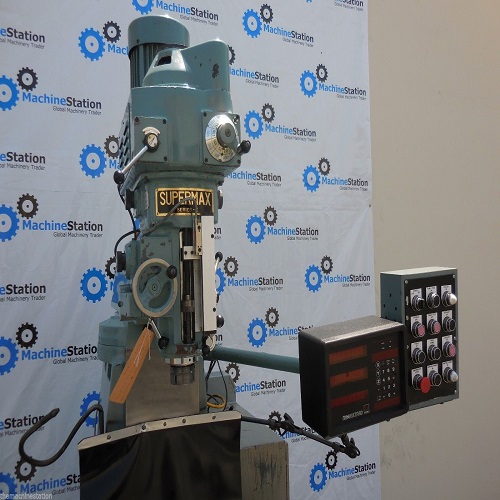

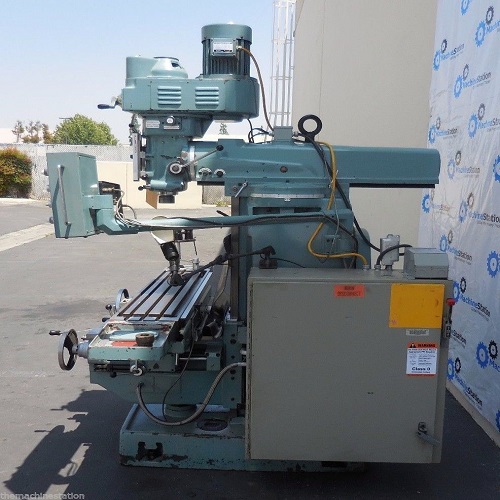

SUPERMAX YC 2VAS and Comes as shown in pictures.
