*All specifications are approximations and are subject to verification. Comes as shown in the pictures. Please give us a call if you have any questions before Purchasing. All Sales are Final.

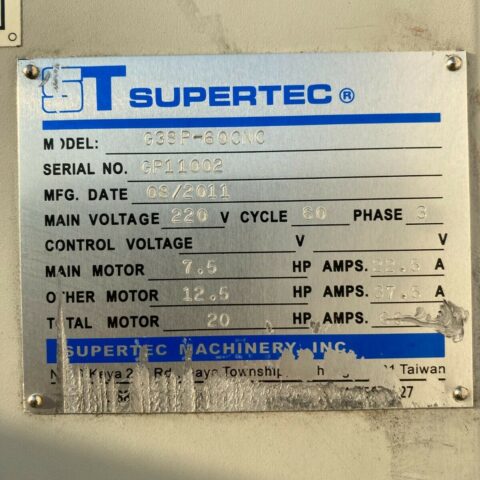

| SKU | 2039 |
| Make | SUPERTEC |
| Model No. | G38P-60 |
| Year | 2011/2012 |

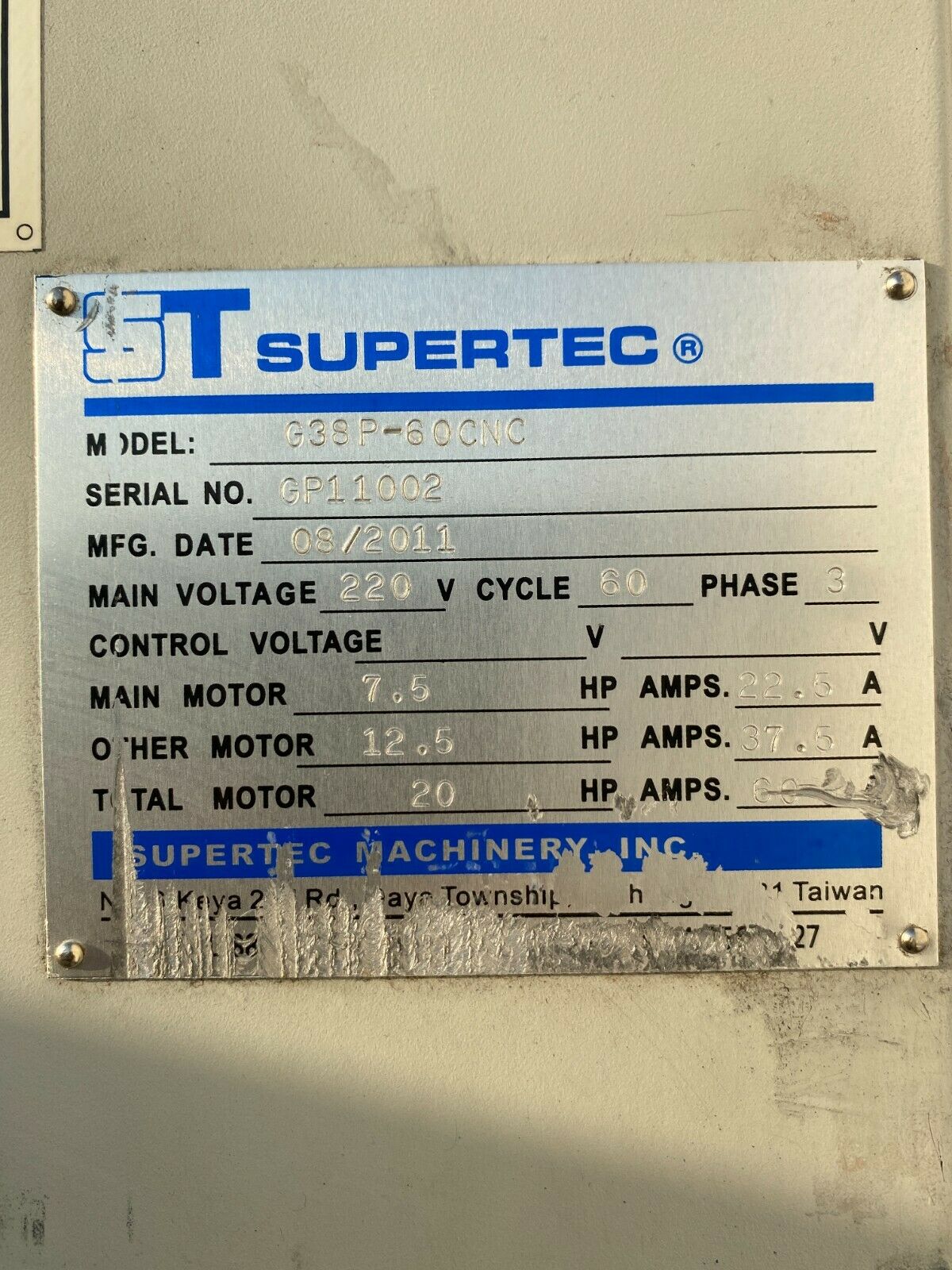

| Serial # | GP11002 |
| Condition | Very Good |
| Equipped With: |
|---|

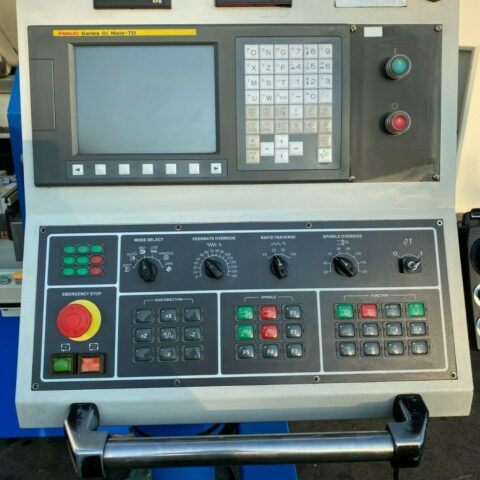

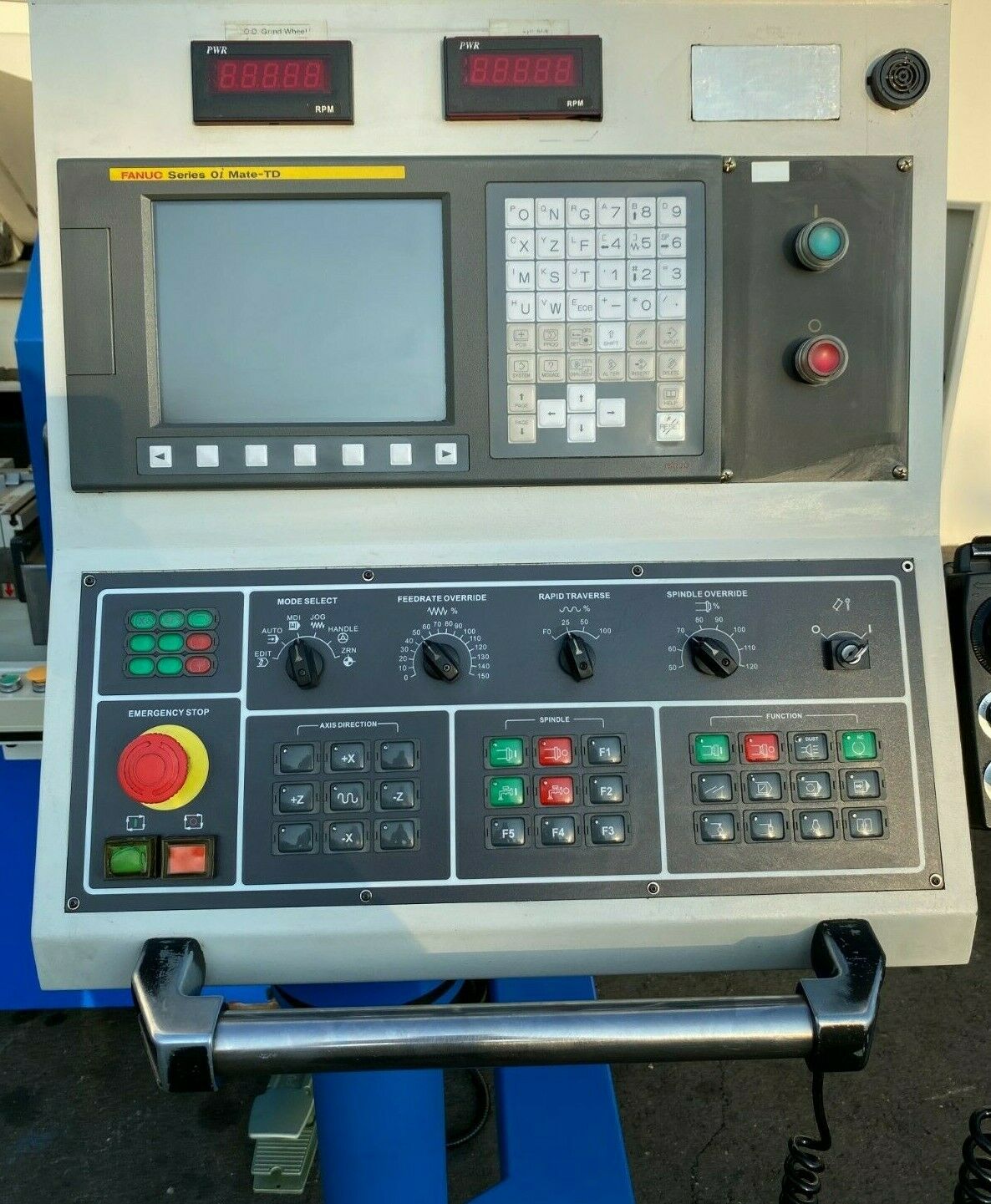

| Fanuc 0i Mate -TD Control |

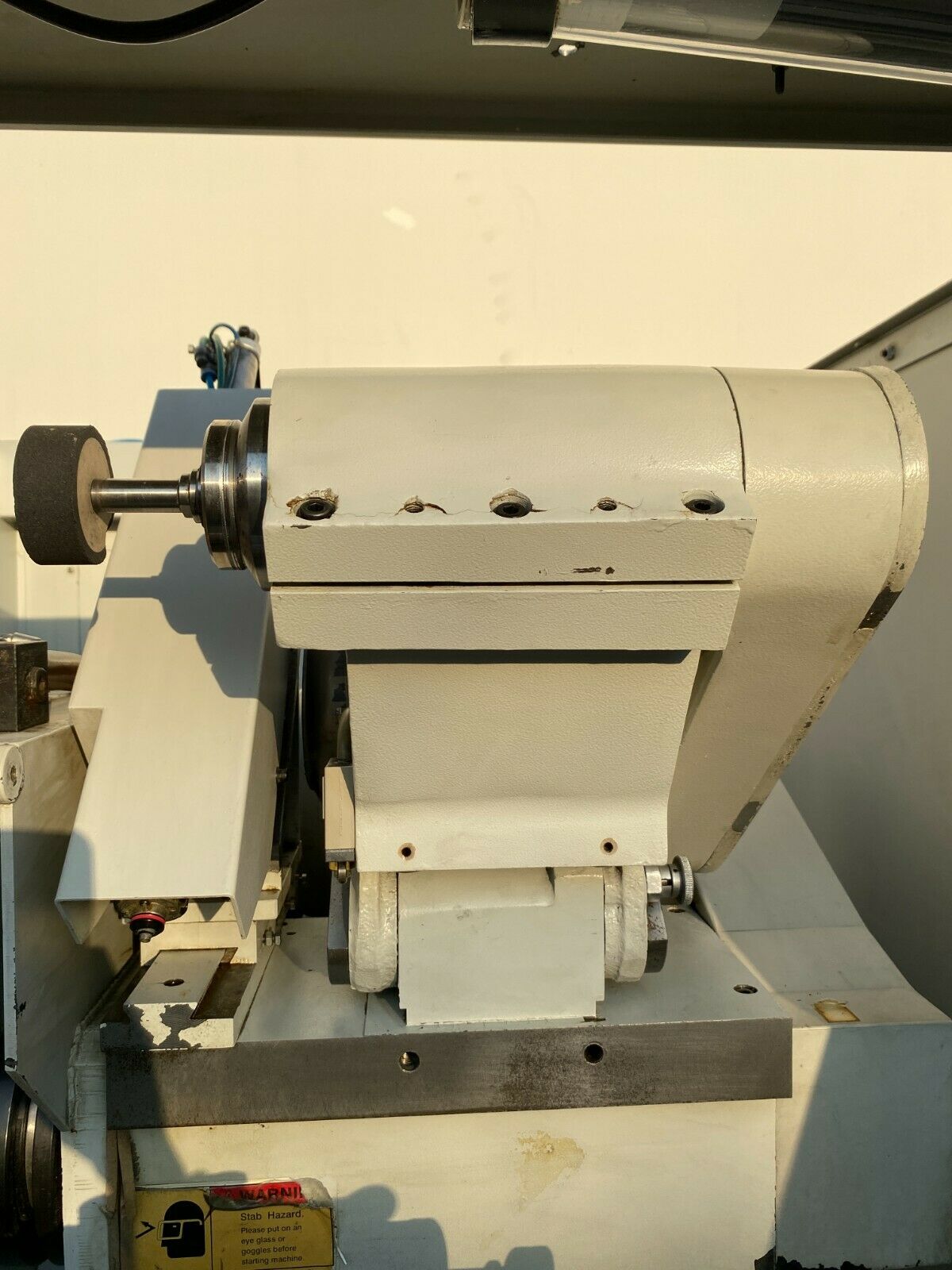

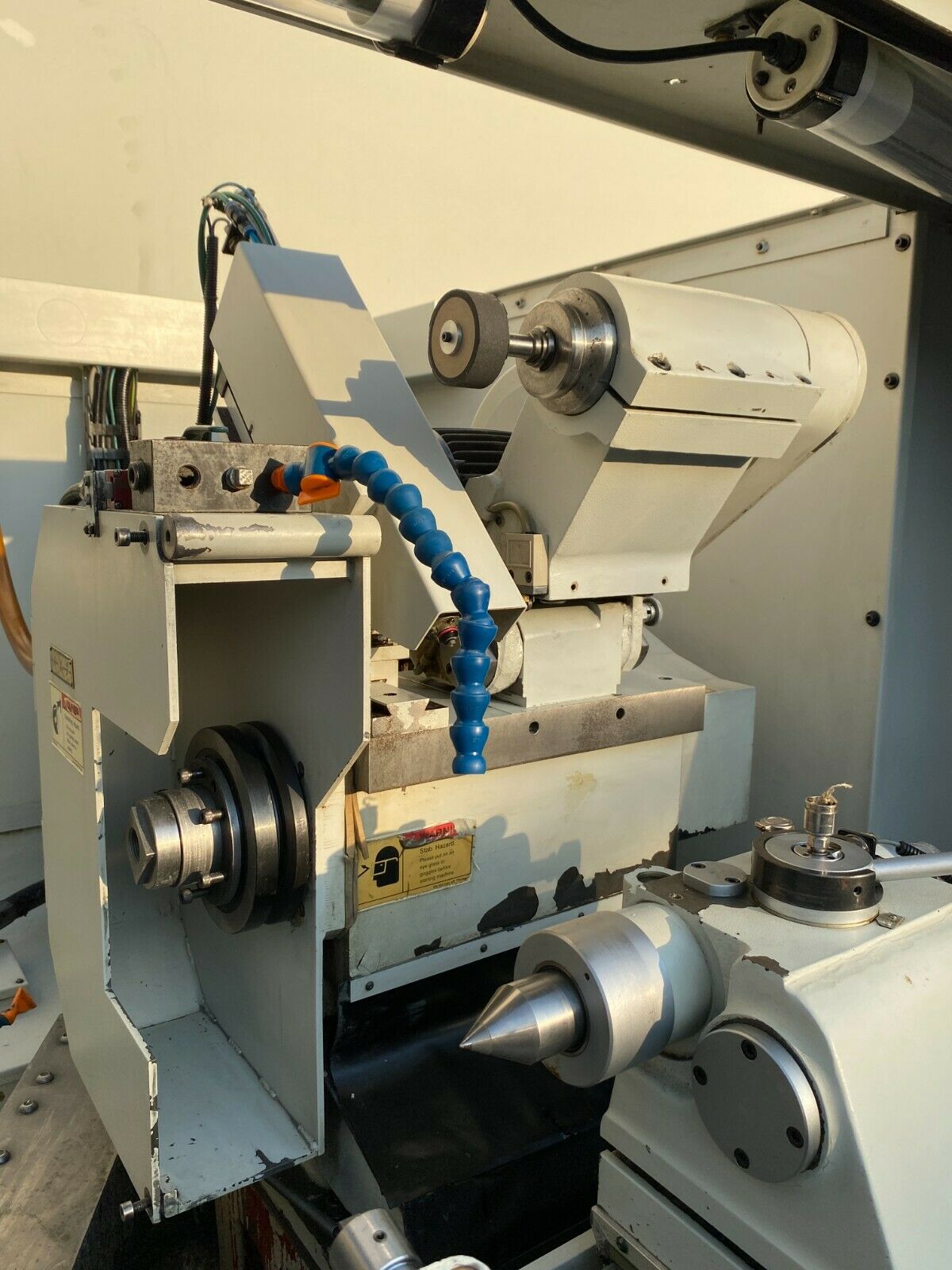

| Internal Grinding Head ( Option ) |

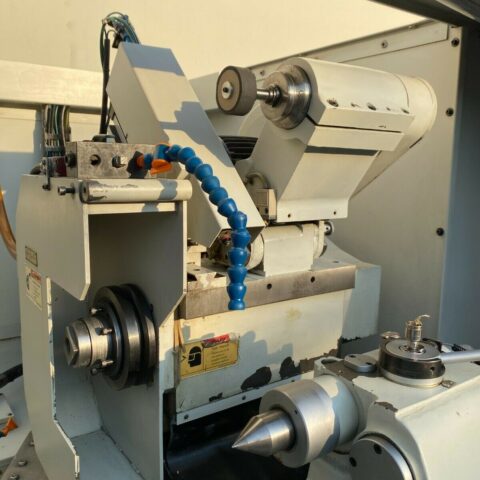

| Head Mounted Automatic Wheel Dresser ( Option ) |

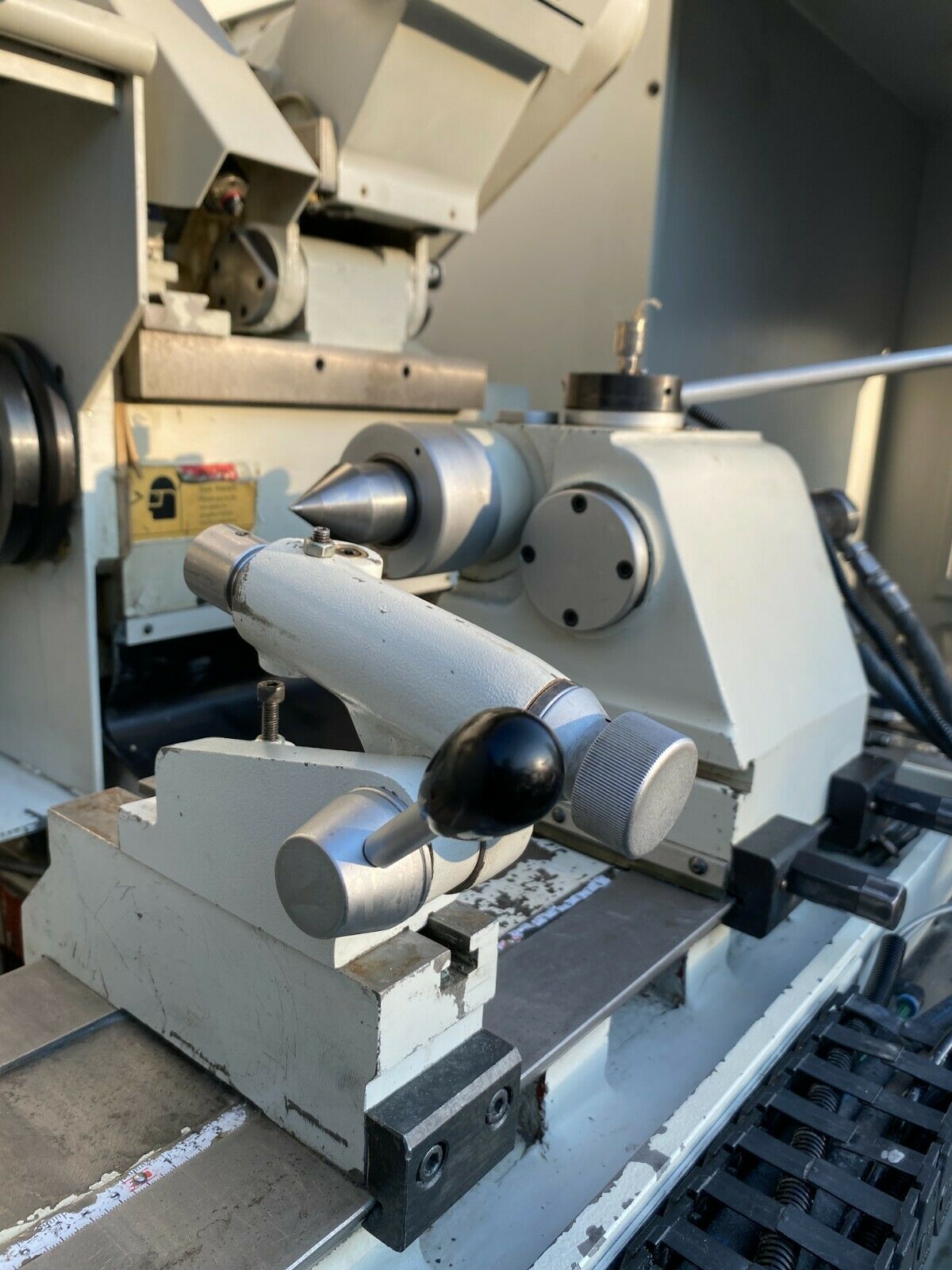

| Table Mounted Wheel Dresser ( Option ) |

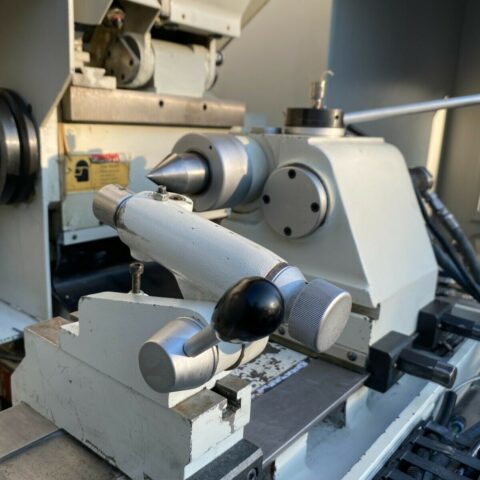

| Tailstock with Hydraulic Quill ( Option ) |

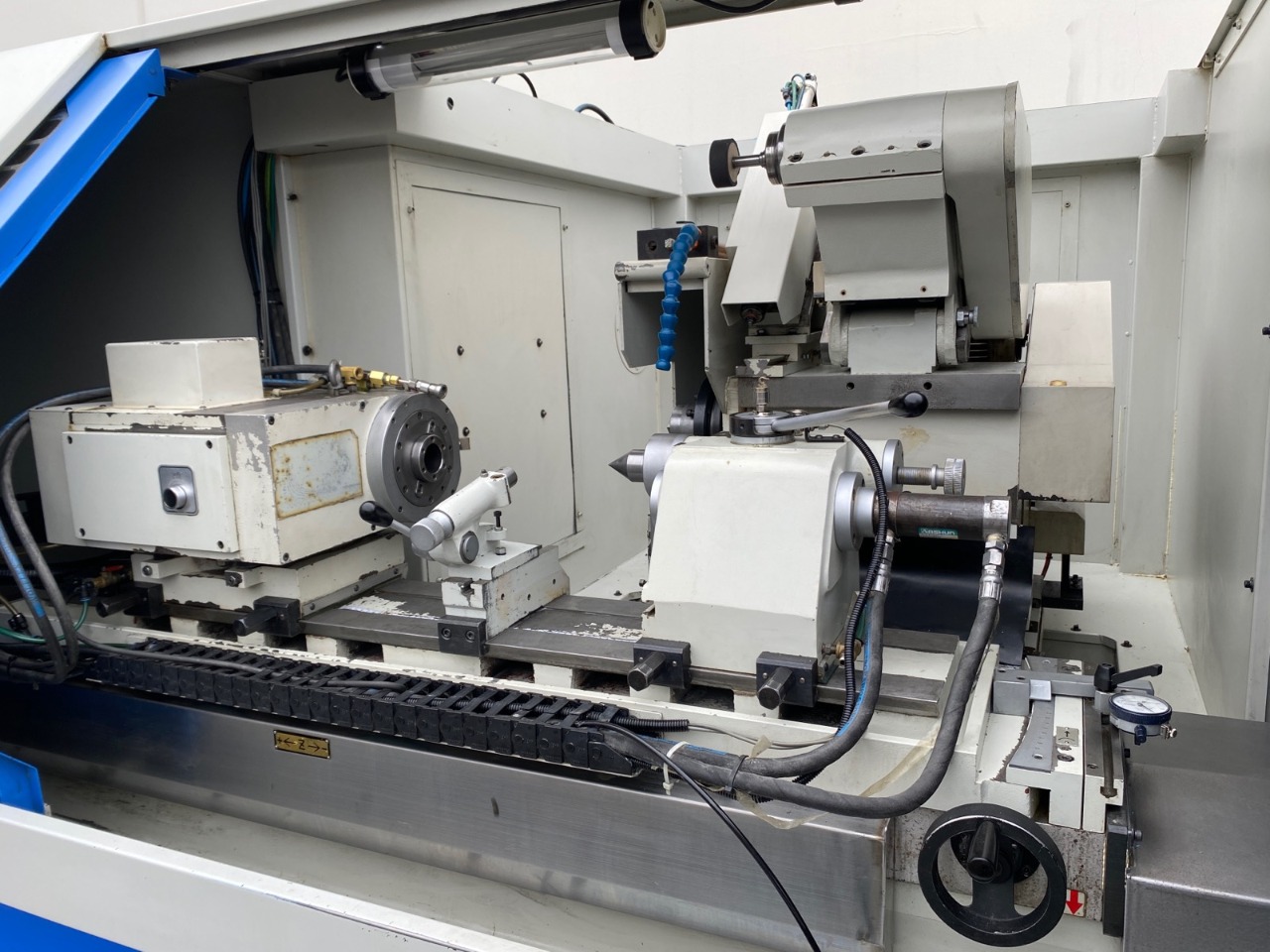

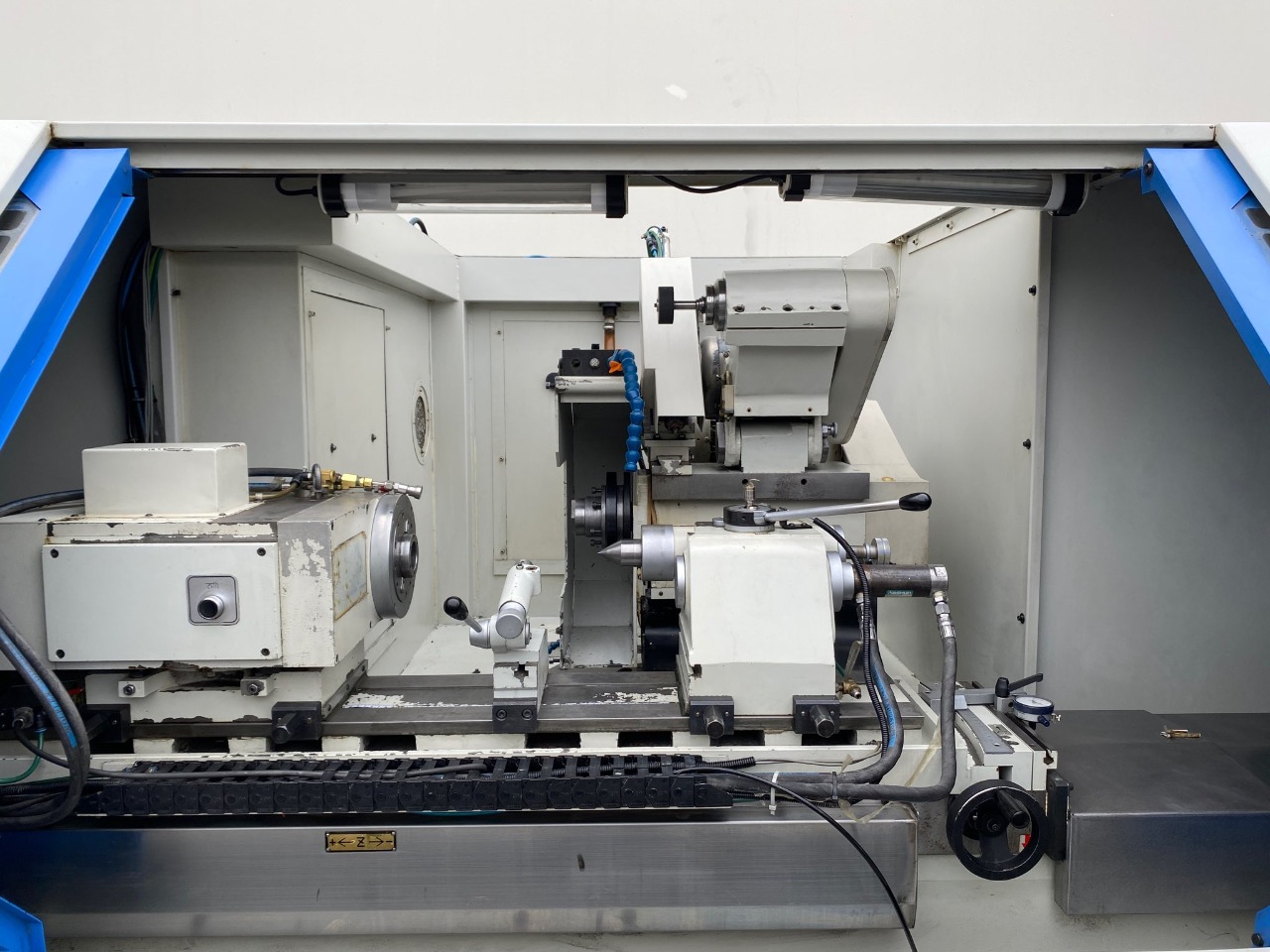

| Swivelable Work Head and Table |
| MPG Control |
| PCMCIA Card Slot |

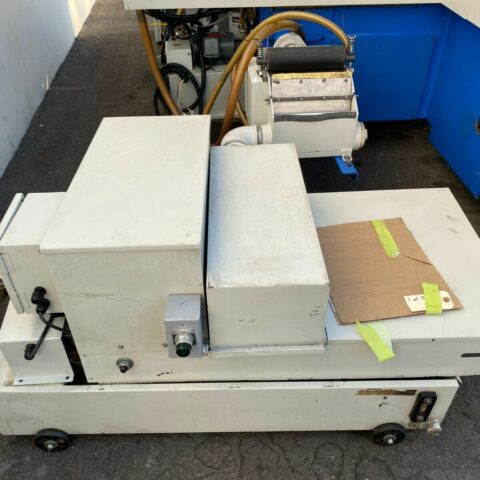

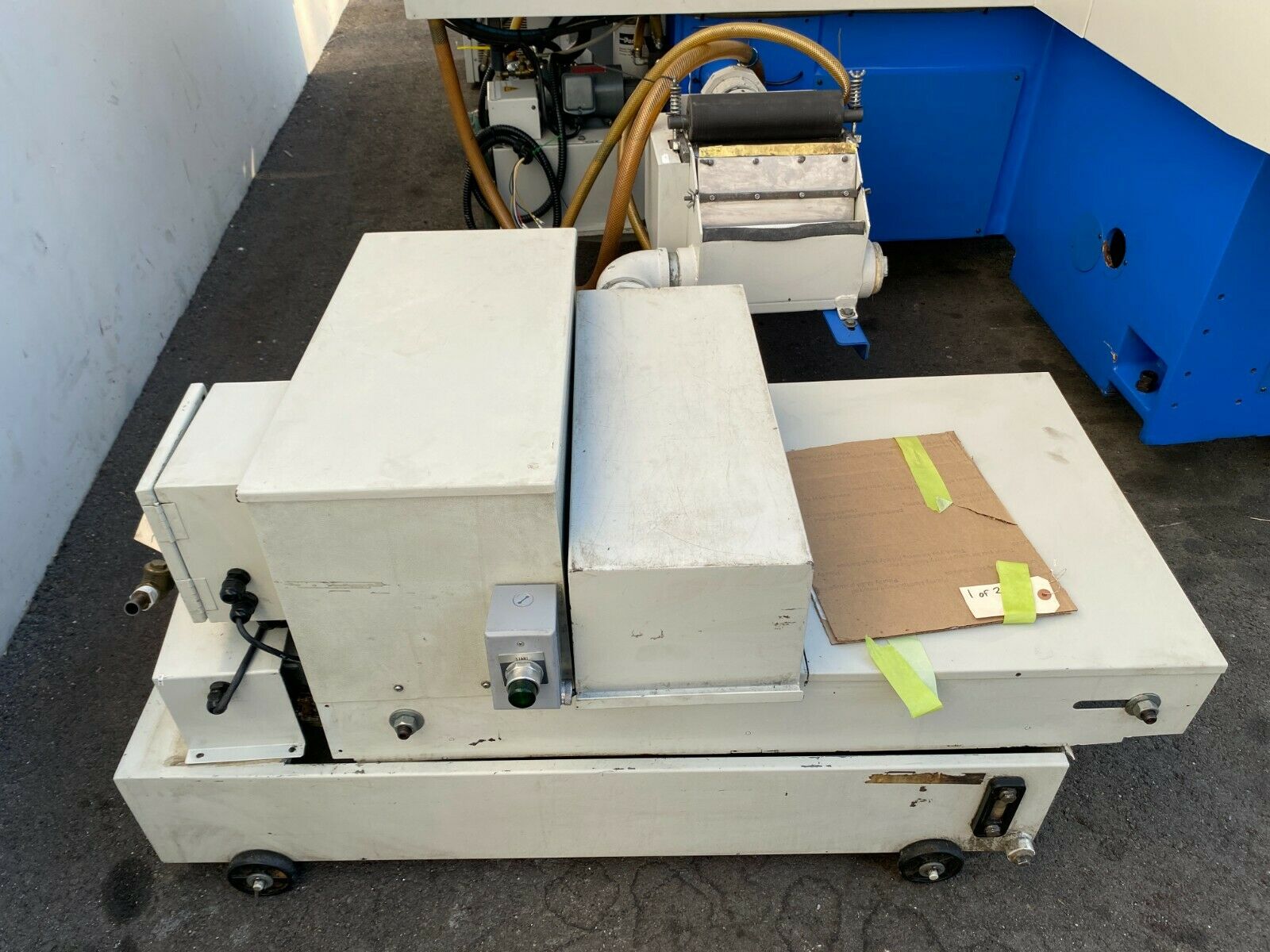

| Coolant System with Paper Filter ( Option ) |

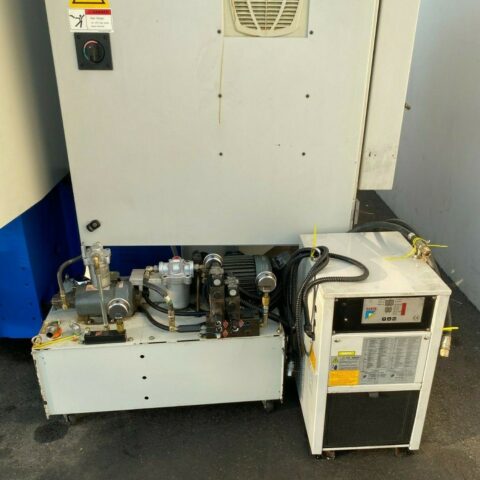

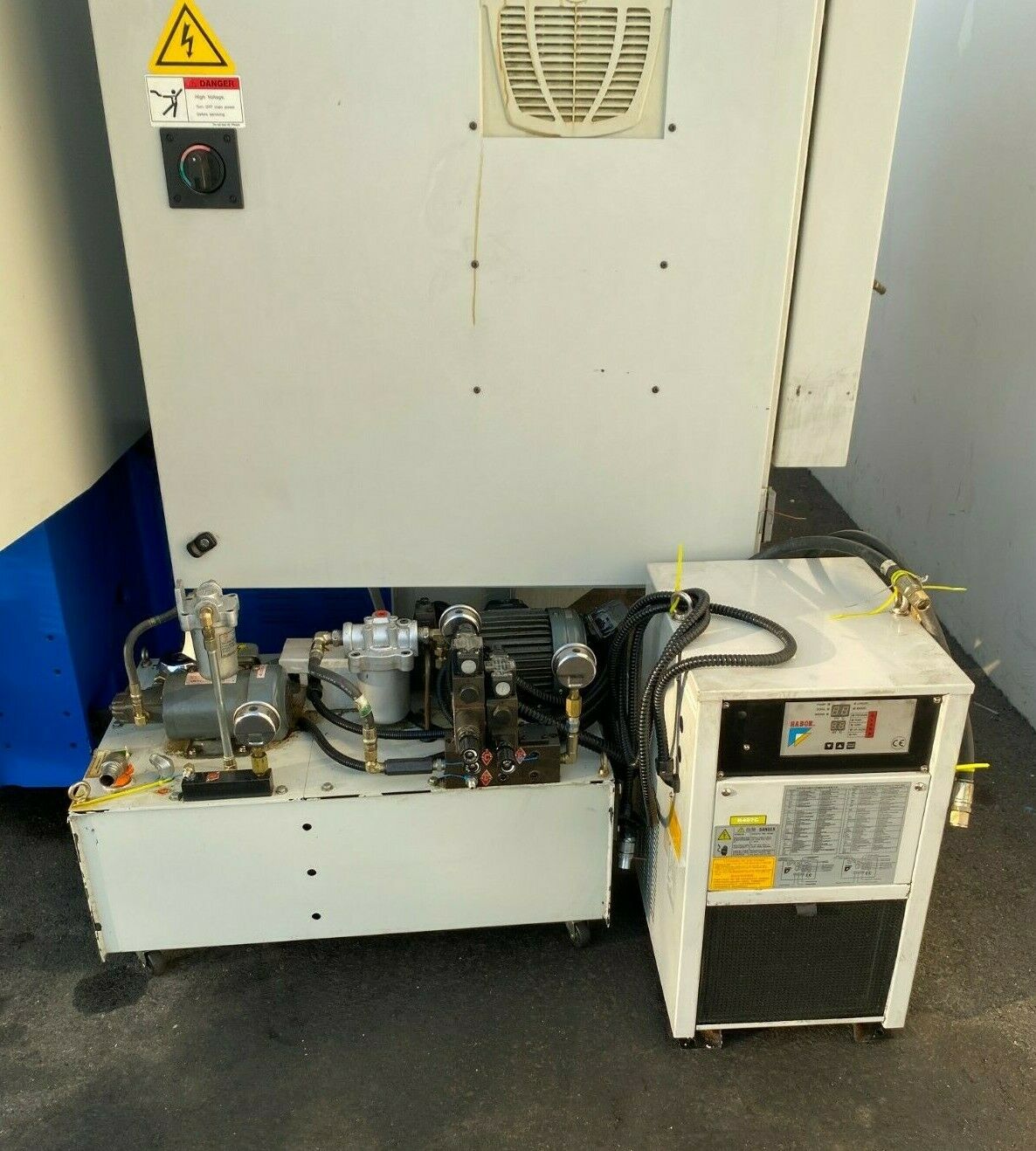

| Oil Chiller Unit ( Option ) |
| Automatic Lubrication system |
| Foot Operated Control |
| Work Lights |
| Specifications: |
|---|
| Max Grinding Diameter: 14.0″ |
| Max Grinding Length: 24.0″ |
| Max load Capacity: 330 lbs |
| Swing Over Bed: 15.0″ |
| Distance Between Centers: 26.0″ |
| Grinding Wheel: |
|---|
| Speed: 1650 RPM |
| wheel Size: 16″ X 2″ X 5″ |
| Table: |
|---|
| Swivel Angle: +/- 7° |
| Handwheel Per Resolution: 4″ |
| Traverse Speed: 1.5″ – 275 Inch Per Min |

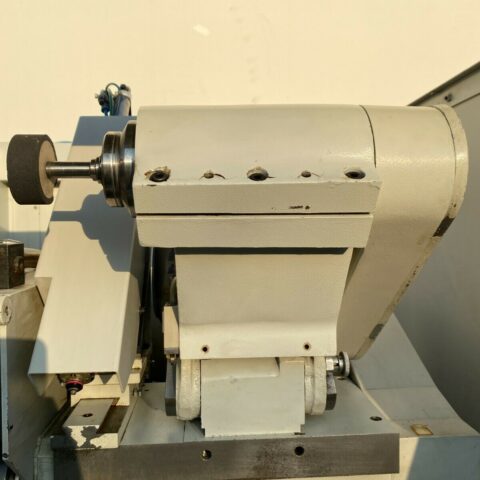

| Internal Grinding Spindle: |
|---|
| Speed: 18000 RPM? |
| Max Grinding Bore: 1.18″ – 3.94″ |
| Max Grinding Length: 2.2″ – 4.3″ |
| Motor: 2 HP |
| Tailstock: |
|---|
| Tailstock Quill Stroke: 1.0″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: Amps |
| Overall Dimensions: 110″ x 90″ x 82″ High |
| Weight : 9000 lbs Approx. |

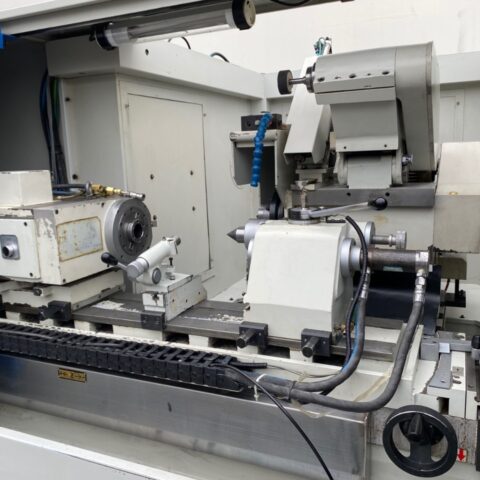

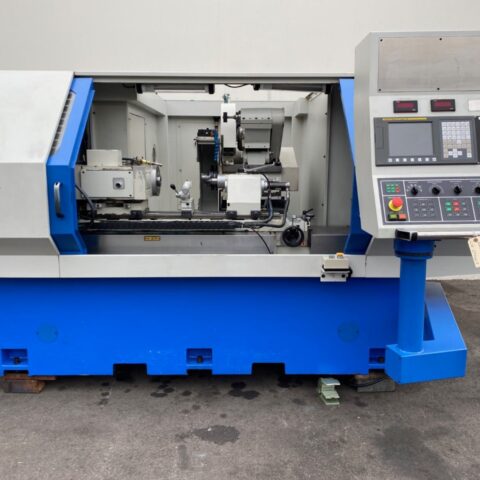

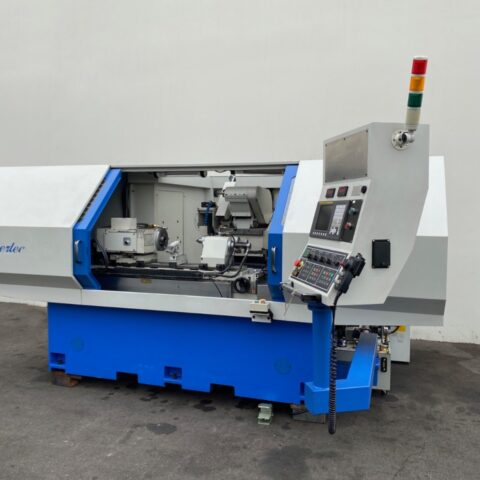

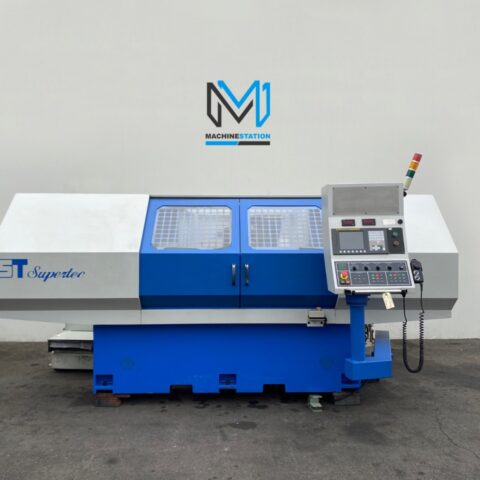

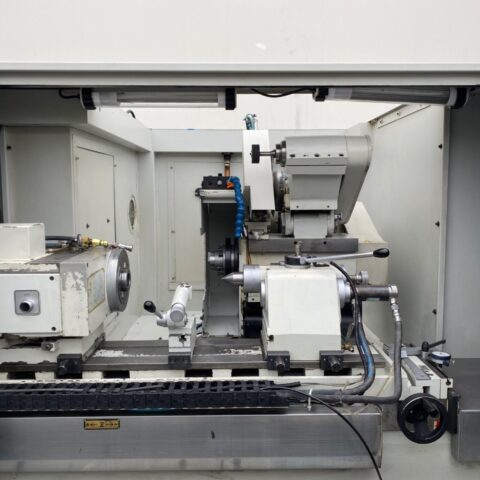

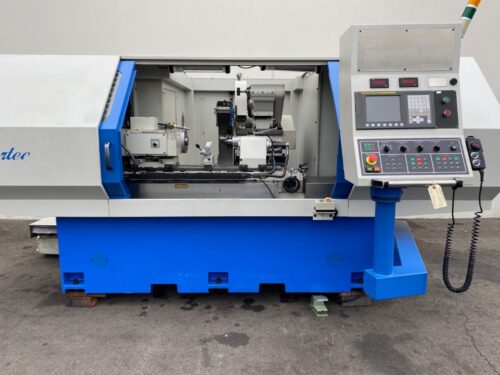

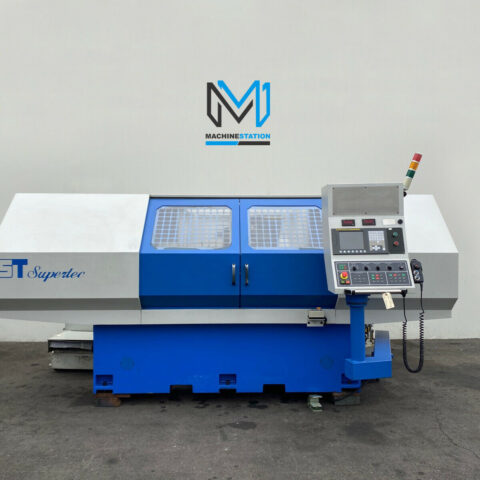

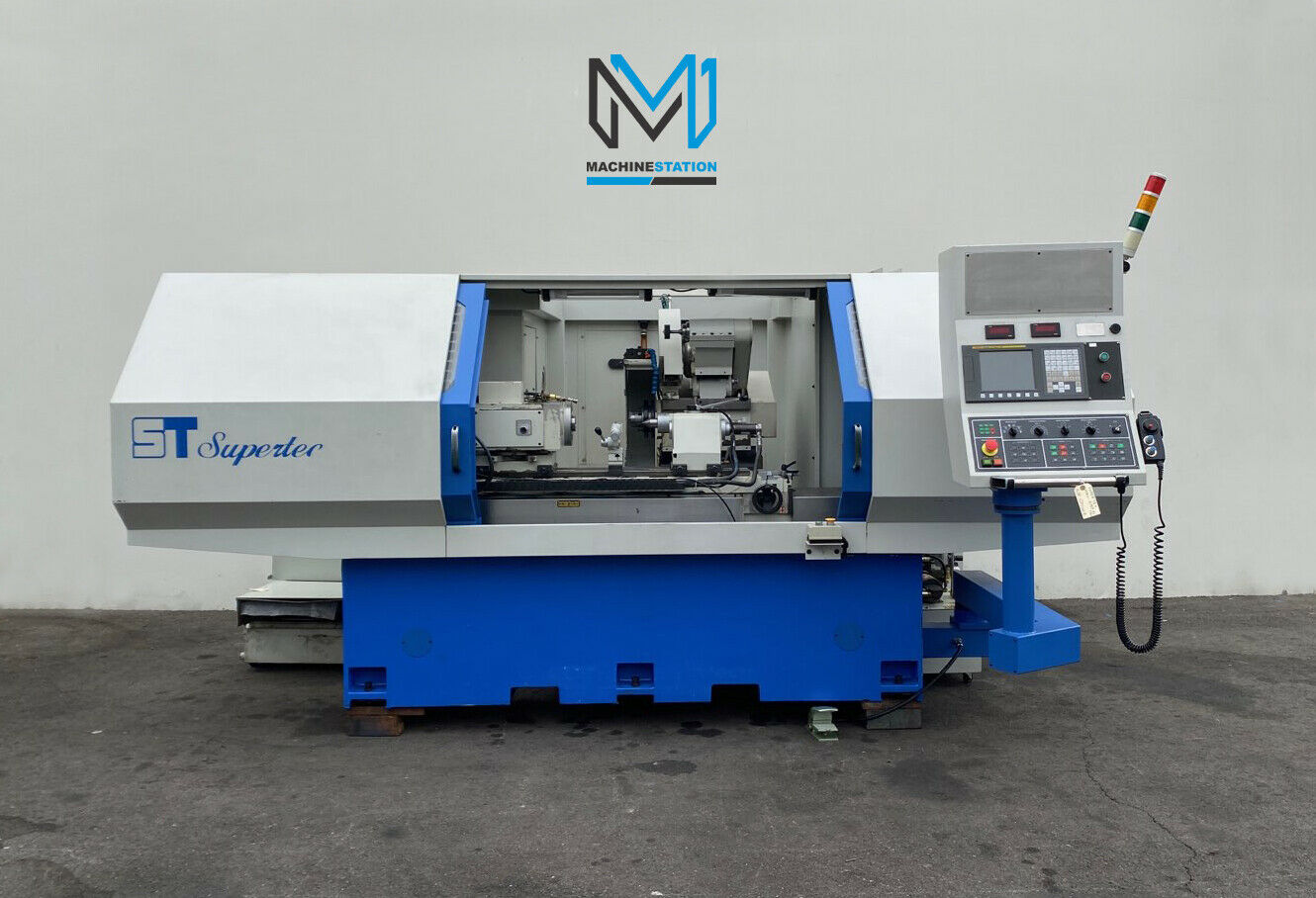

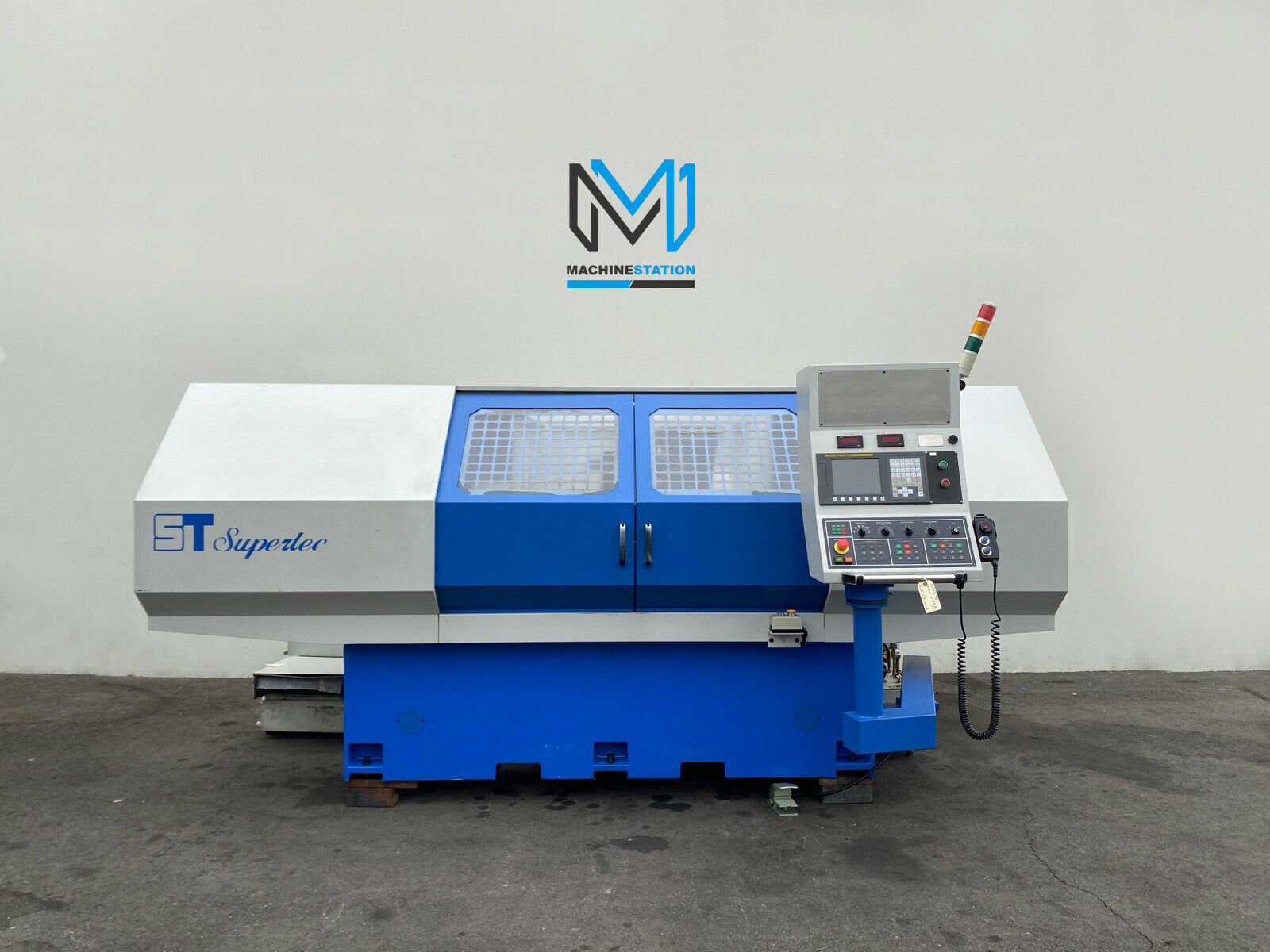

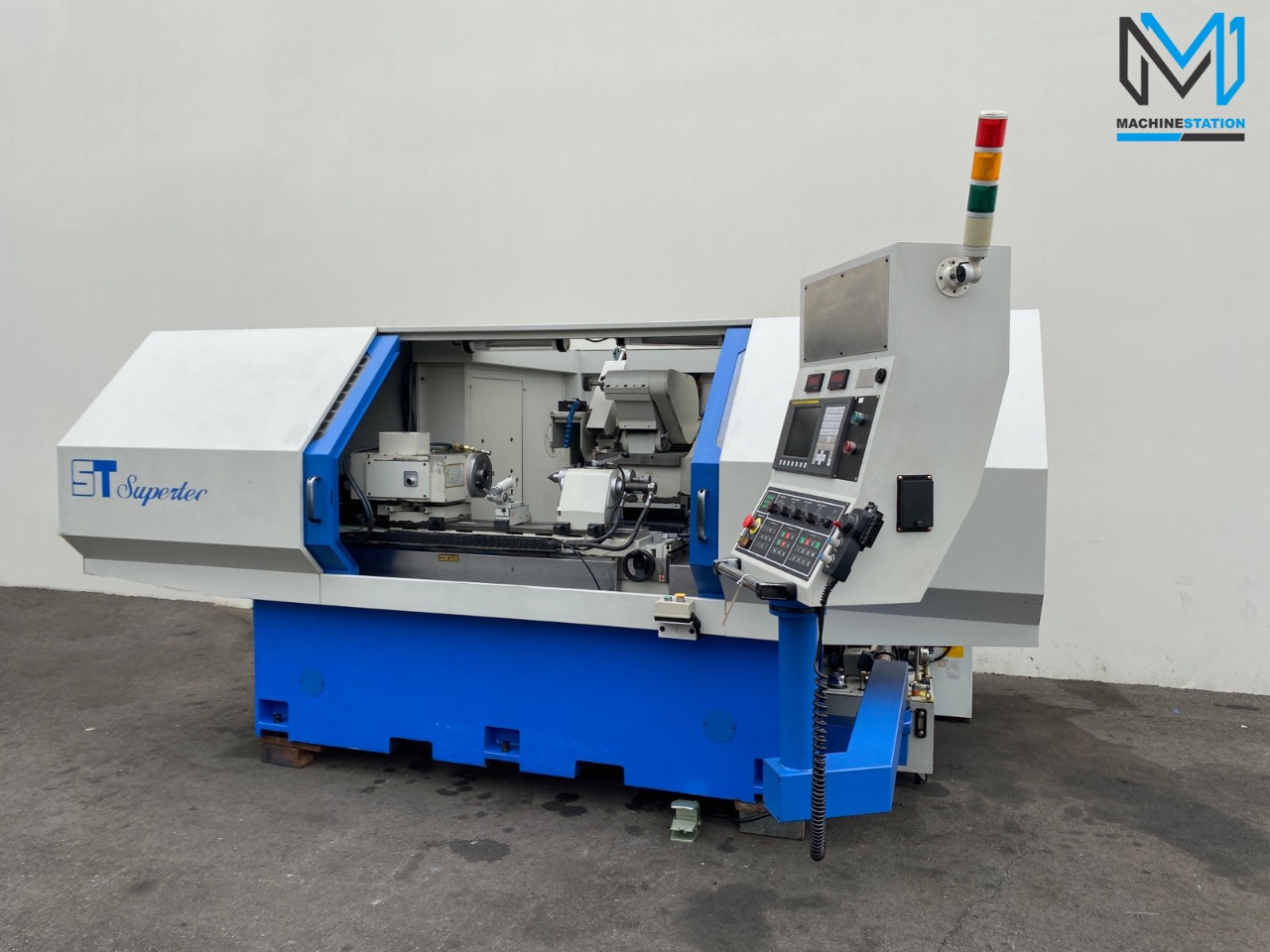

SUPERTEC G38P-60 CNC Comes as shown in pictures….
