*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112751 |
| Make: | Supra |
| Model No.: | 10″x54″ |
| Year of Manufacture: | 2022 |
| Condition | Used – Excellent |
| Features: |
|---|
| Supra 4 Axis CNC Control |
| 3 HP Spindle Motor |
| Computer Variable Speed Control Up to 5600 RPM |
| High & Low Gear For Superior Torque |
| Full 3 Axis Simultaneous Motion |
| Hand Held Keypad Pendant |
| Rigid Tapping |
| Made with Meehanite Casting Hardaned Ground Ways |
| One Shot Oiler For The Ways |
| Ball Screws with Pre-loaded Ball Nuts Driven on XYZ Axis |
| Table: |
|---|
| Table Size: 10″ x 54″ |
| Table T-slot size : 5/8″ x 3″ |
| Travel: |
|---|
| Longitudinal X Travel: 35.5″ |
| Forward/Back Cross Y Travel : 15.5″ |
| Quill Z Travel: 4.5″ |
| Vertical Mill Travel Knee Lift Up/Down : 18″ |
| Ram Travel: 18″ |
| Max Rapid on X Y Z : 100 IPM |
| Spindle: |
|---|
| Spindle Taper : R8 |

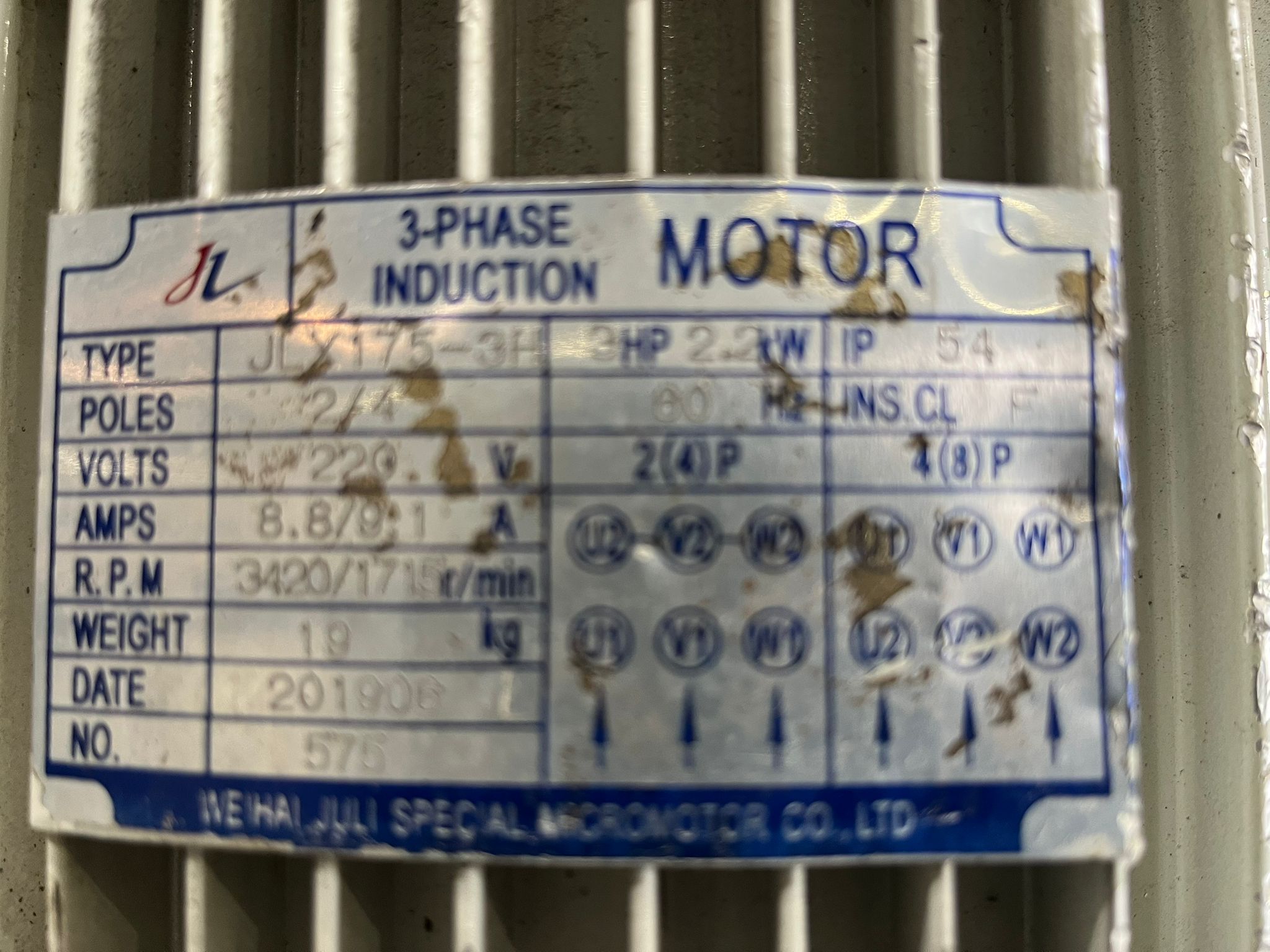

| Spindle Motor: 3 HP Variable Speed |
| Spindle Speeds Type : Step Pulley |
| Spindle Speeds (RPM): Up to 5600 |

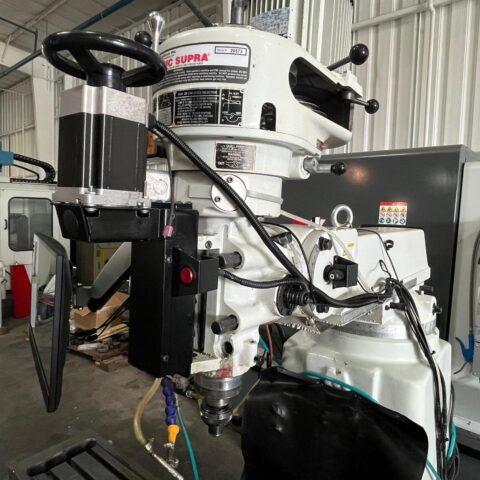

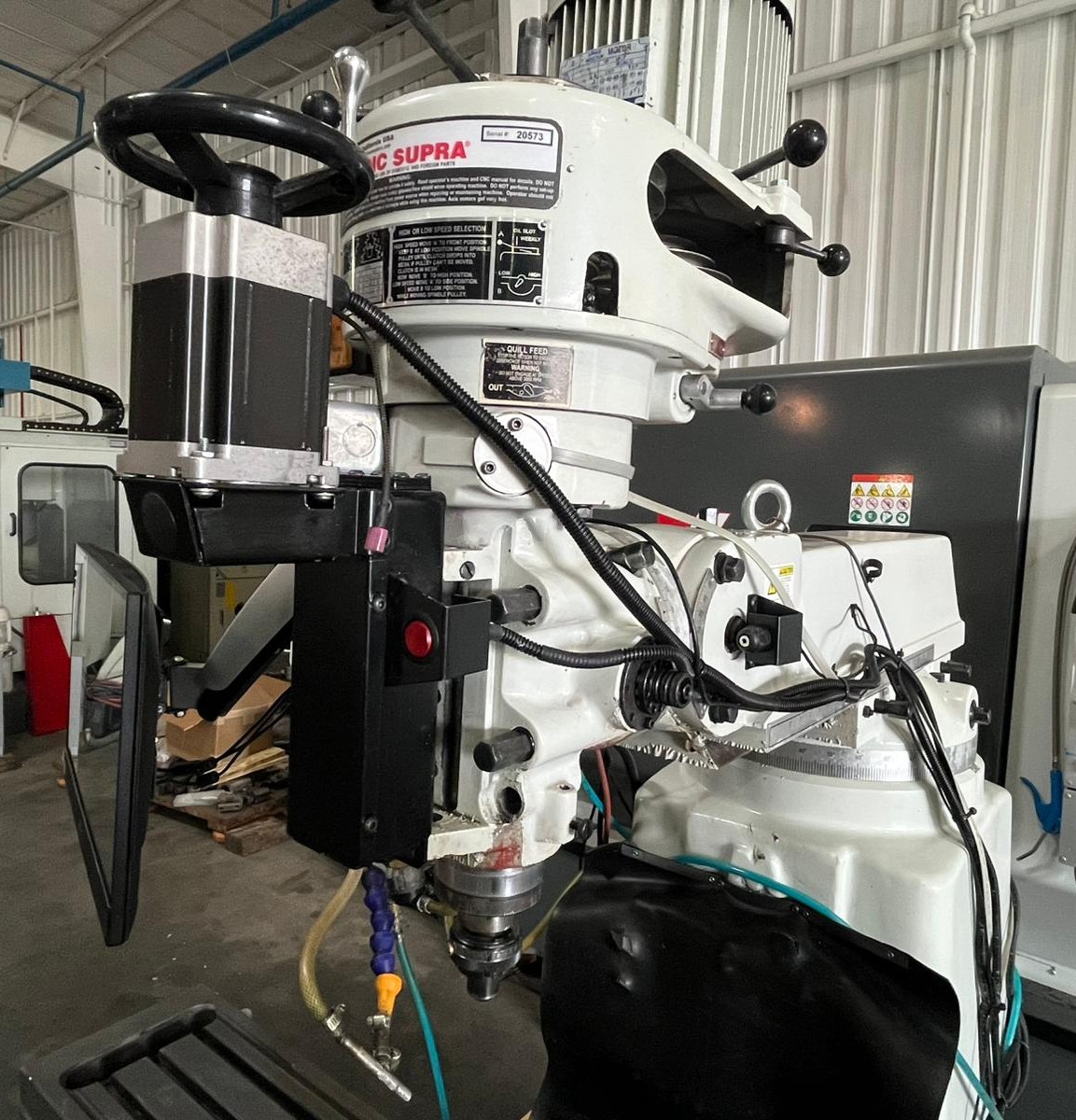

| Spindle Head: |
|---|
| Head Swivel RH/LH : 90°/90° |
| Head Tilting F/B : 45°/45° |
| Ram Turret Swivel : 360° |
| General: |
|---|
| Power: 220-240VAC / 3-phase |
| Overall Diemensions: 67.5″ x 65″ x 89″ High Approx. |
| Weight : 3600 lbs Approx. |
