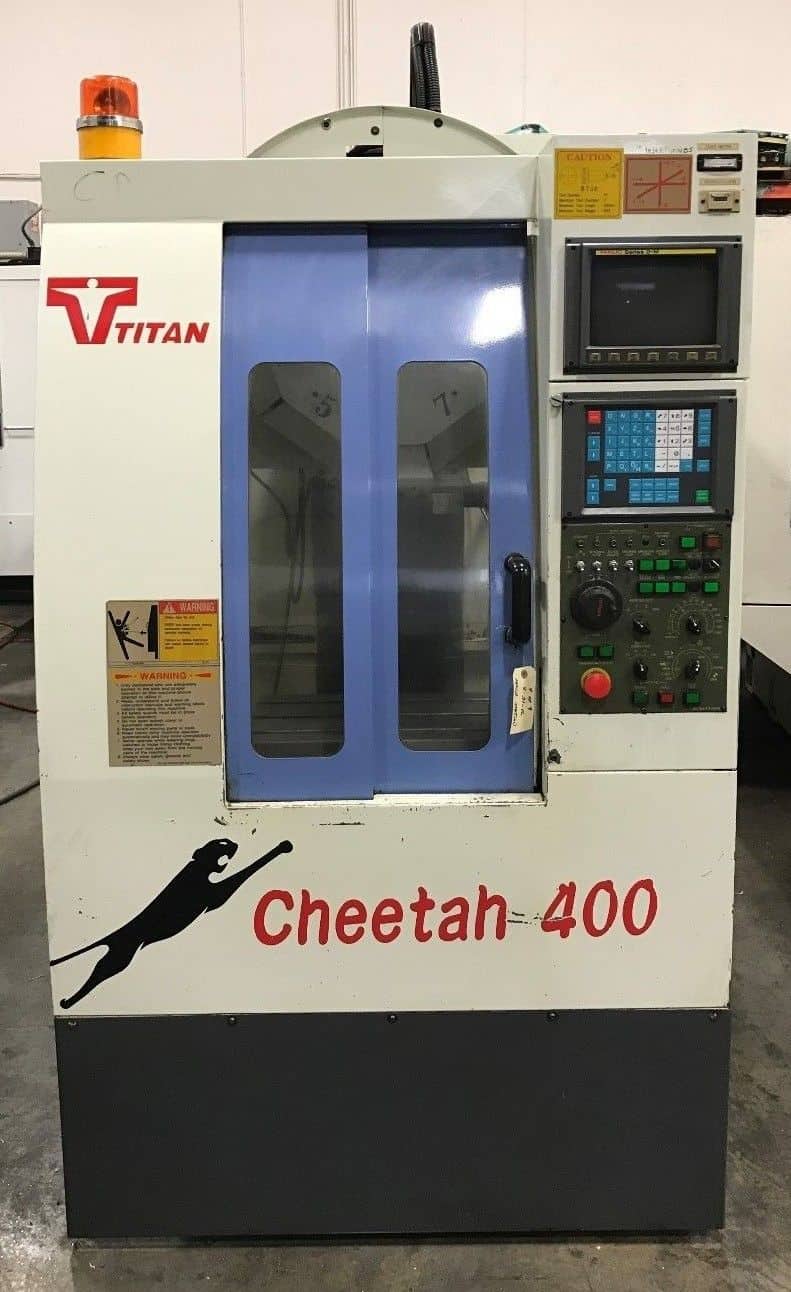

Tong Tai Titan TMV400 CNC Drill Tap Center

This One Owner Machine has 12000 rpm, 10 tool Turret High speed tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition. *Check VIDEO”

Out of stock

Product Description

TONG TAI TITAN CNC Drill Tap Center


Make: Tong Tai
Model #: Titan TMV-400
Year of Manufacture: 1998
Serial #: 7969
Condition: Very Good

All specifications are approximations, and are subject to verification.

This One Owner Machine has 12000 rpm, 10 tool Turret High speed tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”


TONG TAI TITAN CNC Drill Tap Center Features:

  • Fanuc 0M-C CNC Control
  • High Speed Turret Type Tool Changer
  • High precision 12,000 RPM Spindle
  • Powerful 3.7 kw high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping
  • Custom Micro B (User Definable)
  • Fast 1418 IPM Rapid Traverse Rate
  • Flood coolant with large separate coolant tank
  • Work light

All Books, Manuals, Floppy Disk, Parameters Available.


TONG TAI TITAN CNC Drill Tap Center Specifications:
Travels:
X-Axis: 15.7″
Y-Axis: 9.8″
Z-Axis: 9.8″

Spindle Nose to Table (Min.- Max.): 7.9″ – 17.7″

Table:
Length: 19.7″

Width: 12.6″
Max Weight on Table: 440 lbs

Spindle:
Taper Size: BT 30
Speed Range: 120 – 12,000 RPM
Spindle Power: 3.7 kw
Feed rates:
Rapid X,Y & Z: 1418 inch/P.M
Cutting Feedrate: 400″ inch/ P.M

Automatic Tool Changer:
BT 30 Taper
Capacity: 10
Max Tool Weight: 6.6 lbs
Max Tool Length: 7.9″
Max Tool Dia.: 3.0″
Tool Change Time: 1.5 second

General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 66FLA / 3-Phase
Overall Dimensions: 48″ x 84″ x 88″ High
Weight: 3600 lbs
TONG TAI TITAN CNC Drill Tap Center Comes as shown in pictures.
