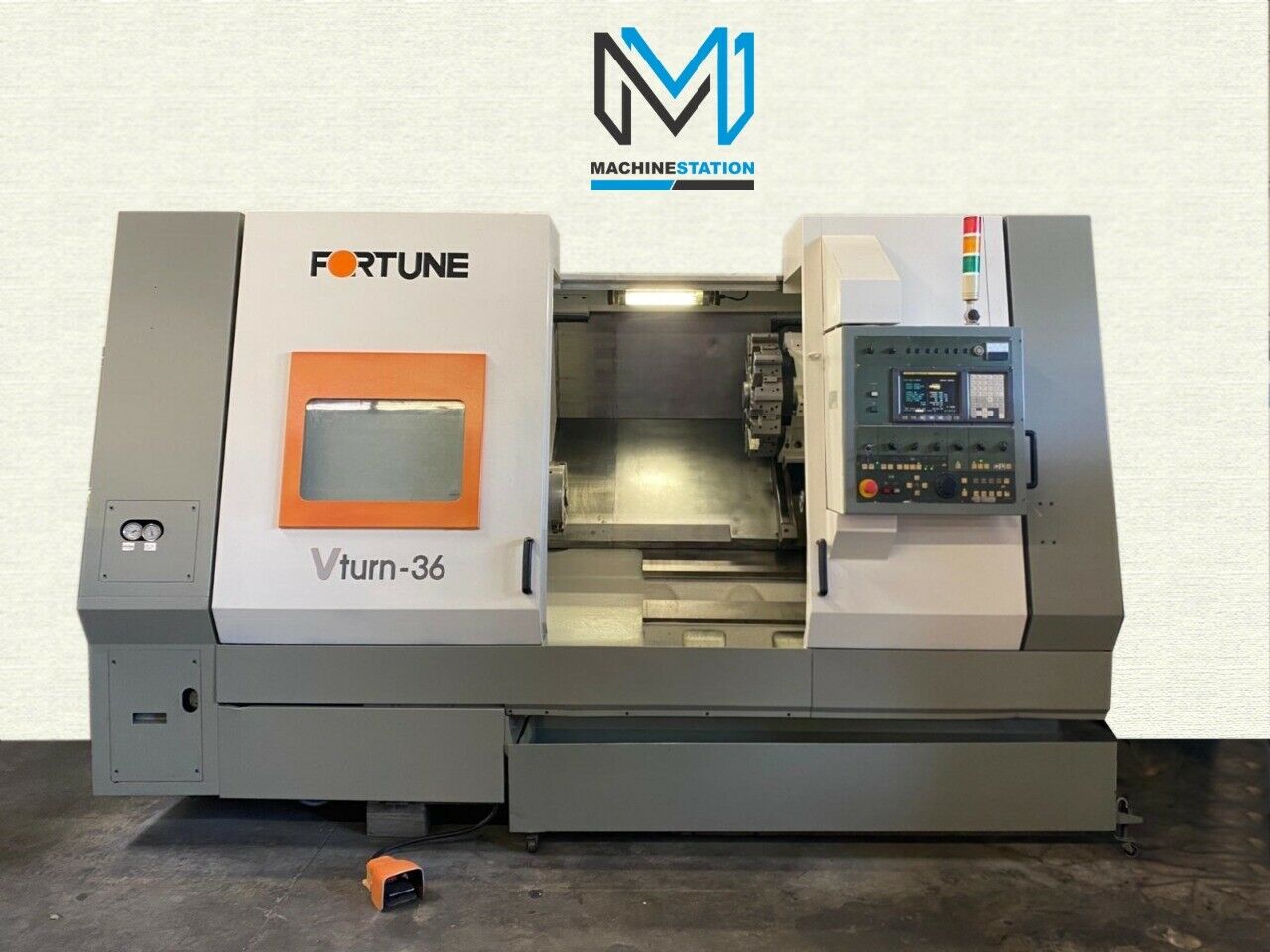

  • Fortune Victor VTurn-36 CNC Turning Center For Sale in California(1)

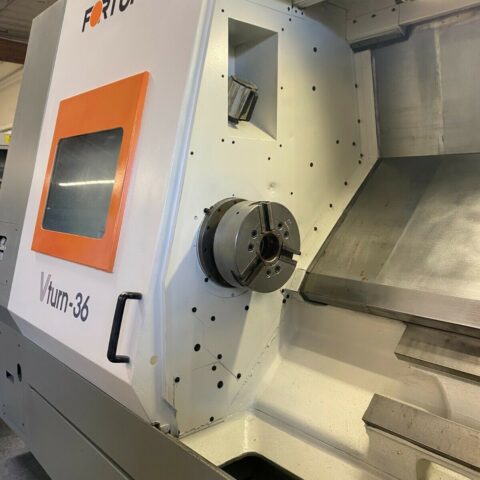

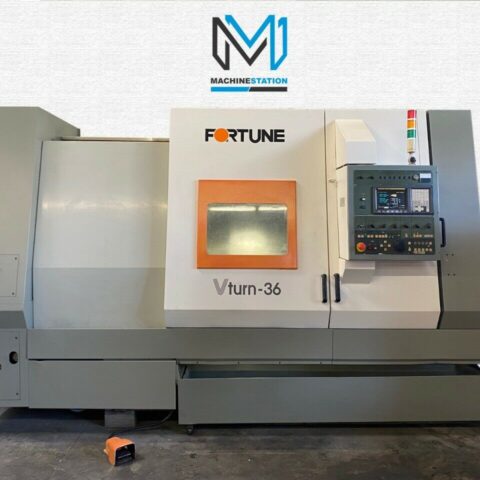

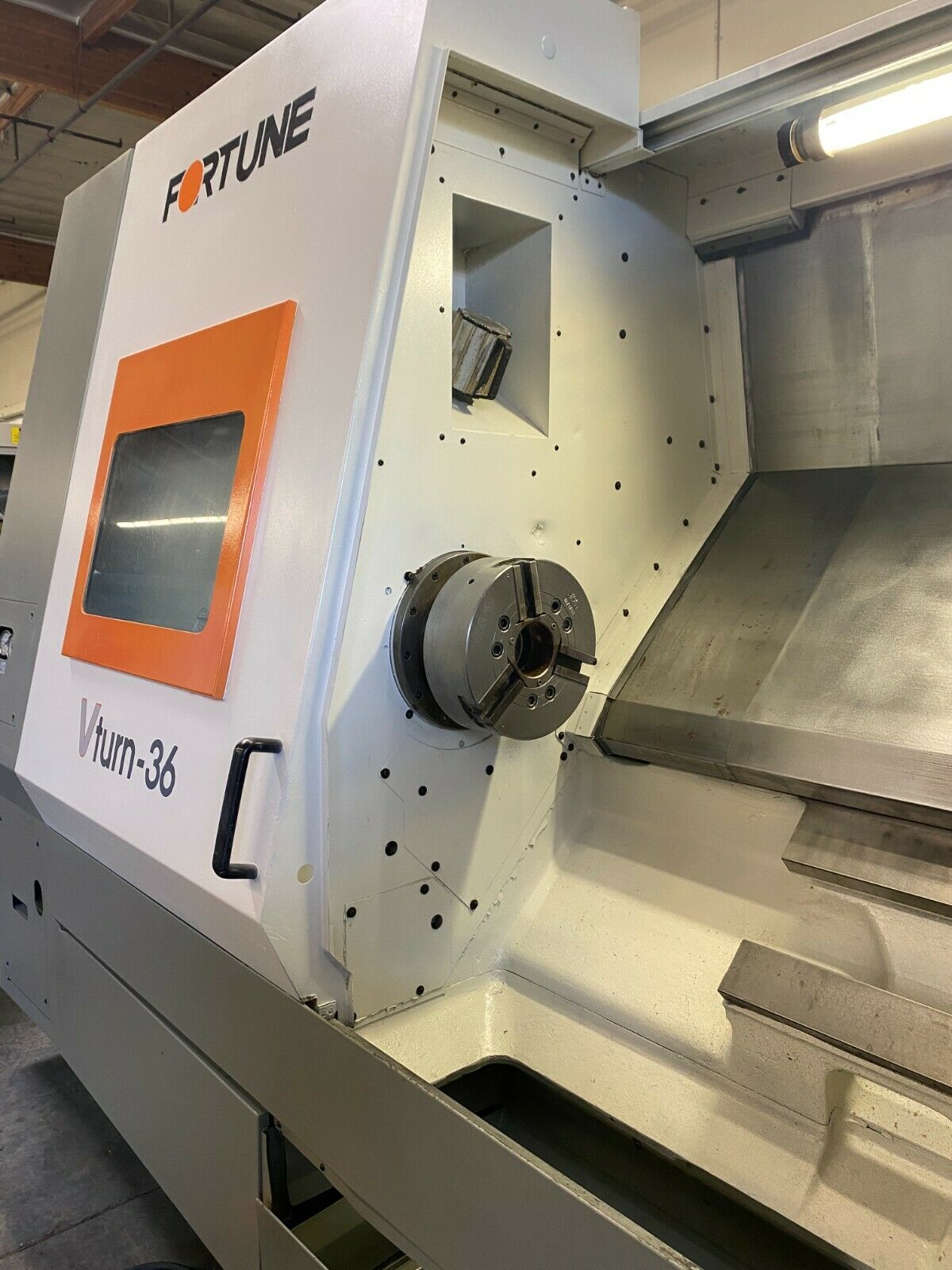

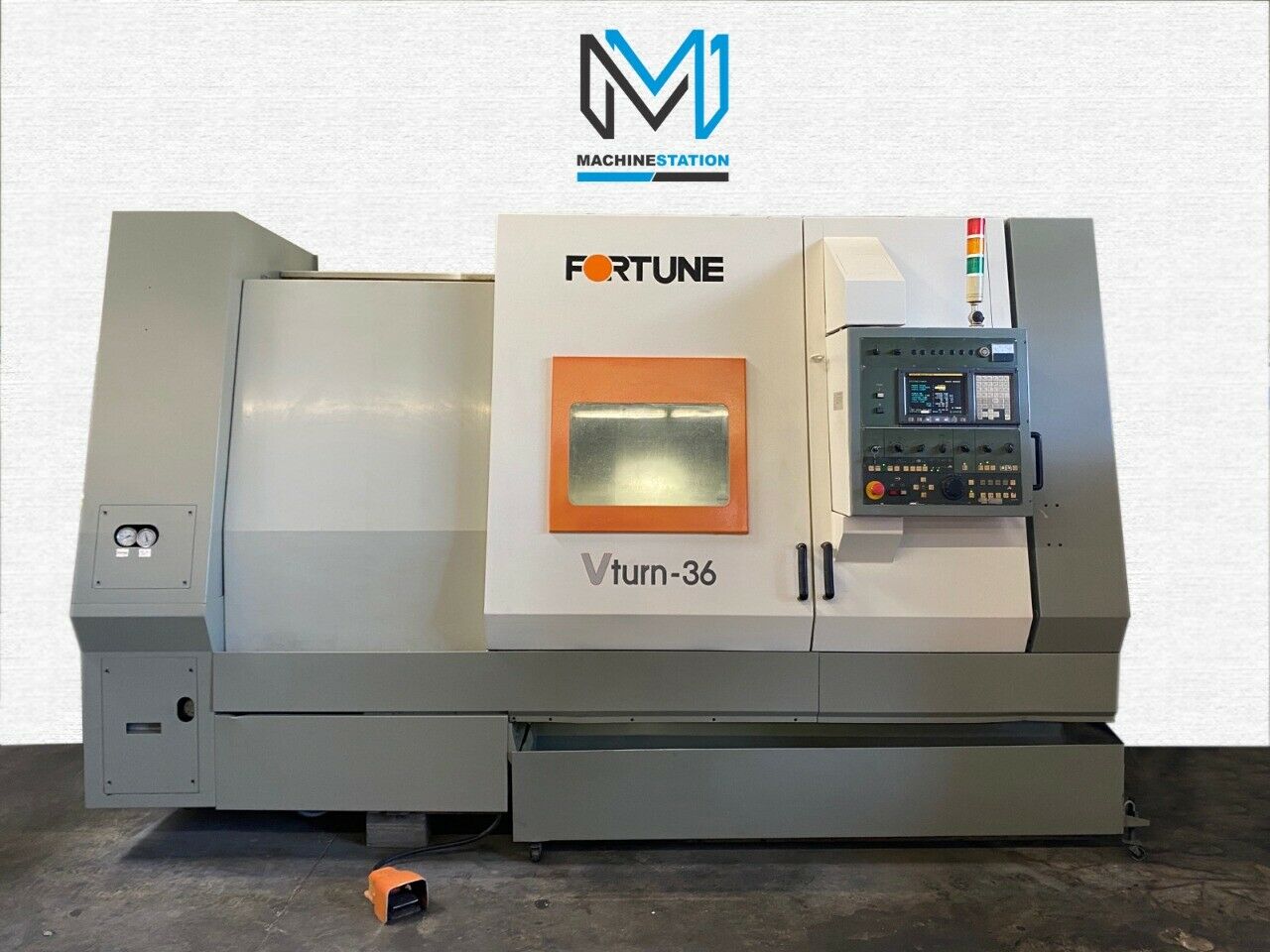

Fortune Victor VTurn-36 CNC Turning Center

Out of stock

Product Description

FORTUNE VICTOR VTURN-36 CNC TURNING CENTER
SKU # 1994
Make: Fortune Victor
Model No.: Vturn-36

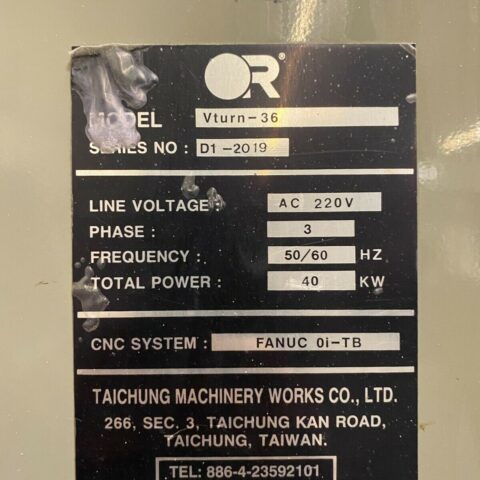

Serial No.: D1-2019
Year: 2004/06
Condition: Very Good

All specifications are approximations, and are subject to verification.

Fortune Victor VTurn-36 CNC Turning Center Equipped With:
Box Way Heavy Duty Construction
Fanuc 0i-TB CNC Control

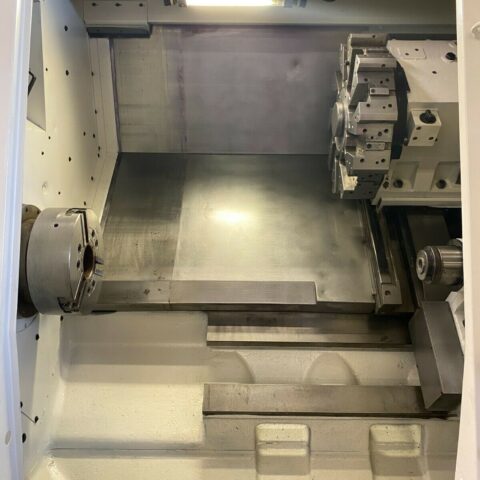

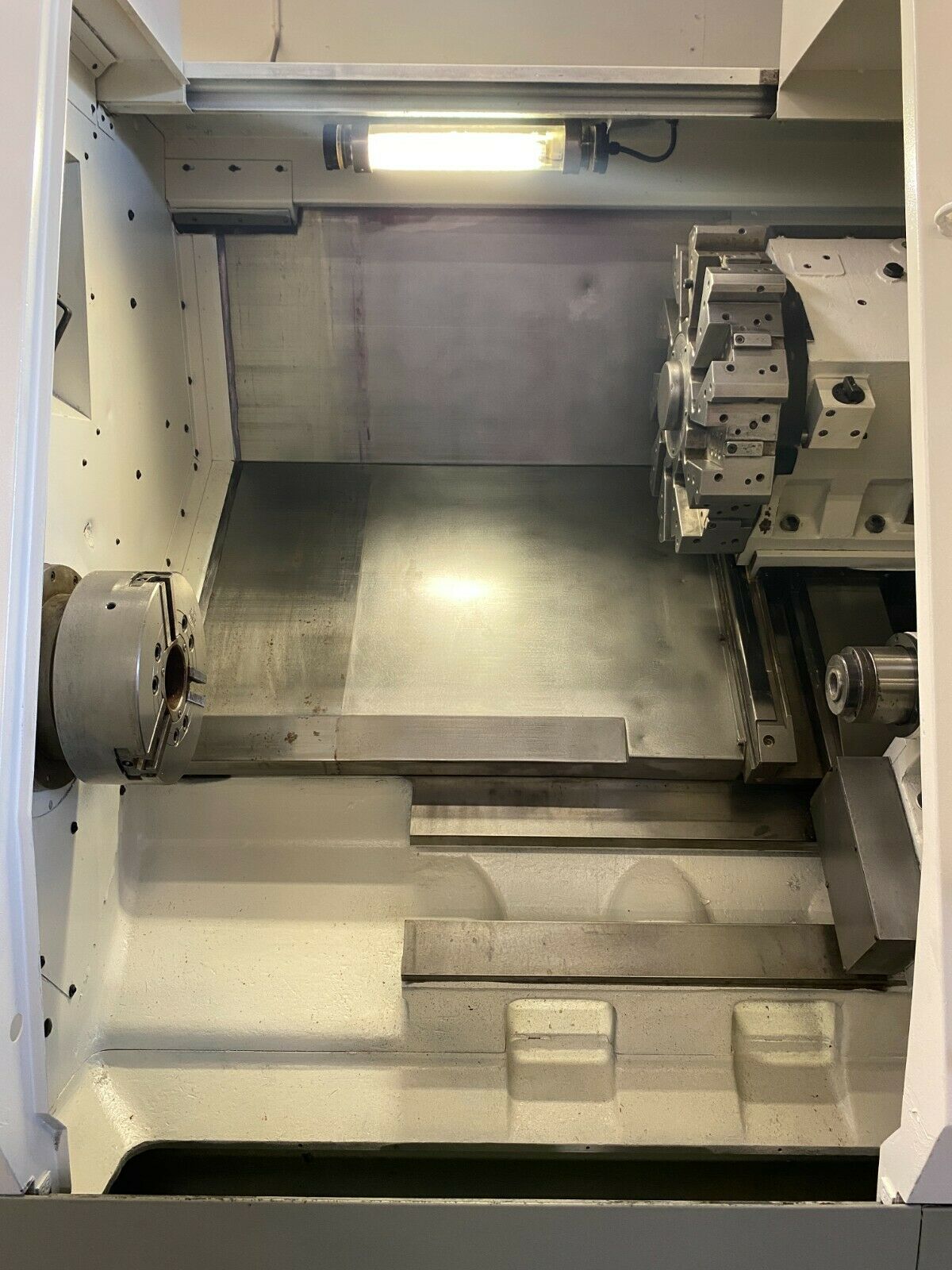

10-Station Turret

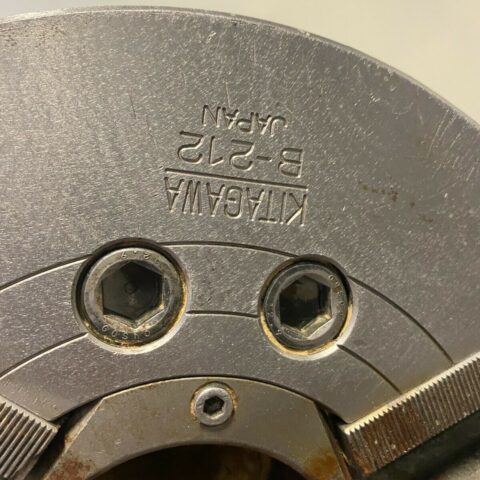

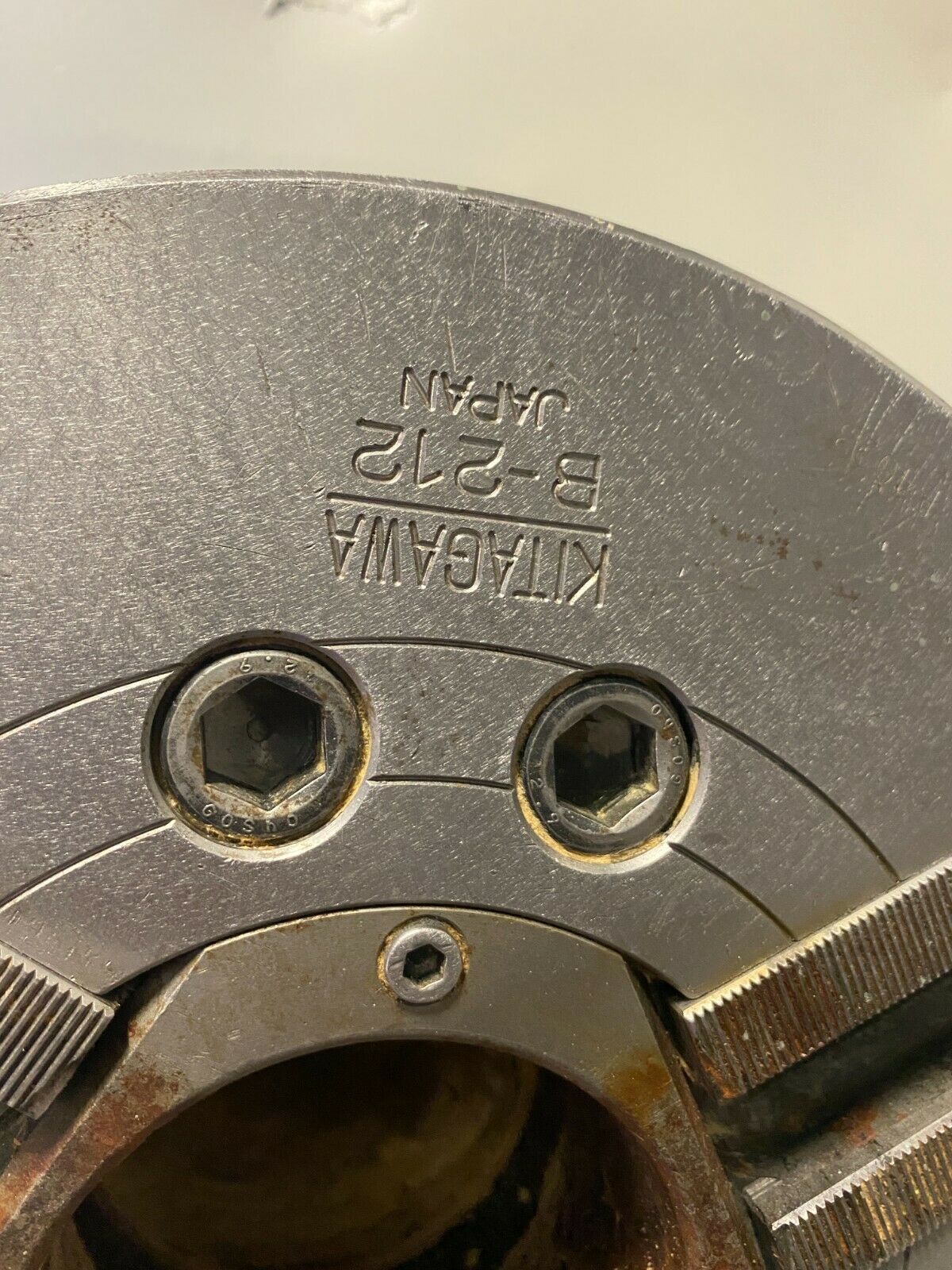

12″ Kitagawa Hydraulic Chuck
A2-8 Spindle with 4.13 Bore
Hydraulic Tailstock with Power Quill
Chip Pan
Coolant System Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock

Fortune Victor VTurn-36 CNC Turning Center Specifications:
Max Turning Diameter: 21.6″
Max Turning Length: 35.29″
Max Bar Capacity: 3.55″
Swing Over Bed: 25.4″
Distance Between Centers: 36.4″

Travel:
X Axis Travel: 11.9″
Z Axis Travel: 33.6″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.13″
Spindle Speed: 35-2500 RPM
Spindle Motor: 35 HP

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Body Travel: 24.3″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.94″
Tailstock Taper: MT-5

General:

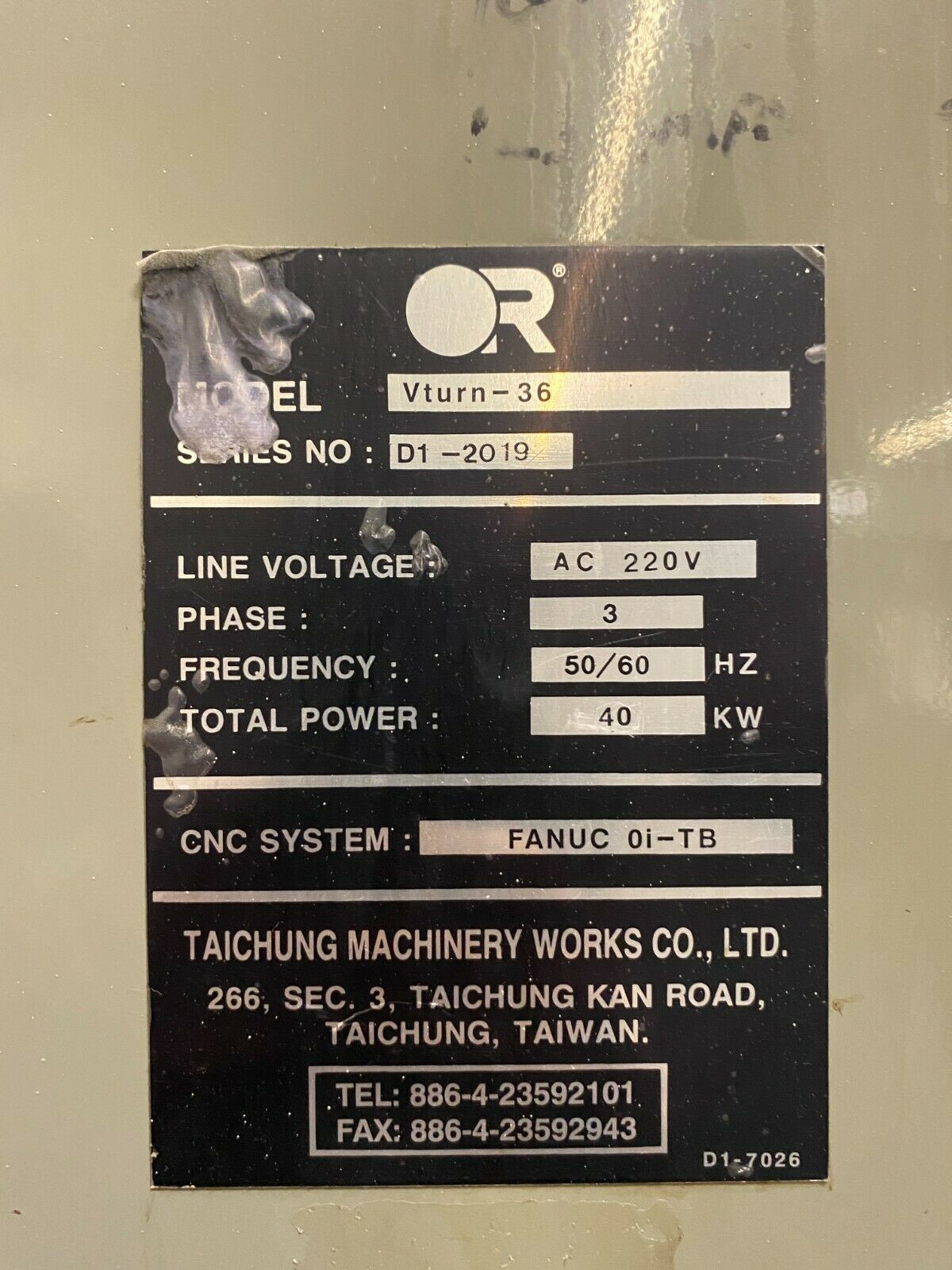

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 41 kva
Overall Dimensions: 132″ x 78″ x 80″ High
Weight : 18000 lbs Approx.

“No Charges for loading at list Price”
