*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Toyoda |
| Model: |
FA1050 |
| Year: |
2000 |
| Condition: |
Used – Good |
| Machine Type: |

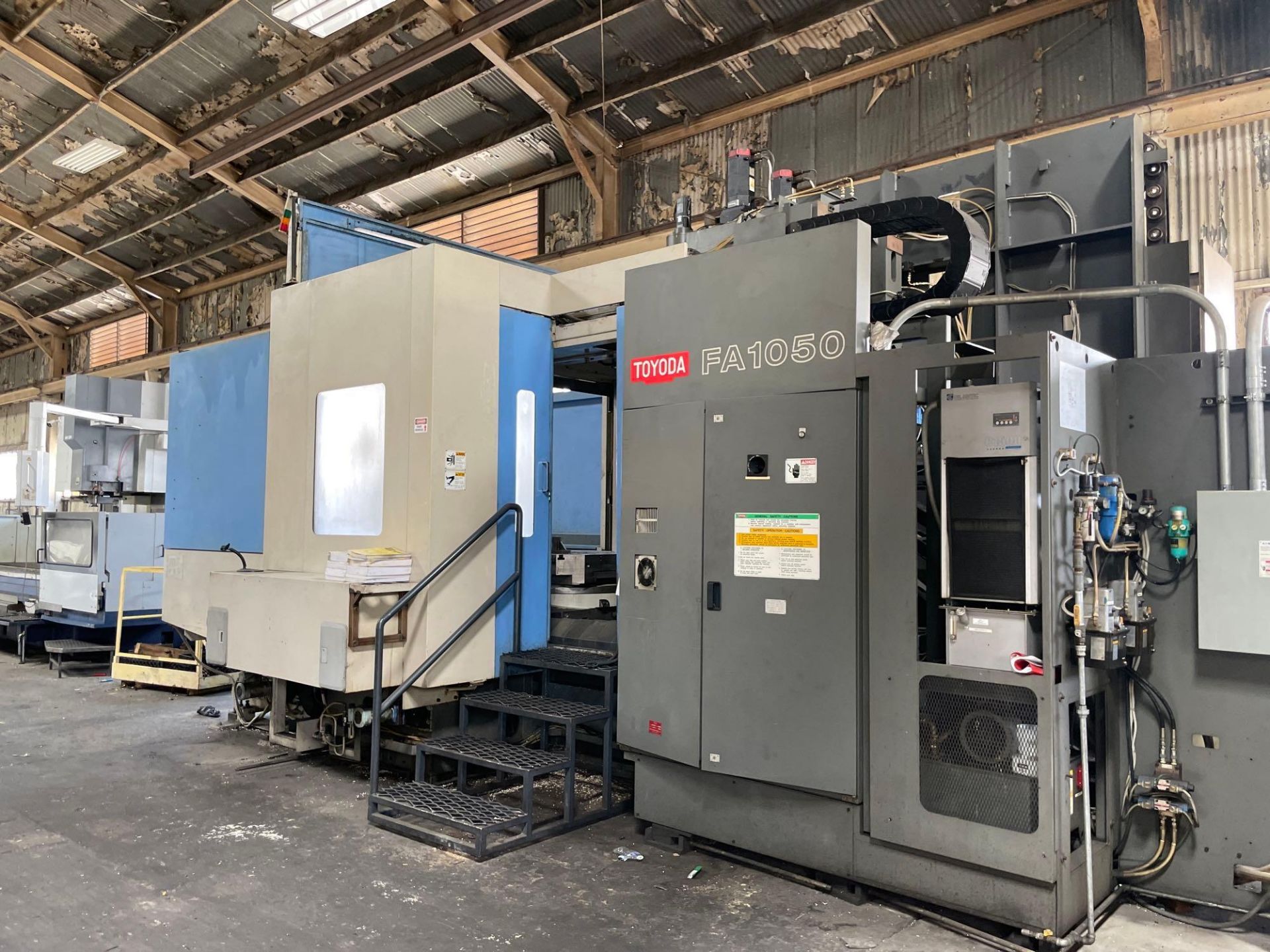

4-Axis CNC Horizontal Machining Center |
| Country of Origin: |
Japan |
| Machine Overview: |
- Heavy-Duty 4-Axis CNC Horizontal Machining Center
- Built by Toyoda Machine Works, Ltd.
- Designed for Large, Heavy & High-Precision Machining
- Ideal for Long-Cycle and High-Torque Applications
|
| CNC Control: |

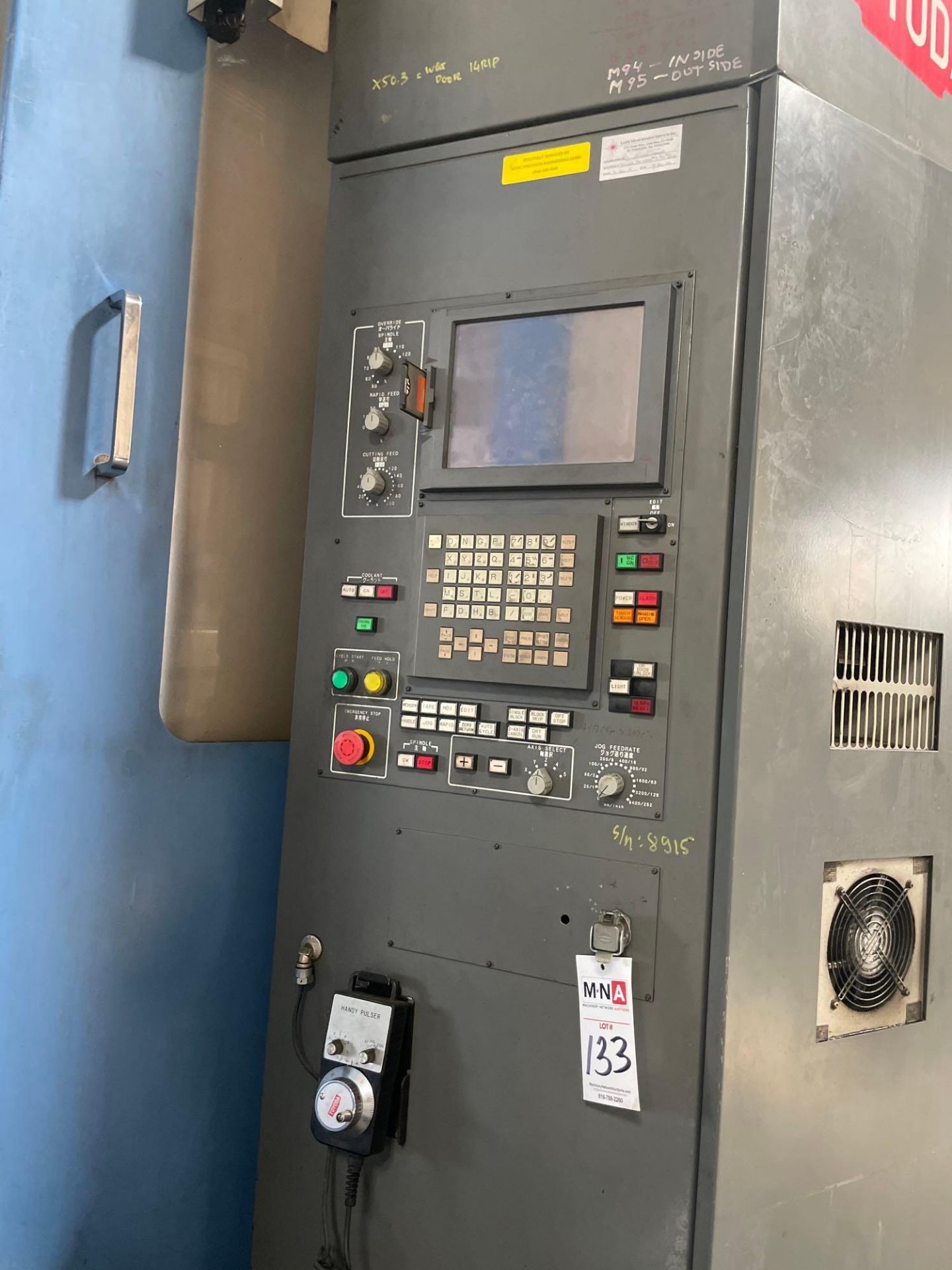

- Fanuc 21i CNC Control
- Full 4-Axis Simultaneous Capability
- Advanced Interpolation & Contouring
- Macro & Custom Programming Support
- High-Reliability Fanuc Platform
|
| Travels (Typical FA1050 Configuration): |
- X-Axis Travel: Approx. 1,600 mm (63.0″)
- Y-Axis Travel: Approx. 1,400 mm (55.1″)
- Z-Axis Travel: Approx. 1,150 mm (45.2″)
|
| Pallet / Table: |
- Pallet Size: Approx. 1,050 mm × 1,050 mm (41.3″ × 41.3″)
- Maximum Table Load: Approx. 3,000 kg (≈6,600 lbs)

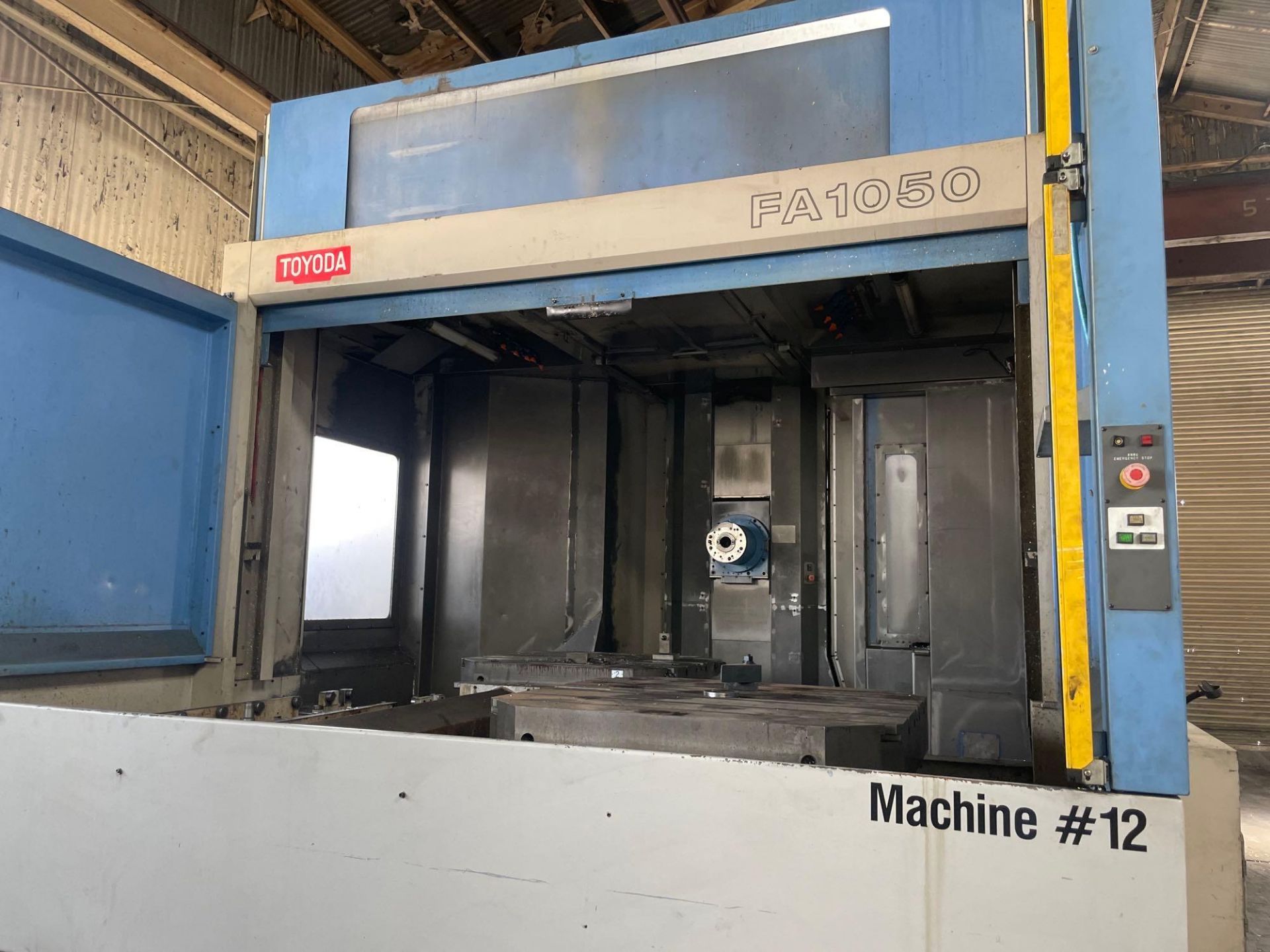

- Rotary Pallet Table with Indexable 4th Axis
- Supports Full 4-Axis Machining (Indexing & Contouring)
|
| Spindle: |
- Spindle Taper: CAT 50
- Spindle Speed: Approx. 6,000 RPM
- Spindle Motor Power: Approx. 40 HP (≈30 kW)
- Designed for Heavy Cutting & High Torque Machining
|
| Tool Changer: |
- Automatic Tool Changer (ATC)
- Standard Tool Capacity: Approx. 60 Tools
- Optional Configurations: 90 or 120 Tools (Factory Dependent)
|
| Construction & Core Advantages: |
- Massive Cast-Iron Construction for Extreme Rigidity
- Box Guideways on X, Y & Z Axes
- Excellent Stability for Heavy Milling & Roughing
- Rotary Pallet Enables Complex Multi-Side Machining
- High Payload Capacity for Large Castings & Structures
- Proven High-Torque Spindle Design
- Automation-Ready for Pallet Systems & Lights-Out Machining
|
| Typical Applications: |
- Large Housing & Structural Components
- Aerospace Machining
- Automotive Engine Blocks & Transmission Cases
- Mold Bases & Heavy Die Components
- Multi-Face Machining with Tight Tolerances
|
| Machine Size & Weight (Approx.): |
- Floor Space: Approx. 213″ (W) × 307″ (L)
- Overall Height: Approx. 161″
- Machine Weight: Approx. 30,000 kg (≈66,000 lbs)
|
