*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Toyoda |
| Model: | FH100B |
| Year: | 1995 |
| Machine Type: | CNC Horizontal Machining Center |
| CNC Control: | FANUC Series 15-M |
| Features: |
|---|
| FANUC Series 15-M CNC Control |
| (2) 41.3″ × 41.3″ Pallets |
| 1° Rotary Pallet Indexing |
| CAT-50 Spindle Taper |
| 4,000 RPM Spindle |
| Automatic Pallet Shuttle |
| High-Pressure Through-Spindle Coolant |
| ChipBLASTER High-Pressure Coolant Unit |
| Chip Conveyor |
| Coolant System |
| Automatic Tool Changer |
| Fully Enclosed Machining Area |
| 4-Axis Horizontal Machining Configuration |
| Travels: |
|---|
| X-Axis Travel: 63″ |
| Y-Axis Travel: 47″ |
| Z-Axis Travel: 43″ |
| Spindle Nose to Rotary Table Center: 8.8″–52.2″ |
| Spindle Centerline to Table: 0–47.2″ |
| Spindle: |
|---|
| Spindle Taper: CAT-50 |
| Maximum Spindle Speed: 4,000 RPM |
| Spindle Diameter: 4.3″ |
| Spindle Drive: 35 HP |
| Automatic Tool Changer: |
|---|
| Tool Taper: CAT-50 |
| Maximum Tool Weight: 55 lbs. |
| Tool-to-Tool Change Time: 9 seconds |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 472 IPM |
| Cutting Feedrate: 0.04–212.7 IPM |
| General: |
|---|
| Air Requirement: Approx. 70 PSI / 21 CFM |

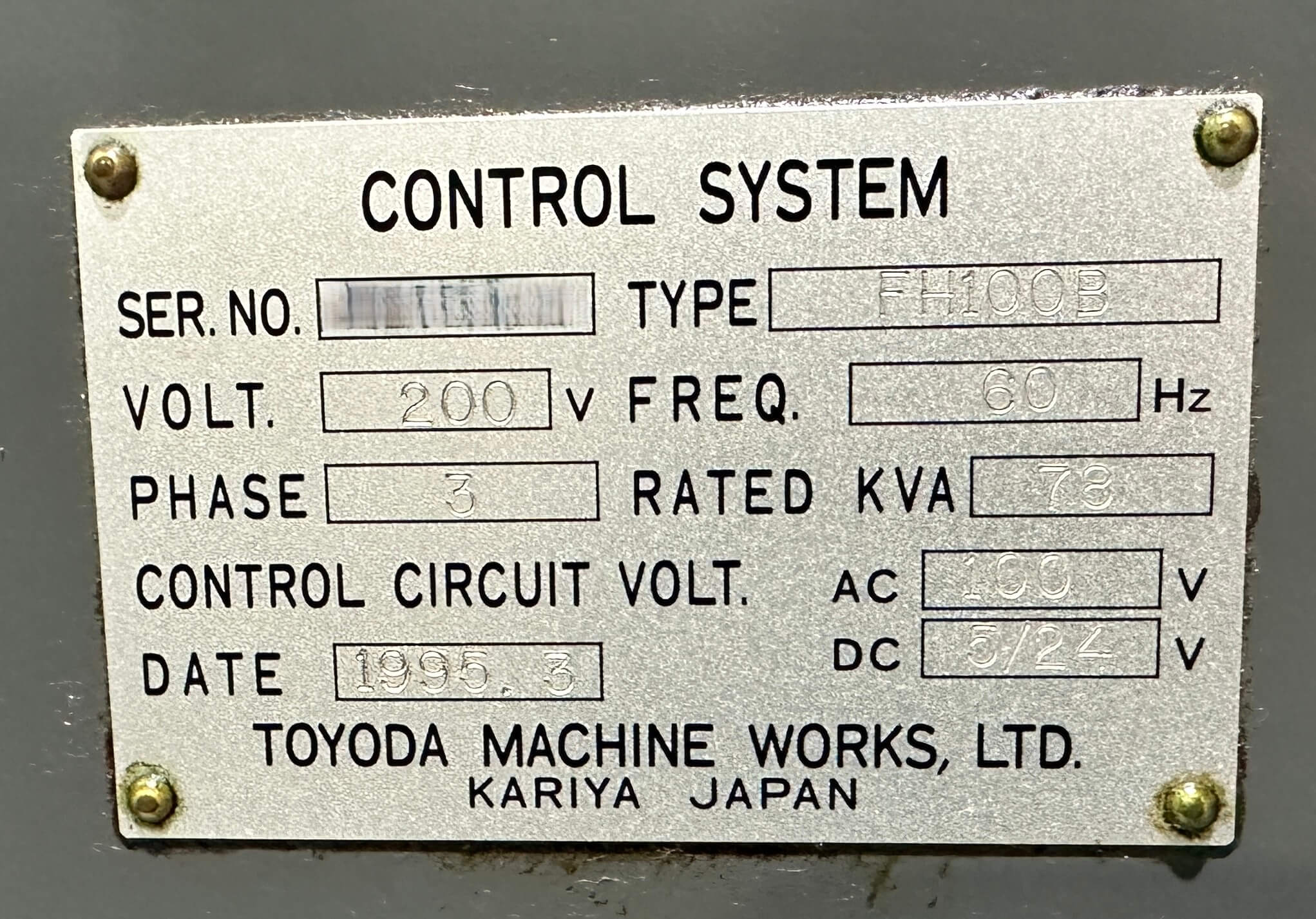

| Power Source: 200V / 3-Phase / 60 Hz |
| Floor Space (Approx.): 193″ × 300″ |
| Machine Weight (Approx.): 57,320 lbs. |
