*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Trak |
| Model No.: | DPM SX2P |
| Year of Manufacture: | 2014 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Knee Mill |

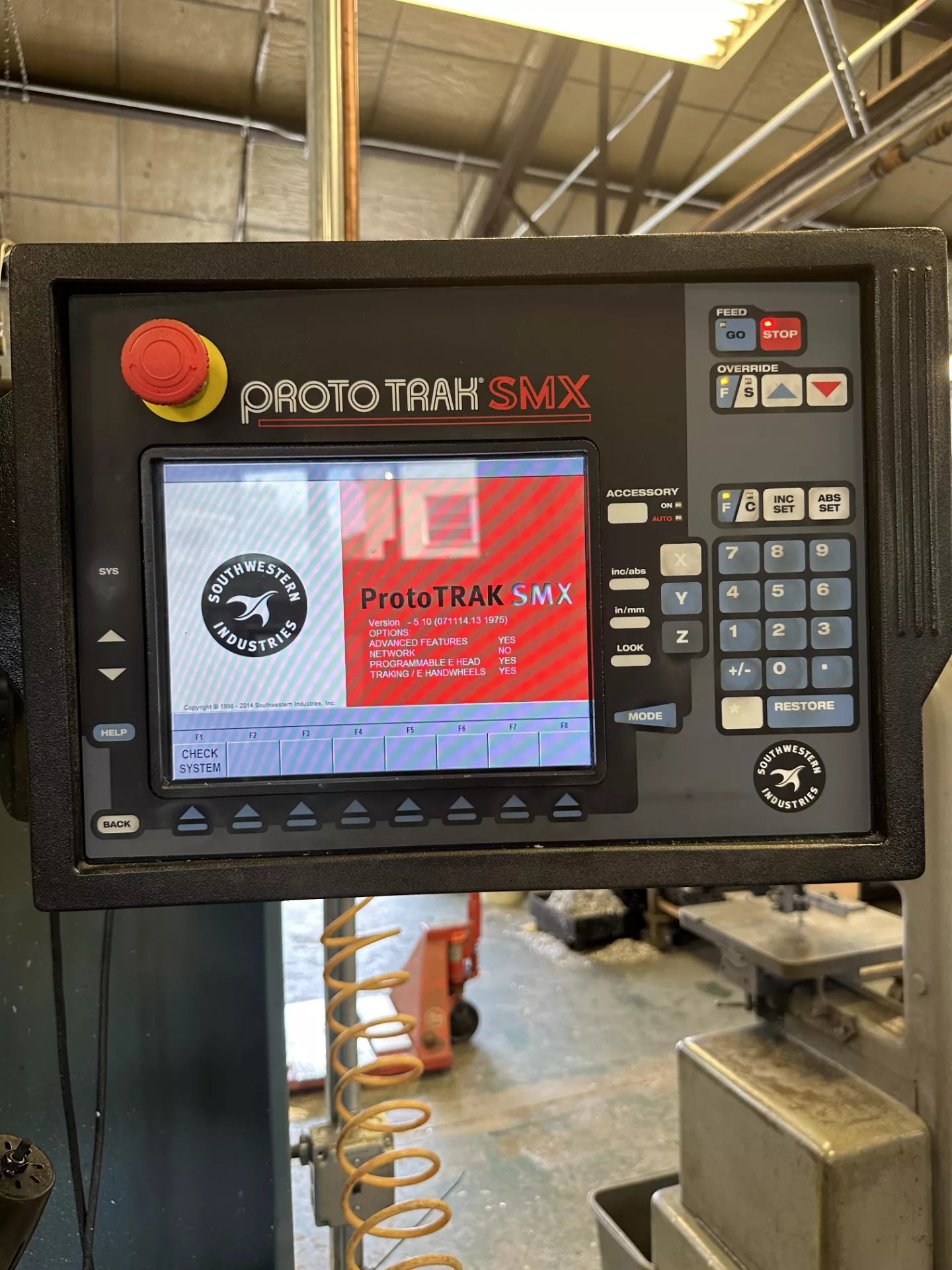

| CNC Control: | ProtoTRAK SMX CNC Control |
| Equipped With: |
|---|
| ProtoTRAK SMX CNC Control |
| 2-Axis CNC Control (X & Y) |
| Electronic Handwheels for Manual Operation |
| Digital Readout (DRO) Mode |
| Power Feed |
| Coolant System |
| Automatic Lubrication System |
| Work Light |
| Safety Guarding |
| Capacity: |
|---|
| Table Size: 50″ × 10″ |
| Maximum Table Load: 750 lbs |
| T-Slots: 3 |
| Travel: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 12″ |
| Knee (Z-Axis) Travel: 16″ |

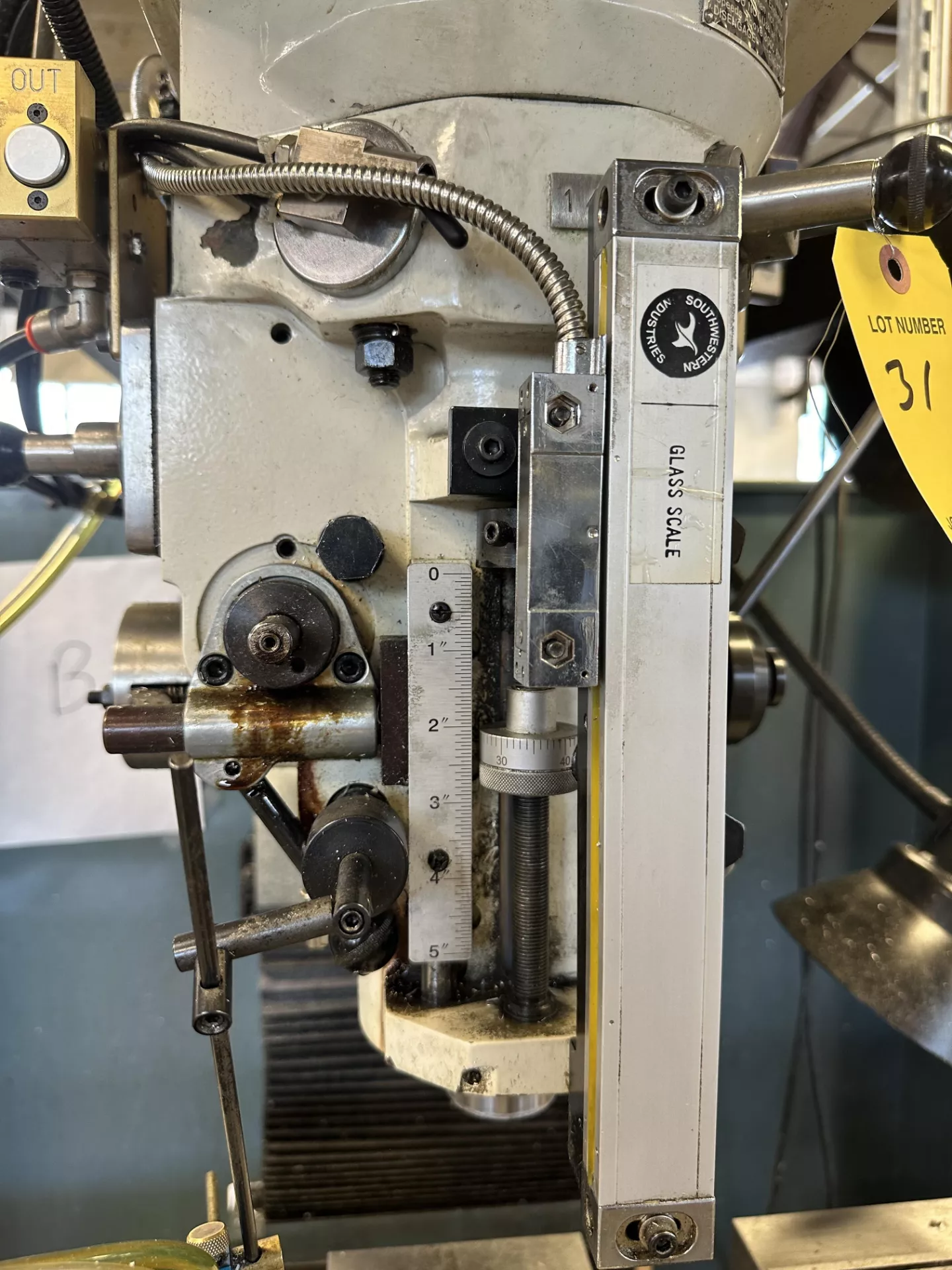

| Quill Travel: 5″ |
| Spindle: |
|---|
| Spindle Speed Range: 60 – 4,200 RPM |
| Spindle Motor Power: 3 HP |
| Spindle Taper: R8 |
| Feedrates: |
|---|
| Maximum Feed Rate: Approx. 150 IPM |
| Rapid Traverse (X/Y): Approx. 200 IPM |
| Electrical: |
|---|
| Voltage: 220 V |
| Phase: 3-Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Dimensions: Approx. 80″ × 70″ × 85″ (L × W × H) |
| Machine Weight: Approx. 3,200 lbs |
| Features: |
|---|
| 2-axis CNC knee mill with ProtoTRAK conversational programming |
| Manual and CNC machining capability |
| User-friendly ProtoTRAK SMX control system |
| Electronic handwheels for precise manual operation |
| Rigid Meehanite cast iron construction |
| High spindle speed range for versatile machining applications |
| Ideal for toolrooms, prototype machining, repair work, and small batch production |
