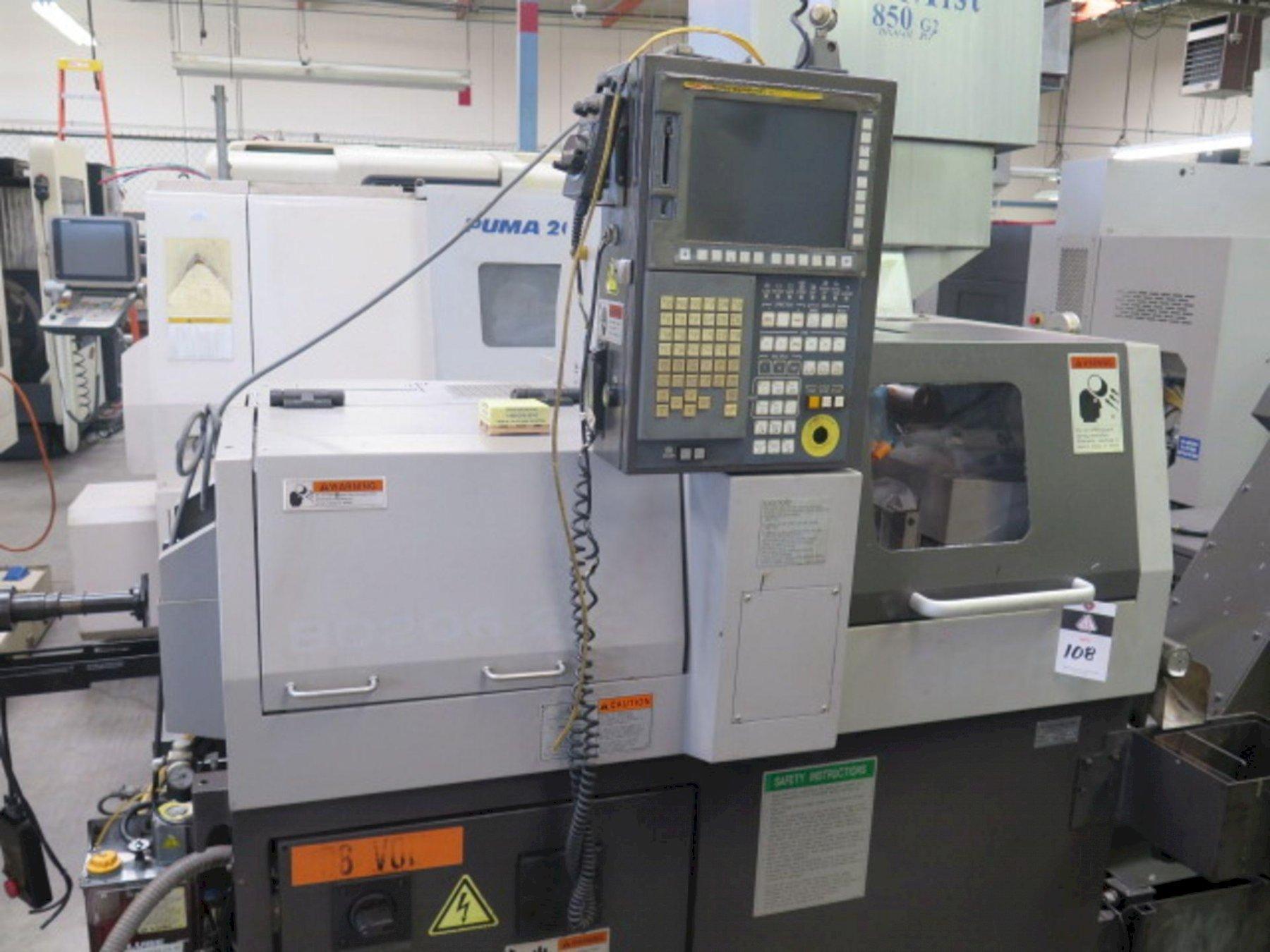

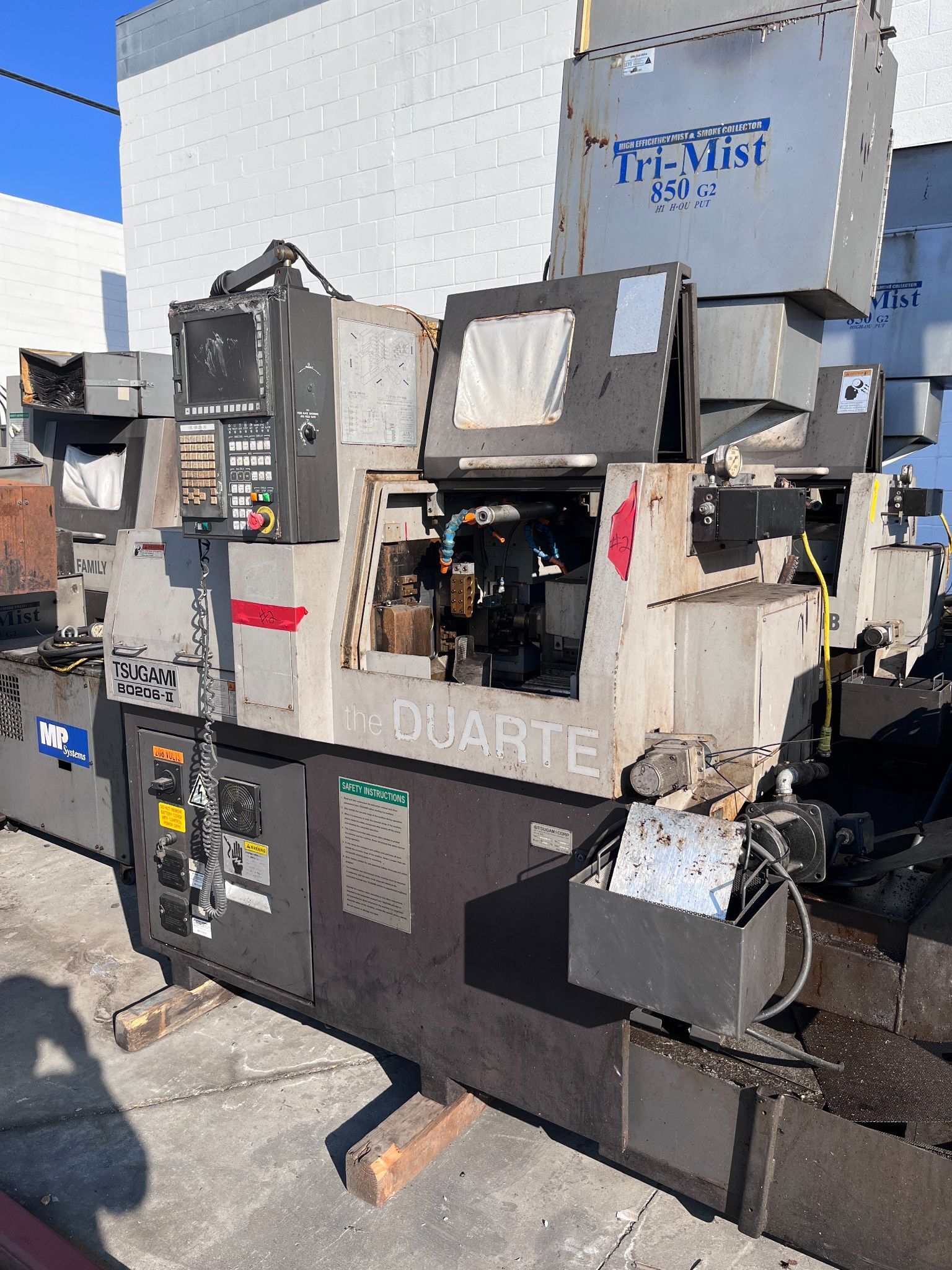

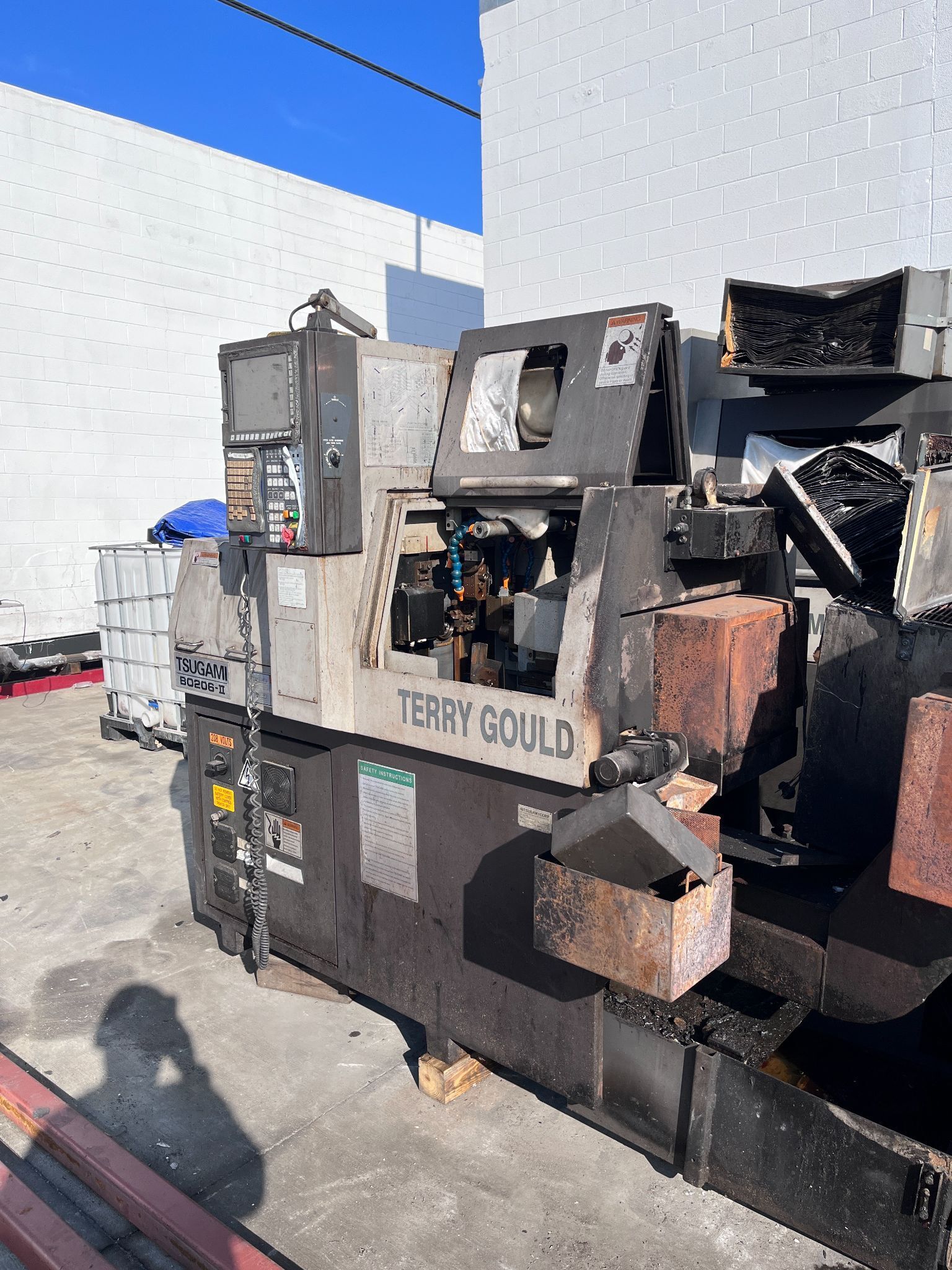

Tsugami B0206-II Swiss Screw Type Automatic CNC Turning Center -Lathe

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make/Model:	Tsugami B0206-II
Year:	2013
Condition:	Used – Good

Equipped With:
Fanuc 32i-MB CNC Control Controlled Axes (Linear Axes) X1, X2, Y1, Y2, Z1, Z2 Comes with Edge Minuteman 320 SE Bar Feeder Back Spindle Live Tools Capable Long Parts Capable C & Y Axis Capabilities MPG Handwheel Control Main & Back Spindle Synchronization High Speed Rapid Travers: 944 IPM High Speed Program Processing Absolute Position Detection Automatic Lubrication System Part Catcher Part Conveyor Coolant Tank Chip Conveyor Books and Manuals

Equipped With:

Fanuc 32i-MB CNC Control
Controlled Axes (Linear Axes) X1, X2, Y1, Y2, Z1, Z2
Comes with Edge Minuteman 320 SE Bar Feeder
Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Part Catcher
Part Conveyor
Coolant Tank
Chip Conveyor
Books and Manuals

Capacity:
Max Turning Diameter: 0.79″ (20 mm) Max Turning Length: 8.3″ (210 mm) Max Turning Length with Gripping Unit: 6.69″ (170mm) Max Bar Capacity: 0.79″ (20 mm) Max Tool Positions: 25 Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) Max. Main Spindle Tapping Diameter: M10 Max. Back Spindle Chucking Diameter: 0.79″ (20 mm) Max. Back Spindle Drilling Diameter: 0.31″ (8 mm) Max. Back Spindle Tapping Diameter: M8 Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16 Max. Cross Tapping Diameter: M5 x 0.8 (option) Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm) Max. Back Drilling Diameter: 0.275″ (7 mm) Max. Back Tapping Diameter: M5

Capacity:

- Max Turning Diameter: 0.79″ (20 mm)
- Max Turning Length: 8.3″ (210 mm)
- Max Turning Length with Gripping Unit: 6.69″ (170mm)
- Max Bar Capacity: 0.79″ (20 mm)
- Max Tool Positions: 25
- Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
- Max. Main Spindle Tapping Diameter: M10
- Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
- Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
- Max. Back Spindle Tapping Diameter: M8
- Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
- Max. Cross Tapping Diameter: M5 x 0.8 (option)
- Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
- Max. Back Drilling Diameter: 0.275″ (7 mm)
- Max. Back Tapping Diameter: M5

Spindle:
Main Spindle Indexing: 360° (Full C-Axis) Main Spindle Bore: 0.79″ (20 mm) Main Spindle Speed: 10000 RPM Back Spindle Motor: 3.7 kw Back Spindle Indexing: 360° (Full C-Axis) Back Spindle Speed: 12000 RPM Back Spindle Motor: 2.2 kw

Standard Tools:
OD Tools: 9 Stationary Tools For Front Spindle: 4 Stationary Tools For Back Spindle: 8

Power Driven Tools Attachment:
Power Driven Tools: 4 (2 Front 2 Cross) Driven Tool Speed: 8000 RPM Driven Tool Motor: 1.2 kw

General:
Power Source: AC 220v / 3-Phase /60 Hz Power Requirement: 11 kva Overall Dimensions: 65.16″ X 44.29″ X 66.93″ High without Bar Feeder Weight: 4409 lbs. Approx.
