*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

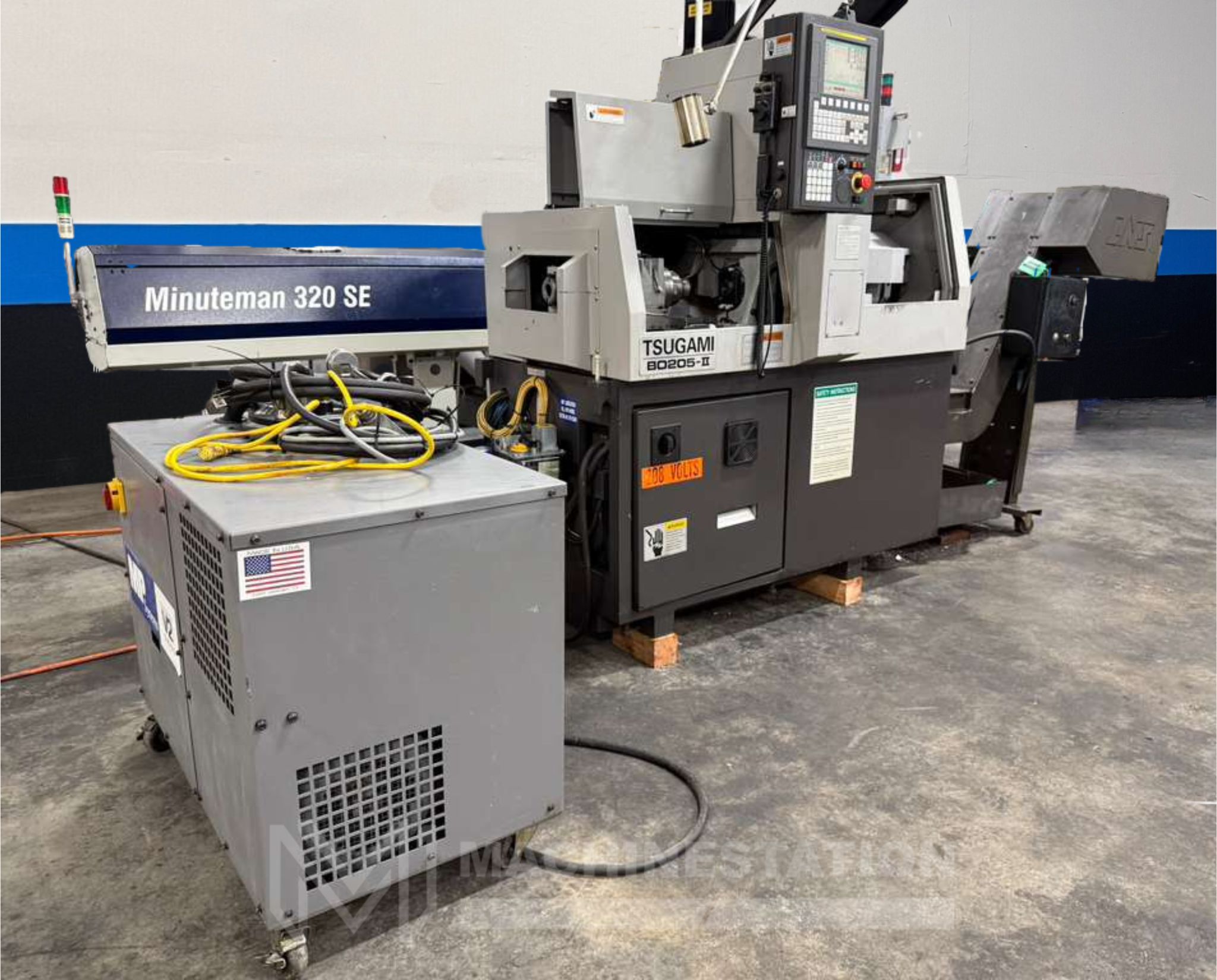

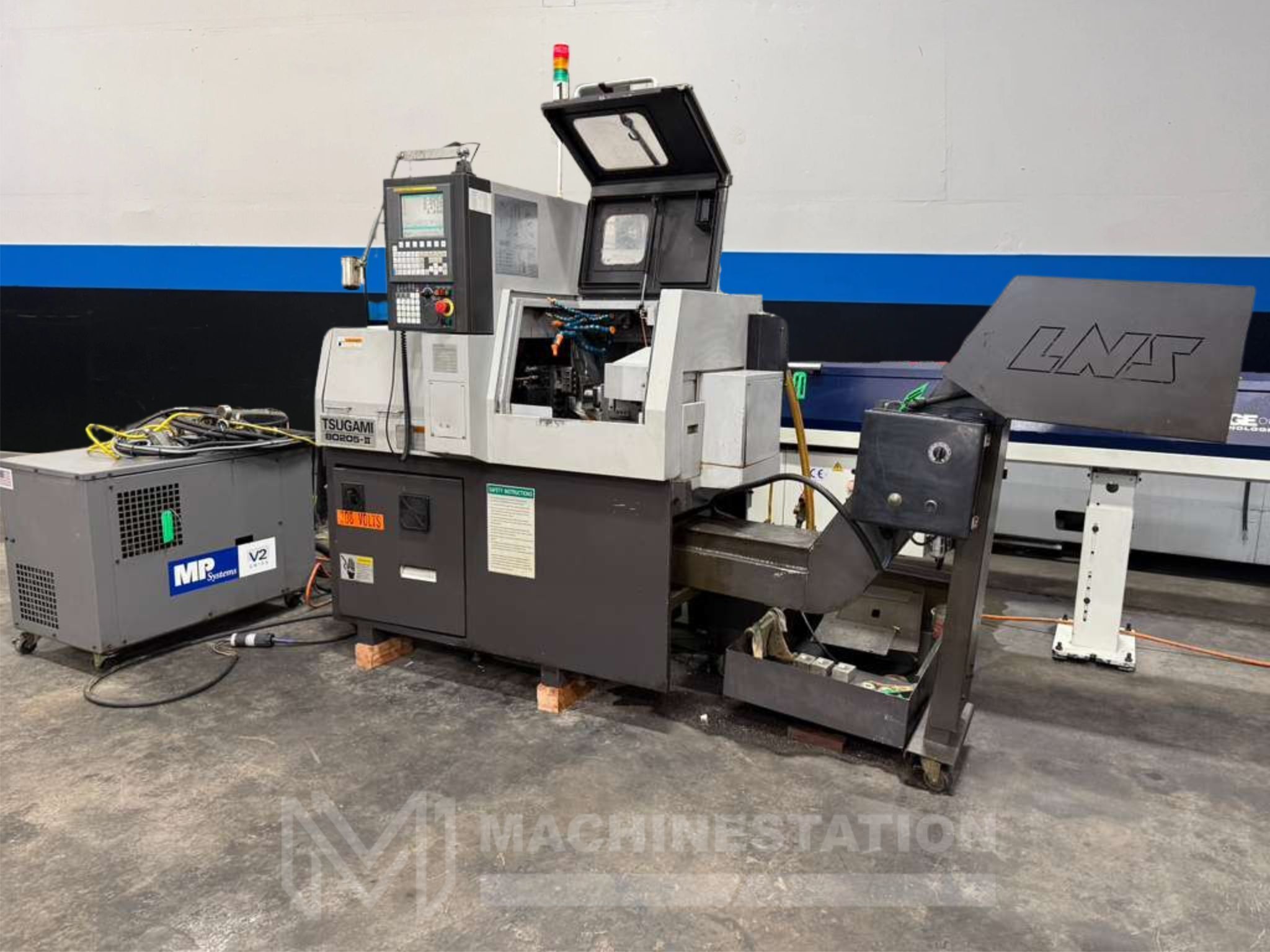

| Make: | Tsugami |
| Model: | B0205-II |
| Year: | 2013 |
| Equipped With: |
|---|

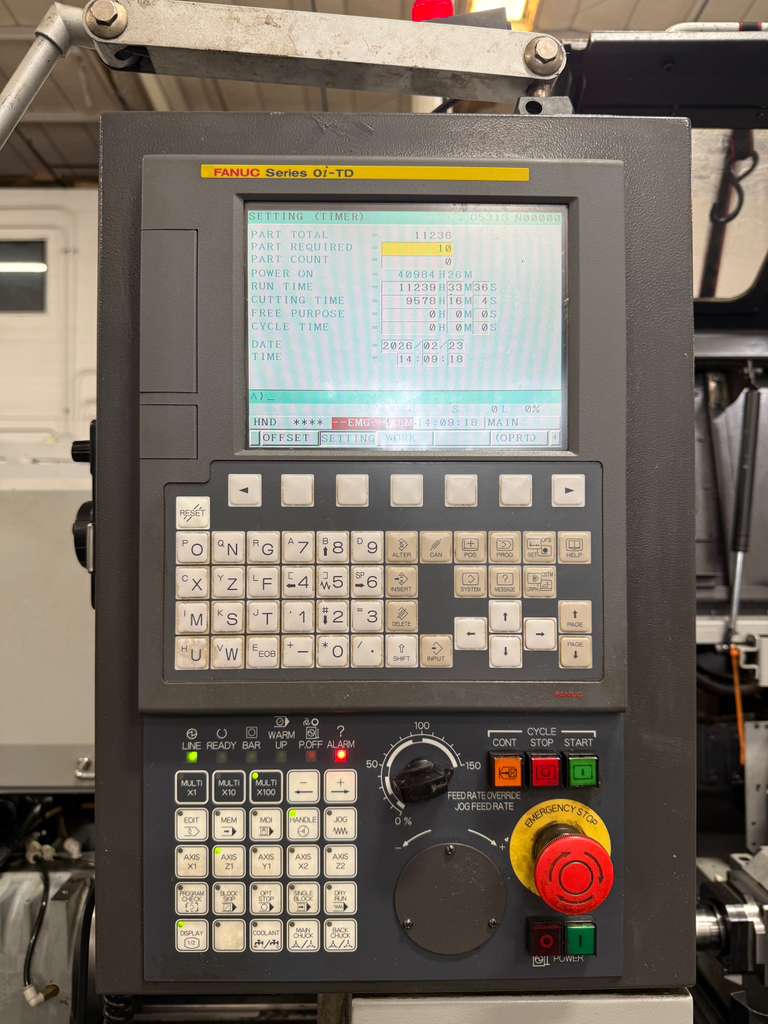

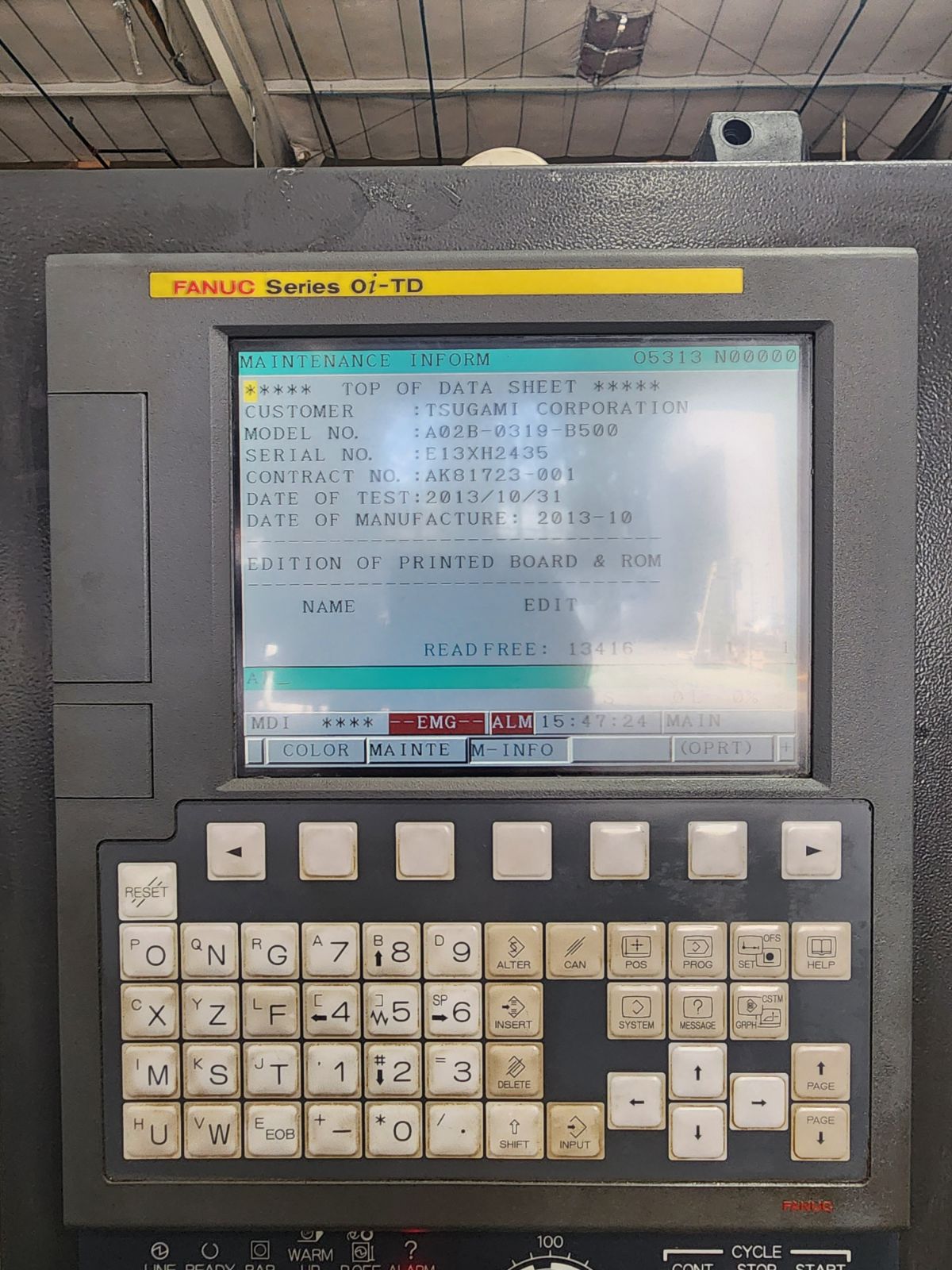

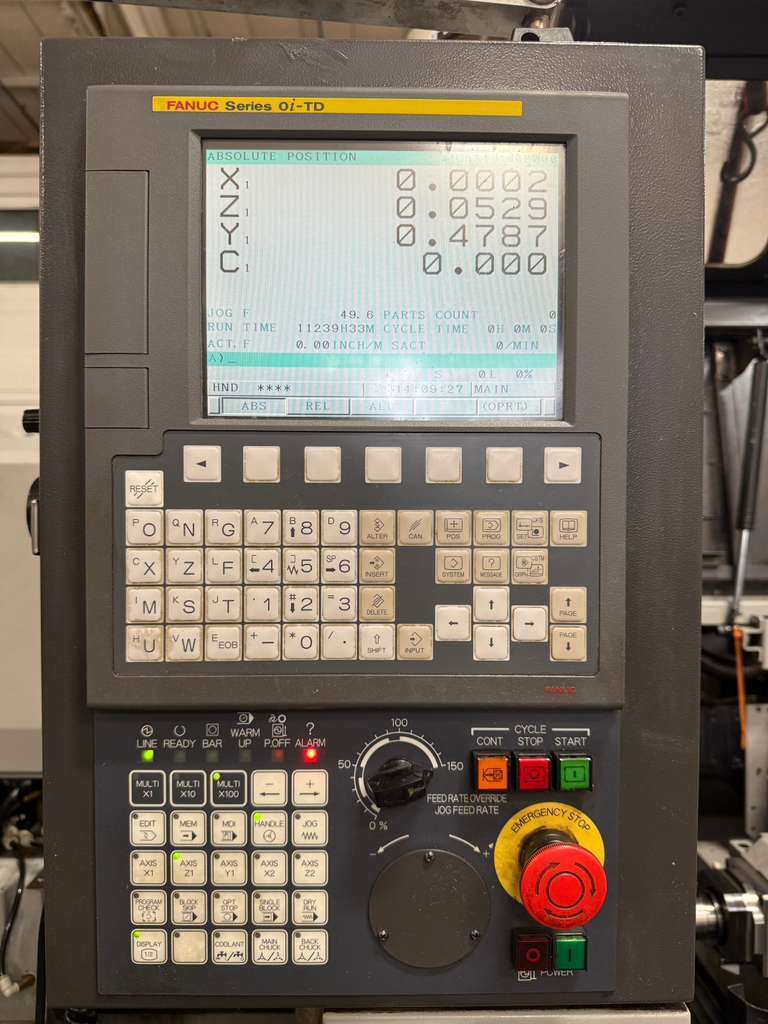

| Fanuc Oi-TD CNC Control |
| Controlled Axes (Liner Axes) X1, X2, Y1, Z1, Z2 |

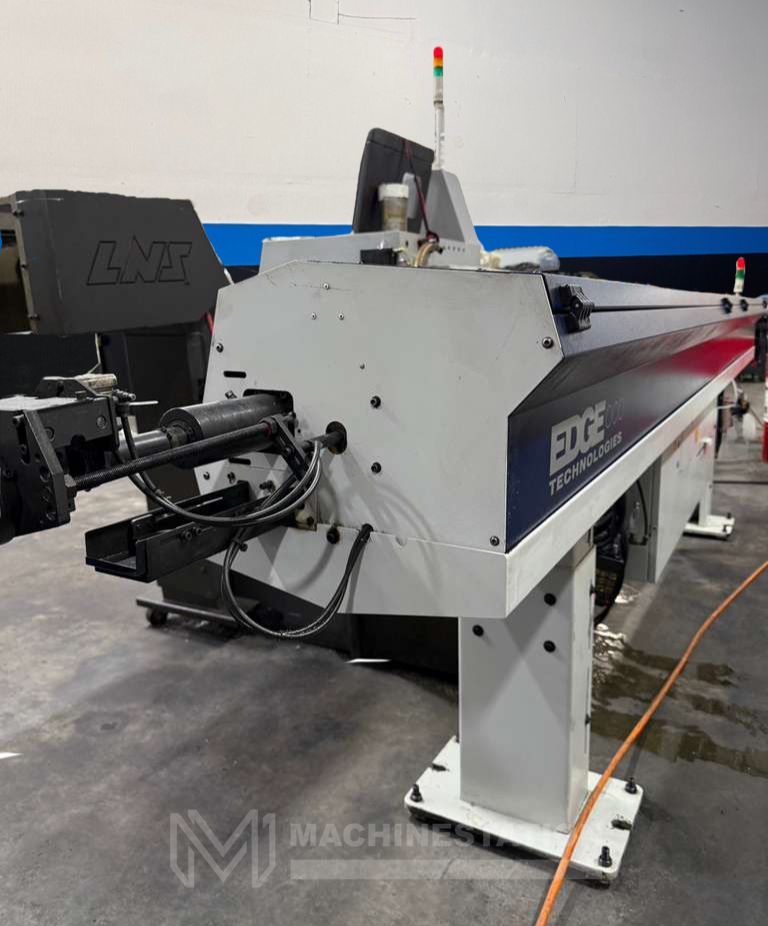

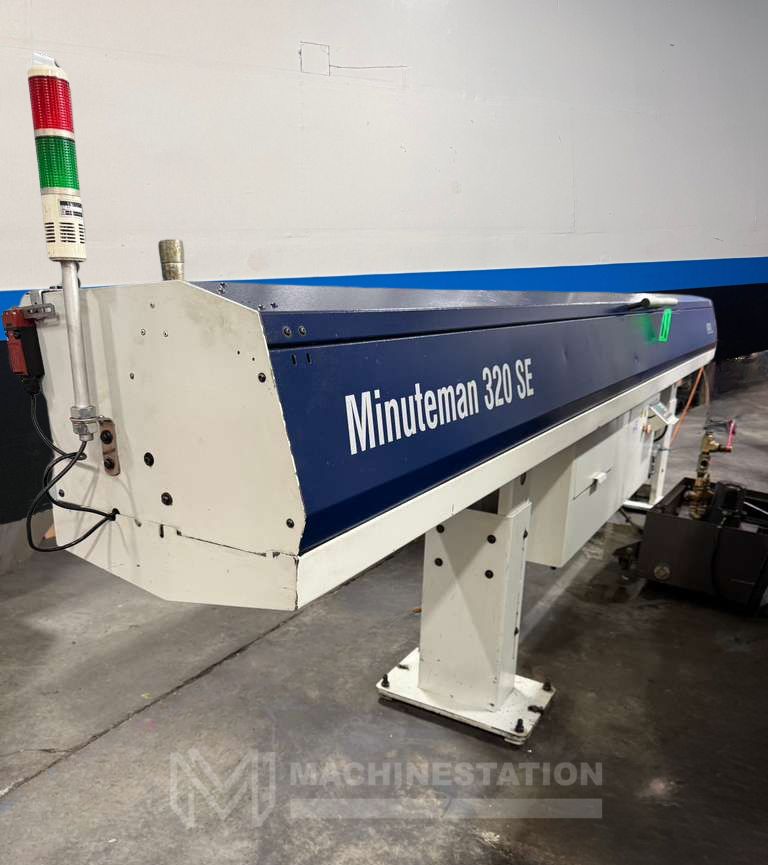

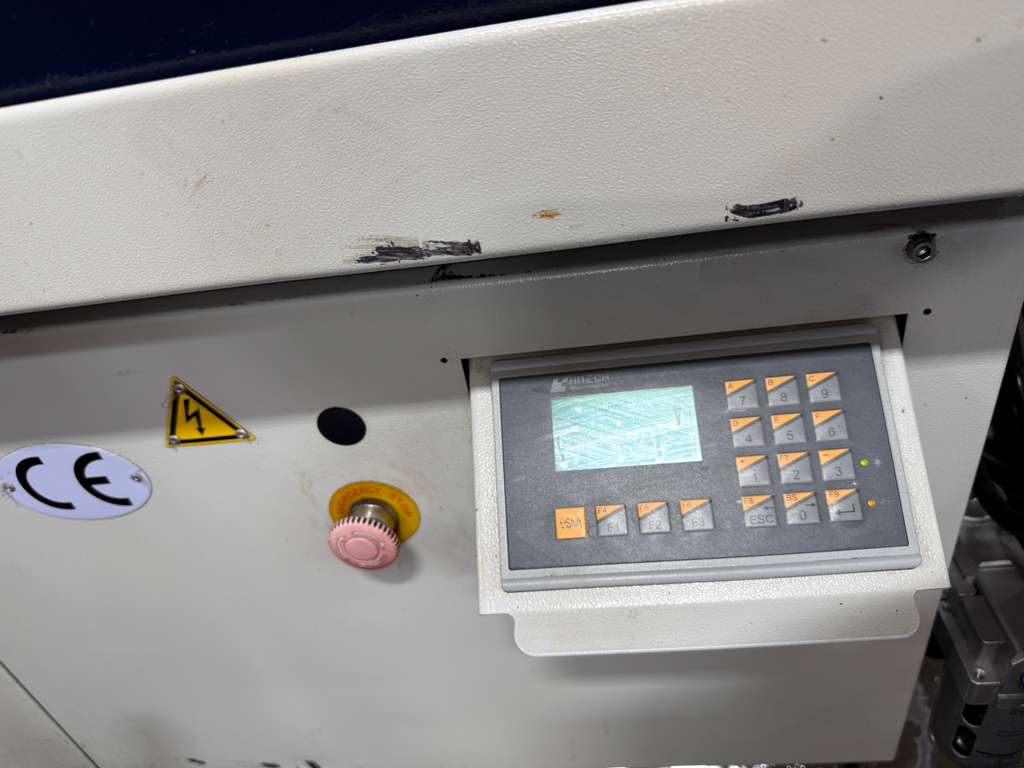

| Comes with Edge Minuteman 320 SE Bar Feeder |

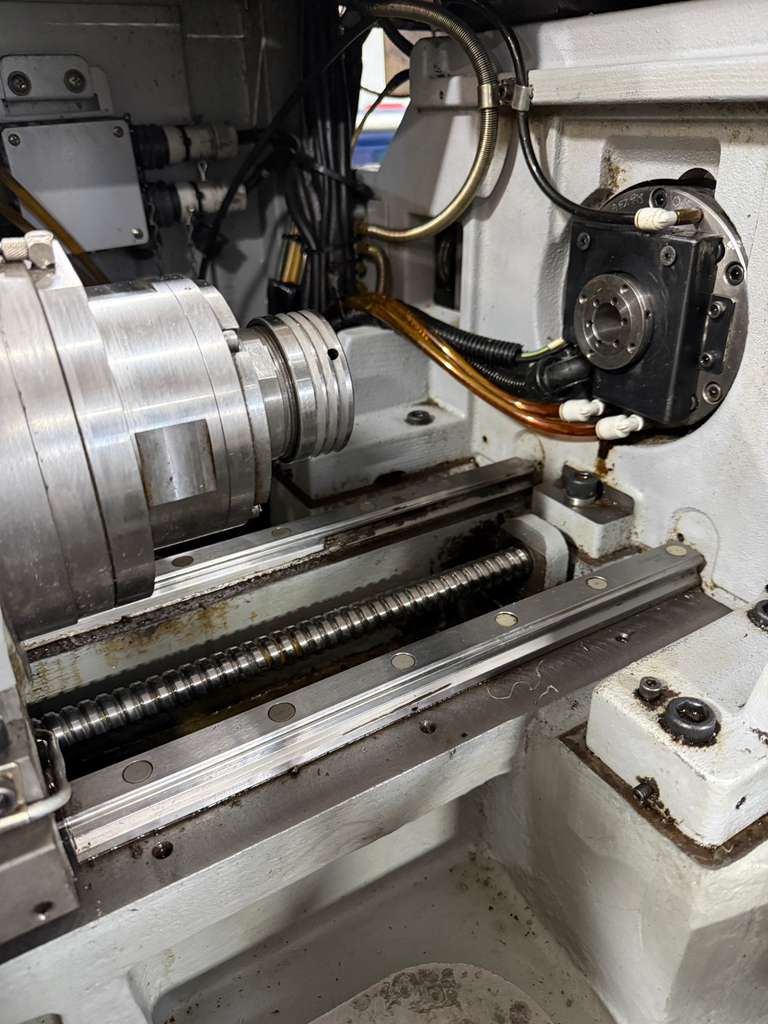

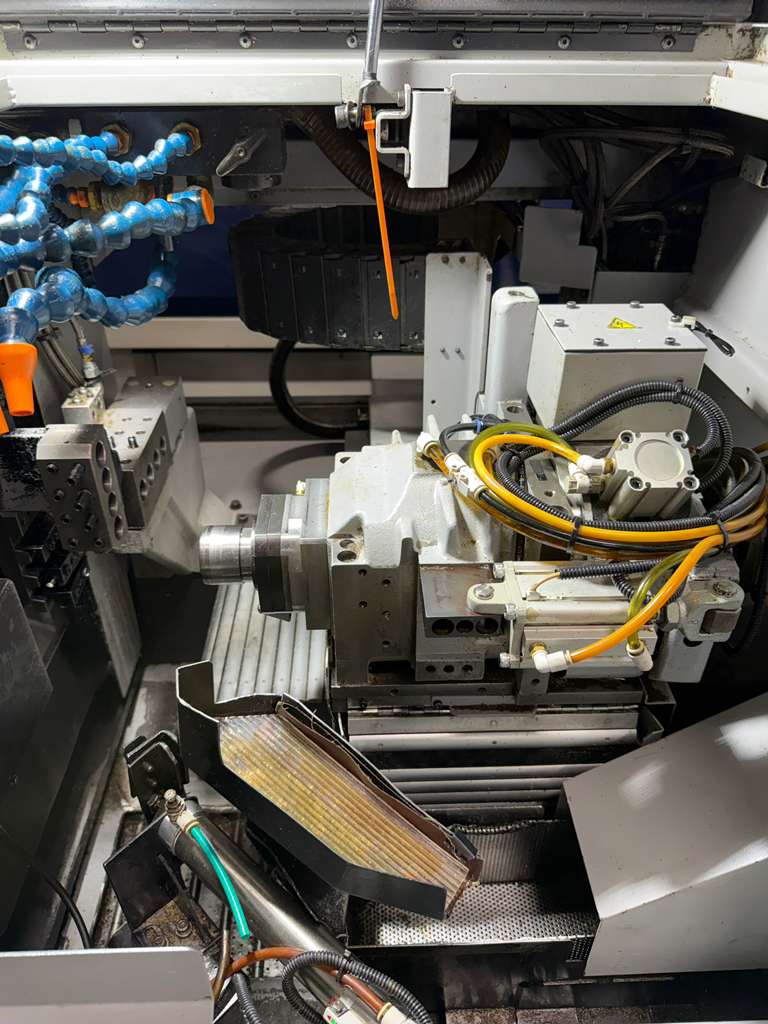

| Back Spindle |
| C & Y Axis Capable |
| Live Tools Capable |
| Long Parts Capable |
| MPG Handwheel Control |
| Parts Catcher |
| Parts Conveyor |
| Main & Back Spindle Synchronization |
| High Speed Rapid Travers: 1260 IPM (X1: 945 IPM) |
| Automatic Lubrication System |

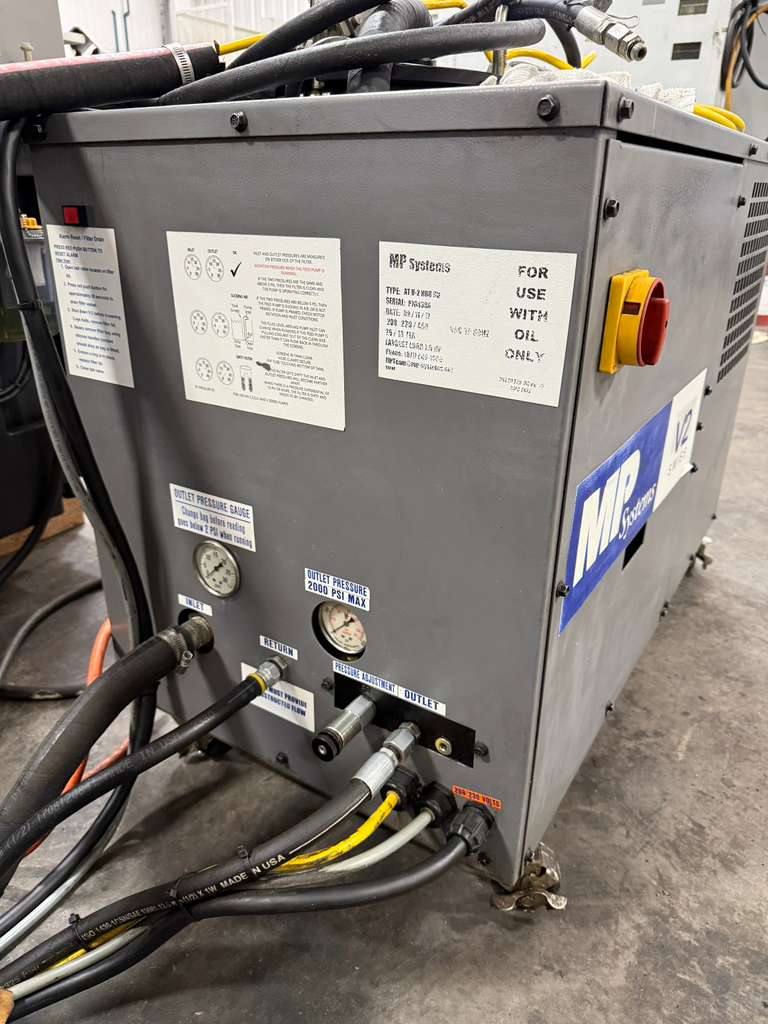

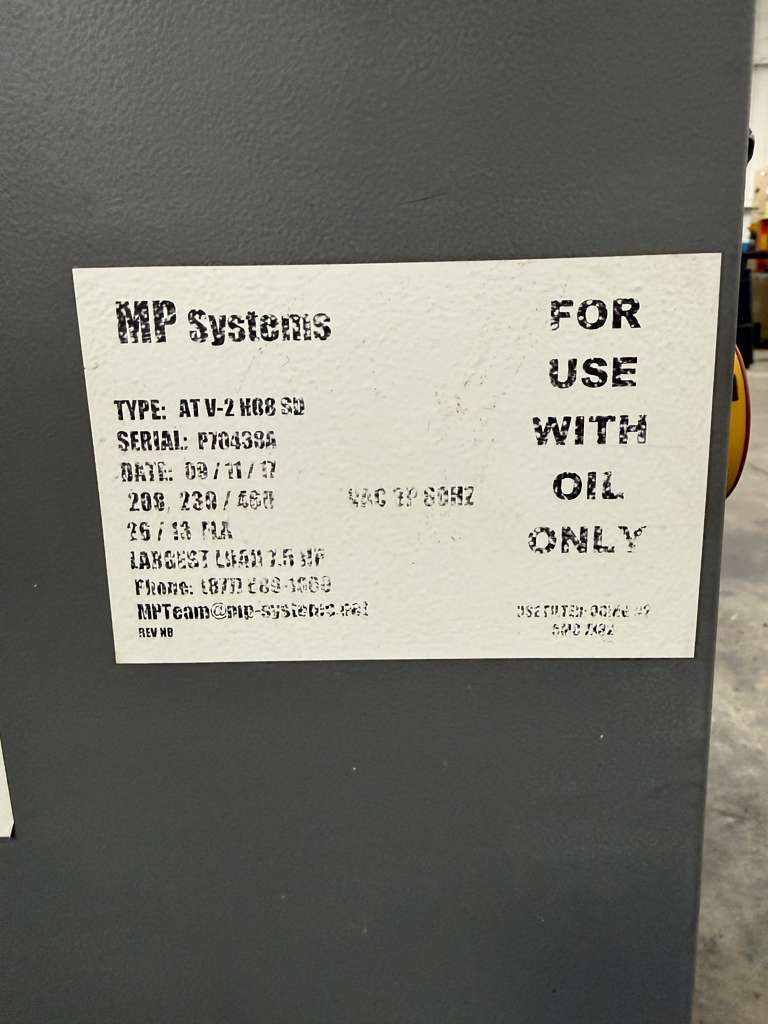

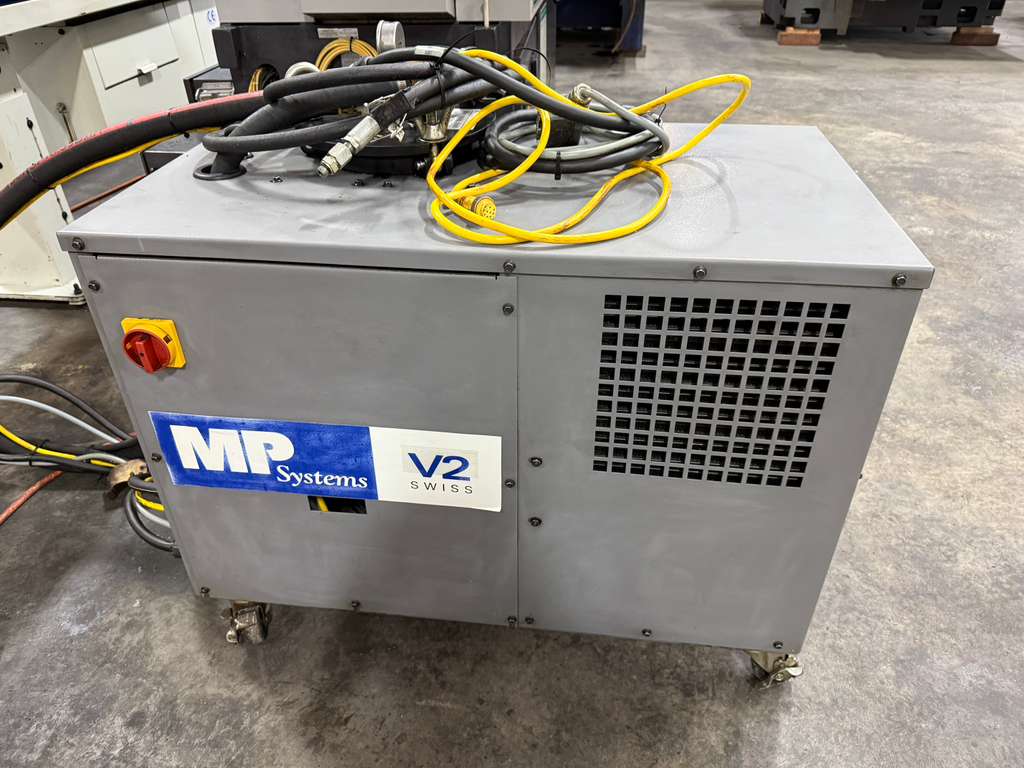

| MP Systems V2 High Pressure Oil Coolant System |
| LNS Chip Conveyor |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter: 0.79″ (20 mm) |
| Max Turning Length: 8.3″ (210 mm) |
| Max Turning Length with Gripping Unit: 6.69″ (170mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Total Tool Storage Capacity: 21 Tools |
| Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) |
| Max. Main Spindle Tapping Diameter: M10 x 1.5 |
| Max. Back Spindle Chucking Diameter: 0.79″ (20 mm) |
| Max. Back Spindle Drilling Diameter: 0.31″ (8 mm) |
| Max. Back Spindle Tapping Diameter: M8 x 1.25 |

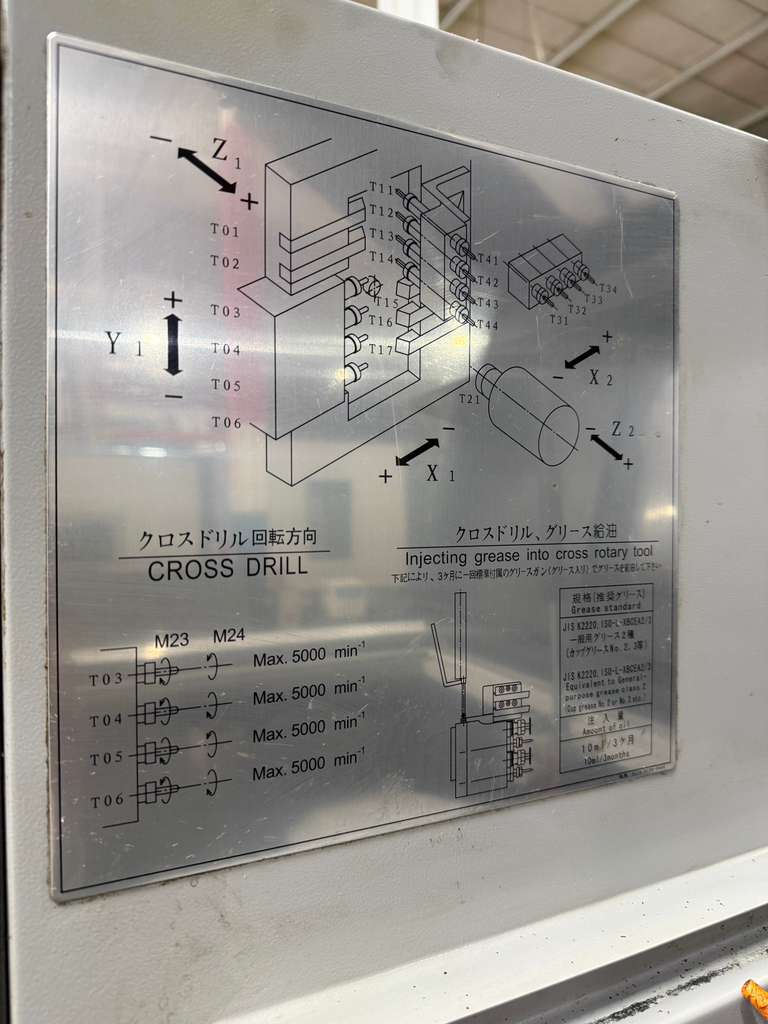

| Max. Cross Drilling Diameter: 0.236 ( 6 mm) (option) |
| Max. Cross Tapping Diameter: M5 x 0.8 (option) |
| Spindle: |
|---|
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Bore: 0.79″ (20 mm) |
| Main Spindle Speed: 200 – 10000 RPM |
| Back Spindle Motor: 3.7 kw |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 200 – 12000 RPM |
| Back Spindle Motor: 2.2 kw |
| Total Tool Storage Capacity: |
|---|
| OD Tools: 9 |
| ID Tools: 4 |
| Cross Rotary Tools: 2, 3, 4 (Optional) |

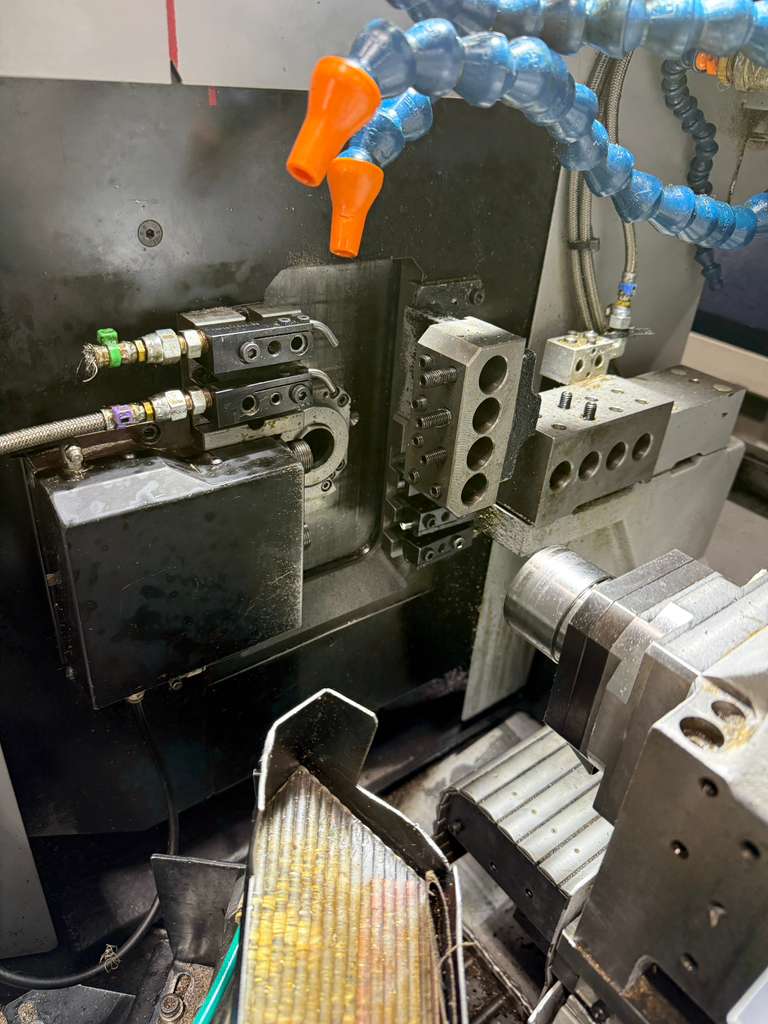

| Front Tool Post: 4 |
| Back Tool Post: 4 |
| General: |
|---|
| Power Source: AC 220v / 3-Phase /60 Hz |
| Power Requirement: 11 kva |
| Overall Dimensions: 64.56″ X 42.51″ X 66.93″ High without Bar Feeder |
| Weight: 3,747 lbs. Approx. |
