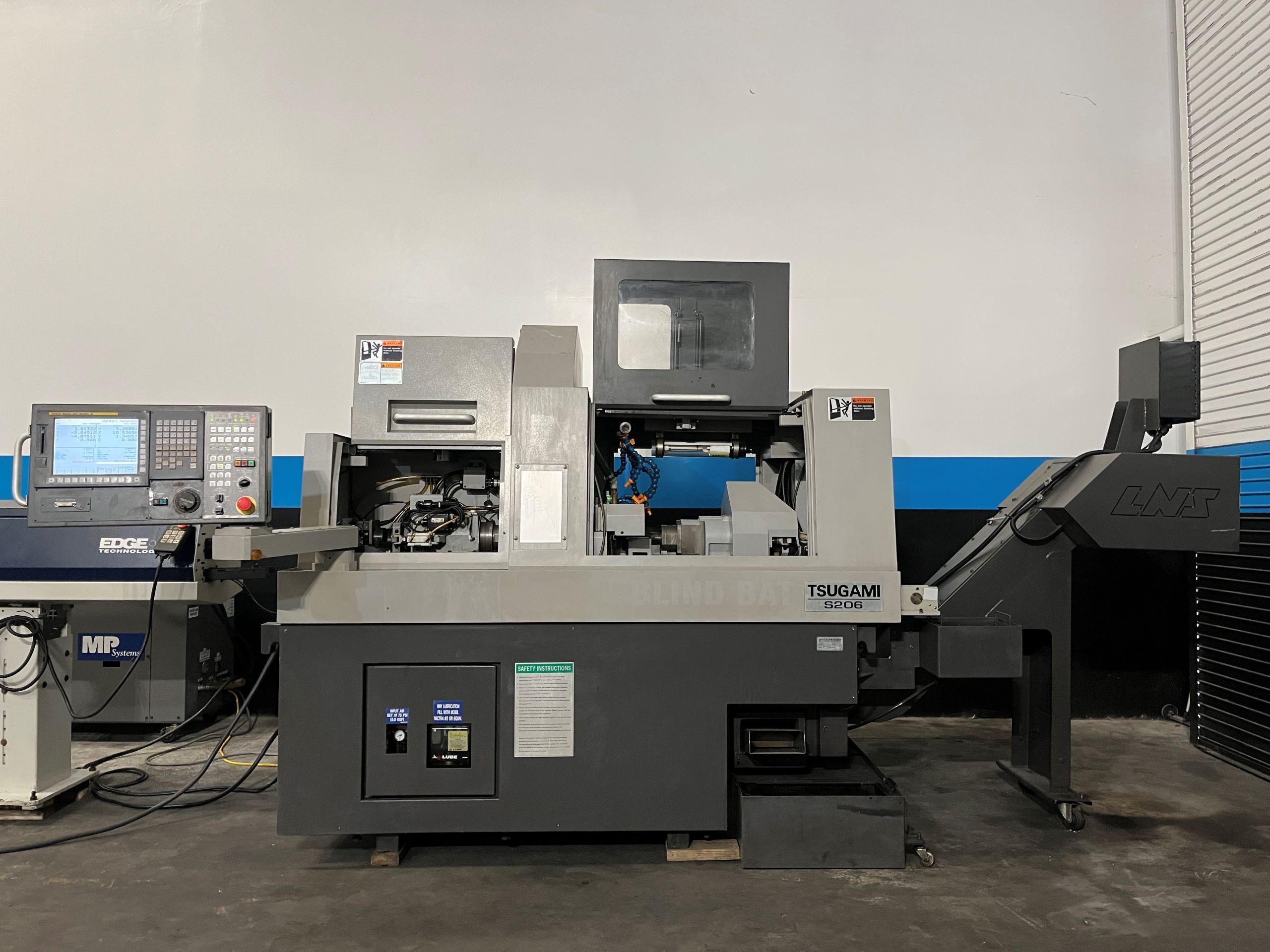

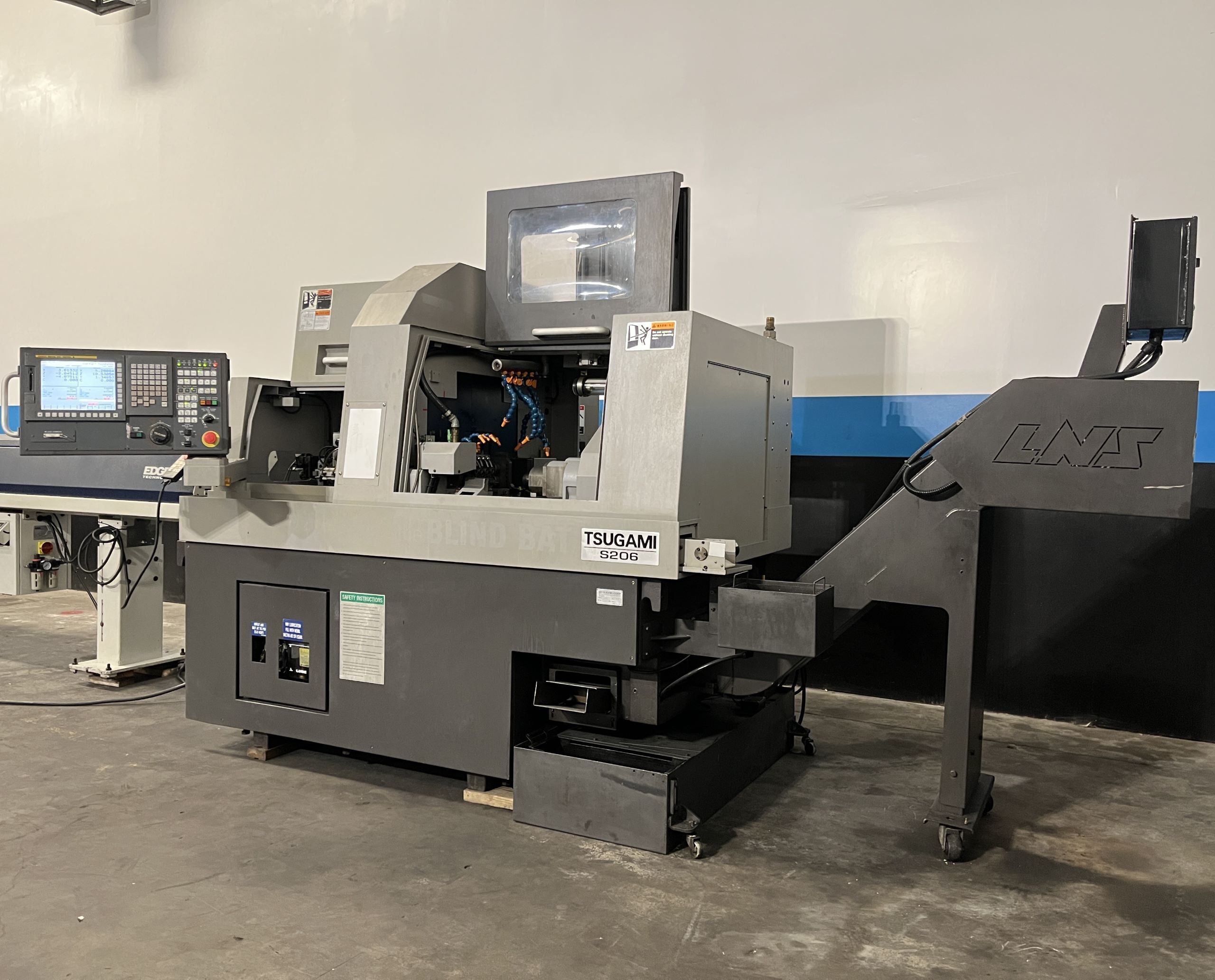

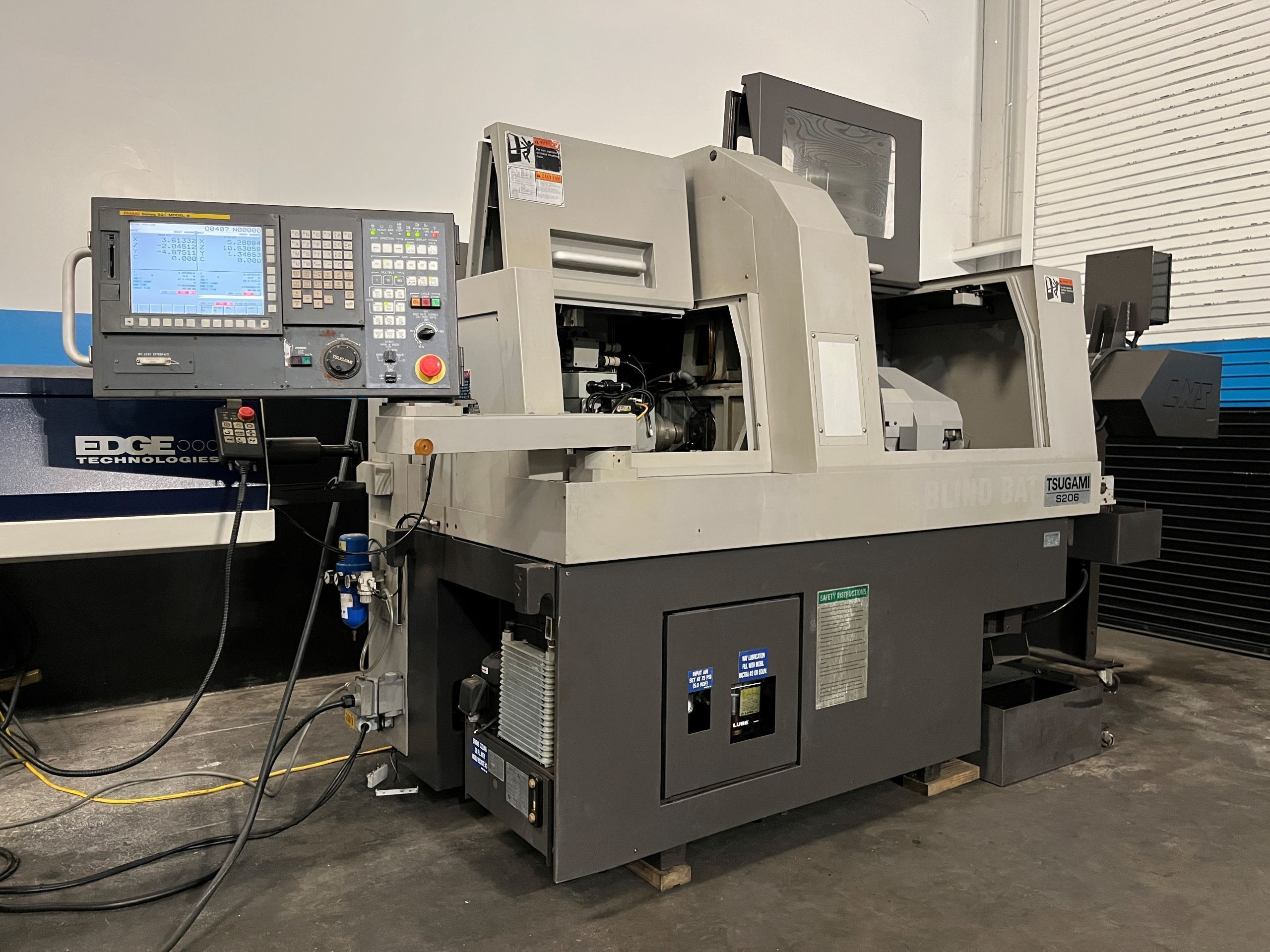

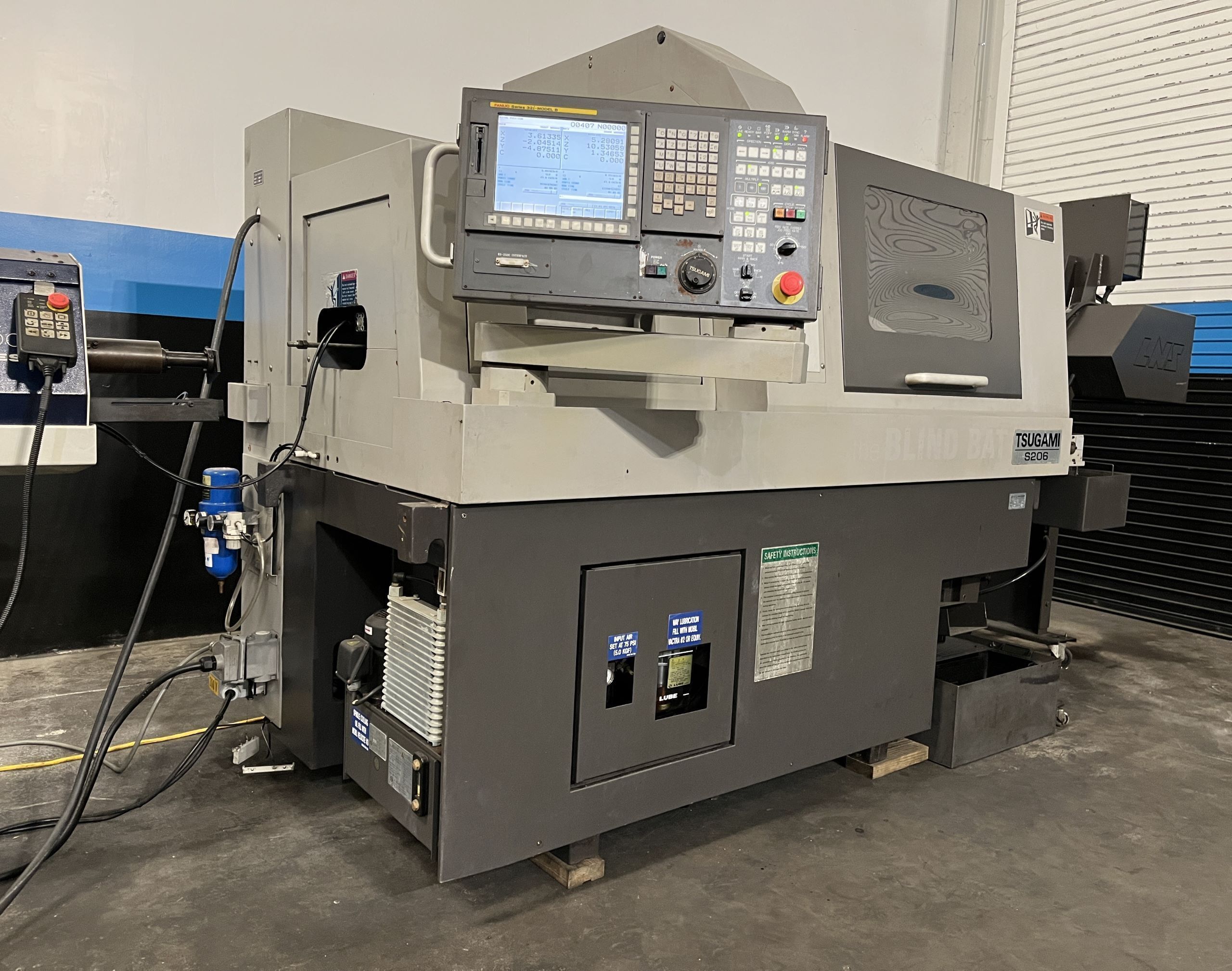

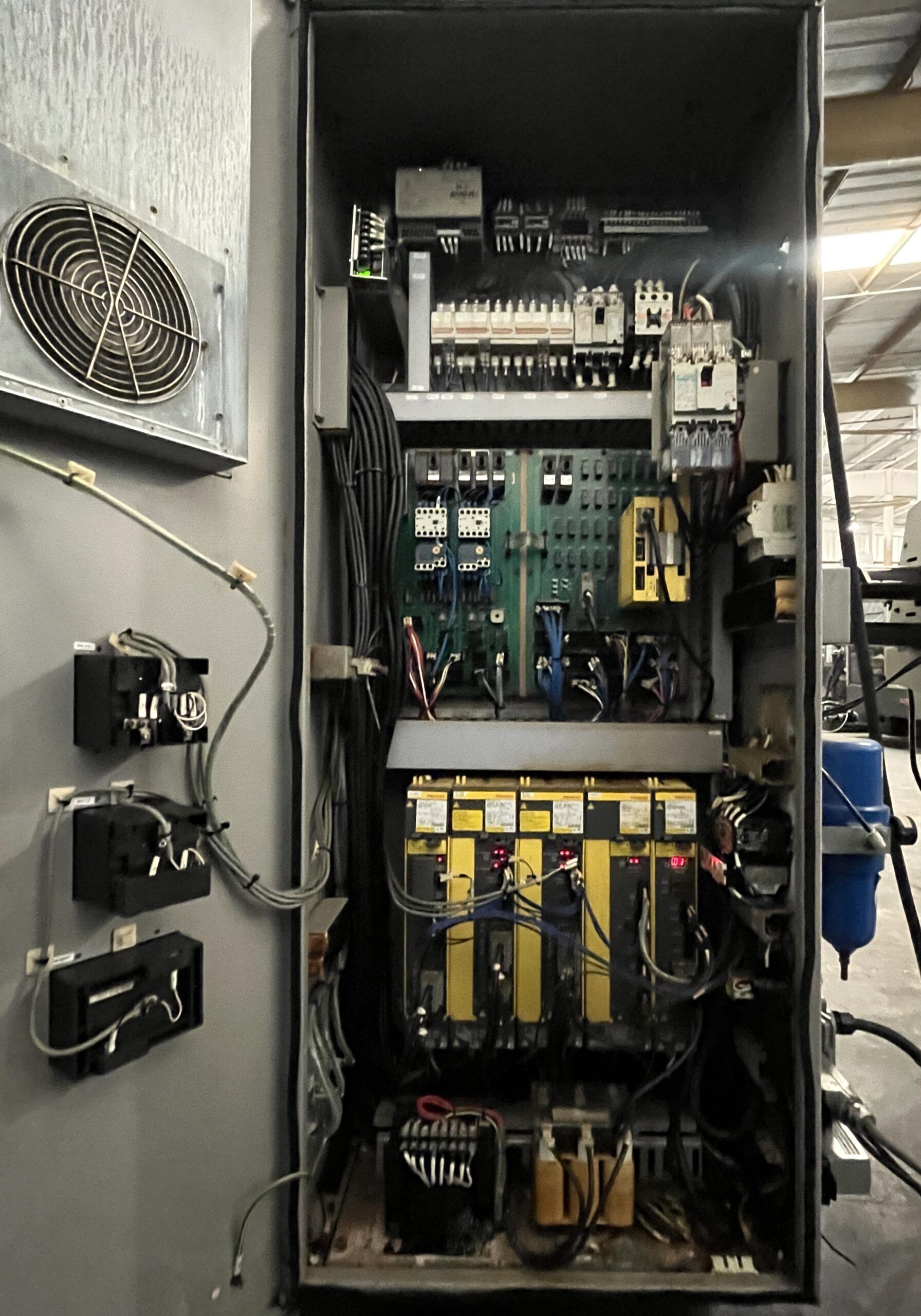

| Make: | TSUGAMI |
| Model: | S206 |
| Year: | 2014 |
| Equipped With: |
|---|
| Fanuc 32i-MB CNC Control |
| Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2 |

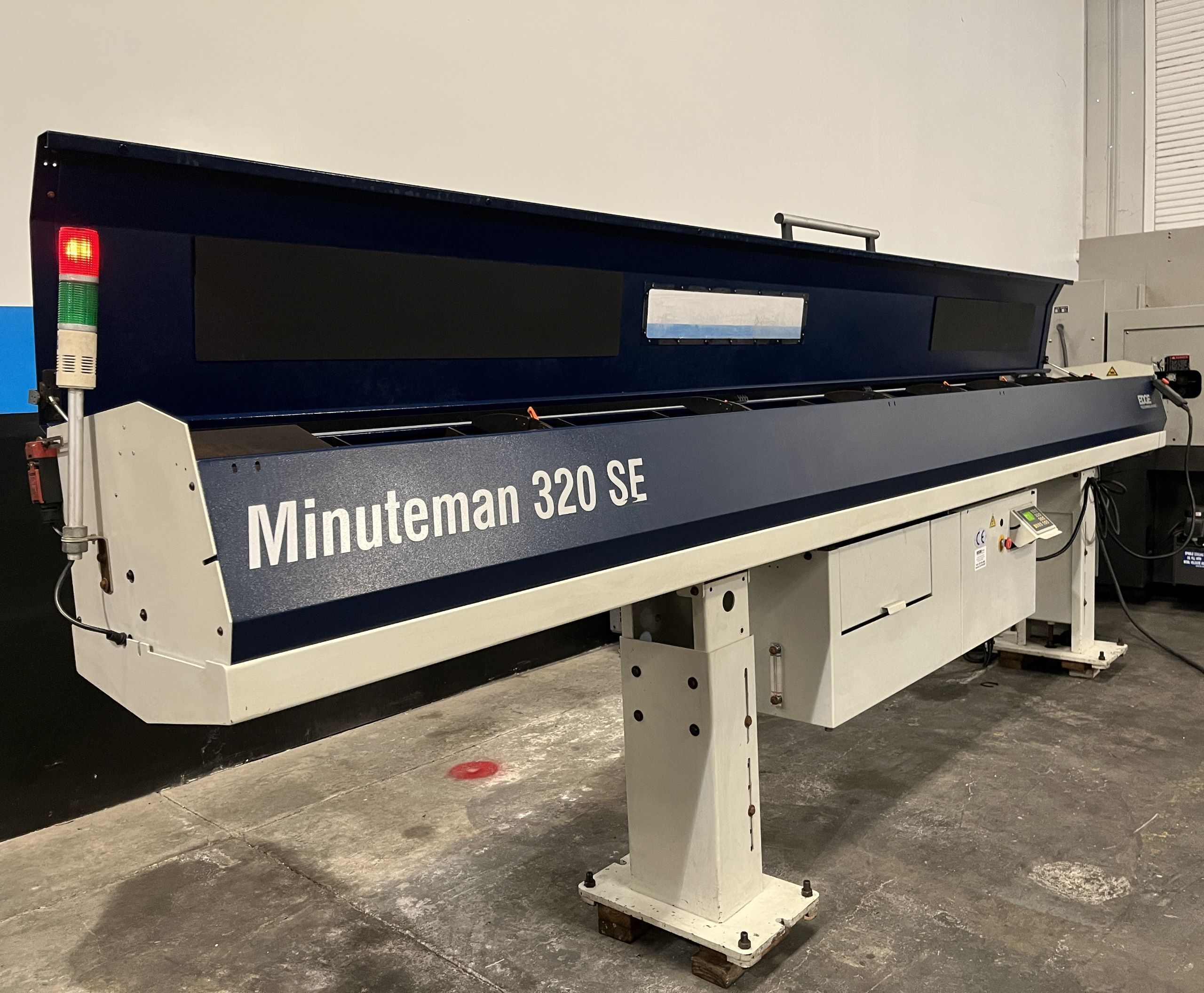

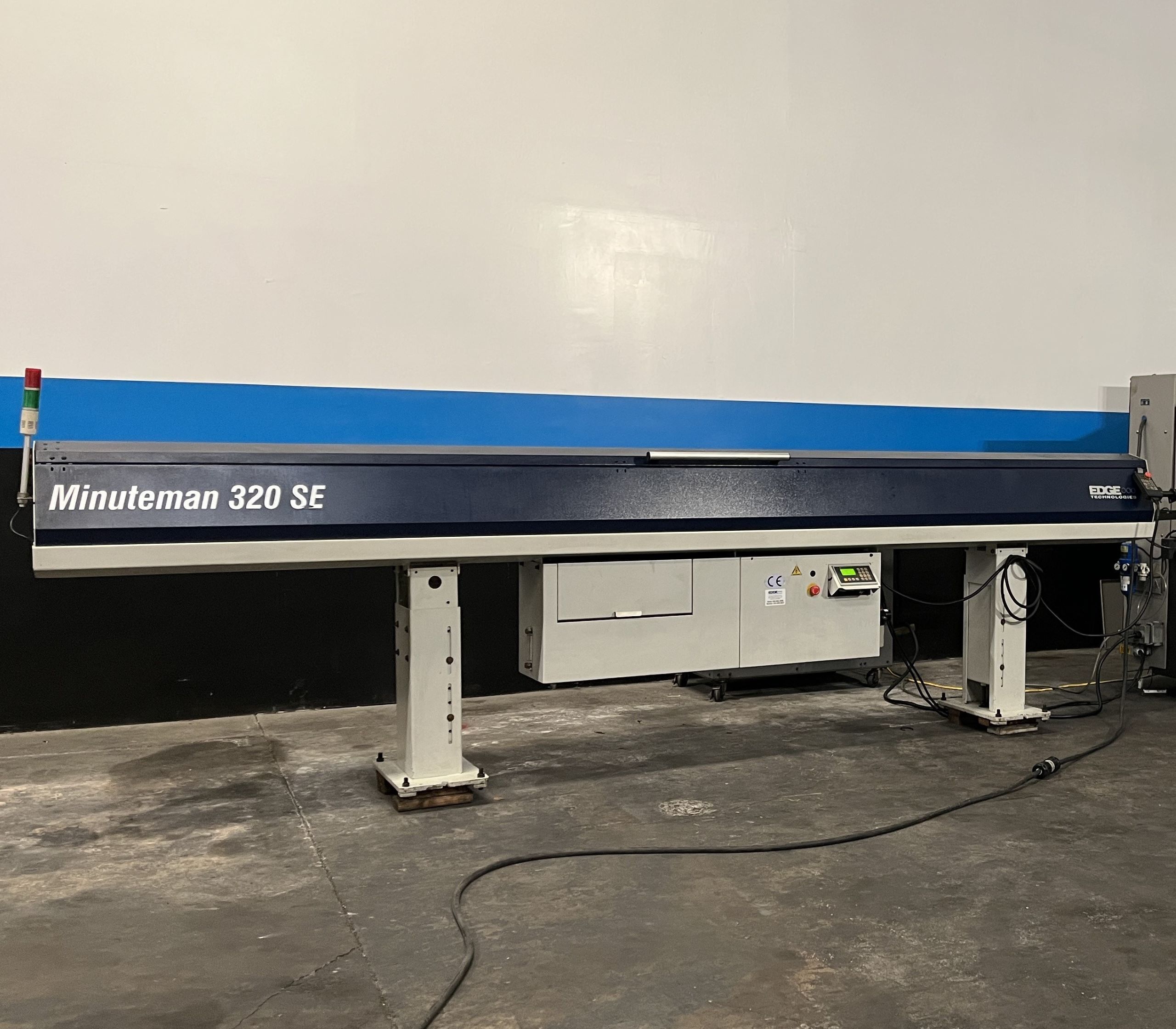

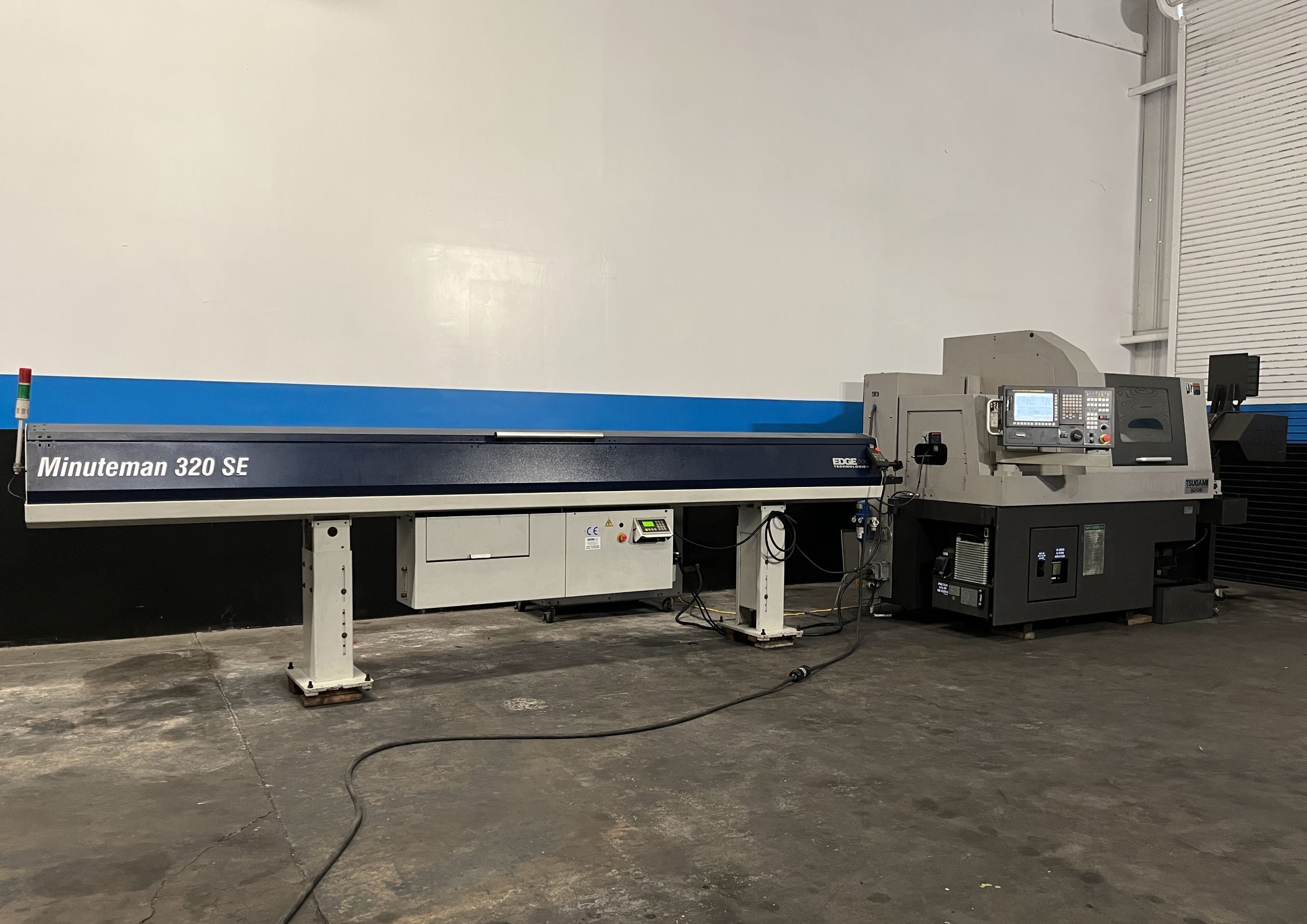

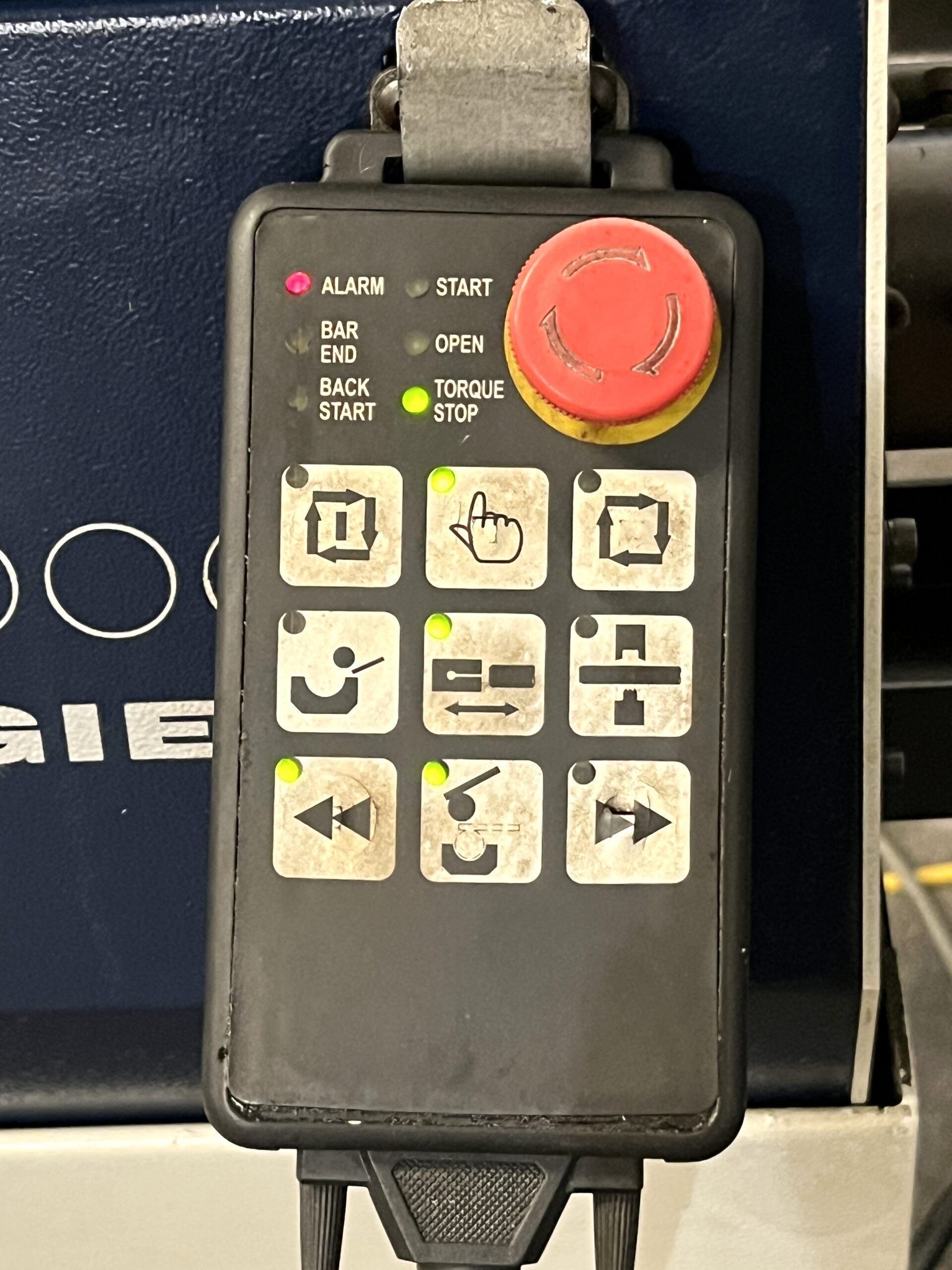

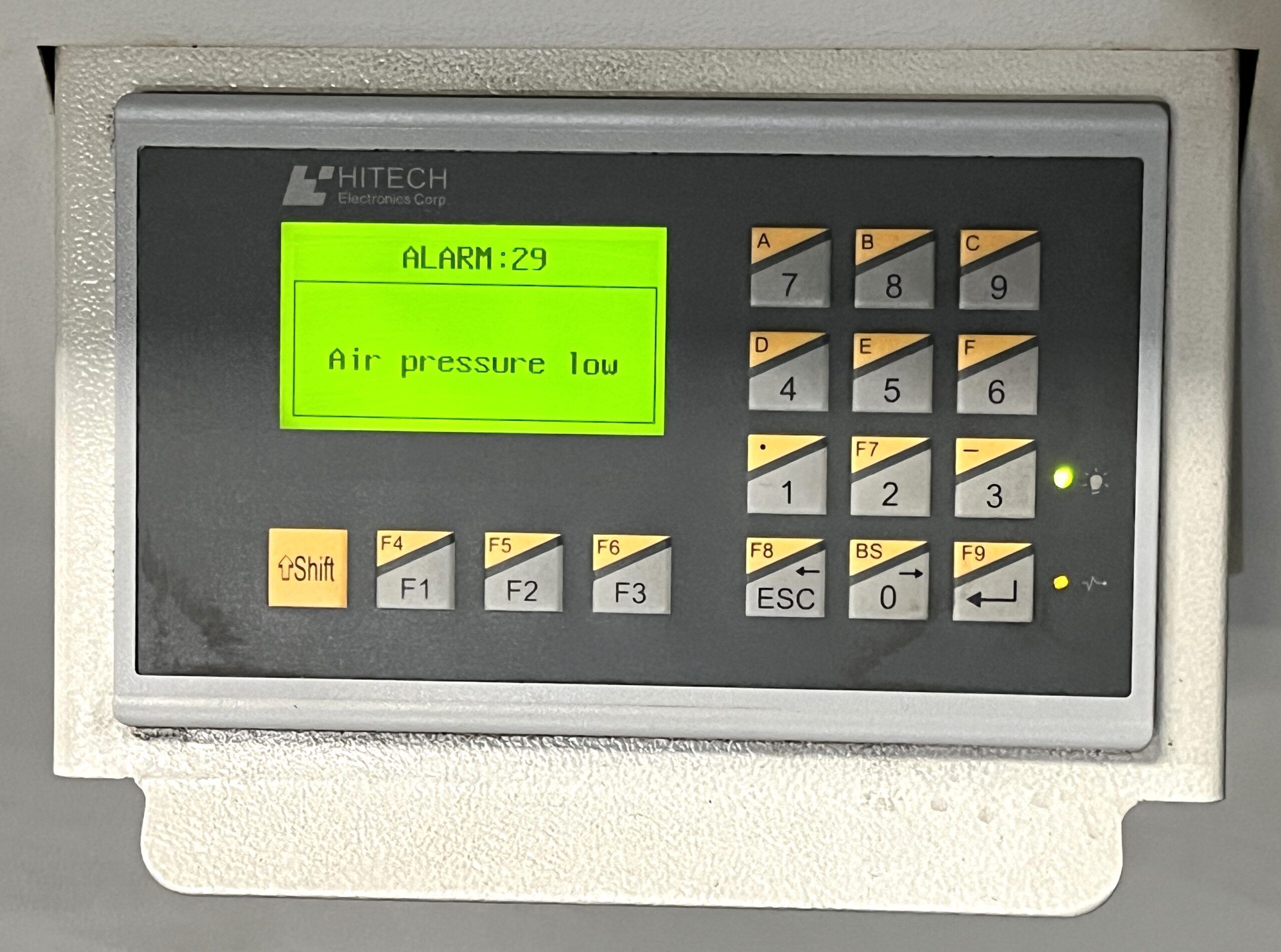

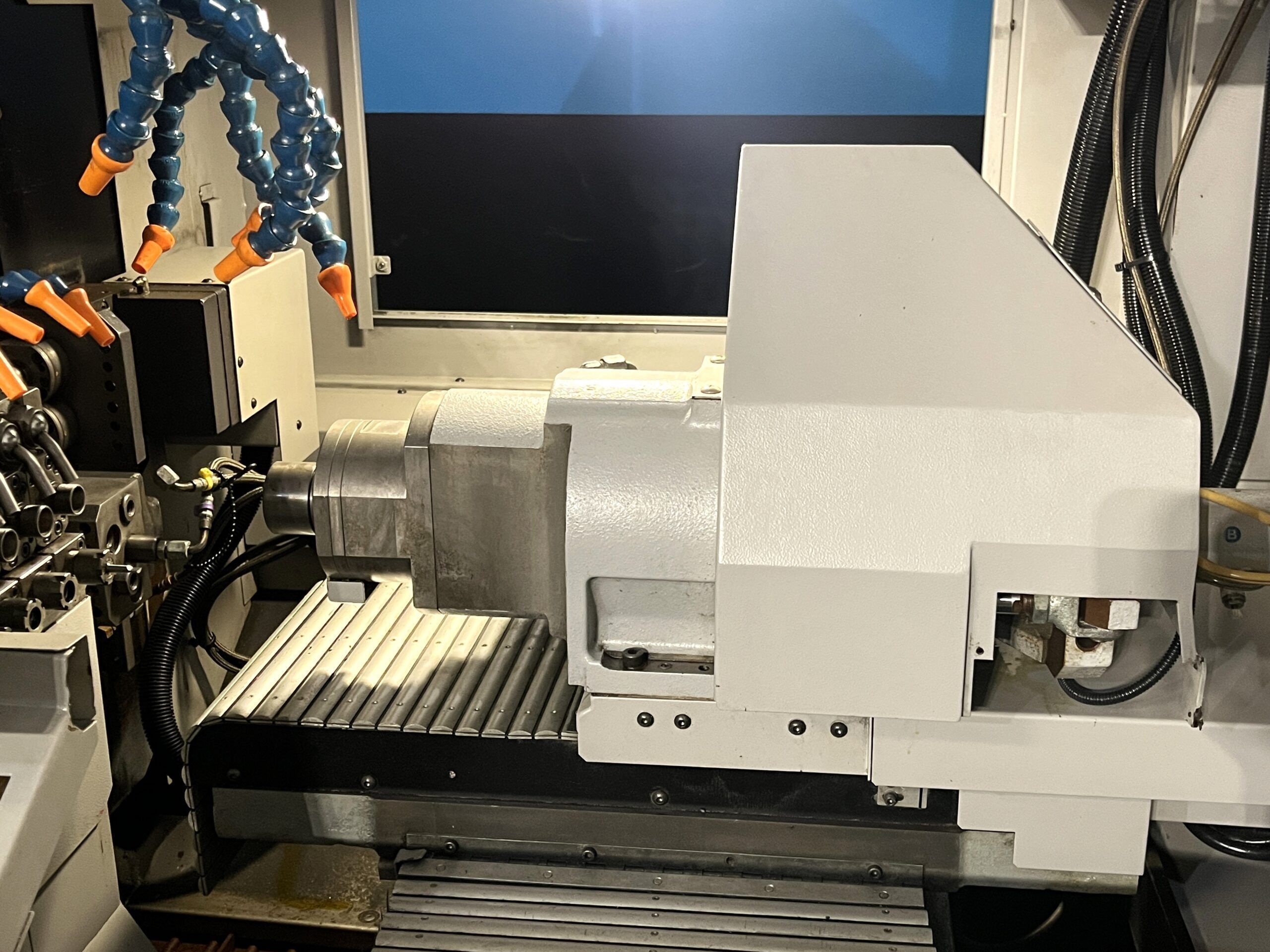

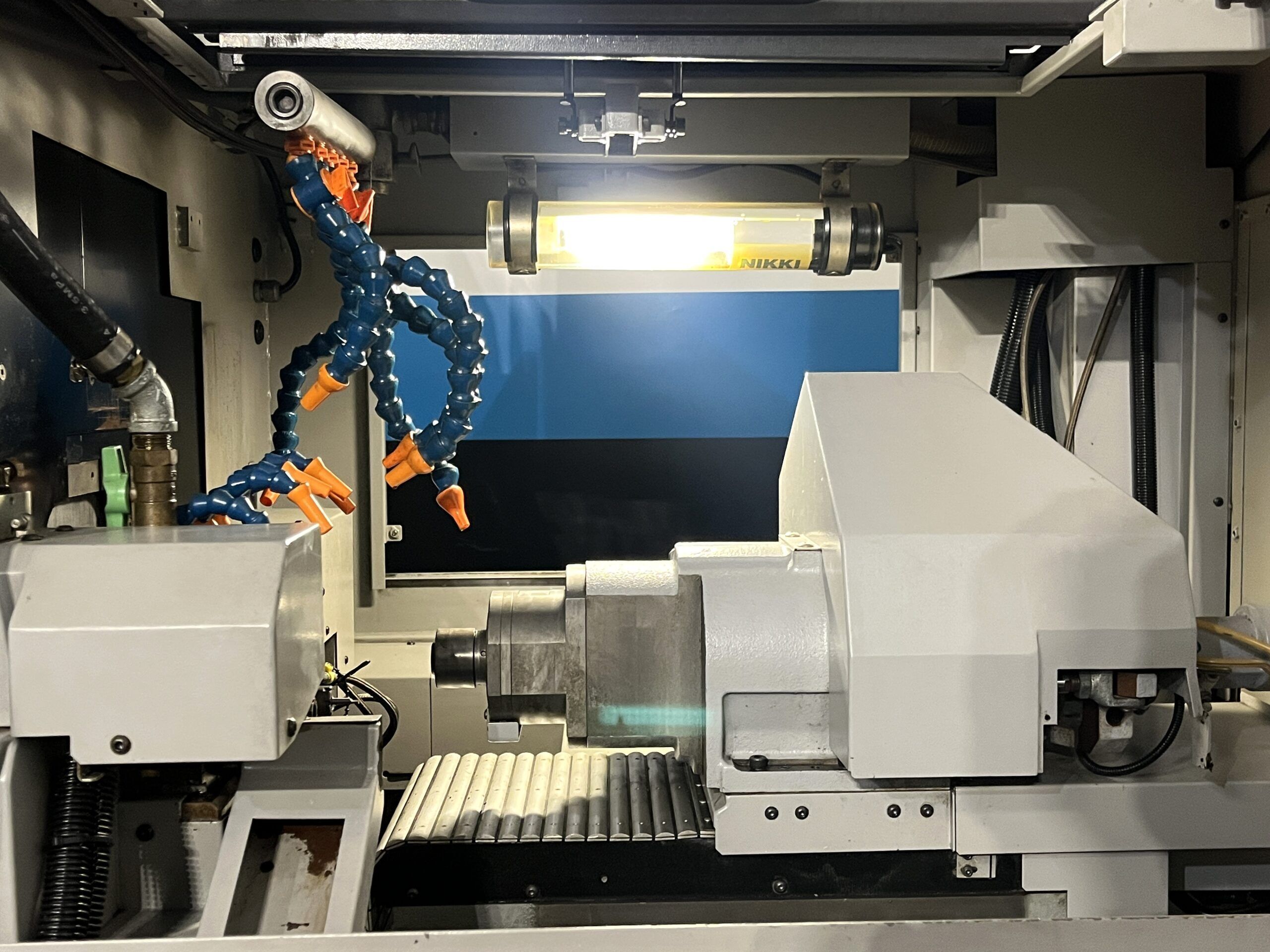

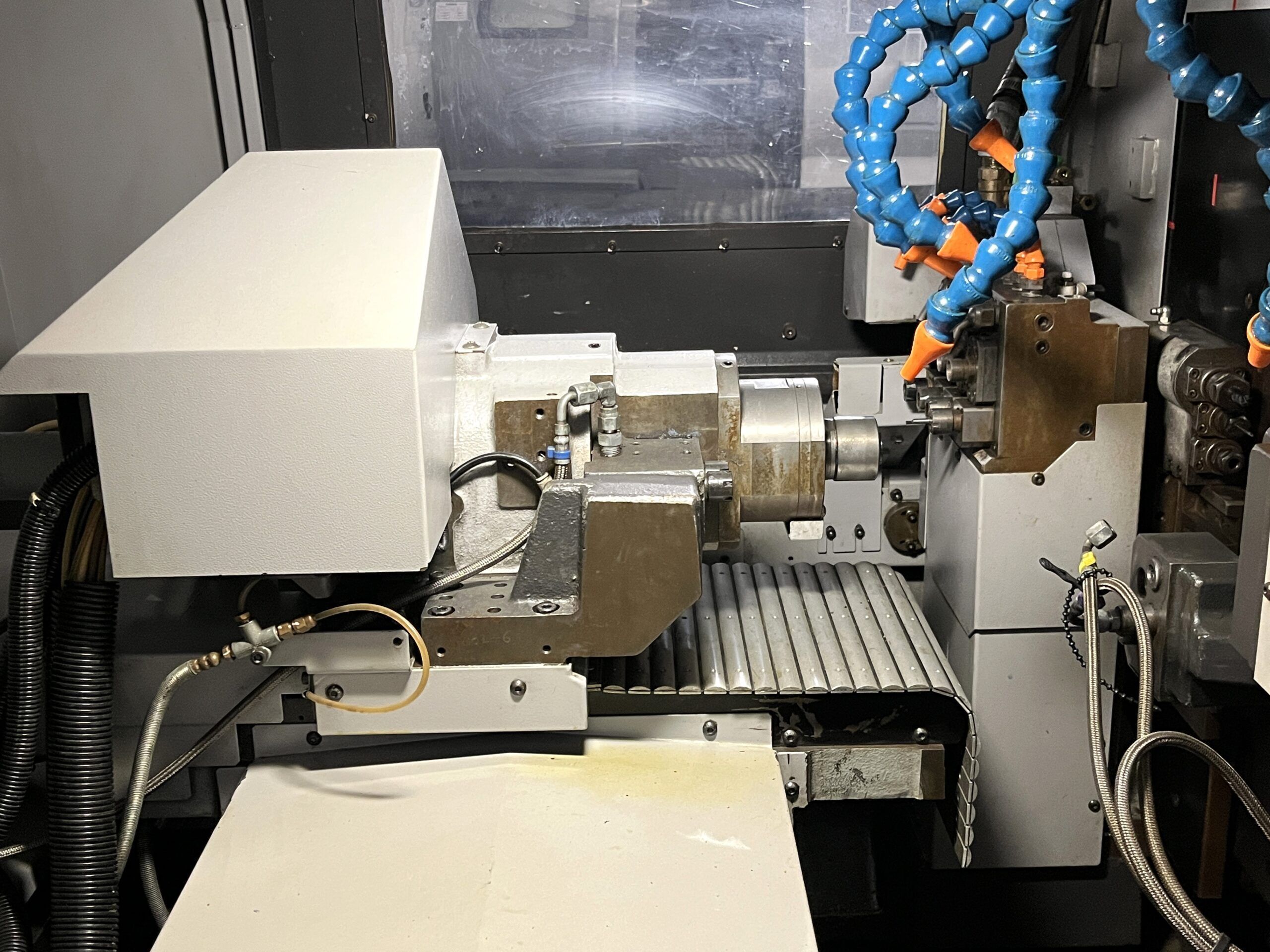

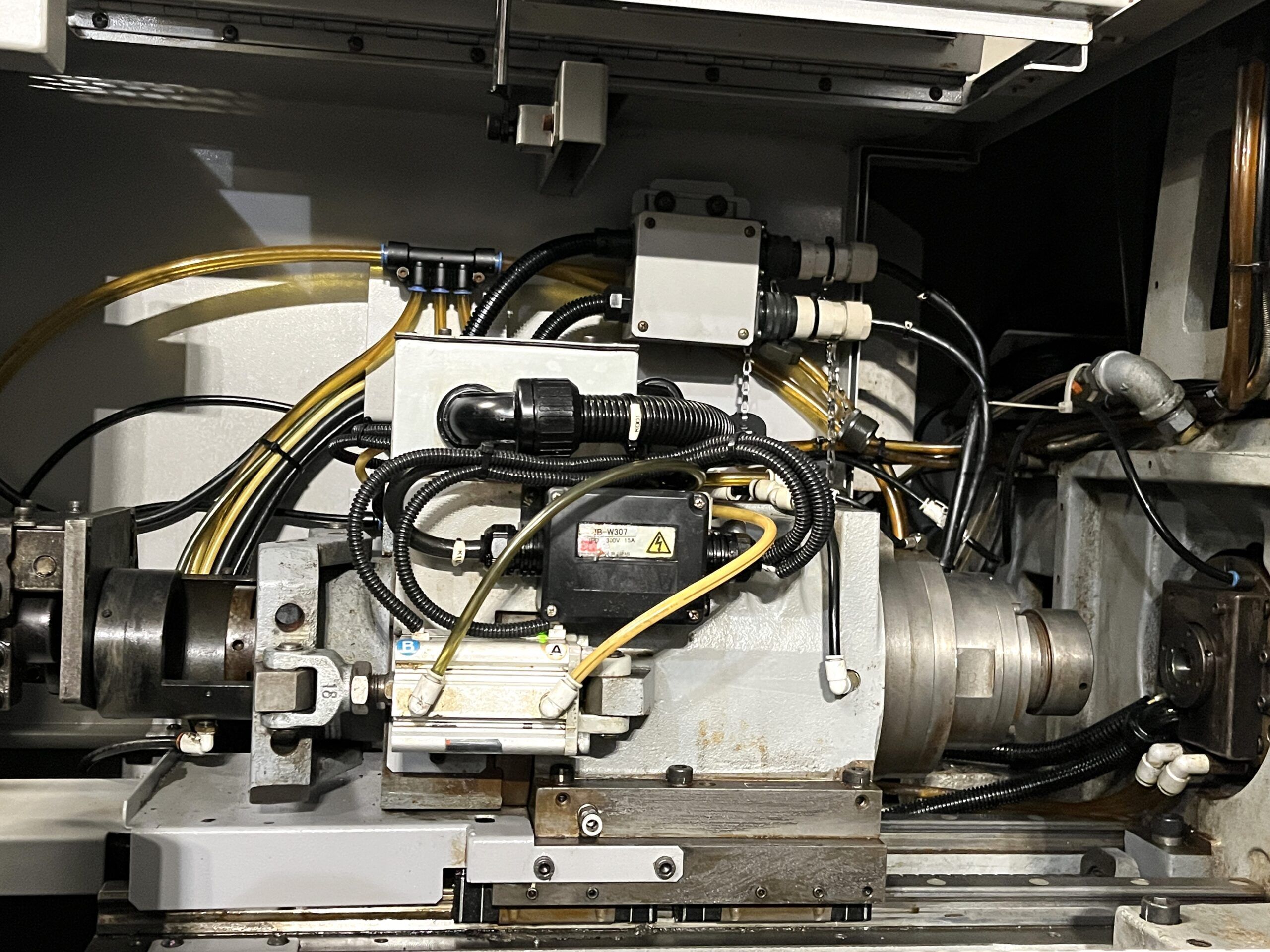

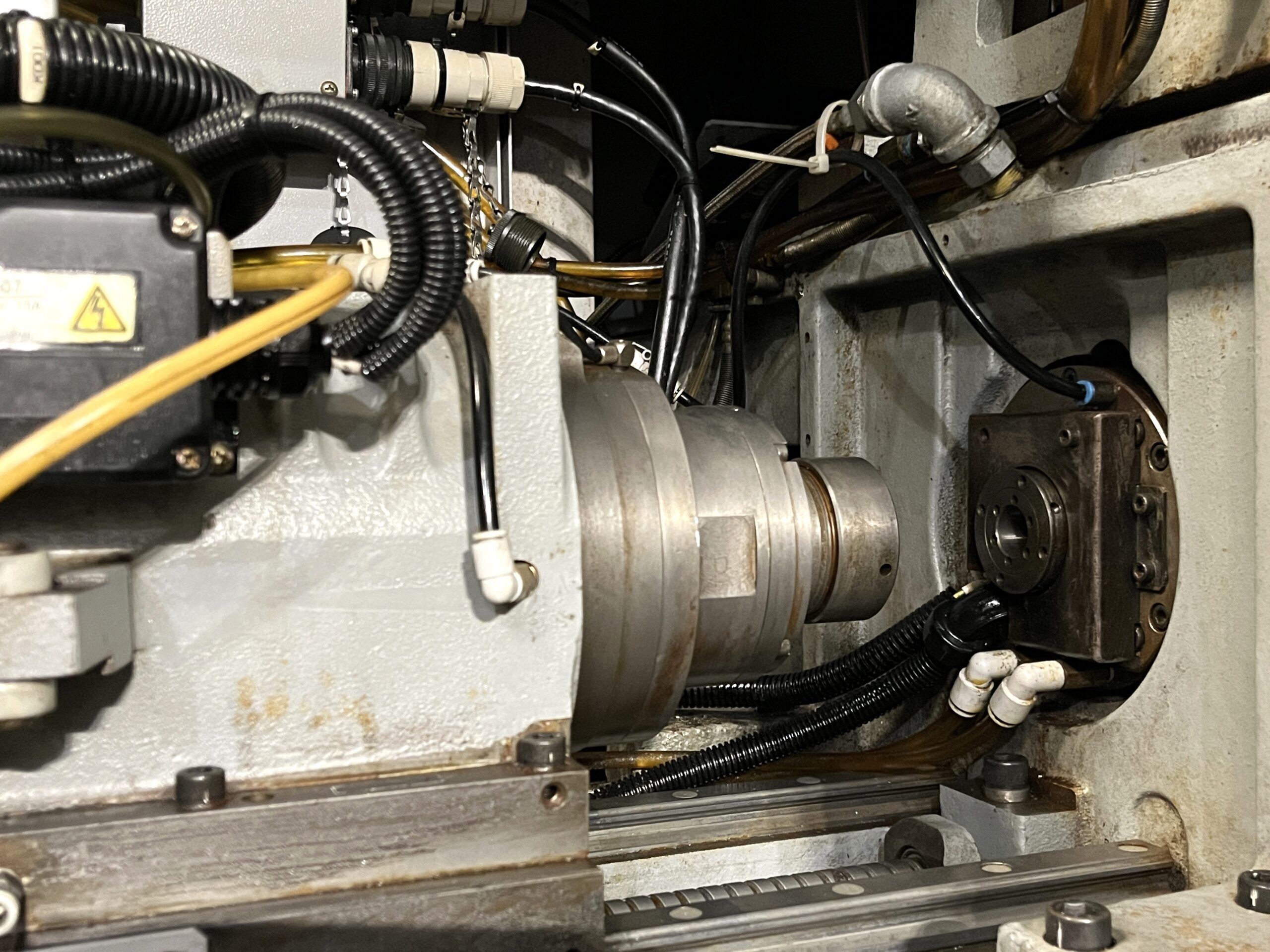

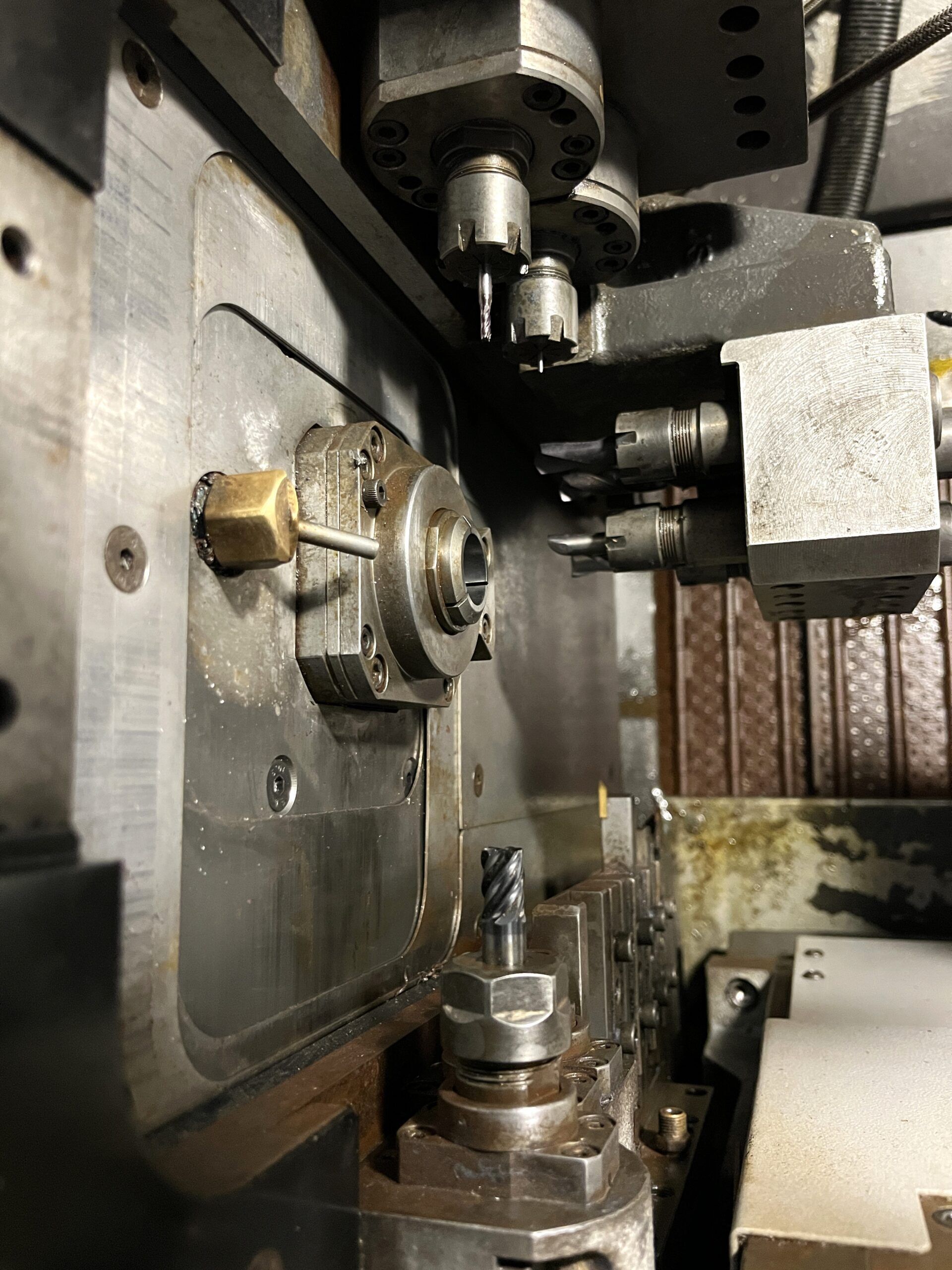

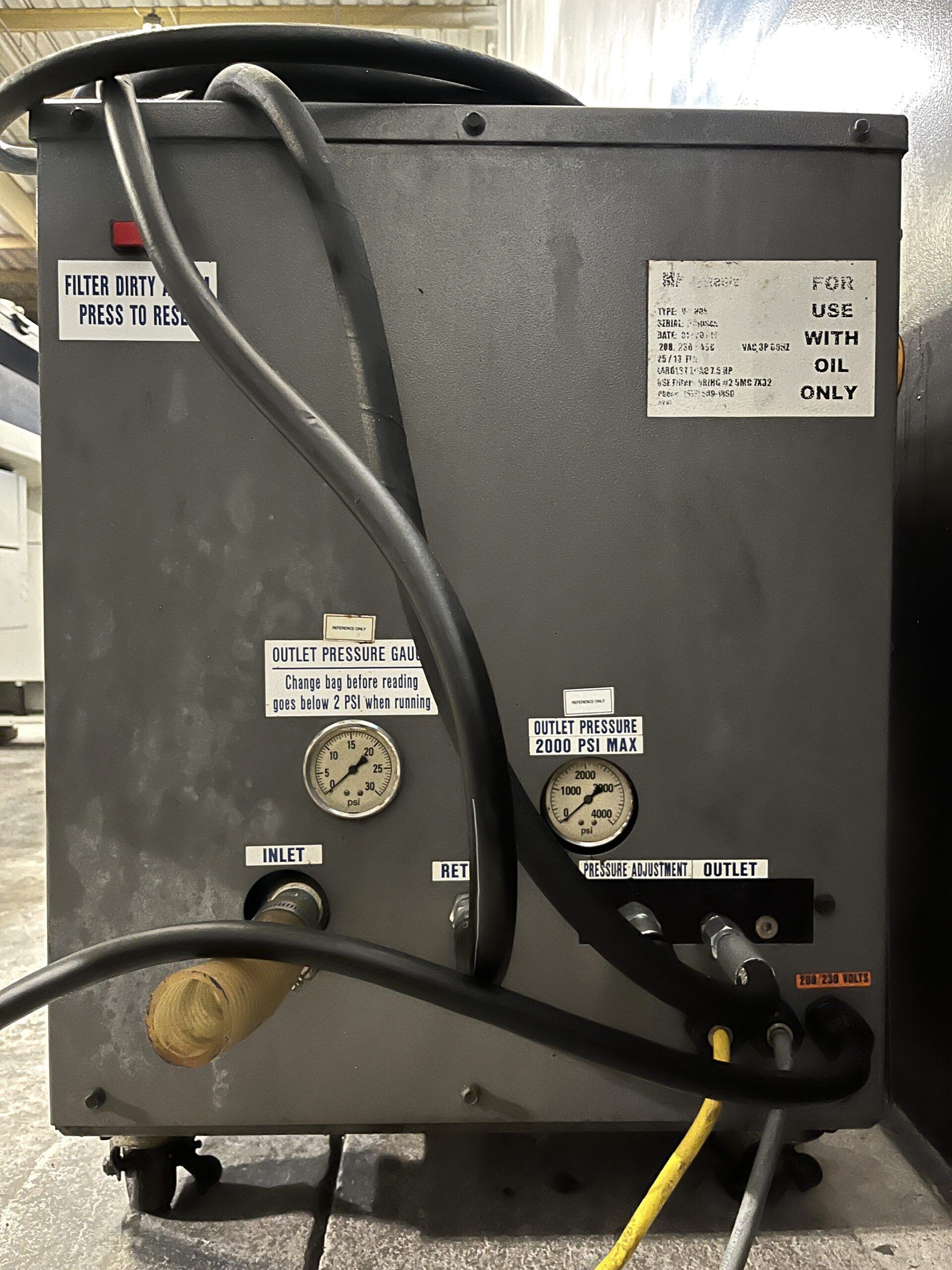

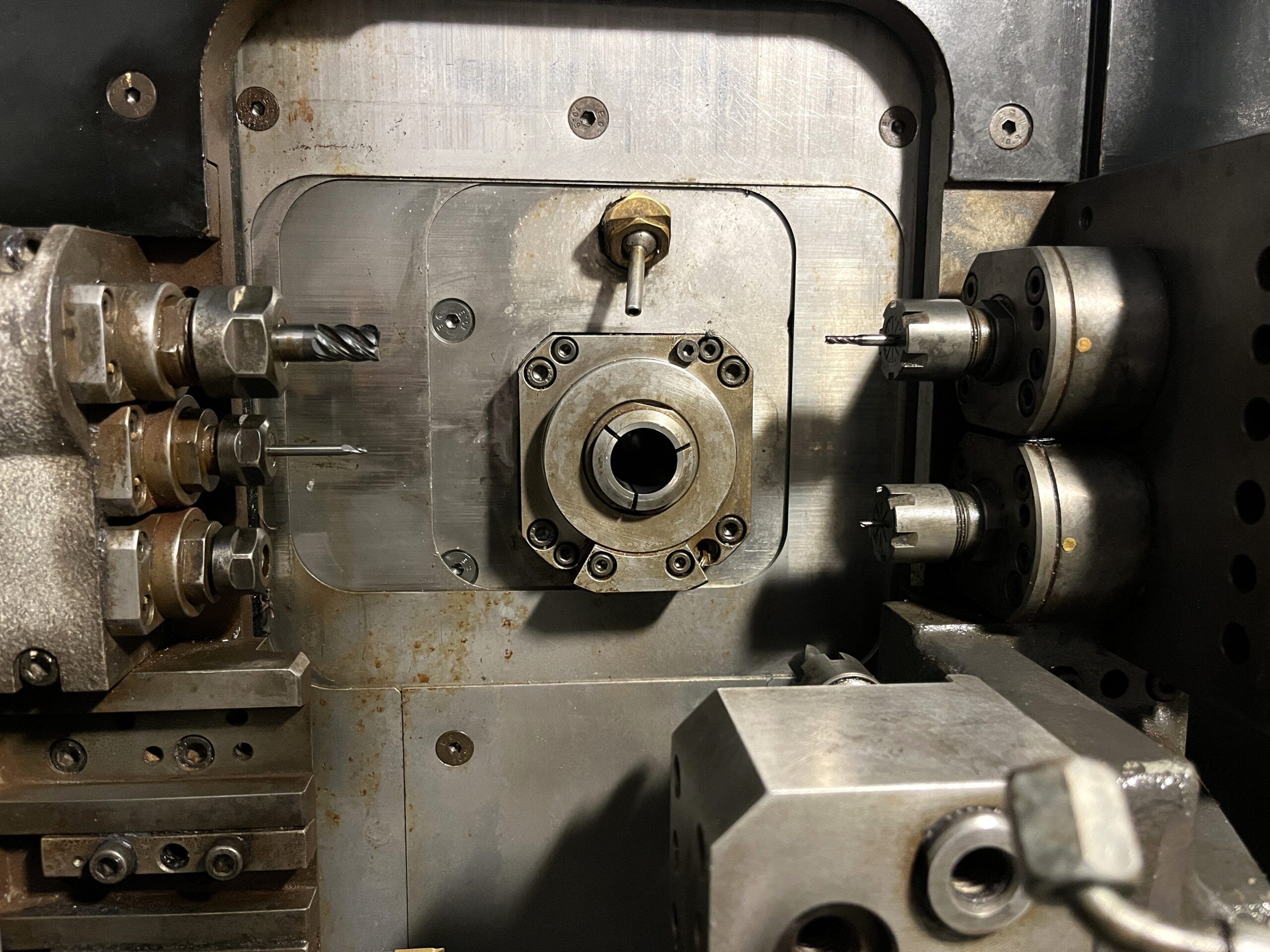

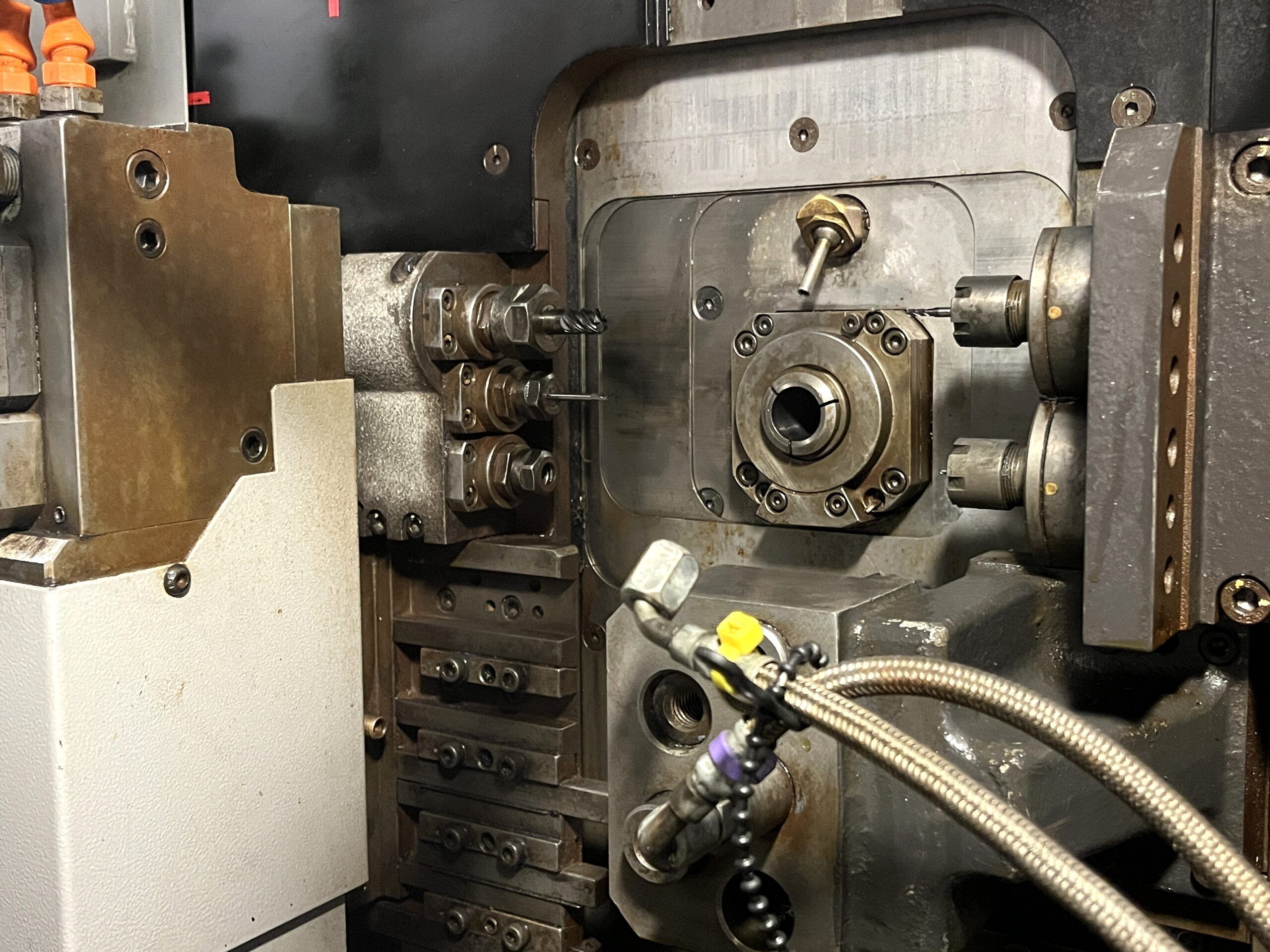

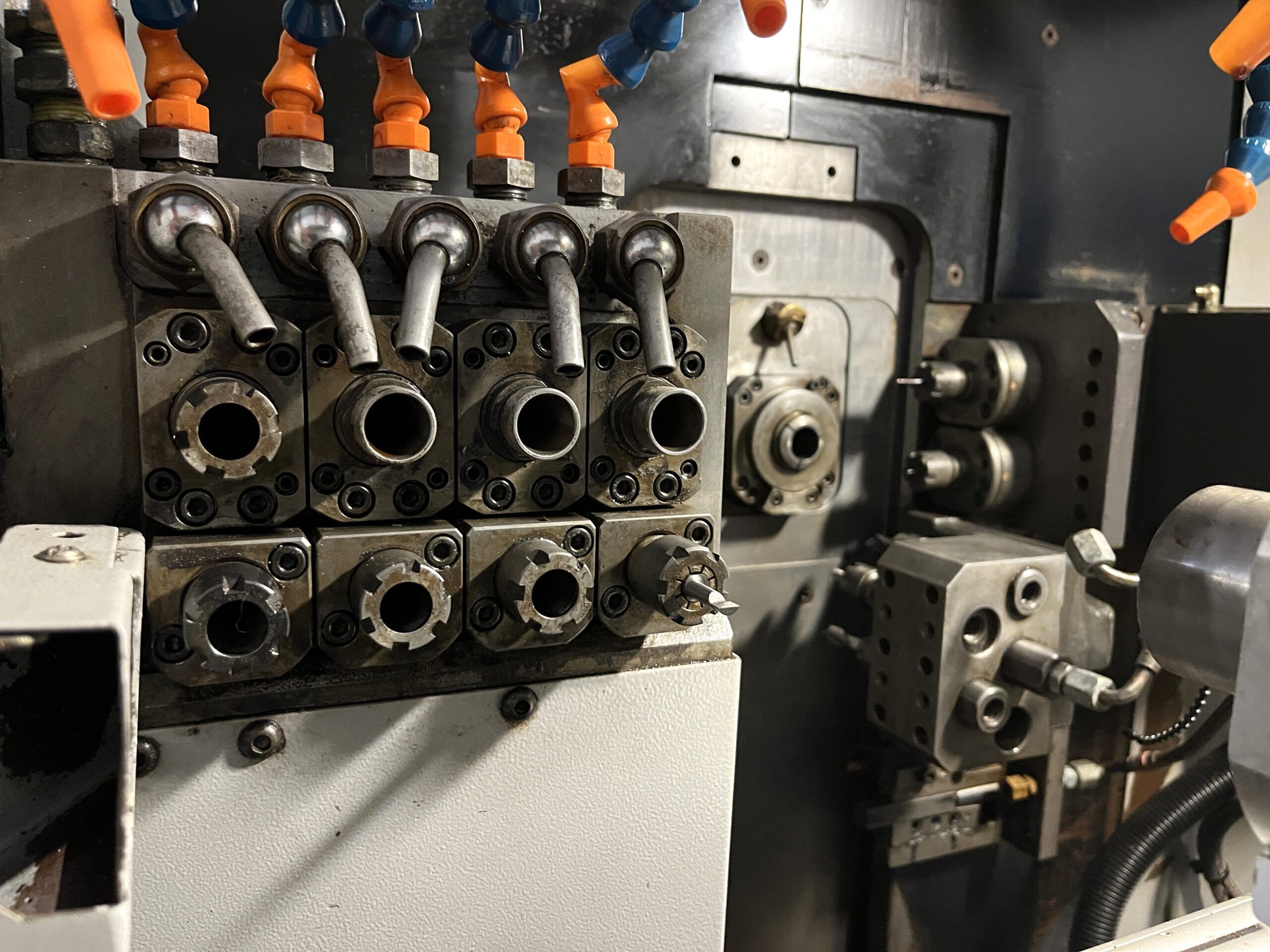

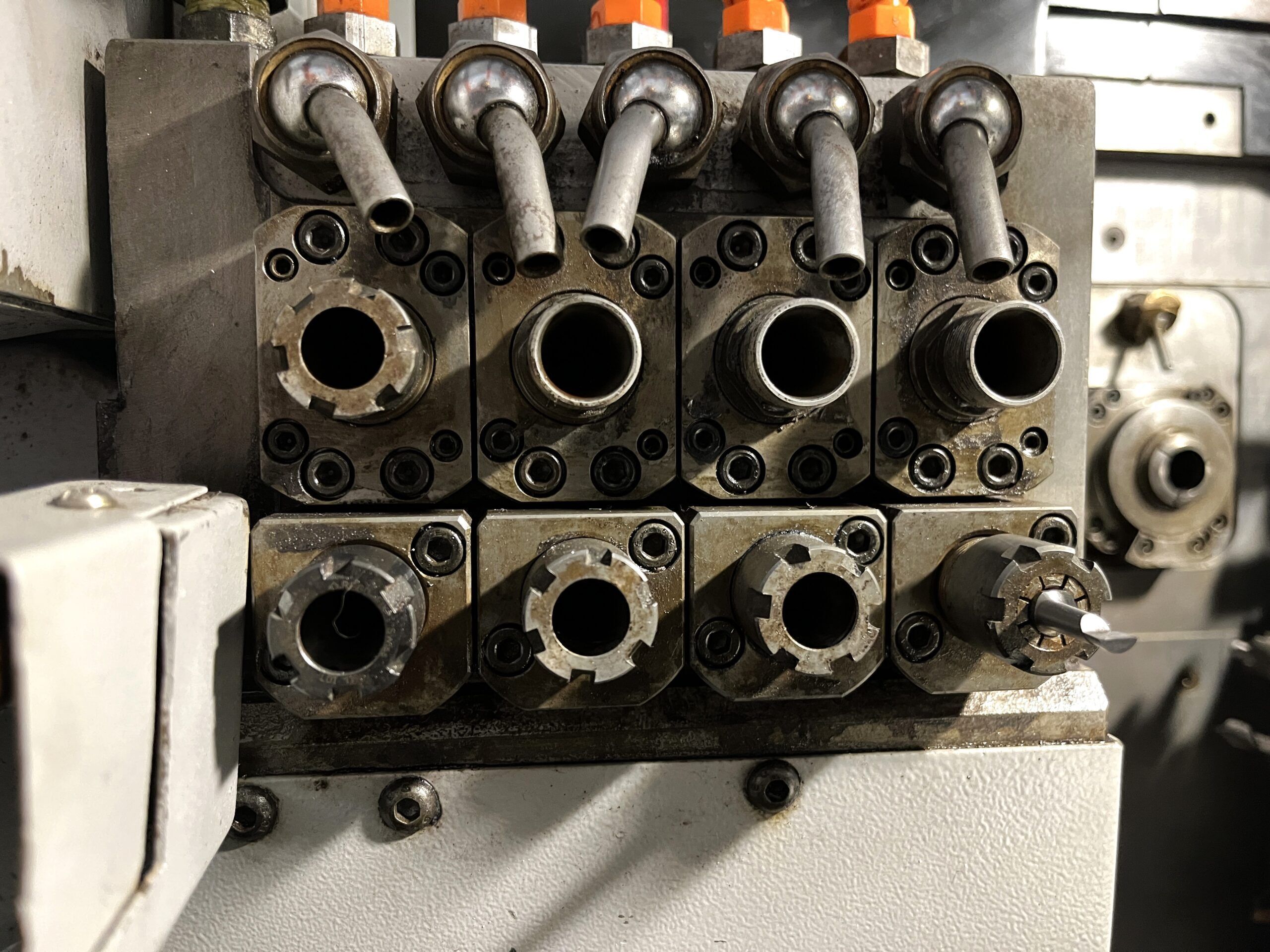

| Comes with Edge Minuteman 320 SE Bar Feeder |
| Back Spindle |
| Live Tools Capable |
| Long Parts Capable |
| C & Y Axis Capabilities |
| MPG Handwheel Control |
| Main & Back Spindle Synchronization |
| High Speed Rapid Travers: 944 IPM |
| High Speed Program Processing |
| Absolute Position Detection |
| Automatic Lubrication System |
| Part Catcher |
| Part Conveyor |
| Coolant Tank |
| Chip Conveyor |
| Books and Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 0.79″ (20 mm) |
| Max Turning Length: 9.843″ (250 mm) |
| Max Turning Length with Gripping Unit: 8.26″ (210mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Max Tool Positions: 25 |
| Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) |
| Max. Main Spindle Tapping Diameter: M8 |
| Max. Back Spindle Chucking Diameter: 0.79″ (20 mm) |
| Max. Back Spindle Drilling Diameter: 0.31″ (8 mm) |
| Max. Back Spindle Tapping Diameter: M6 |
| Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16 |
| Max. Cross Tapping Diameter: M5 x 0.8 (option) |
| Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm) |
| Max. Tool Spindle Drilling Diameter: 0.314″ (8 mm) |
| Max. Back Tapping Diameter: M5 |
| Spindle: |
|---|
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Bore: 0.79″ (20 mm) |
| Main Spindle Speed: 10000 RPM |
| Back Spindle Motor: 3.7 kw |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 12000 RPM |
| Back Spindle Motor: 2.2 kw |
| Standard Tools: |
|---|
| Cross Turn Stations: 8 |
| Cross Drill Stations: 3 |
| Main/Sub Drill Stations: 5 |
| Sub Drilling Stations: 4 |
| Power Driven Tools Attachment: |
|---|
| Live Cross Mill Stations: 2 |
| Live Sub Milling Stations: 4 |
| Driven Tool Speed: 8000 RPM |
| Driven Tool Motor:.75 kw (Front Tool Post) 1 kw (Rear Tool Post) |
| General: |
|---|
| Power Source: AC 220v / 3-Phase /60 Hz |
| Power Requirement: 12.1 kva |
| Overall Dimensions: 83.07″ X 47.24″ X 74.21″ High without Bar Feeder |
| Weight: 7275 lbs. Approx. |
