*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

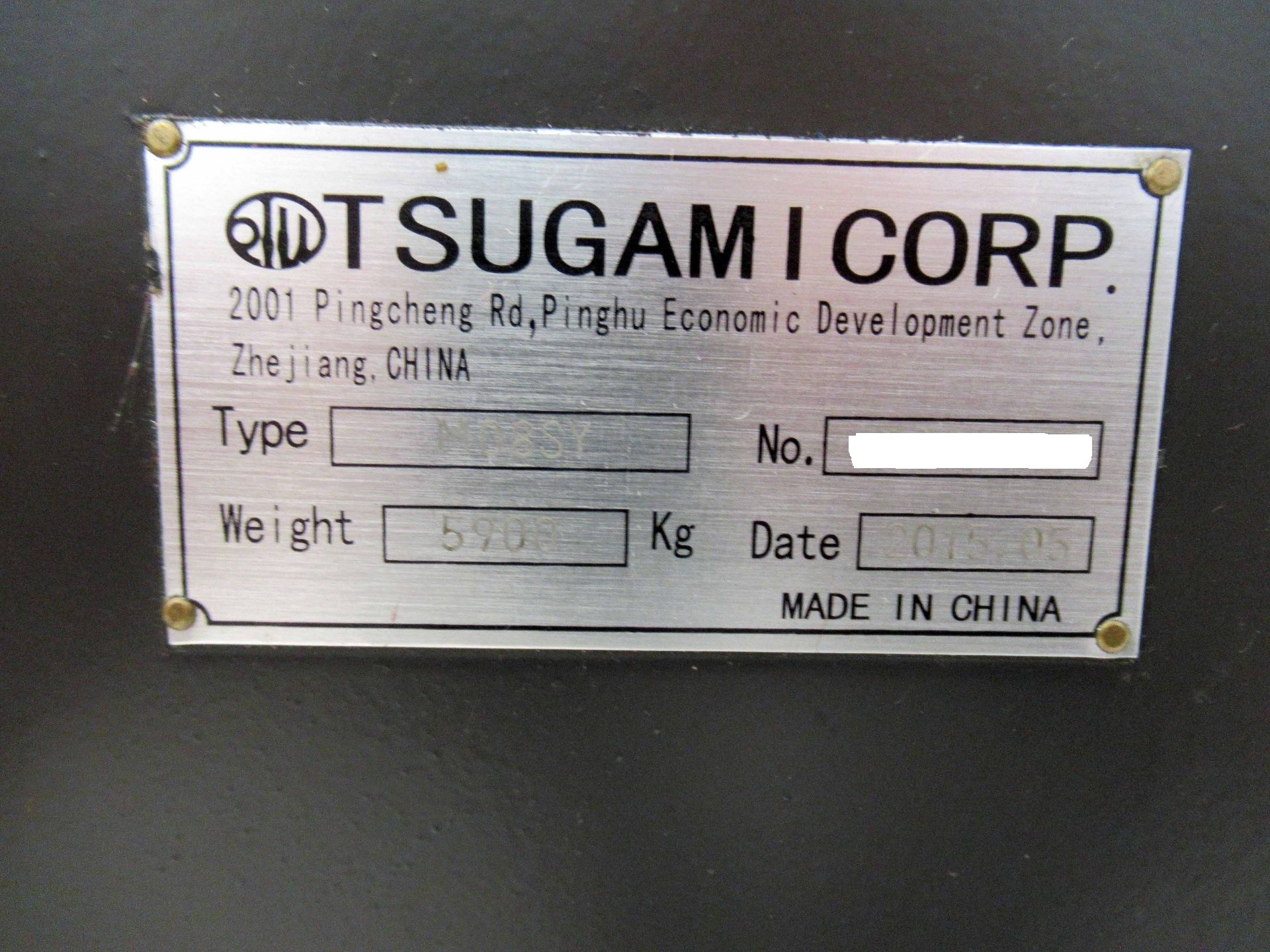

| Make: | Tsugami |
| Model: | M08SY |
| Machine Type: | CNC Lathe with Y-Axis & Back Spindle |
| Control: | Fanuc 0i-TD CNC Control |
| Condition: | Used |
Equipped With:
- Y-Axis Machining Capability
- Back Spindle (Sub-Spindle)
- Live Tooling on All Turret Positions
- C-Axis on Main & Back Spindles (with Brake)

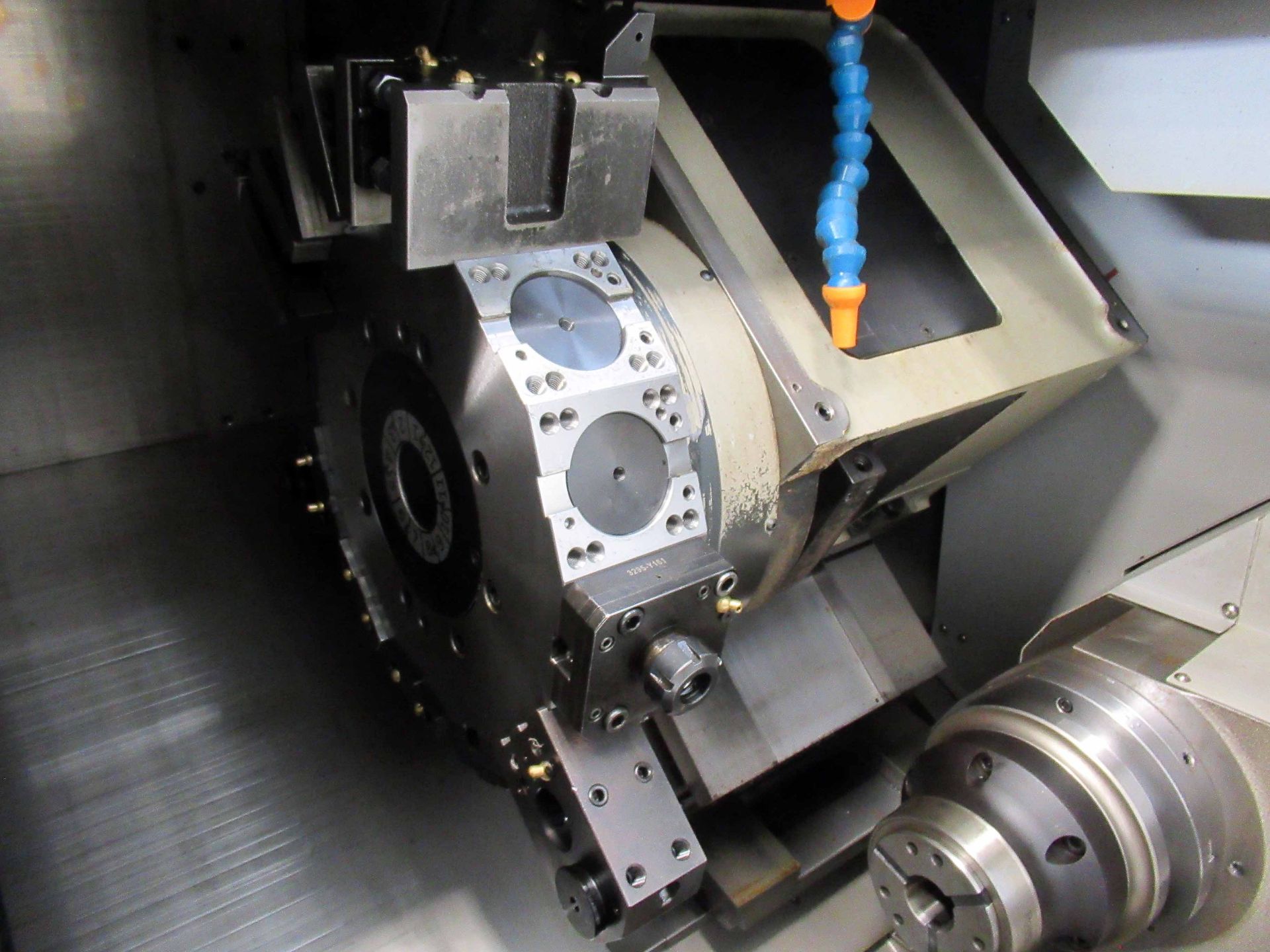

- 12-Station Turret
- Box Way Construction (X & Y Axes)
- Linear Roller Guide (Z Axis)
- Thermal Displacement Compensation (X Axis)
- Abnormal Load Detection & Retraction
- Coolant System
- Full Enclosure
Capacity:
- Max Machining Diameter: 11.02″
- Max Bar Capacity: 2.56″
- Max Machining Length: 14.96″
Spindles:
- Main Spindle Speed: 4,500 RPM
- Main Spindle Motor: 14.8 HP
- Main Spindle Nose: JIS A2-6
- Main Spindle Bore: 2.87″
- Back Spindle Speed: 4,500 RPM
- Back Spindle Motor: 10 HP
- Back Spindle Chuck: 6″
Live Tooling:
- Max Live Tool Speed: 5,000 RPM
- Live Tool Motor: 5 HP (15-min) / 3 HP (30-min)
Axis Travels:
- X-Axis Travel: 8.70″
- Z-Axis Travel: 15.75″
- Y-Axis Travel: ±1.97″
- A-Axis Travel: 19.92″
Feedrates:
- Rapid Traverse X-Axis: 945 IPM
- Rapid Traverse Z-Axis: 1,062 IPM
- Rapid Traverse Y-Axis: 472 IPM
- Rapid Traverse A-Axis: 1,181 IPM
- Cutting Feedrate: Up to 236 IPM
Turret:
- Turret Capacity: 12 Stations
- OD Tool Shank: 0.98″
- Drill Holder Hole Diameter: 1.57″
General:
- Power Requirement: 30 kVA
- Air Requirement: 0.5 MPa
- Machine Dimensions (Approx.): 97.24″ × 72.83″ × 75.98″
- Machine Weight (Approx.): 13,007 lbs
