Sold

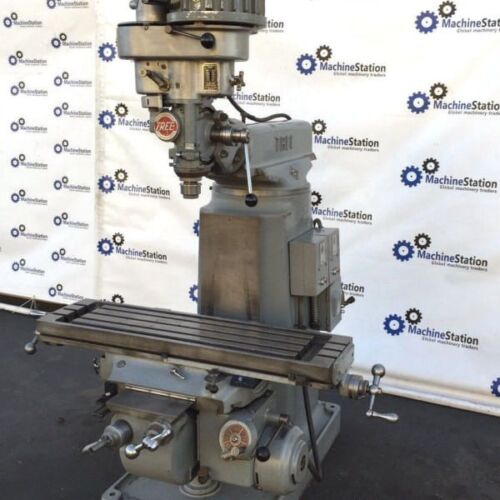

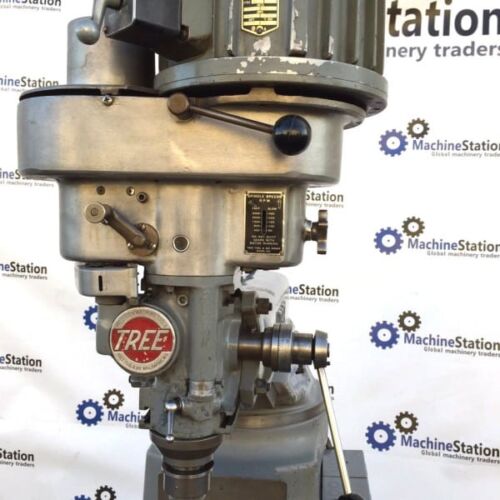

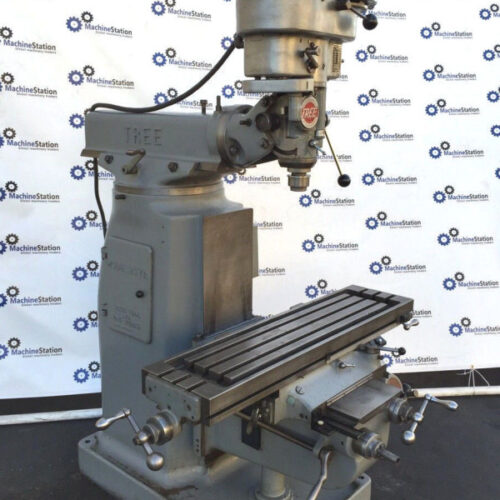

USED-TREE 2UVR VERTICAL MILLING MACHINE
Out of stock
| Make |
Tree |
| Model No. |
2UVR |
| Country of Origin: |
USA |
| Serial # |
7759 |
| Condition |
Very Good |
-
USED-TREE 2UVR VERTICAL MILLING MACHINE Features:
- Table Power Feed.
- Infinitely Variable Spindle Speeds.
- Bijur Lubrication System.
-
USED-TREE 2UVR VERTICAL MILLING MACHINE Specifications:
- Work Table:
- Surface Area: 42″ x 10-1/2″
- T-Slot Center Distance: 3 @ 2.25″ centers
- T-Slot Sizes: 0.675″
-
Travels:
- X-Axis Table Travel: 25″
- Y-Axis Table Travel: 11″
- Z-Axis Table Travel (knee): 17-1/2″
- Quill Travel: 4″
-
Spindle:
- Spindle Taper: Tree Collet
- Quill Diameter: 2.875″
- Distance Spindle to Table (minimum / maximum): 0 to 20-1/2″
- Speeds: 60 to 3,300 RPM
- Power Quill Feed (variable): 0.0015″ to 0.008″
- Motor: 1.5 Horsepower, 220 / 440 Volt, 1,800 RPM, 4.8 / 2.4 Amps, 60 Hz
-
Head Adjustments:
- Head Swivel: 90 degrees
- Head Cant: 45 degrees
- Head Tilt: 90 degrees
-
General:
- Electrical: 220 / 440 Volt, Three Phase
- Overall Dimensions: 60″ x 64″ x 78″ tall
