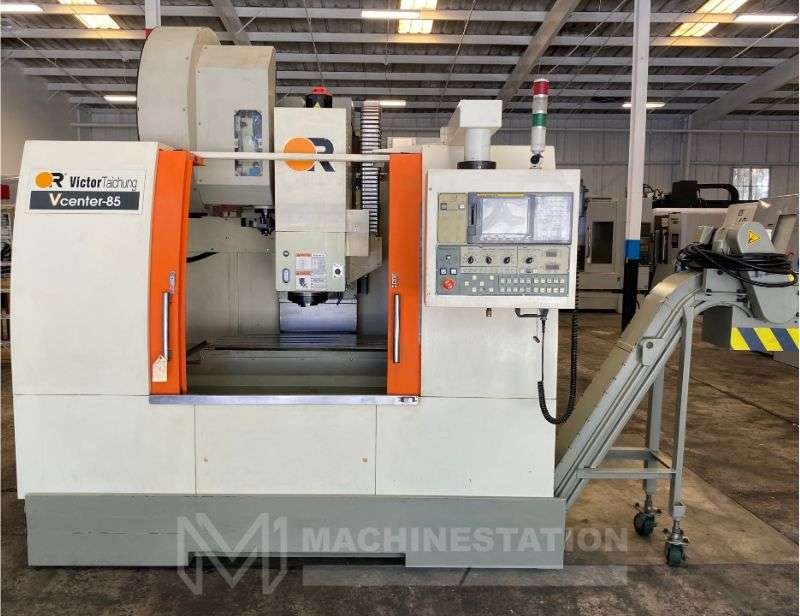

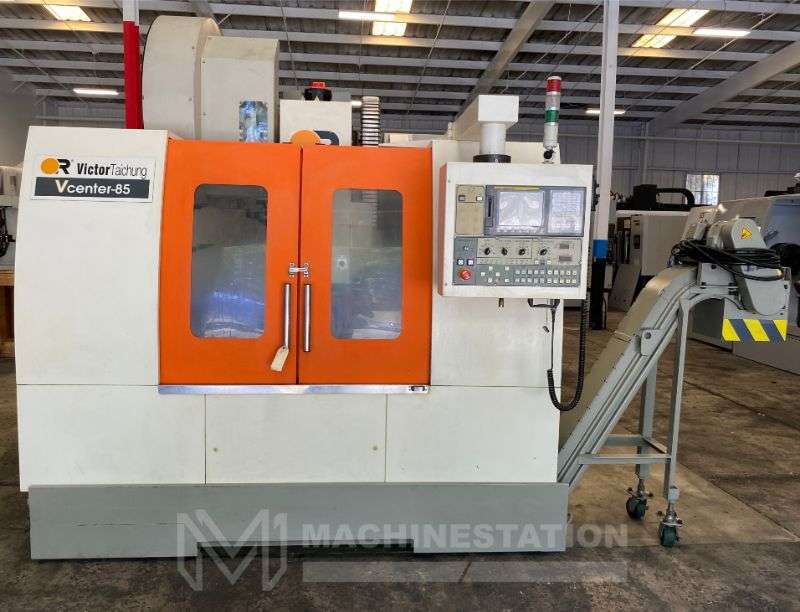

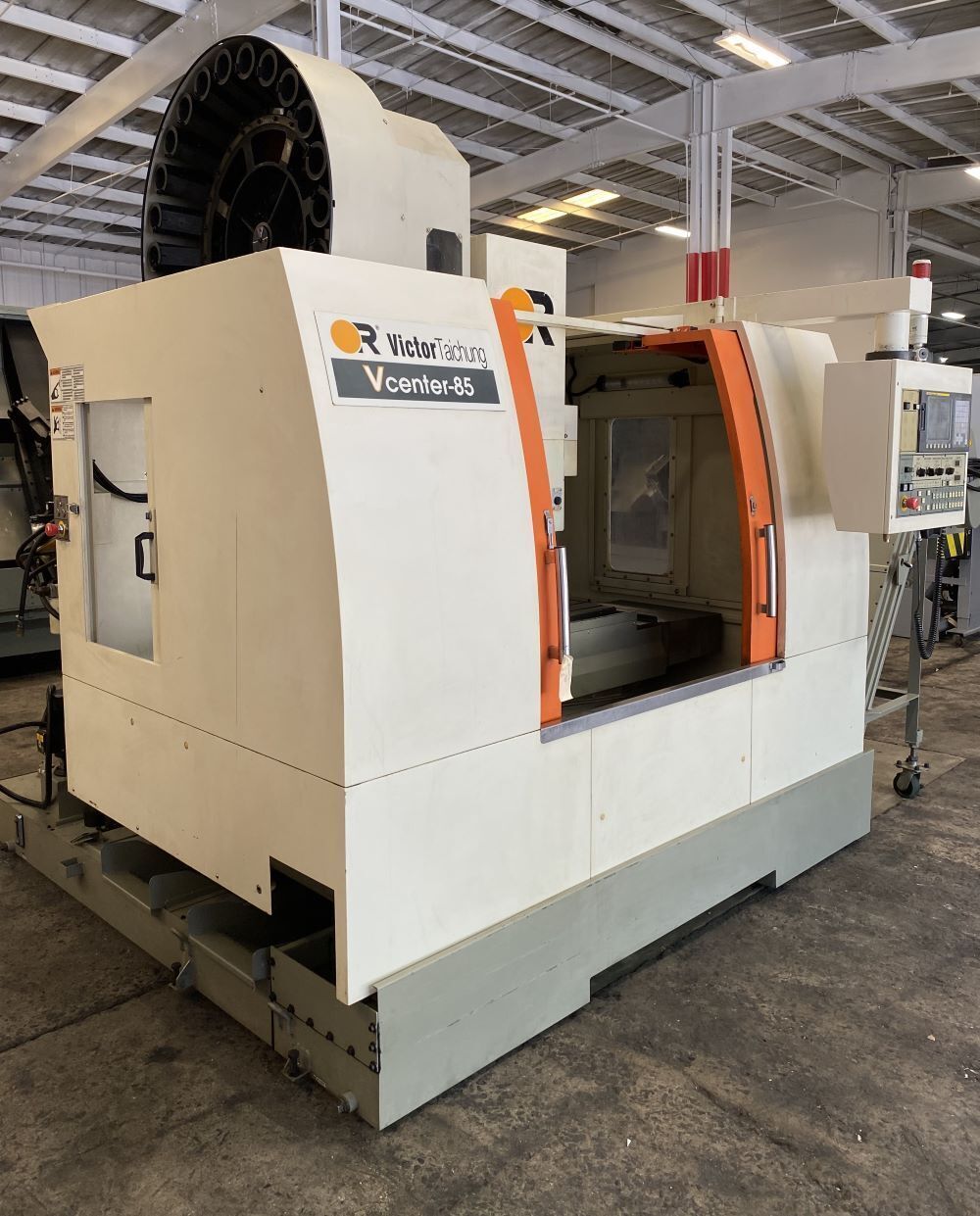

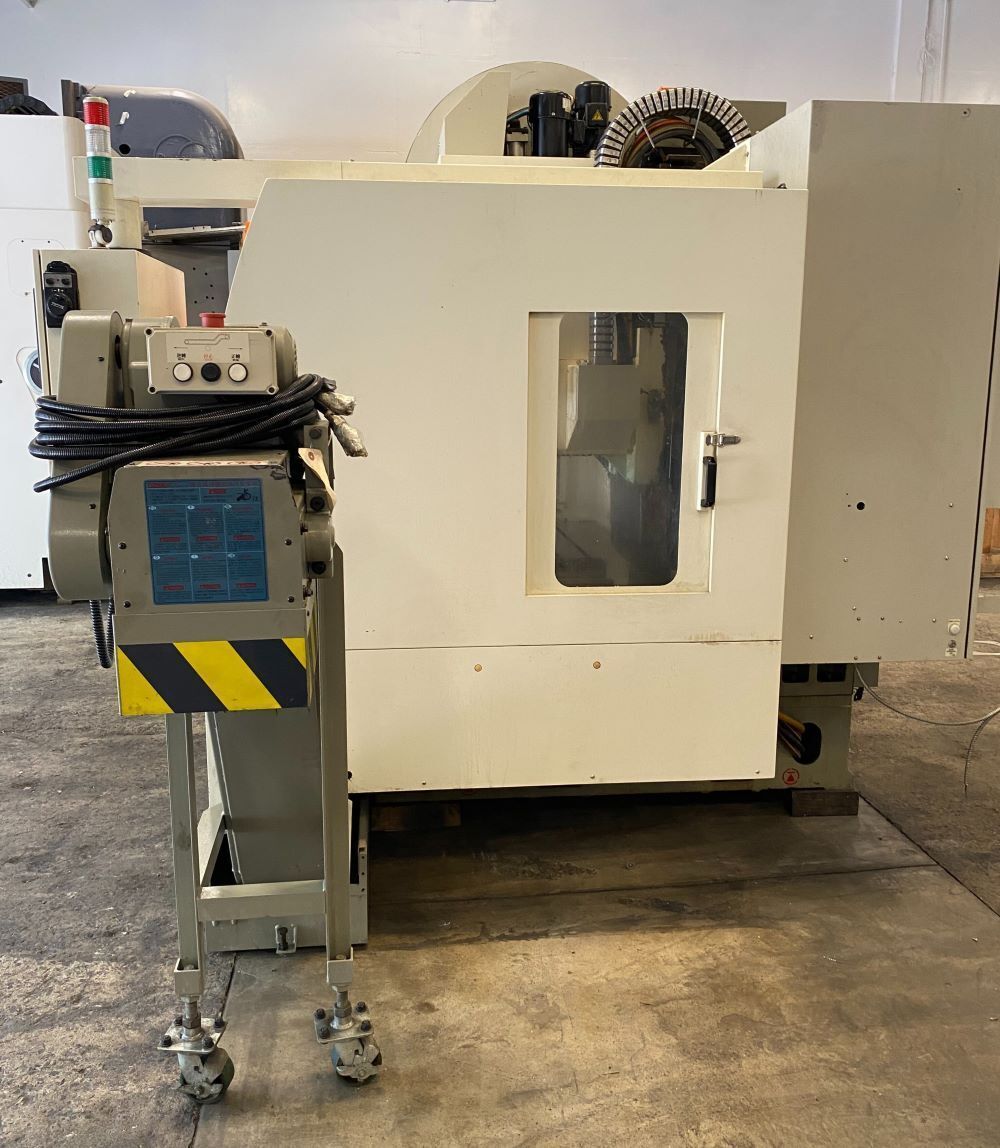

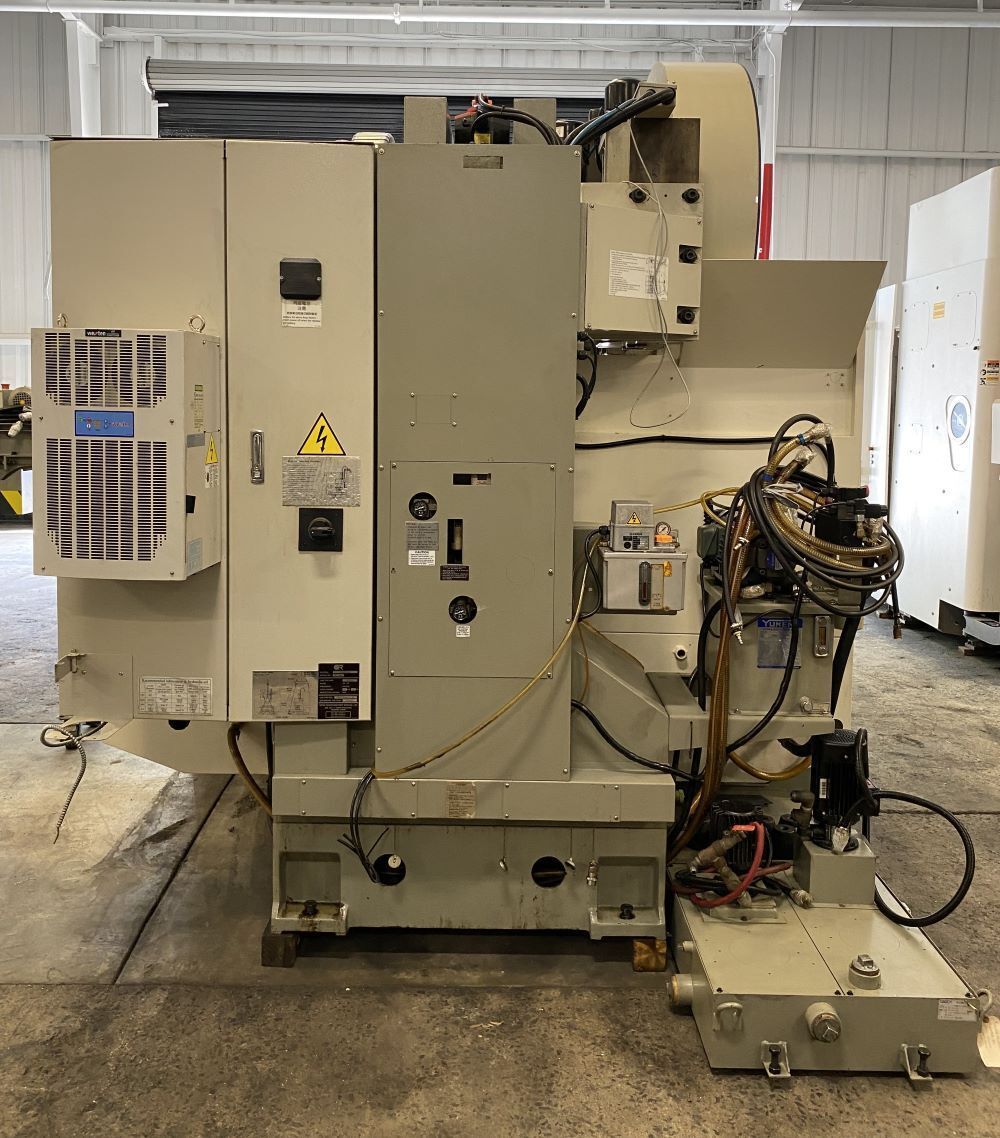

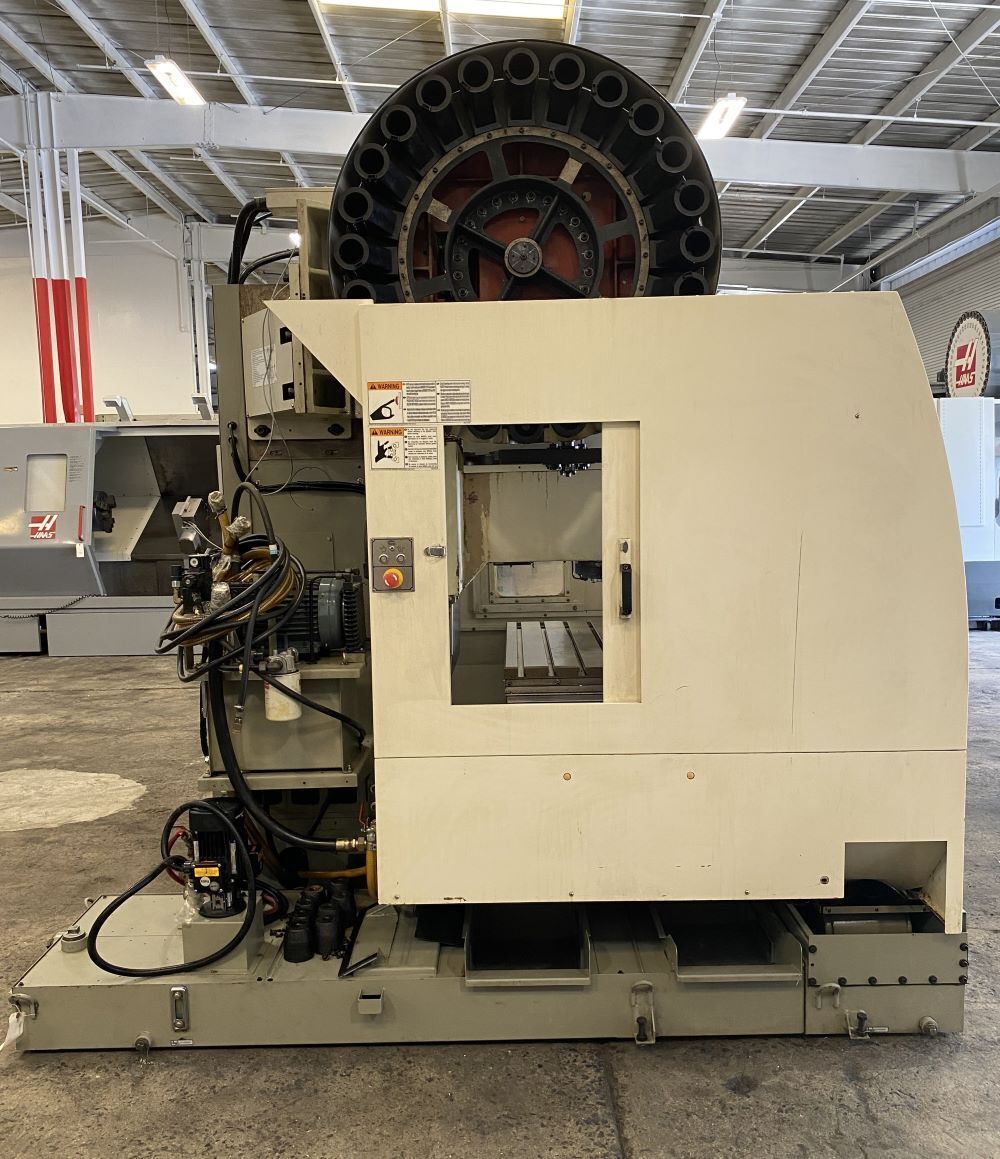

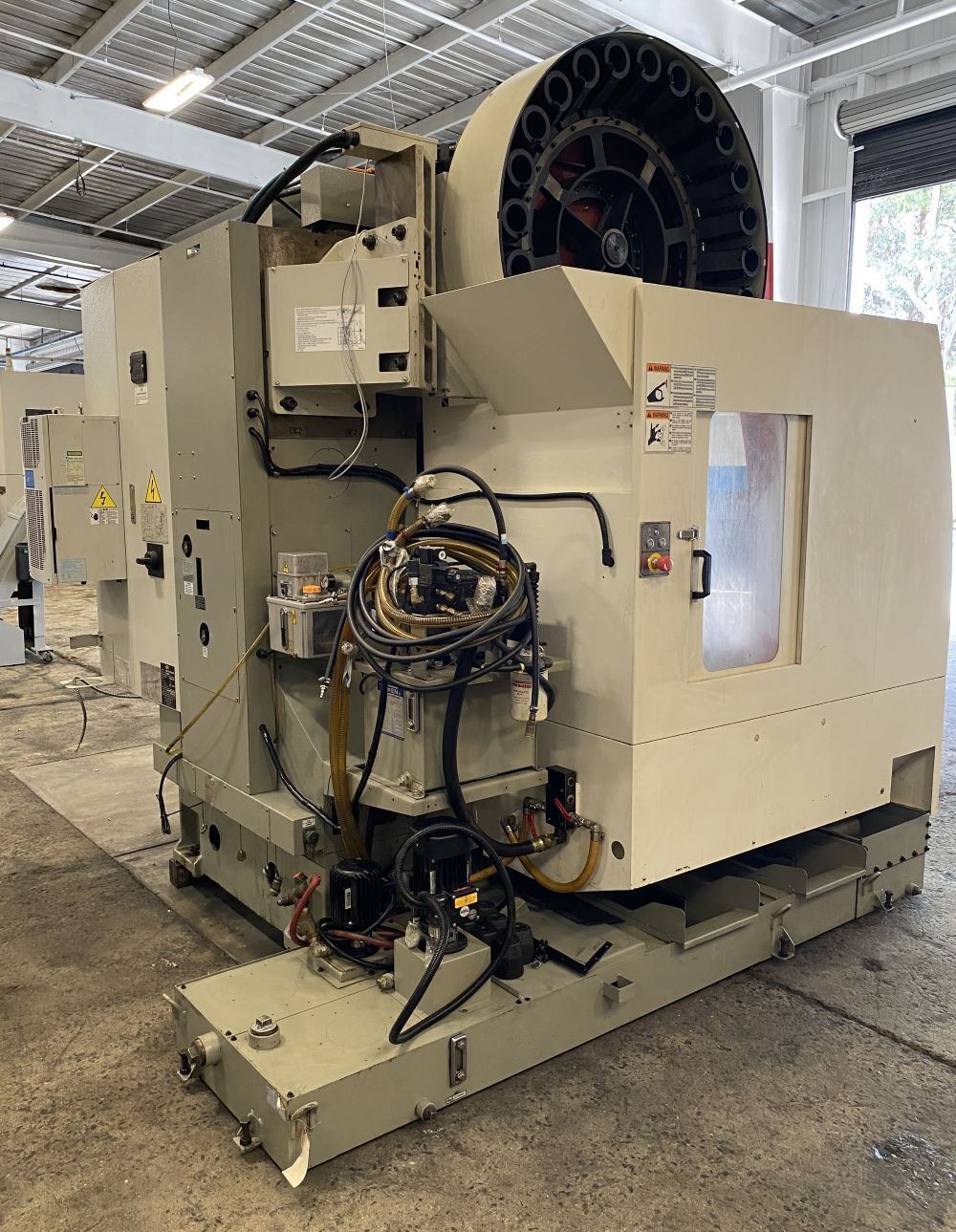

Victor Taichung Vcenter-85 CNC Vertical Machining Center

$690.00

1 in stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

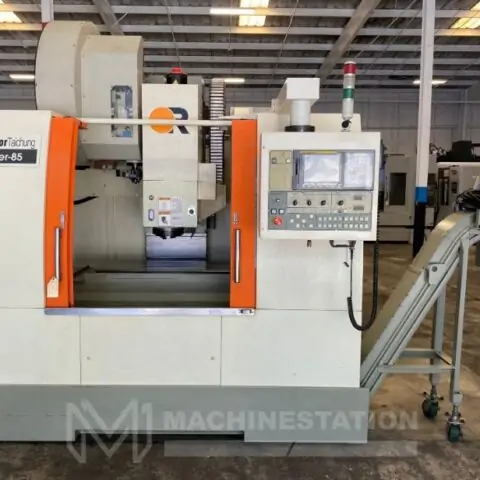

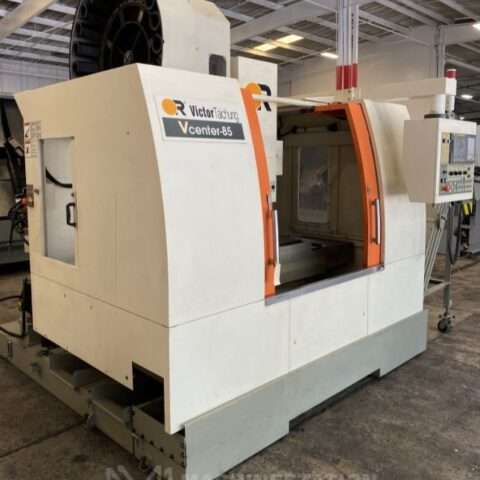

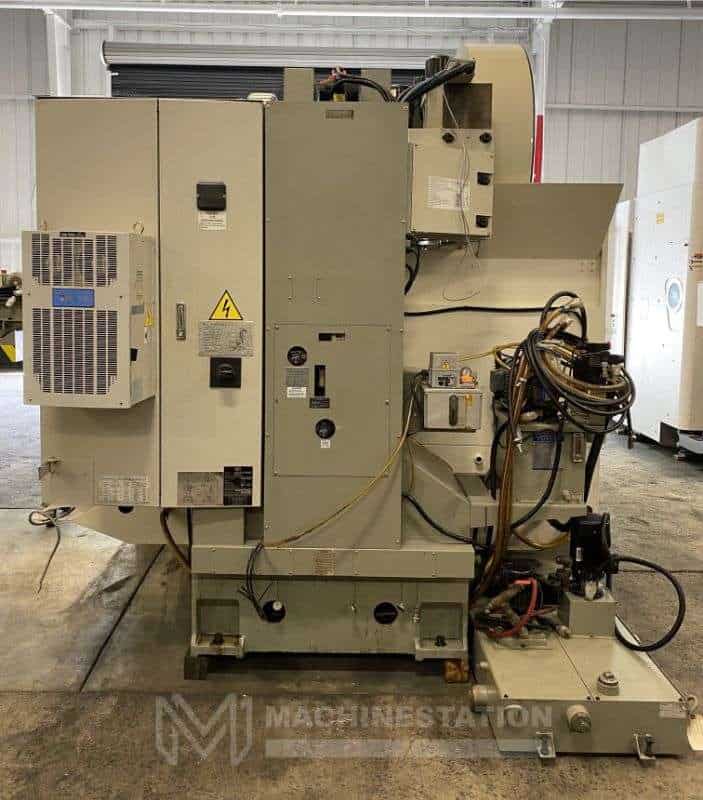

Used Victor Taichung Vcenter-85 CNC Vertical Machining Center for Sale.

Location: Lake Elsinore, California
SKU: 2598
Make & Model: Victor Taichung Vcenter-85
Video: No Video
SKU: 2598

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2598
Make: Victor Taichung
Model No.: Vcenter-85
Year of Manufacture: 2016



Equipped With:

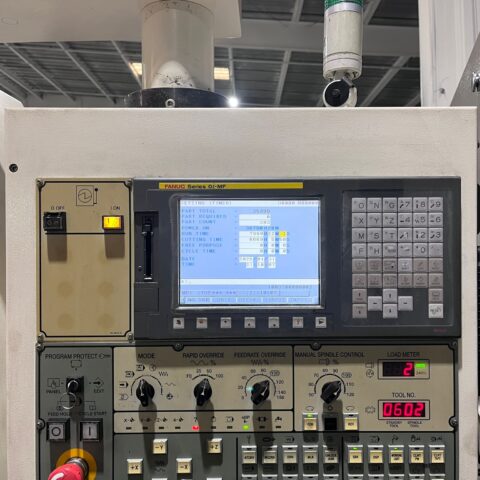

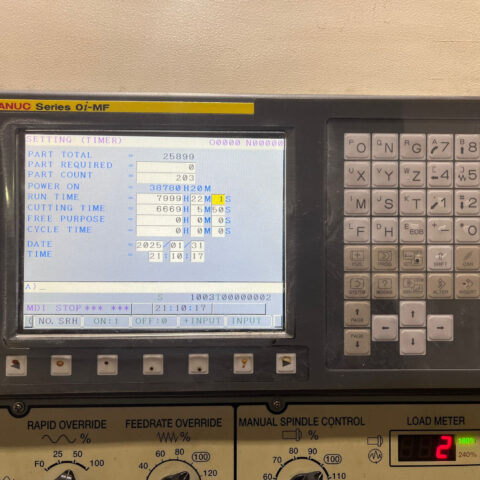

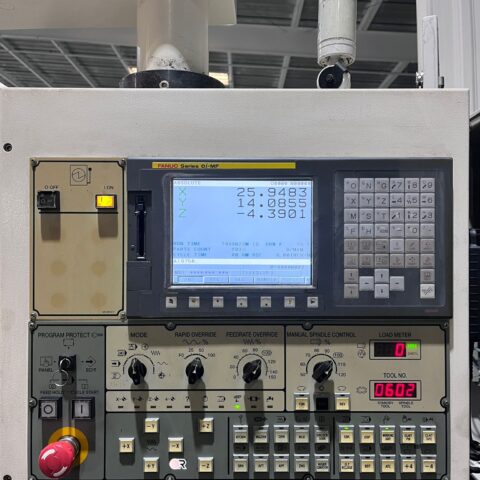

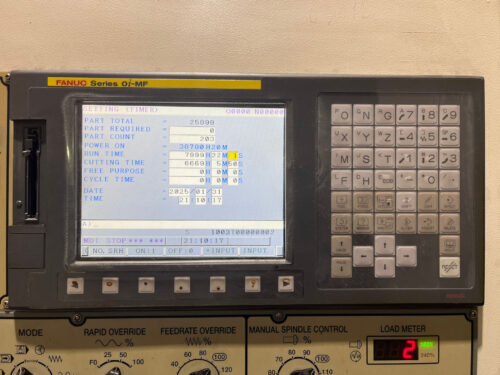

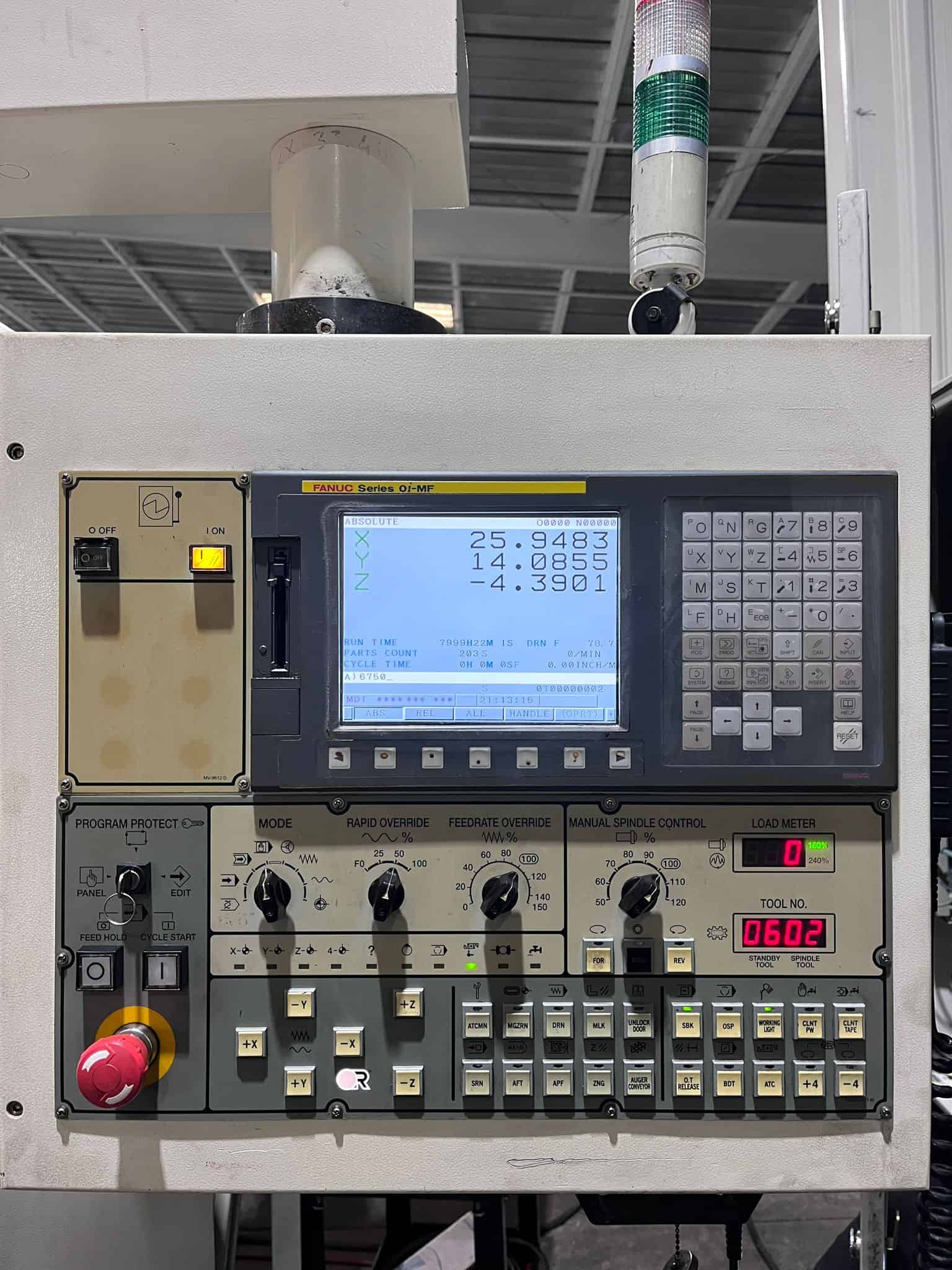

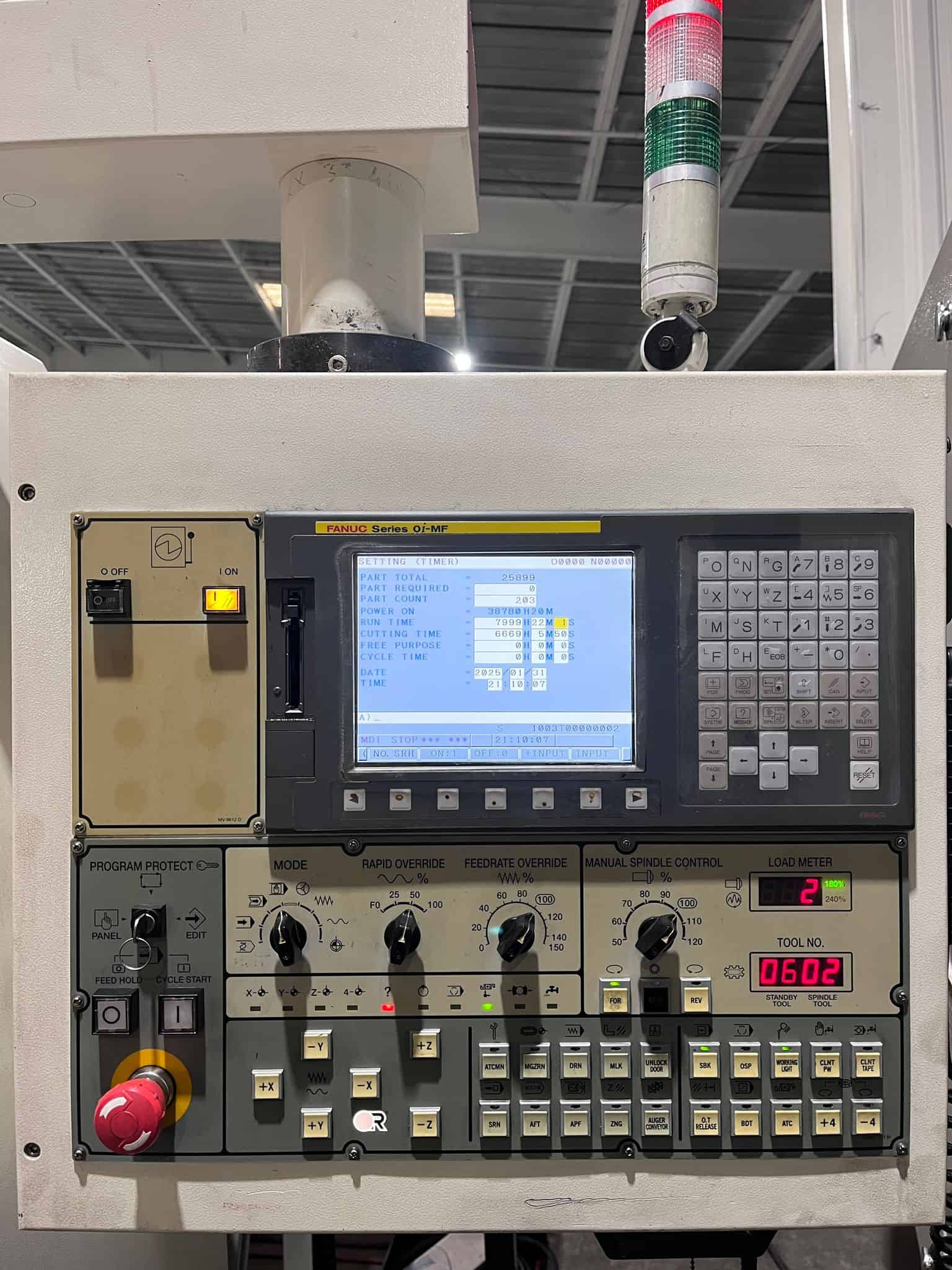

Fanuc Oi-MF CNC Control
Box Way Construction
50 Taper Spindle
6,000 RPM Spindle

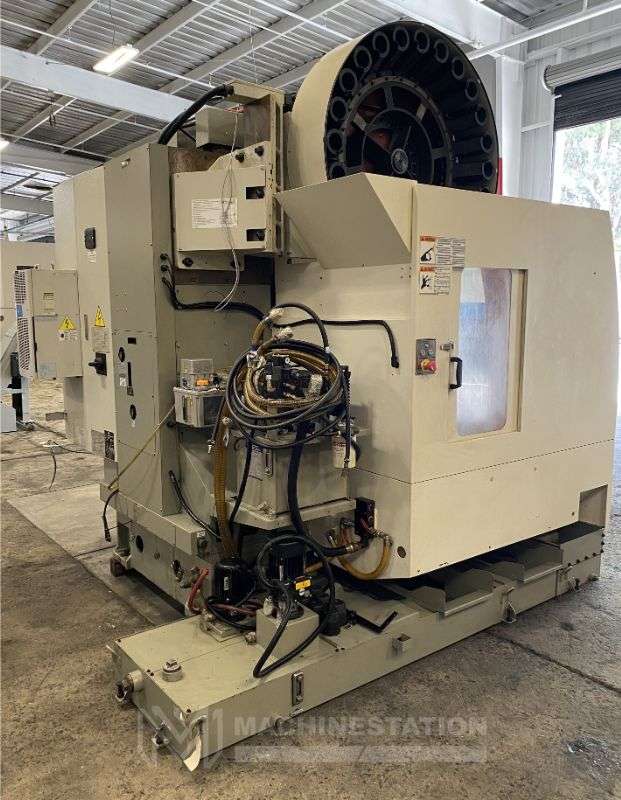

24 Station Automatic tool changer
PCMCIA Card Slot & RS-232 Port

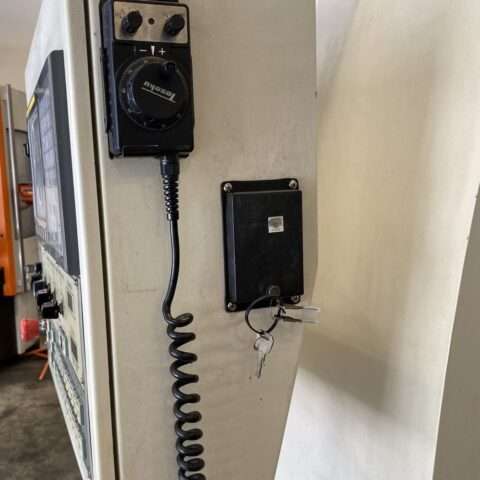

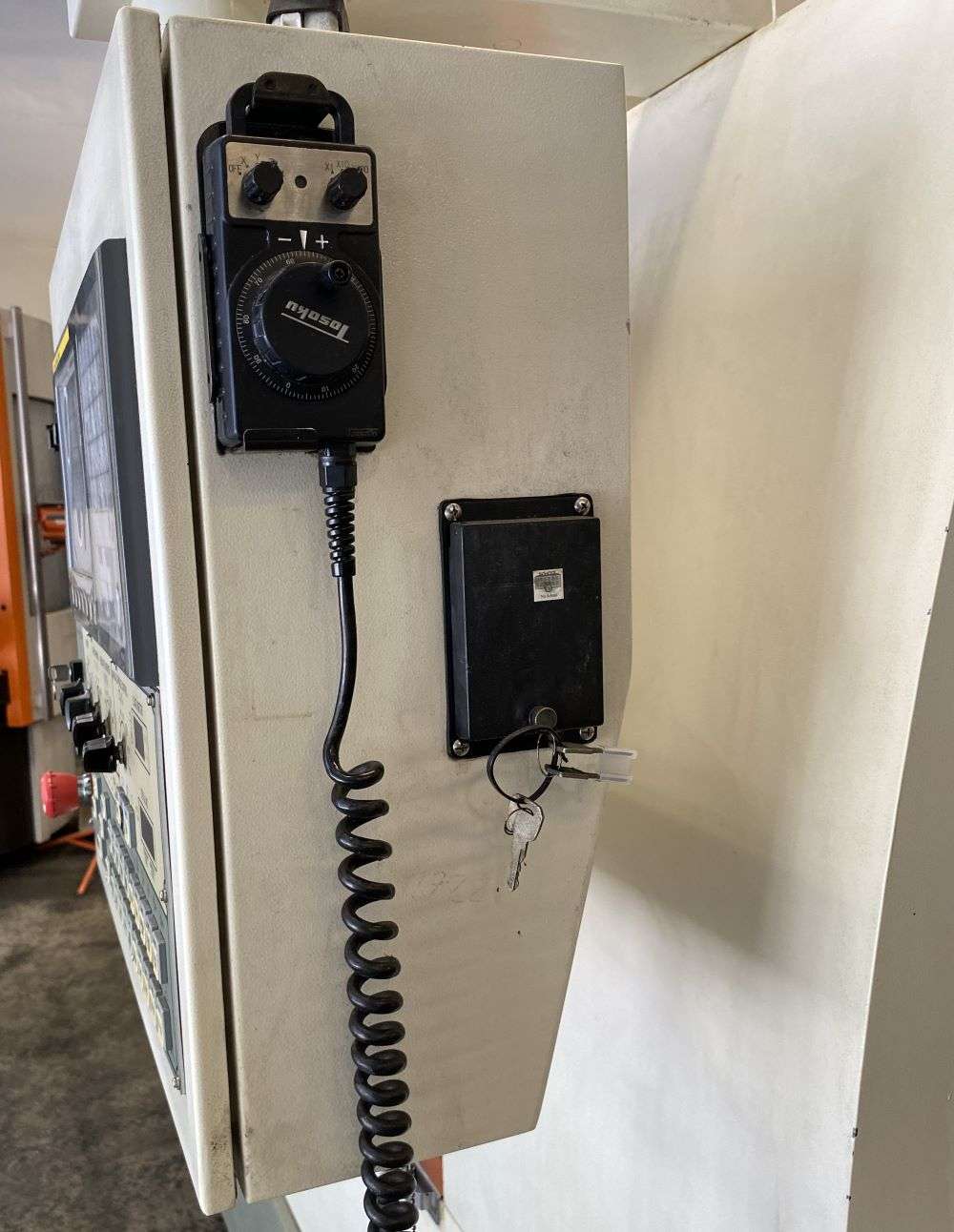

MPG Handwheel Control
Rigid Tapping
Spindle Orientation

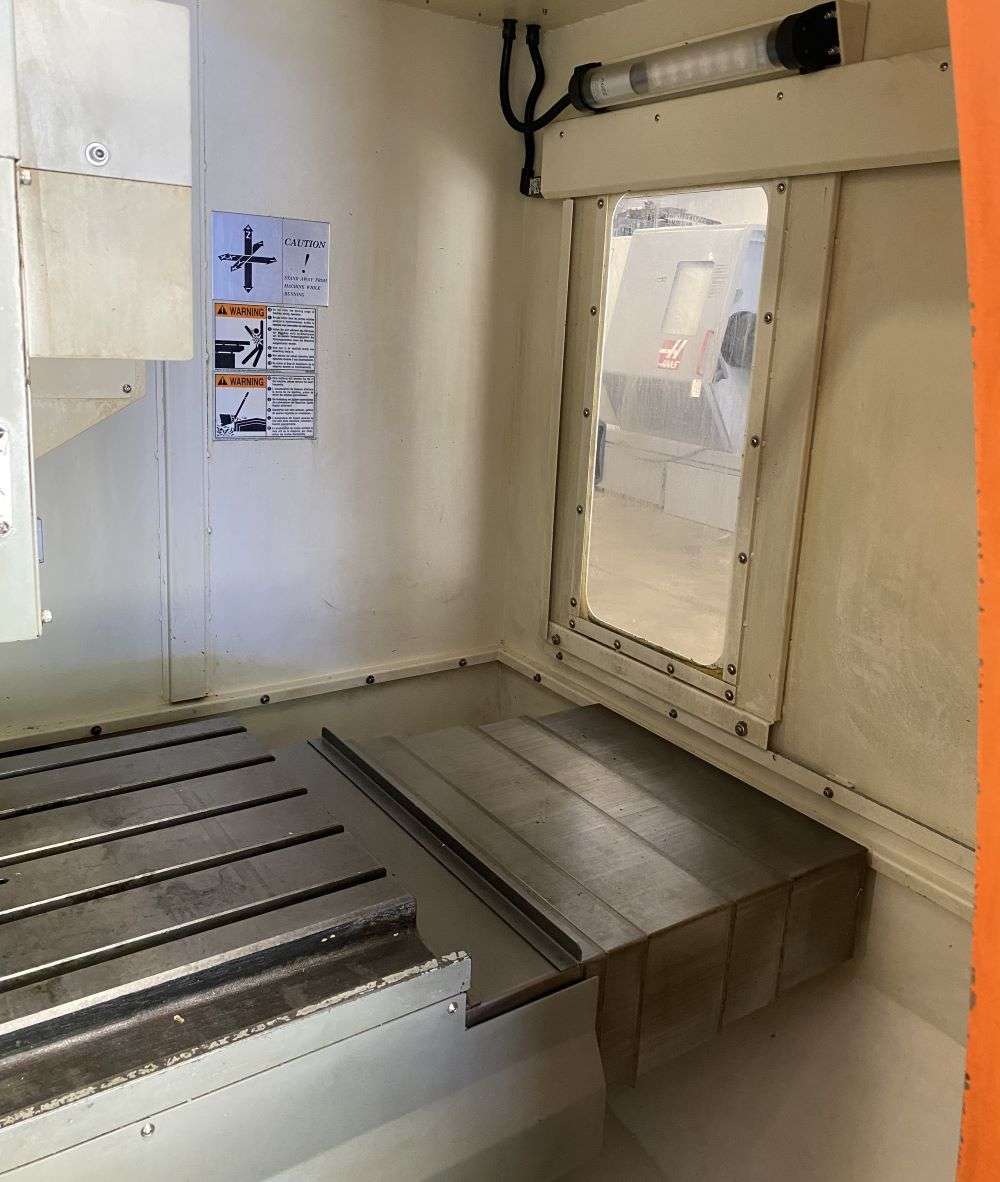

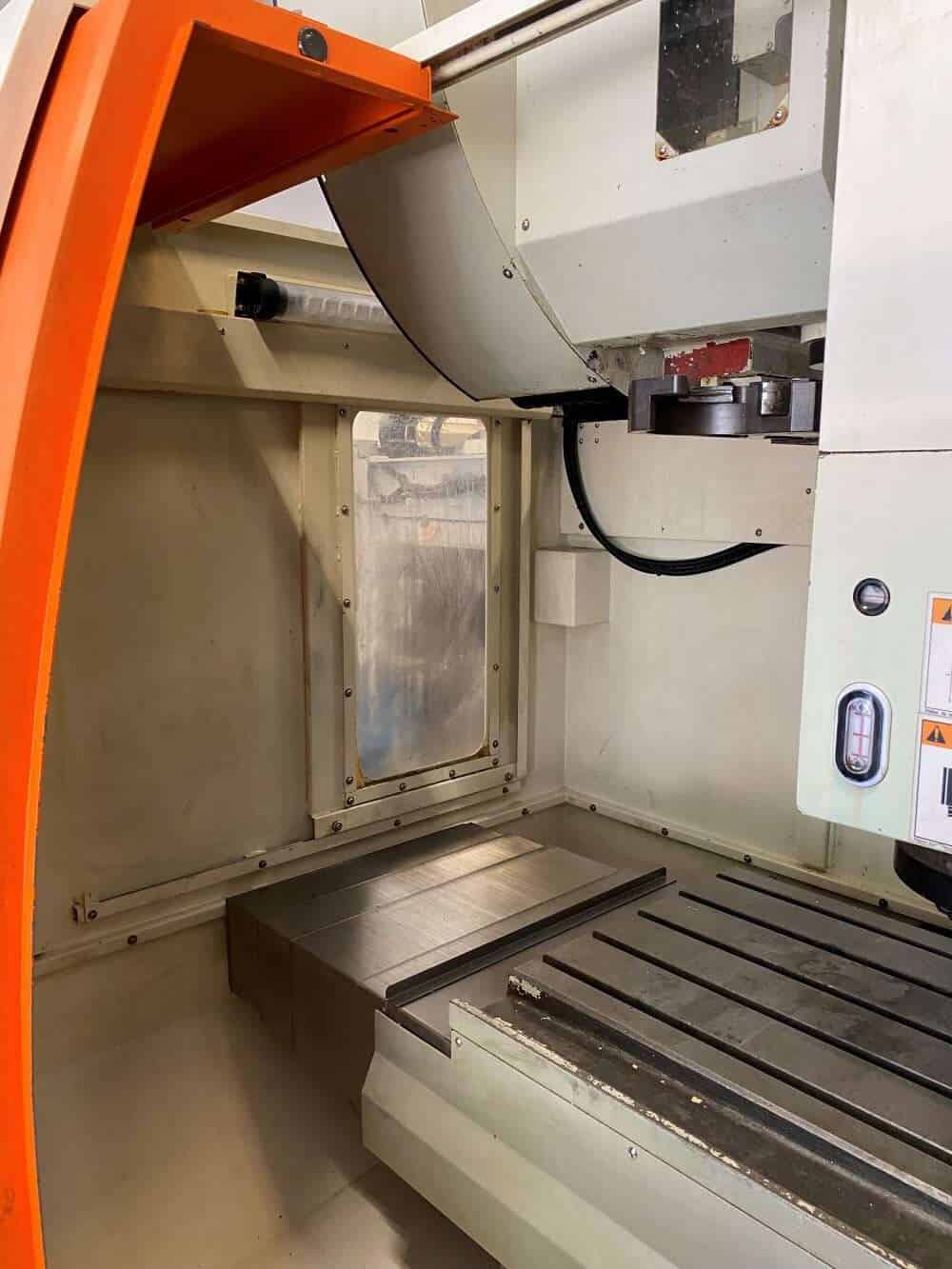

Telescopic way covers
Spindle Chiller Unit

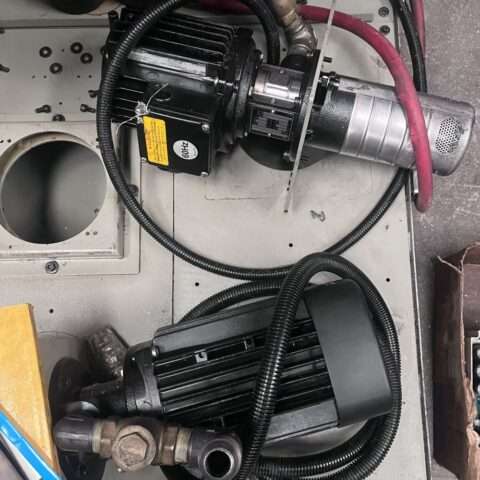

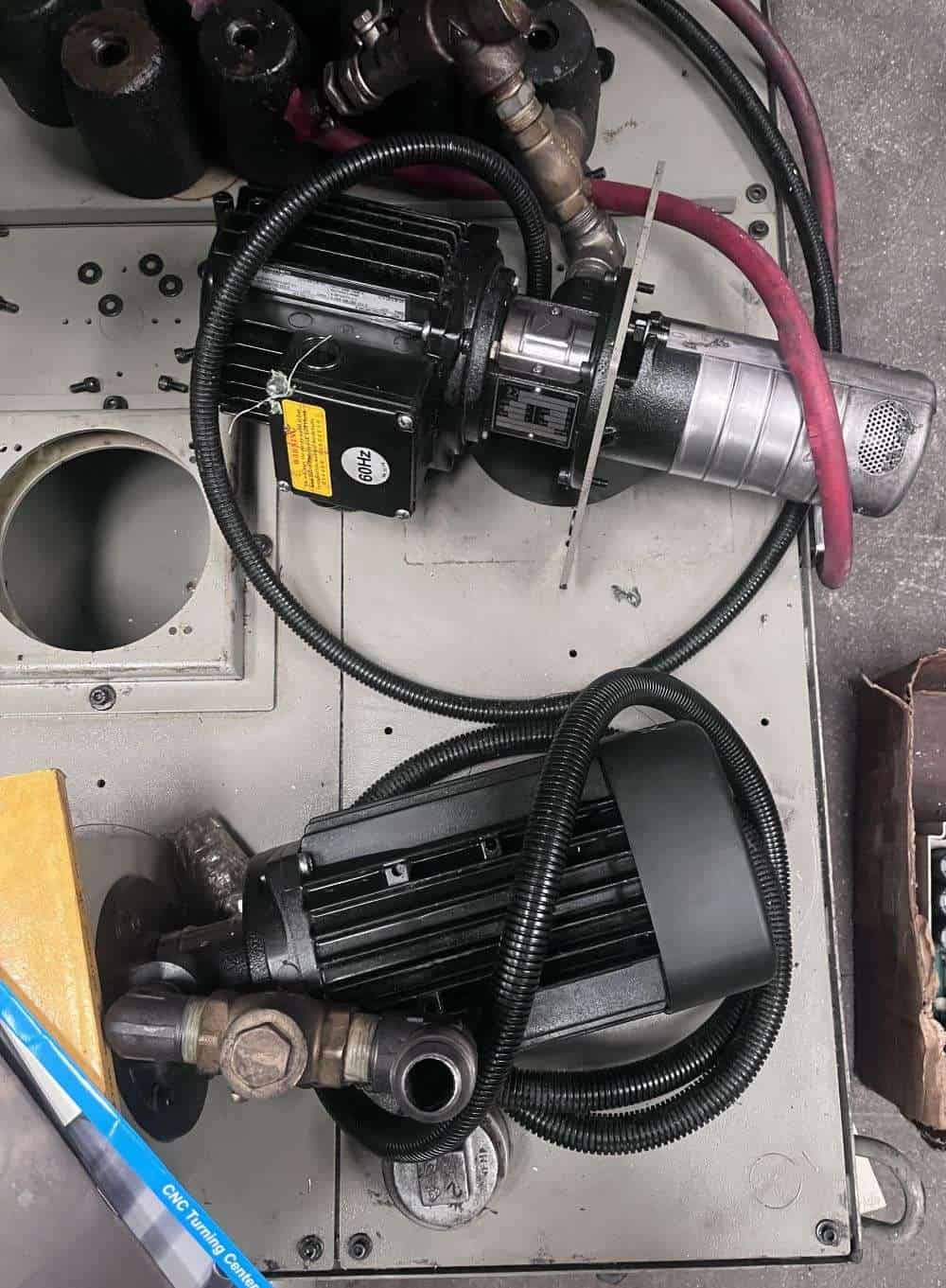

Flood Coolant system
Chip Conveyor



Travel:
X-Axis: 33.46″
Y-Axis: 20.47″
Z-Axis: 22.05″
Rapid Traverse Rates X, Y Axis: 787 Inch Per Minute
Rapid Traverse Rates Z Axis: 787 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.90″ – 27.95″

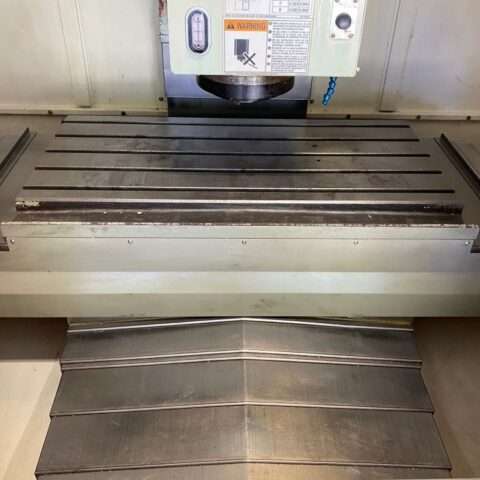

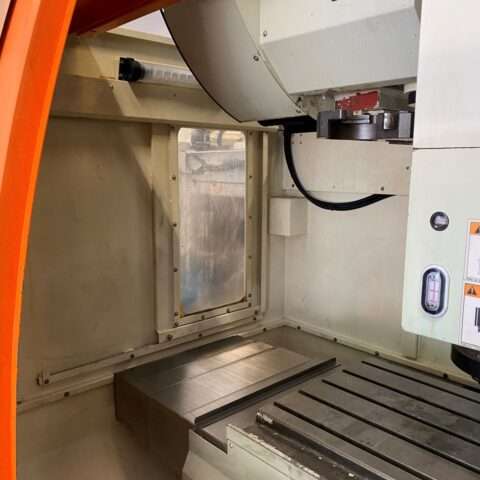

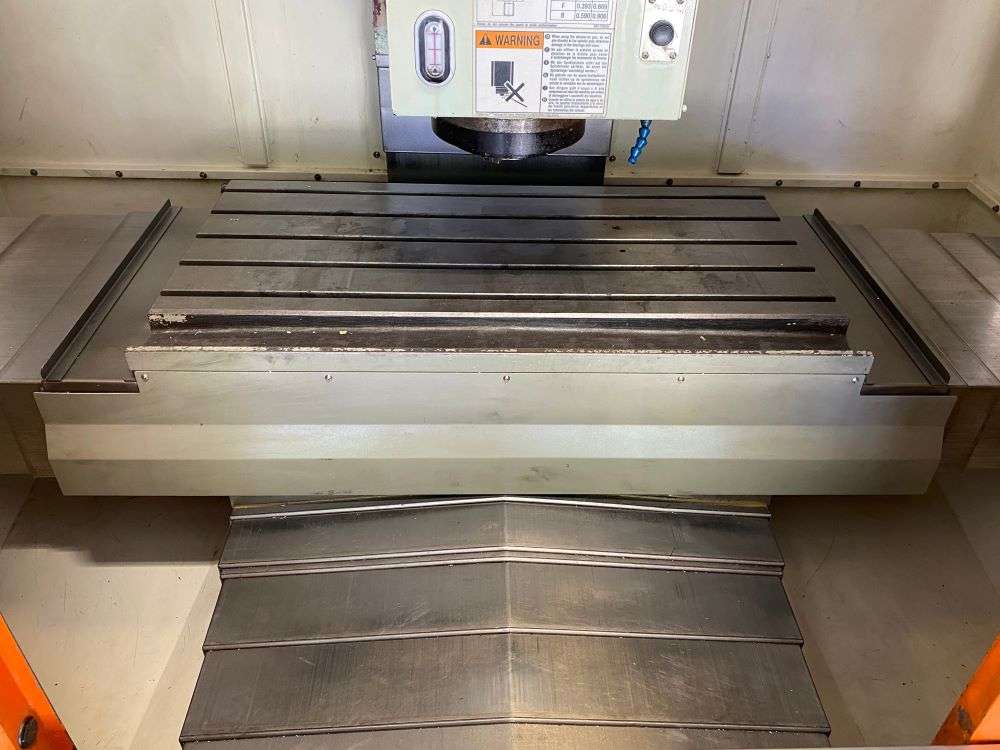

Table:
Length: 43.30″
Width: 20.07″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2204 lbs



Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Type: Gear Head
Spindle Power: 15 HP



Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds

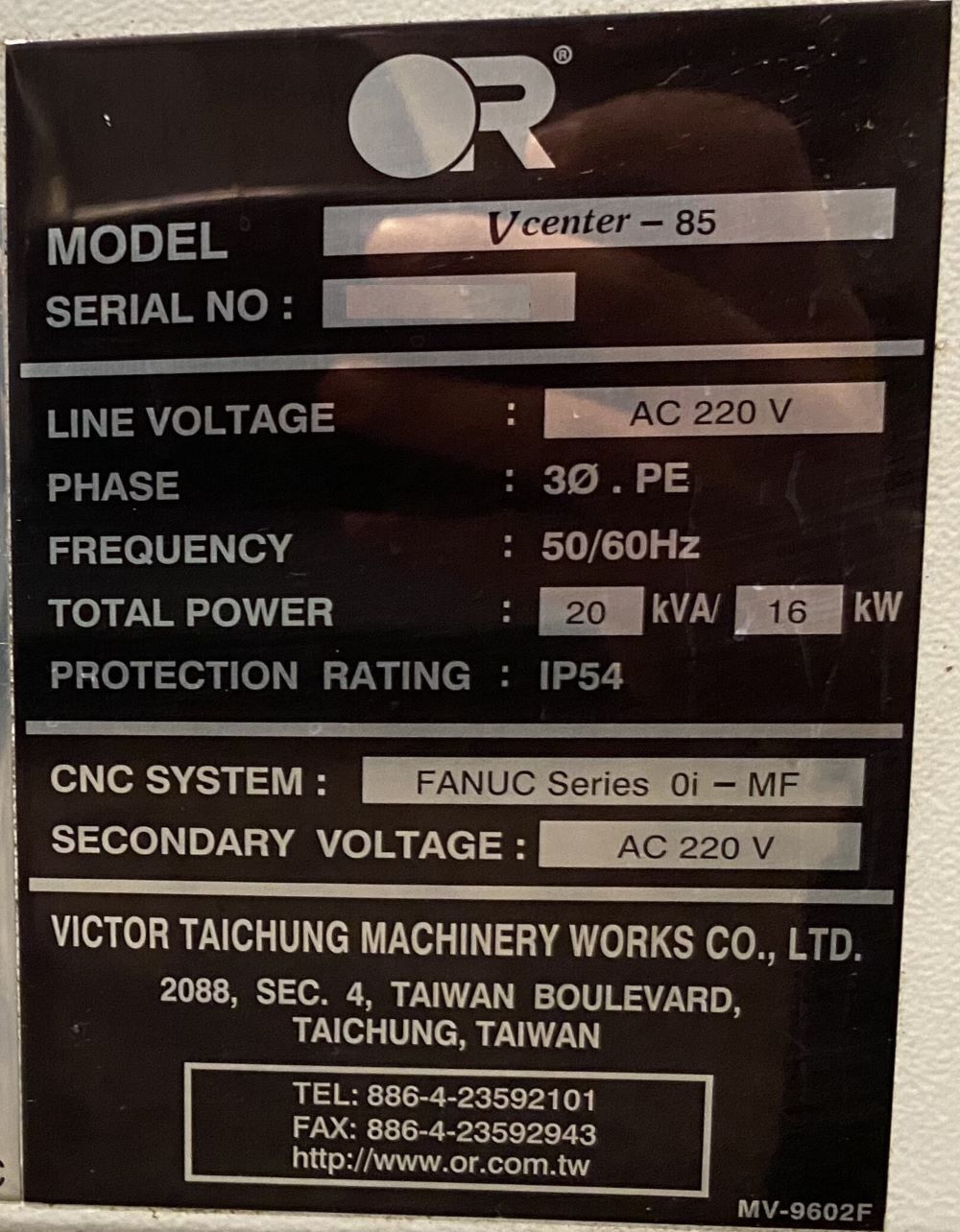

General:
Air Required: 80 psi, 4 scfm

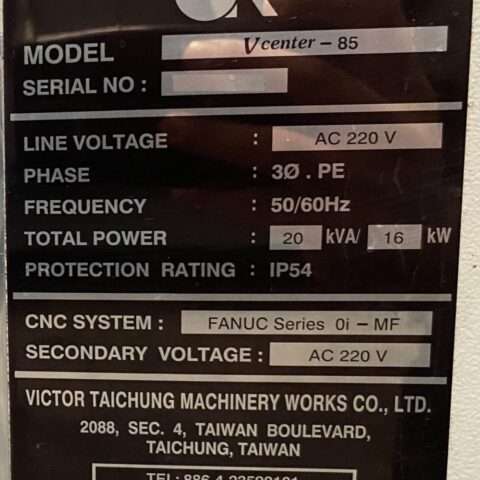

Power: 220v / 23KVA / 3-Phase
Overall Dimensions: 96″ x 94″ x 110″ High
Weight: 14330 lbs
