Victor Taichung Vturn-V560 CNC Vertical Turning Center
Out of stock
| SKU: | 11174 |
| Make/Model: | Victor Taichung Vturn-V560 |
| Year: | Unknown |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Victor Taichung |
| Model No.: | Vturn-V560 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Turning Center |

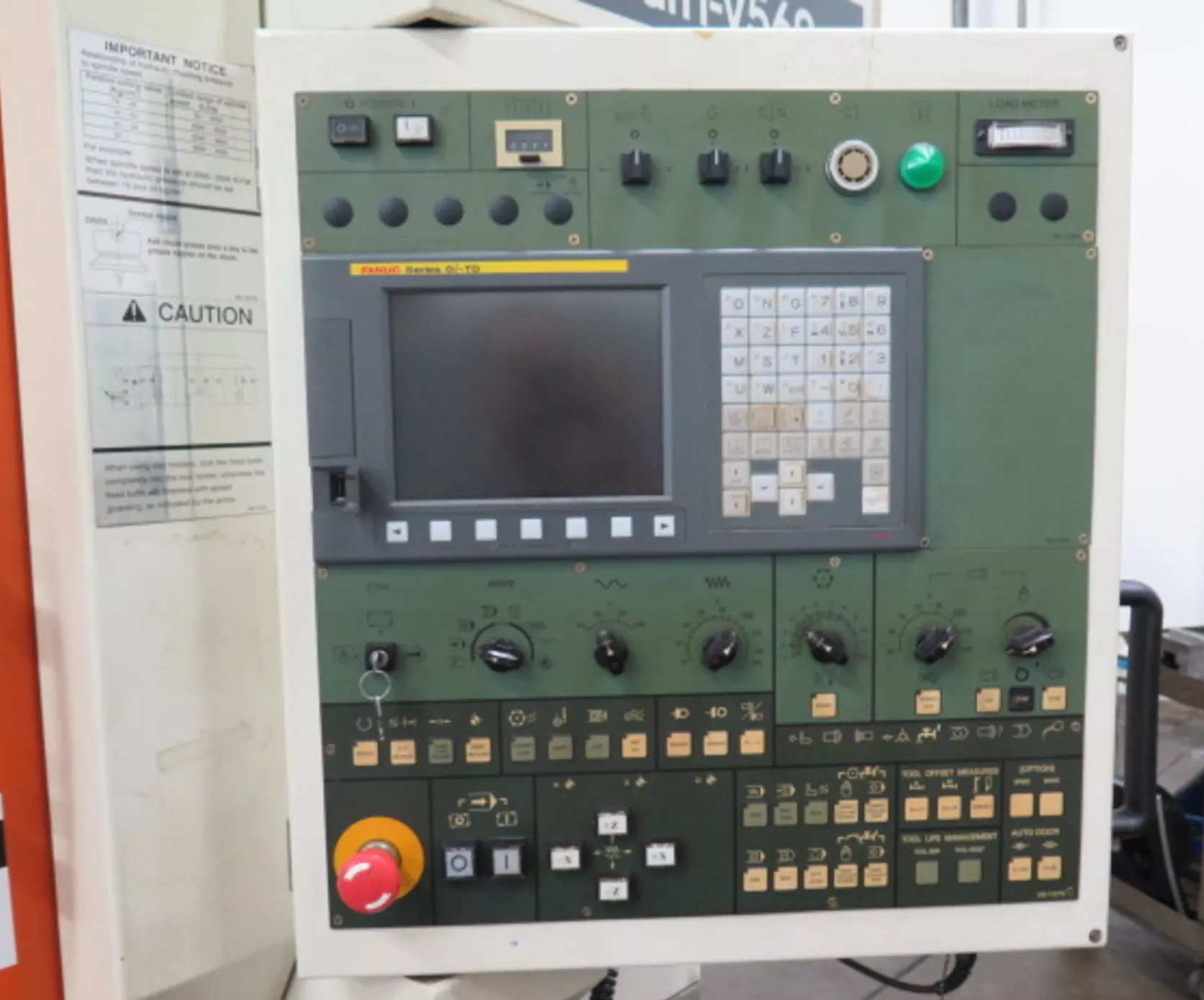

| CNC Control: | Fanuc Series 0i-TD CNC Control |
| Equipped With: |
|---|
| Fanuc Series 0i-TD CNC Control |

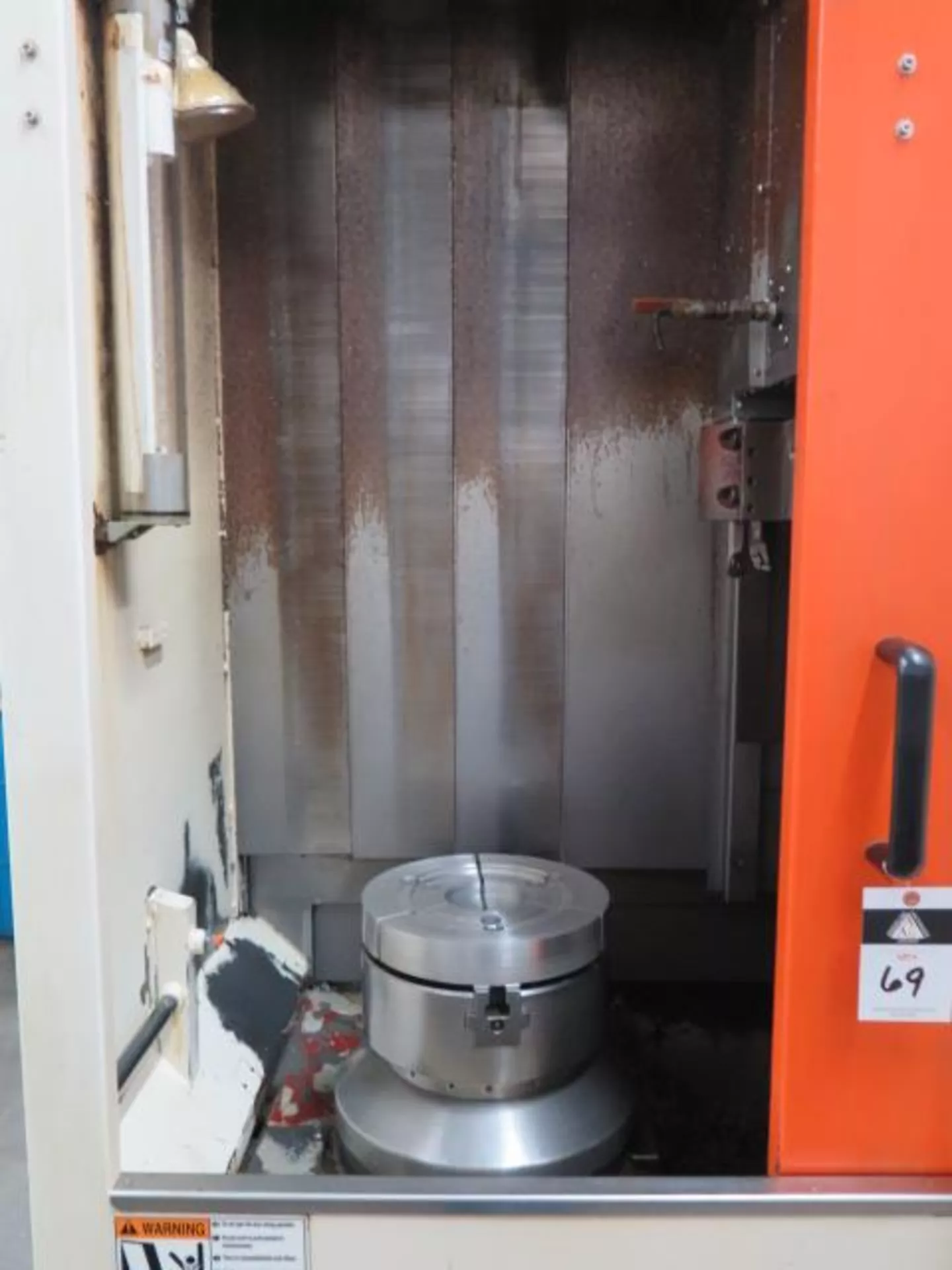

| 12″ Hydraulic Chuck |
| 12-Station Turret (Optional Live Tooling) |
| Hydraulic Tool Turret |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Work Light |
| Fully Enclosed Splash Guard |
| Foot Pedal Control |
| Capacity: |
|---|
| Maximum Turning Diameter: 22.0″ (560 mm) |
| Maximum Turning Length: 20.9″ (532 mm) |
| Standard Turning Diameter: 18.5″ (470 mm) |
| Swing Over Carriage: 21.25″ (540 mm) |
| Maximum Workpiece Weight: Approx. 1,323 lbs (600 kg) |
| Travel: |
|---|
| X-Axis Travel: 11.0″ + 5.1″ (280 + 130 mm) |
| Z-Axis Travel: 21.25″ (540 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 2,500 RPM |
| Spindle Motor Power: 15 – 18.5 kW (20 – 25 HP) |
| Spindle Nose: A2-8 |
| Standard Chuck Size: 12″ (Optional 10″ / 15″ / 18″) |

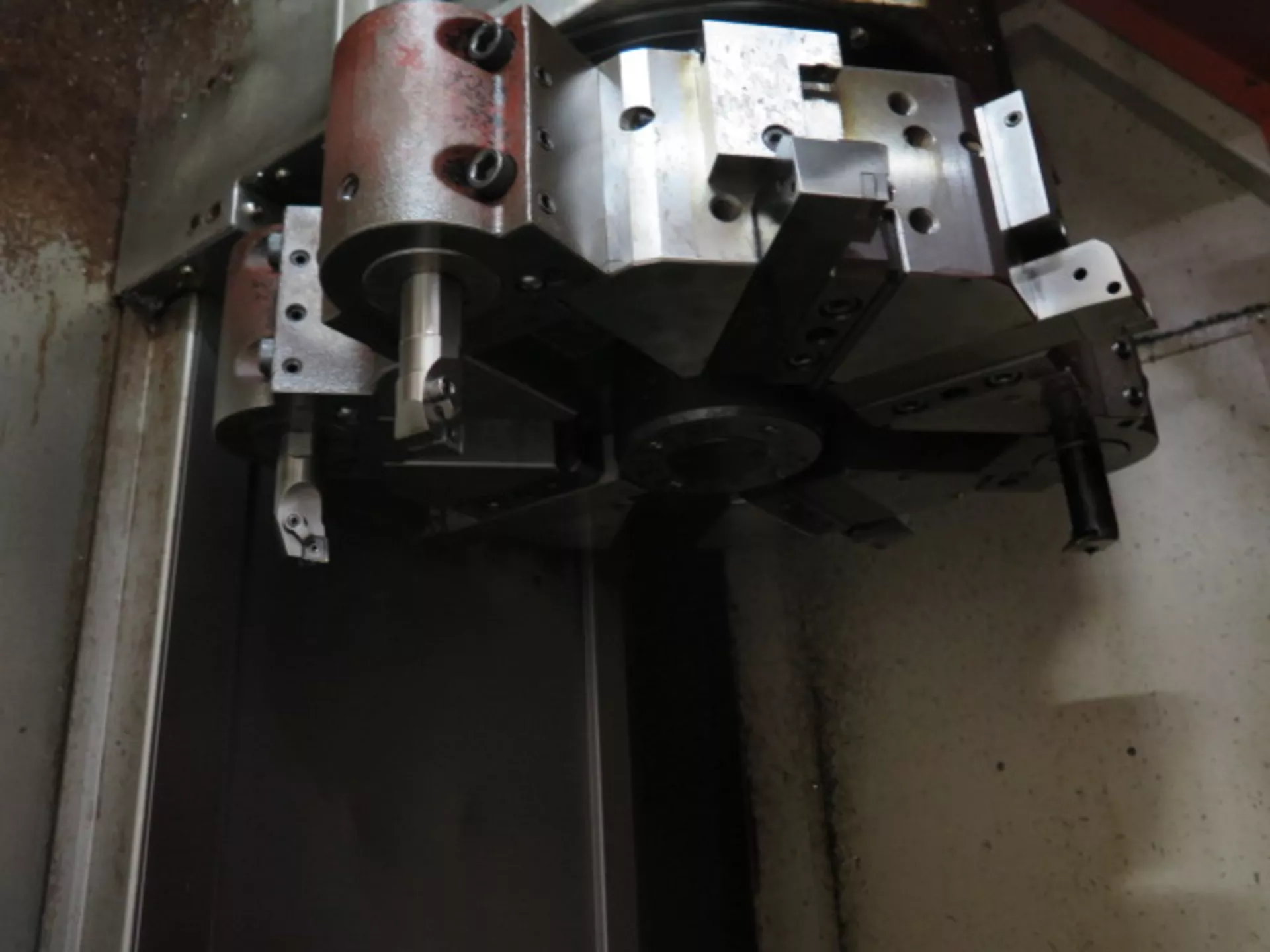

| Turret: |
|---|
| Turret Type: Hydraulic Indexing Turret |
| Tool Stations: 8 or 12 (Configuration Dependent) |
| Tool Shank Size: 32 mm |
| Optional Live Tooling: BMT-55 |
| Feedrates: |
|---|
| Rapid Traverse (X-Axis): 15 m/min |
| Rapid Traverse (Z-Axis): 24 m/min |
| Milling Capability (Optional): |
|---|
| Milling Speed: Up to 4,000 RPM |
| Milling Motor Power: 2.2 kW |

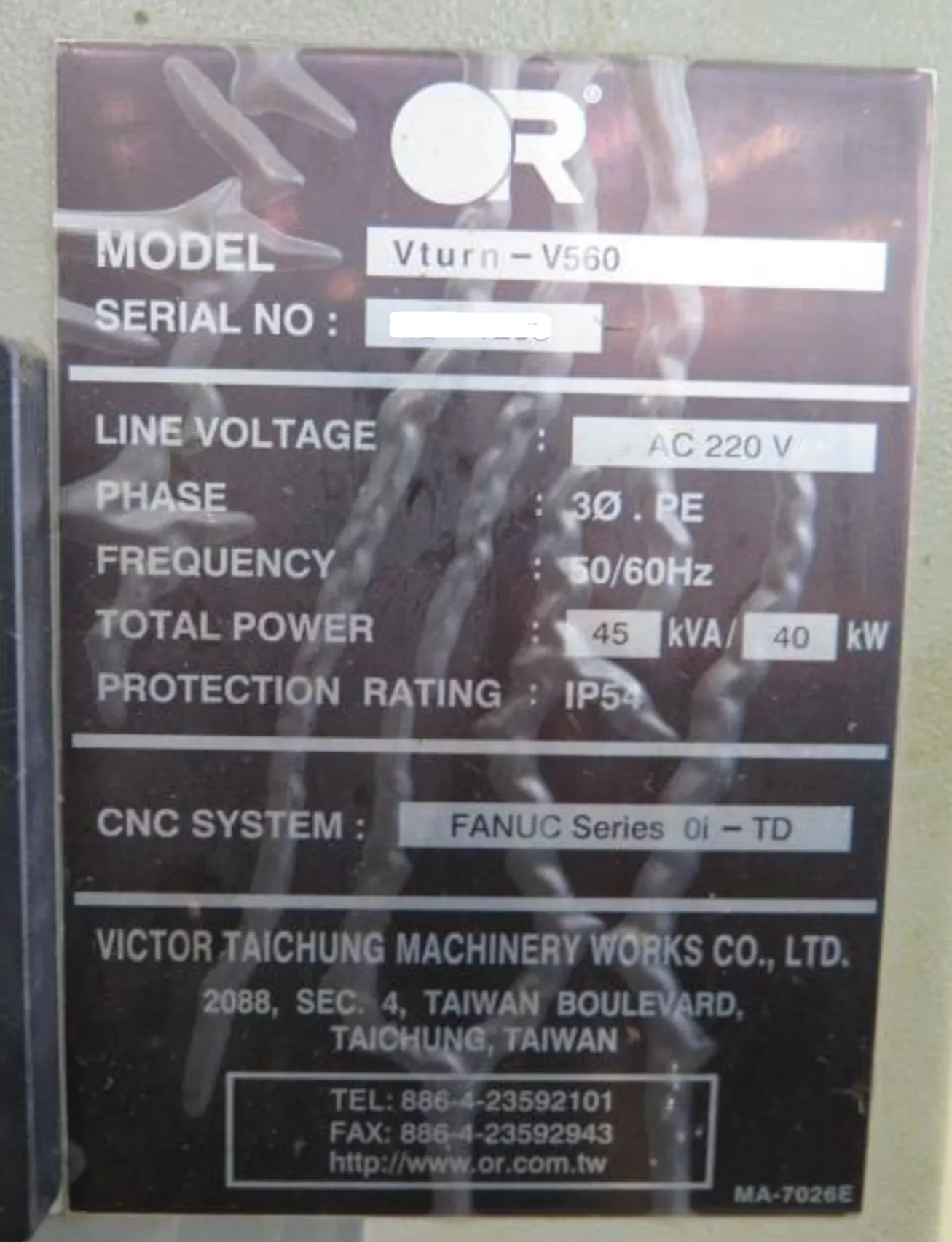

| Electrical: |
|---|
| Power Requirement: 29 – 33 kVA |
| Voltage: AC 220V |
| Phase: 3-Phase |
| Frequency: 50 / 60 Hz |
| Total Power: 45 kVA / 40 kW (Nameplate) |
| Coolant System: |
|---|
| Coolant Tank Capacity: 260 L |
| Integrated Coolant and Chip Collection System |
| General: |
|---|
| Machine Dimensions: 61.4″ × 128.0″ × 115.9″ (1560 × 3250 × 2943 mm) |
| Machine Weight: Approx. 13,448 lbs (6,100 kg) |
| Features: |
|---|
| Vertical turning design ideal for large diameter parts |
| Meehanite cast iron machine structure for rigidity |
| Box slideways for heavy-duty cutting performance |
| Hydraulic turret with fast indexing and high accuracy positioning |
| Leak-free coolant and chip management system |
| Fanuc CNC control for reliable and easy programming |
| Compact footprint with high-rigidity moving-column design |
| Ideal for automotive parts, flanges, bearings, and heavy round components |
