*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | WEILER |
| Model: | E50 x 2000 |
| Year: | 2013 |
| Condition: | Used – Good |

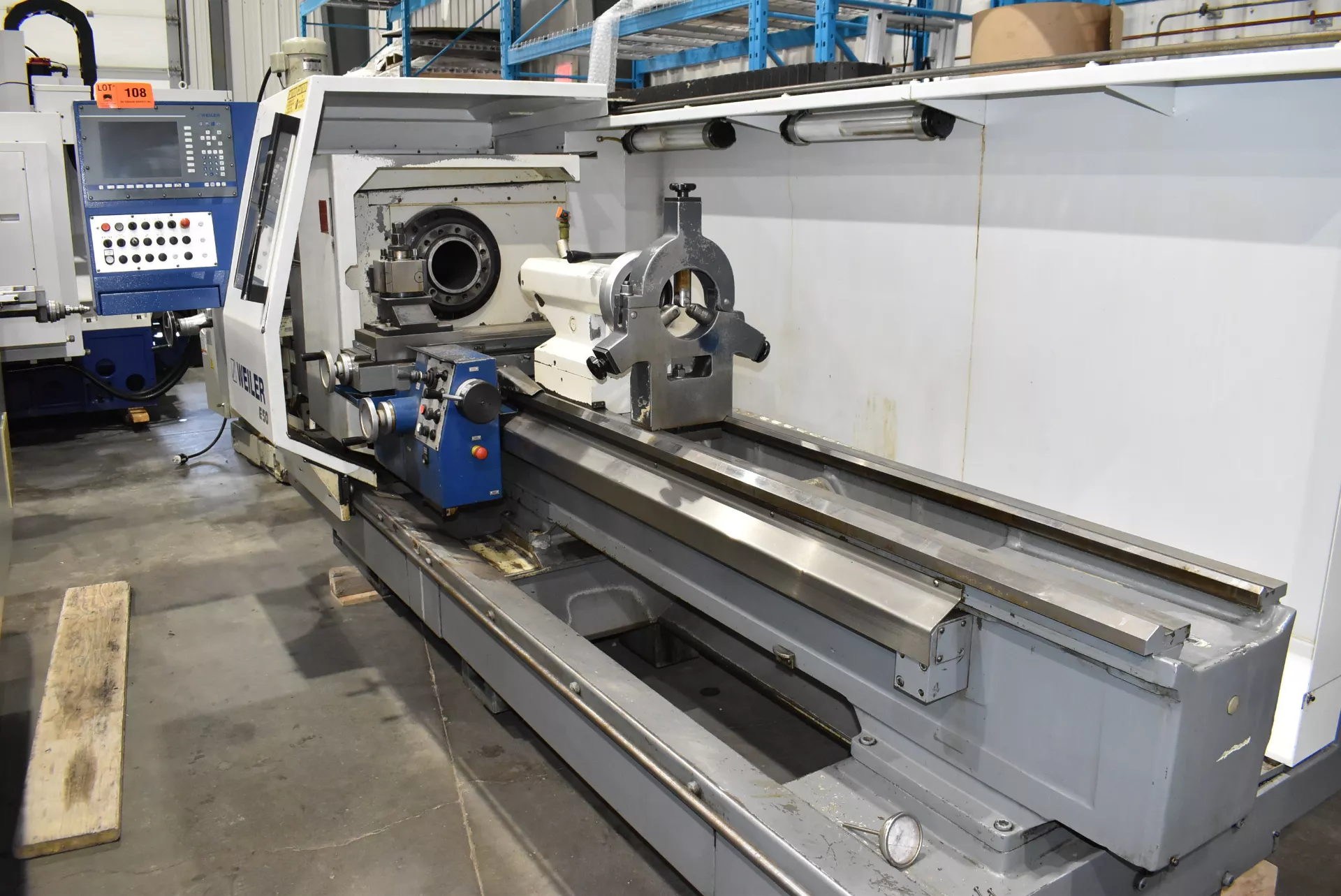

| Machine Type: | CNC Flat Bed Lathe |

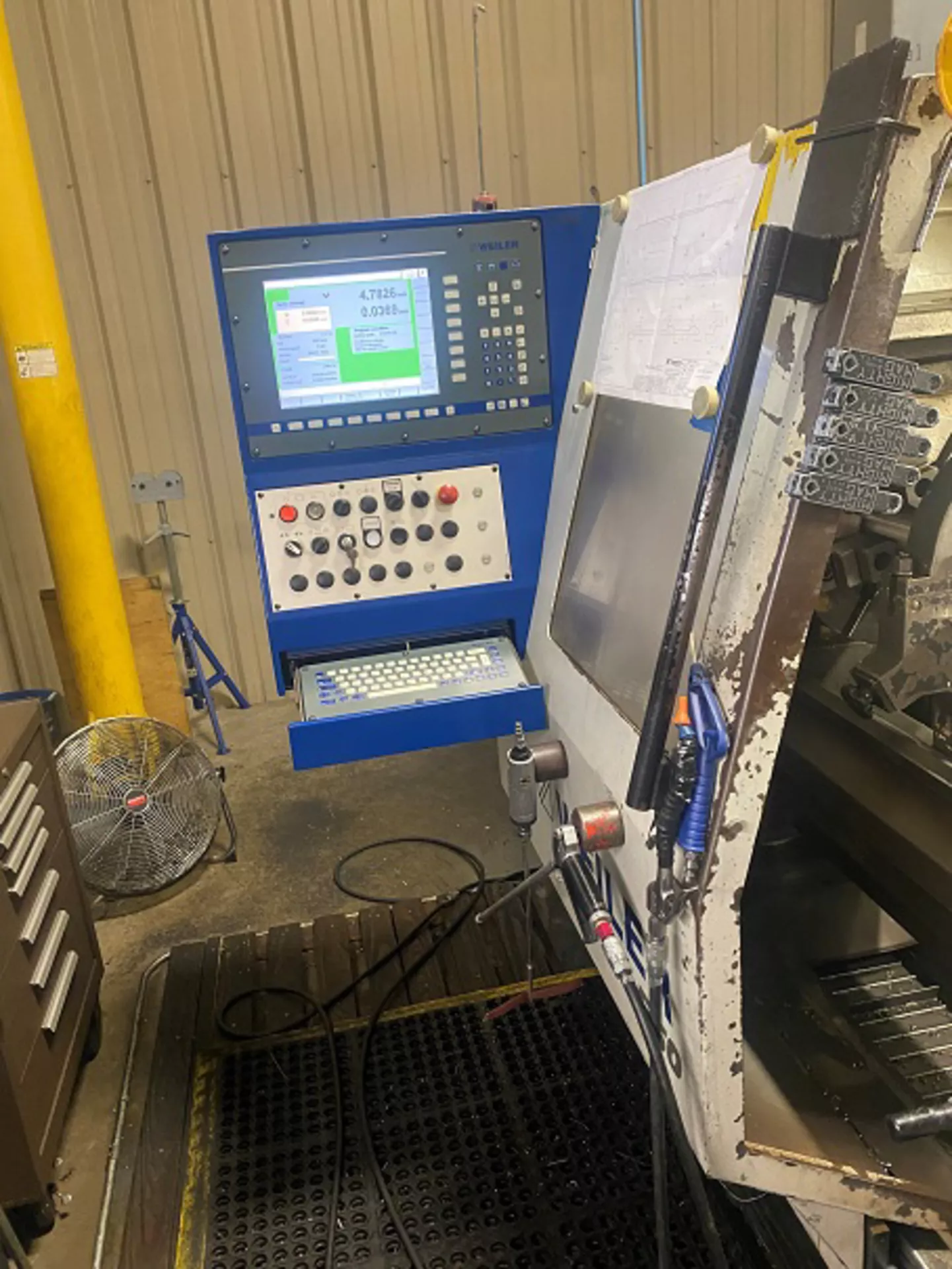

| Control: | WEILER CNC Control |
| Equipped With: |
|---|
| WEILER CNC Control |
| Coolant System |

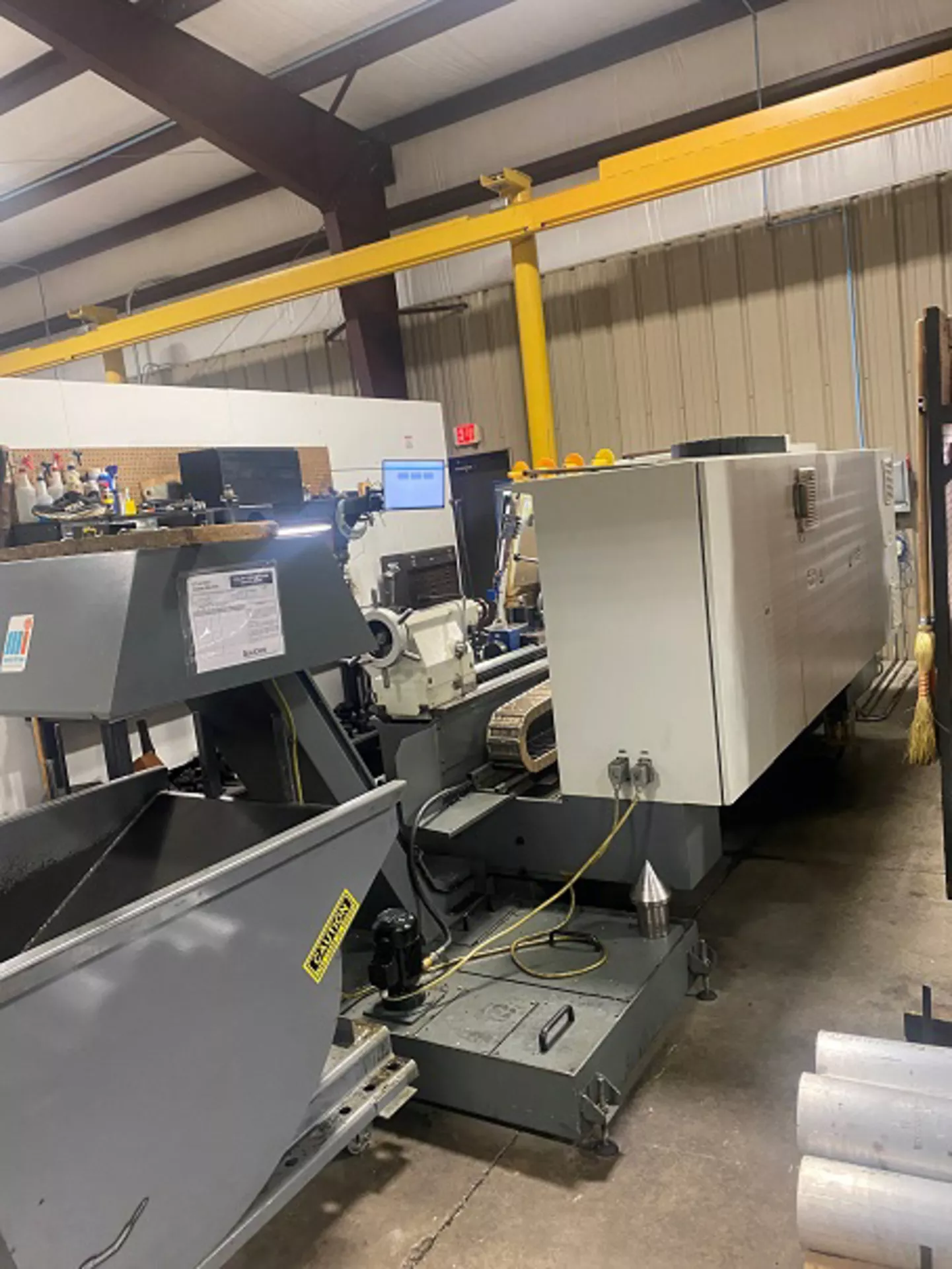

| Chip Conveyor |

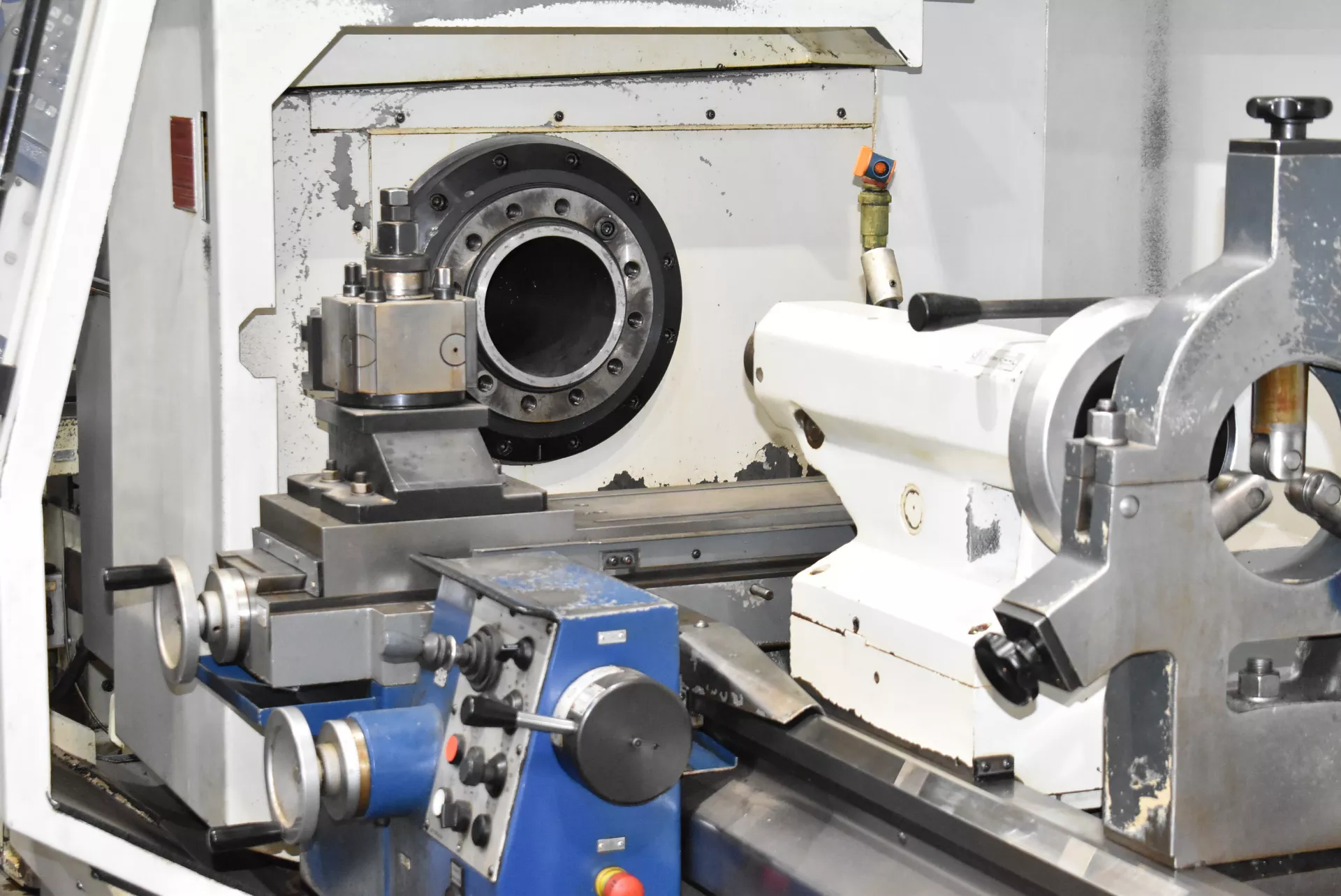

| Manual 4-Way Tool Post |
| 3-Jaw Chuck |

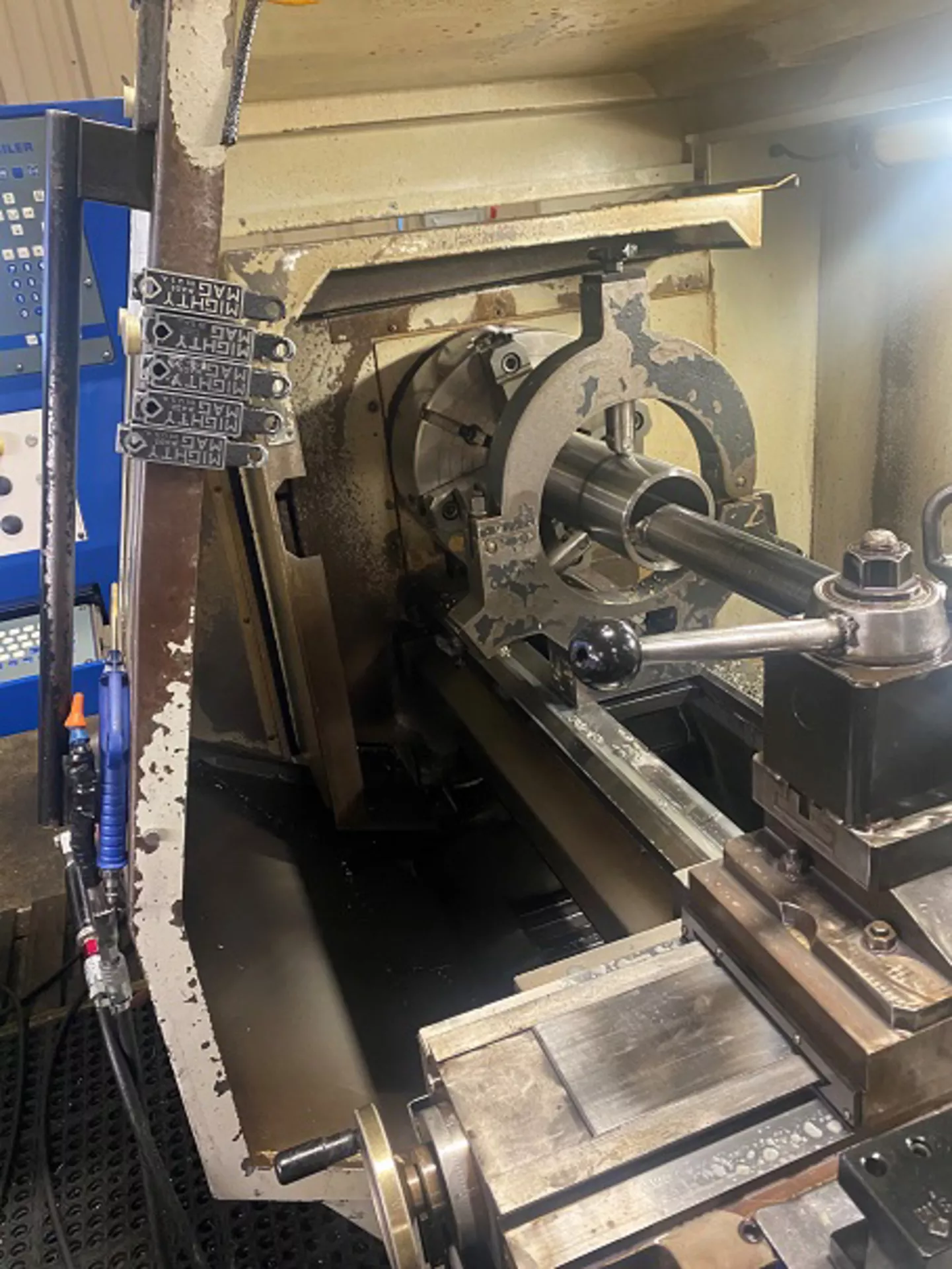

| Steady Rest |
| Tailstock |
| Work Light |
| Full Splash Guard Enclosure |
| Capacity: |
|---|
| Swing Over Bed: 22.44″ |
| Distance Between Centers: 78.74″ |
| Spindle Bore: 6.50″ |
| Maximum Turning Diameter: 22.44″ |
| Maximum Turning Length: 78.74″ |
| Travels: |
|---|
| X-Axis Travel: 12.20″ |
| Z-Axis Travel: 78.74″ |
| Feedrate: |
|---|
| Rapid Traverse (X): 394 IPM |
| Rapid Traverse (Z): 590 IPM |
| Programmable Feedrate |
| Spindle: |
|---|
| Spindle Bore: 6.50″ |
| Spindle Nose: A2-11 Approx. |
| Spindle Speed Range: 5 – 2,500 RPM Approx. |
| Main Motor: 25 HP Approx. |
| Tailstock: |
|---|
| Tailstock Type: Manual |
| Quill Diameter: 3.94″ Approx. |
| Quill Travel: 7.87″ Approx. |
| Tailstock Taper: MT-6 Approx. |
| General: |
|---|

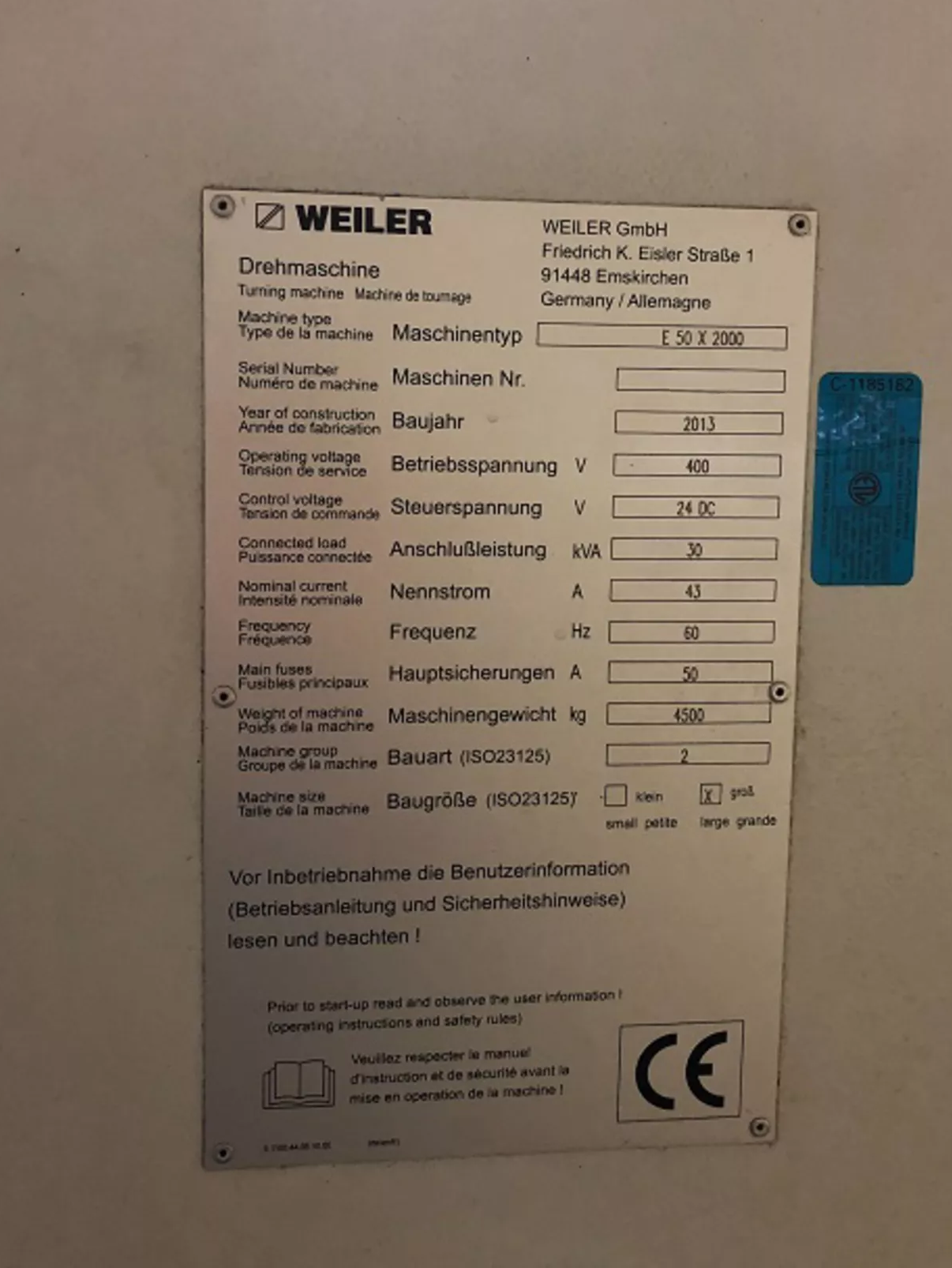

| Power: 400V / 60Hz / 3-Phase / 30 KVA |
| Machine Weight: 9,920 lbs |
| Overall Dimensions: Approx. 190″ L x 72″ W x 78″ H |
