*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

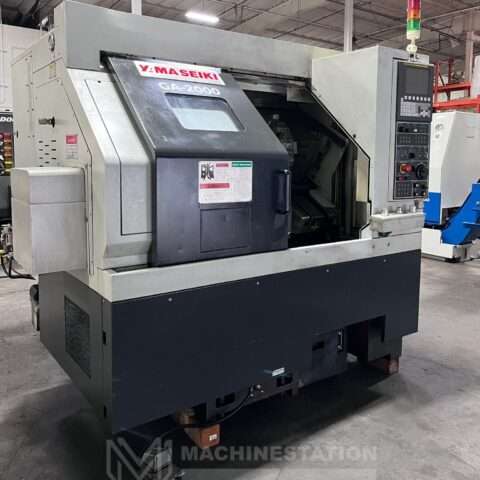

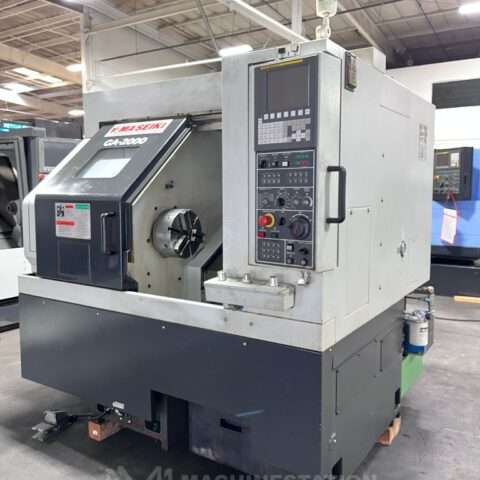

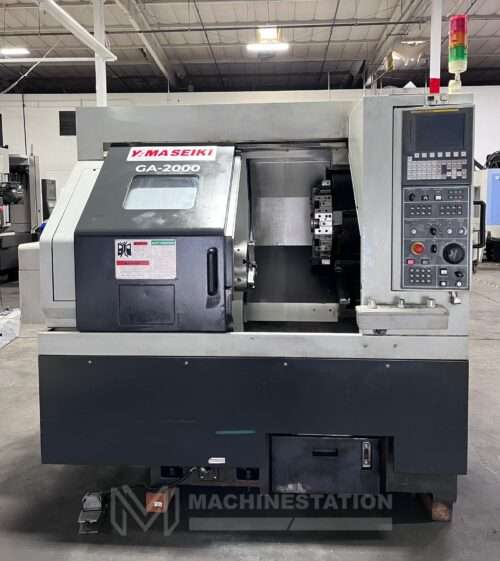

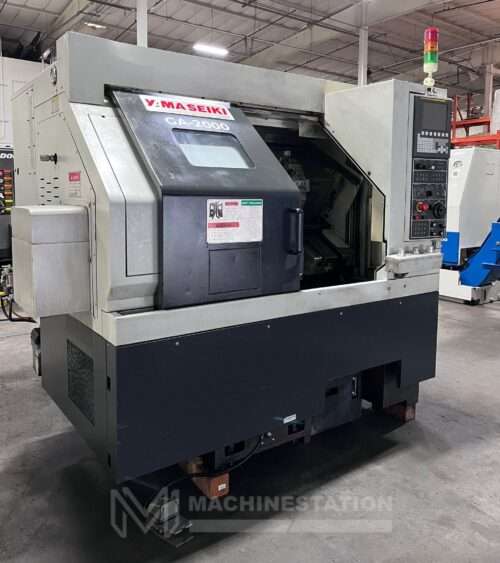

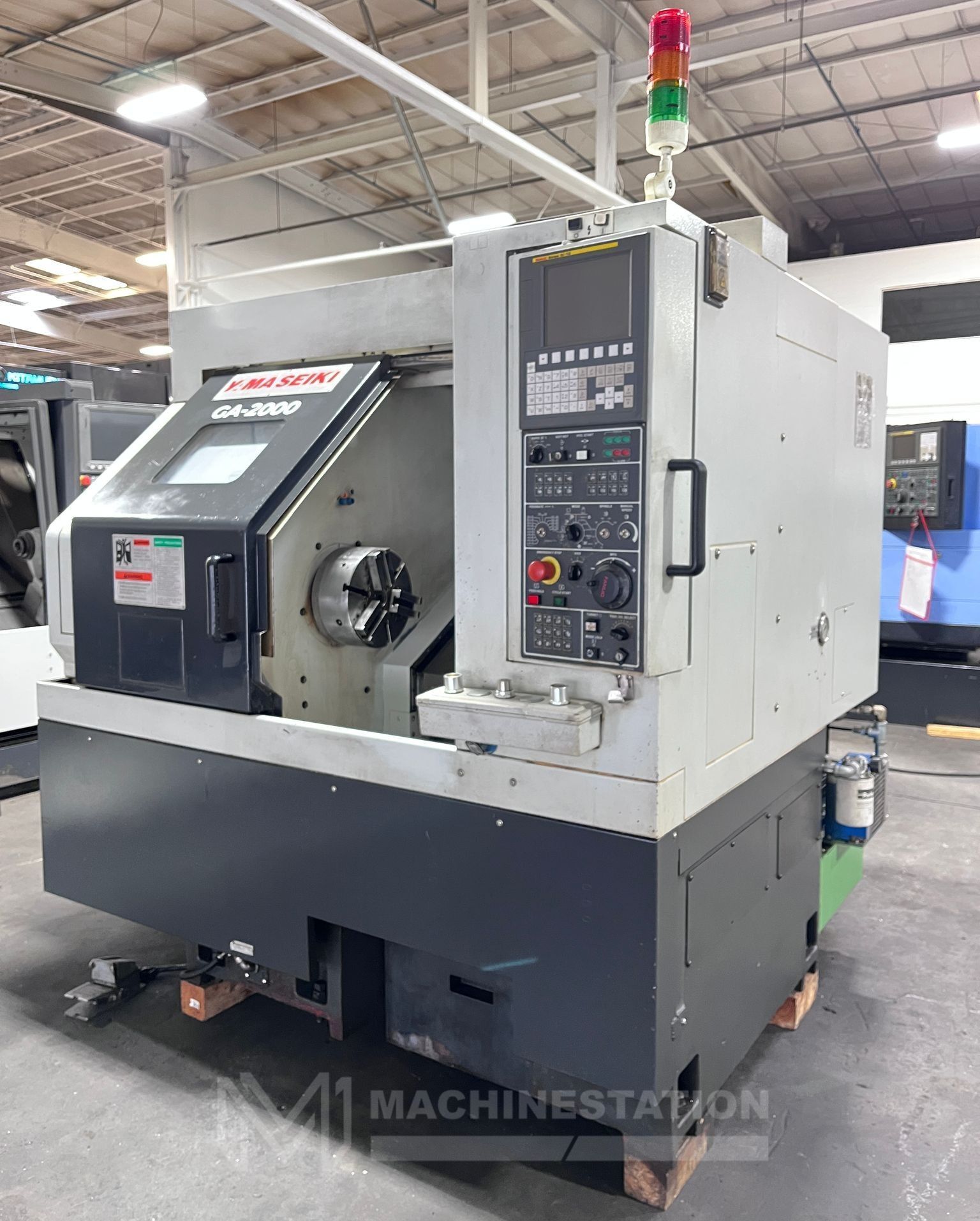

| Make: | Yama Seiki |
| Model: | GA-2000/300 |
| Year: | 2014 (Installed in 2015) |
| Condition: | Used – Good |
| Equipped With: |
|---|

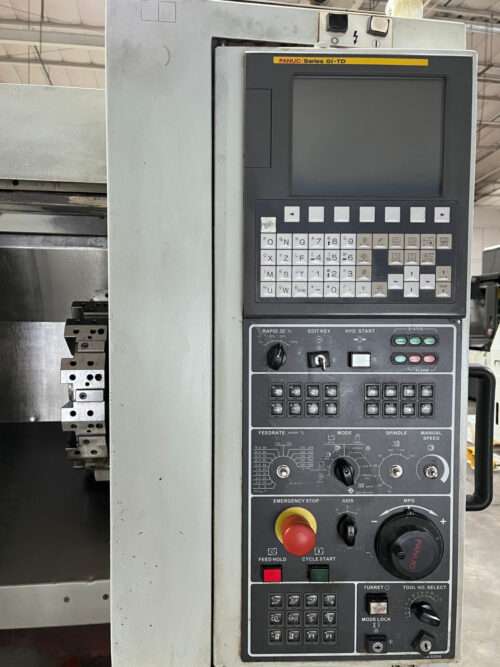

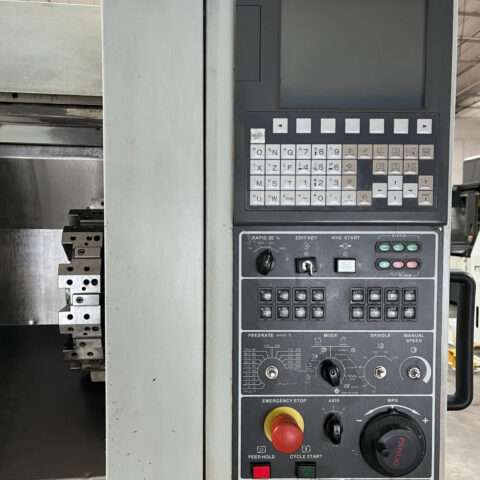

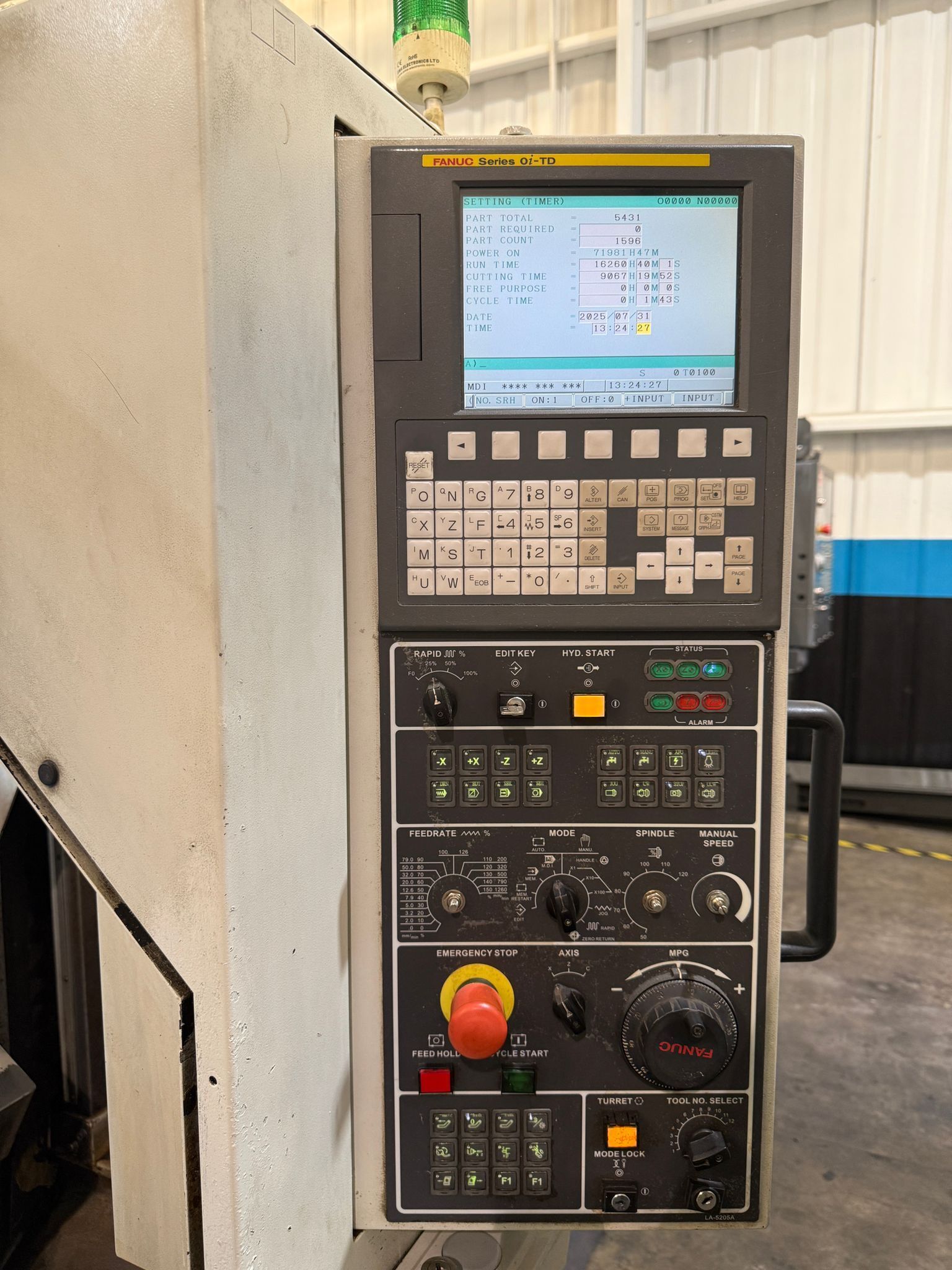

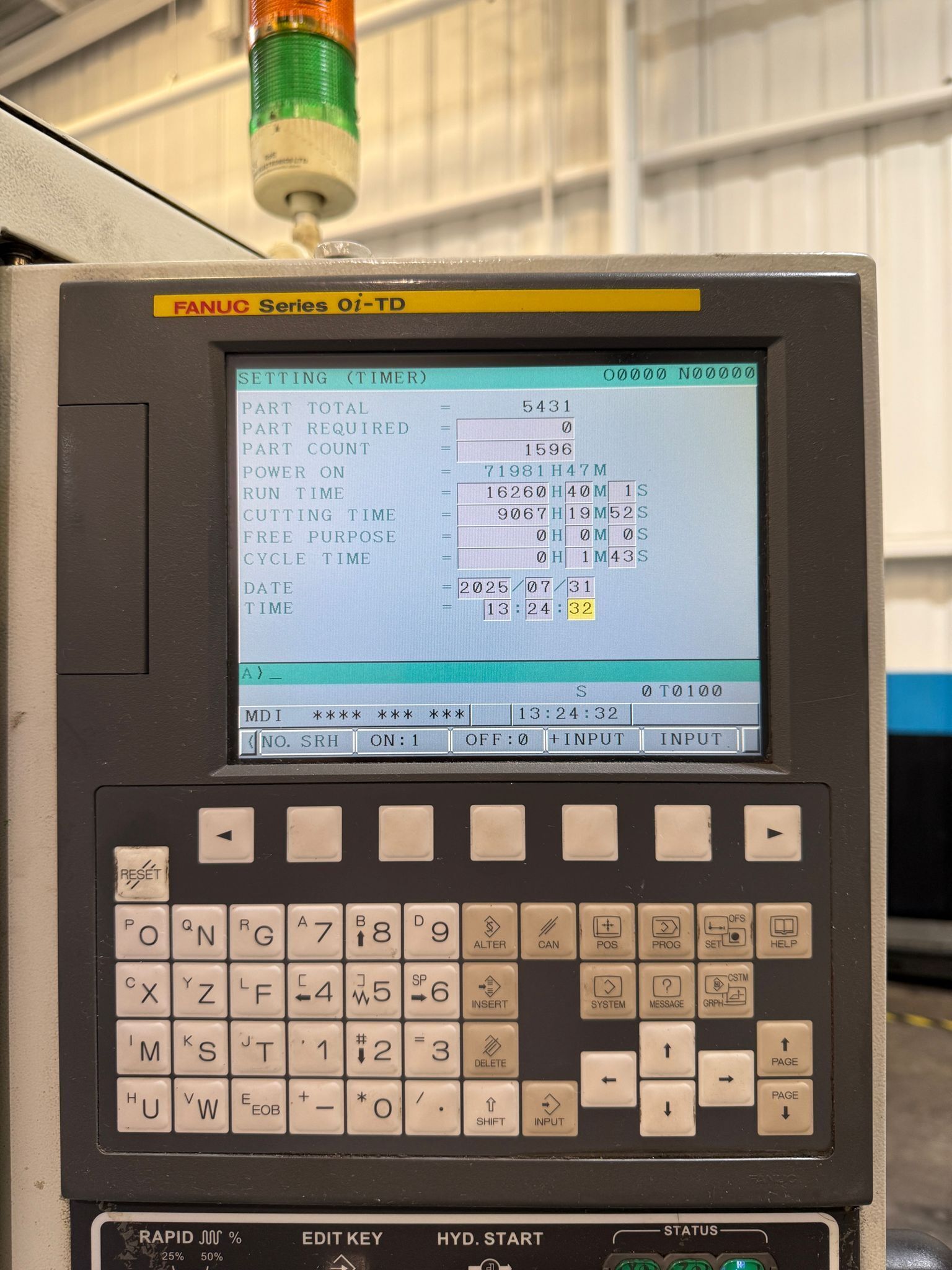

| Fanuc Oi-TD CNC Control |

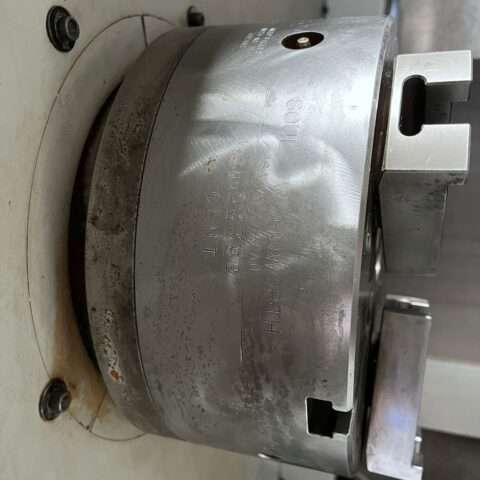

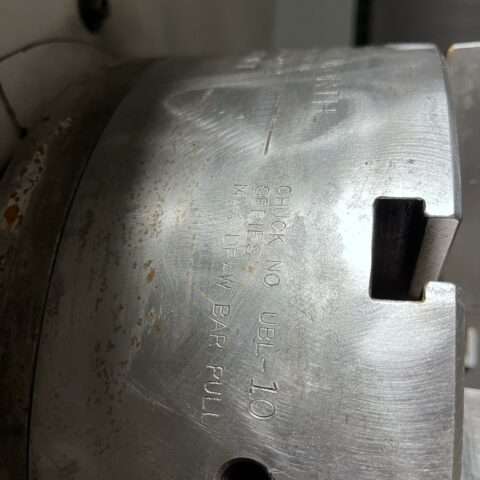

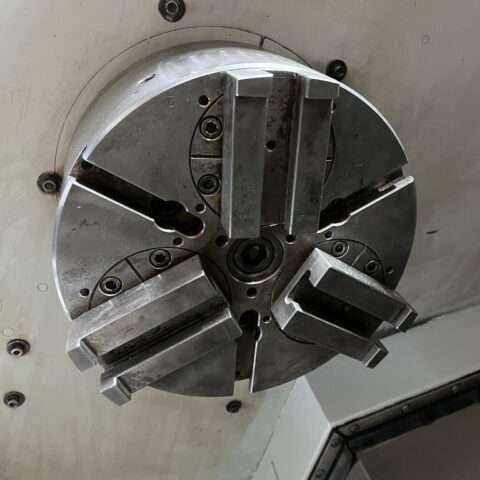

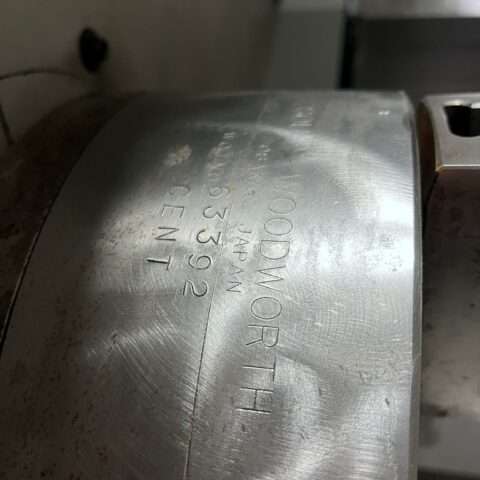

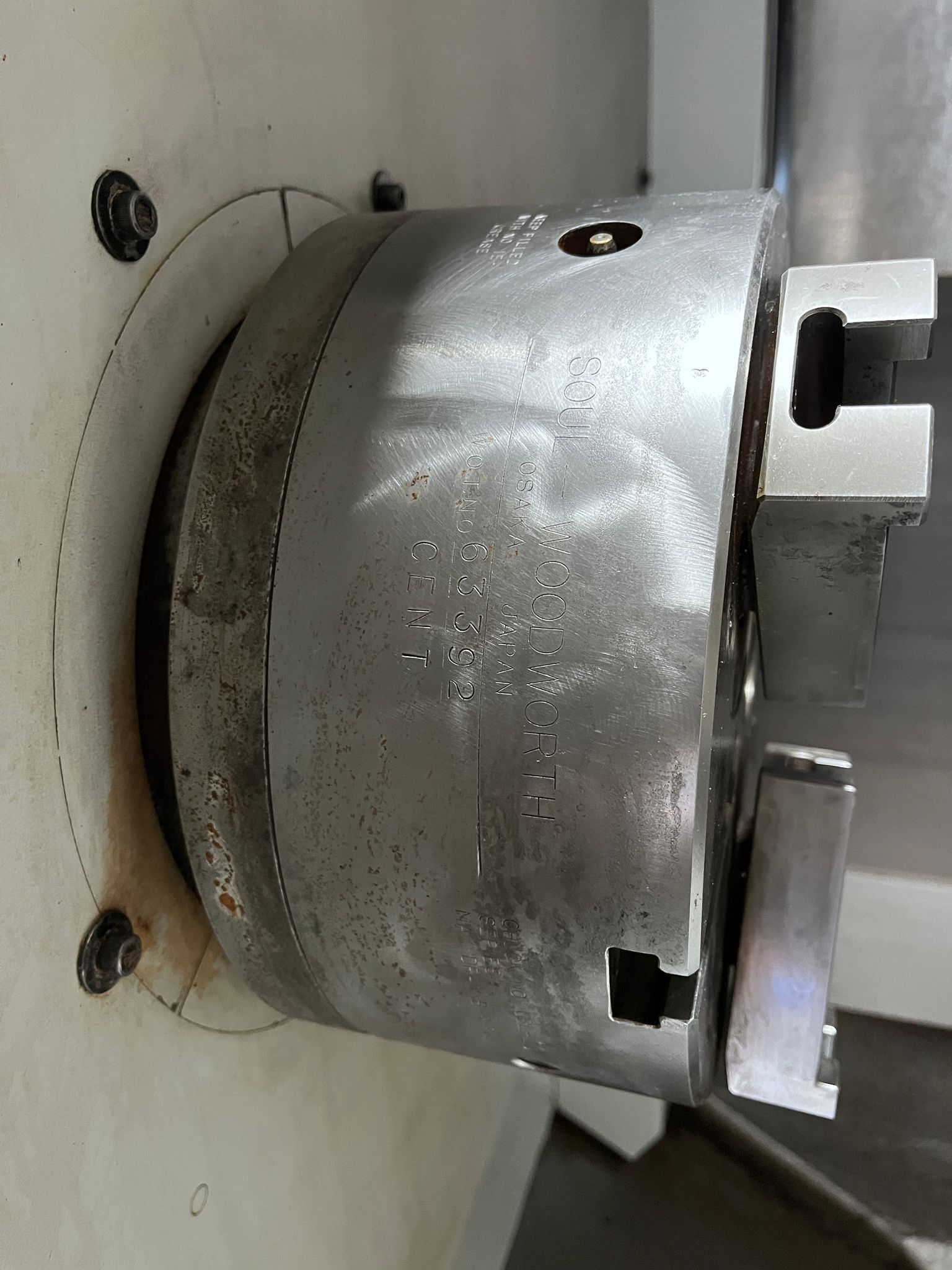

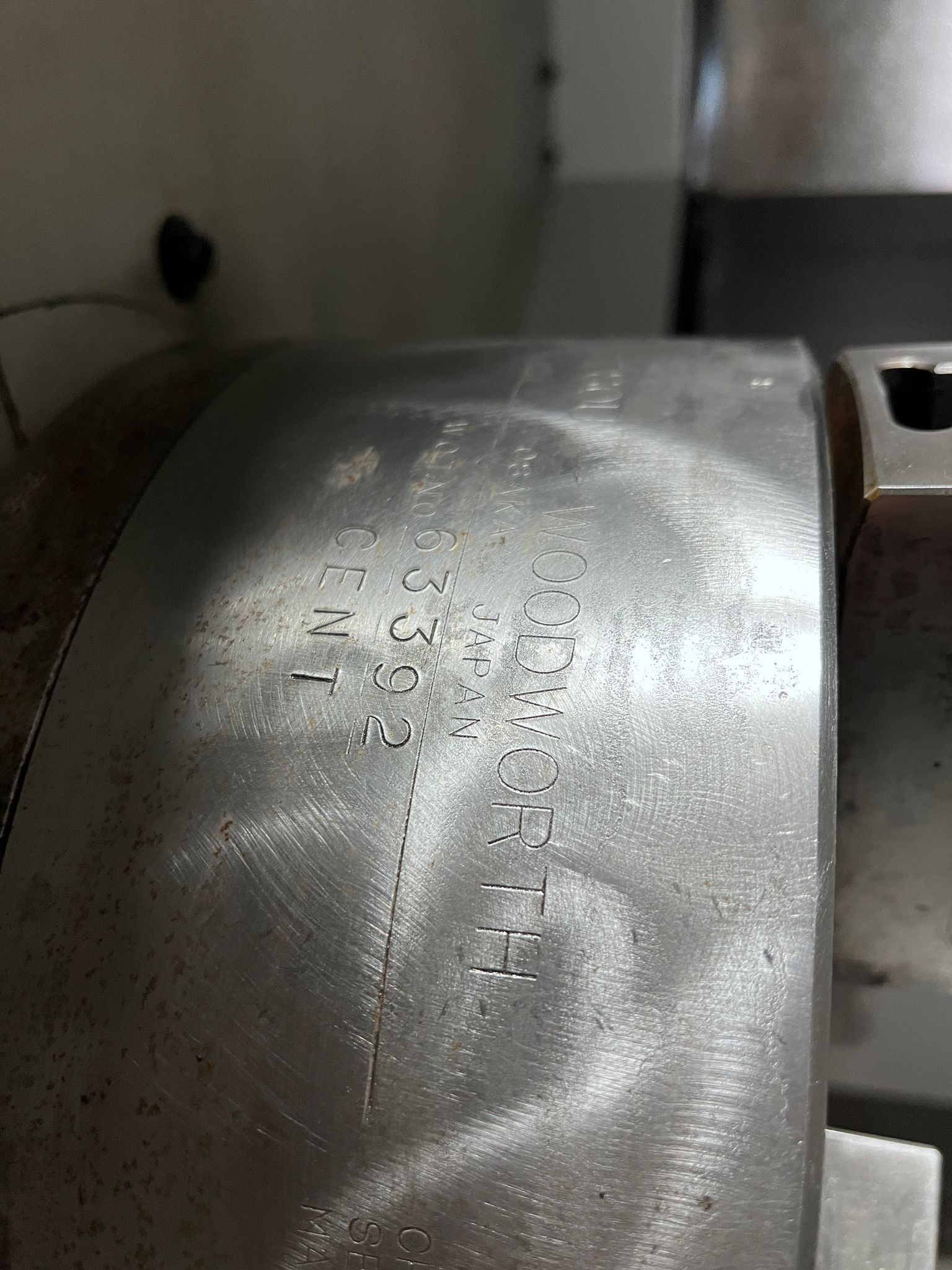

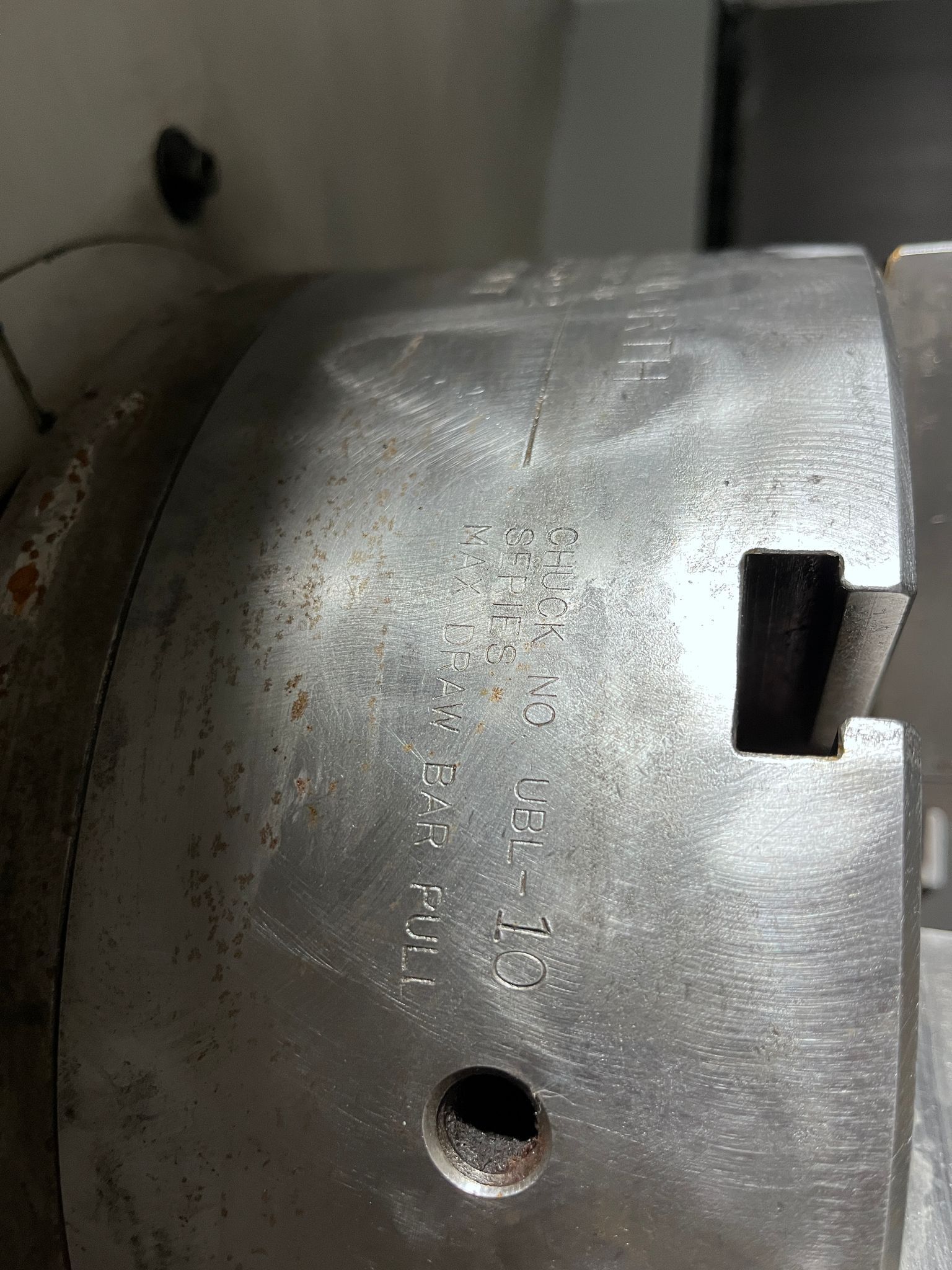

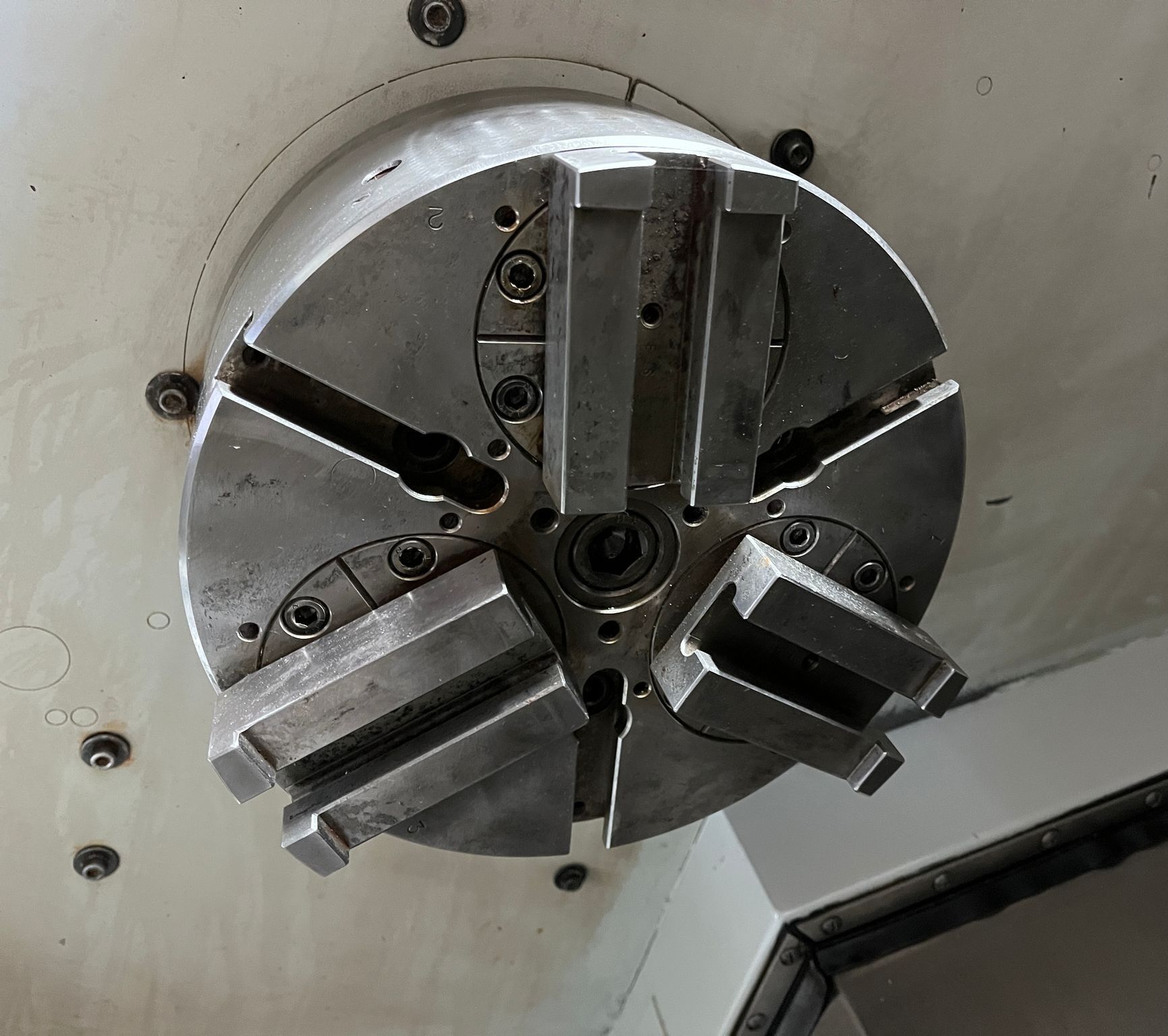

| 10″ 3- Jaw Woodworth UBL-10 Power Chuck |
| A2-6, 4800 RPM Spindle |

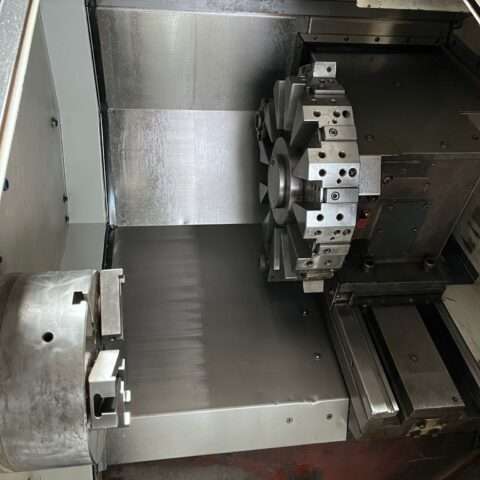

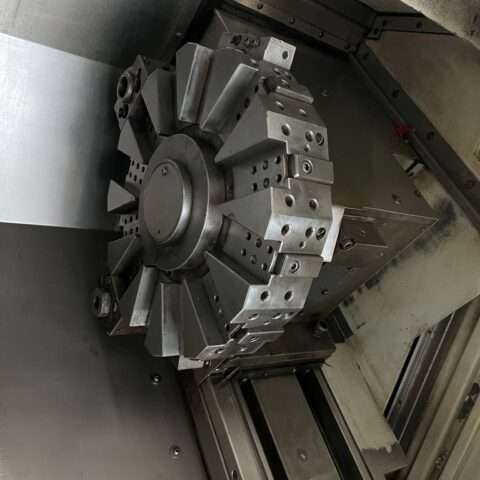

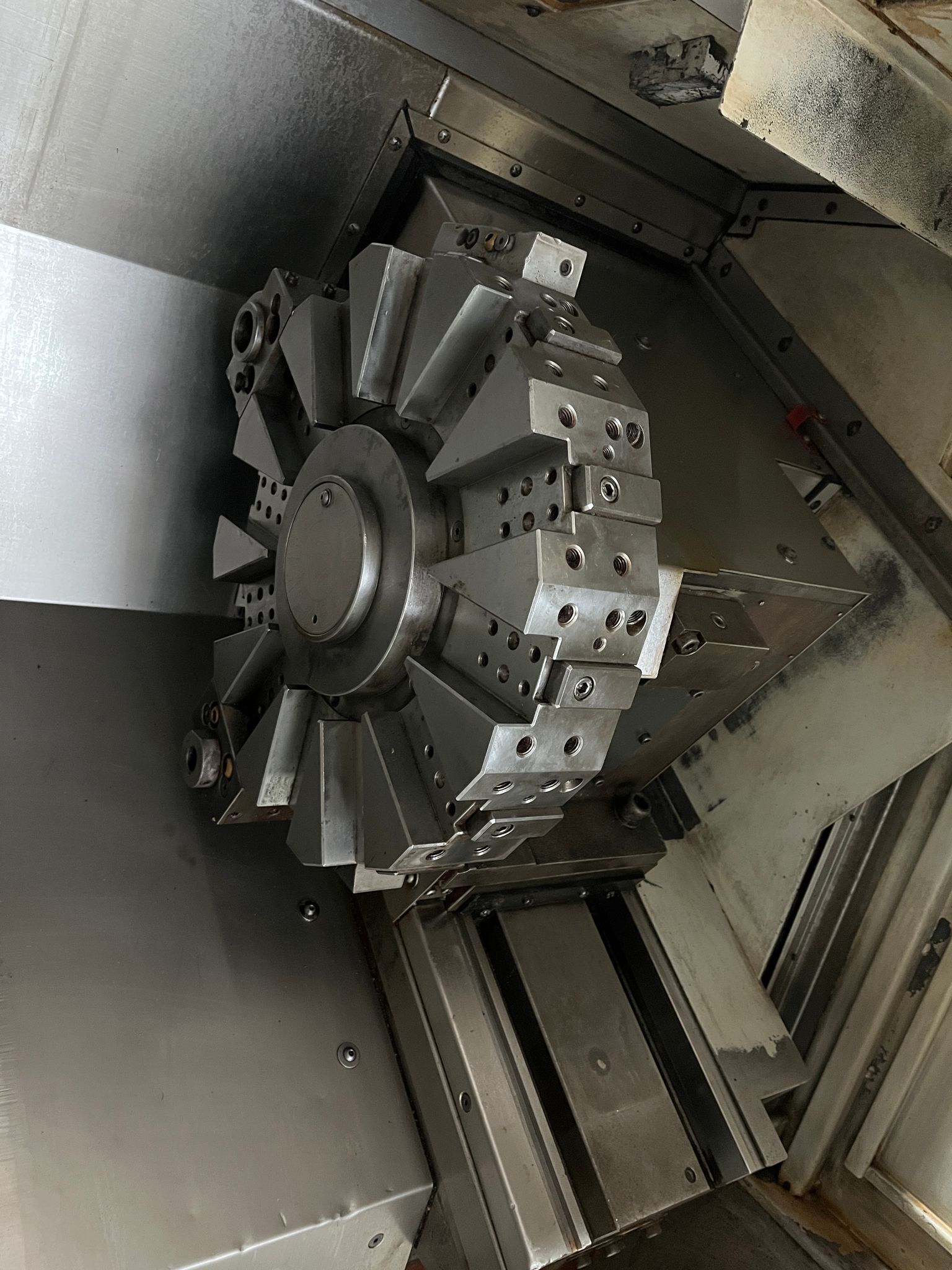

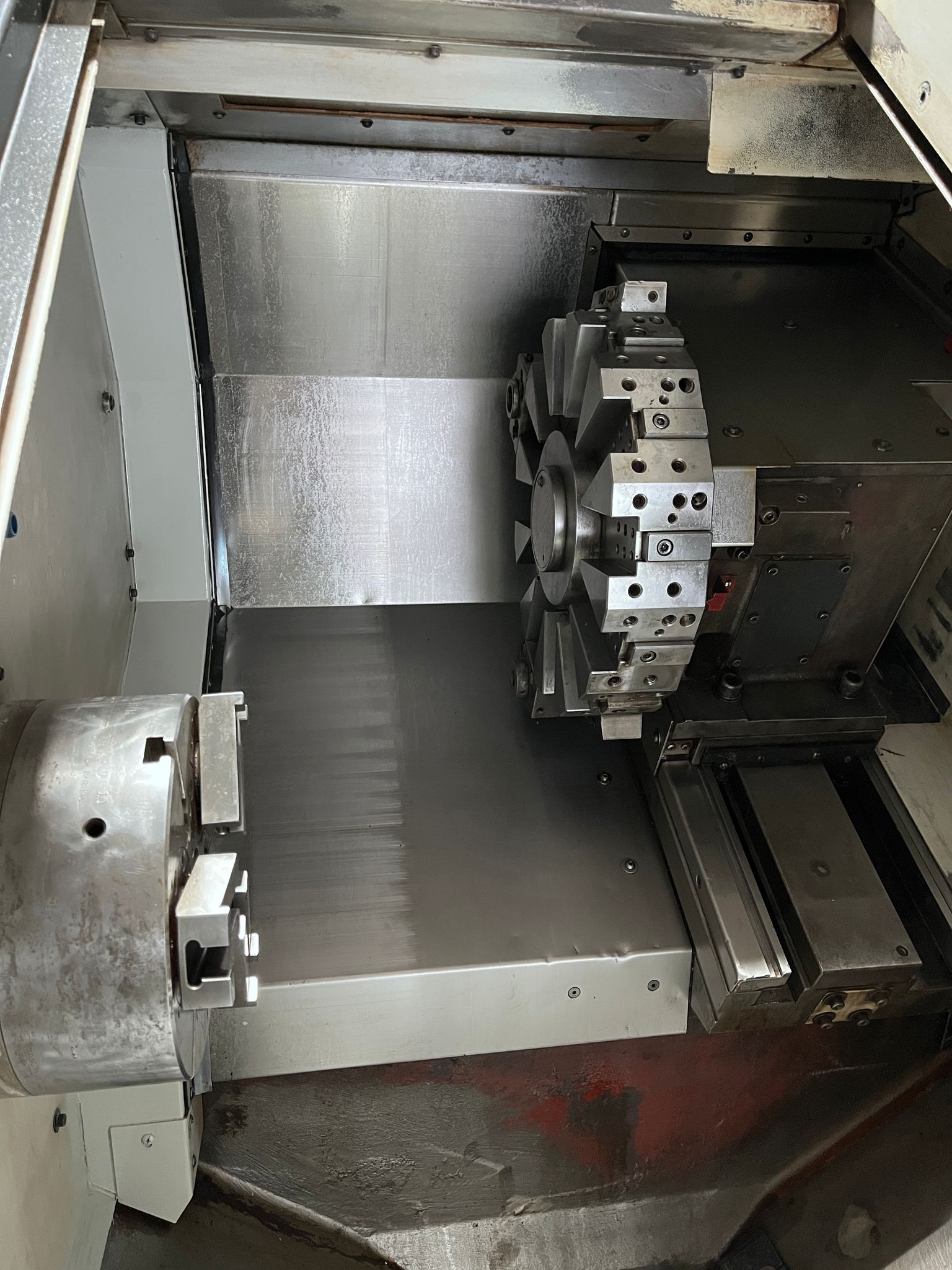

| 12 Station Automatic Turret |
| Rigid Tapping |
| PCMCIA Card Interface |
| Foot Switch |

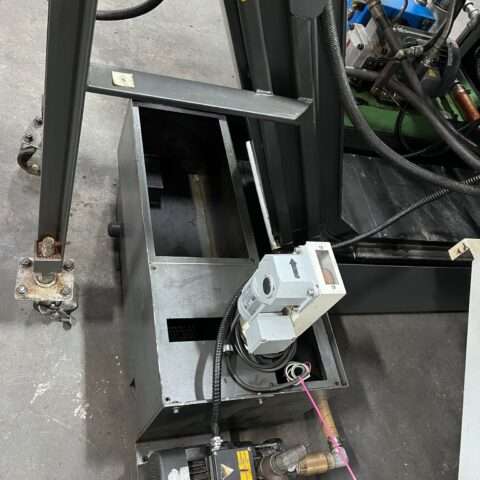

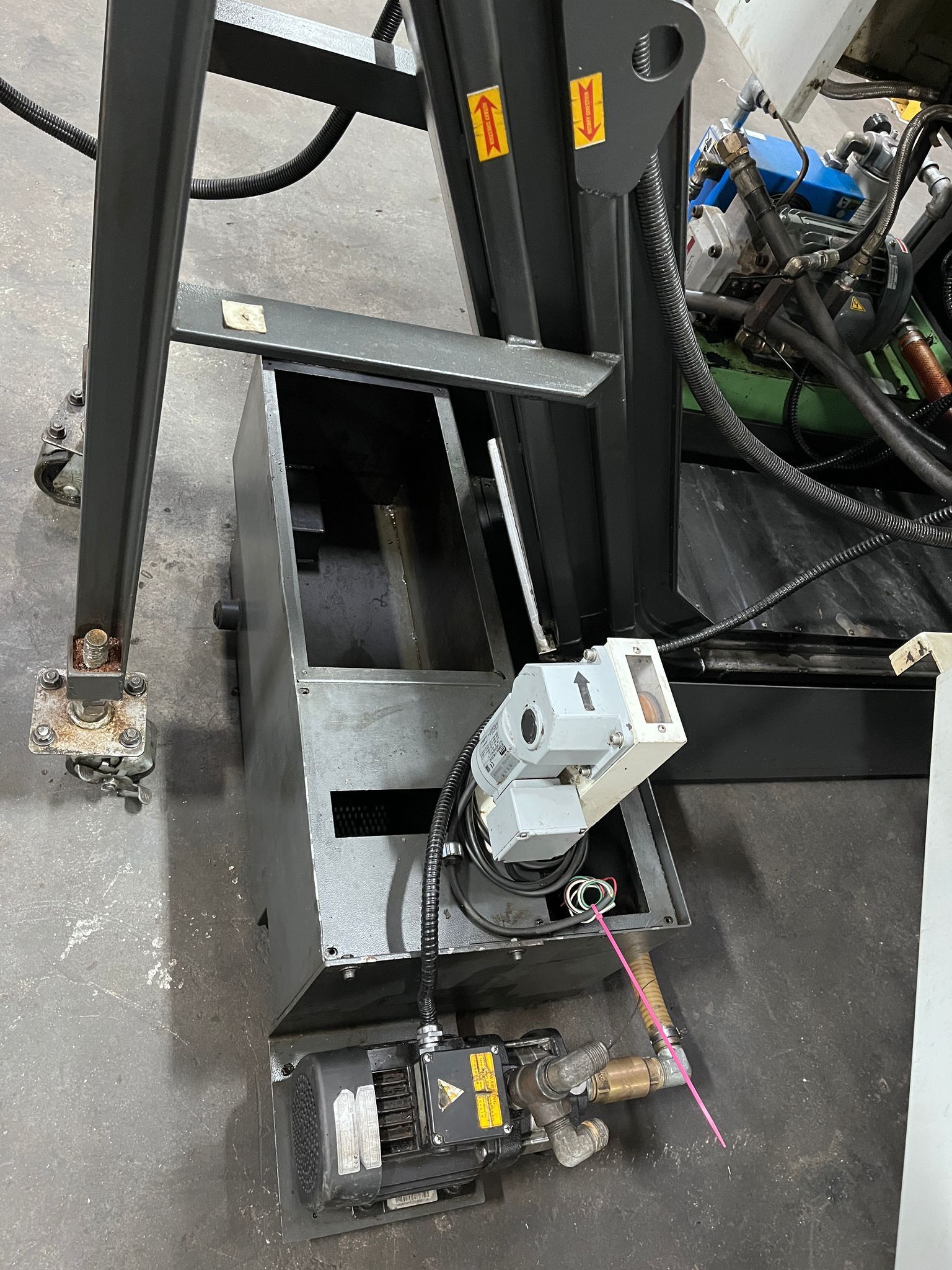

| Coolant System |

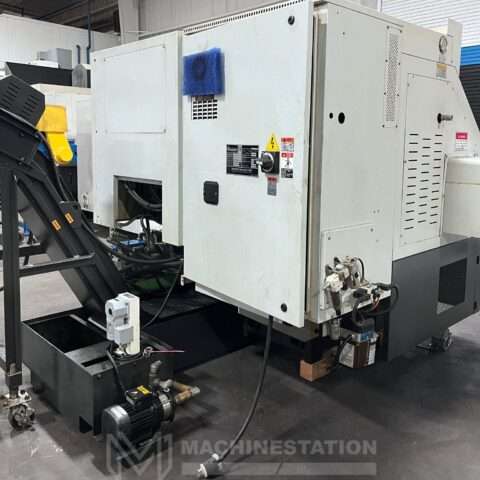

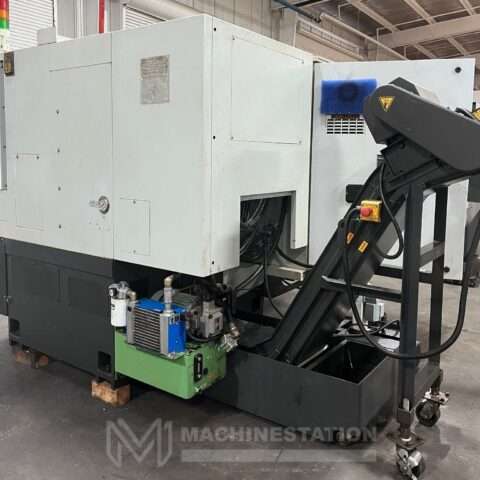

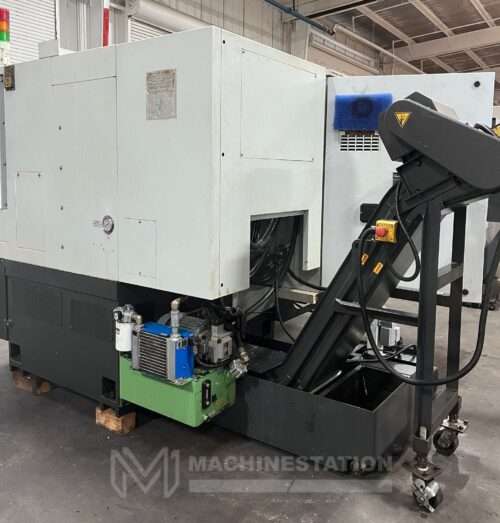

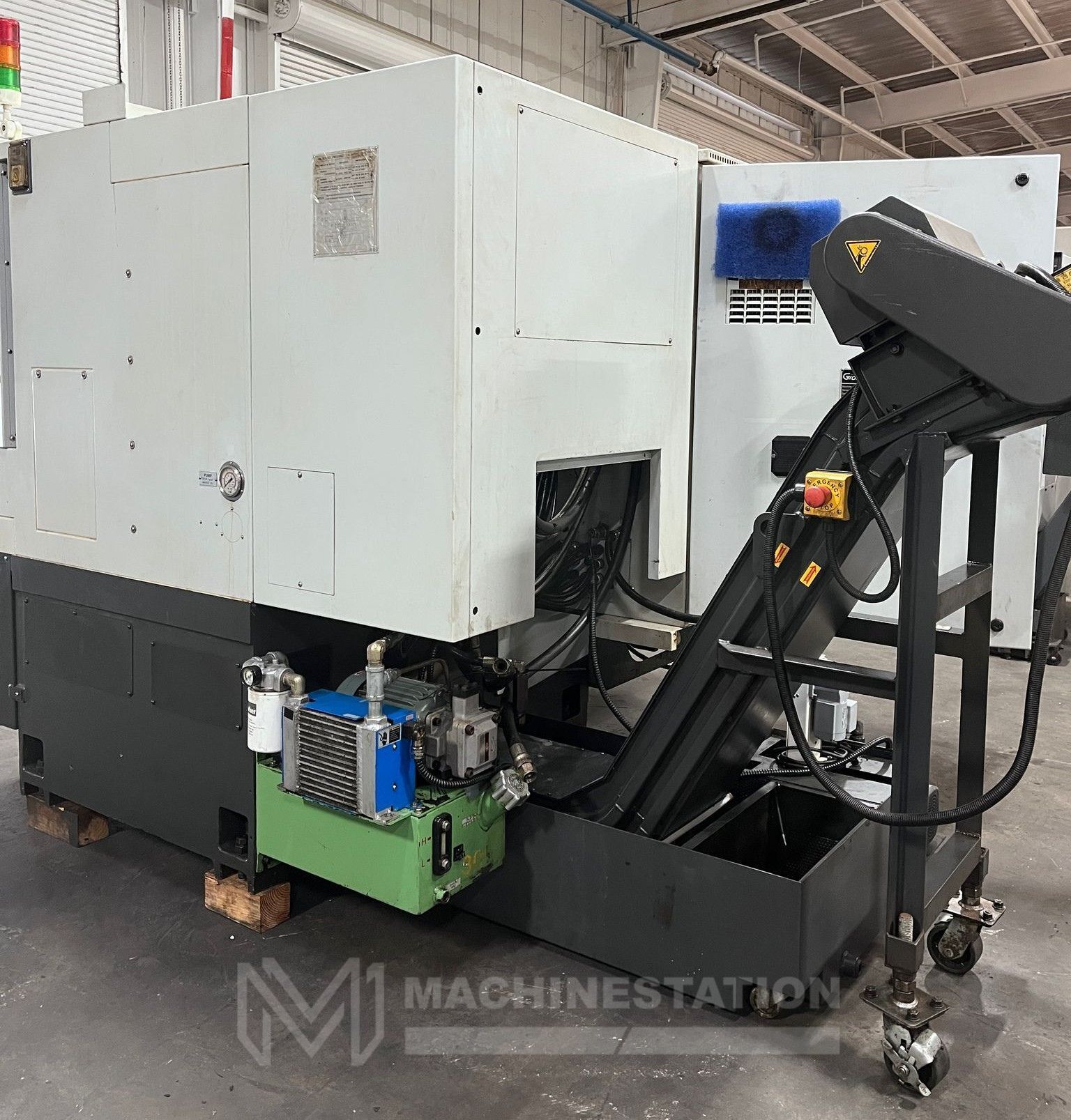

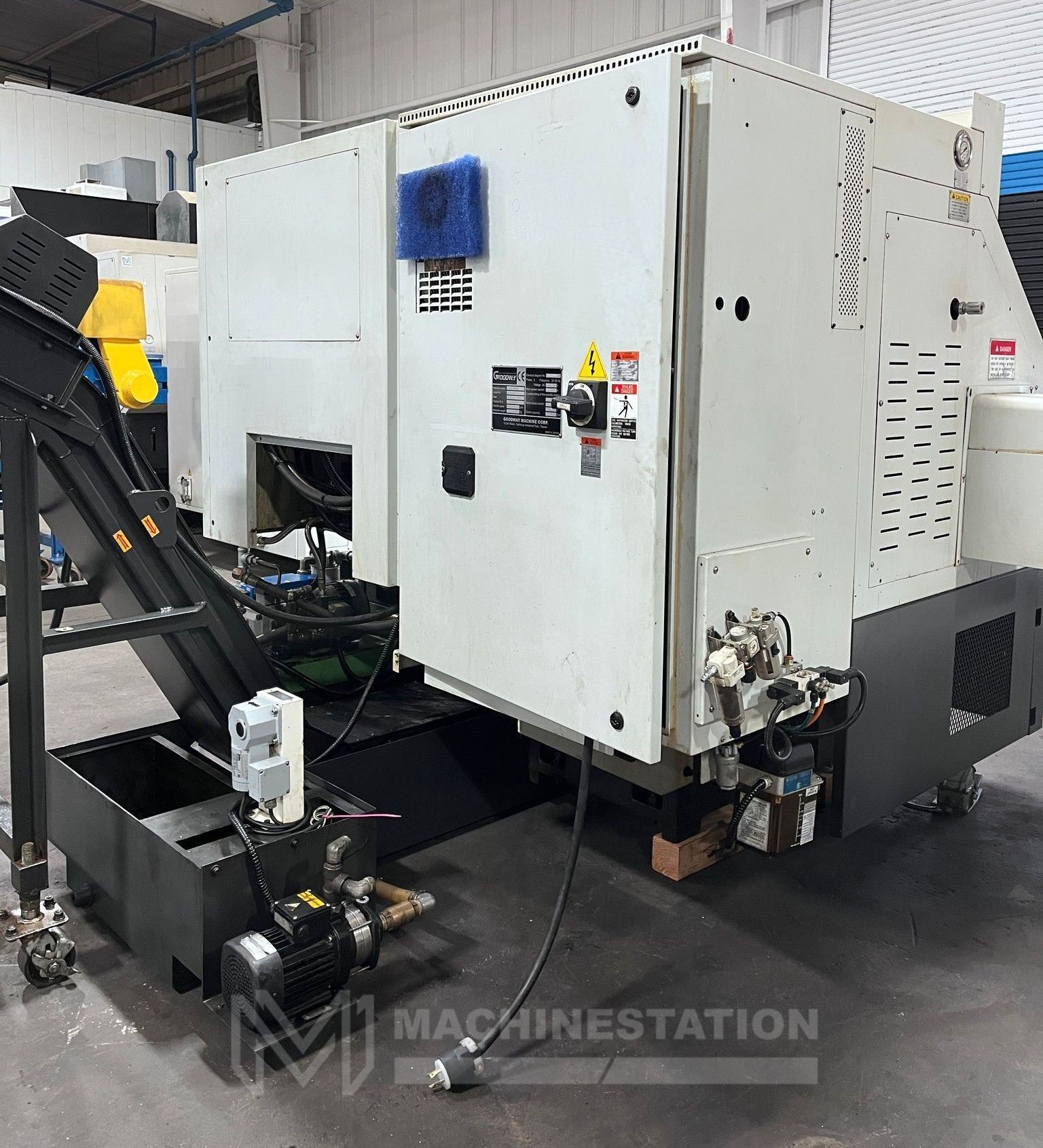

| Chip Conveyor |
| (2) Boring Tool Holders (Equipped on Turret as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 13.78″ |
| Max Turning Length: 12.00″ |
| Max Swing Over Bed: 22.83″ |
| Max Swing Over Saddle: 15.75″ |
| Max Bar Capacity: 2.0″ |
| Travels: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 13.78″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.4″ |
| Spindle Speed: 4800 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tool Size: 1″ |
| Tool Holders Type: BMT |
| General: |
|---|

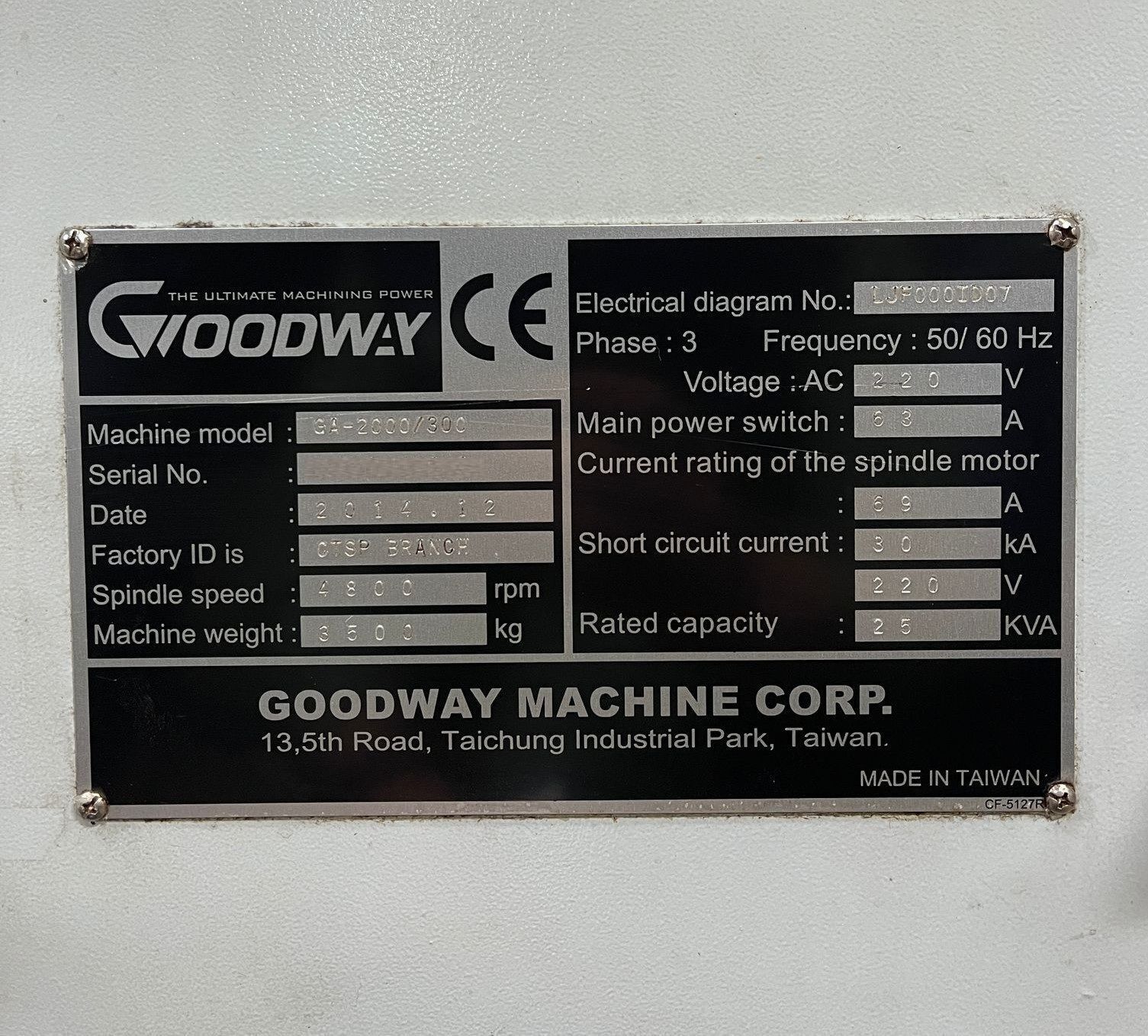

| Power: 50/60 HZ / 220v / 3-Phase / 25 kva |
| Overall Dimensions: 79″ x 64″ x 68″ High Approx. |
| Weight: 7,716 lbs |
