*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

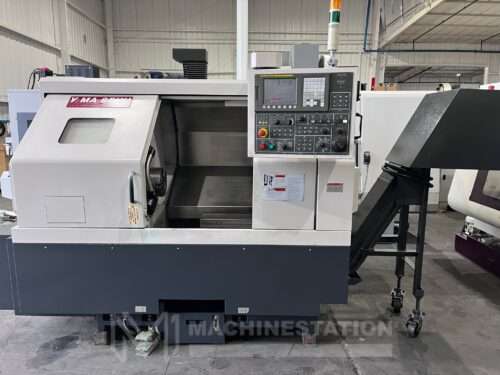

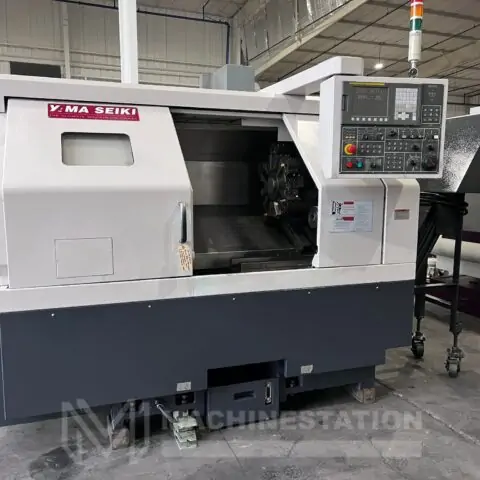

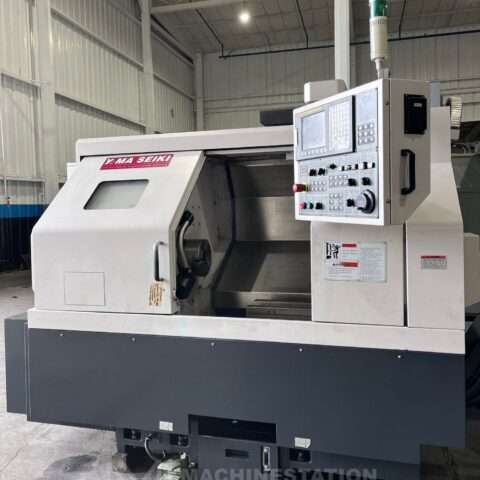

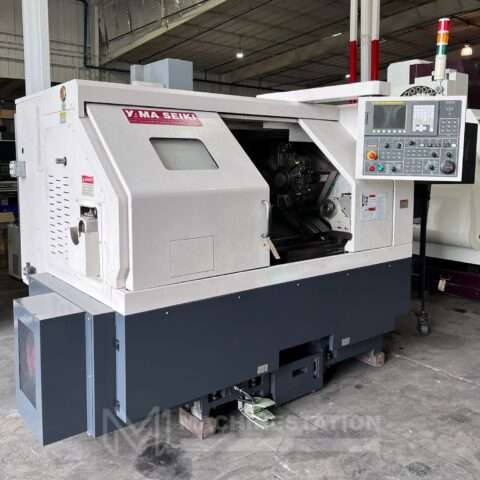

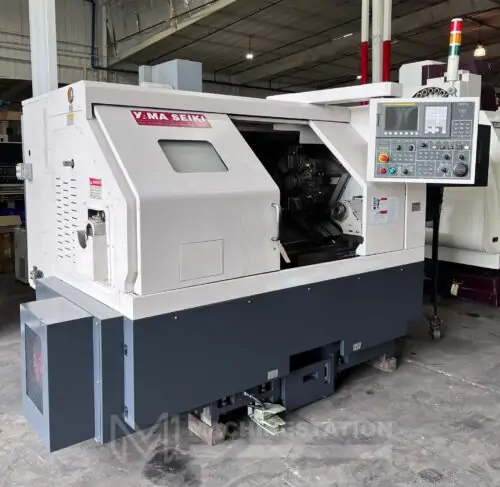

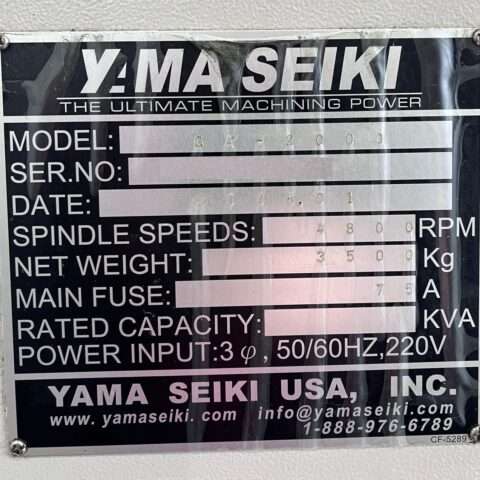

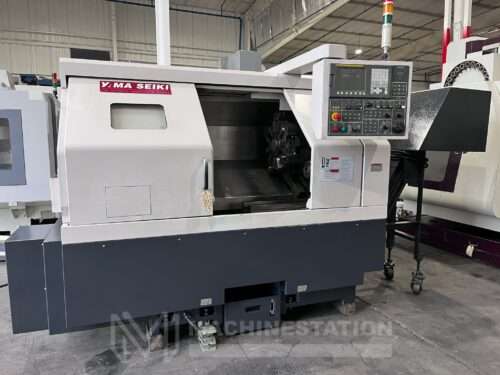

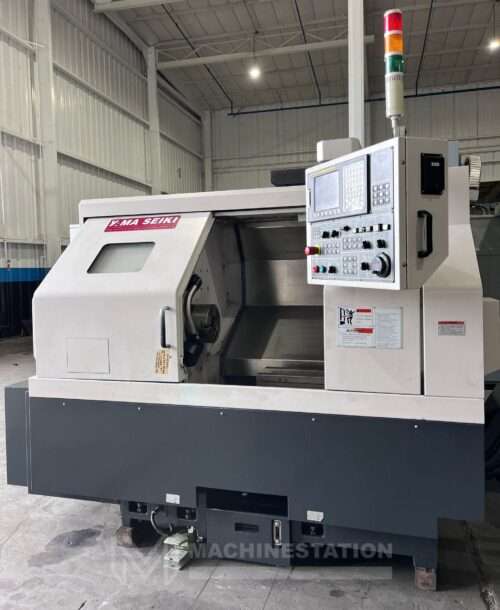

| Make: | Yama Seiki |
| Model: | GA2000 |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

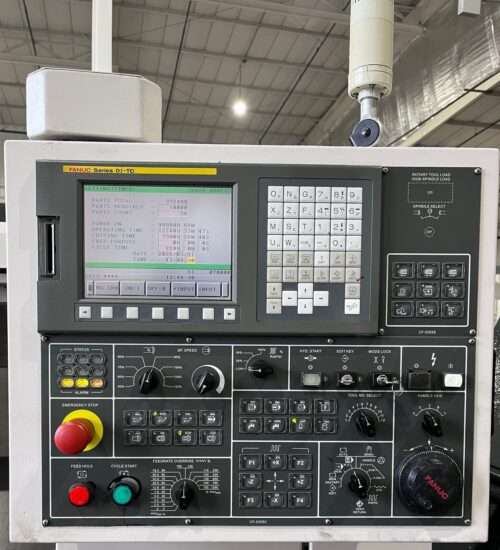

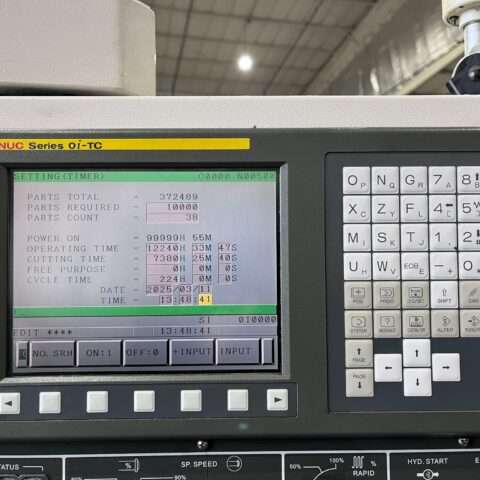

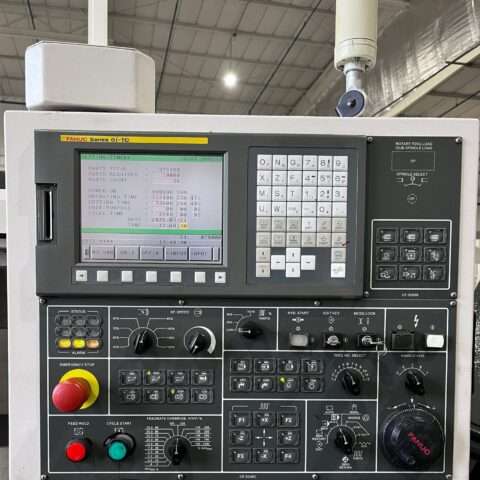

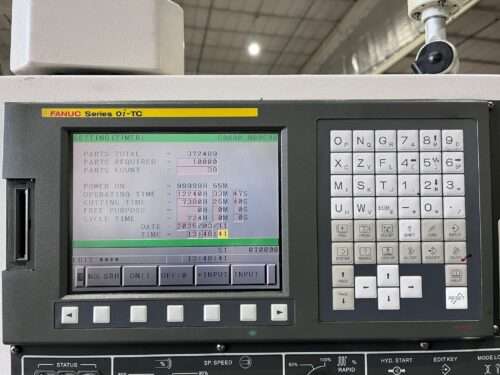

| Fanuc Oi-TC CNC Control |

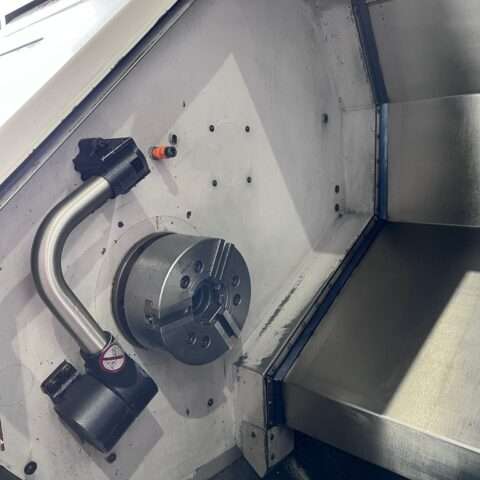

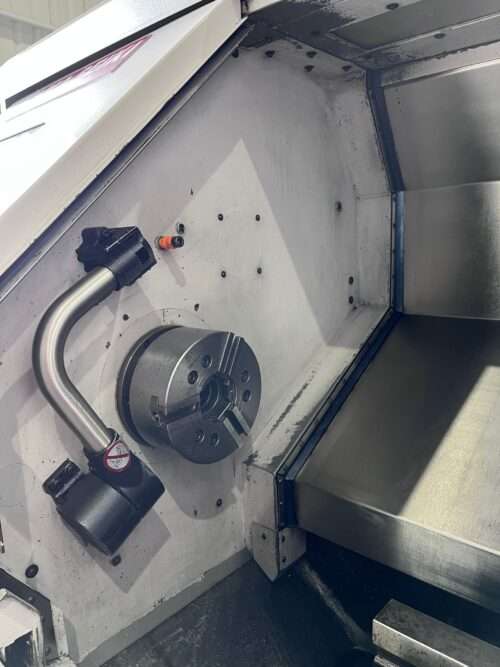

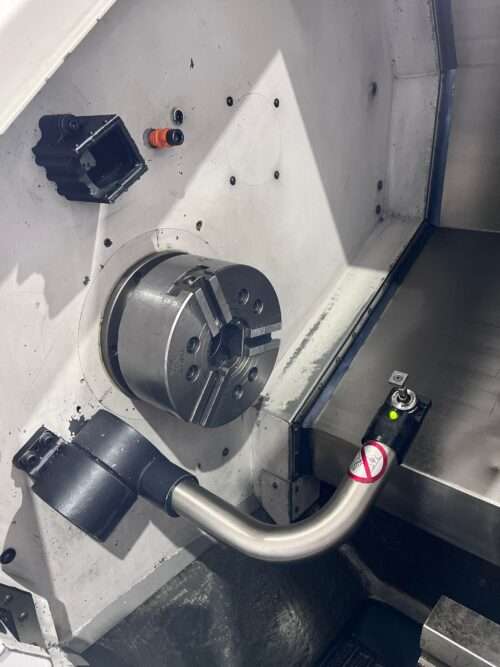

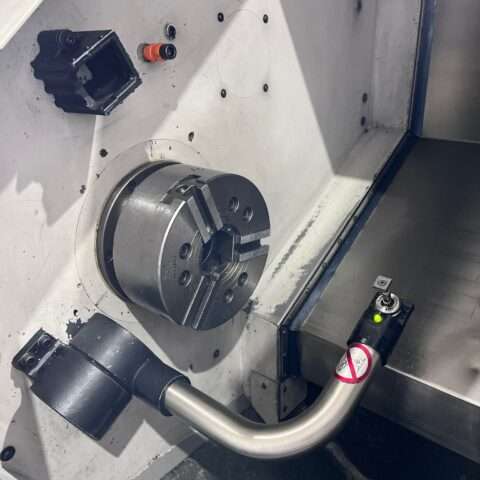

| 8″ 3- Jaw Kitagawa Chuck |
| A2-6, 4800 RPM Spindle |

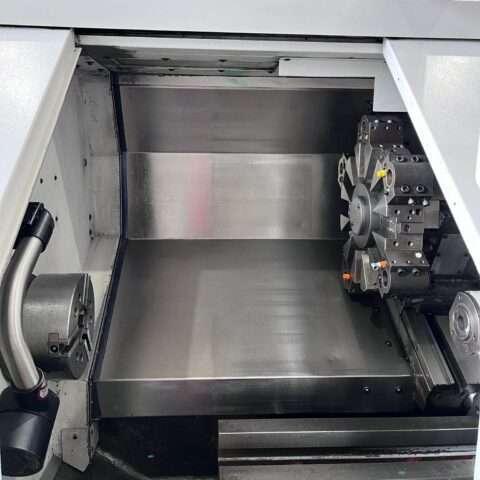

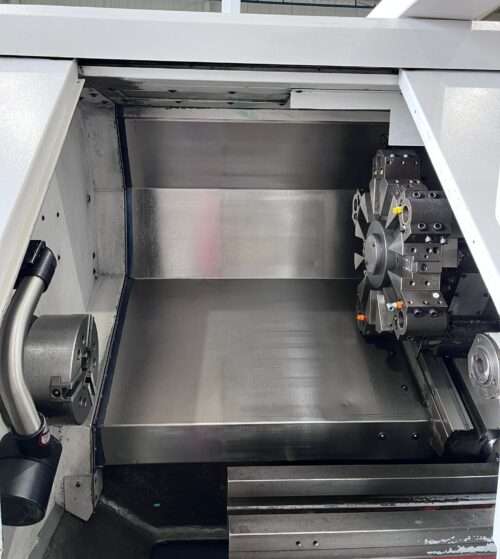

| 12 Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| Rigid Tapping |
| PCMCIA Card Interface |
| Foot Switch |

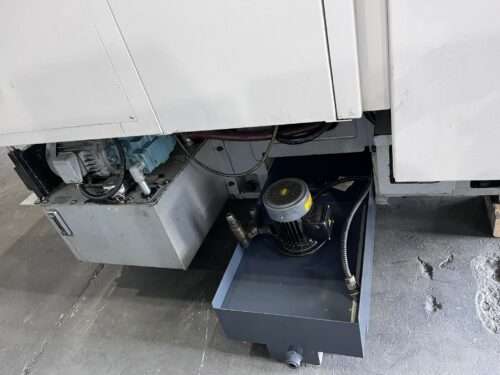

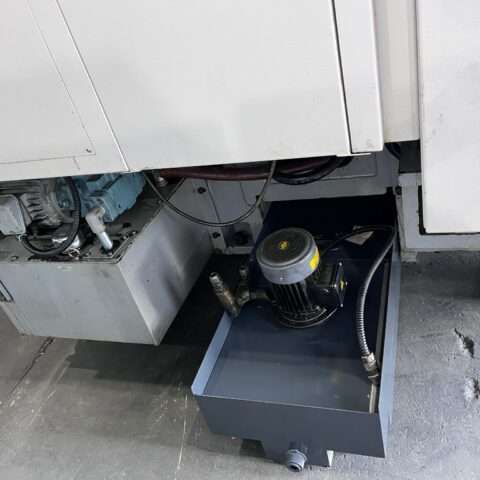

| Coolant System |
| Chip conveyor |

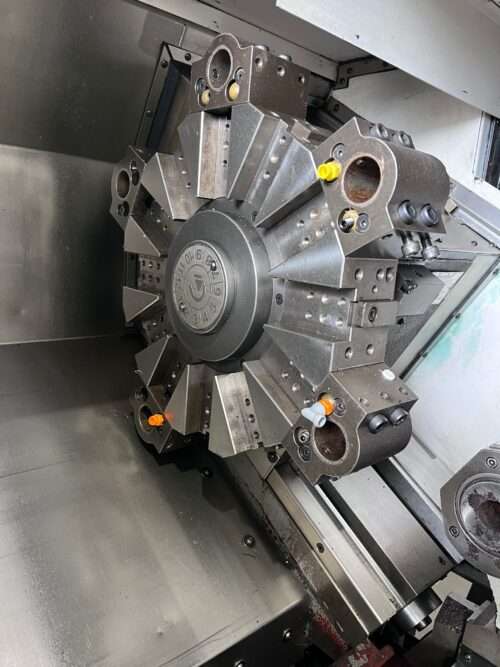

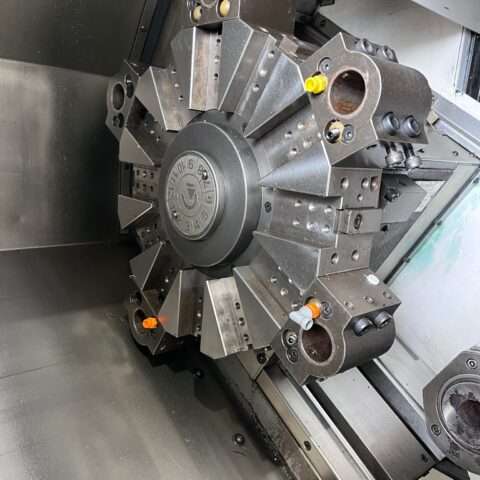

| (5) Boring Tool Holders (Equipped on Turret as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 13.78″ |
| Max Turning Length: 23.60″ |
| Max Swing Over Bed: 22.83″ |
| Max Swing Over Saddle: 15.75″ |
| Max Bar Capacity: 2.0″ |
| Travels: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 24.40″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.4″ |
| Spindle Speed: 4800 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tool Size: 1″ |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Diameter: 2.76″ |
| Tailstock Quill Stroke: 5.91″ |
| General: |
|---|
| Power: 50/60 HZ / 220v / 3-Phase |
| Overall Dimensions: 133″ x 64″ x 74″ High Approx. |
| Weight: 7,716 lbs |
