*All the below specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112636 |

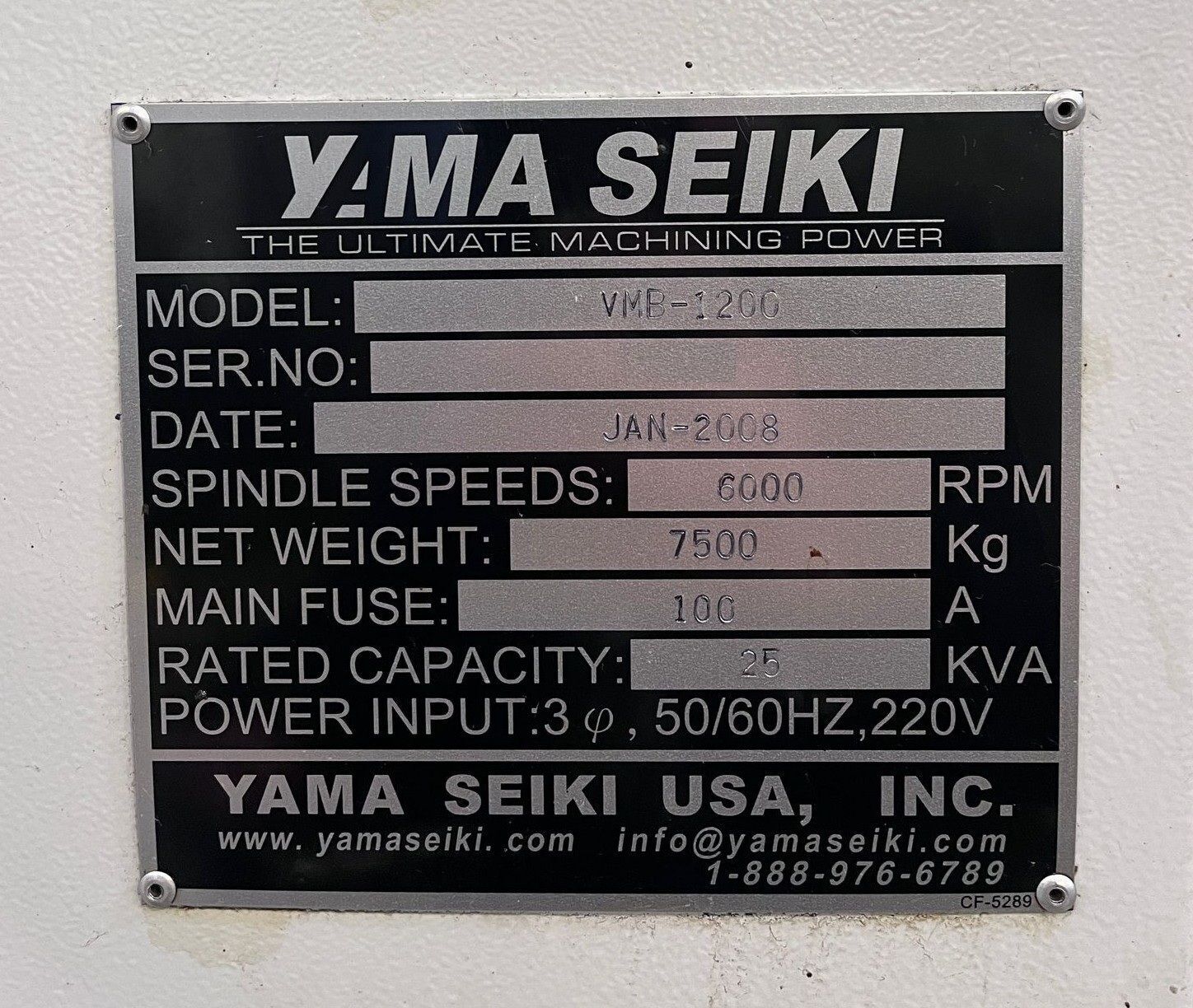

| Make: | Yama Seiki |
| Model: | VMB1200/50 |
| Year: | 2008 |
| Features: |
|---|

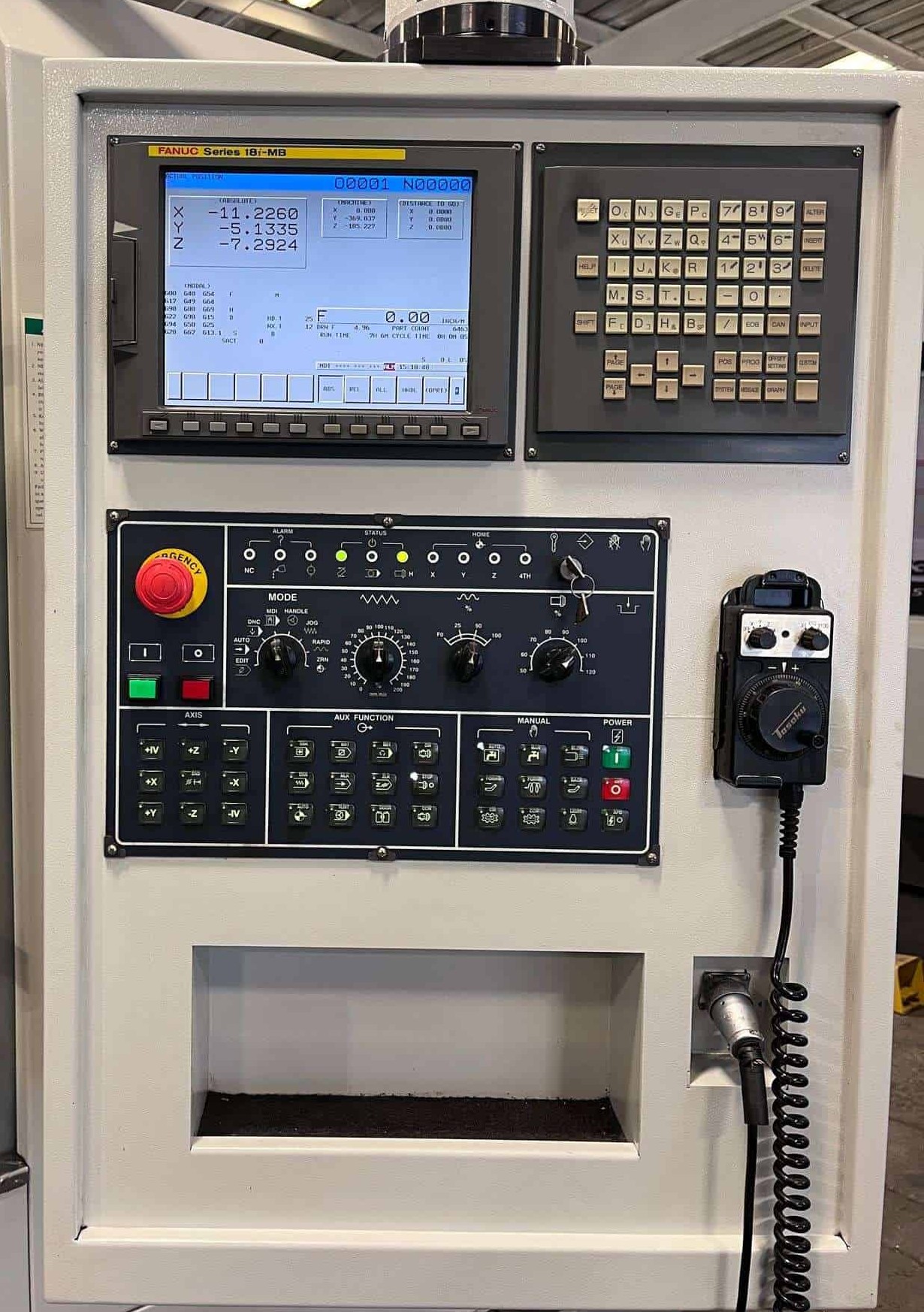

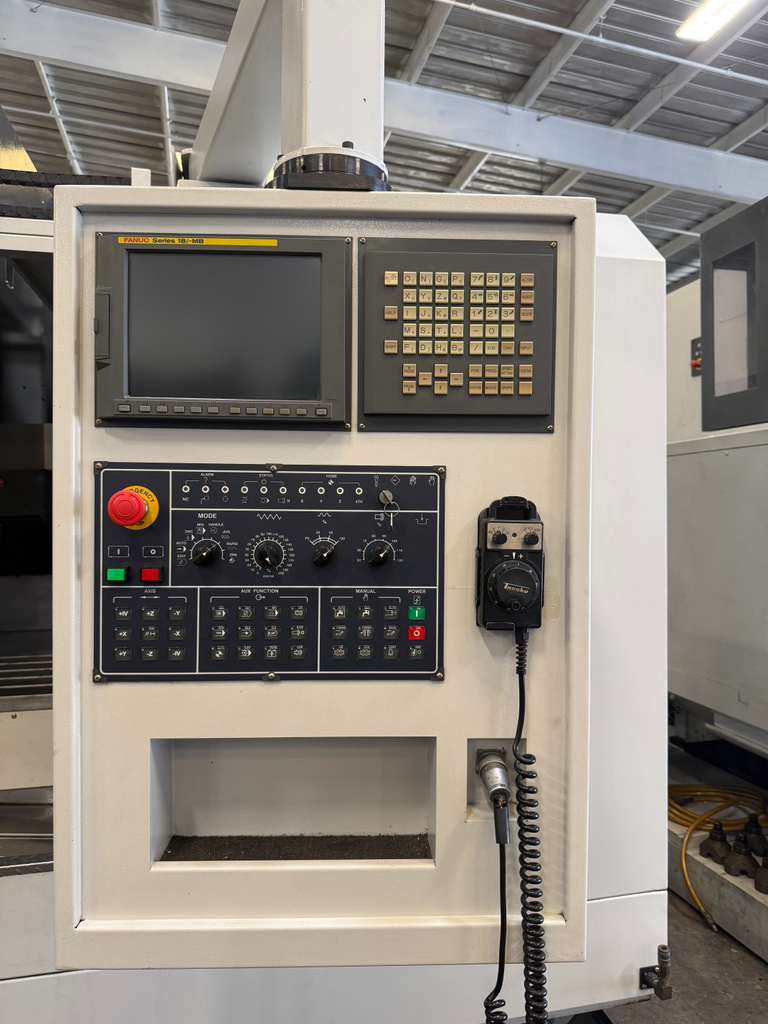

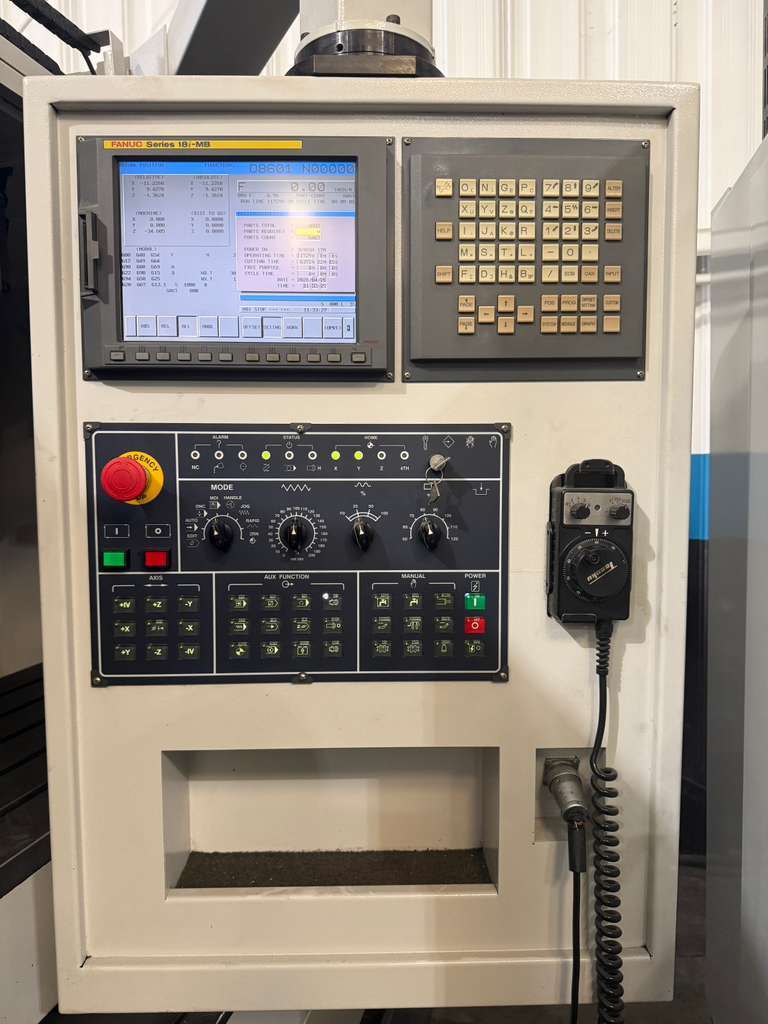

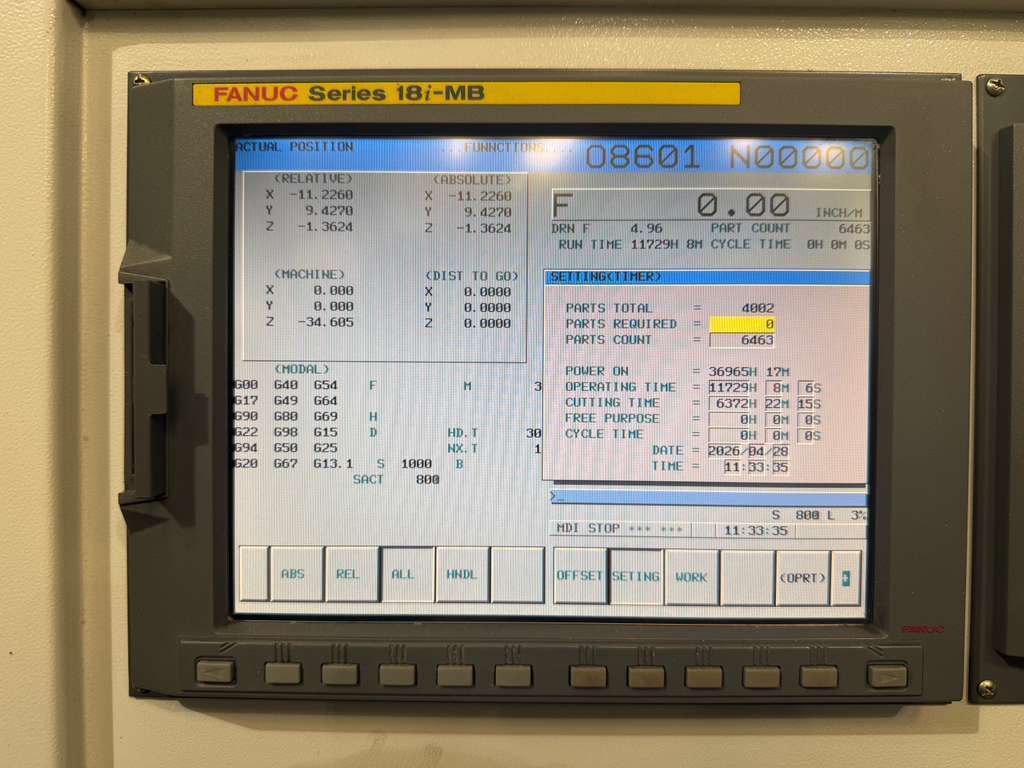

| Fanuc 18i-MB CNC Control |
| Box Way Construction |

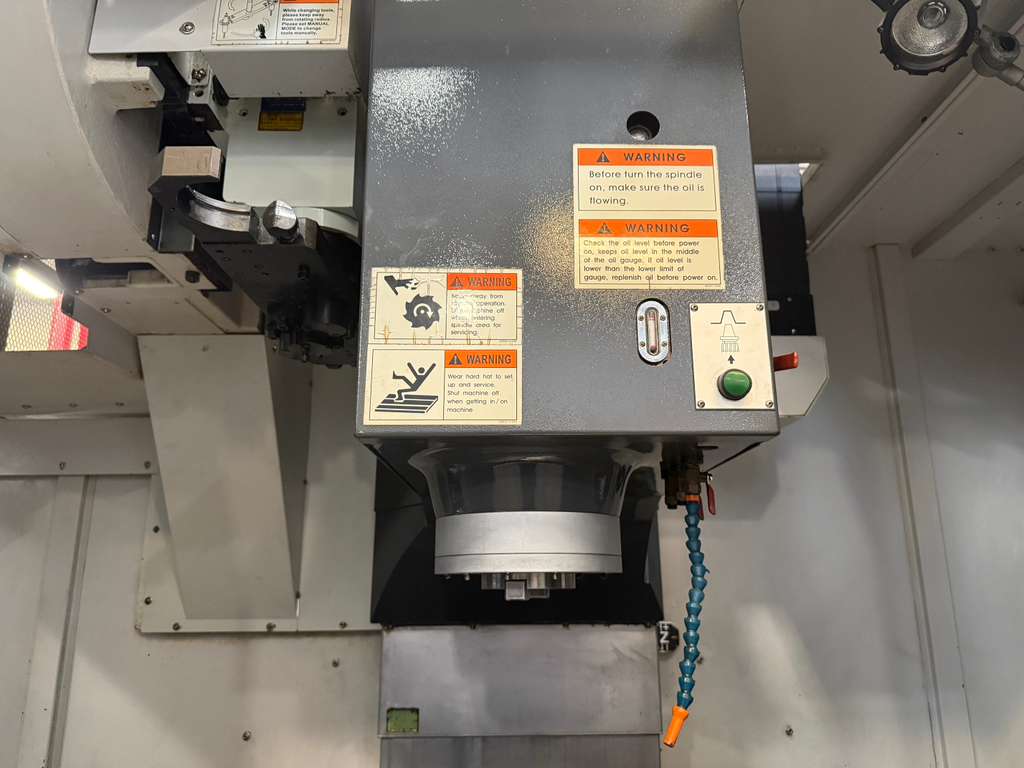

| CAT-50 Taper Gear Head Spindle |
| 6000 RPM Spindle |

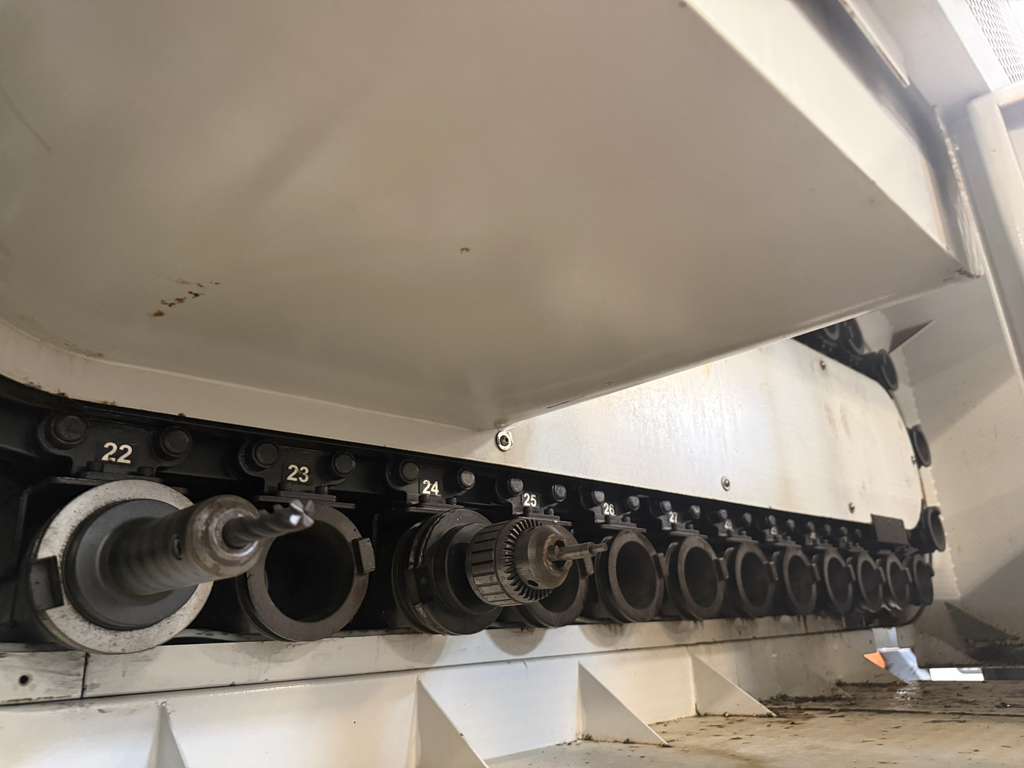

| 30 Station Automatic Tool Changer |
| Through Spindle Coolant |
| PCMCIA Interface |
| MPG Handwheel Control |
| Rigid Tapping |

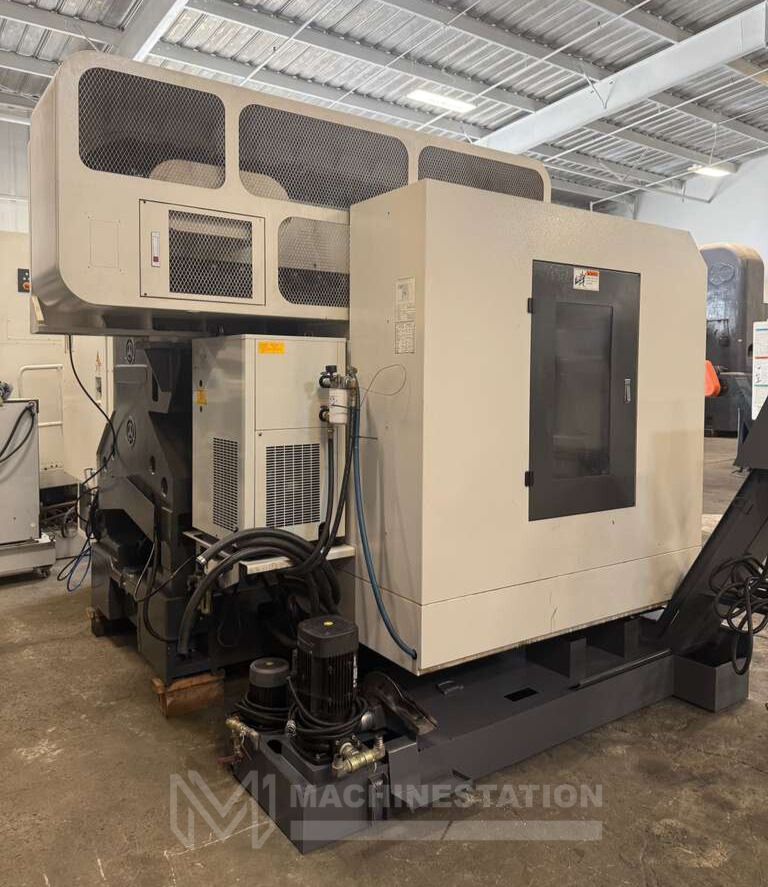

| Spindle Chiller Unit |

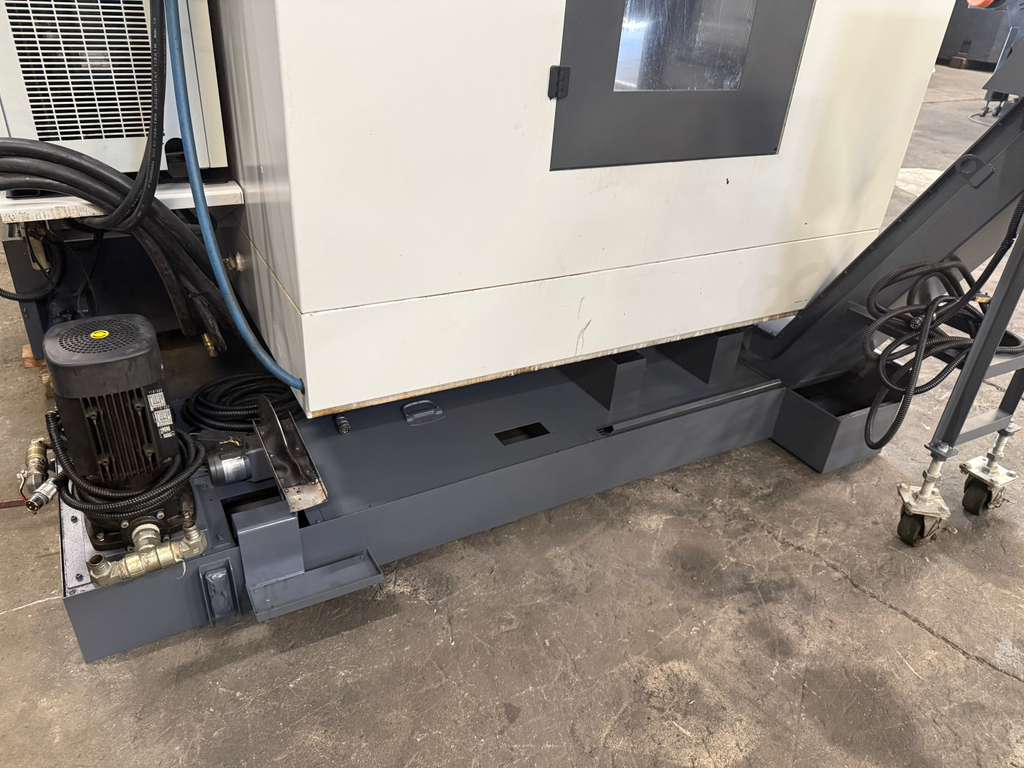

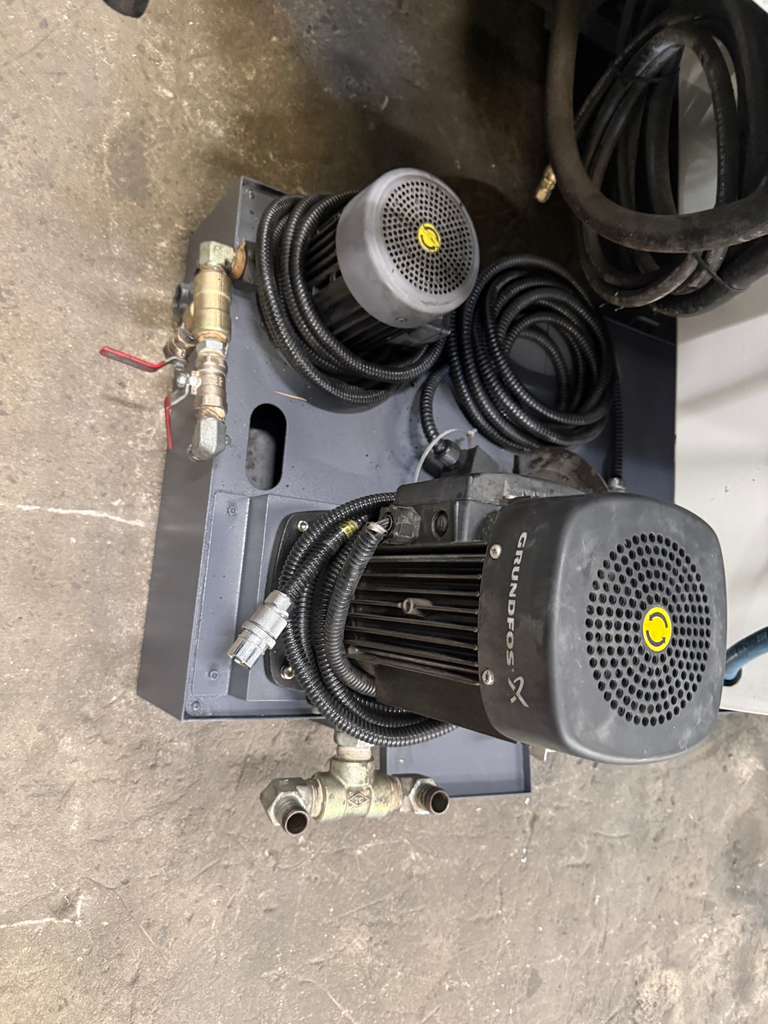

| Coolant System |

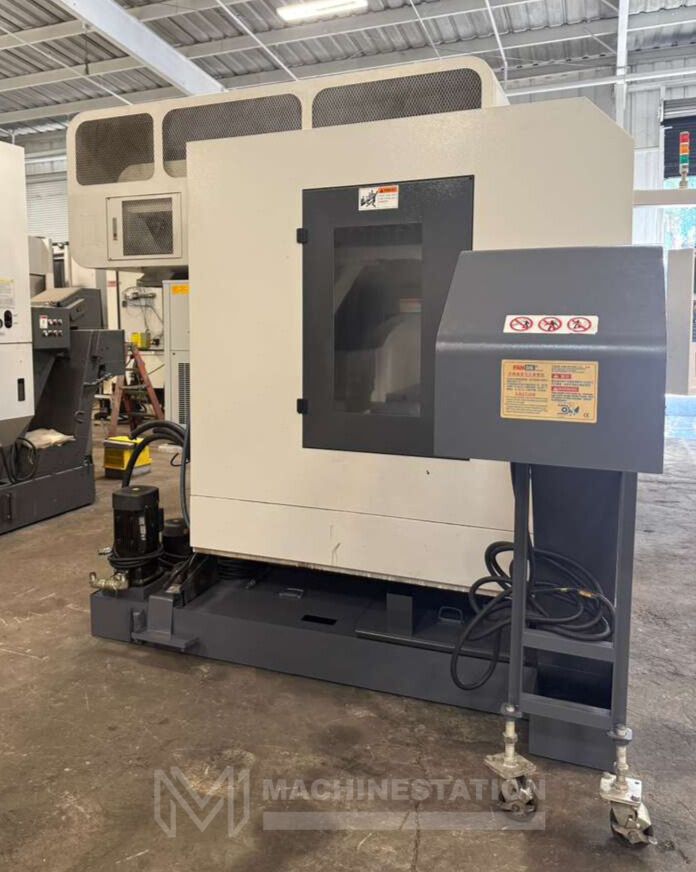

| Chip Conveyor |

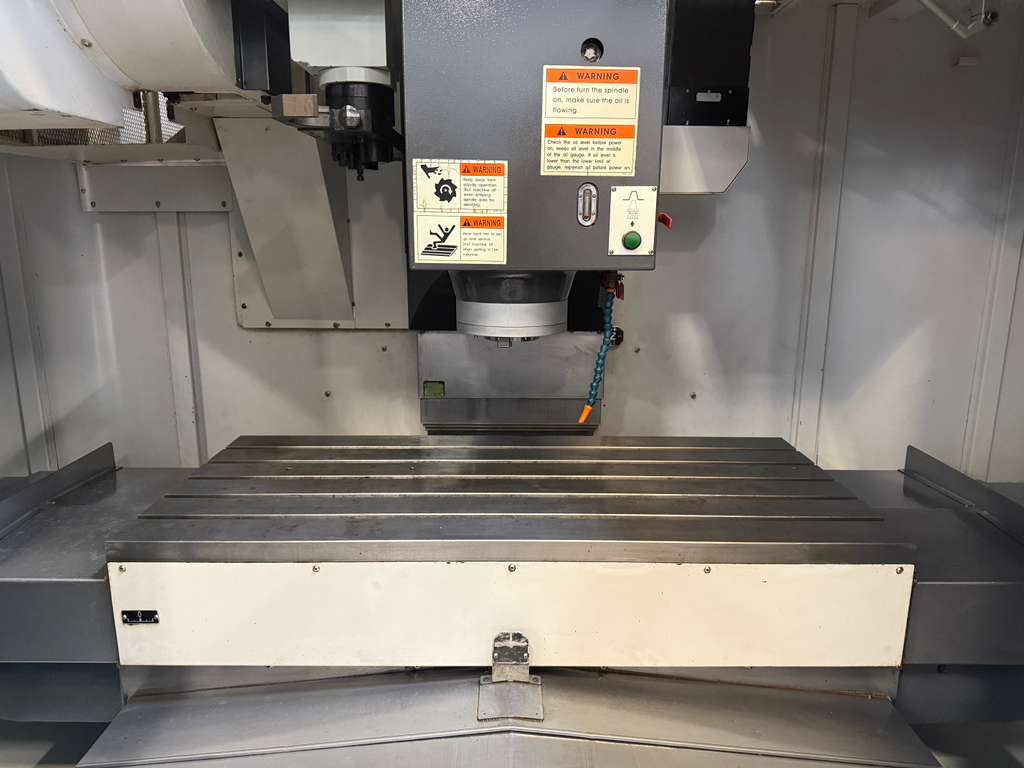

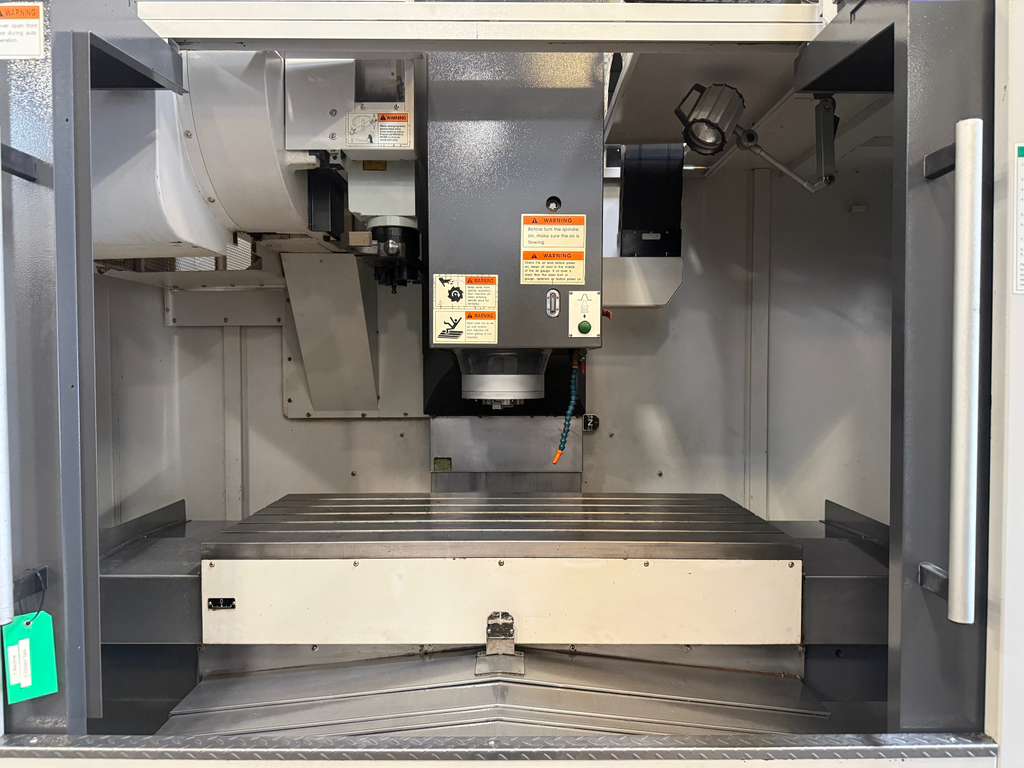

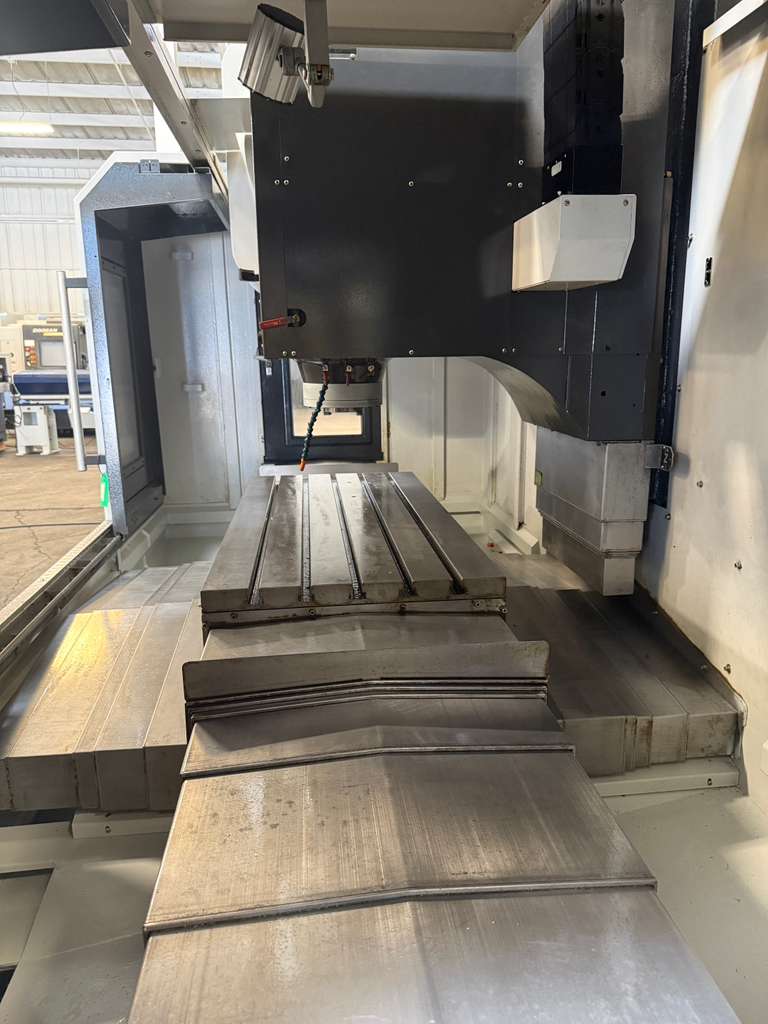

| Table: |
|---|
| Length: 51.2″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2650 lbs |
| Travel: |
|---|
| X-Axis: 47.2″ |
| Y-Axis: 23.6″ |
| Z-Axis: 23.6″ |
| Rapid Traverse Rates: 945 Inch Per Minute |
| Cutting Feed Rates: 788 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″ |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6000 RPM |
| Spindle Power: 25 HP |

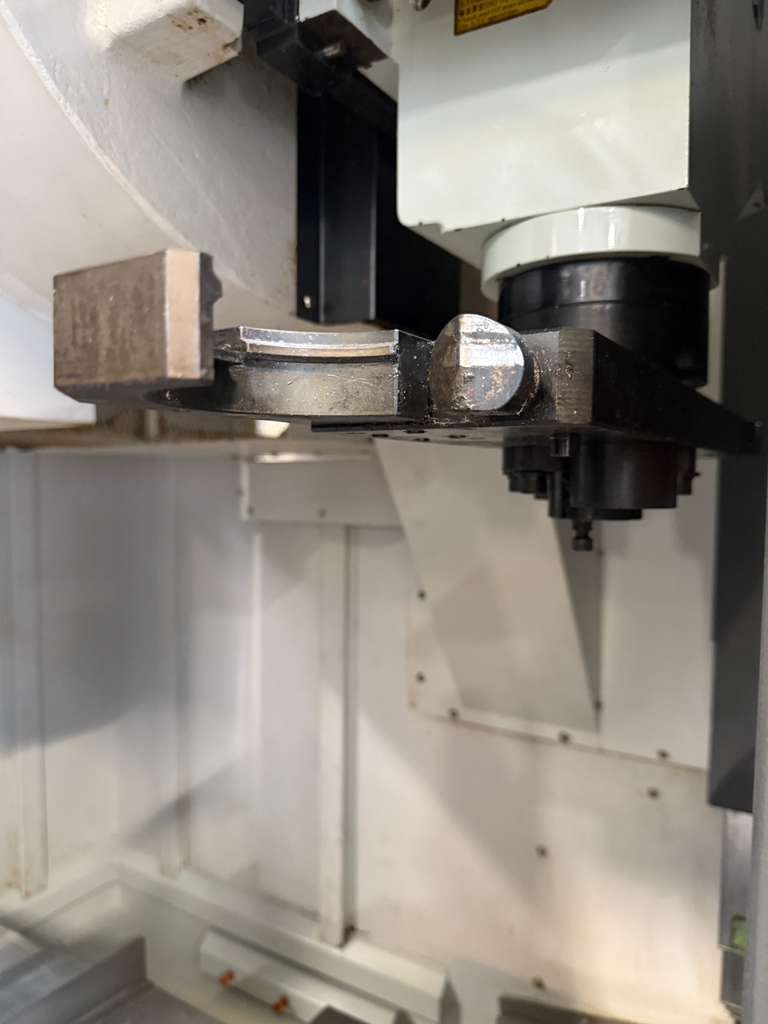

| Tool changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 33 lbs |
| Max Tool Dia: 7.8″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 2.7 Seconds |
| General: |
|---|
| Air Required: 85 psi, 6 scfm |
| Power: 220v / 50/60 Hz / 3-Phase / 25 kva |
| Overall Dimensions: 134″ x 98″ x 110″ High Approx. |
| Weight: 16,500 lbs Approx. |
