*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

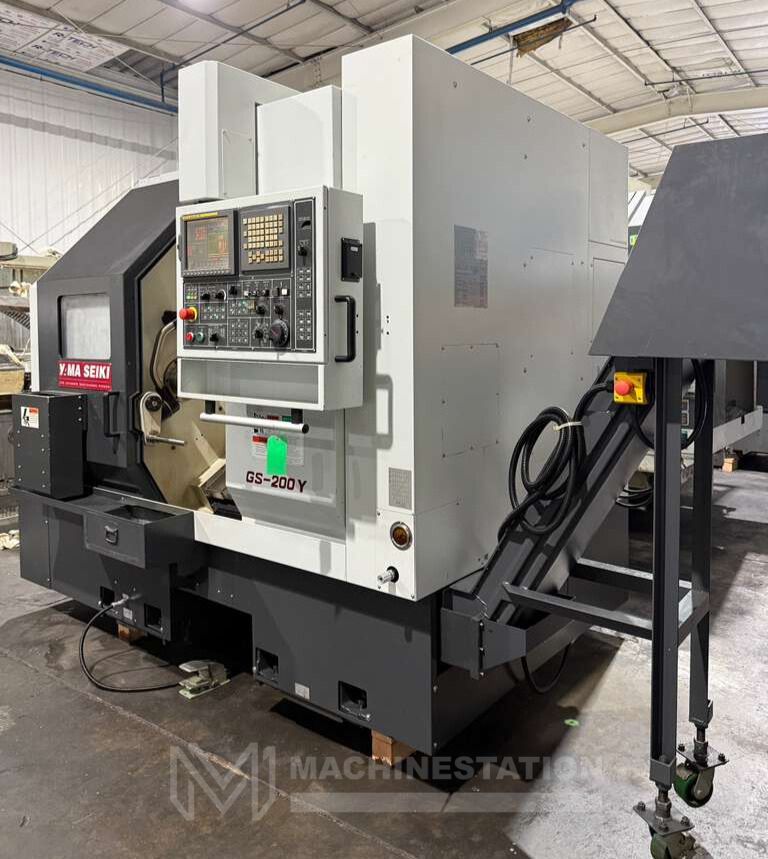

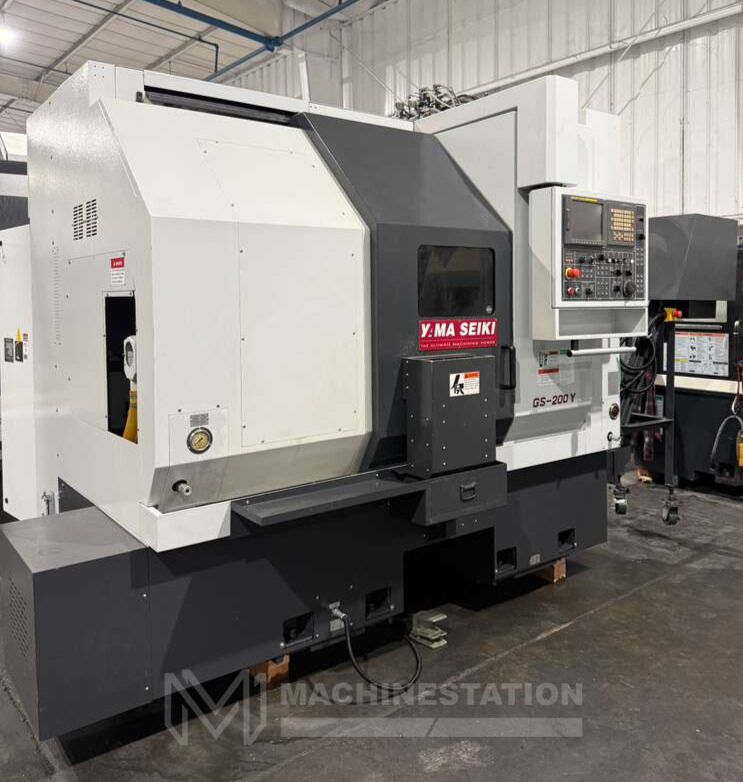

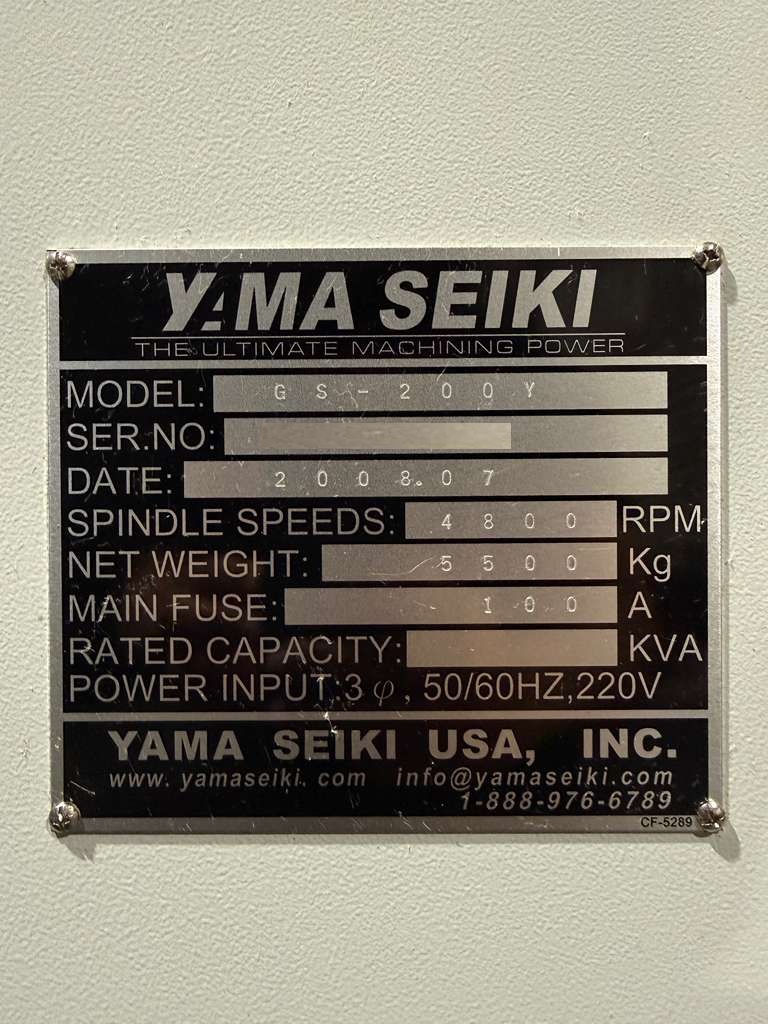

| Make: | Yama Seiki |
| Model: | GS-200Y |
| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|

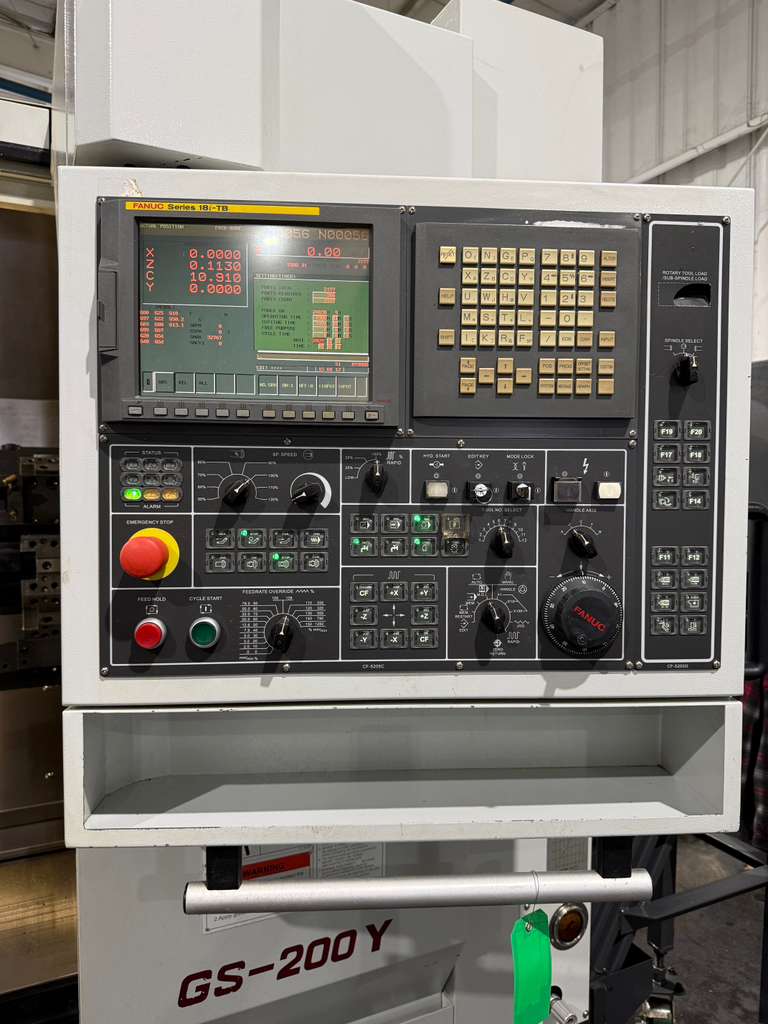

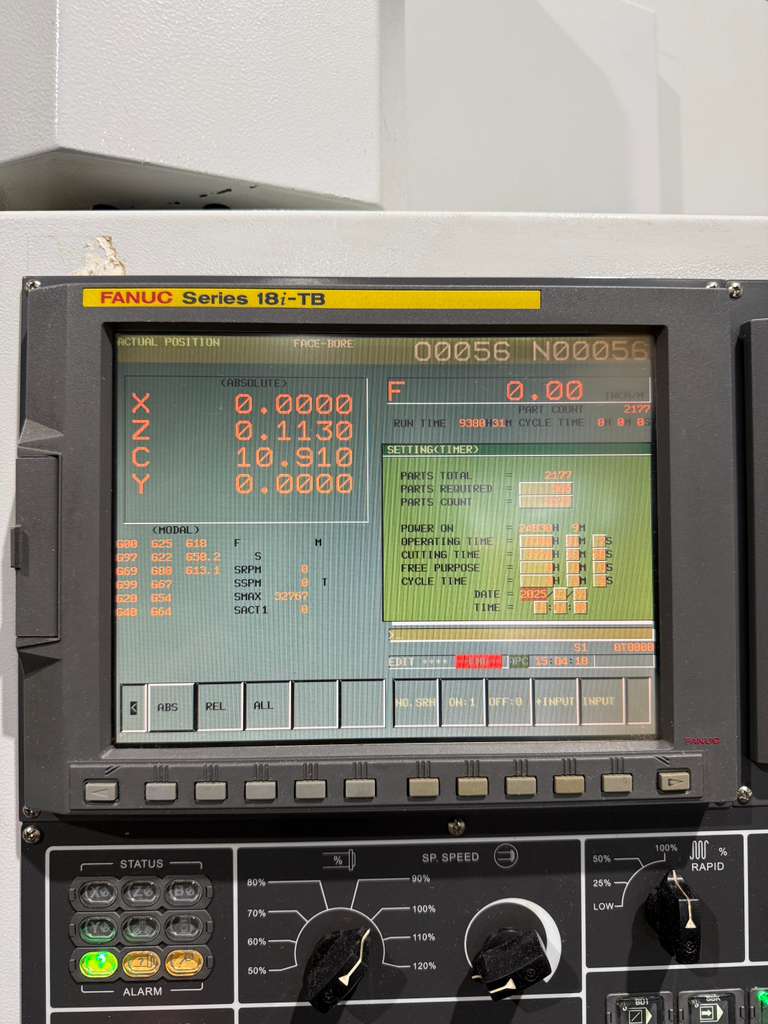

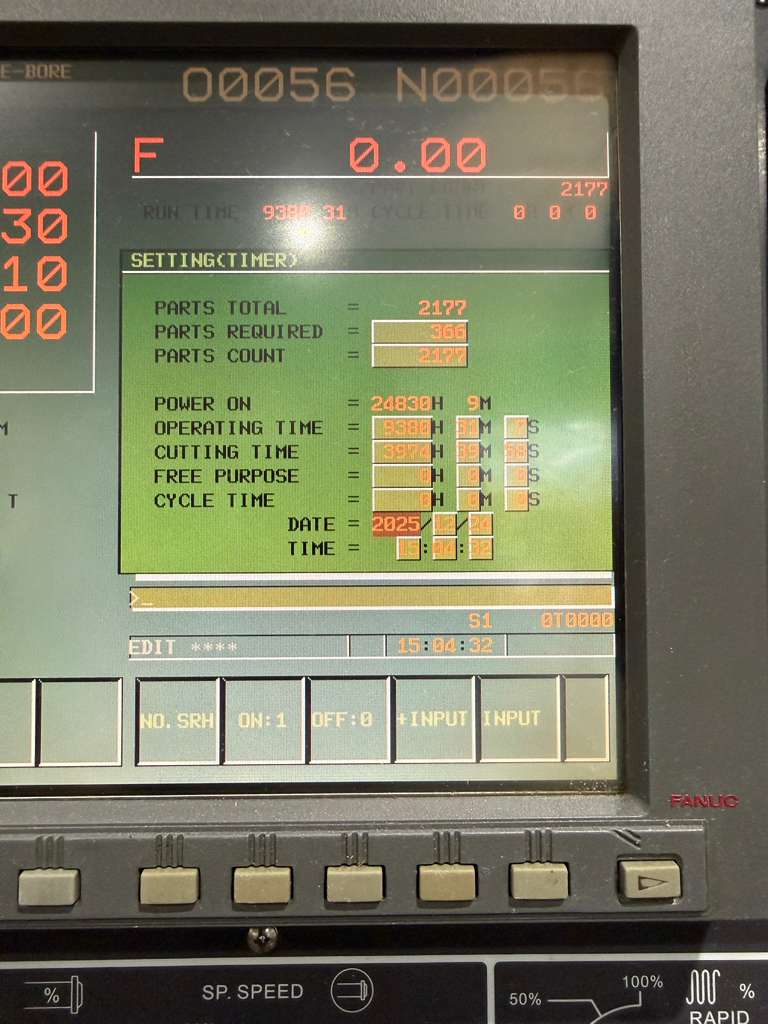

| Fanuc 18i-TB CNC Control |

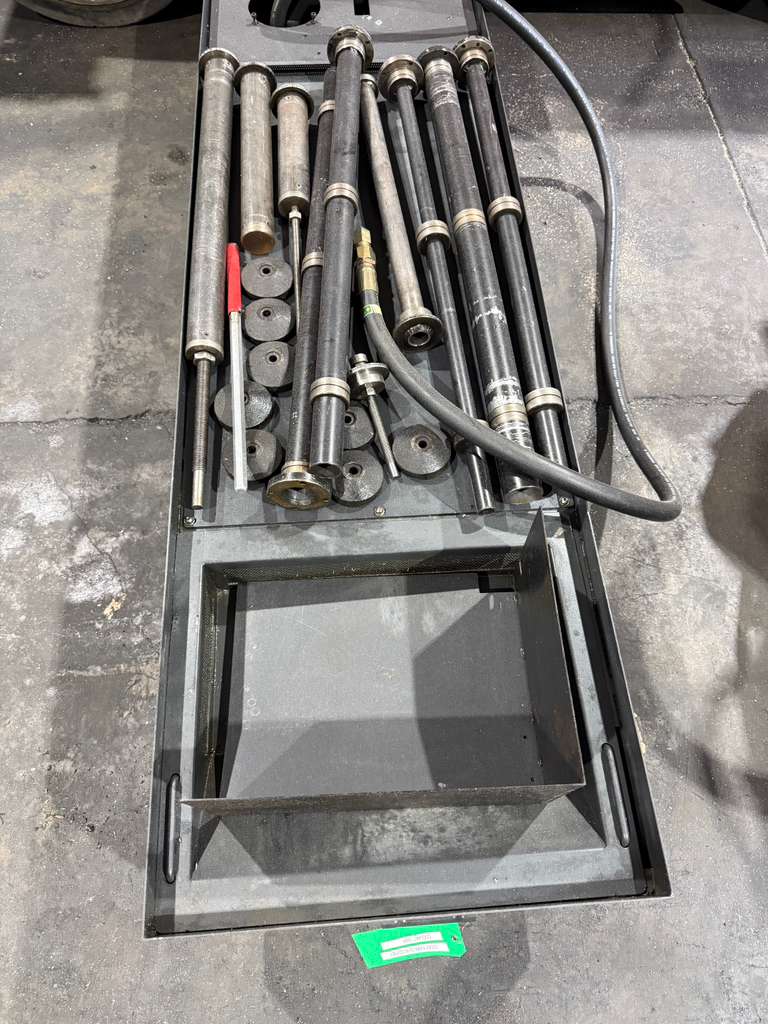

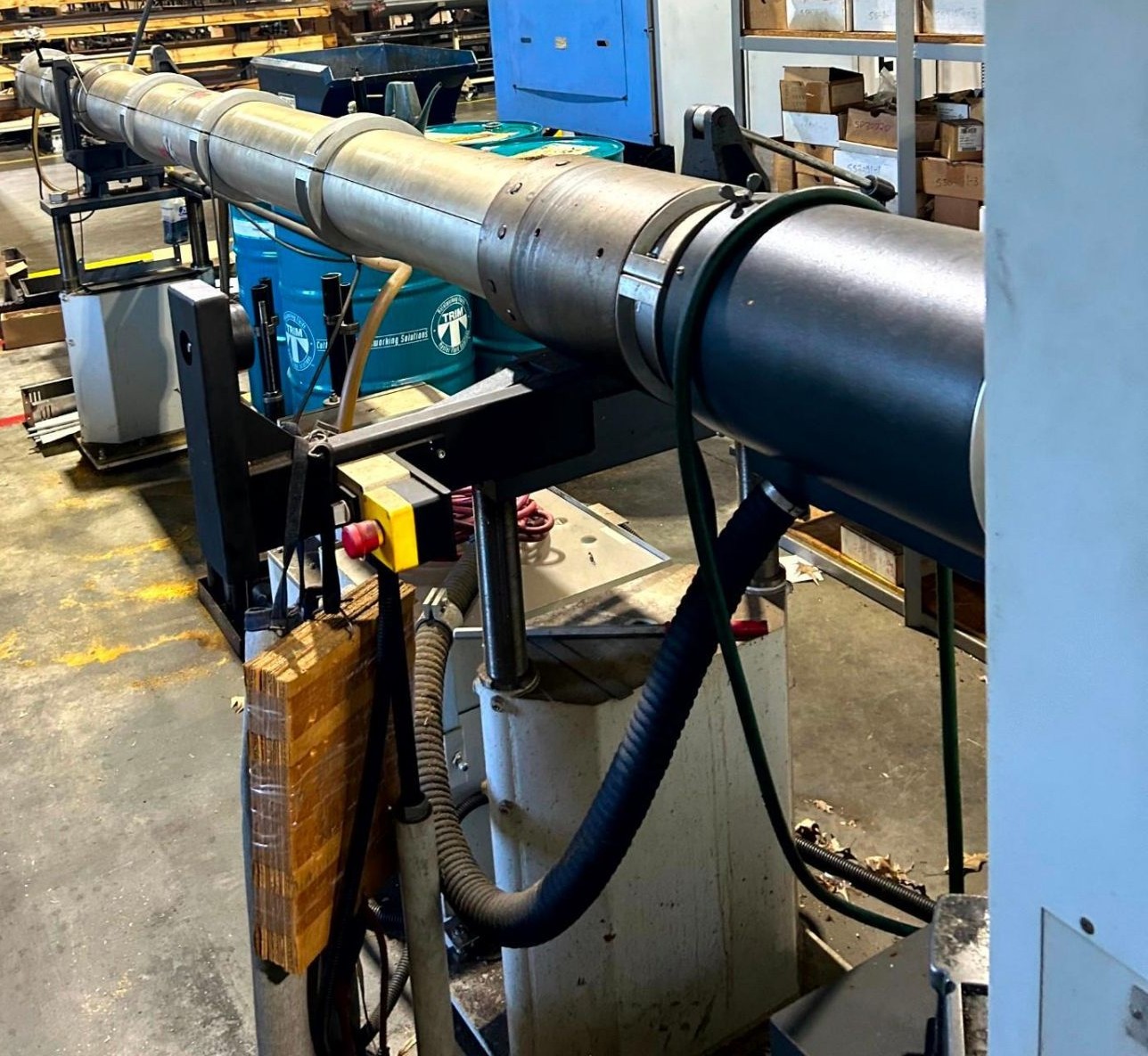

| Hydrobar Bar Feeder |

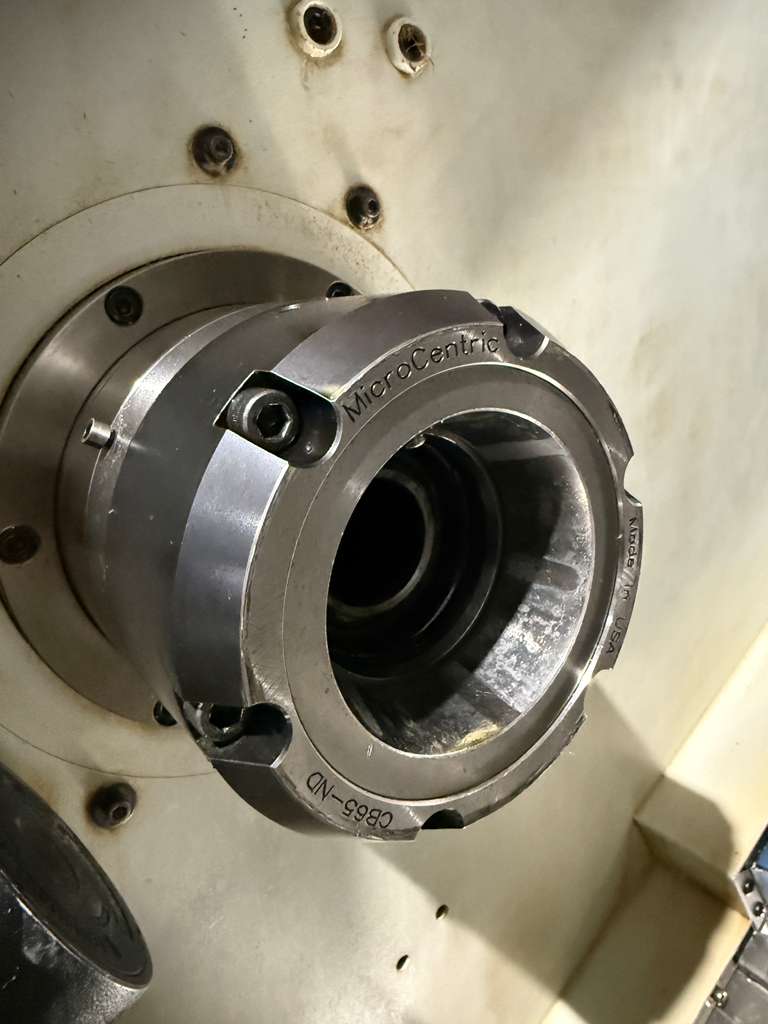

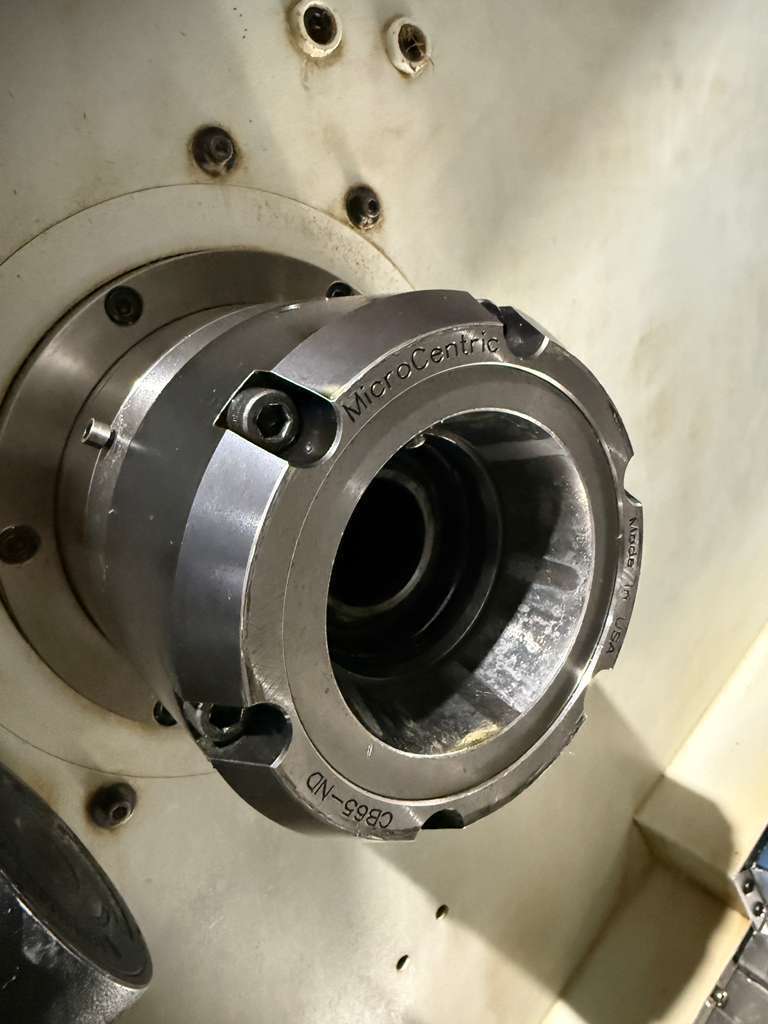

| MicroCentric CB65-ND Collet Chuck (8″ Chuck Capable) |
| A2-6, 4800 RPM Spindle |
| Servo Controlled Full C Axis on Spindle |

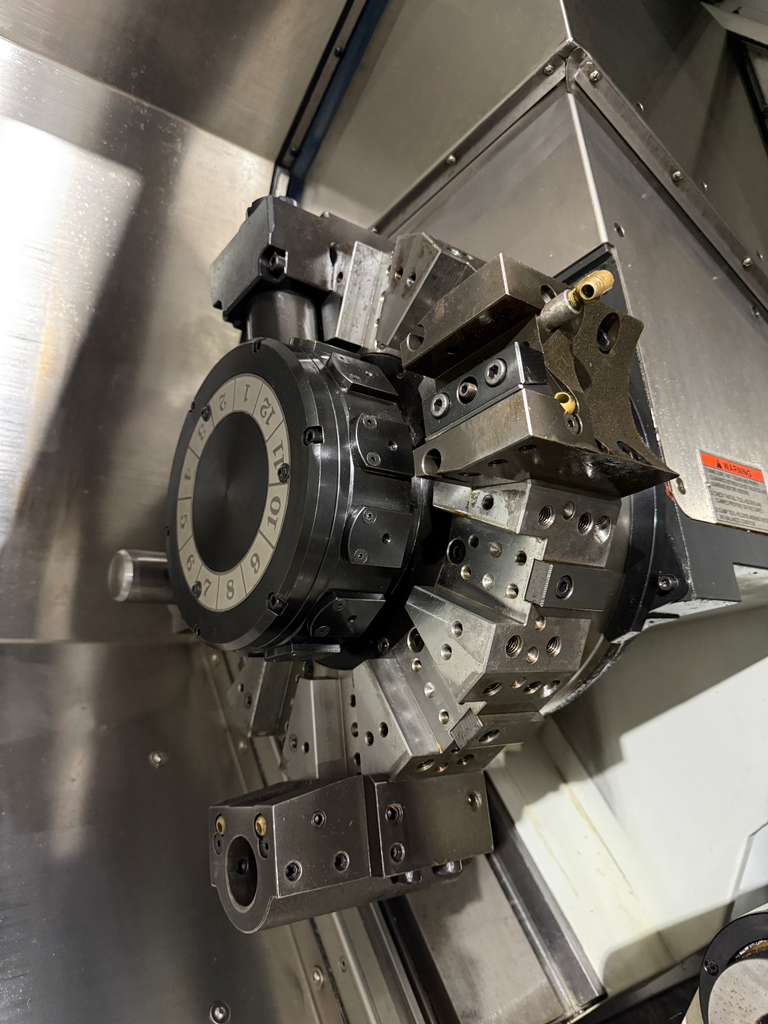

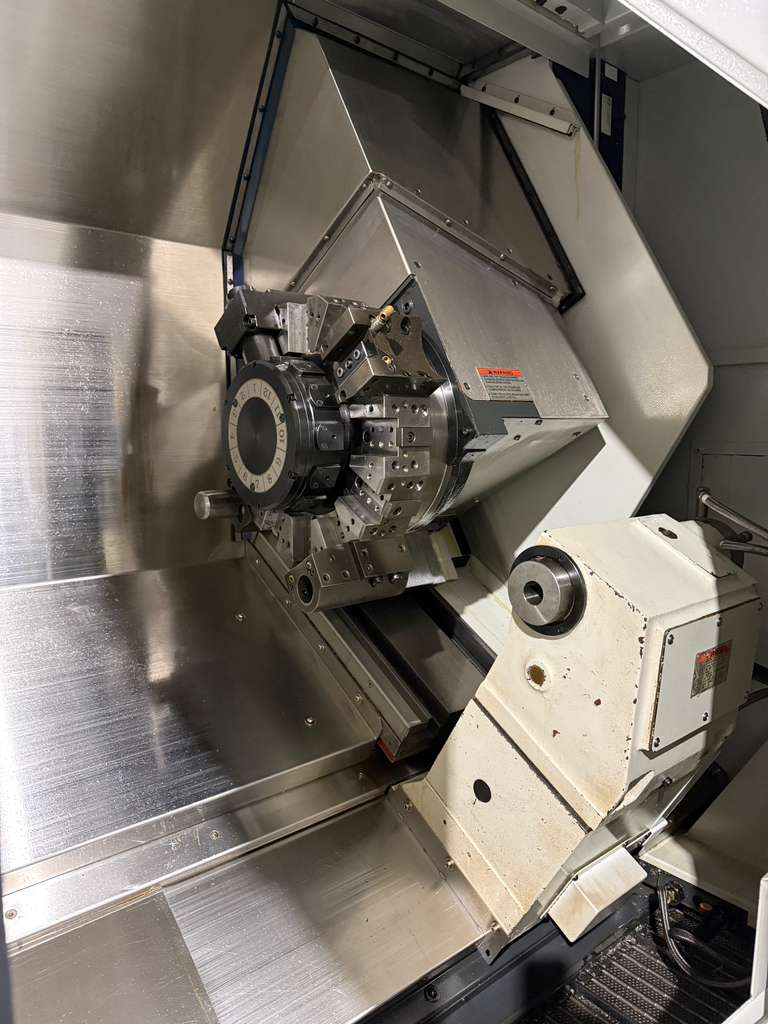

| 12 Station Live Tool Turret |
| Y Axis on Turret |

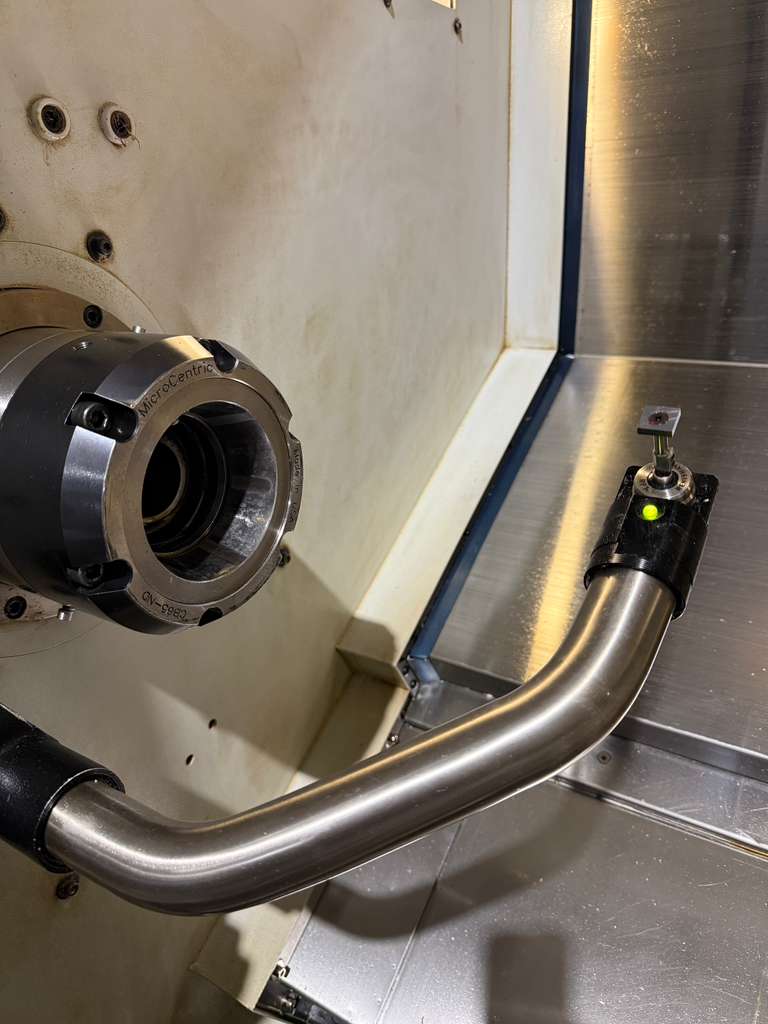

| Tool Presetter |
| Parts Catcher |
| Programmable Tailstock |

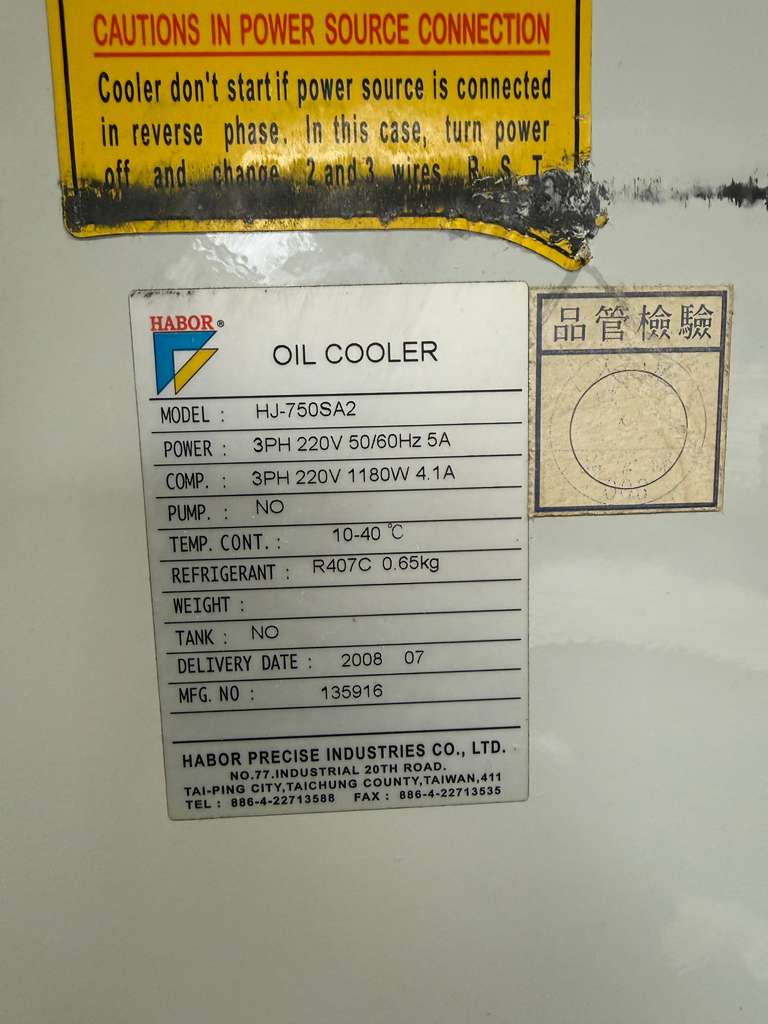

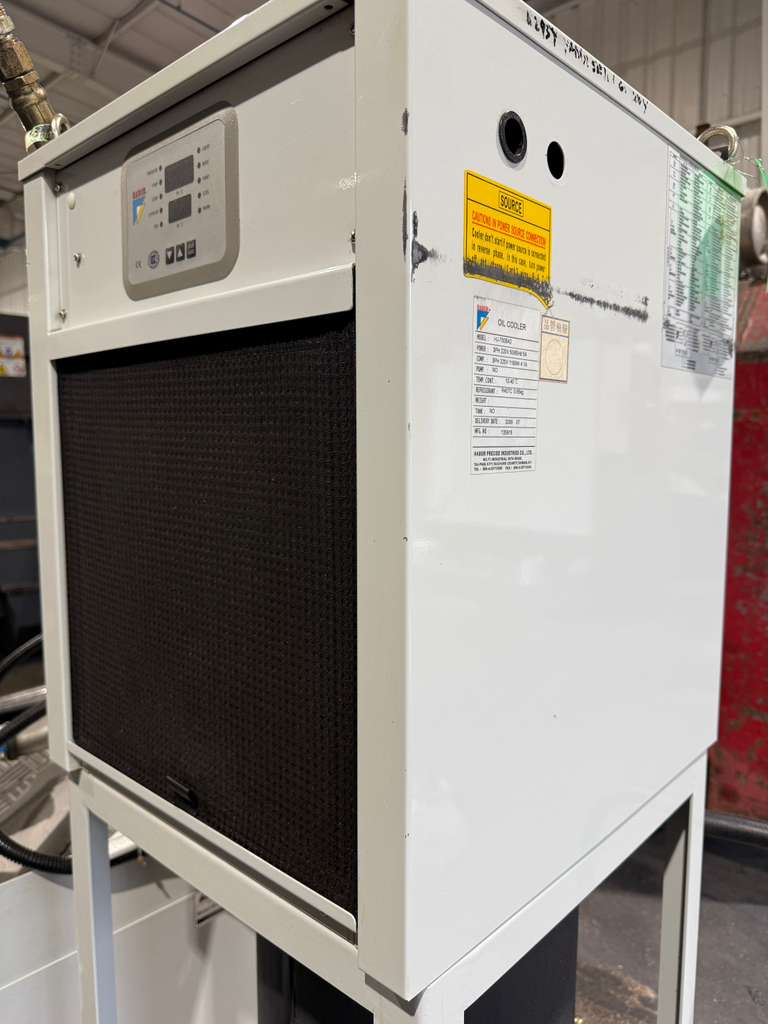

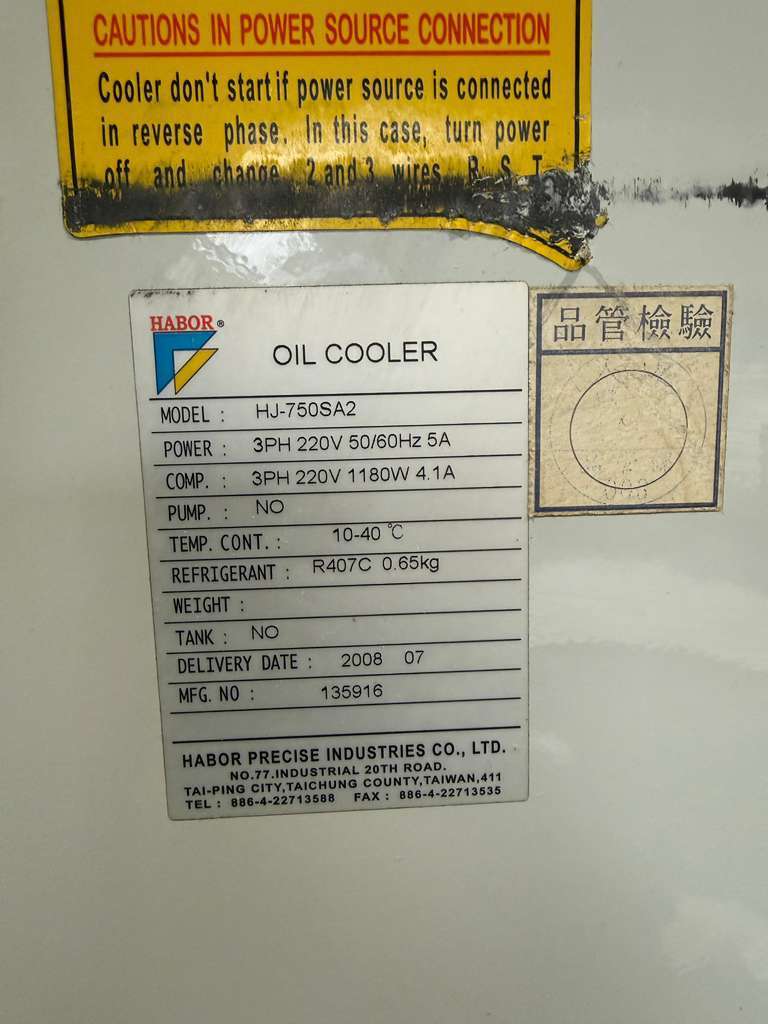

| Spindle Chiller Unit |
| Rigid Tapping |
| PCMCIA Card Interface |

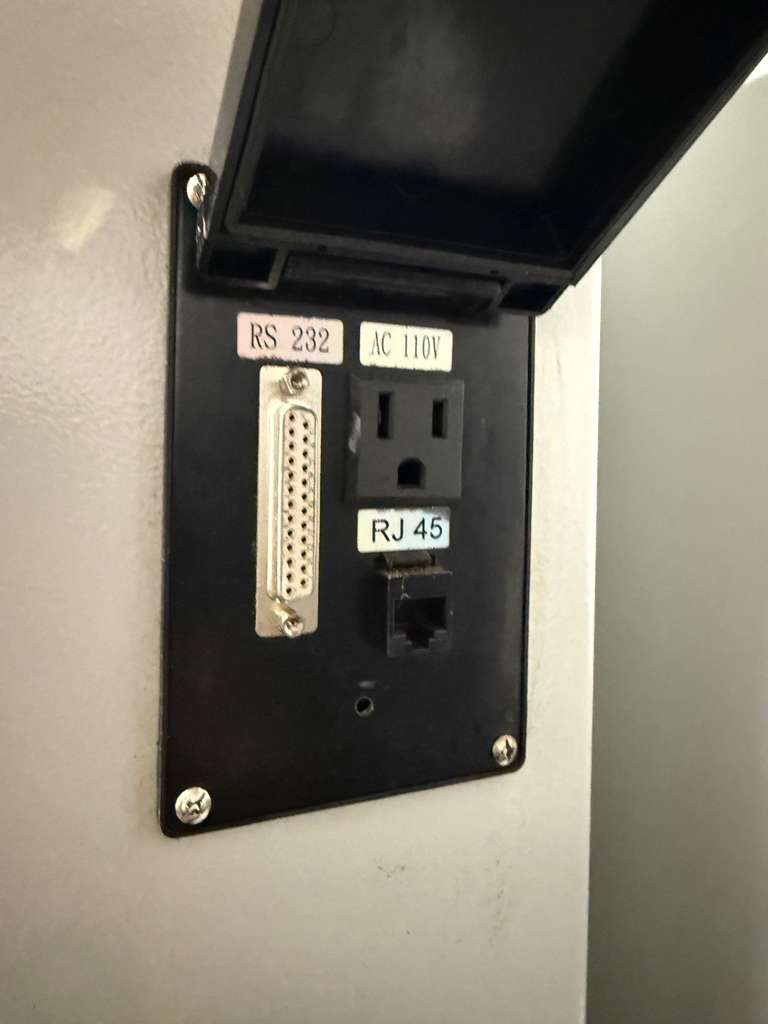

| RS-232 Port |
| Coolant System |
| Chip conveyor |

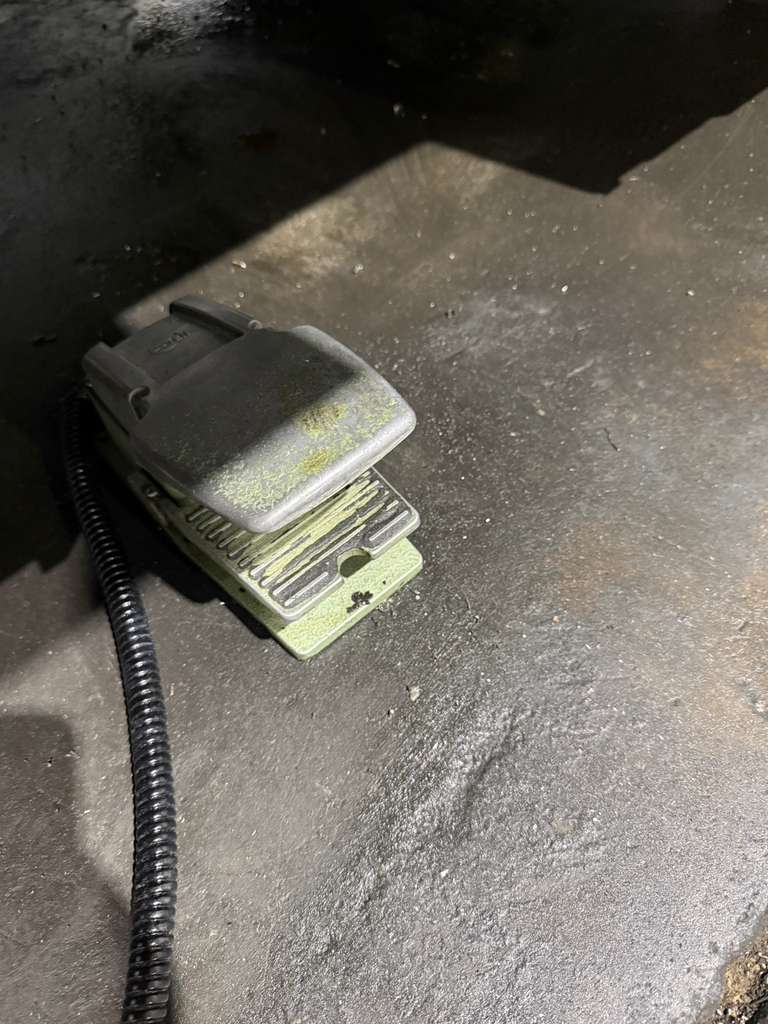

| Foot Switch |
| Levelling Pads |

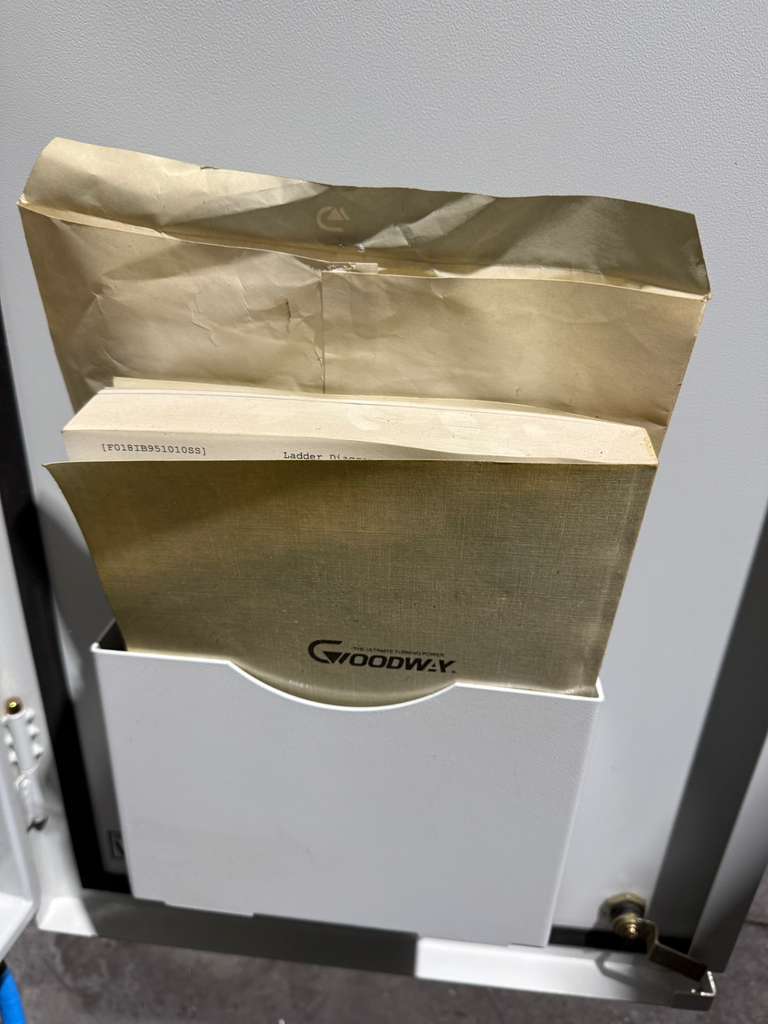

| Books & Manuals |
| Tool Holders Are Mounted On Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 13.38″ |
| Max Turning Length: 23.62″ |
| Max Swing Over Bed: 18.50″ |
| Max Bar Capacity: 2.05″ |
| Travels: |
|---|
| X Axis Travel: 10.61″ |
| Y Axis Travel: 4.72″ |
| Z Axis Travel: 23.62″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.59″ |
| Spindle Speed: 4800 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Live Tool Speed: 3000 RPM |
| Live Tool Motor: 5 HP |
| OD Tool Shank Size: 1″ |
| ID Tool Shank Size: 1.5″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-3 |
| Tailstock Quill Diameter: 3.34″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Body Travel: 18.50″ |
| General: |
|---|
| Power: 50/60 HZ / 220v / 3-Phase |
| Overall Dimensions: 106″ x 77″ x 75″ High Approx. |
| Weight: 12,125 lbs |
