*All the below specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

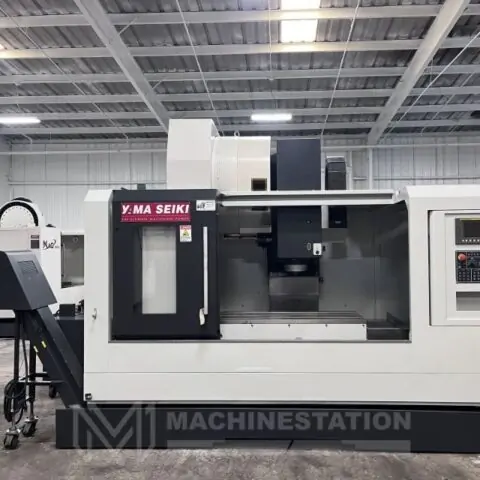

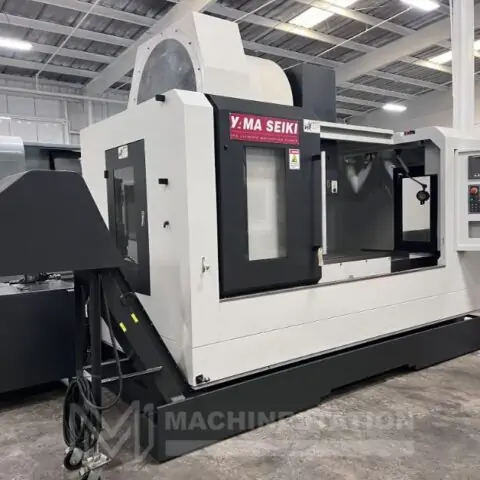

| SKU: | 112583 |

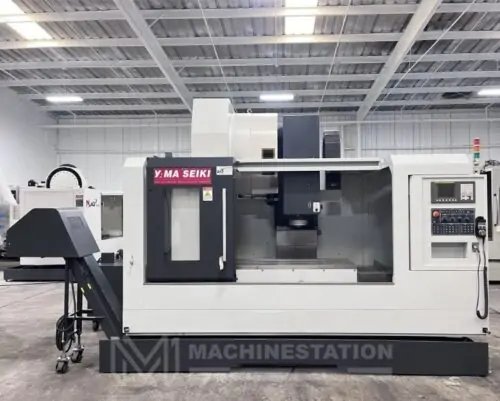

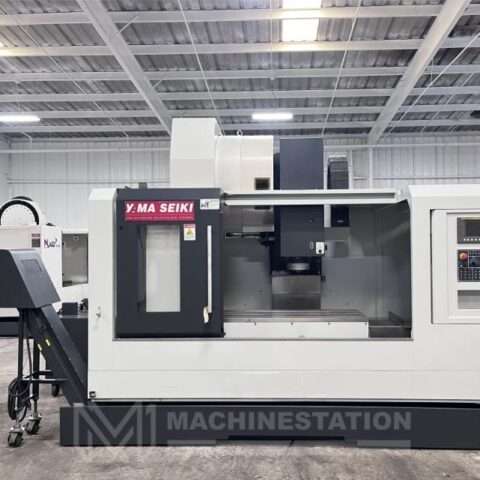

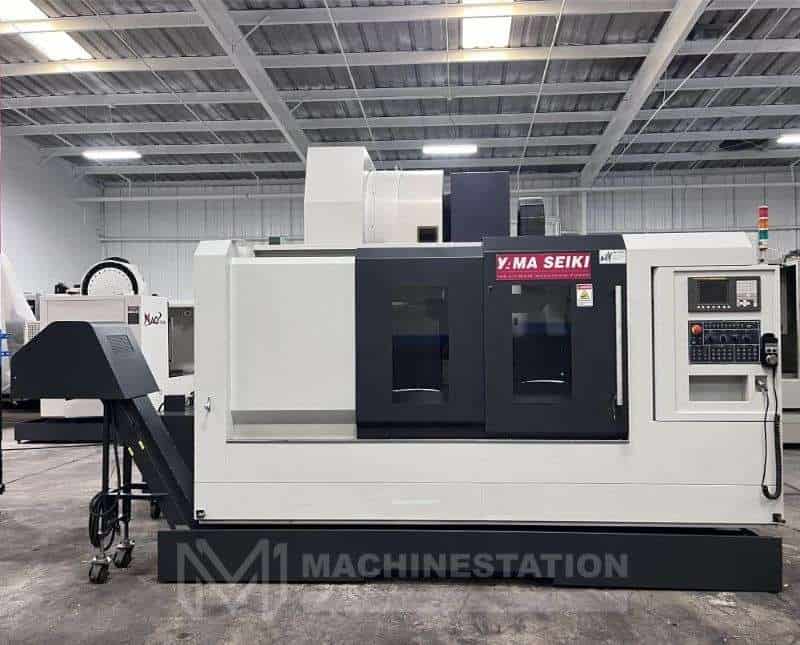

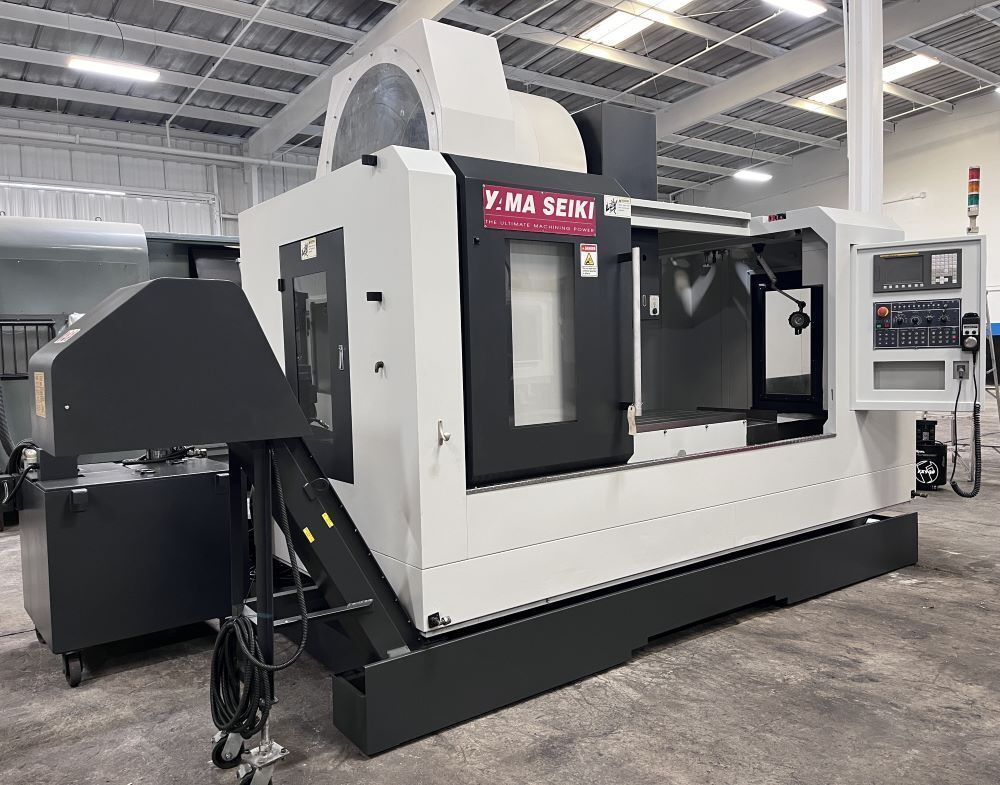

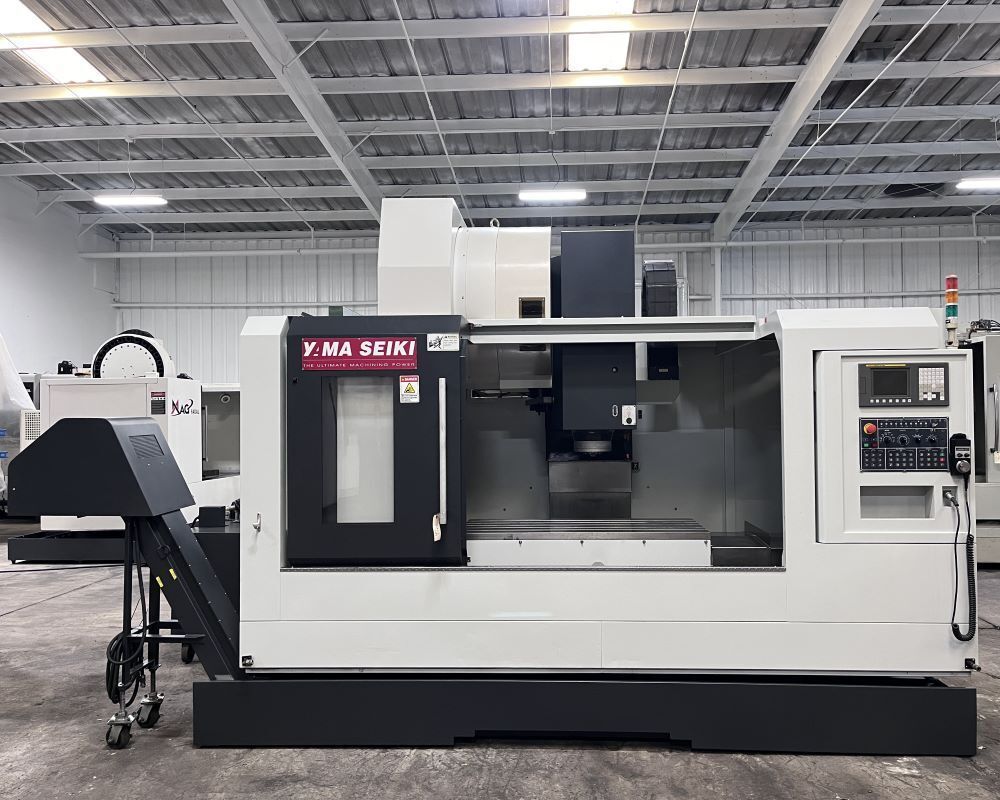

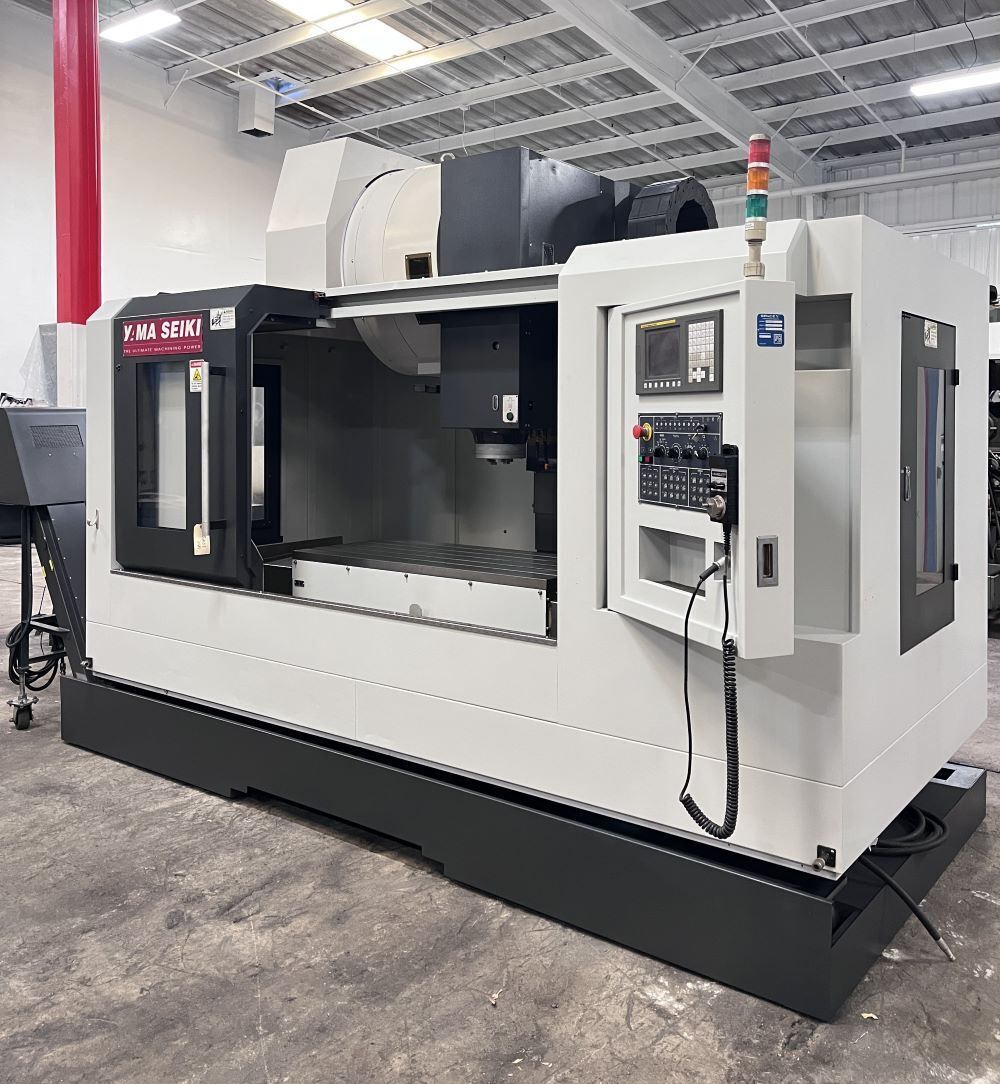

| Make: | Yama Seiki |
| Model: | VMB-1200/50 |
| Year: | 2008 |
| Features: |
|---|

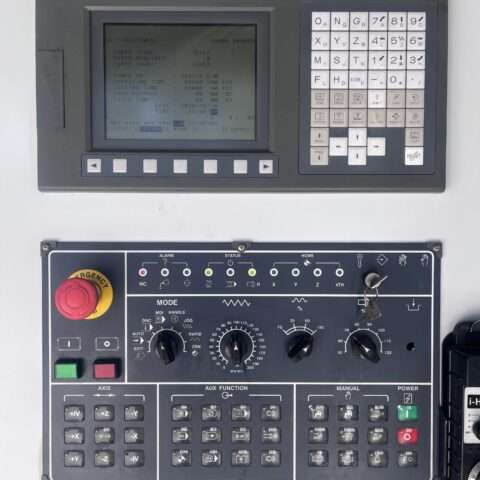

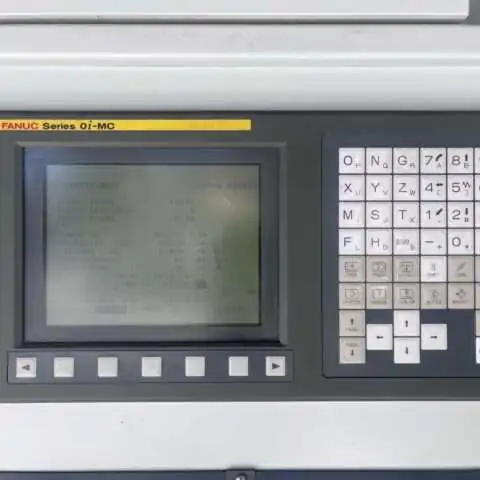

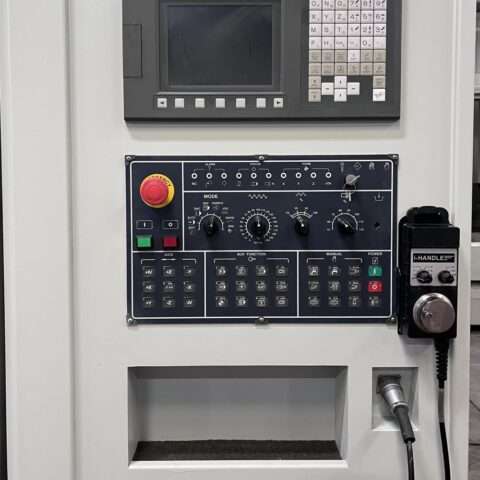

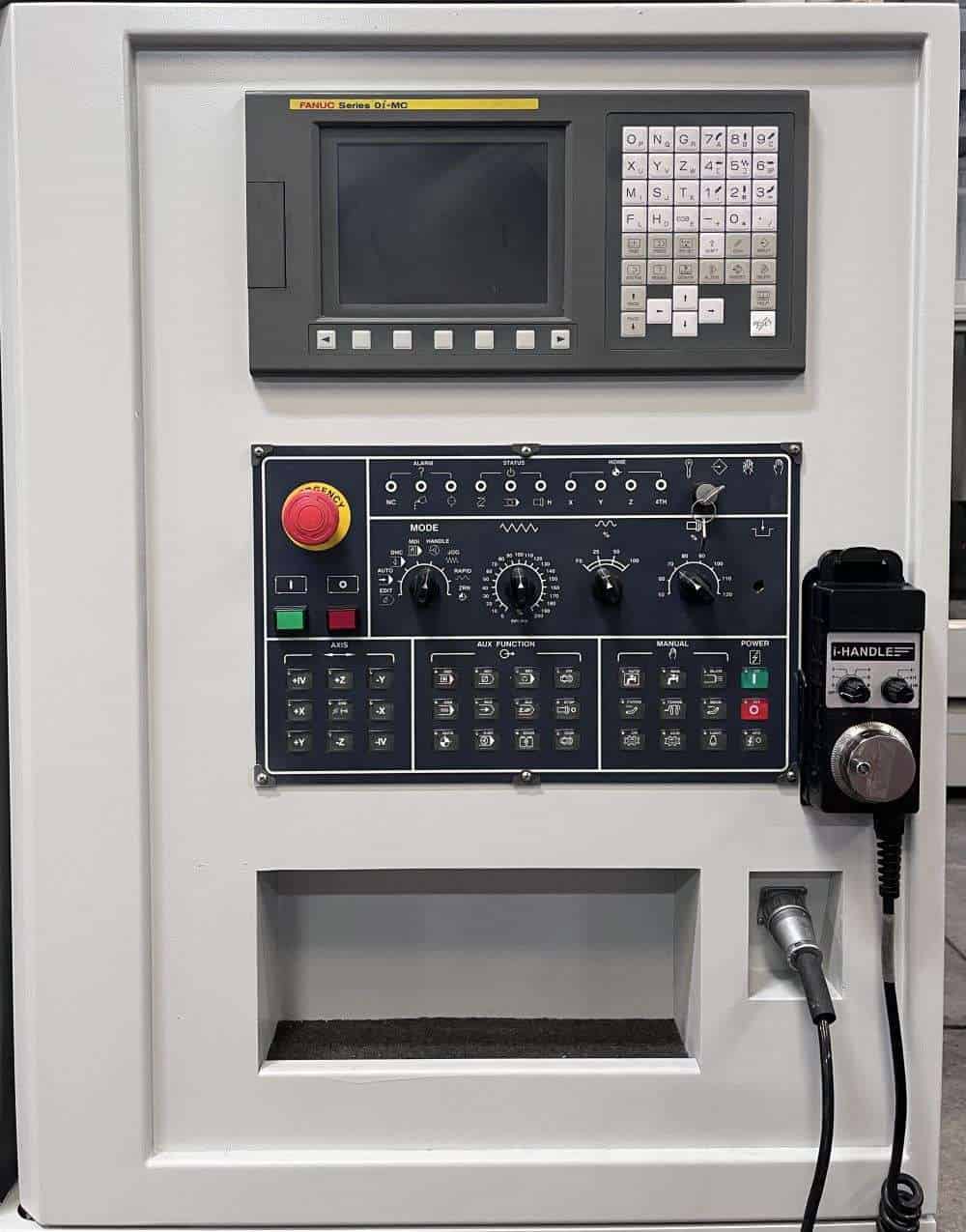

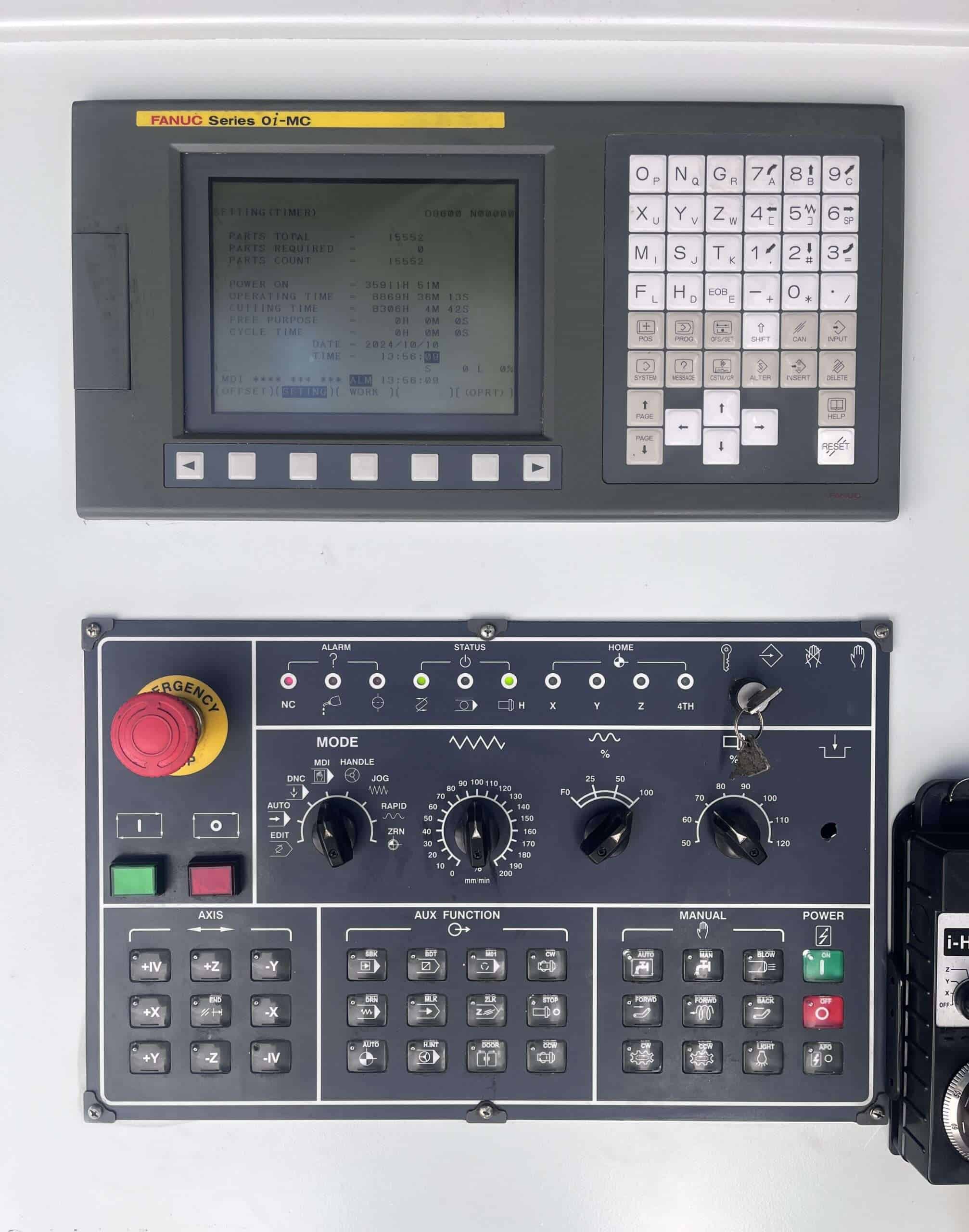

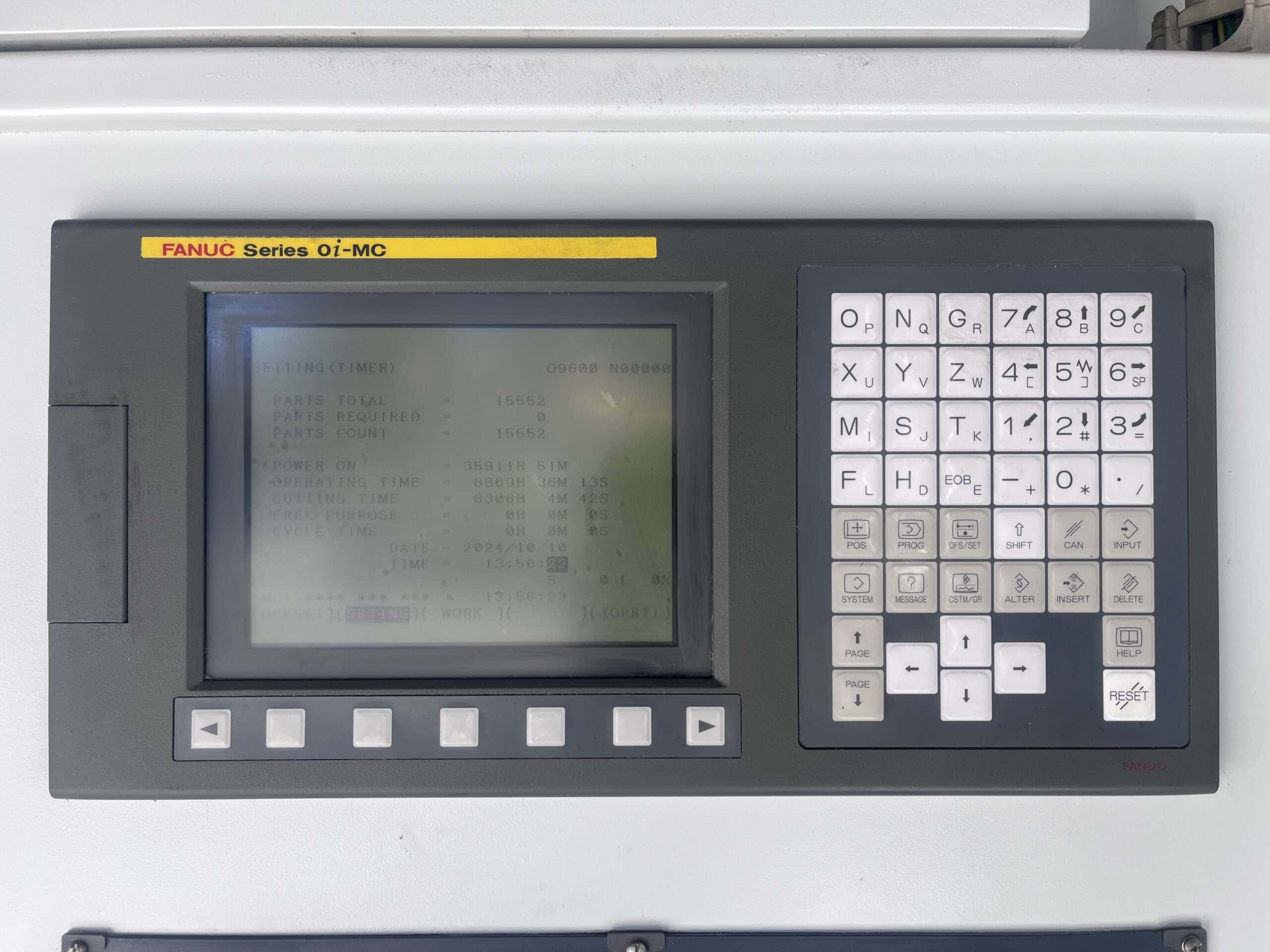

| Fanuc Oi-MC CNC Control |
| 4th Axis Ready |
| Box Way Construction |

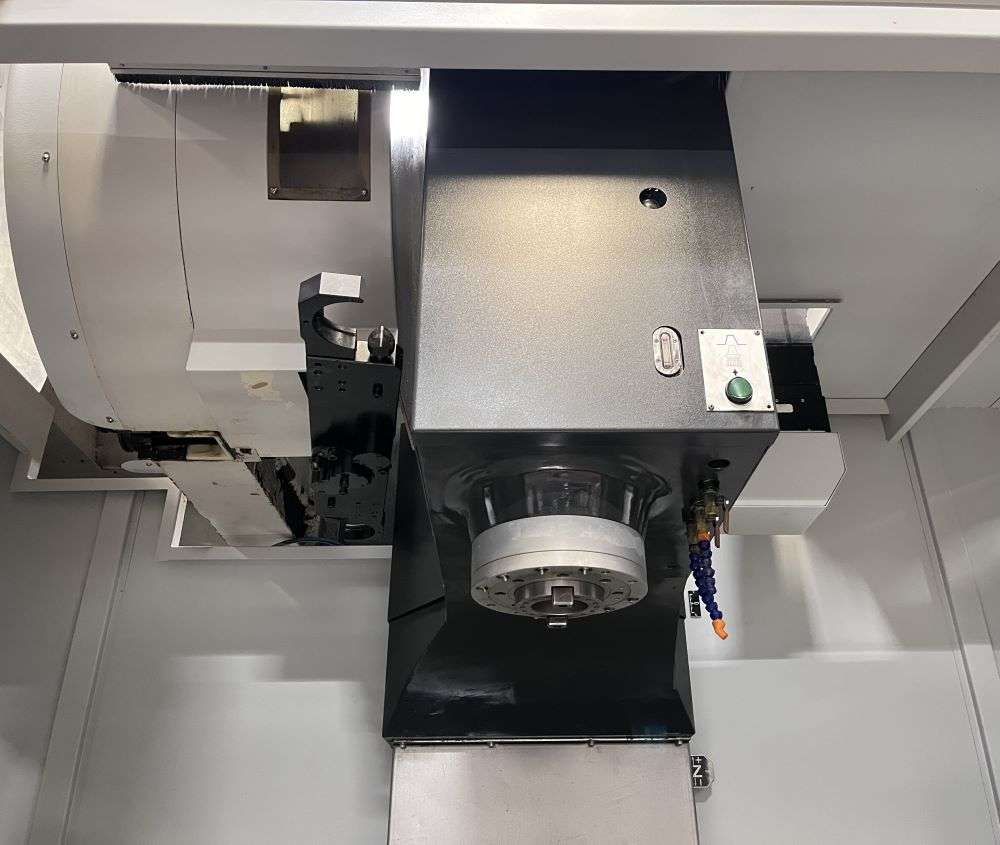

| 50 Taper Gear Head Spindle |
| 6000 RPM Spindle |

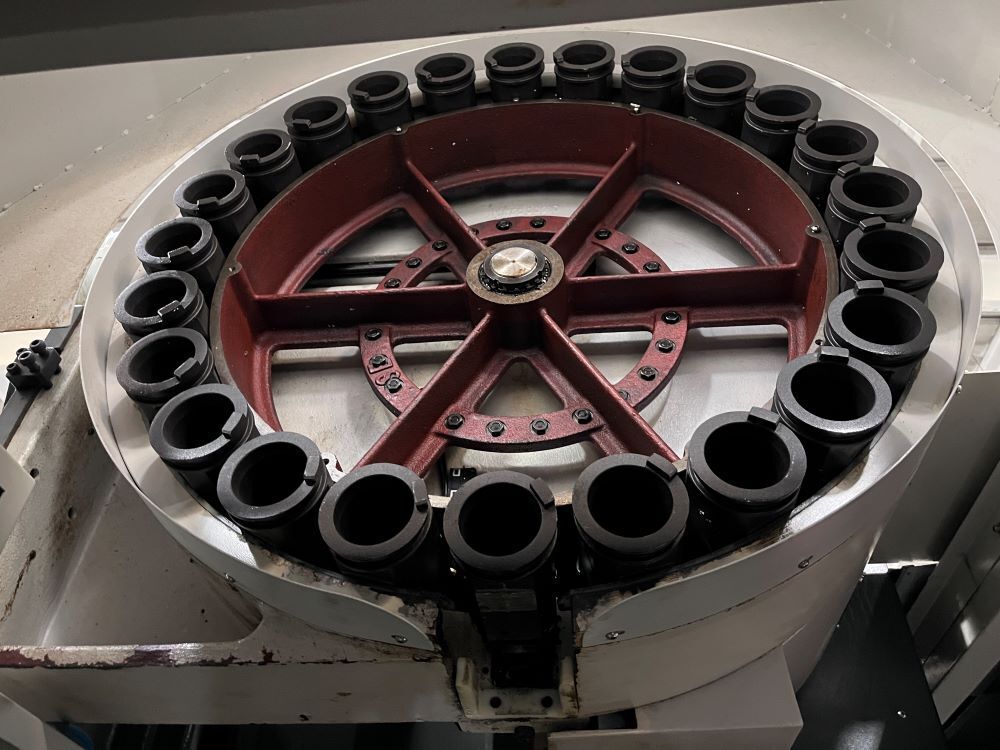

| 24 Station Automatic Tool Changer |
| Through Spindle Coolant |
| USB & PCMCIA Interface |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |

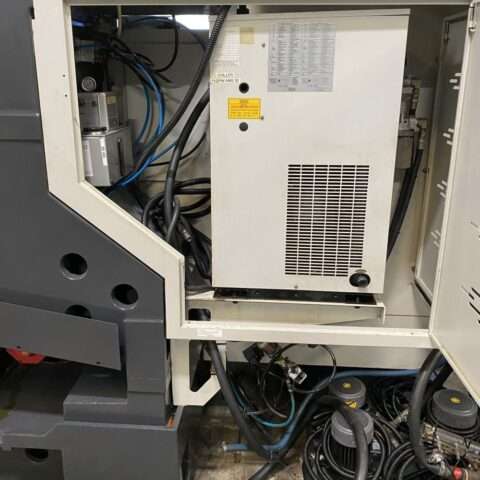

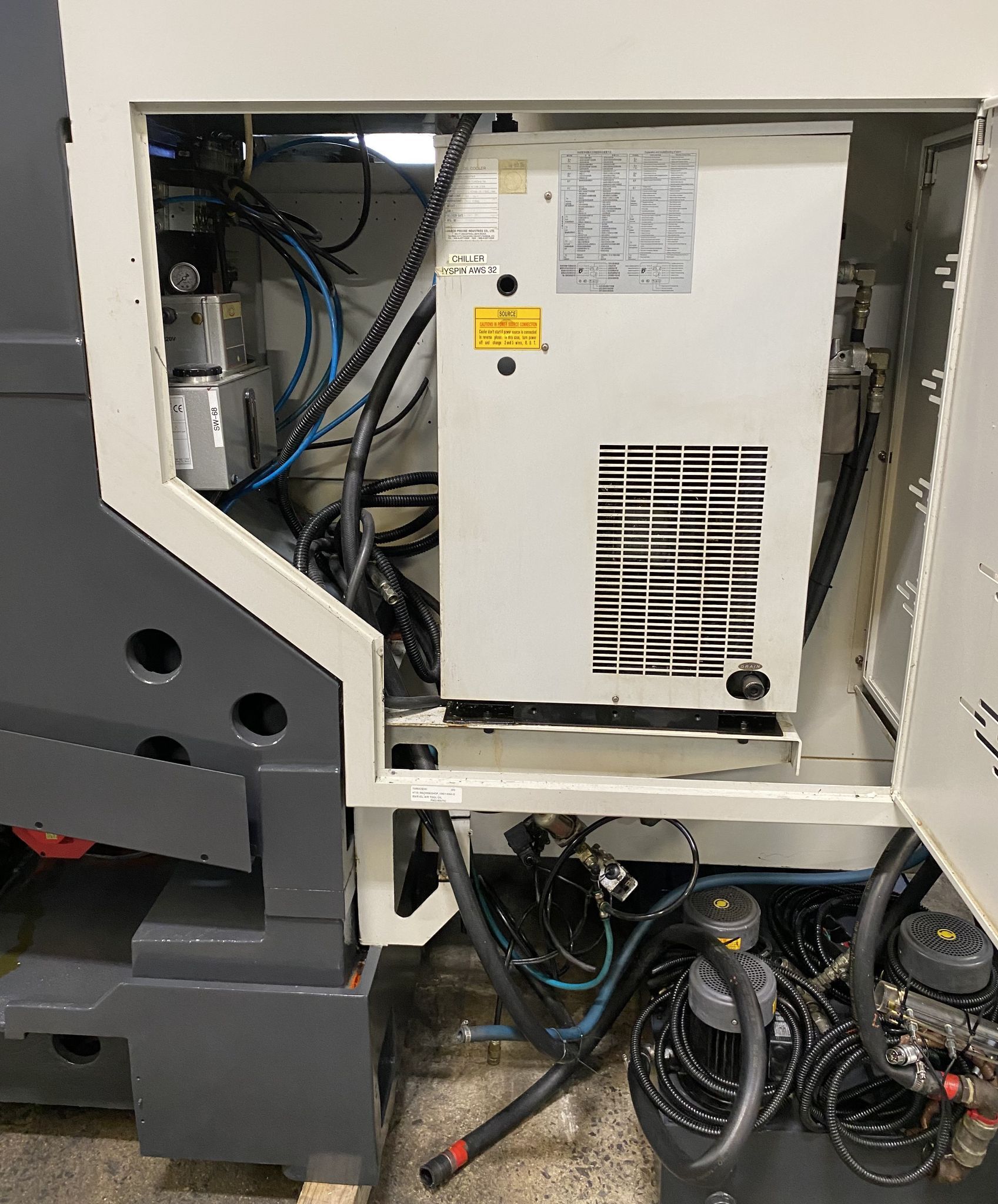

| Spindle Chiller Unit |

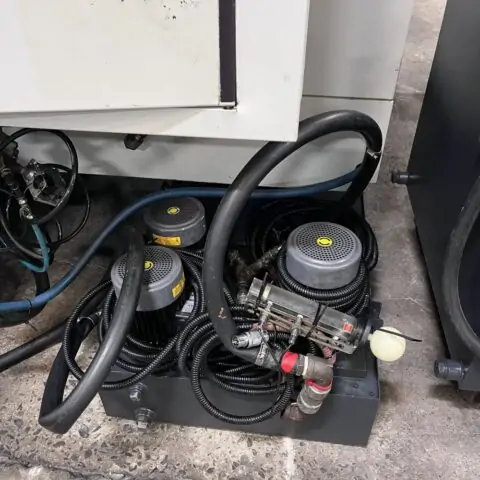

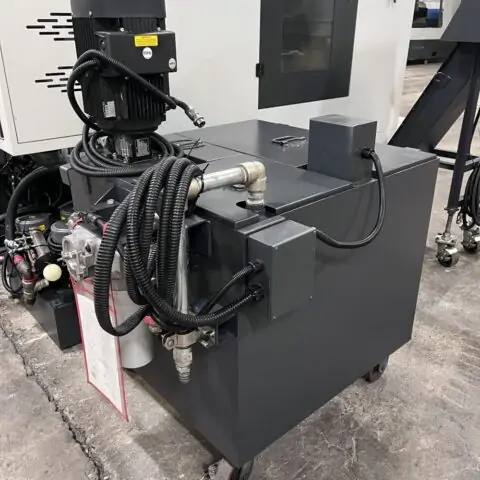

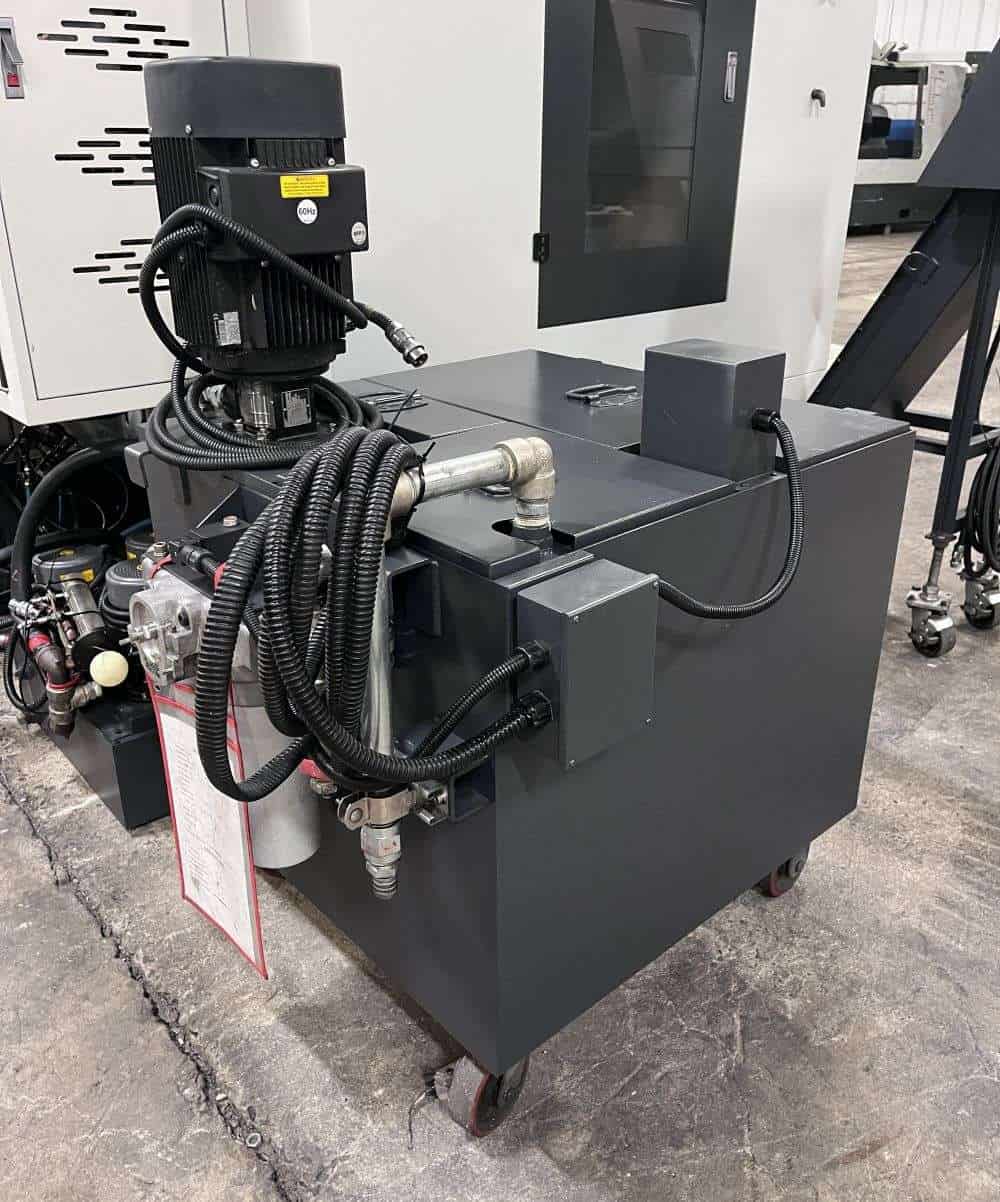

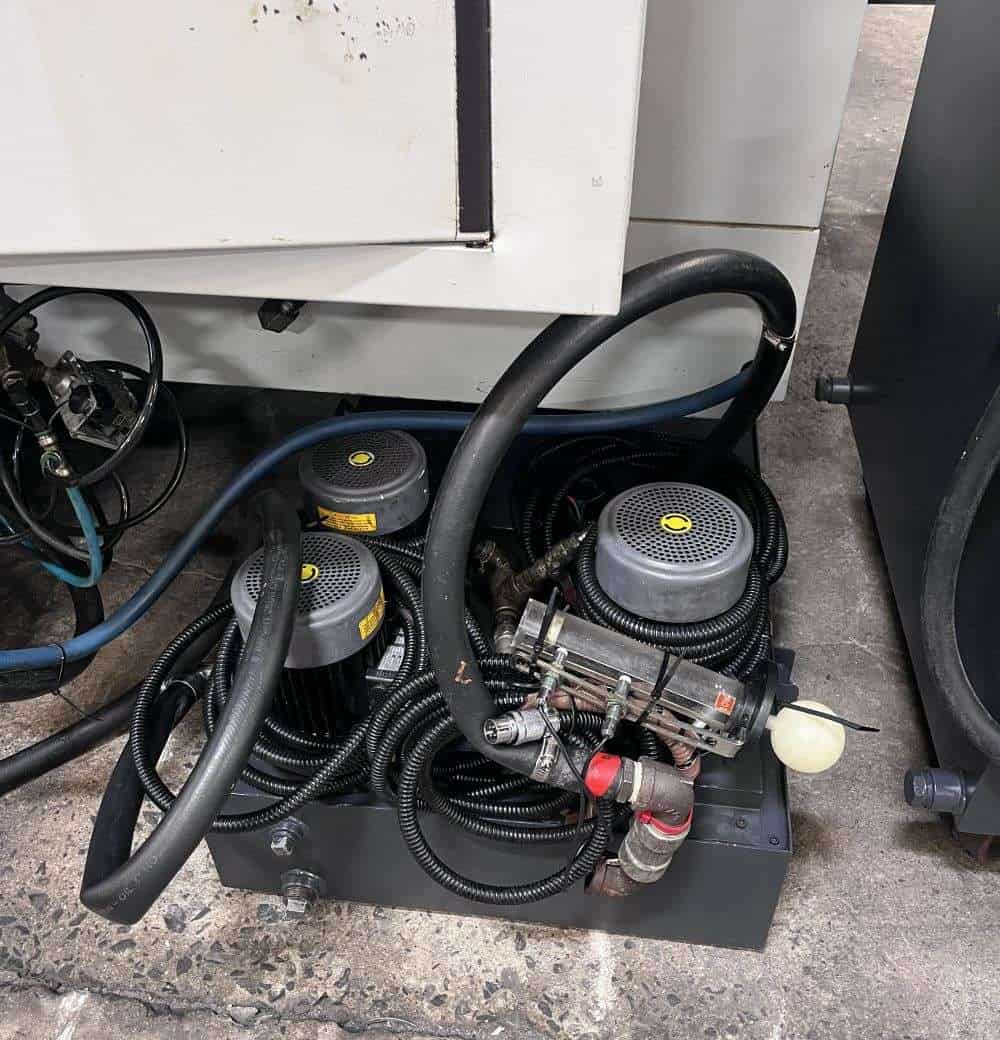

| Coolant System |

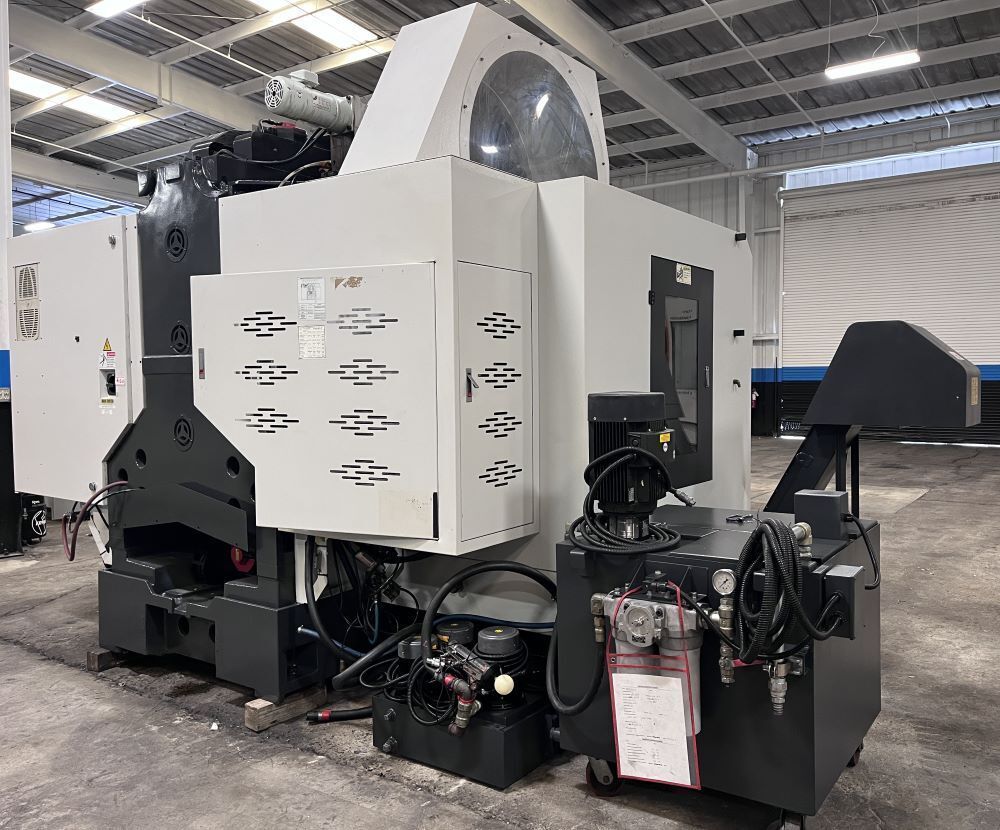

| Chip Conveyor |

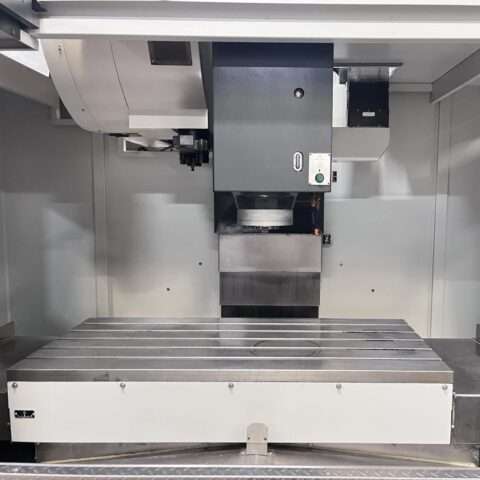

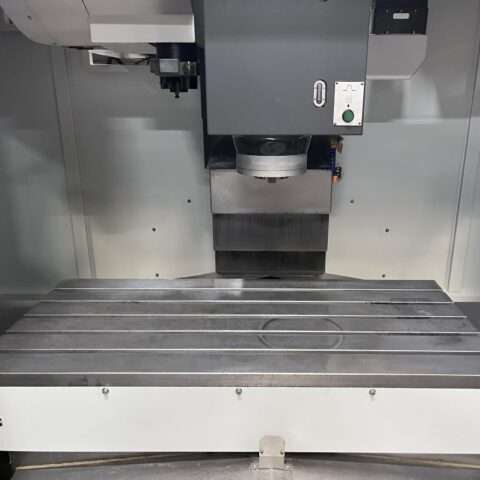

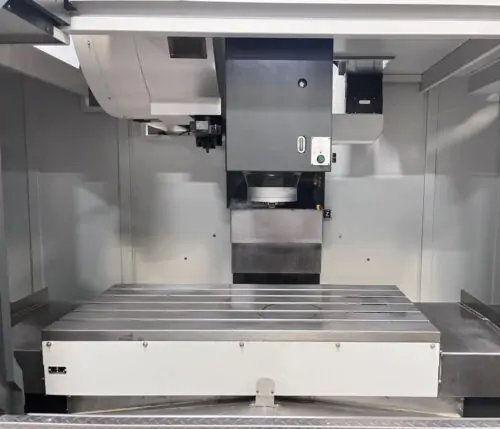

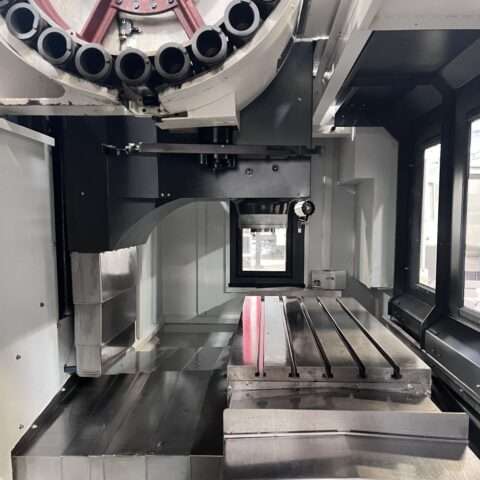

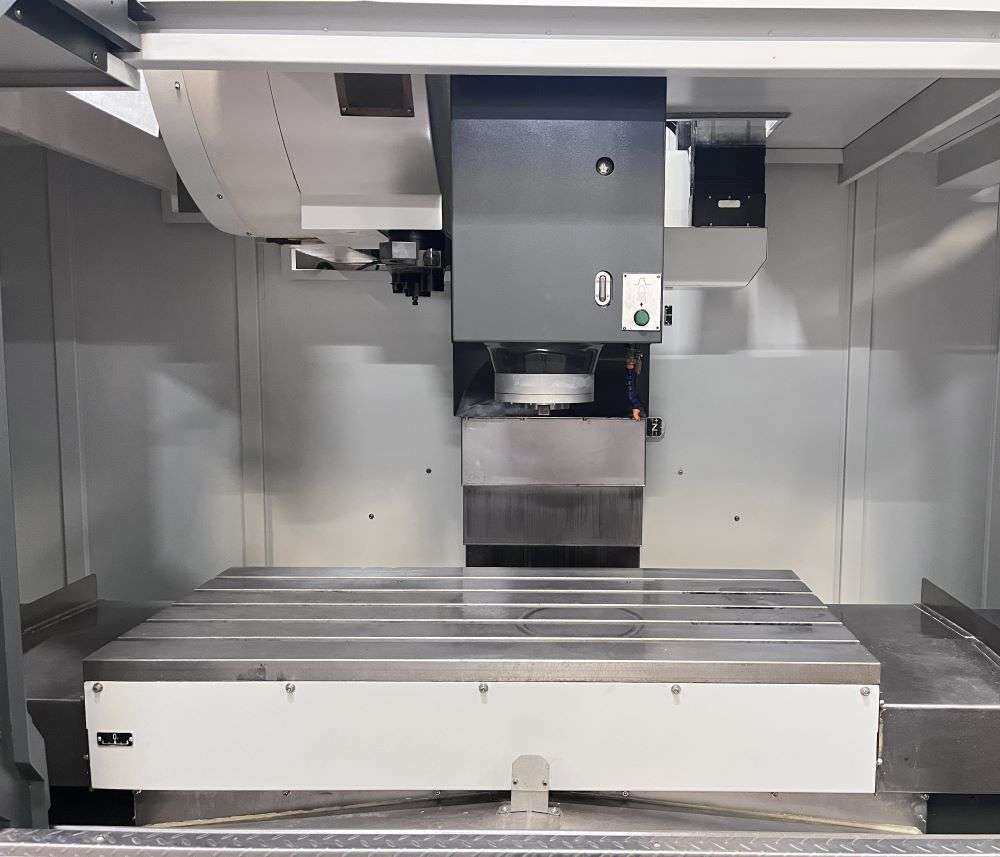

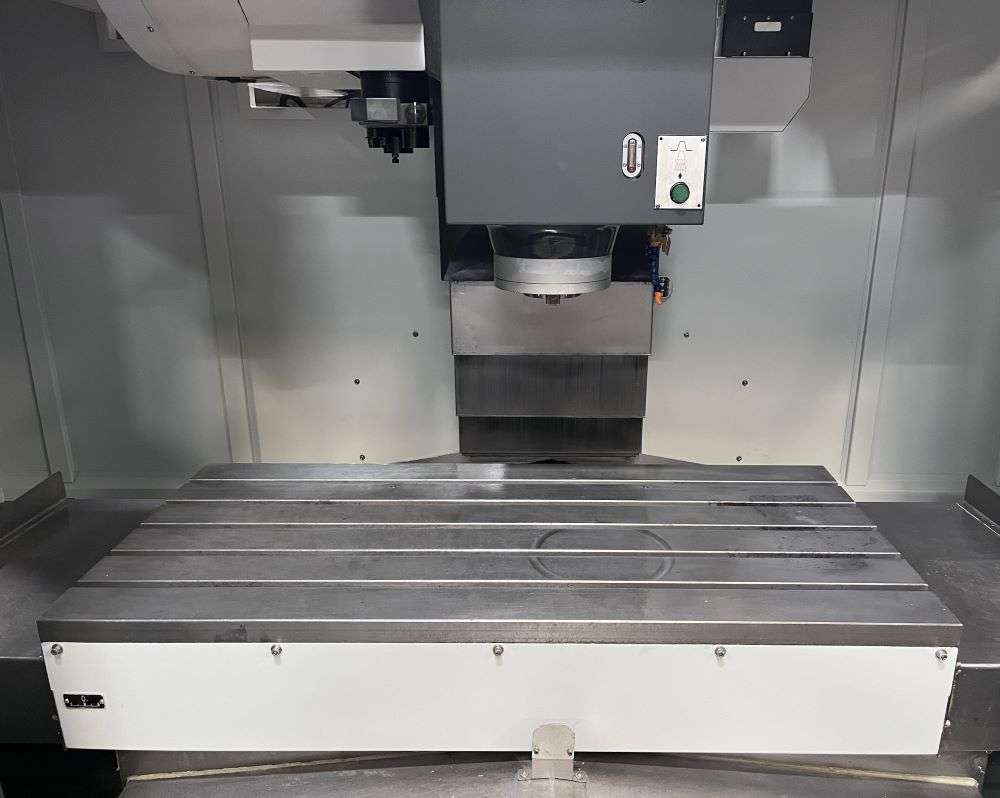

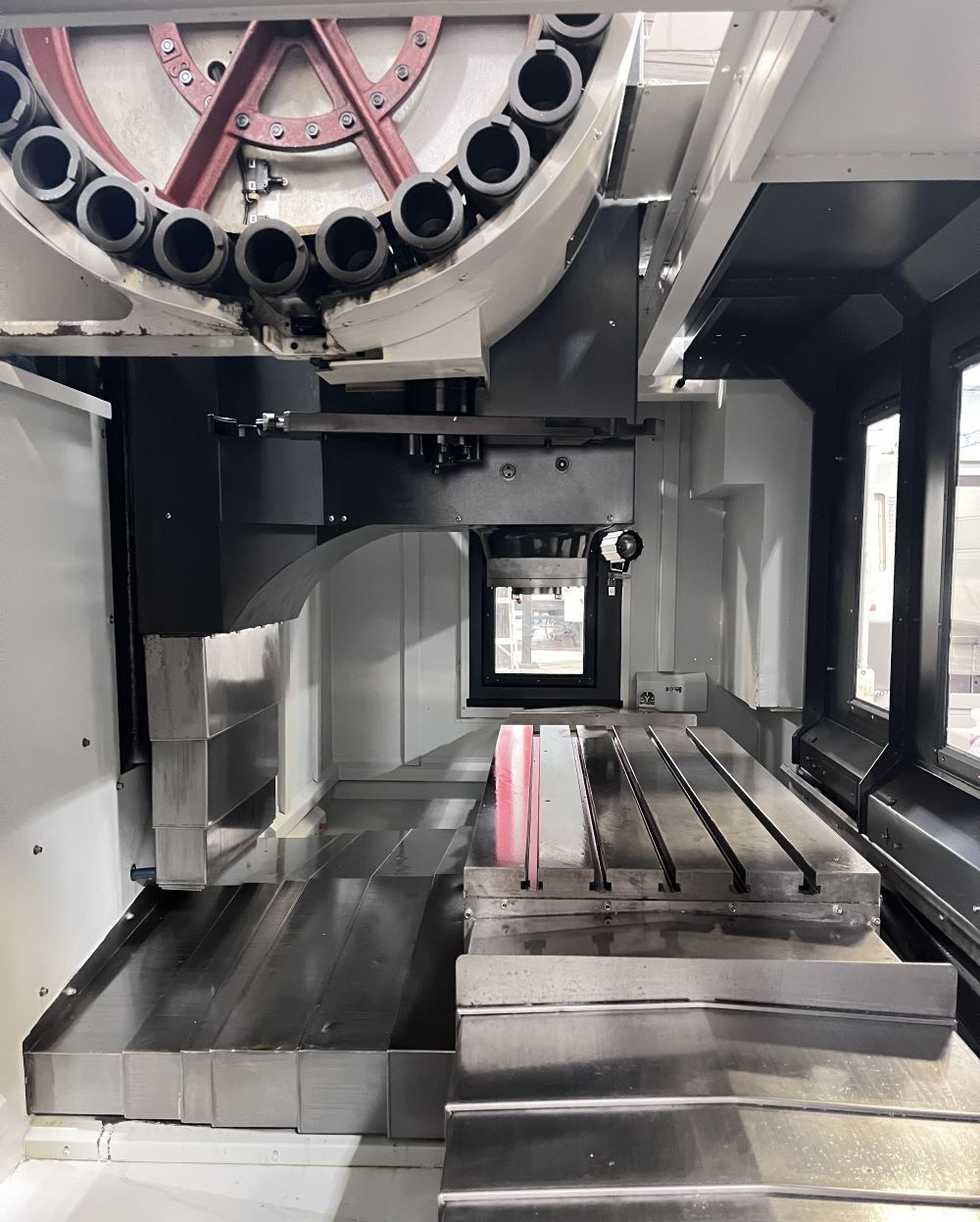

| Table: |
|---|
| Length: 51.2″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2650 lbs |
| Travel: |
|---|
| X-Axis: 47.2″ |
| Y-Axis: 23.6″ |
| Z-Axis: 23.6″ |
| Rapid Traverse Rates: 945 Inch Per Minute |
| Cutting Feed Rates: 788 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″ |

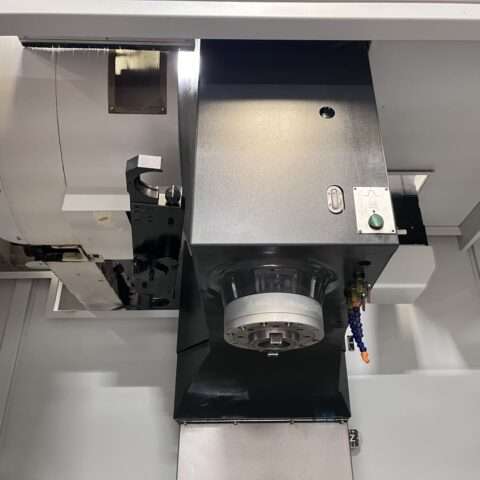

| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 6000 RPM |
| Spindle Power: 25 HP |

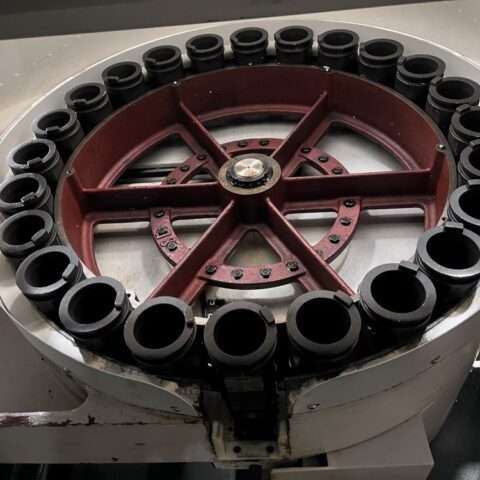

| Tool changer: |
|---|
| Capacity: 24 Station |
| Max Tool Weight: 33 lbs |
| Max Tool Dia: 7.8″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 2.7 Seconds |
| General: |
|---|
| Air Required: 85 psi, 6 scfm |

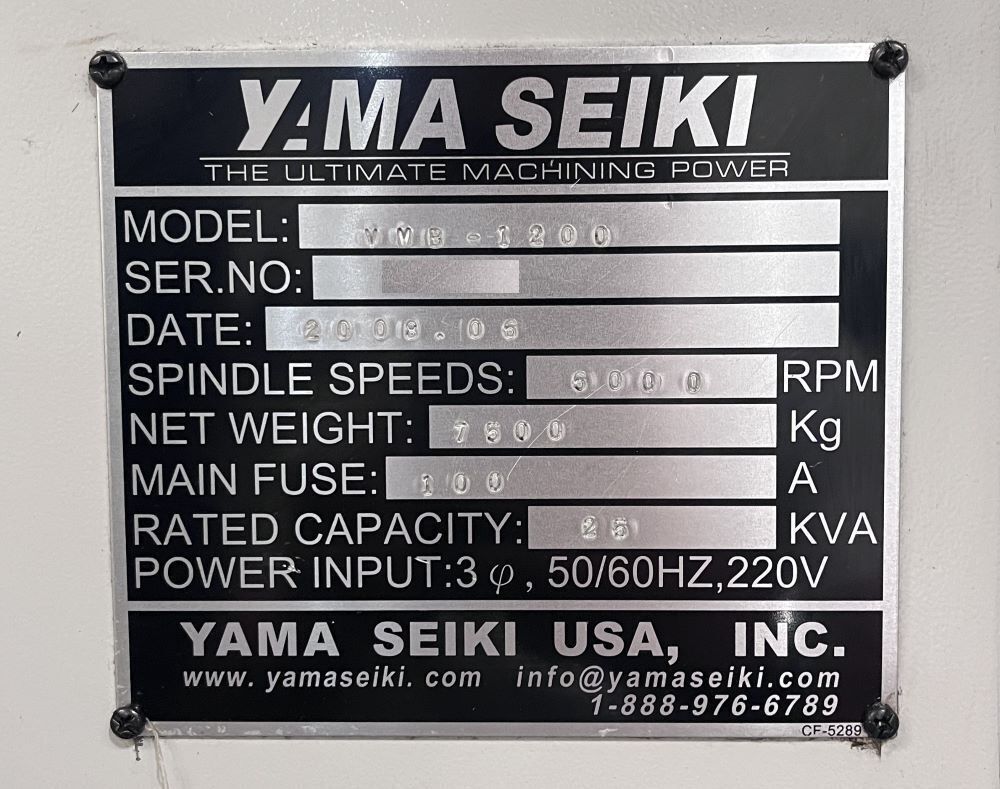

| Power: 220v / 66FLA / 3-Phase / 25 kva |
| Overall Dimensions: 134″ x 98″ and 110″ |
| Weight: 16,500 lbs |
