*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

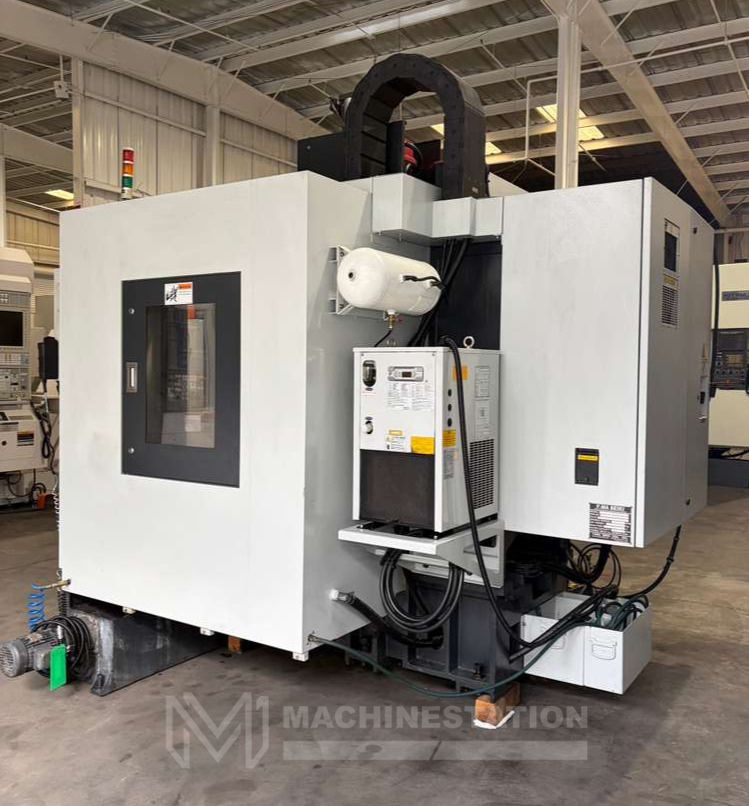

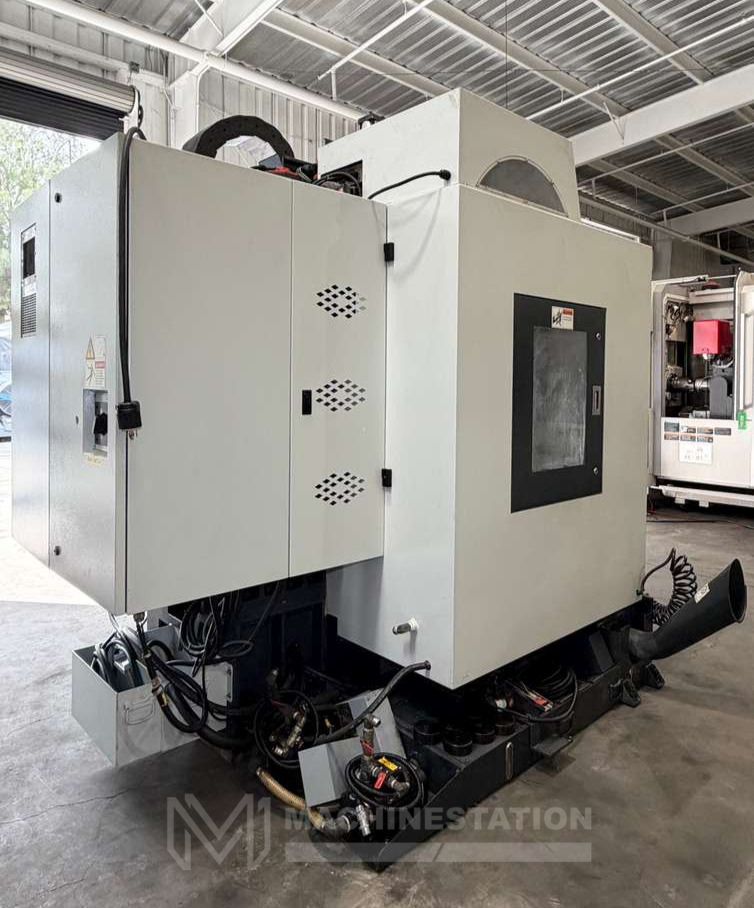

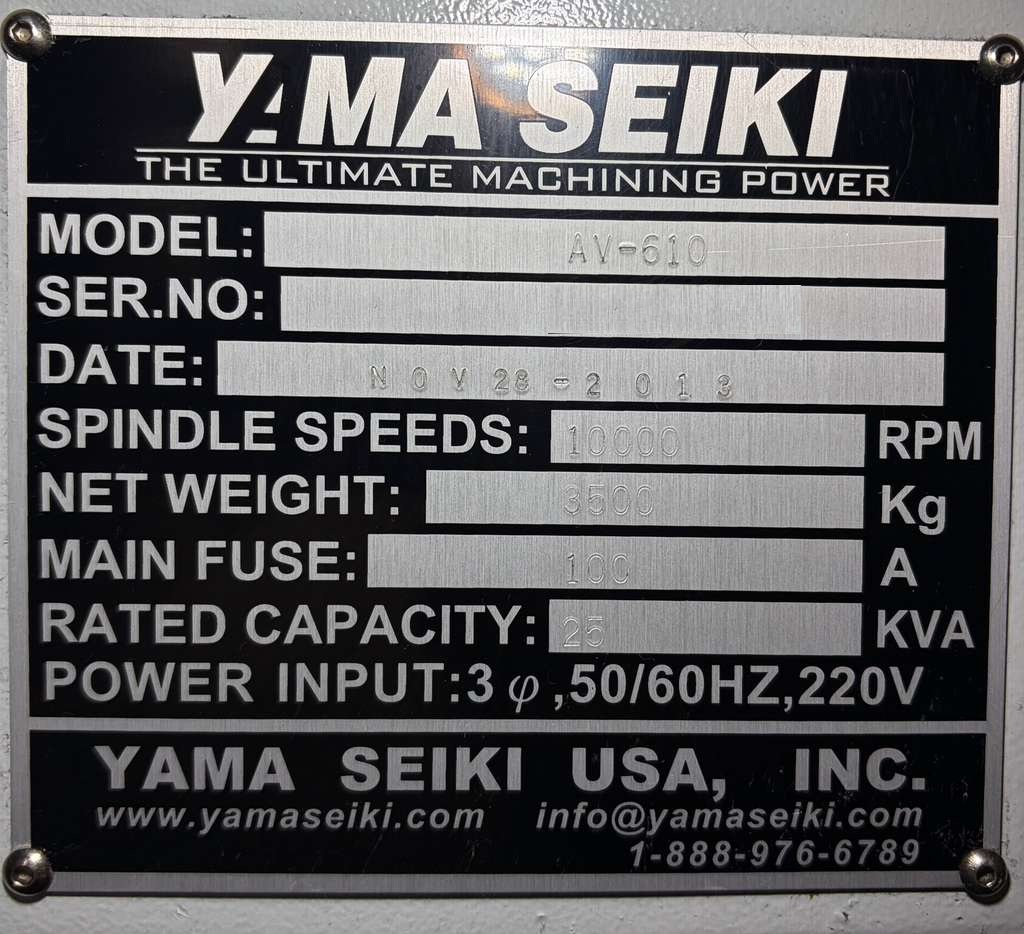

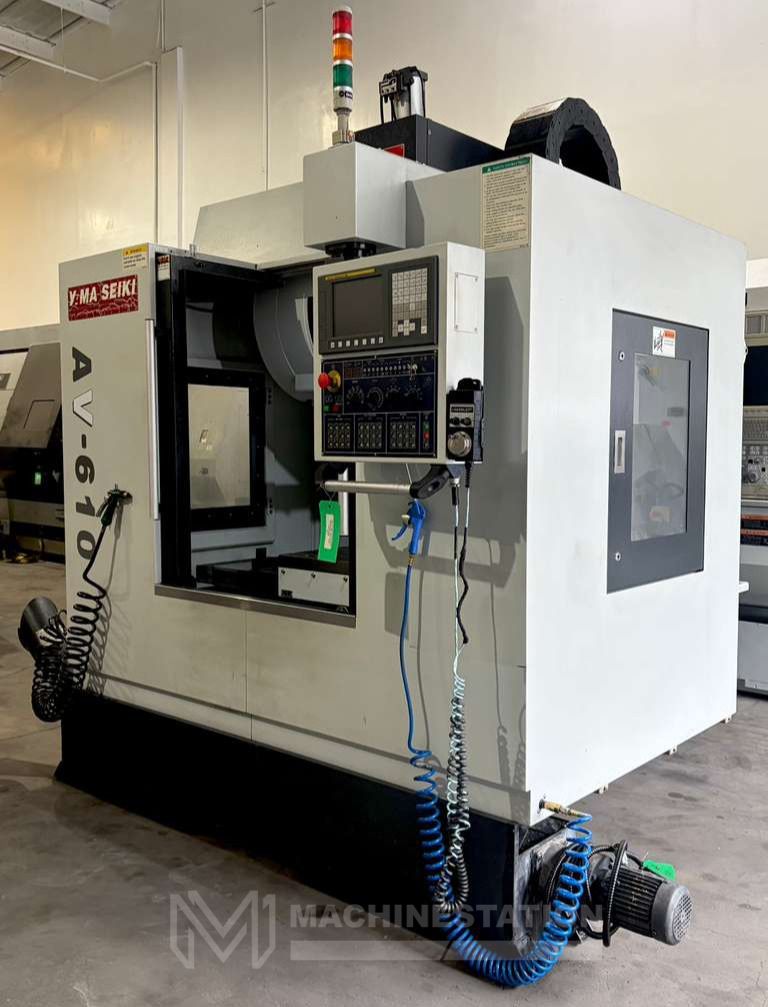

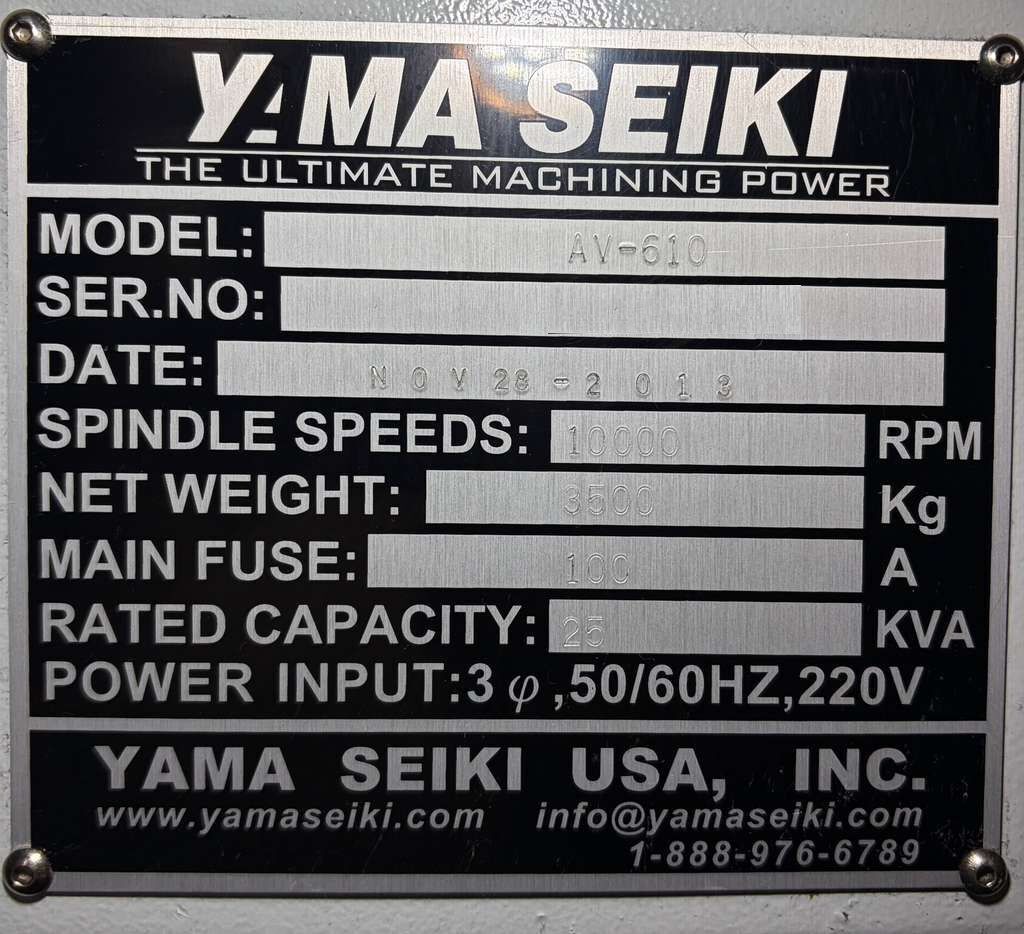

| Make: | Yama Seiki |
| Model: | AV-610 |
| Year: | 2013 (Sold and Installed in 2014) |
| Features: |
|---|

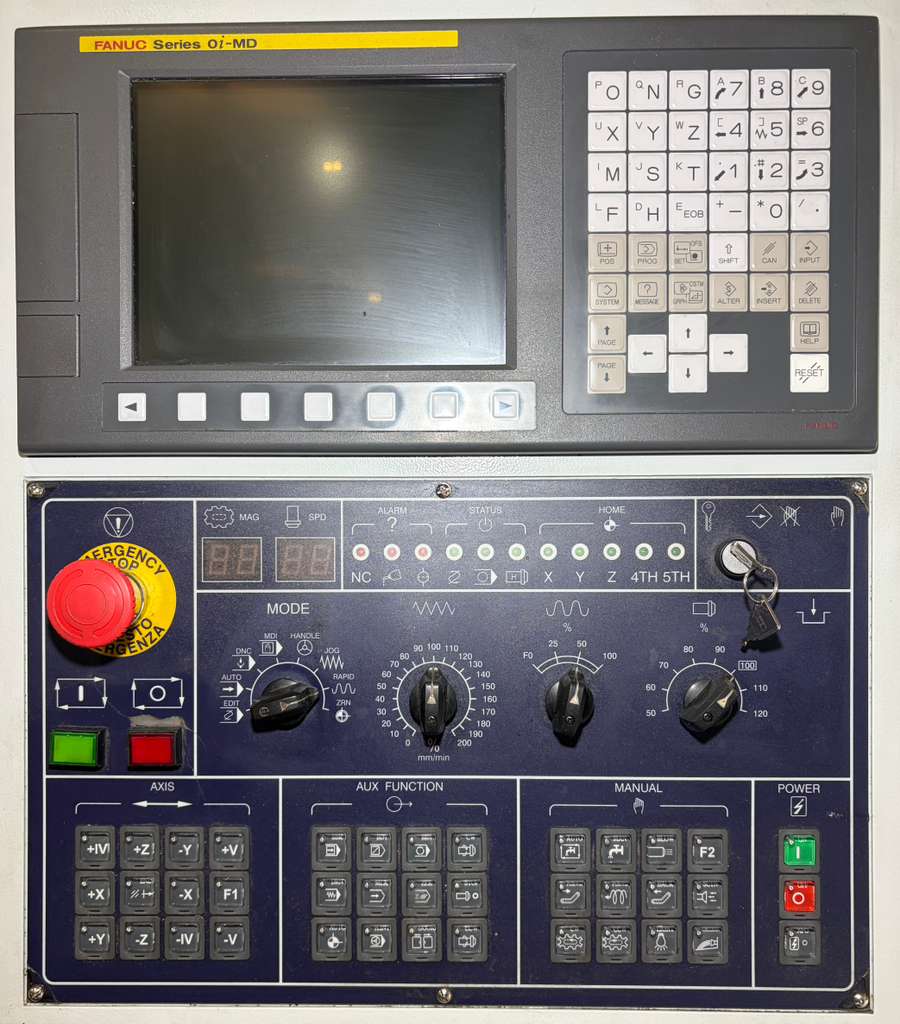

| Fanuc Oi-MD CNC Control |
| Linear Ways Construction |
| 10,000 RPM High Speed Spindle |
| 24 Station Automatic Tool Changer |
| Spindle Chiller Unit |
| MPG Handwheel Control |
| USB Port & PCMCIA Card Slot |
| Telescopic way covers |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 24.02″ |
| Y-Axis: 17.7″ |
| Z-Axis: 17.7″ |
| Rapid Traverse Rates X & Y Axis: 1245 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 960 Inch Per Minute |
| Cutting Feed Rates: 394 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 23.6″ |

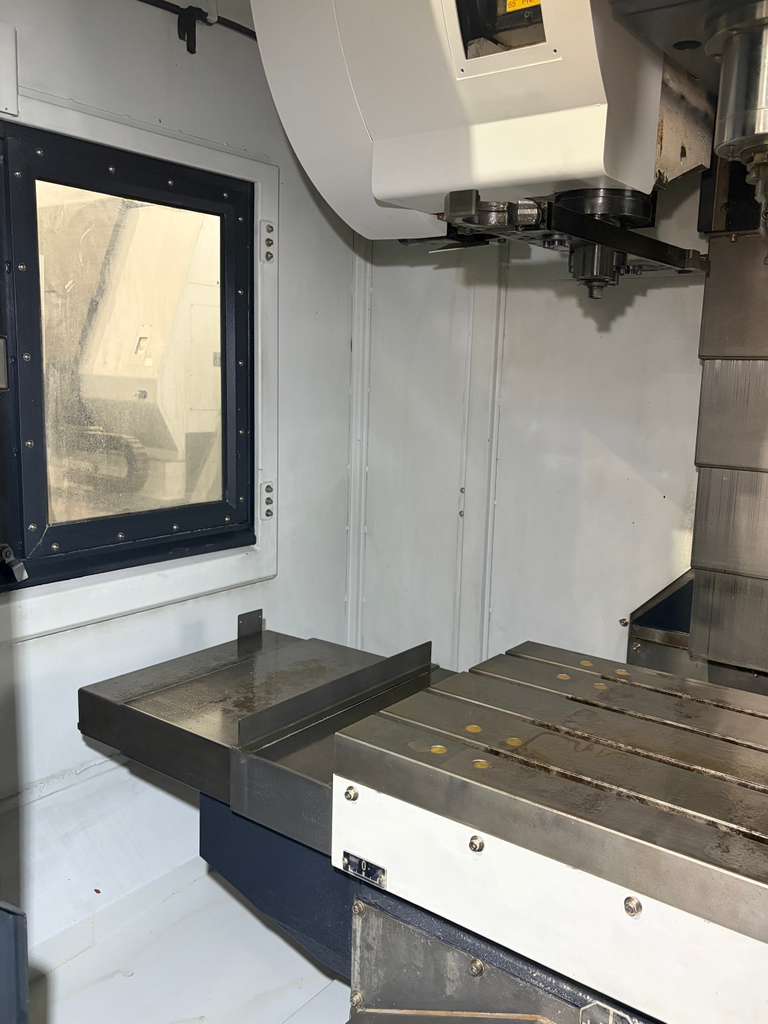

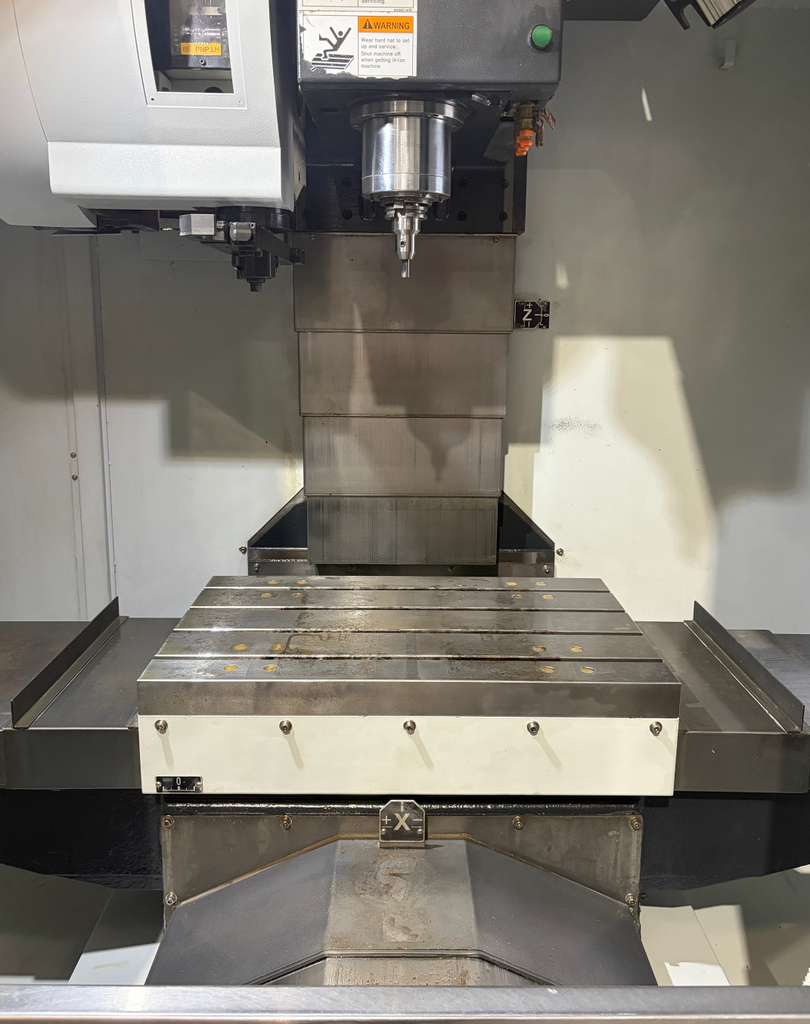

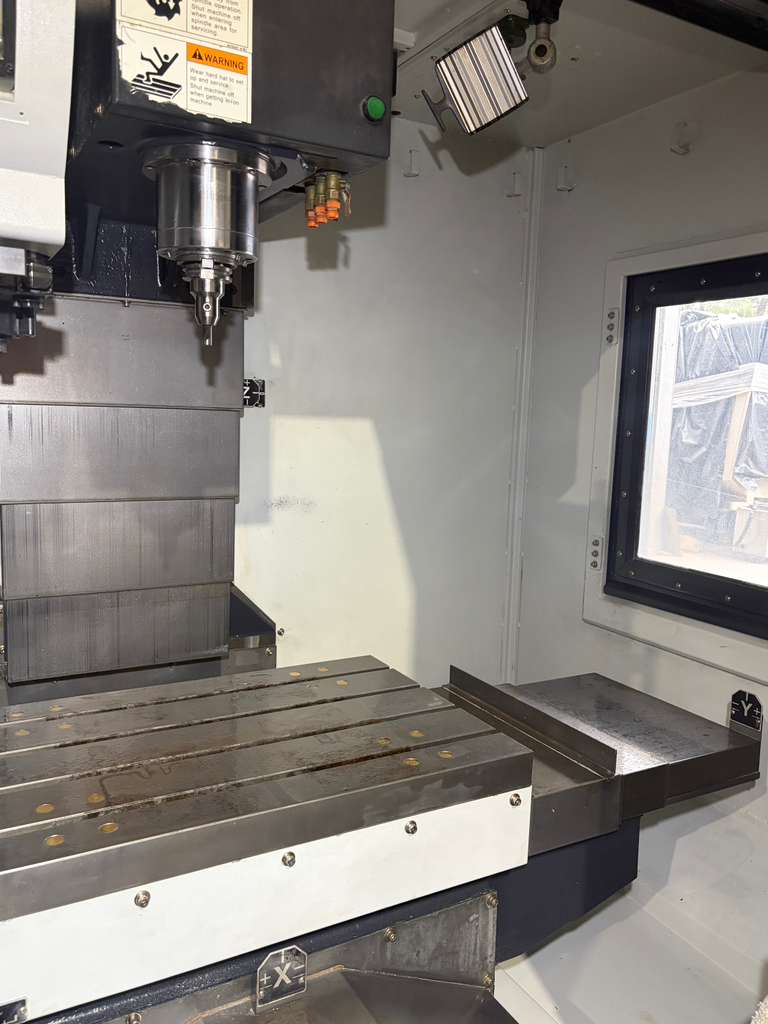

| Table: |
|---|
| Length: 27.5″ |
| Width: 17.71″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 990 lbs |

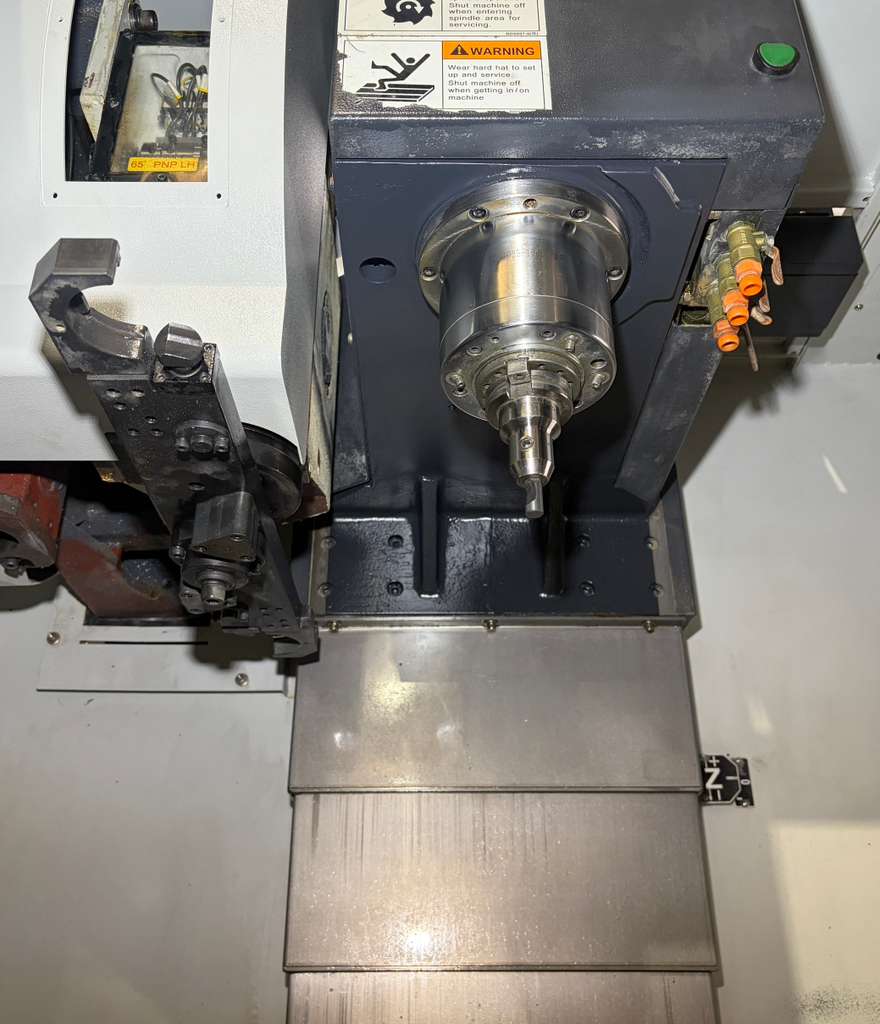

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 15.4 lbs |
| Max Tool Dia: 3.14″ – 5.91″ |
| Max Tool Length: 11.8″ |
| General: |
|---|
| Air Required: 85 psi 6 scfm |
| Power: 220v / 50/60 Hz / 3-Phase / 20 kva |
| Overall Dimensions: 82″ x 48″ x 86″ High |
| Weight: 7,700 lbs |
