*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

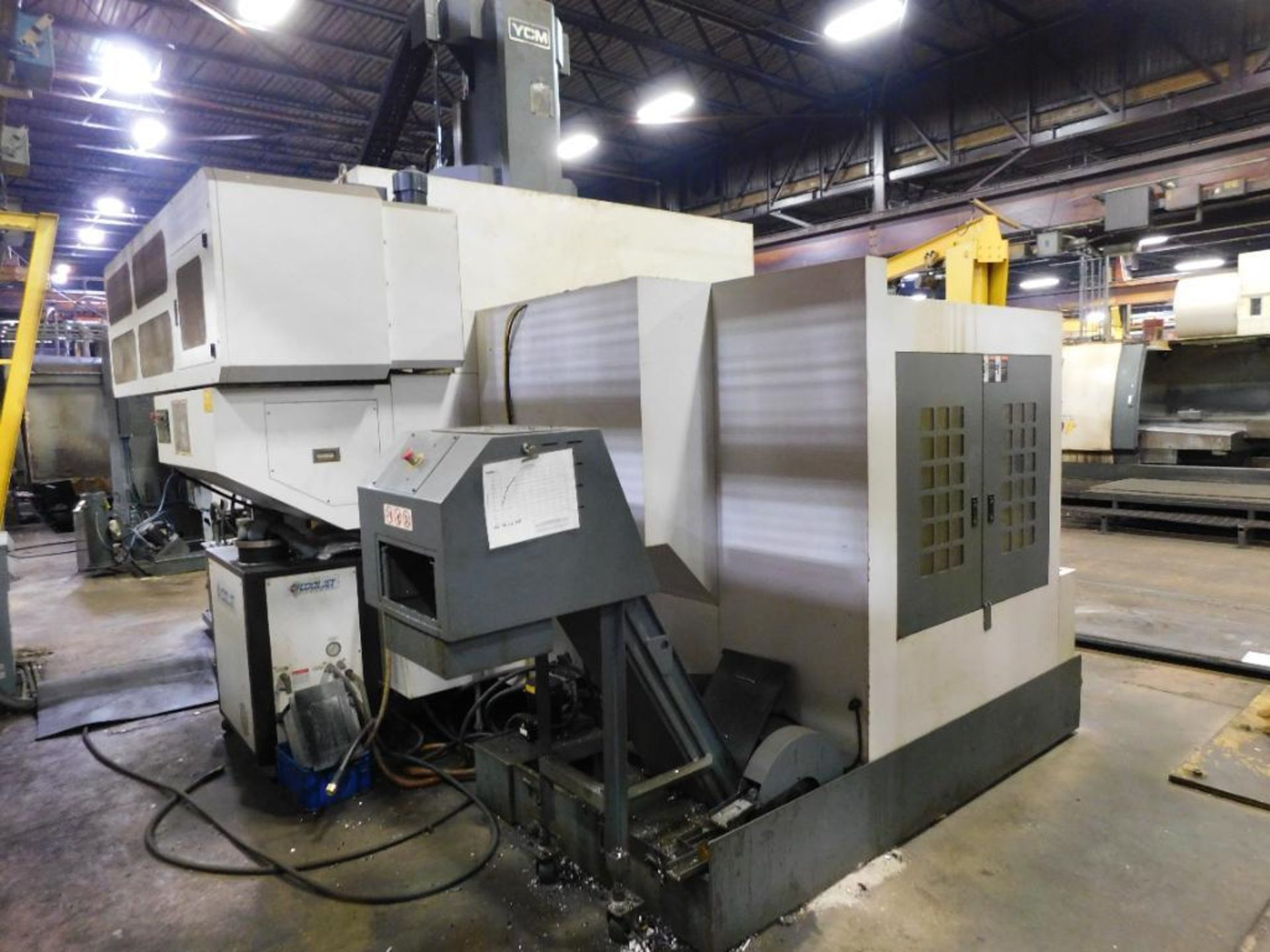

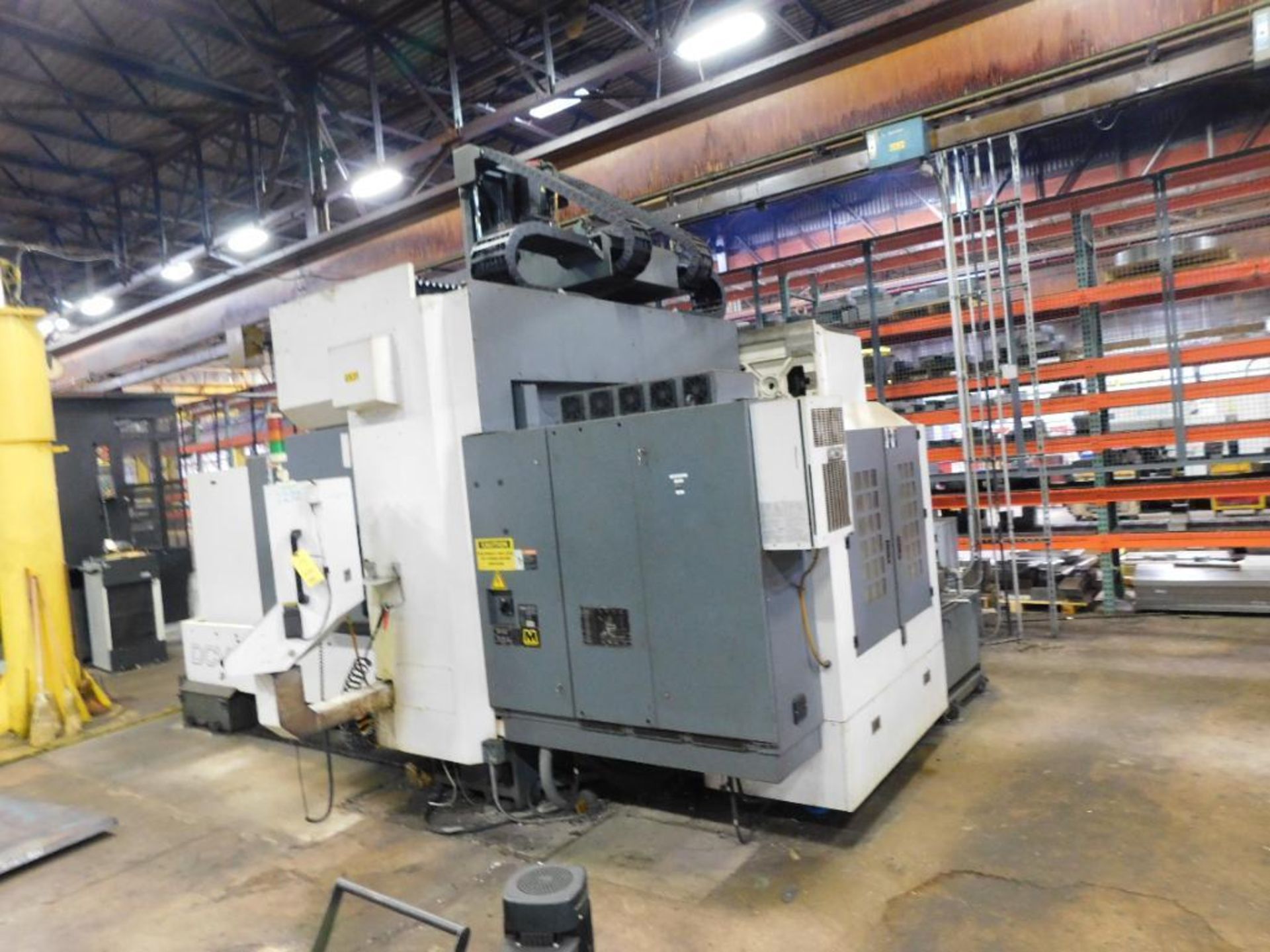

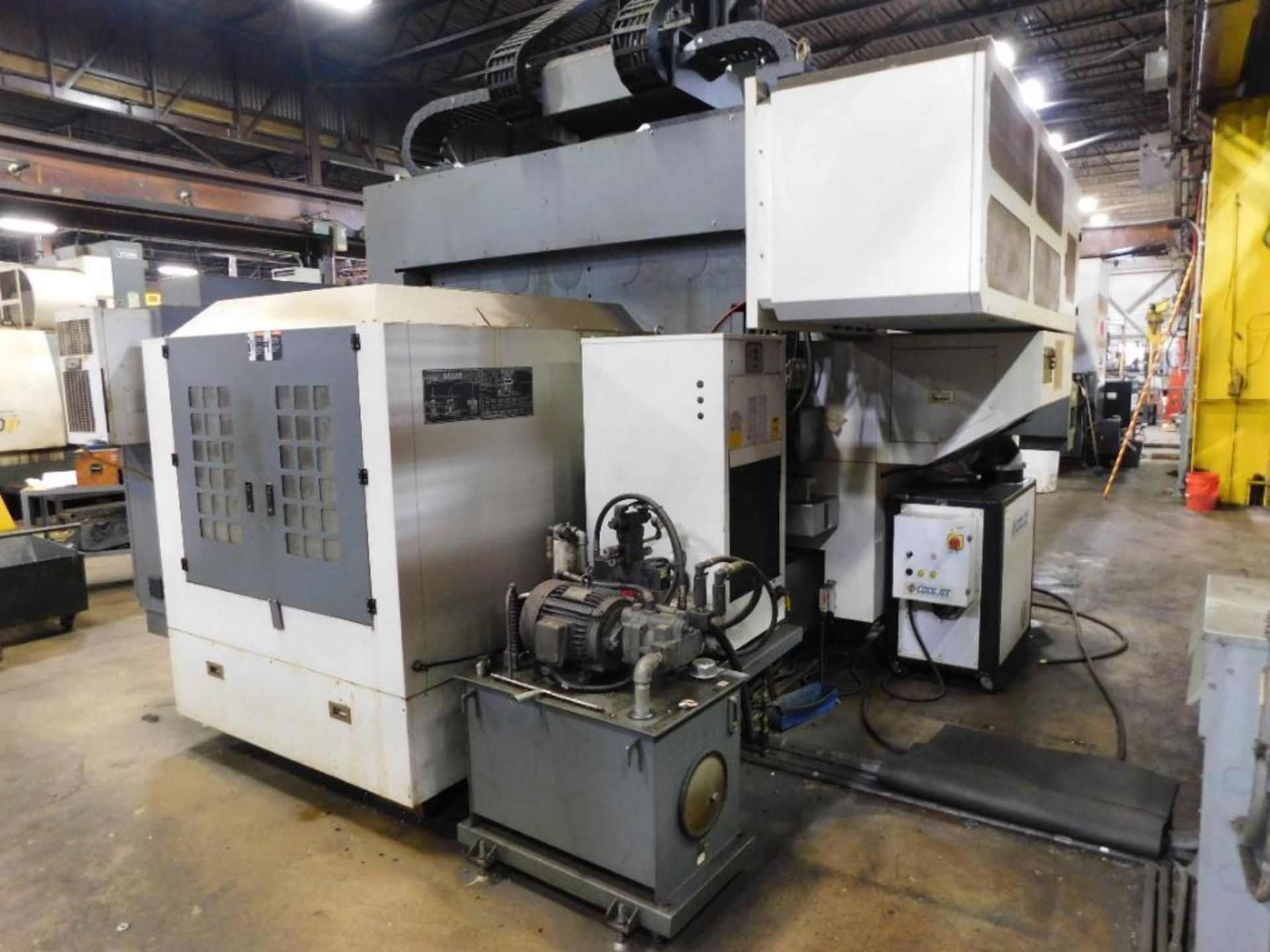

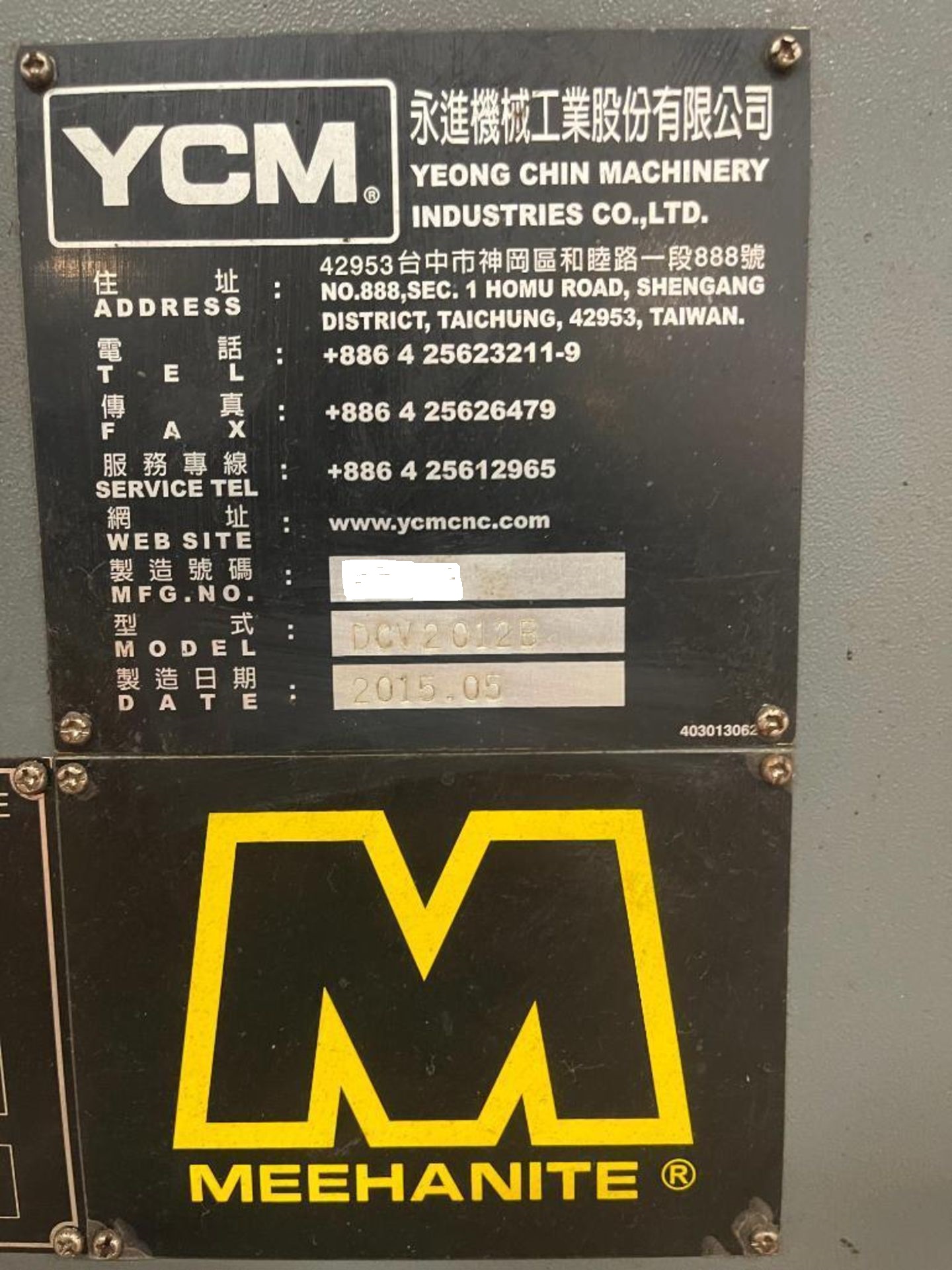

| Make: | YCM |
| Model: | DCV 2012B |
| Condition: | Used |
| Equipped With: |
|---|

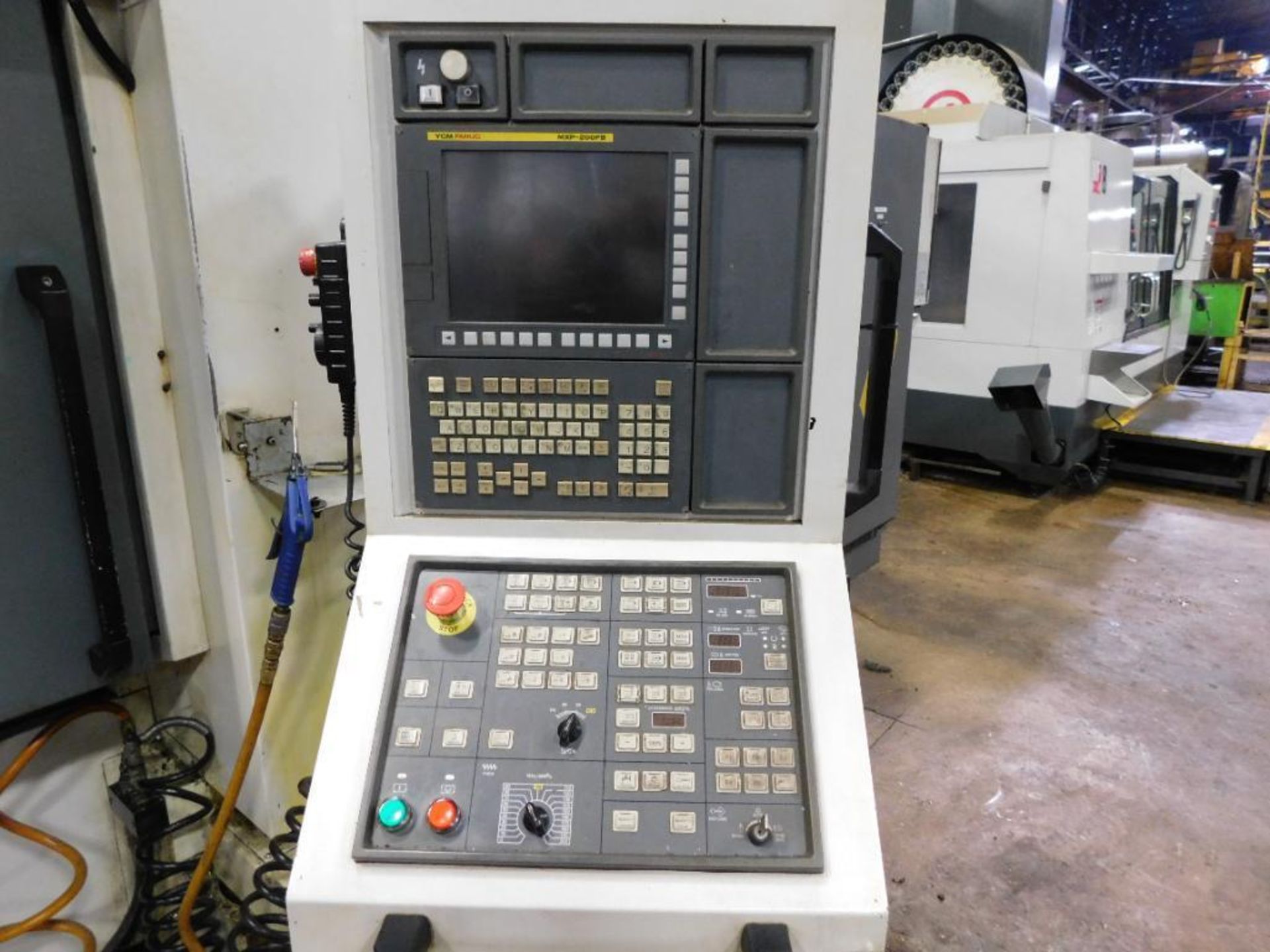

| Fanuc CNC Control |
| Double Column Bridge-Type Construction |
| Box Way Design |
| Automatic Tool Changer |
| Flood Coolant System |
| Automatic Lubrication System |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 78.7″ |
| Y-Axis Travel: 47.2″ |
| Z-Axis Travel: 31.5″ |
| Distance Between Columns: 55.1″ |
| Spindle Nose to Table: 7.9″ – 39.4″ |
| Table: |
|---|
| Table Size: 78.7″ × 47.2″ |
| Max Table Load: 11,000 lbs |
| Spindle: |
|---|
| Spindle Taper: CAT-50 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 30 HP |
| Gear-Driven Spindle |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 630 IPM |
| Cutting Feedrate: 0 – 394 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 32 Tools |
| Max Tool Diameter: 5.9″ |
| Max Tool Length: 19.7″ |
| Max Tool Weight: 44 lbs |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 236″ × 154″ × 150″ |
| Machine Weight (Approx.): 48,500 lbs |
