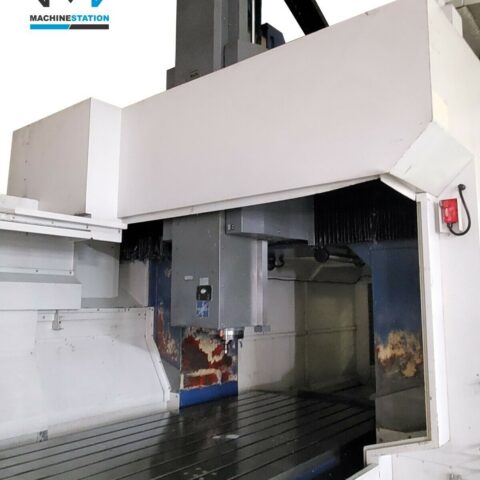

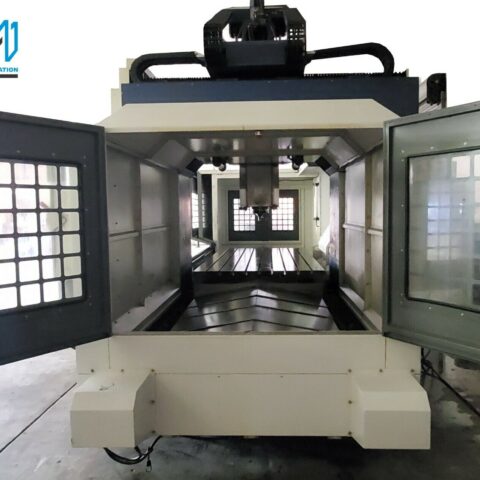

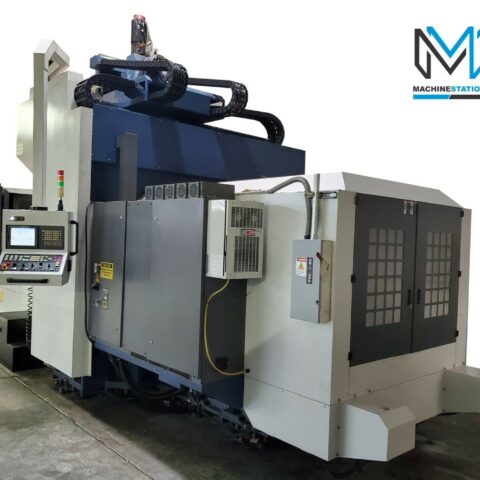

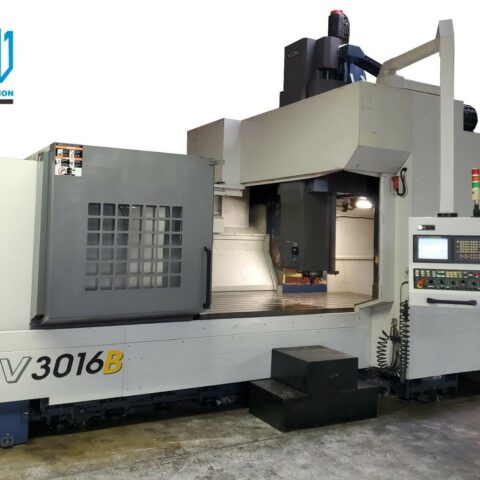

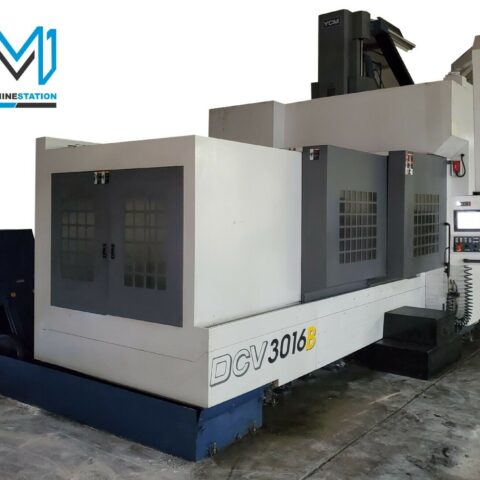

YCM DCV 3016B CNC Vertical Bridge Mill

Out of stock
SKU: 2191
Make/Model: YCM/DCV-3016B
Video: [fusion_button link=”https://www.youtube.com/watch?v=gwSQ0N7nyOs” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 2191

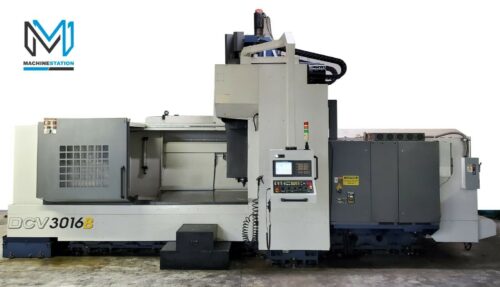

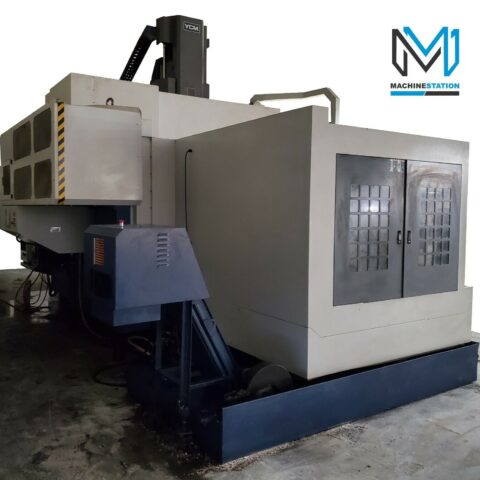

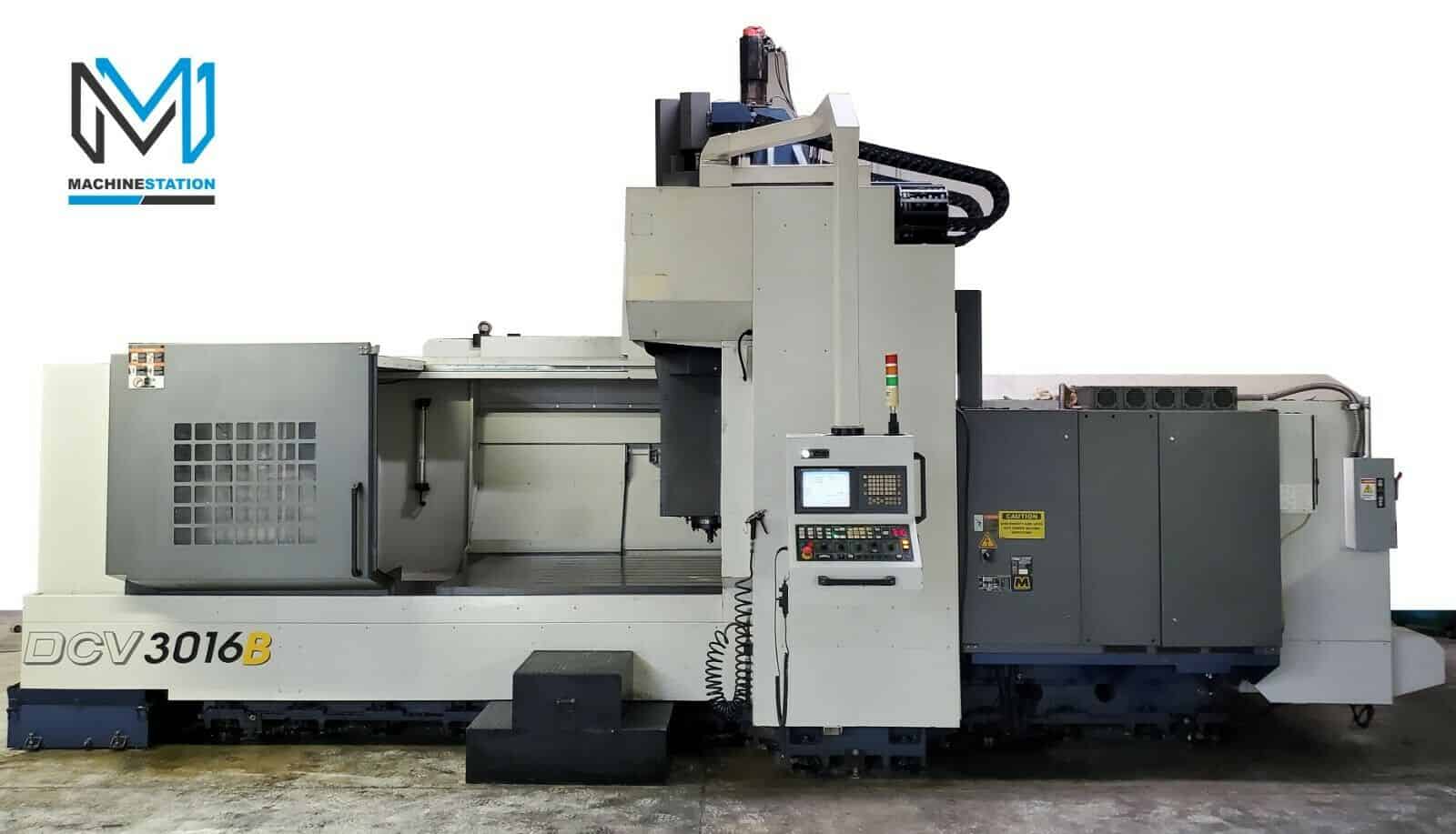

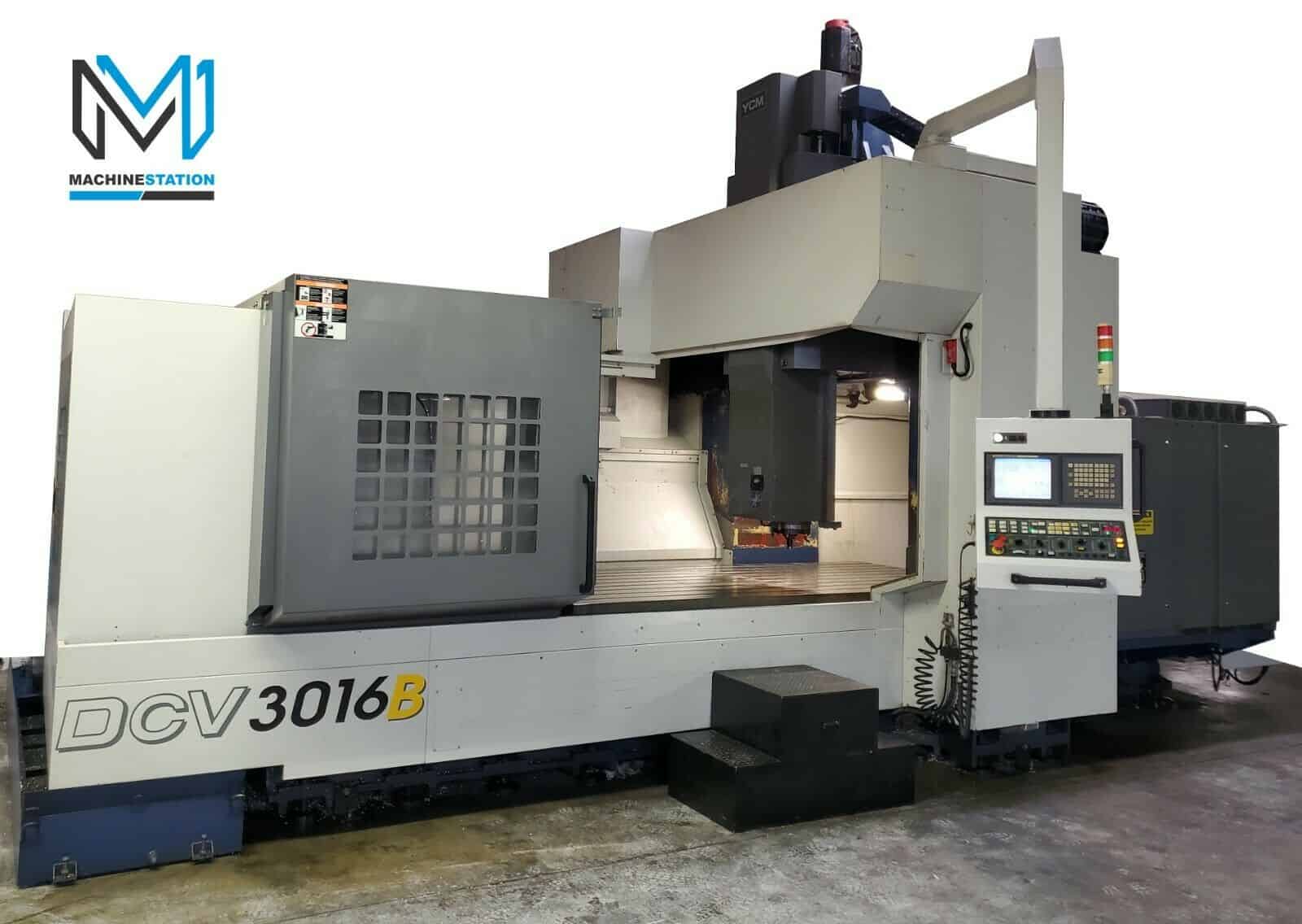

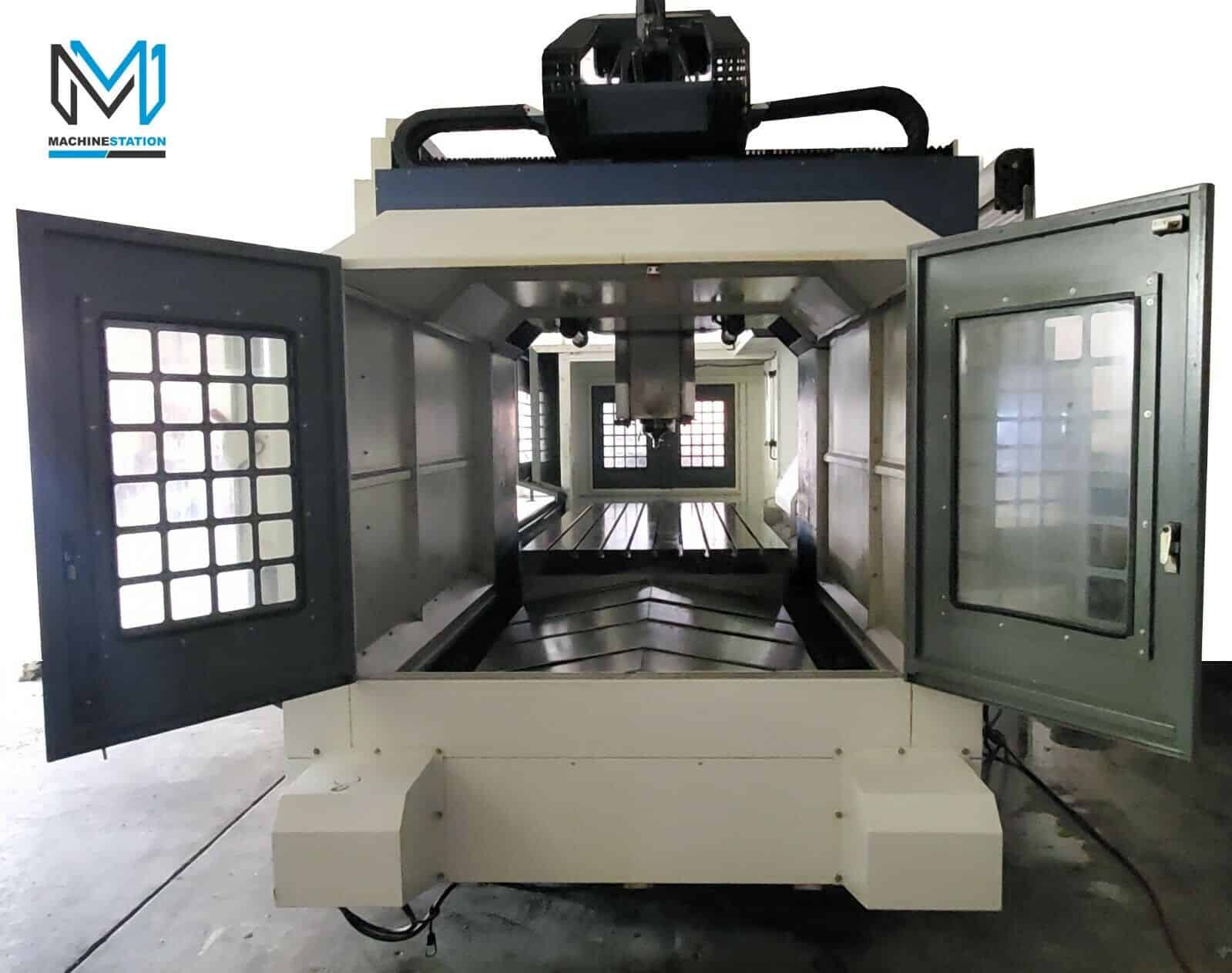

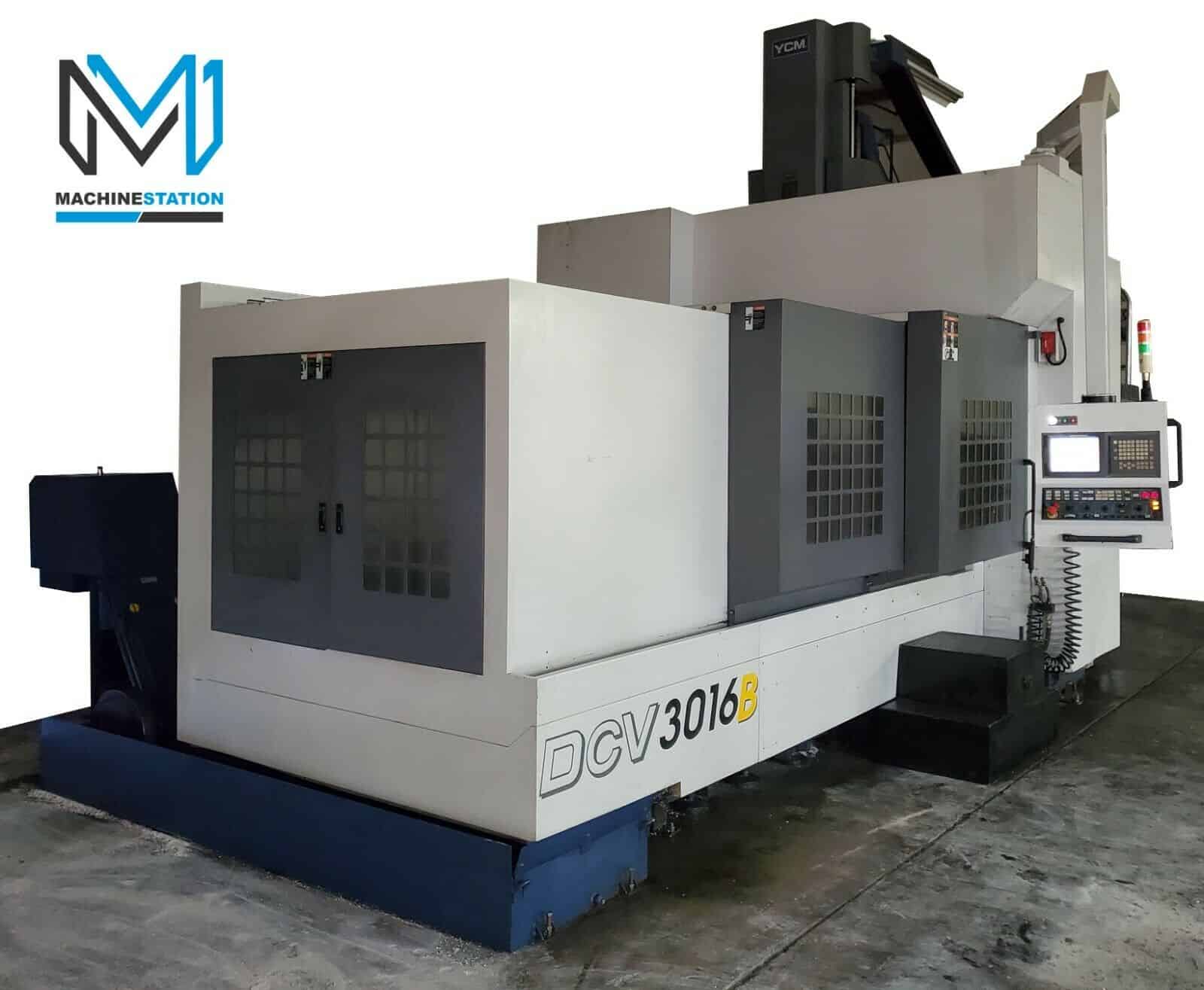

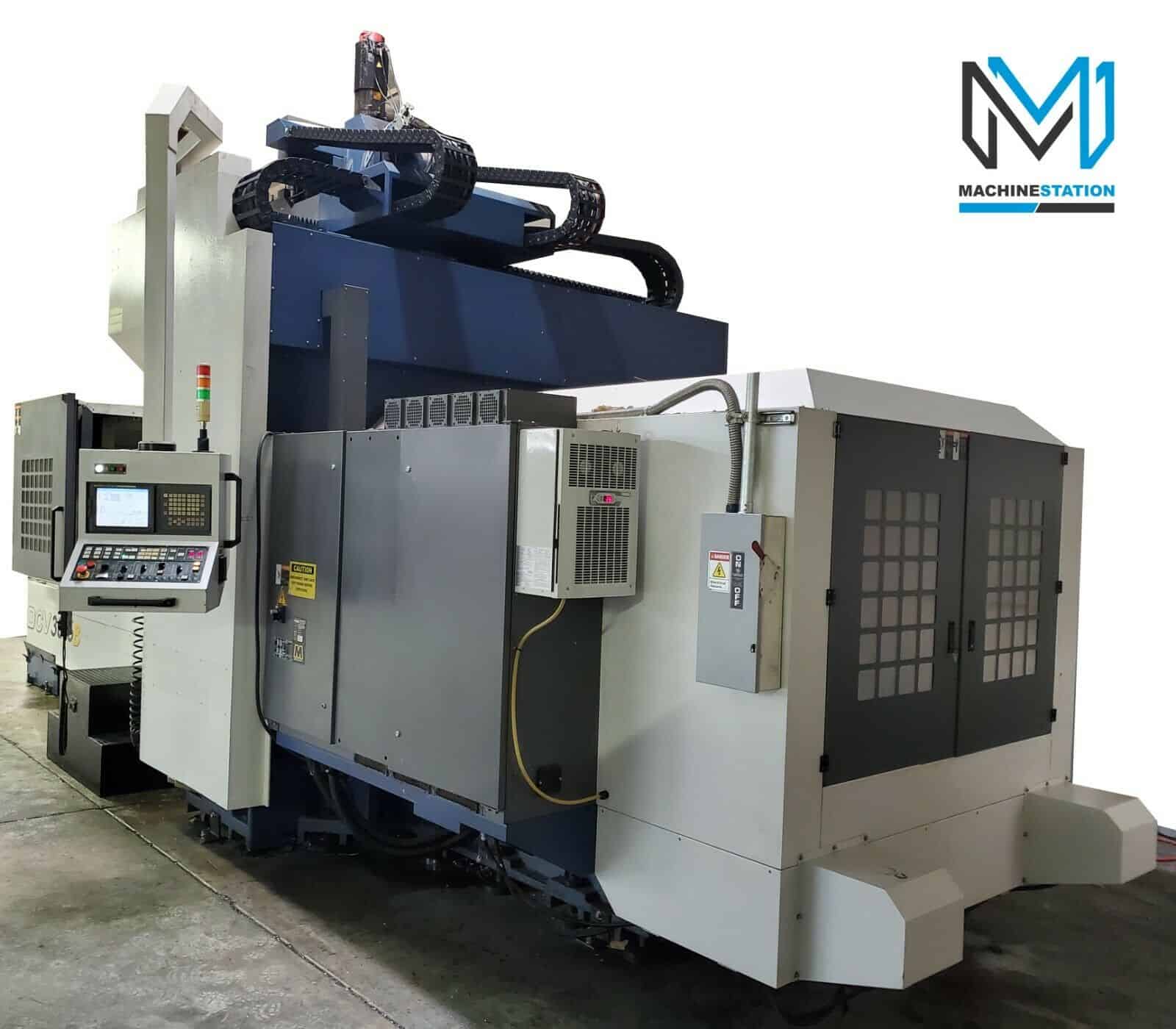

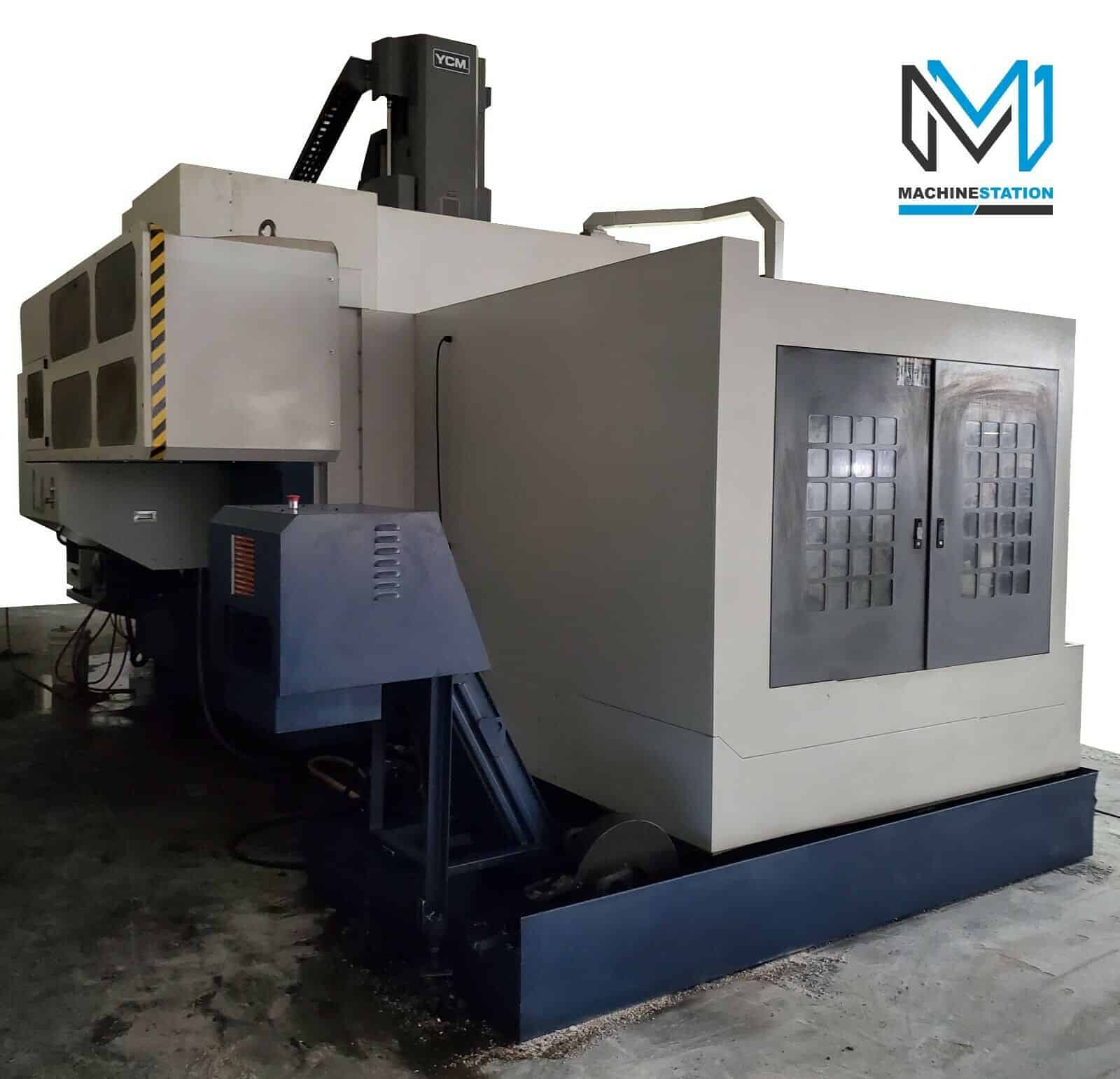

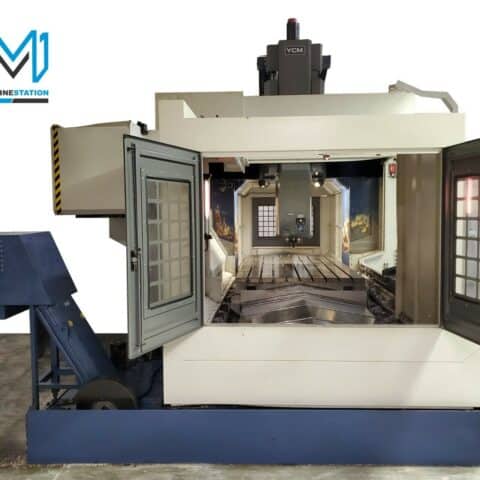

YCM DCV 3016B CNC VERTICAL BRIDGE MILL
SKU 2191
Make YCM
Model No. DCV-3016B
Year 2008 Installed 2010
Serial # 0040
Condition Very Good
Cutting Hours: 7999
  • Equipped With:

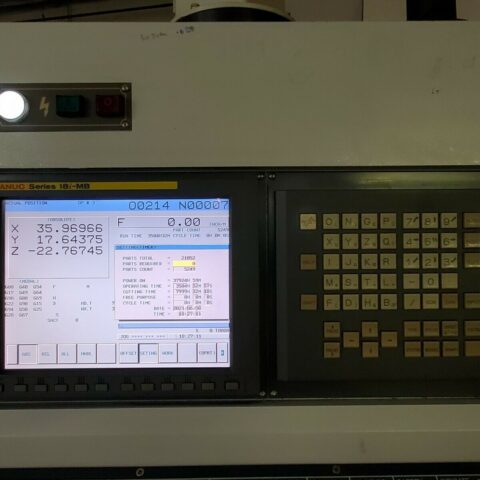

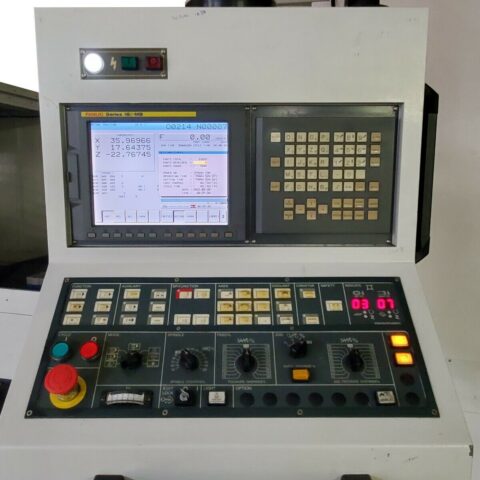

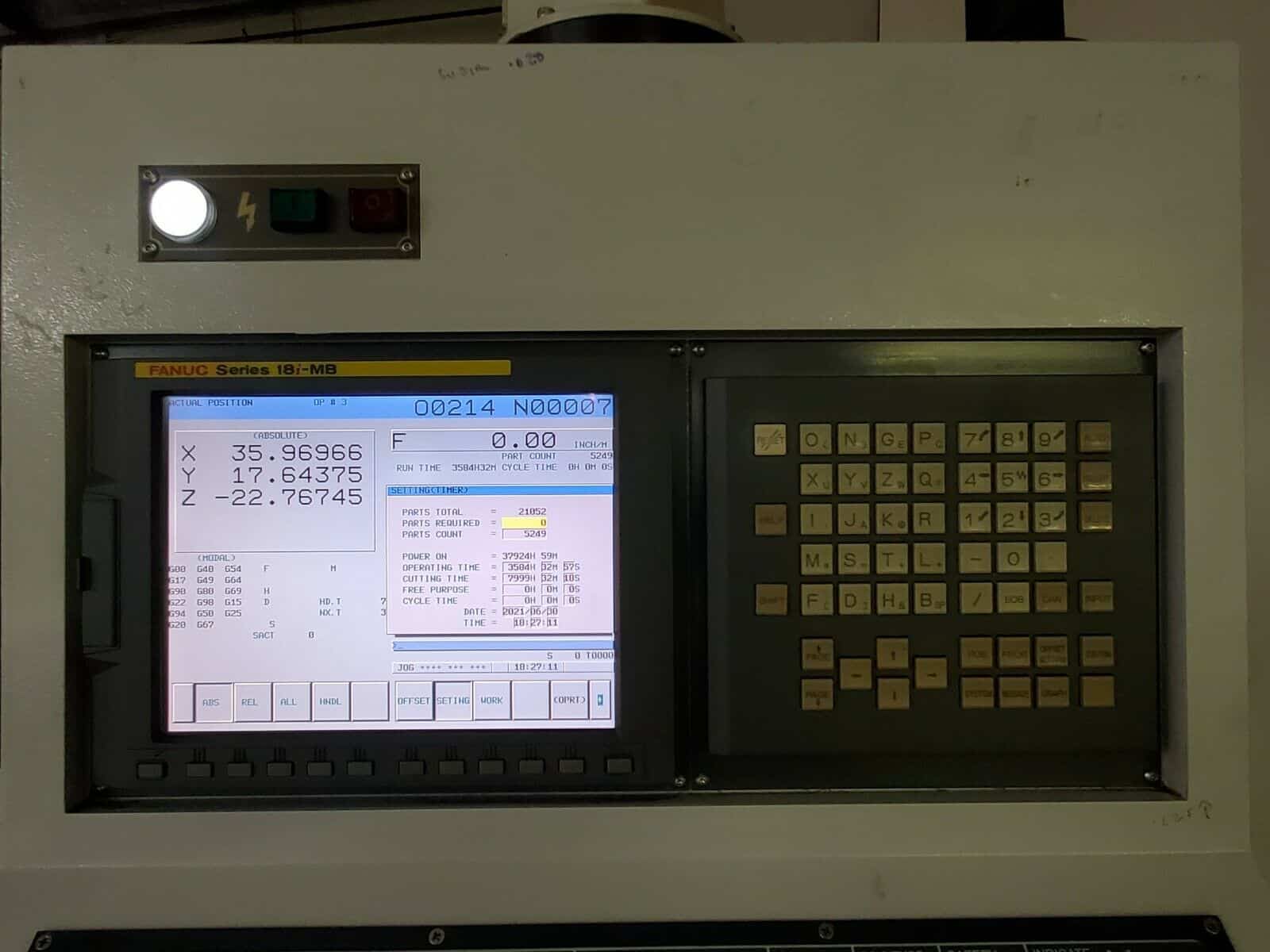

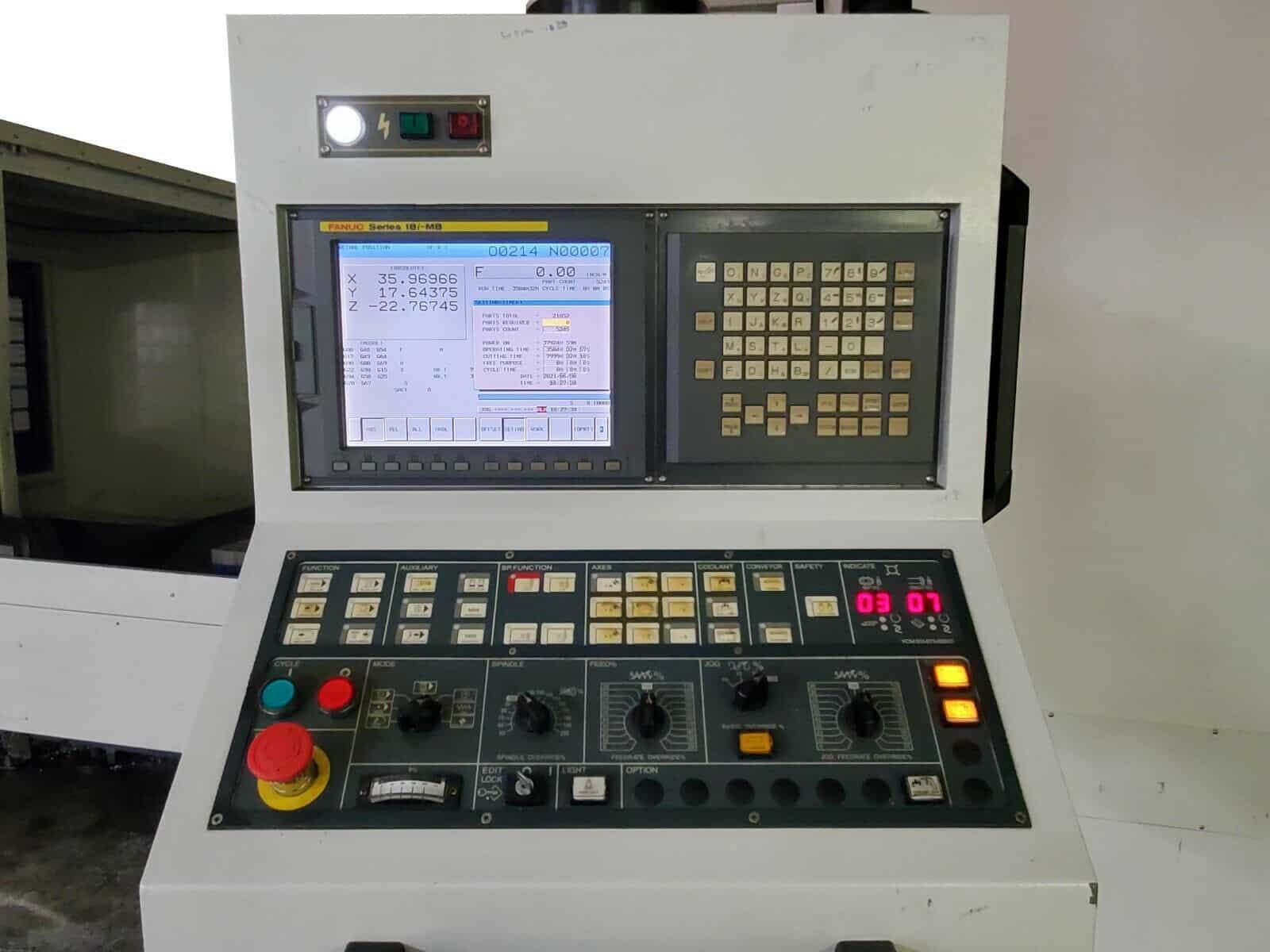

  • Fanuc 18iMB CNC Control
  • 40 Station Side Mount Tool Changer
  • 10,000 RPM High Precision Spindle
  • Powerful 35 HP high torque spindle motor
  • PCMCIA Card Slot
  • RS-252 Port
  • Spindle Orientation
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank

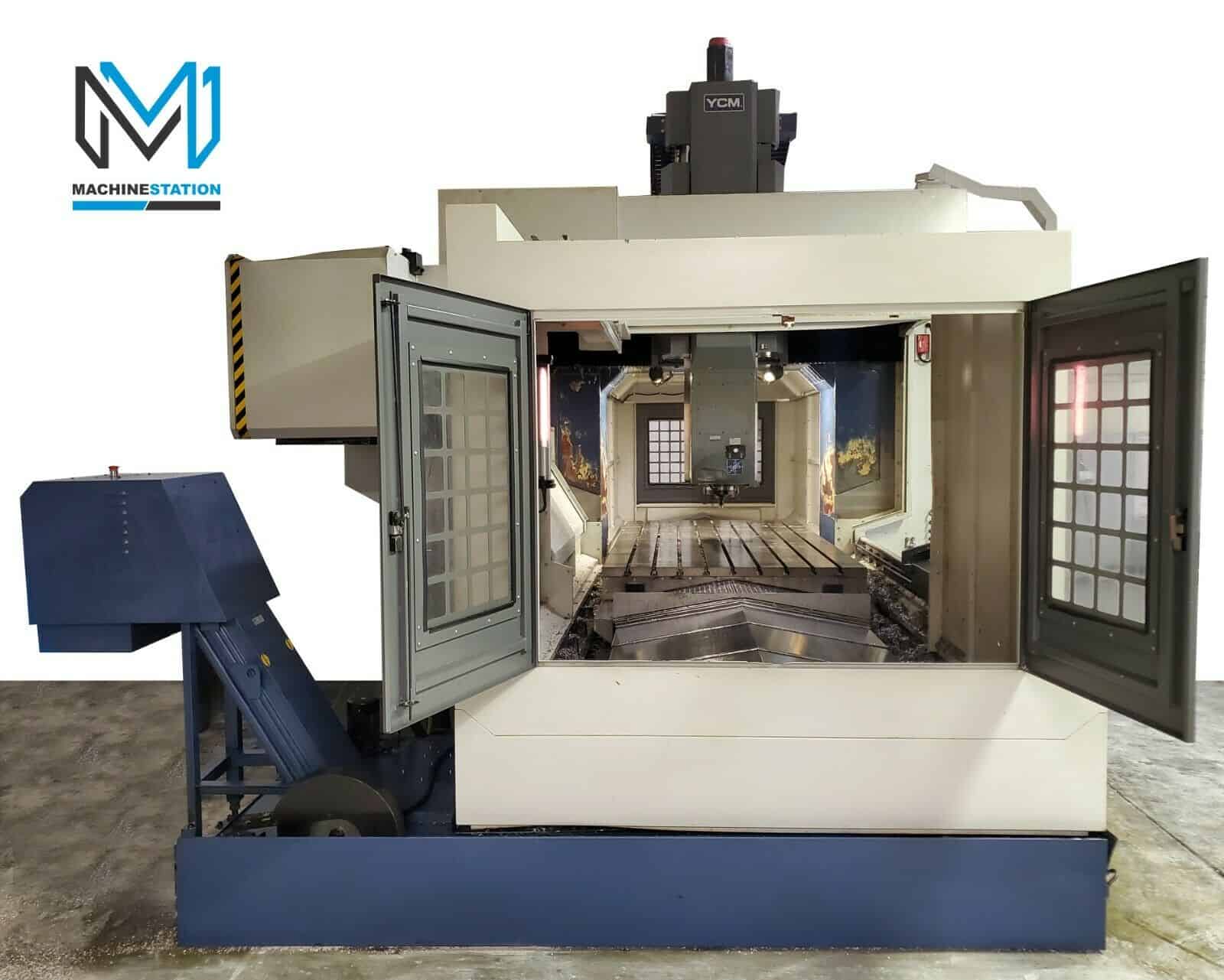

  • Chip Conveyor
  • Chiller Unit
  • Levelling Pads
  • Replacement Cost over $400,000.00
  • Specifications:
  • Travels:
  • X-Axis: 120.0″
  • Y-Axis: 63.68″
  • Z-Axis: 30.71″
  • Distance Between Columns: 70.8″
  • Spindle Nose to Table (Min.- Max.): 7.8″ – 37.87″
  • Rapid feedrate X,Y & Z: 590 inch/P.M
  • Cutting Feedrate: .04″ – 394″ inch/ P.M

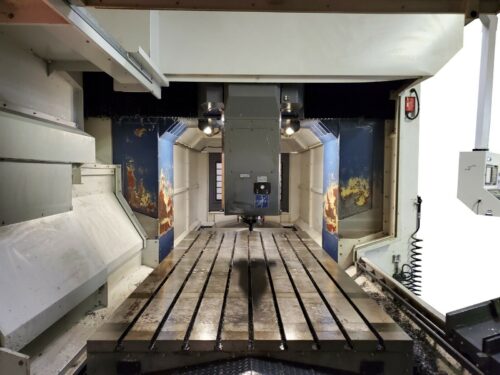

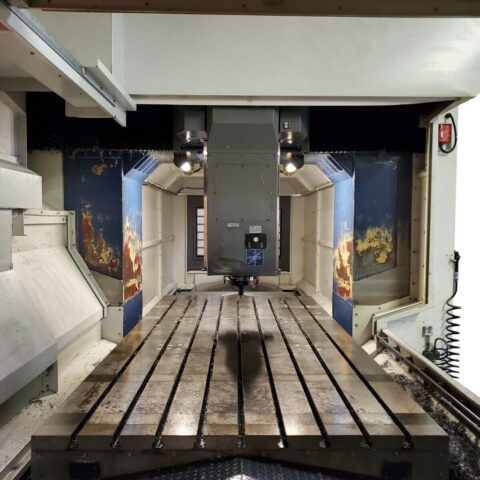

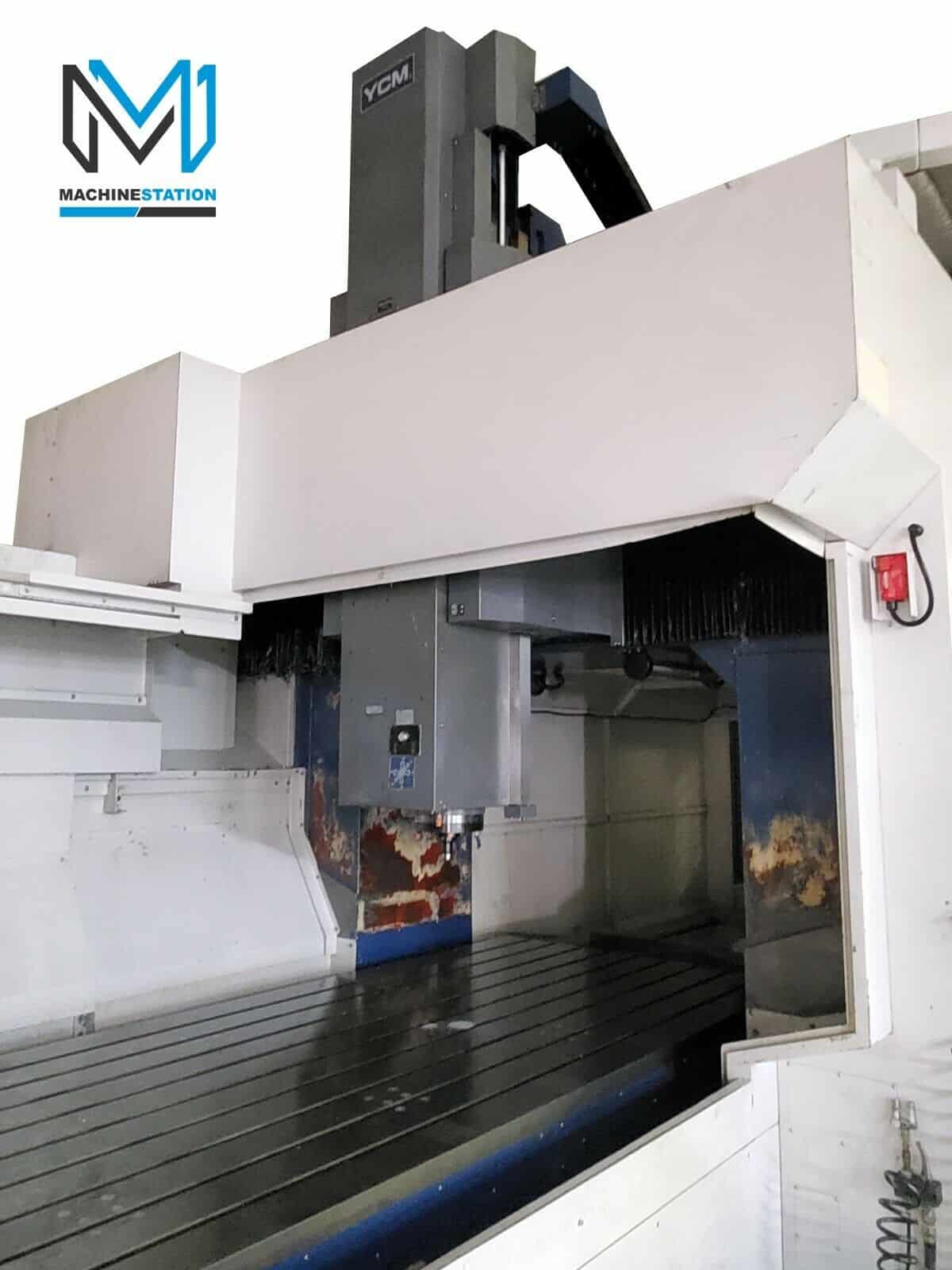

  • Table:
  • Length: 128″
  • Width: 61″
  • T-Slot: 0.87″ Wide X 20 X 7.87″
  • Max Weight on Table: 22,000 lbs
  • Spindle:
  • Taper Size: 50
  • Speed Range: 10,000 RPM
  • Spindle Power: 35 HP
  • Automatic Tool Changer
  • Capacity: 40
  • Max Tool Weight: 44 lbs
  • Max Tool Length: 13.77″
  • Max Tool Dia.: 5″
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 205-235v / 66FLA / 3-Phase, 40 Kva
  • Overall Shipping Dimensions: 410″ x 164″ x 130″ High
  • Hydraulic Unit, Chip Conveyor,
  • Chiller unit Extra
  • Weight: 66,000 lbs.

“No Charges for loading at list Price”
