*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU | 2346 |

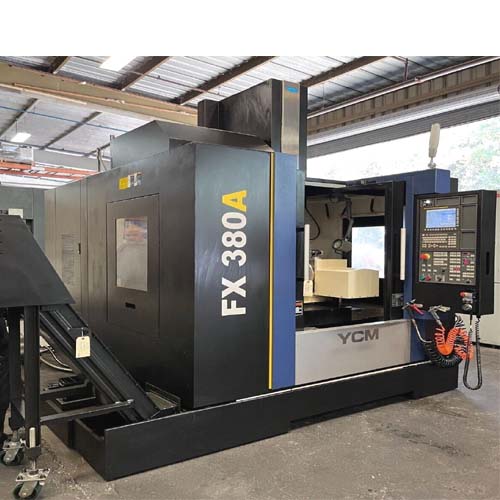

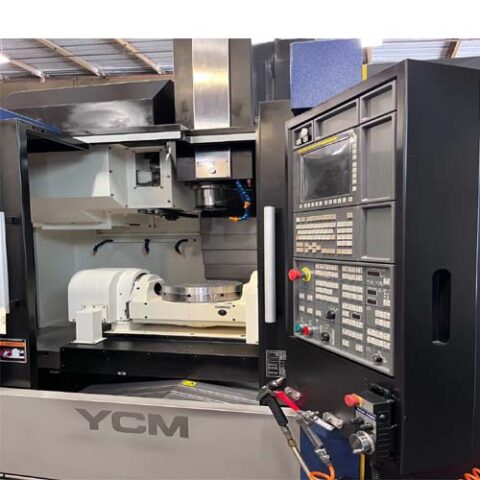

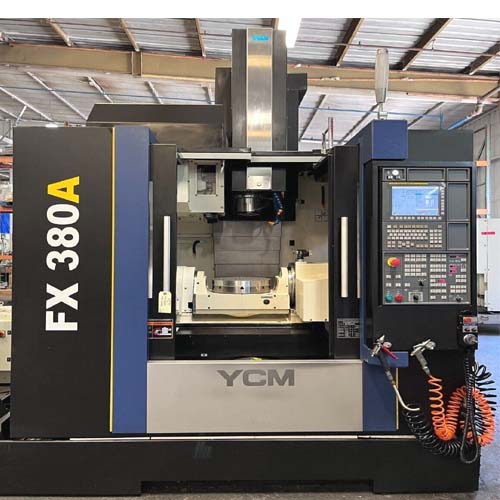

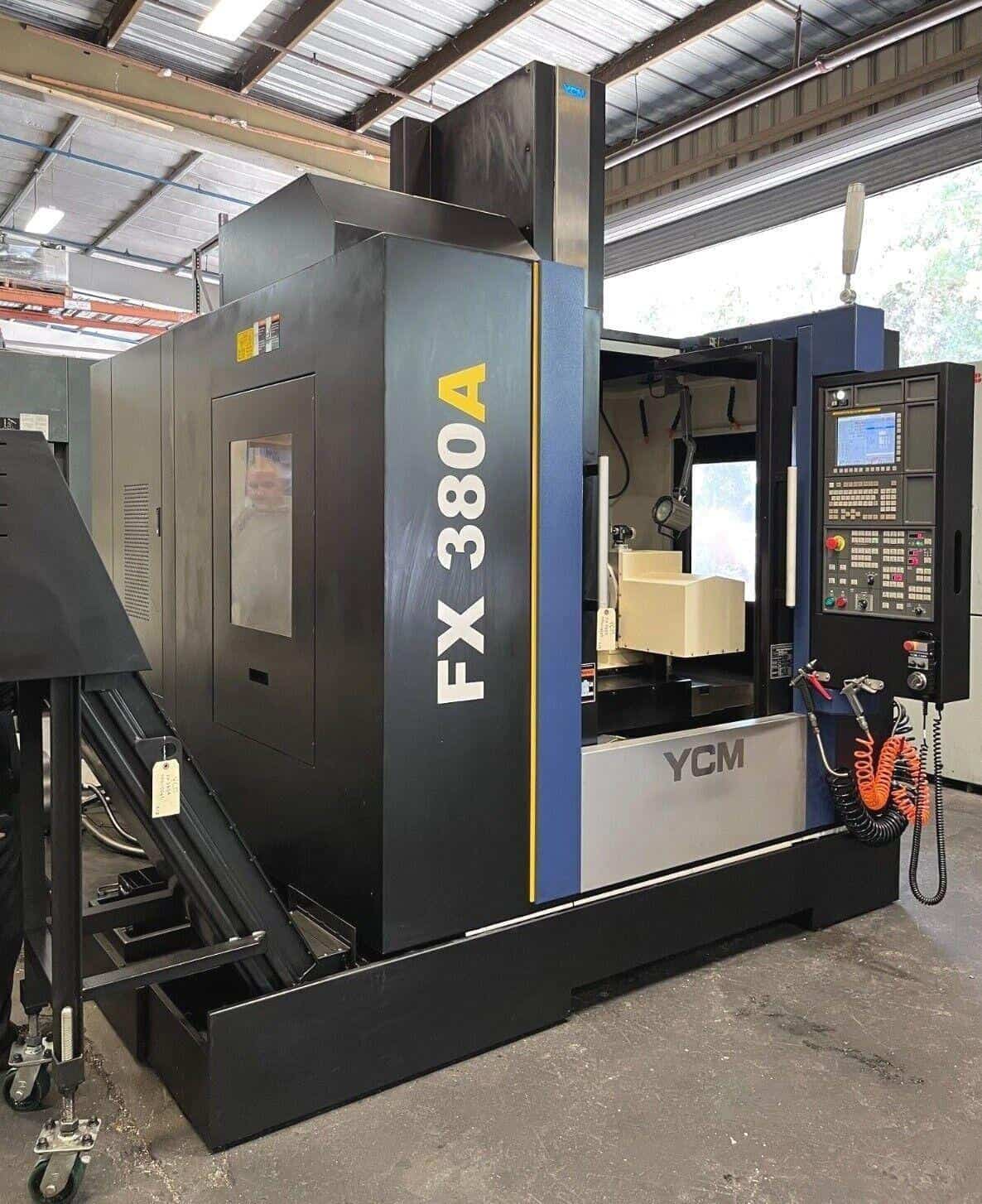

| Make | YCM |
| Model No. | FX-380A |

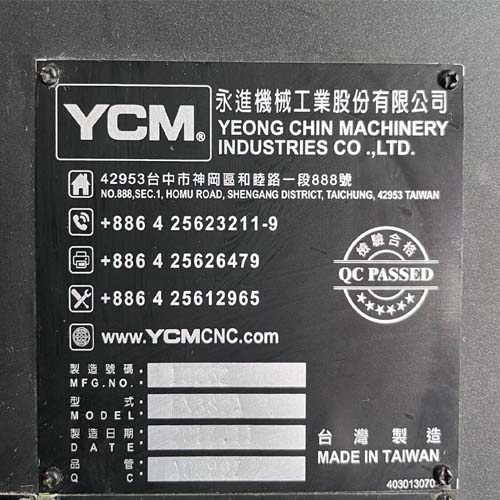

| Serial # | 10062 |
| Year | 2017 |
| Condition | Excellent |
| Cutting Hours: | 1966 Hours Only |
| Features: |
|---|

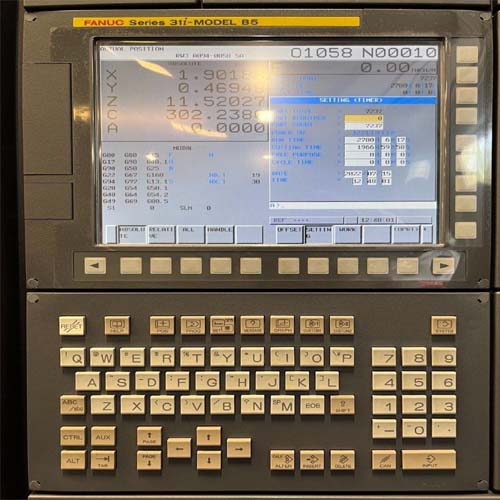

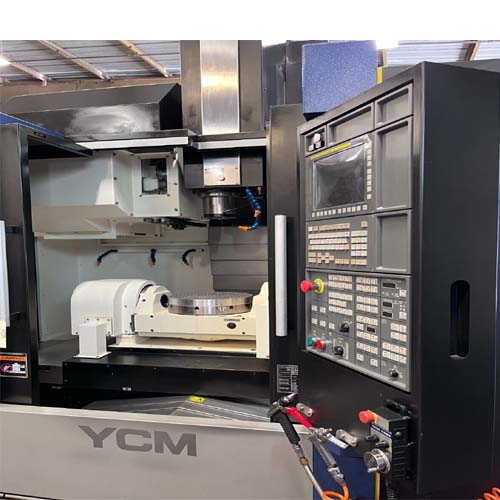

| Fanuc 31i-B5 Series CNC Control |
| Simultaneous 5-Axis Cutting |

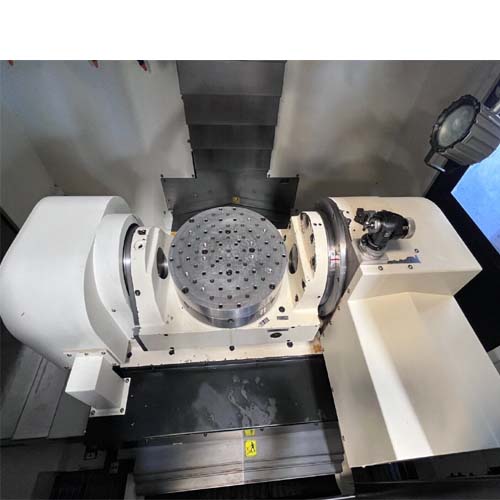

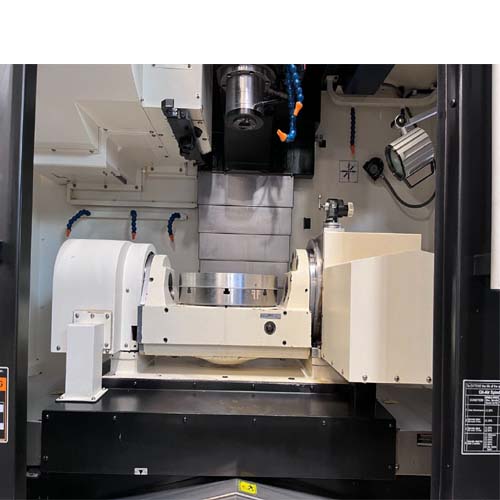

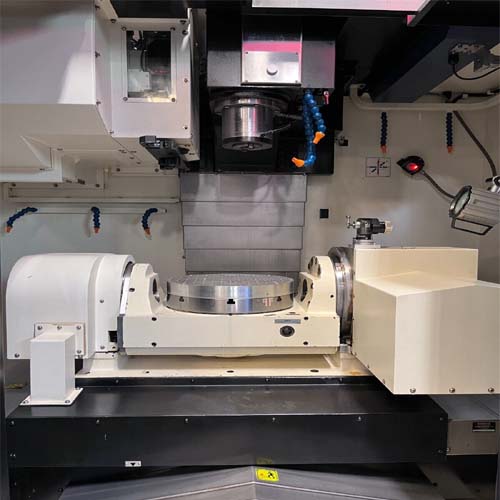

| NC Programmable Swiveling Trunnion Table 14.96” Diameter |
| 12,000 RPM High Precision Spindle |
| Coolant through Spindle |
| 30 Station Automatic Tool Changer |
| Renishaw OTS Wireless Touch Probe System |
| Hand Wheel MPG Control |

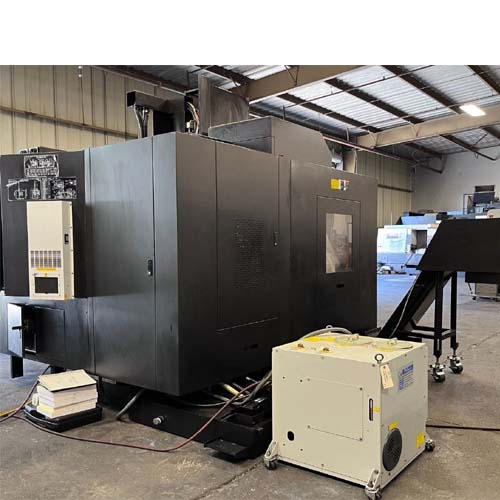

| Spindle Chiller |
| USB, PCMCIA Ports |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Fast Rapid Traverse Rate |
| Chip Conveyor |
| Work light |

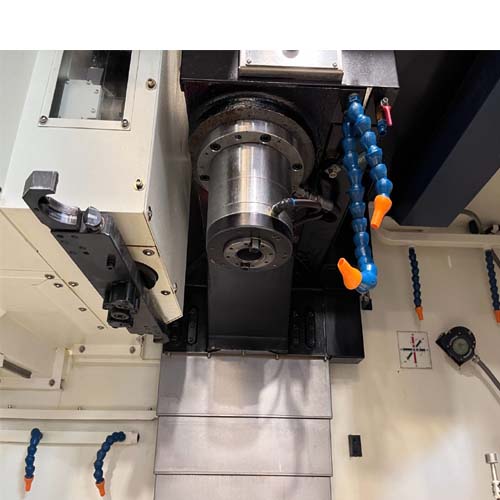

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Specifications: |
|---|
| Travels |
| X Axis: 27.56″ |
| Y Axis: 20.47″ |
| Z Axis: 18.90″ |
| A Axis: 150° (+30°/– 120°) ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Table: |
|---|
| Table Diameter: 14.96″ |
| T-Slots: 0.47″ Radial |
| Max Weight on Table: 441 lbs |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Taper: 40 |
| Max Tool Size: 3″ X 11.2″ |
| Max Tool Weight: 13.2 lbs. |
| Tool Change Time: 5.5 Second |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 35kva |
| Overall Dimensions: 103″ X 98″ X 120″ High |
| Weight: 13,690 lbs |
