YCM GT-250B CNC Lathe

SKU 11578
Make/Model YCM GT-250B
Year 2005
Video On Request
Out of stock
SKU: 11578
Make/Model: YCM GT-250B
Year: 2005
Video: On Request
SKU: 11578

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: YCM
Model: GT-250B
Year: 2005
Machine Type: CNC Turning Center
Control: Fanuc CNC Control
Equipped With:
Fanuc CNC Control
Fast 10 Position Servo Turret
Non-Stop Bi-Directional Tool Indexing Servo Turret
10″ Hydraulic Chucking System
Tailstock with Programmable Quill
Lift-Up Style Chip Conveyor
8.4″ LCD Color Monitor
Automatic Lubrication System
Coolant System
Capacity:
Swing Over Bed: 21.6″
Swing Over Carriage: 16.5″
Maximum Turning Diameter: 13.7″
Maximum Turning Length: 20.2″
Distance Between Centers: 27.1″
Bar Capacity: 2.9″
Spindle Through Hole: 3.46″

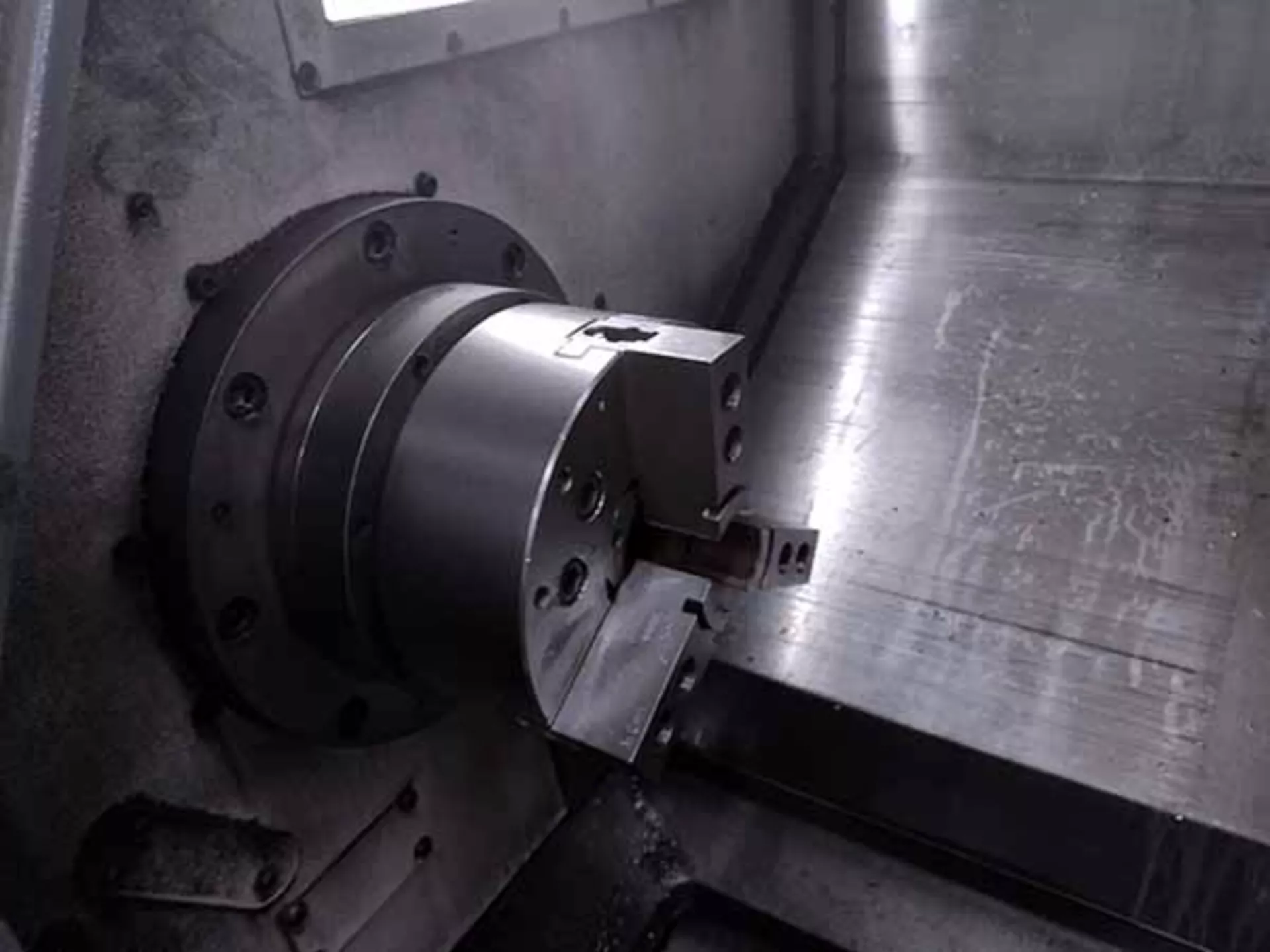

Chuck Size: 10″
Travels:
X-Axis Travel: 7.67″
Z-Axis Travel: 22″
Spindle:
Spindle Motor: 20 HP
Spindle Speed Range: 45 – 3,500 RPM
Spindle Nose: A2-8
Bar Capacity: 2.9″
Spindle Bore: 3.46″

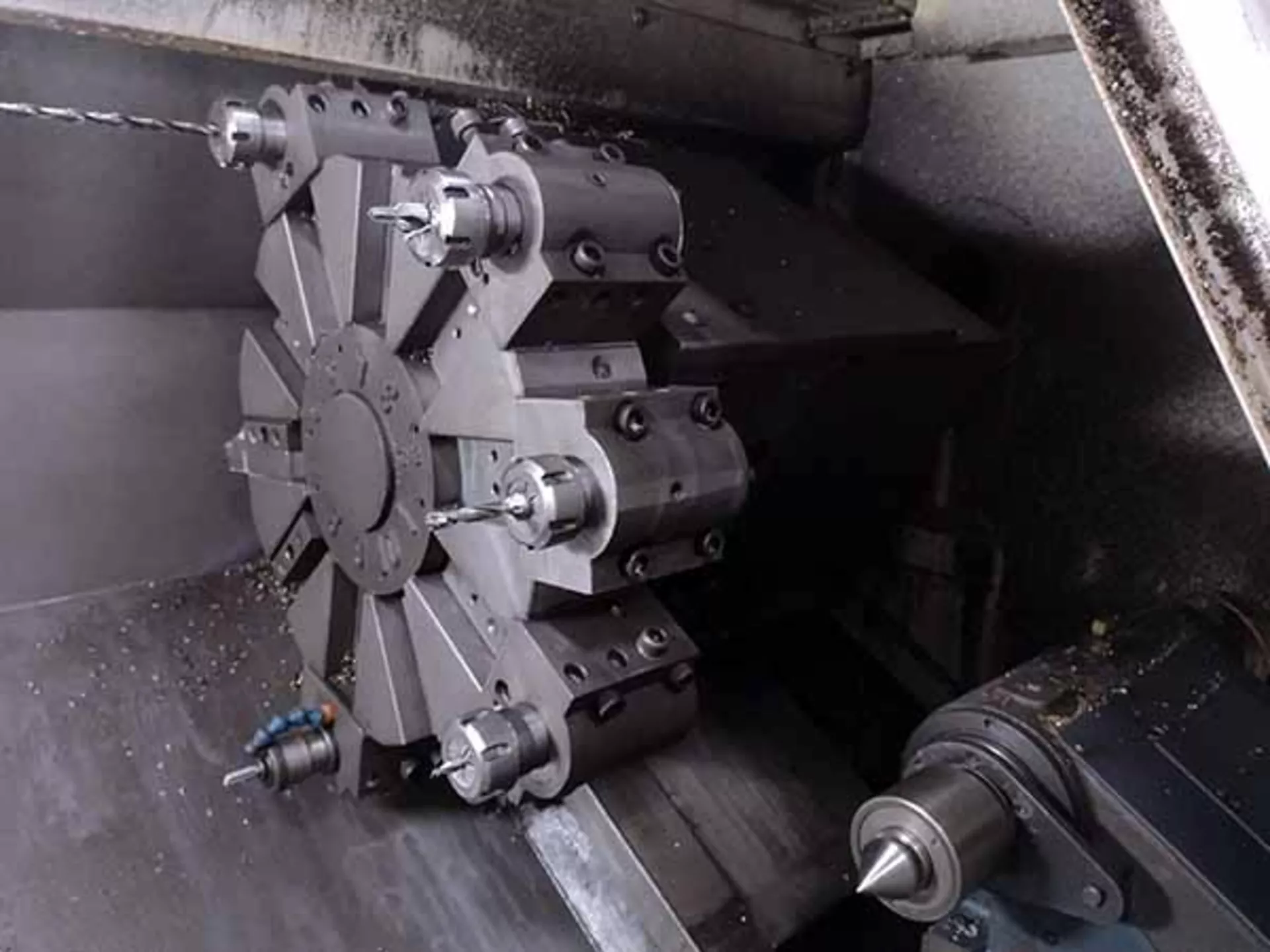

Turret:
Turret Capacity: 10 Stations
Turret Type: Servo Indexing Turret
Bi-Directional Indexing
Feedrates:
X-Axis Rapid Traverse: 787 IPM
Z-Axis Rapid Traverse: 945 IPM
Tailstock:
Quill Diameter: 3.93″
Maximum Quill Travel: 3.93″
Quill Taper: MT #5
Programmable Quill
General:
Power Requirement: 30 kVA
Machine Weight: 13,228 Lbs
Shipping Dimensions: 140″ x 87″ x 89″
Equipped With:
Fanuc CNC Control
Fast 10 Position Servo Turret
Non-Stop Bi-Directional Tool Indexing Servo Turret
254 mm Hydraulic Chucking System
Tailstock with Programmable Quill
Lift-Up Style Chip Conveyor
213 mm LCD Color Monitor
Automatic Lubrication System
Coolant System
Capacity:
Swing Over Bed: 549 mm
Swing Over Carriage: 419 mm
Maximum Turning Diameter: 348 mm
Maximum Turning Length: 513 mm
Distance Between Centers: 688 mm
Bar Capacity: 74 mm
Spindle Through Hole: 88 mm
Chuck Size: 254 mm
Travels:
X-Axis Travel: 195 mm
Z-Axis Travel: 559 mm
Spindle:
Spindle Motor: 20 HP
Spindle Speed Range: 45 - 3,500 RPM
Spindle Nose: A2-8
Bar Capacity: 74 mm
Spindle Bore: 88 mm
Turret:
Turret Capacity: 10 Stations
Turret Type: Servo Indexing Turret
Bi-Directional Indexing
Feedrates:
X-Axis Rapid Traverse: 787 IPM
Z-Axis Rapid Traverse: 945 IPM
Tailstock:
Quill Diameter: 100 mm
Maximum Quill Travel: 100 mm
Quill Taper: MT #5
Programmable Quill
General:
Power Requirement: 30 kVA
Machine Weight: 13,228 Lbs
Shipping Dimensions: 3,556 mm x 2,210 mm x 2,261 mm
