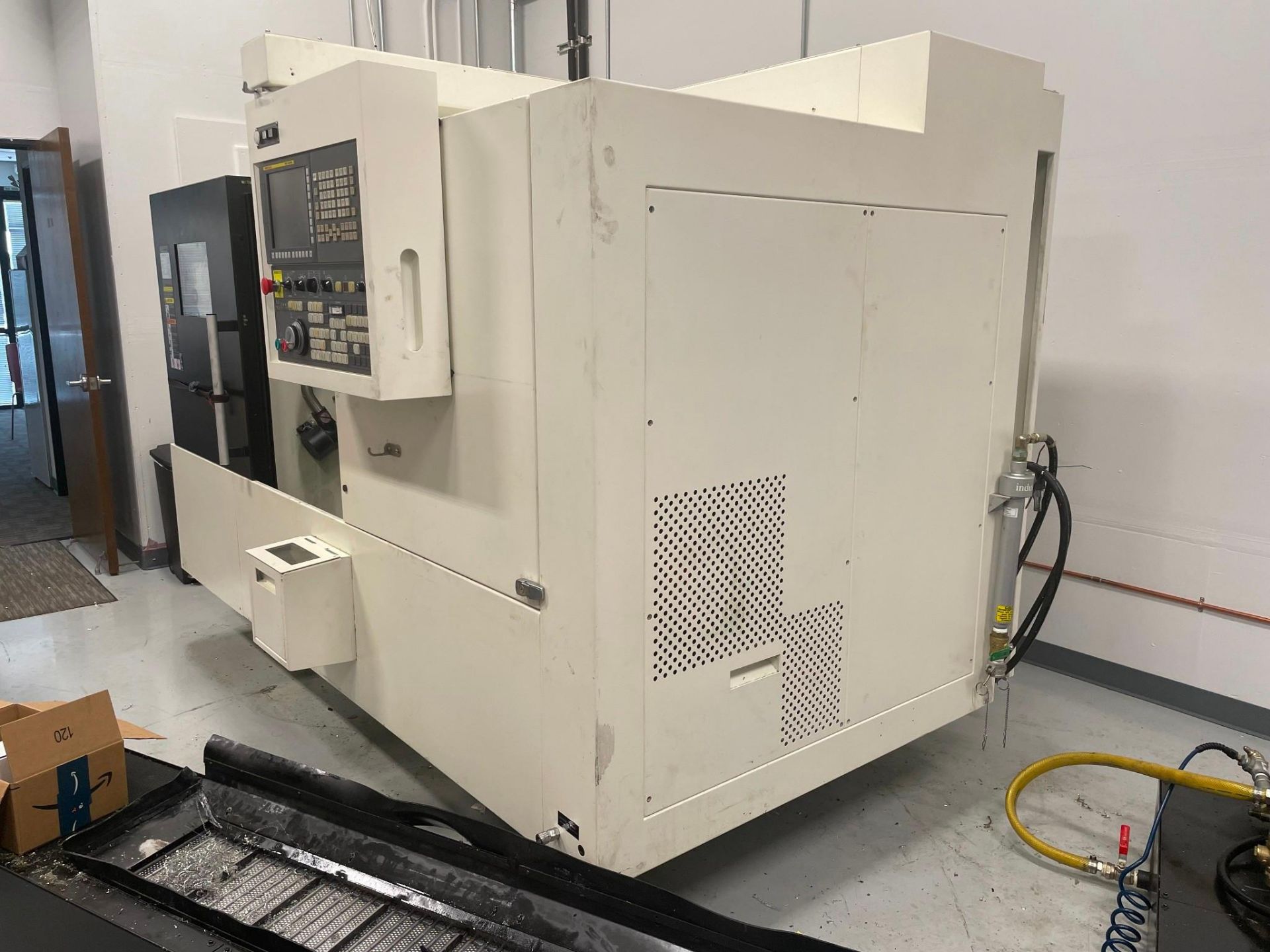

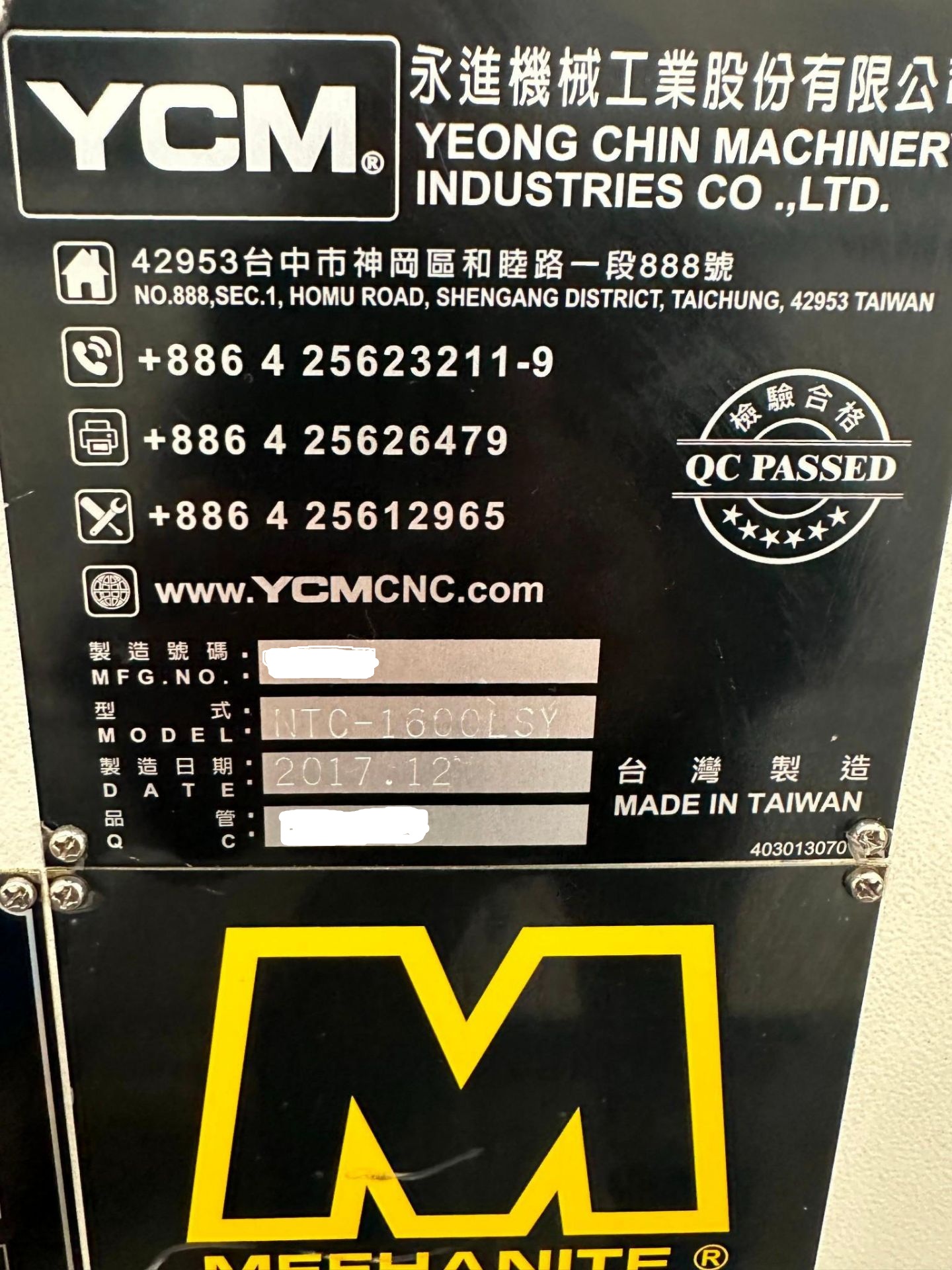

YCM NTC-1600LSY CNC Turning Center – 2017

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

• Features:

• Y-Axis Live Tooling Turret
• Sub-Spindle for Back-Side Machining
• Long-Bed Configuration
• 30° One-Piece Slant Bed Design
• Meehanite Cast Iron Construction
• Box Ways with Turcite-B Wear Pads
• Hand-Scraped Guideways
• One-Setup Complete Machining Capability

• Capacity:

• Chuck Size (Main / Sub): 6″
• Max Turning Diameter (Main): 12.6″
• Max Turning Diameter (Sub): 12.2″
• Max Turning Length: 22.44″
• Swing Over Bed: 27.95″
• Swing Over Carriage: 21.46″
• Distance Between Spindle Faces: 36.46″
• Spindle Center Height from Floor: 41.73″

• Travels:

• X-Axis Travel: 6.3″ (Approx.)
• Z-Axis Travel: 22.44″
• Y-Axis Travel: ±1.77″ (3.54″ Total)

• Main Spindle:

• Spindle Nose: A2-5
• Spindle Speed: 6,000 RPM
• Bar Capacity: 2.0″
• Spindle Motor: 15 kW (15 min) / 11 kW (Continuous)
• C-Axis Indexing Accuracy: 0.001°
• Position Encoder for C-Axis Control

• Sub-Spindle:

• Chuck Size: 6″
• Spindle Speed: 6,000 RPM
• Spindle Motor: 7.5 / 11 kW
• Full C-Axis Capability
• Encoder & Spindle Brake
• Back-Side Machining & Part Transfer

• Turret & Live Tooling:

• YCM Y-Axis Power Turret
• Tool Stations: 12
• Turret Interface: BMT55
• Live Tool Speed: 4,000 RPM
• Live Tool Motor Power: 3.7 kW
• Live Tool Torque: Up to 1.1 kgf-m

• Live Tooling Capabilities:

• Milling
• Drilling
• Tapping
• Off-Center Machining
• Side Grooving
• Complex Contouring
• Polar & Circular Interpolation

• Control:

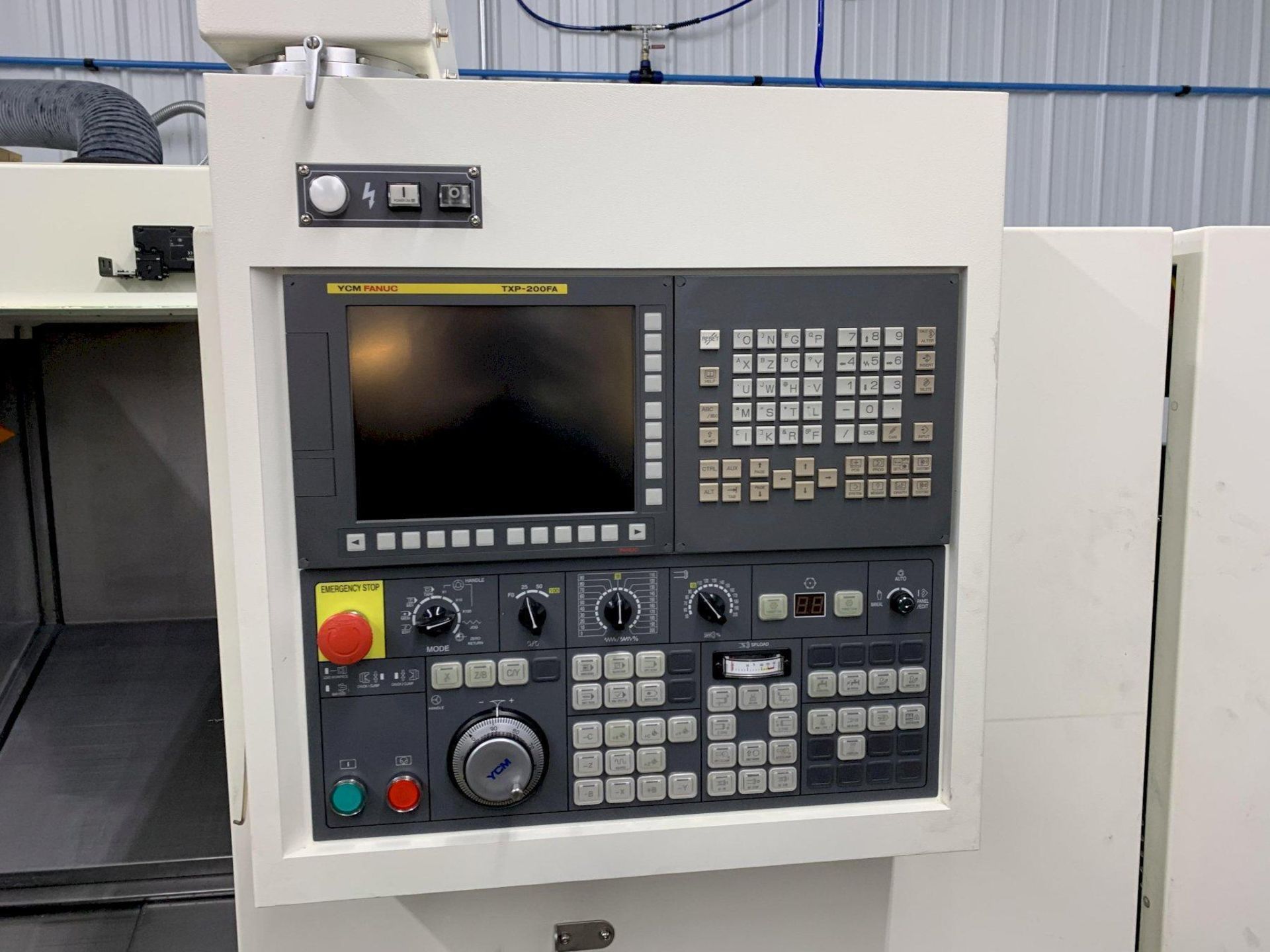

• FANUC CNC Control (YCM Custom Interface)
• Manual Pulse Generator (MPG)
• C-Axis Control
• Live Tooling Control Functions
• Feed & Spindle Overrides
• Conversational Soft-Key Interface

• Standard Tooling:

• Drill Sleeves (MT1–MT4)
• Boring Bar Sleeves (Ø6–Ø32 mm)
• ER Collet Holders
• OD / Face Cutting Holders
• Cut-Off Tool Holders
• Axial & Radial Live Tool Holders

• Applications:

• Automotive Components
• Hydraulic Fittings
• IT & Electronics Parts
• Complex Turn/Mill Components
• Complete Machining in One Setup
