Sold

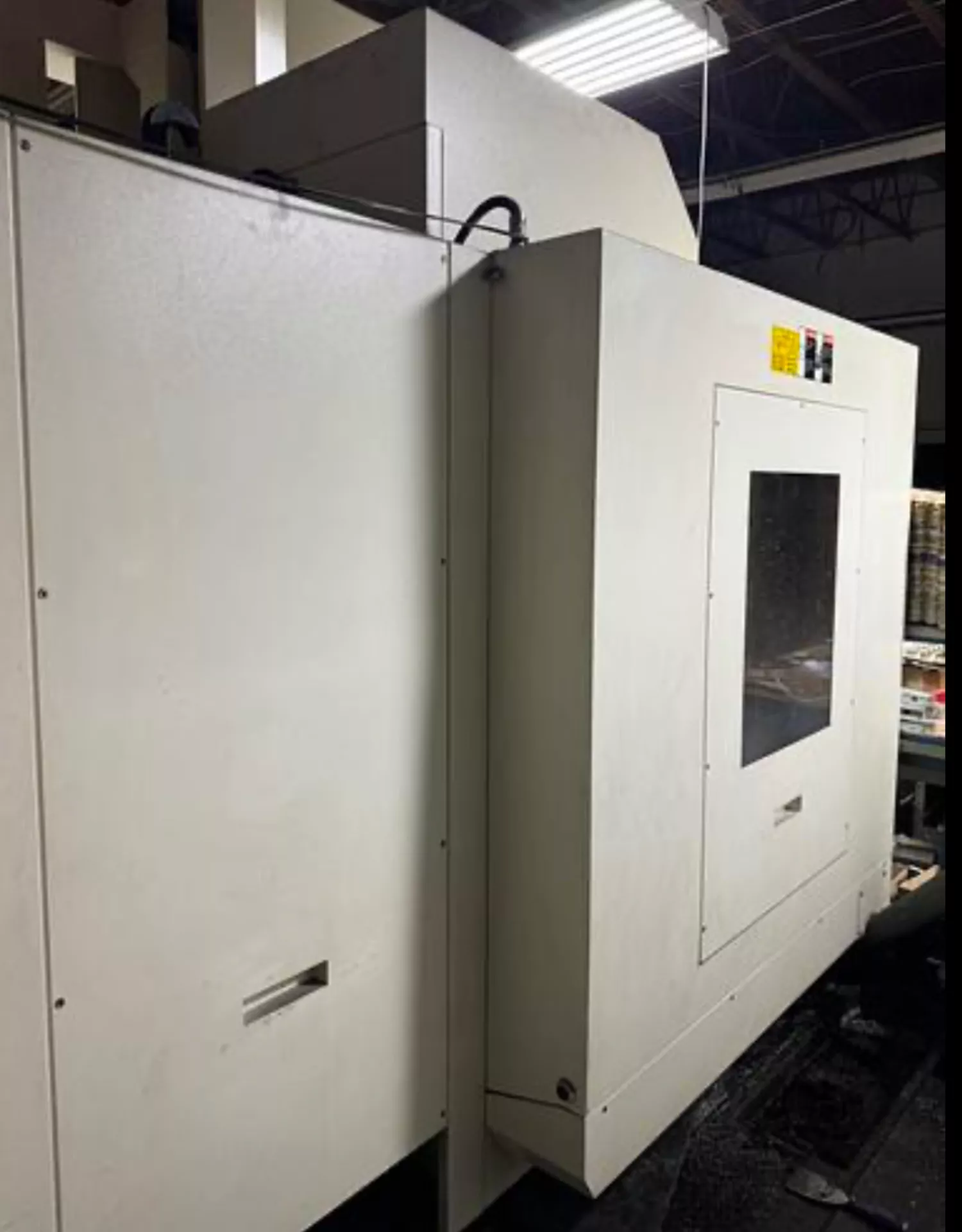

YCM NXV 1020A CNC Vertical Machining Center, 40″ X Travel, 12K RPM, Fanuc Control – 2015
SKU
11383
Make/Model
YCM NXV 1020A
Year
2015
Video
On Request
Out of stock
| SKU: | 11383 |
| Make/Model: | YCM NXV 1020A |
| Year: | 2015 |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | YCM |
| Model No.: | NXV 1020A |
| Year of Manufacture: | 2015 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc CNC Control |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 12,000 RPM High-Speed Spindle |
| Automatic Tool Changer |
| Through-Spindle Coolant |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Linear Guideways |
| Capacity: |
|---|
| Table Size: 48″ x 20″ |
| Max Table Load: 1,500 lbs |
| Travels: |
|---|
| X-Axis Travel: 40″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 20″ |

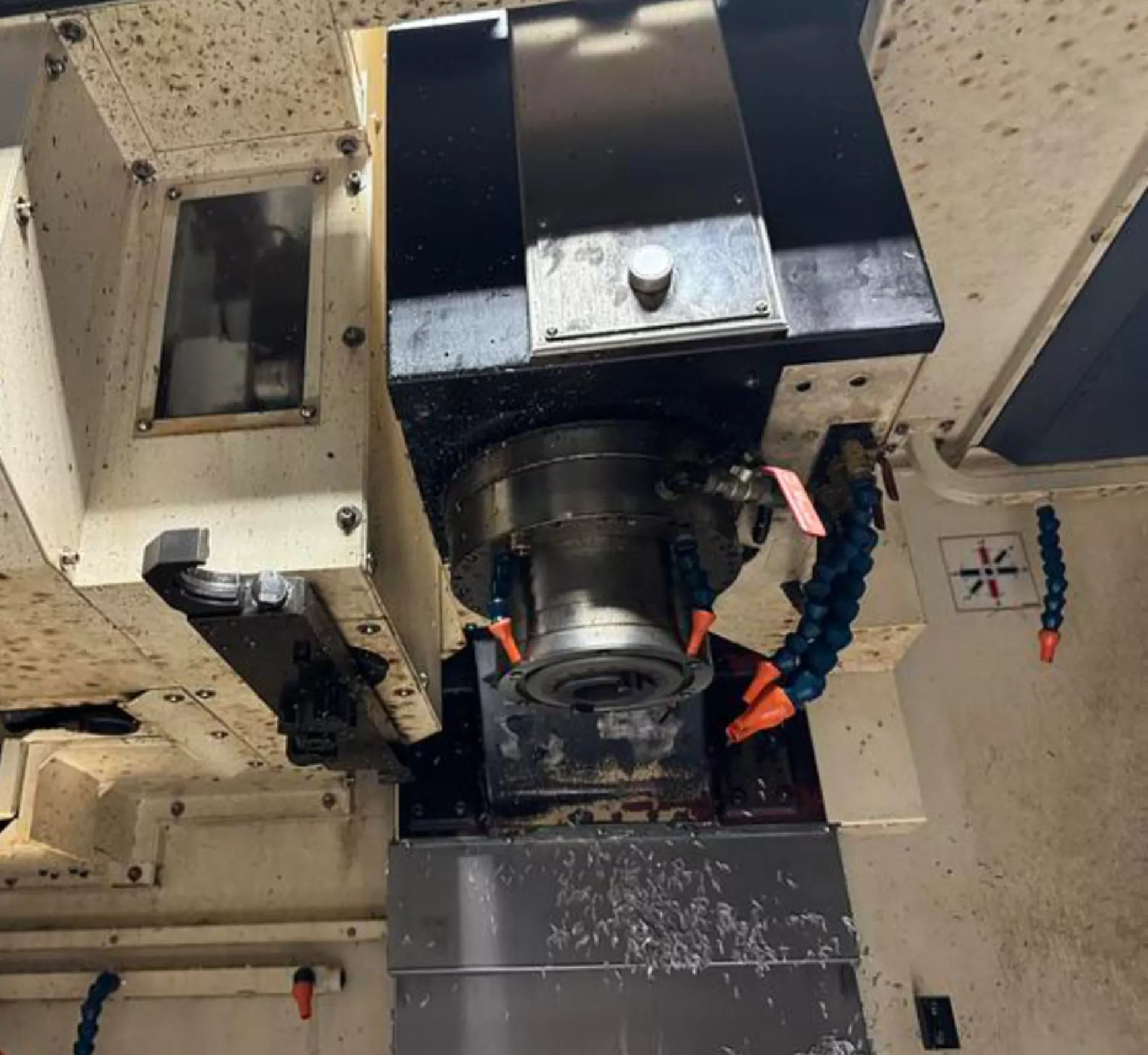

| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 20 HP (Approx.) |
| Tooling: |
|---|
| ATC Capacity: 24 Tools (Approx.) |
| General: |
|---|
| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 105″ x 95″ x 100″ |
| Machine Weight: 10,500 lbs Approx. |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 12,000 RPM High-Speed Spindle |
| Automatic Tool Changer |
| Through-Spindle Coolant |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Linear Guideways |
| Capacity: |
|---|
| Table Size: 1,219 mm x 508 mm |
| Max Table Load: 1,500 lbs |
| Travels: |
|---|
| X-Axis Travel: 1,016 mm |
| Y-Axis Travel: 508 mm |
| Z-Axis Travel: 508 mm |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 20 HP (Approx.) |
| Tooling: |
|---|
| ATC Capacity: 24 Tools (Approx.) |
| General: |
|---|
| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 2,667 mm x 2,413 mm x 2,540 mm |
| Machine Weight: 10,500 lbs Approx. |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | YCM |
| Model | NXV 1020A |
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
