*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

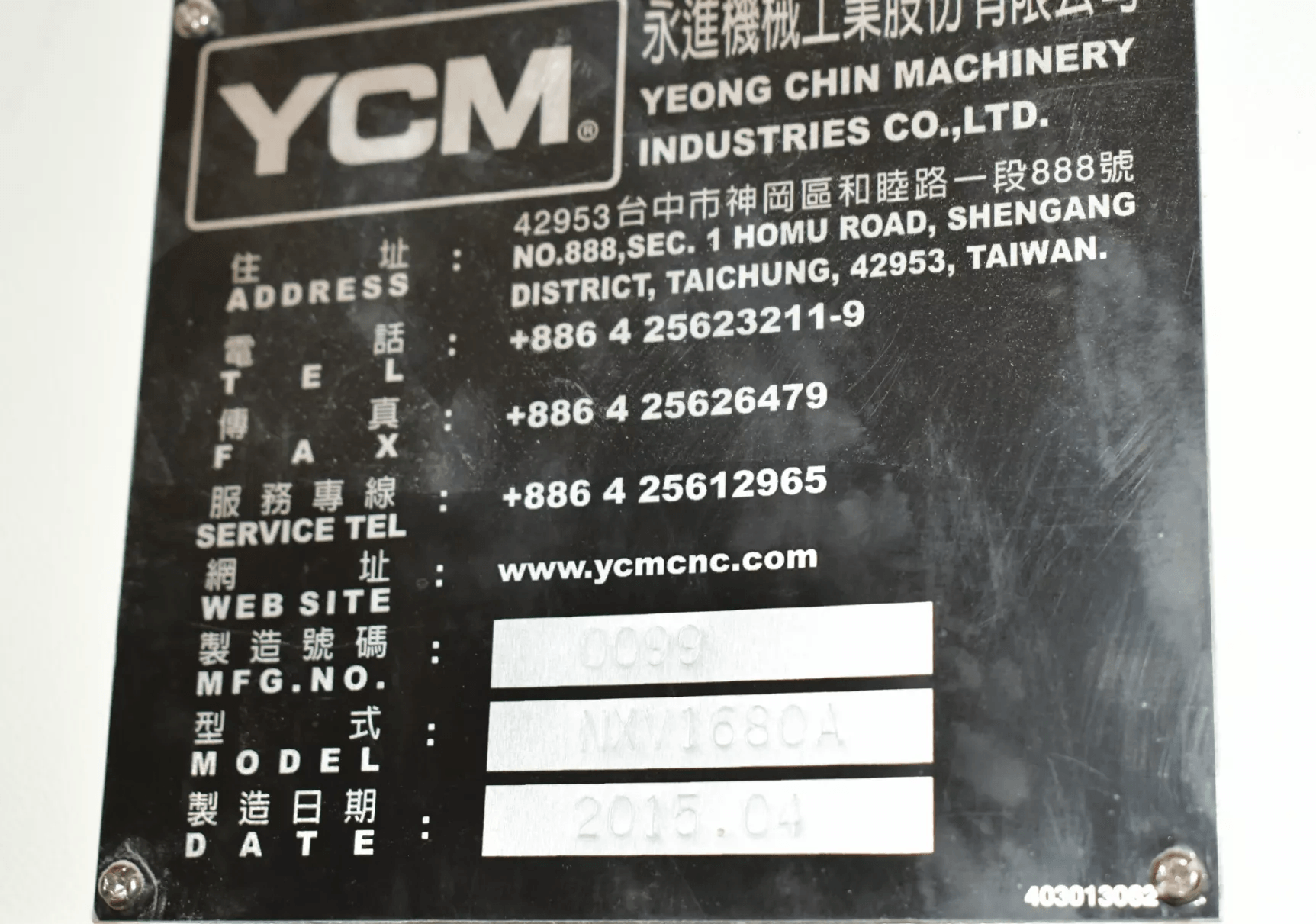

| Make: |
YCM |
| Model: |
NXV1680A |
| Year of Manufacture: |
2015 |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |

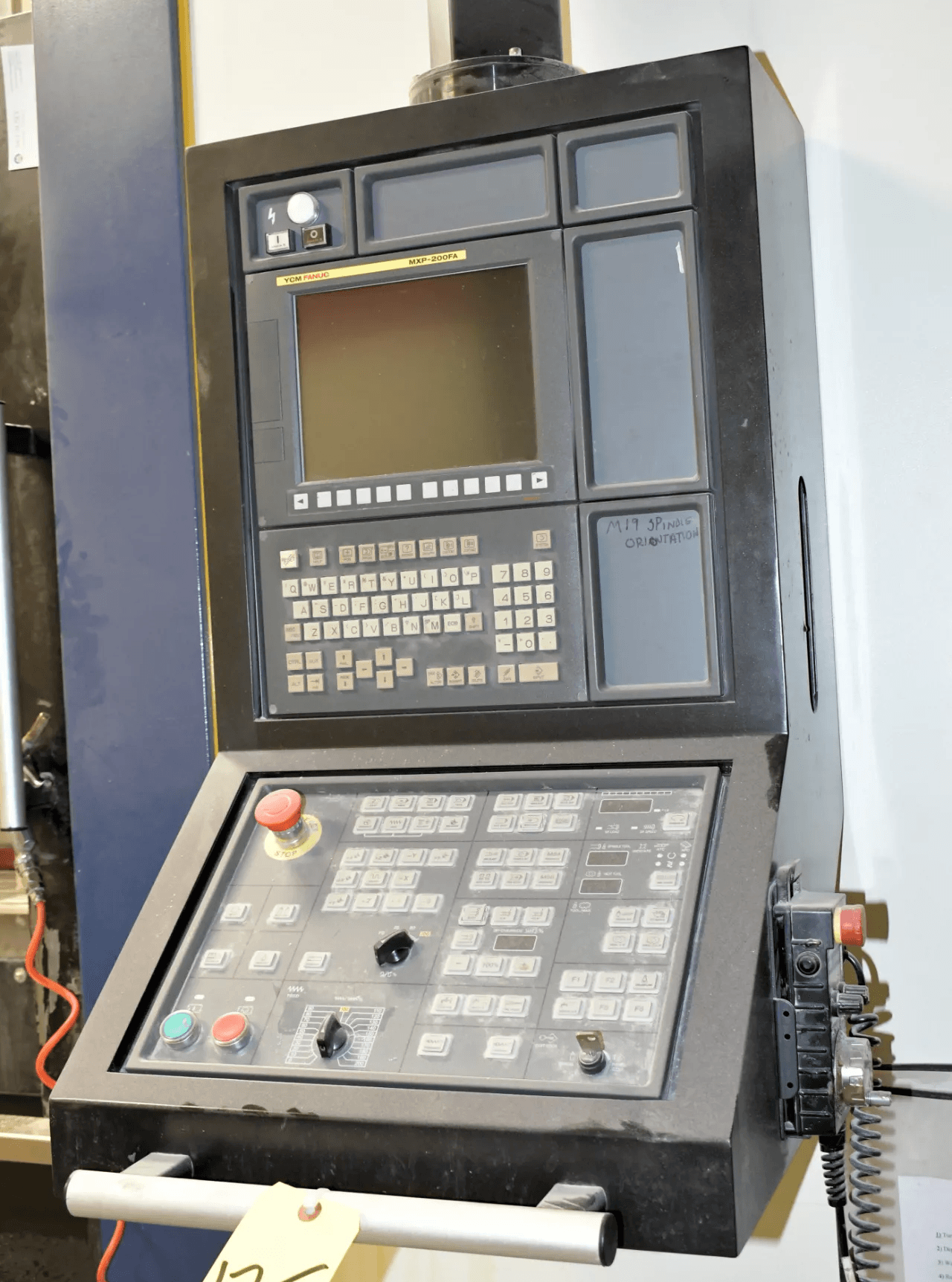

Fanuc MXP-200FA (Fanuc 31i-based) |
| Country of Origin: |
Taiwan |
| Equipped With: |
| Fanuc MXP-200FA CNC Control |

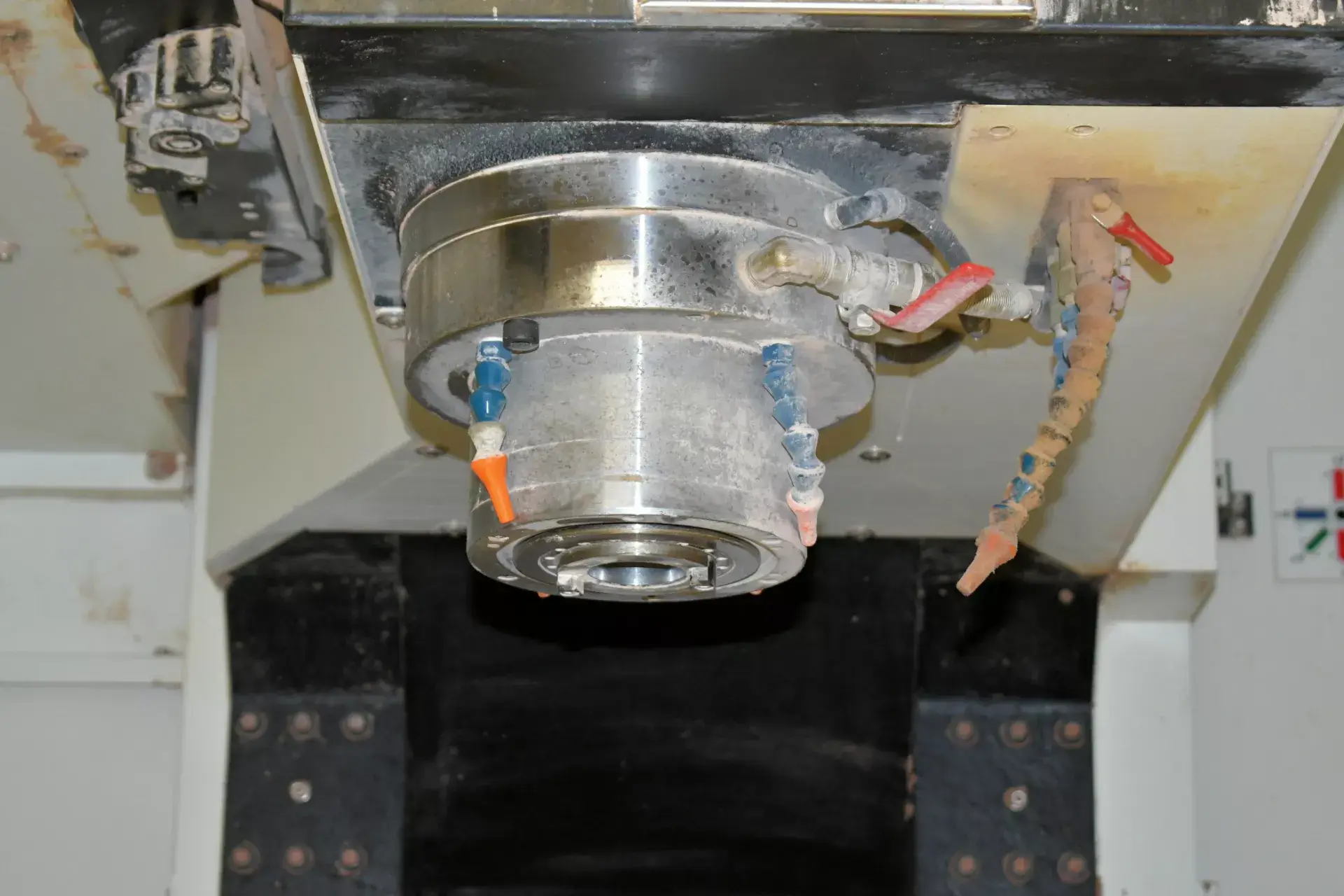

| 12,000 RPM High-Speed Direct Drive Spindle |
| CAT 40 / BT40 / BBT40 Spindle |
| 30-Station Automatic Tool Changer |
| High-Speed Rapids (30 m/min) |
| Rigid Tapping |
| Renishaw Probing System (if equipped) |
| Tool Length Measurement System |
| Chip Conveyor with Multi-Auger System |
| Through-Spindle Coolant (Chip Blaster Ready) |
| Spindle Cooling System |
| Linear Guideways on All Axes |
| Heavy-Duty High Rigidity Structure (Dual-wall saddle design) |
| Full Enclosure with Coolant System |
| Ethernet / Program Transfer Capability |
| 4th Axis Ready |
| Capacity: |
| Table Size: 68.1″ × 29.9″ |
| Max Table Load: 3,300 lbs |
| Travels: |
| X-Axis Travel: 64.2″ |
| Y-Axis Travel: 30″ |
| Z-Axis Travel: 27.6″ |
| Rapid Traverse (X/Y): ~1,180 IPM (~30 m/min) |
| Rapid Traverse (Z): ~945 IPM (~24 m/min) |
| Cutting Feedrate: Up to 20,000 mm/min |
| Spindle: |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 25 – 40 HP (~18.5 kW typical) |
| Spindle Taper: CAT 40 / BT40 / BBT40 |
| Spindle to Table Distance: 3.9″ – 31.5″ |
| Tooling System: |
| Tool Capacity: 24 / 30 Tools (up to 48 optional) |
| Tool Change Time: ~1.8 sec (tool-to-tool) |
| Electrical: |
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| General: |
| Machine Weight: ~24,000 lbs (11,000 kg) |
| Travels (Metric): 1630 × 762 × 700 mm |
| Features: |
| High-speed 12,000 RPM direct drive spindle |
| Fanuc MXP-200FA (31i-based) high-performance CNC control |
| Large travel capacity (64″ X-axis class) |
| 30-station ATC for production flexibility |
| Linear guideways for high-speed precision machining |
| Through-spindle coolant capability (chip evacuation & deep drilling) |
| Heavy-duty dual-wall casting for rigidity |
| Multi-auger chip conveyor system |
| High rapid traverse (30 m/min) for faster cycle times |
| 4th axis ready for expanded machining capability |
| Ideal for mold, die, and large component machining |
