All specifications are approximations and are subject to verification.

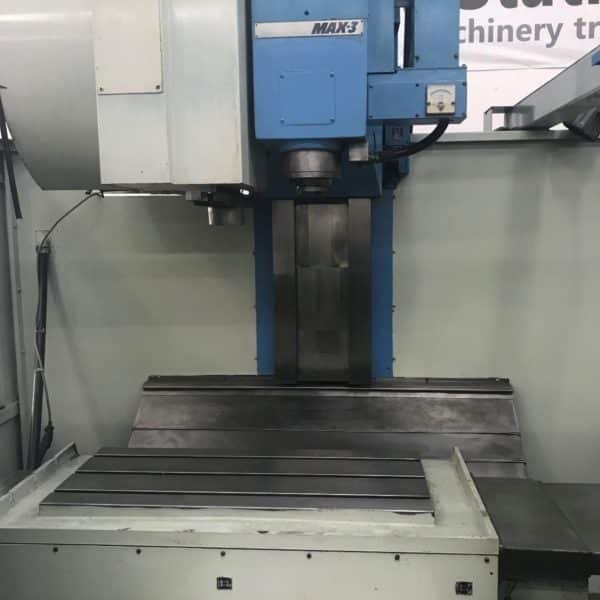

“Equipped with 8,000rpm, Side Mount Tool Changer, Fanuc OM Control. On our Floor now, fully powered / tested & is in working condition.”
-
SUPERMAX REBEL-3 Features:
- Fanuc OM CNC Control
- 22 + 1 Automatic Side Mount tool changer
- RS 232 Port
- Rigid Tapping
- Box Way Construction
- Brush-type servo drive motors on all axis
- Telescopic way covers
- Flood Coolant system
-
SUPERMAX REBEL-3 Specifications:
- Travels:
- X-Axis: 40.1″
- Y-Axis: 17.3″
- Z-Axis: 24.8″
- Rapid Traverse Rates: 787 Inch Per Minute
- Cutting Feed Rates: 393 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.7″ – 29.5″
-
Table:
- Length: 37.4″
- Width: 15.7″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1100 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 50 – 8,000 RPM
- Spindle Power: 15HP
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 22
- Max Tool Weight: 13.2 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 12″
- Tool Changing Time: 3.6 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 240v / 35 KVA / 3-Phase
- Overall Dimensions: 120″ x 96″ x 99″ High
- Weight: 10000 lbs
