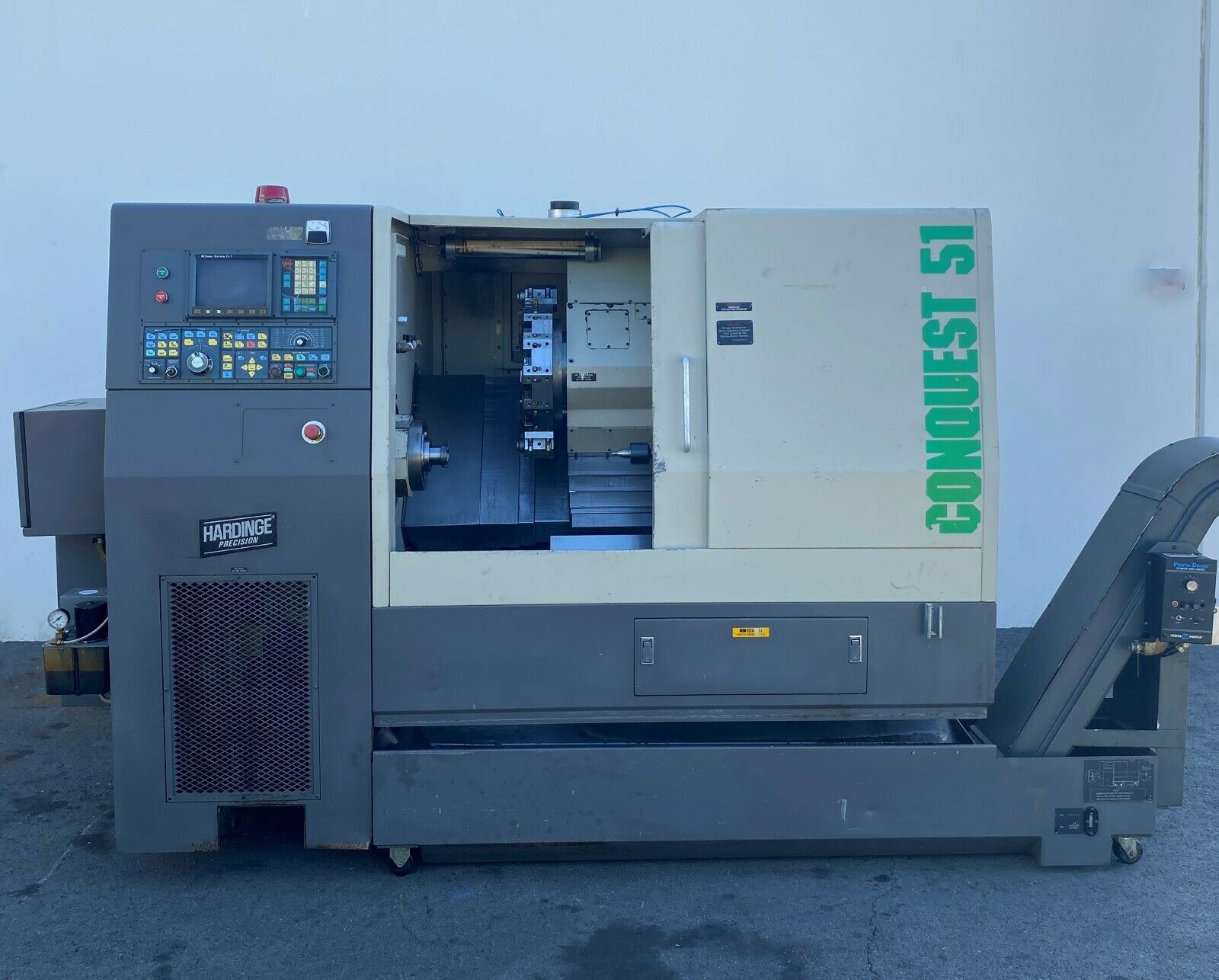

Hardinge Conquest CS-51 CNC Turning Center

All specifications are approximations and are subject to verification.

• Hardinge Conquest CS-51 Equipped With:

• Fanuc OT-C CNC Control
• 12-Station Turret
• 8″ 3 Jaw Hydraulic Chuck or Collet Chuck (Option)
• Hydraulic Postioning Tailstock
• Chip Pan and Chip Conveyor
• Coolant System
• Automatic Lubrication system
• Foot Operated Control for Chuck

• Hardinge Conquest CS-51 Specifications:

• Max Turning Diameter: 10.63″
• Max Turning Length: 19.68″
• Max Bar Capacity: 2.05″
• Swing Over Slide: 15.78″
• Swing Over Bed: 21.65″
• Distance Between Centers: 24.29″

• Travel:

• X Axis Travel: 6.75″
• Z Axis Travel: 22.65″
• Rapid Traverse X Axis: 630 IPM
• Rapid Traverse Z Axis: 787 IPM

• Spindle:

• Spindle Nose: A2-6
• Spindle Bore: 2.05″
• Spindle Speed: 4200 RPM
• Spindle Motor: 20 HP

• Turret:

• Turret Capacity: 12 Stations
• Turret Index Time: 0.5 Second

• Tailstock:

• Tailstock Body Travel: 19.0″
• Tailstock Quill Dia.: 3.54″
• Tailstock Taper: MT-4

• General:

• Power Source: AC 220 V, Three Phase, 60 Hz
• Power Requirement: 68 Amps
• Overall Dimensions: 110″ x 68″ x 80″ High
• Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
• Weight : 15000 lbs Approx.
