| Features: |
|---|

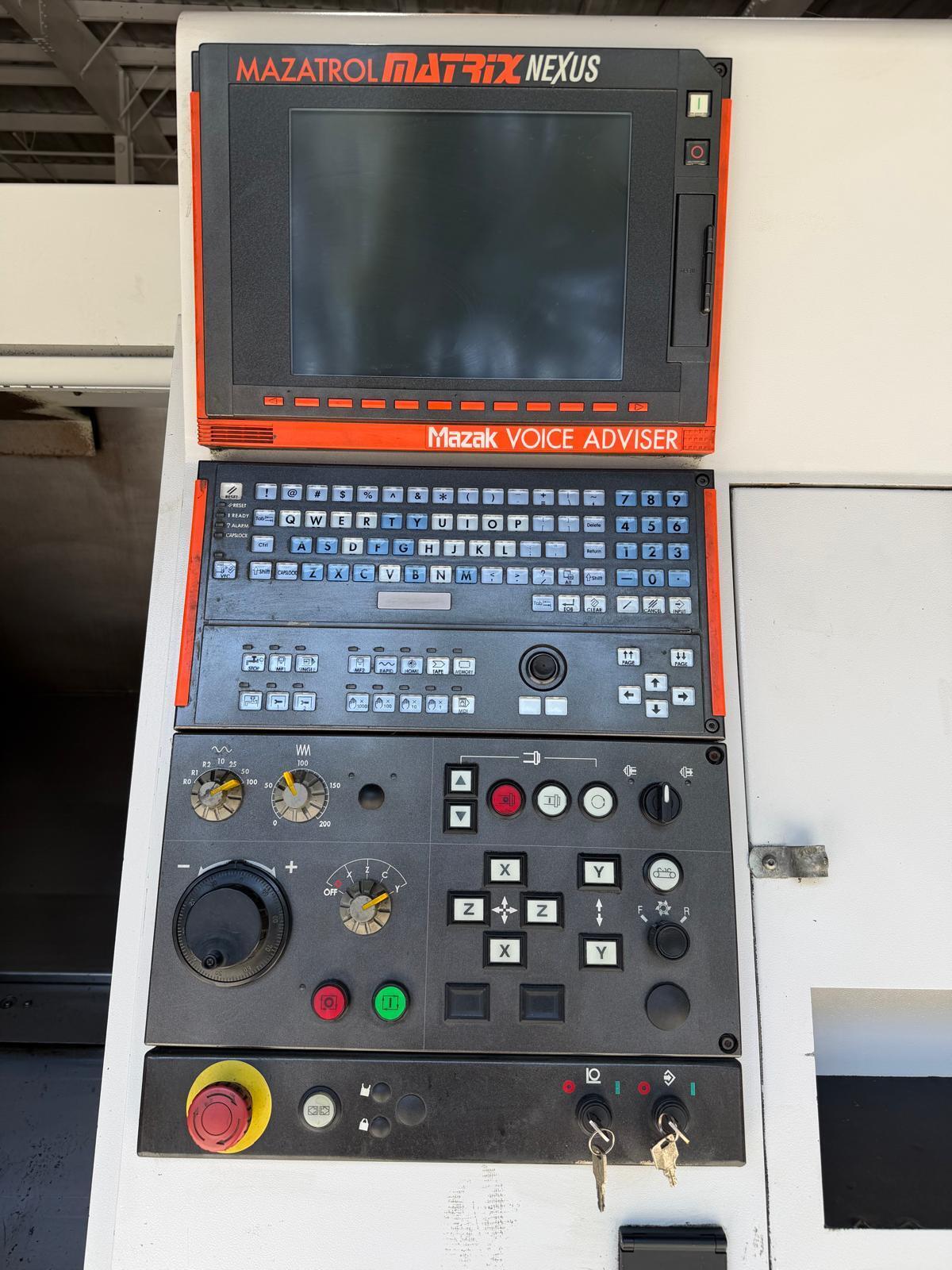

| Mazatrol Matrix Nexus CNC Control |

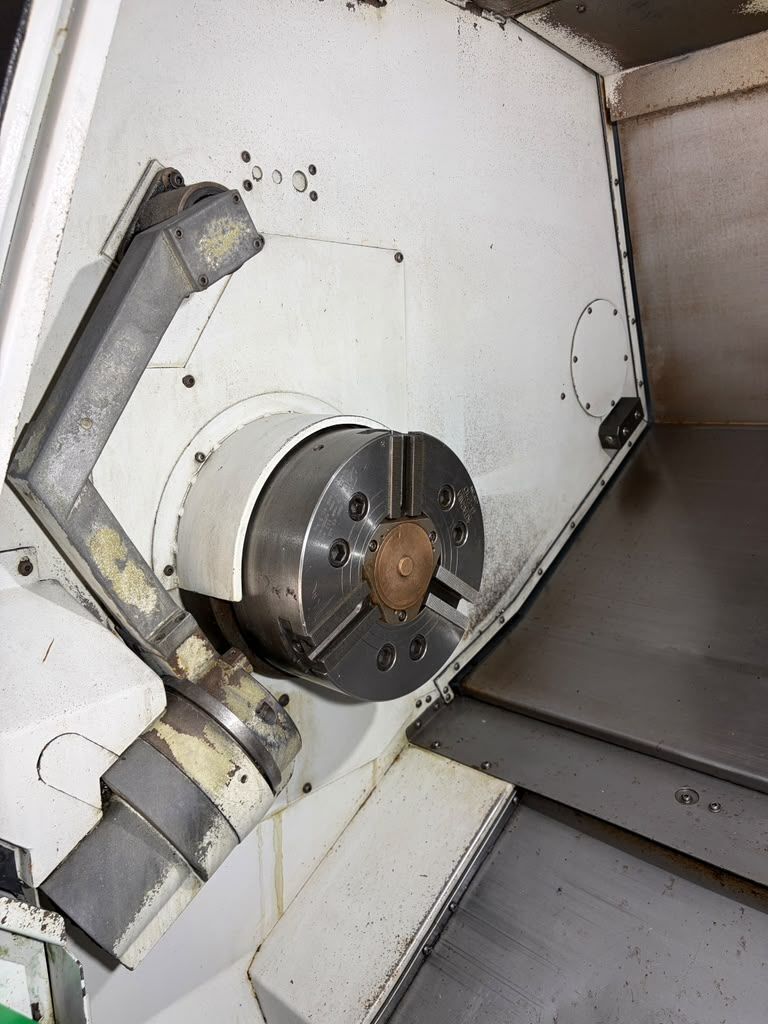

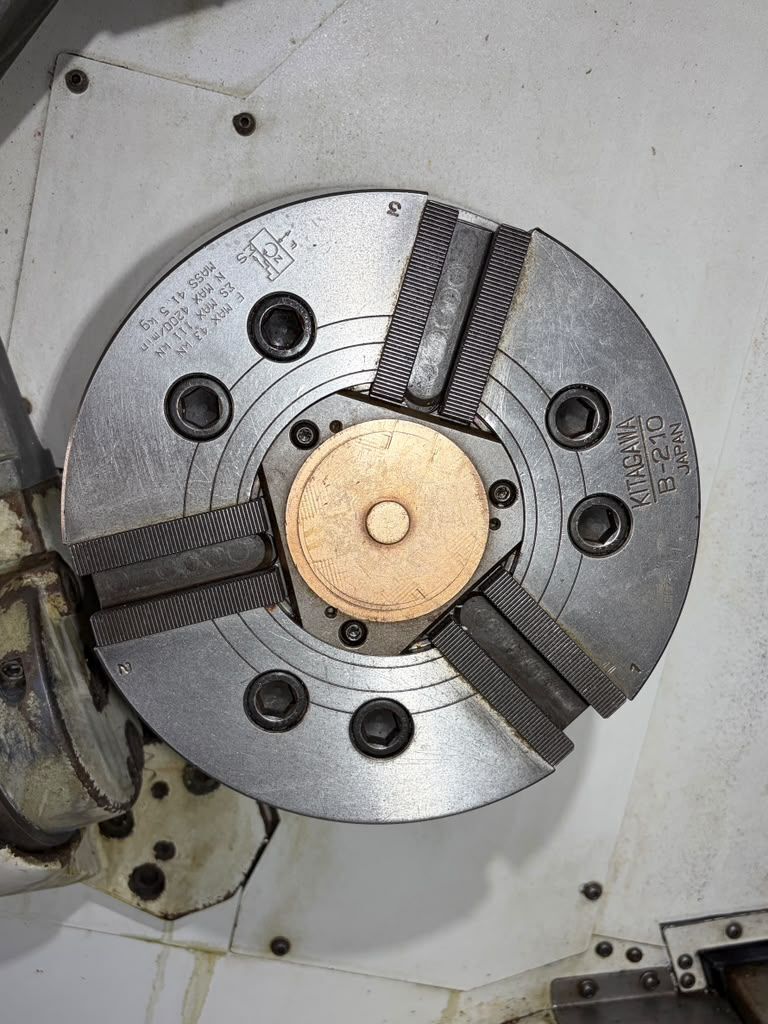

| 10″ 3-Jaw Kitagawa B-210 Hydraulic Chuck |

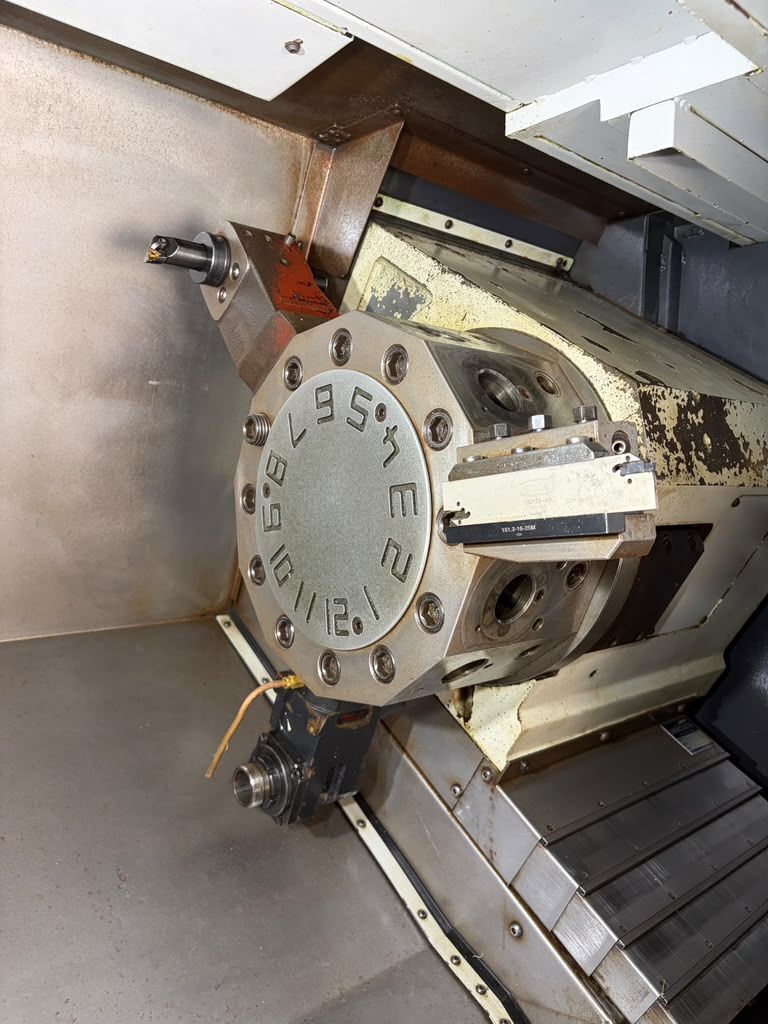

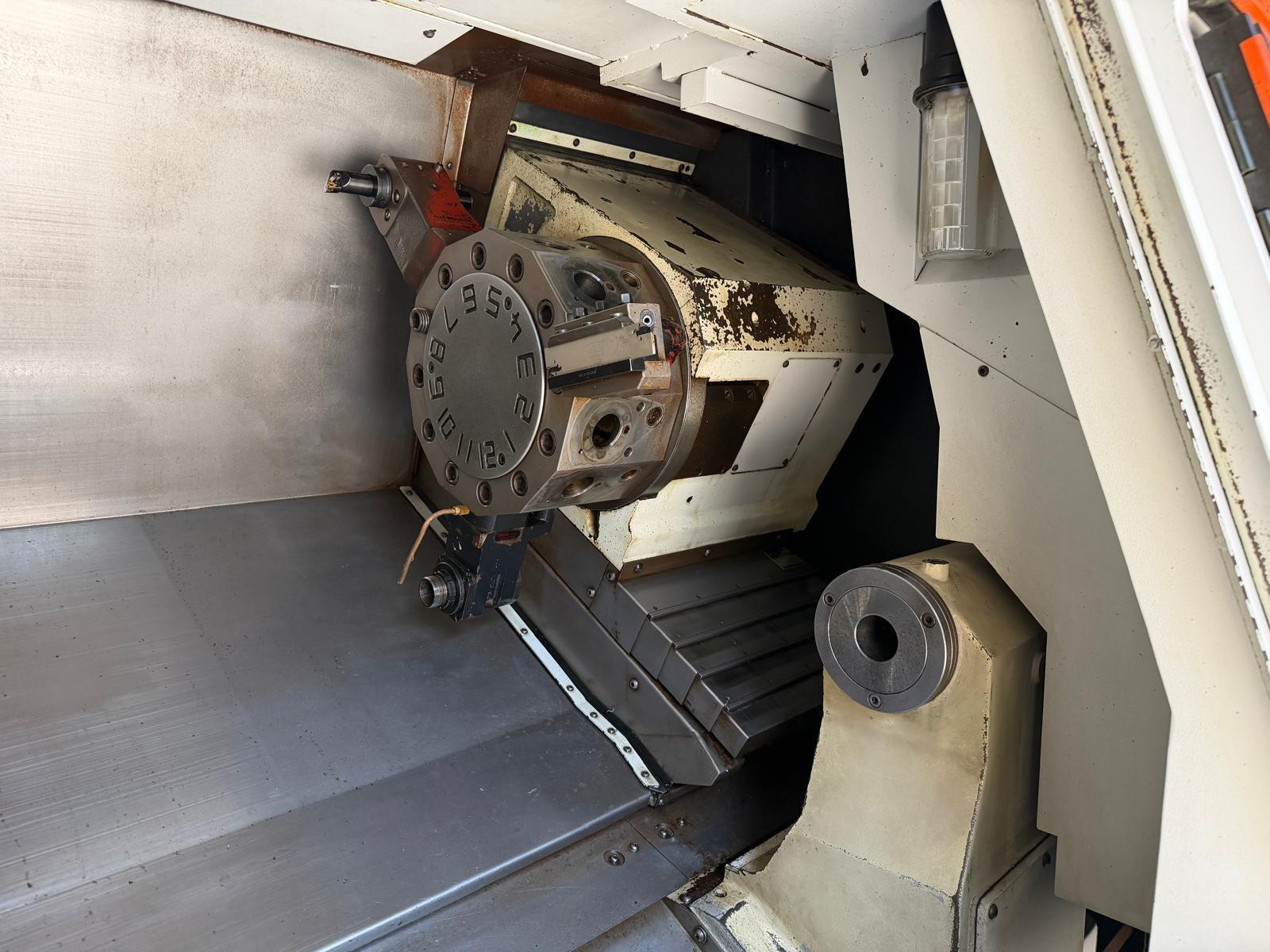

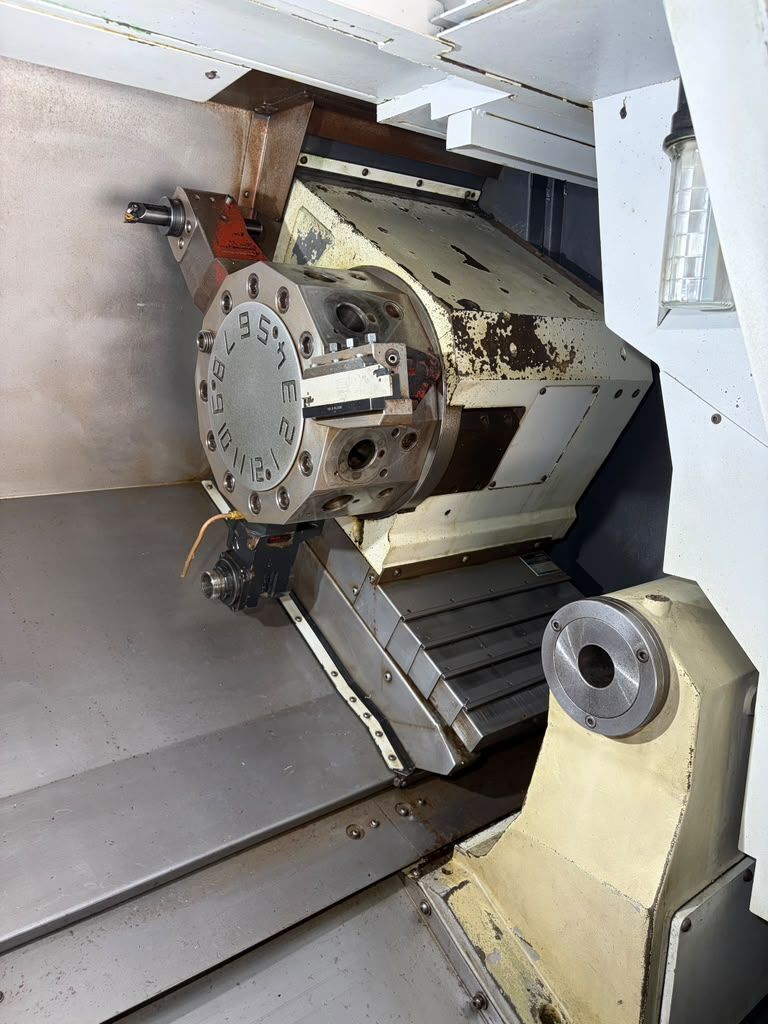

| 12-Station Live Tool Turret |
| C & Y Axis Capability |
| Programmable NC Servo Tailstock |
| Automatic Tool Presetter |
| Rigid Tapping |
| Coolant Tank |
| Chip Conveyor |
| Books & Manuals |
| Capacity: |
|---|
| Maximum Turning Diameter: 14.96″ |
| Maximum Turning Length: 19.84″ |
| Maximum Swing Over Bed: 26.57″ |
| Maximum Bar Capacity: 3.03″ |
| Travels: |
|---|
| X-Axis Travel: 9.05″ |
| Y-Axis Travel: 4.00″ (±2.0″) |
| Z-Axis Travel: 22.63″ |
| C-Axis: 360° (0.001°) |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 1,181 IPM |
| Rapid Traverse Y-Axis: 827 IPM |
| Rapid Traverse Z-Axis: 1,299 IPM |
| Spindle: |
|---|
| Spindle Bore: 3.46″ |
| Spindle Nose: A2-8 |
| Spindle Speed: 4,000 RPM |
| Spindle Power: 35 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Seconds |
| Milling Spindle Speed: 4,500 RPM |
| Milling Spindle Power: 7.5 HP |
| Maximum Boring Bar Shank Diameter: 1.57″ |
| Turning Tool Shank Size: 1.00″ |

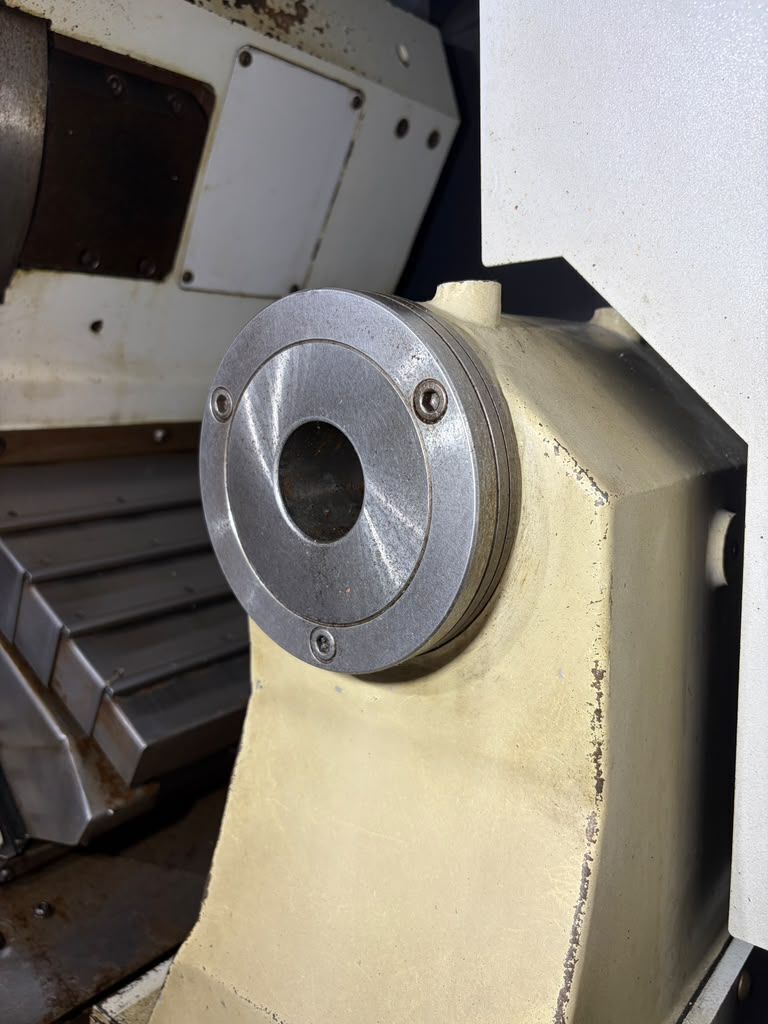

| Tailstock: |
|---|
| Tailstock Type: Programmable NC Servo Tailstock |
| Tailstock Taper: MT-4 |
| Tailstock Travel: 21.65″ |
| General: |
|---|

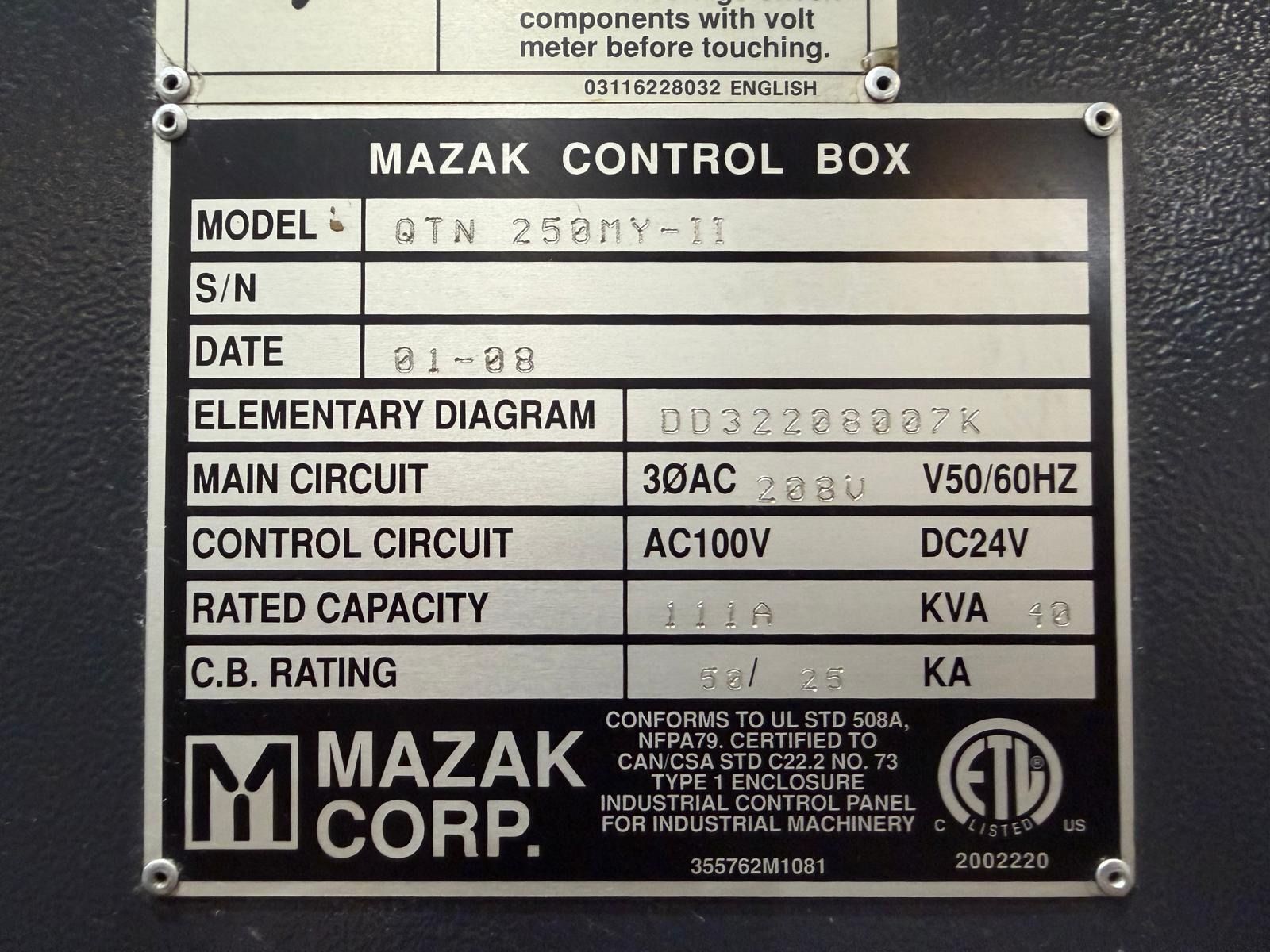

| Power Source: 208V / 50–60 Hz / 3-Phase / 40 kVA |
| Overall Dimensions: 112″ × 73″ × 74″ High Approx. |
| Weight: 11,500 lbs Approx. |
