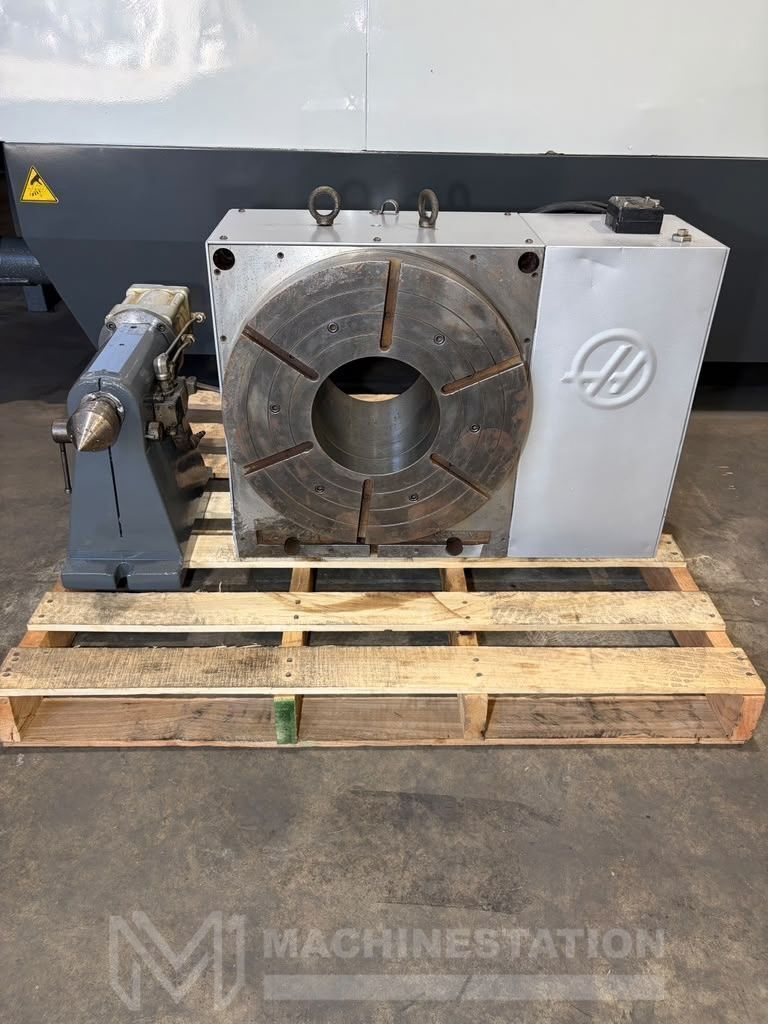

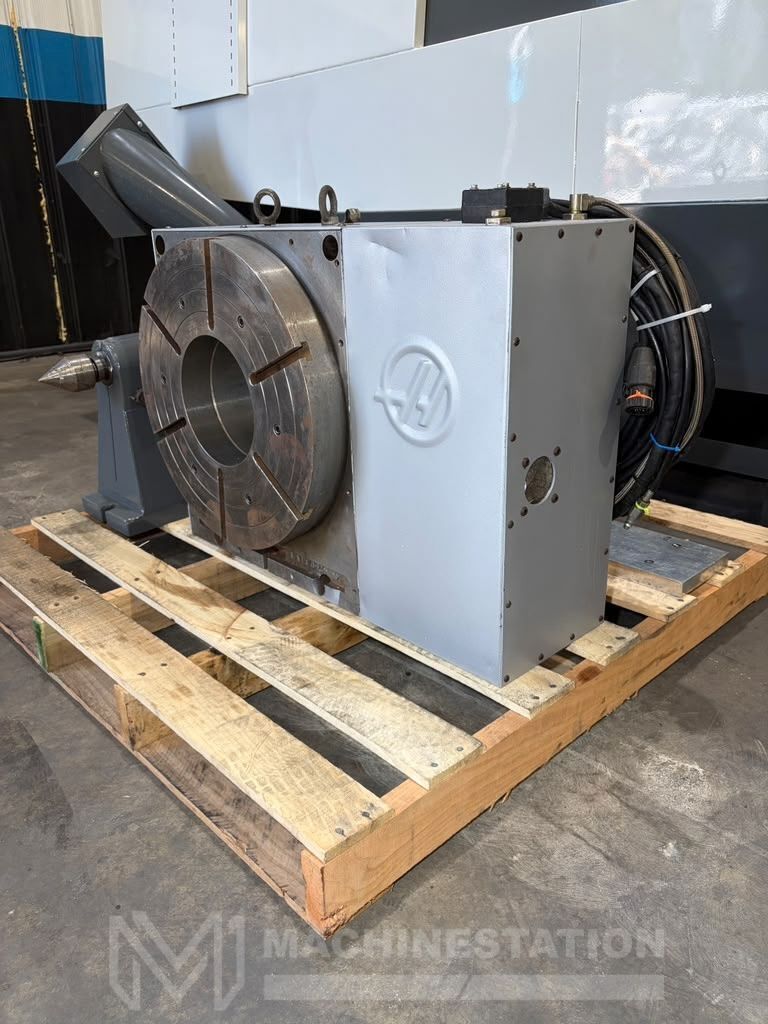

All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.

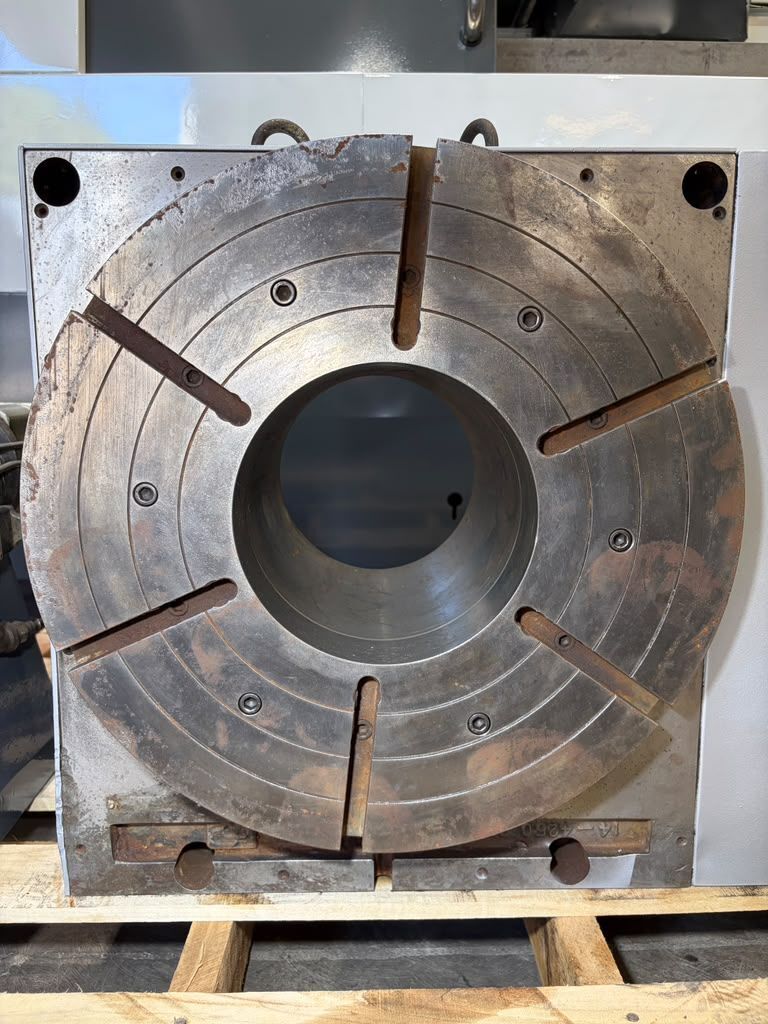

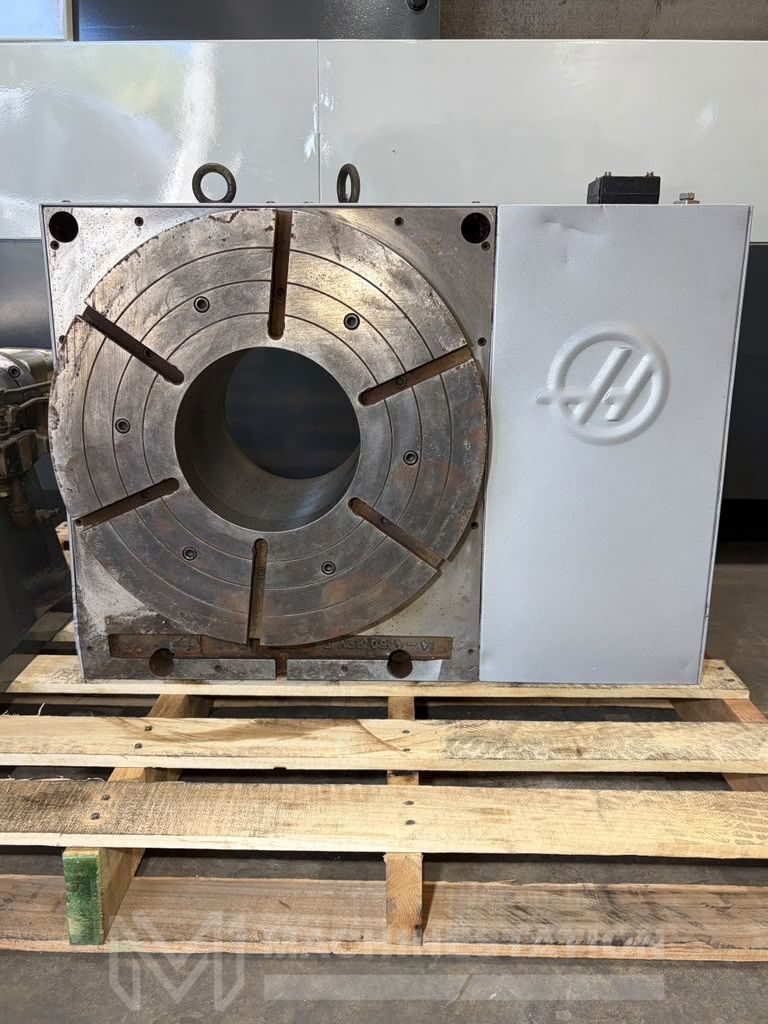

Platter:
Platter Diameter: 17.70 inch
Max Weight on Platter (w/support): 850 lb
Max Weight on Platter (unsupported): 425 lb
Number of Std T-Slots: 6 @ 60°
Spindle:
Max Speed: 50 °/sec
Continuous Torque: 400 ft-lbf
Runout Max: 0.0015 inch
Center Height: 11.500 inch
Backlash: 30 arc-sec
Brake Torque @ 100 psi/6.9 bar: 1,350 ft-lbf
Gear Ratio: 72:1
Timing: 3:1
Indexing:
Accuracy (±): ±15.0 arc-sec
Repeatability: 10 arc-sec
Resolution: 0.001°
Worm Gear Diameter: 13.5 inch
Max Rotation/Step (with rotary control): 999.999°
General:
Power Requirement: 115 VAC ±10% @ 15 A
Air Requirement: 150 psi
Shipping Dimensions: 38.0 inch × 19.0 inch × 33.0 inch
Weight: 792 lb
Equipped With:

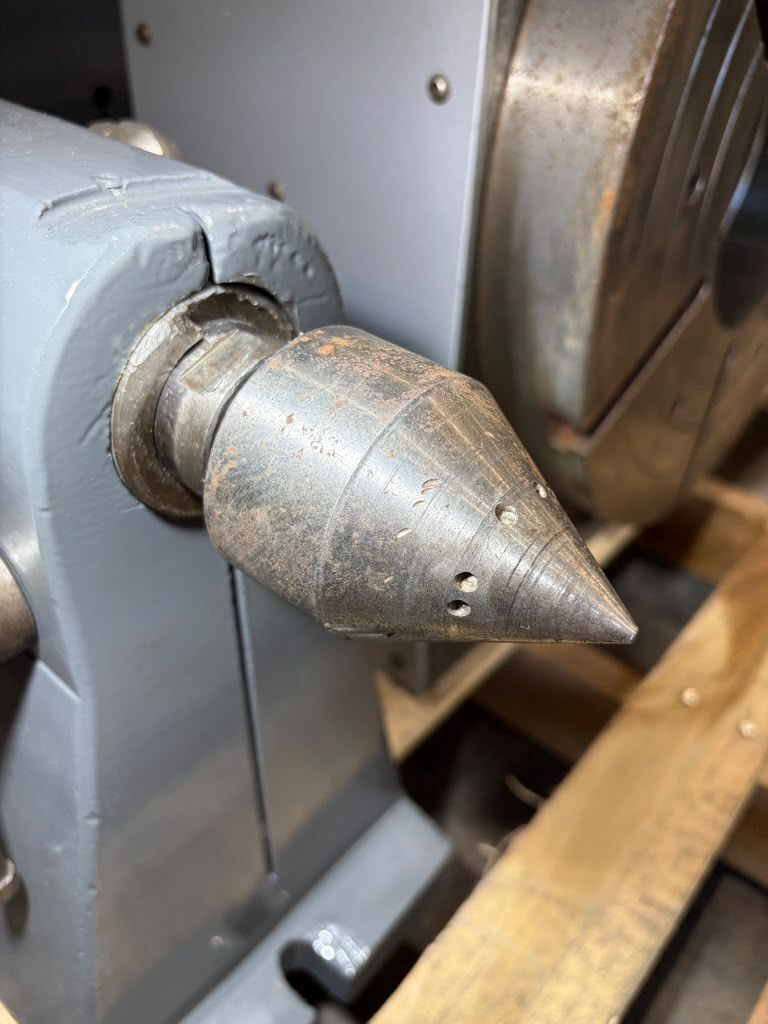

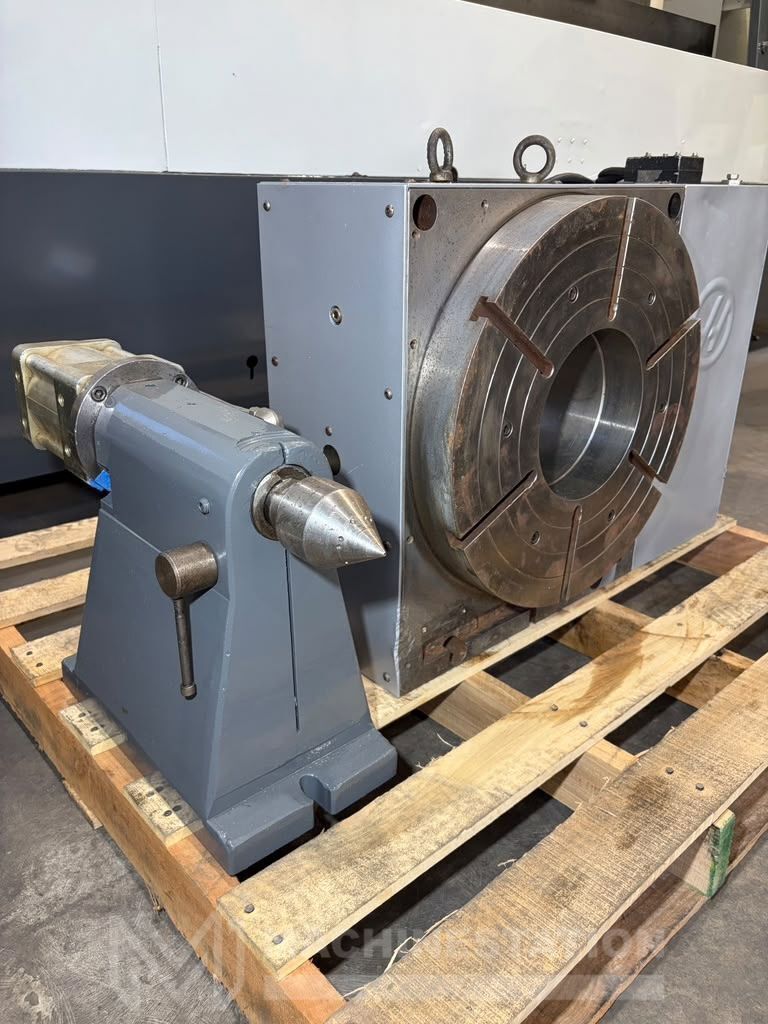

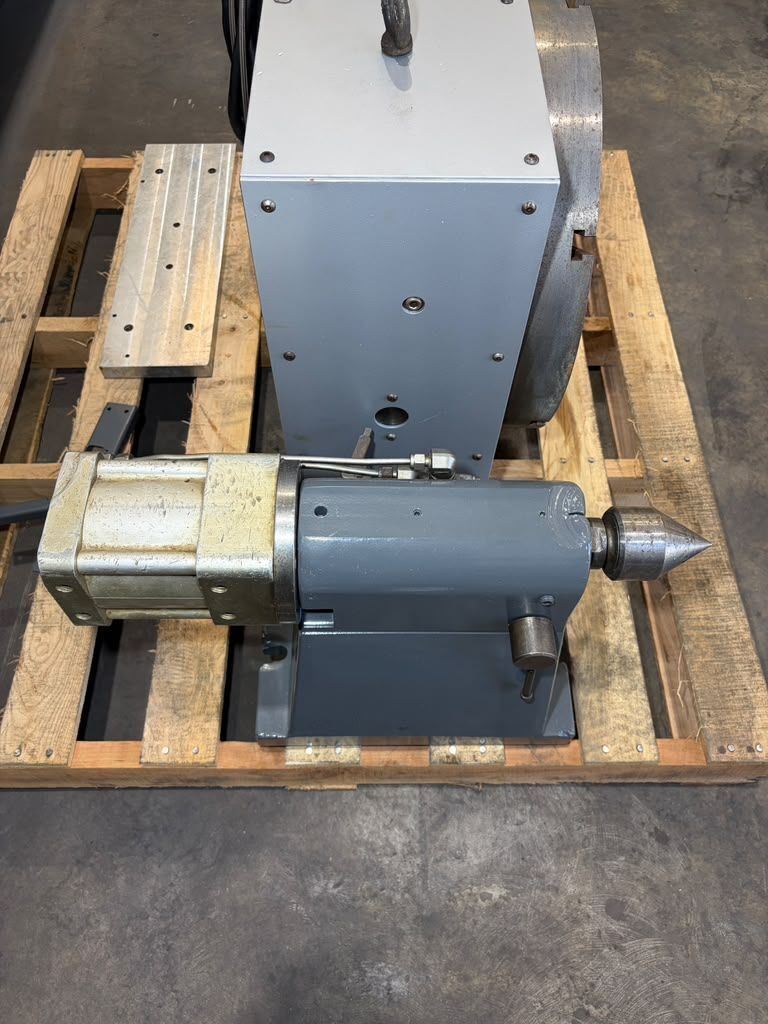

11.5″ Manual Tailstock
MT3 Morse Taper
11.5″ Center Height
Tailstock Mounted in T-Slot
