*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

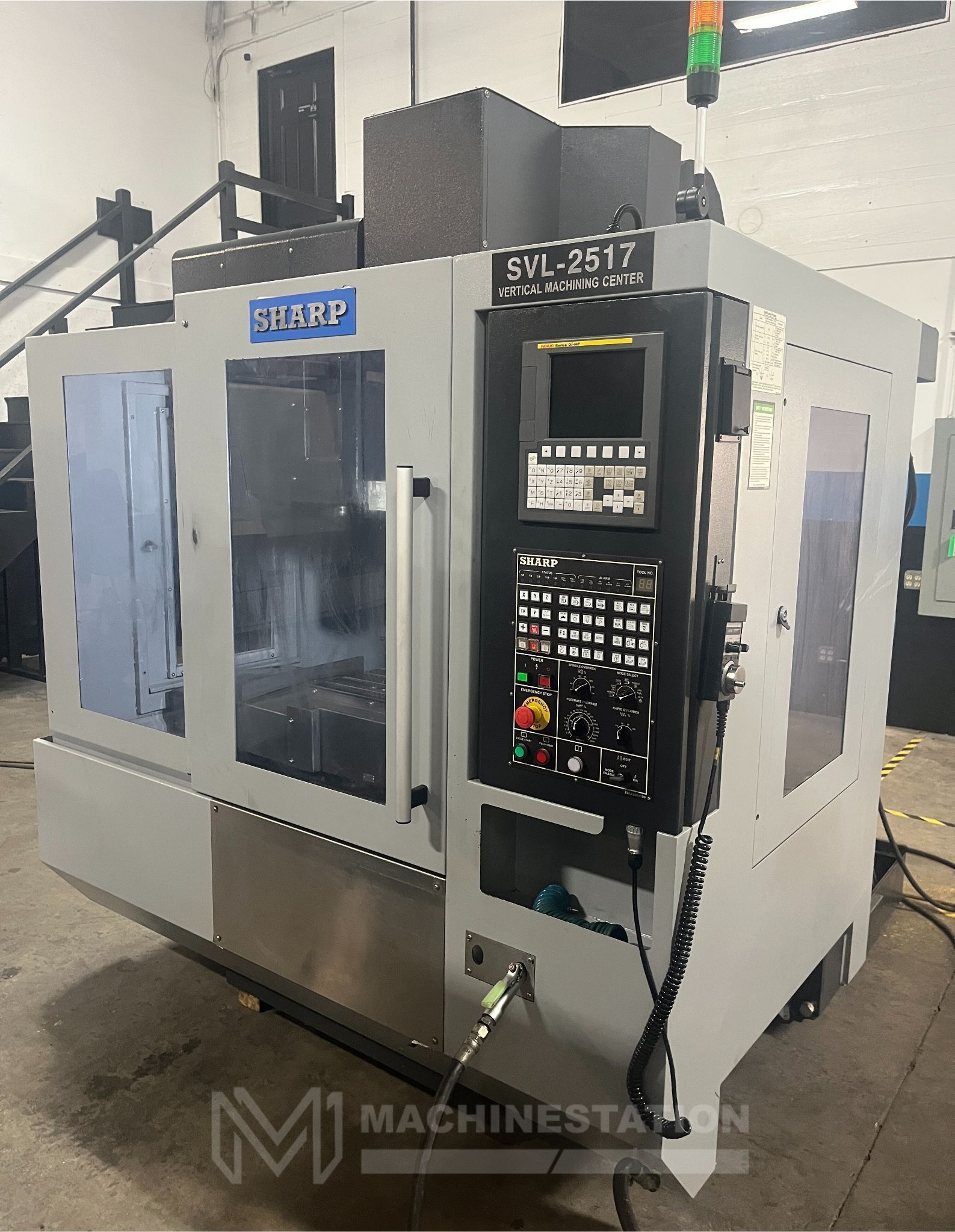

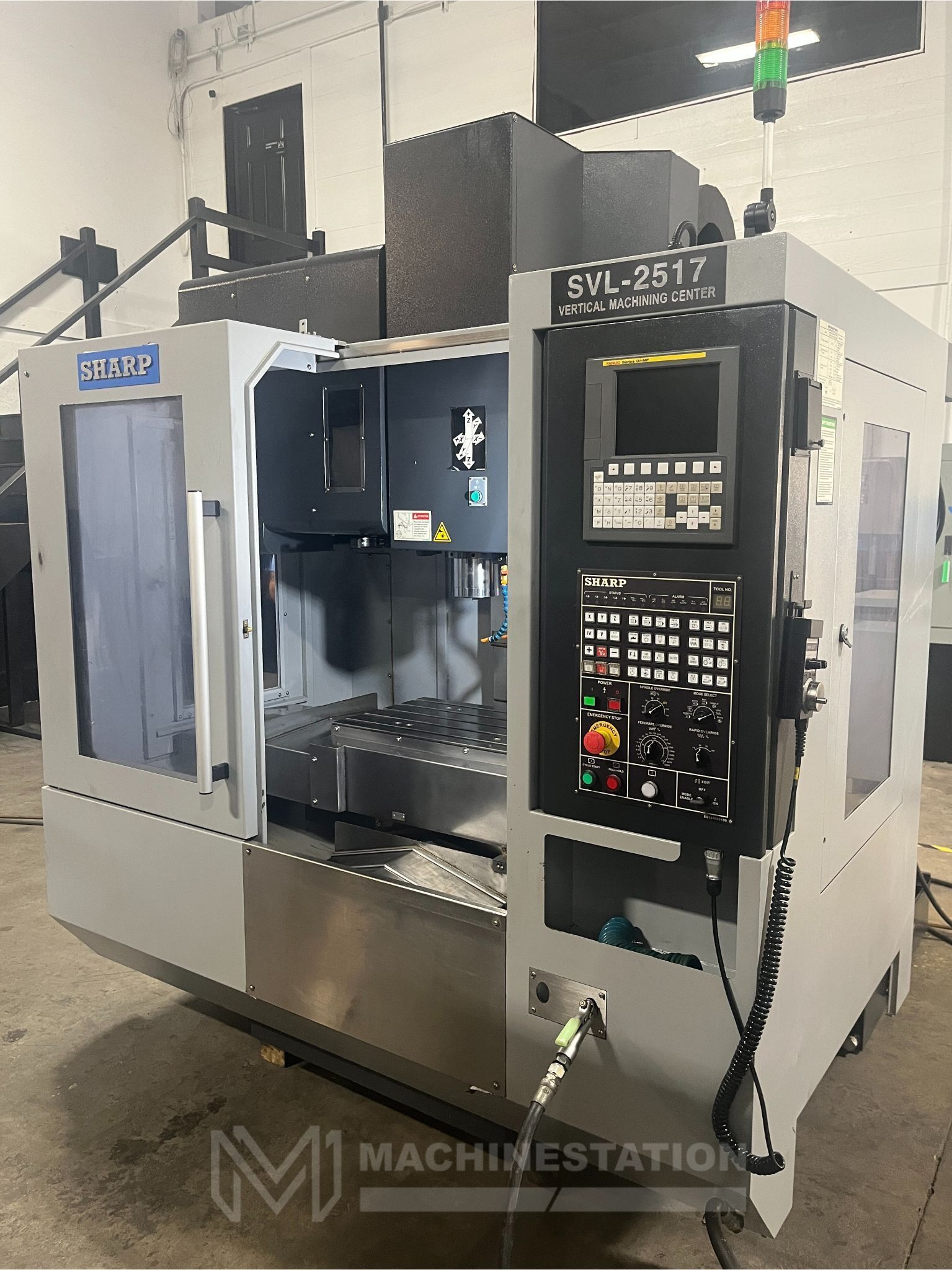

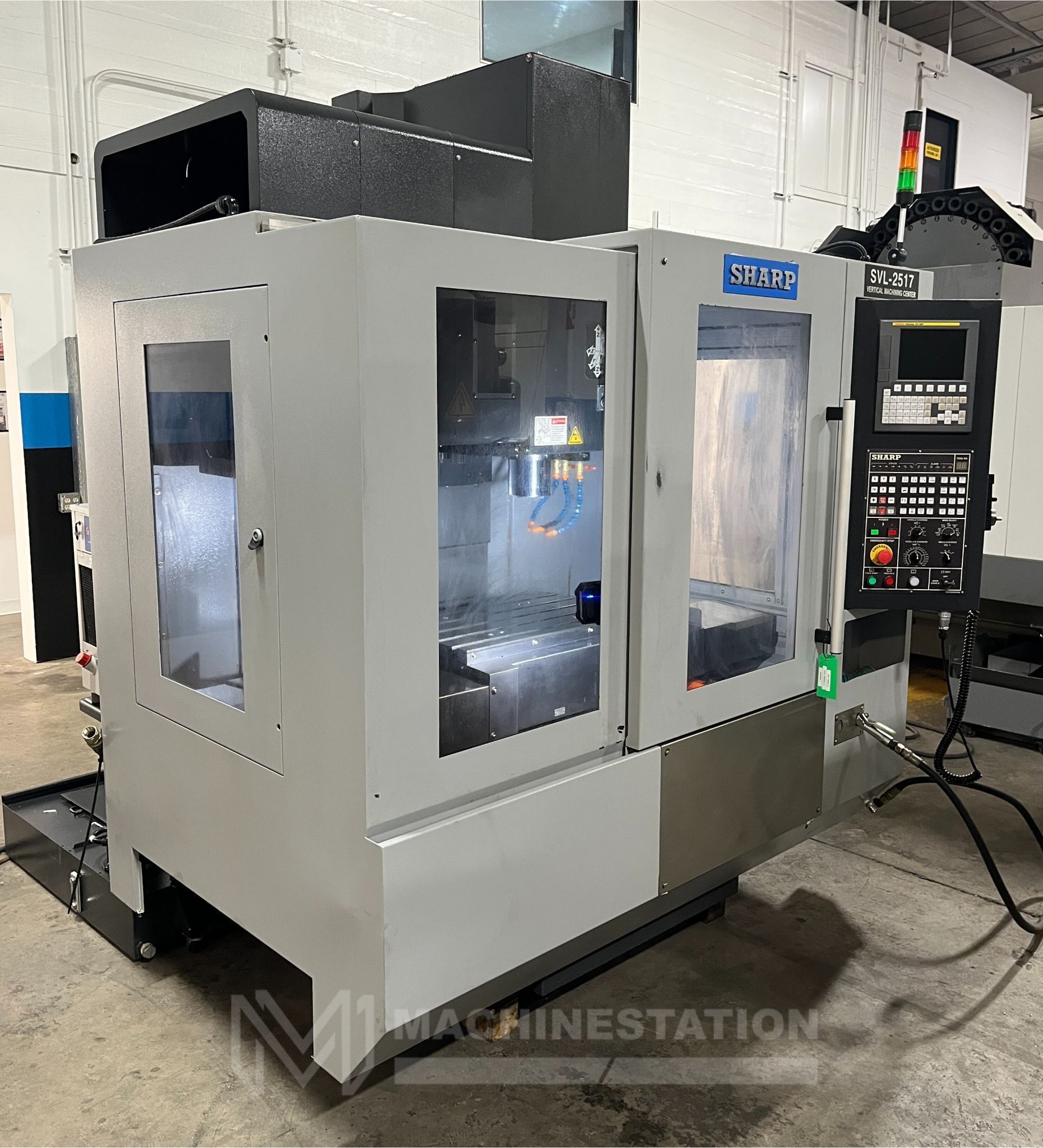

| Make: | Sharp |
| Model: | SVL-2517 SX-F |
| Year: | 2017 (Sold & Installed in 2018) |
| Condition: | Used – Excellent |
| Features: |
|---|

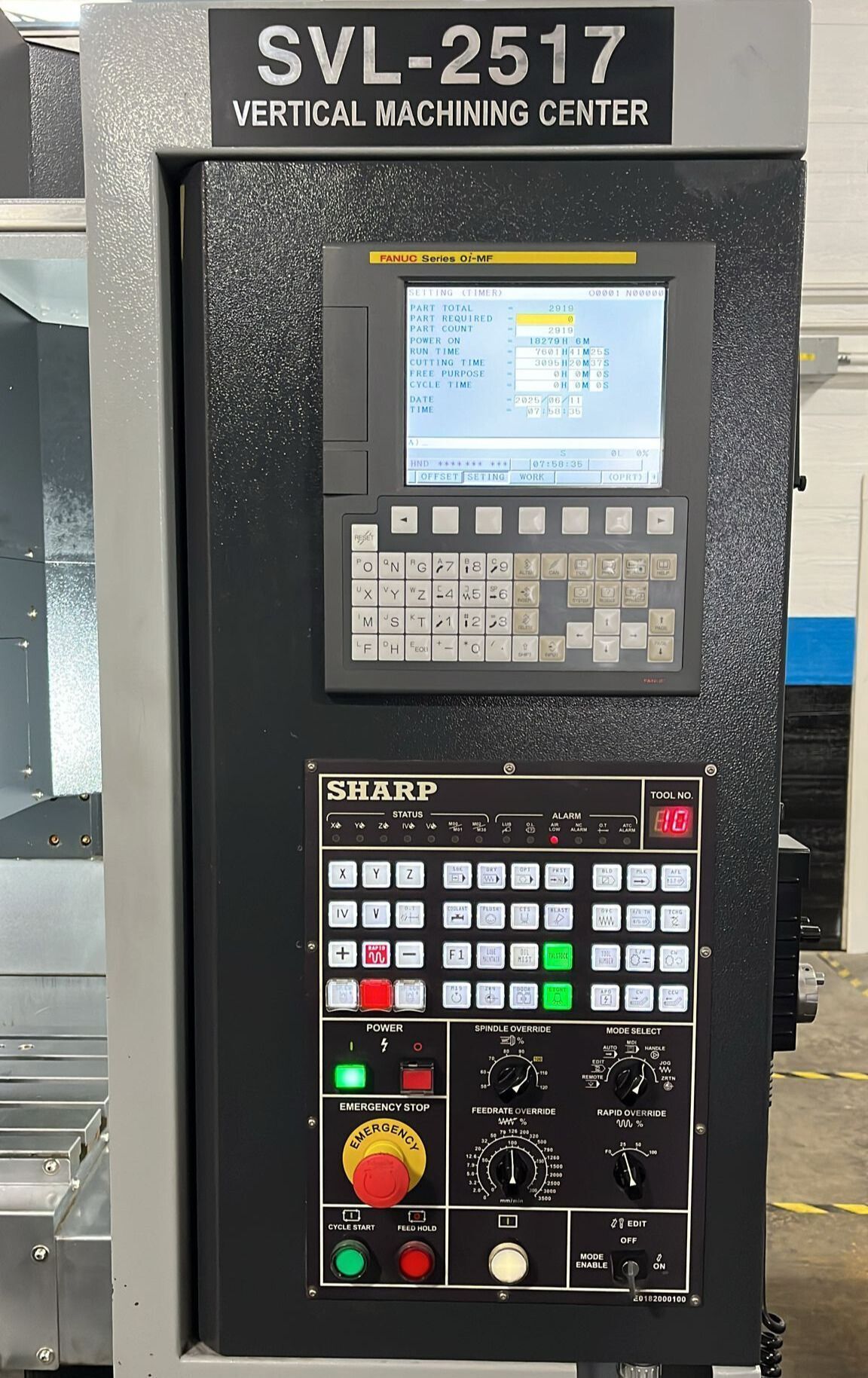

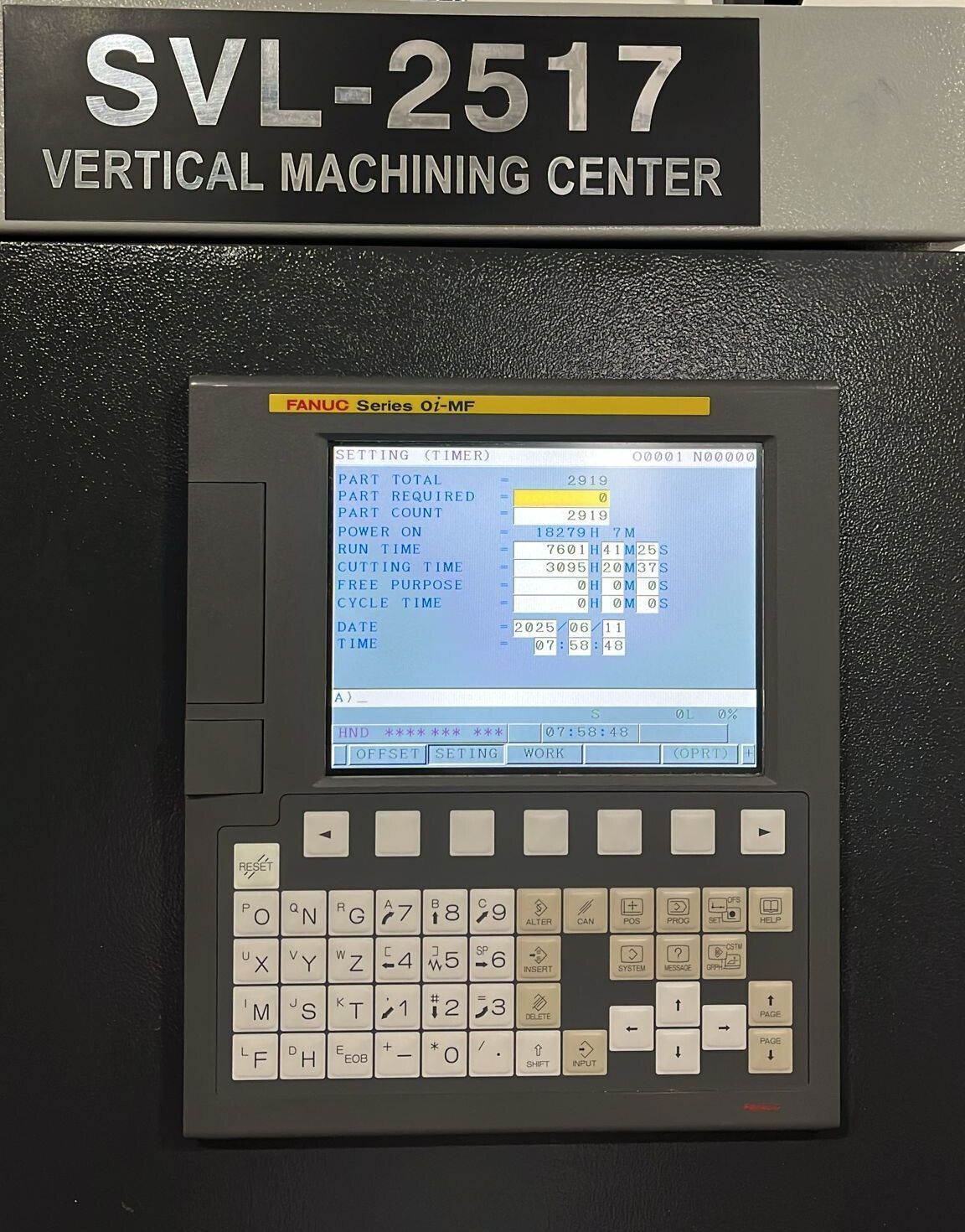

| Fanuc 0i-MF CNC Control |
| Linear Way Construction All Axis |
| 12,000 RPM High Precision Spindle |
| 24 Station Side Mounted Automatic tool changer |
| CAT-40 Taper Spindle |
| 10 HP Spindle Motor |

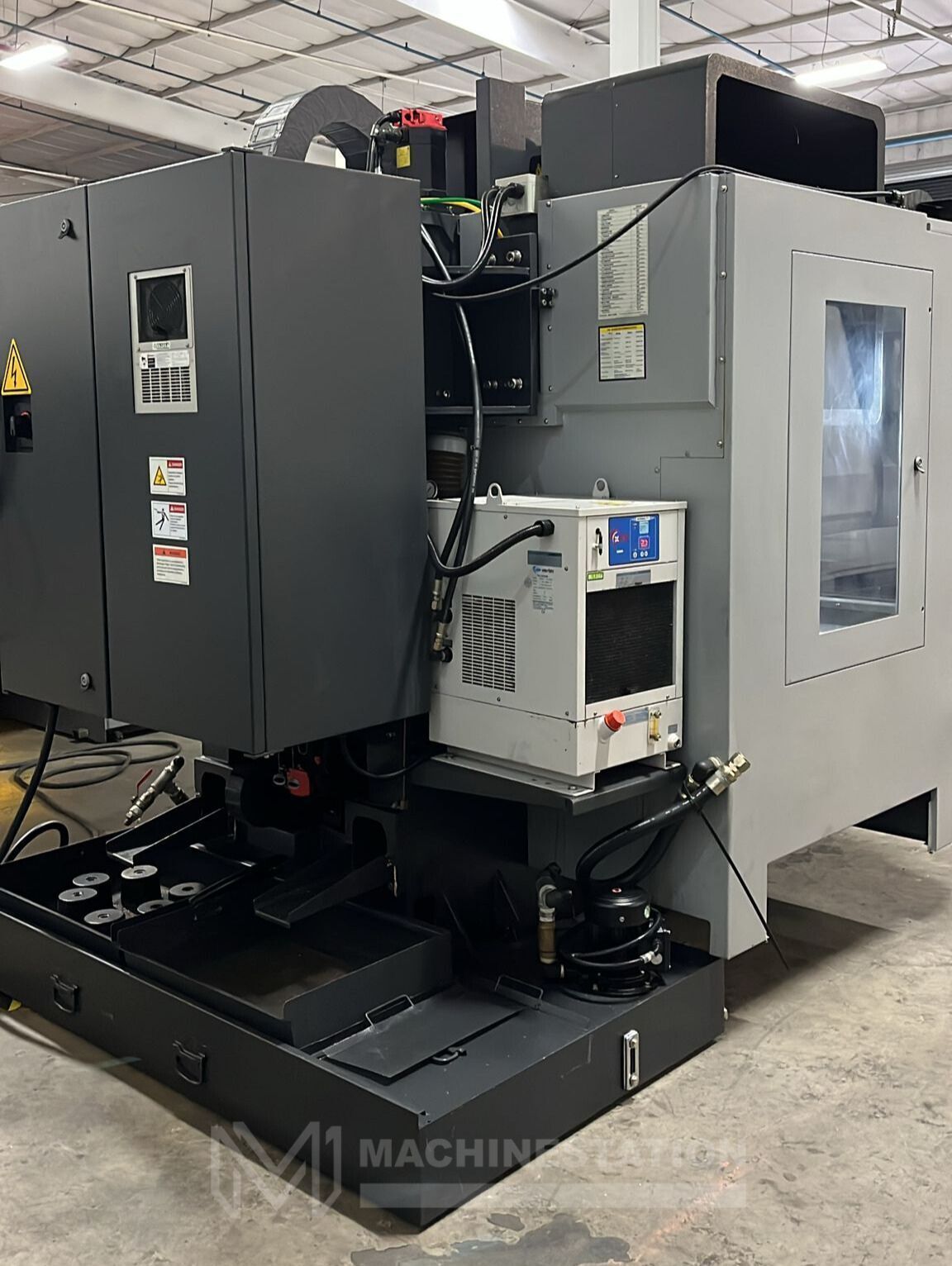

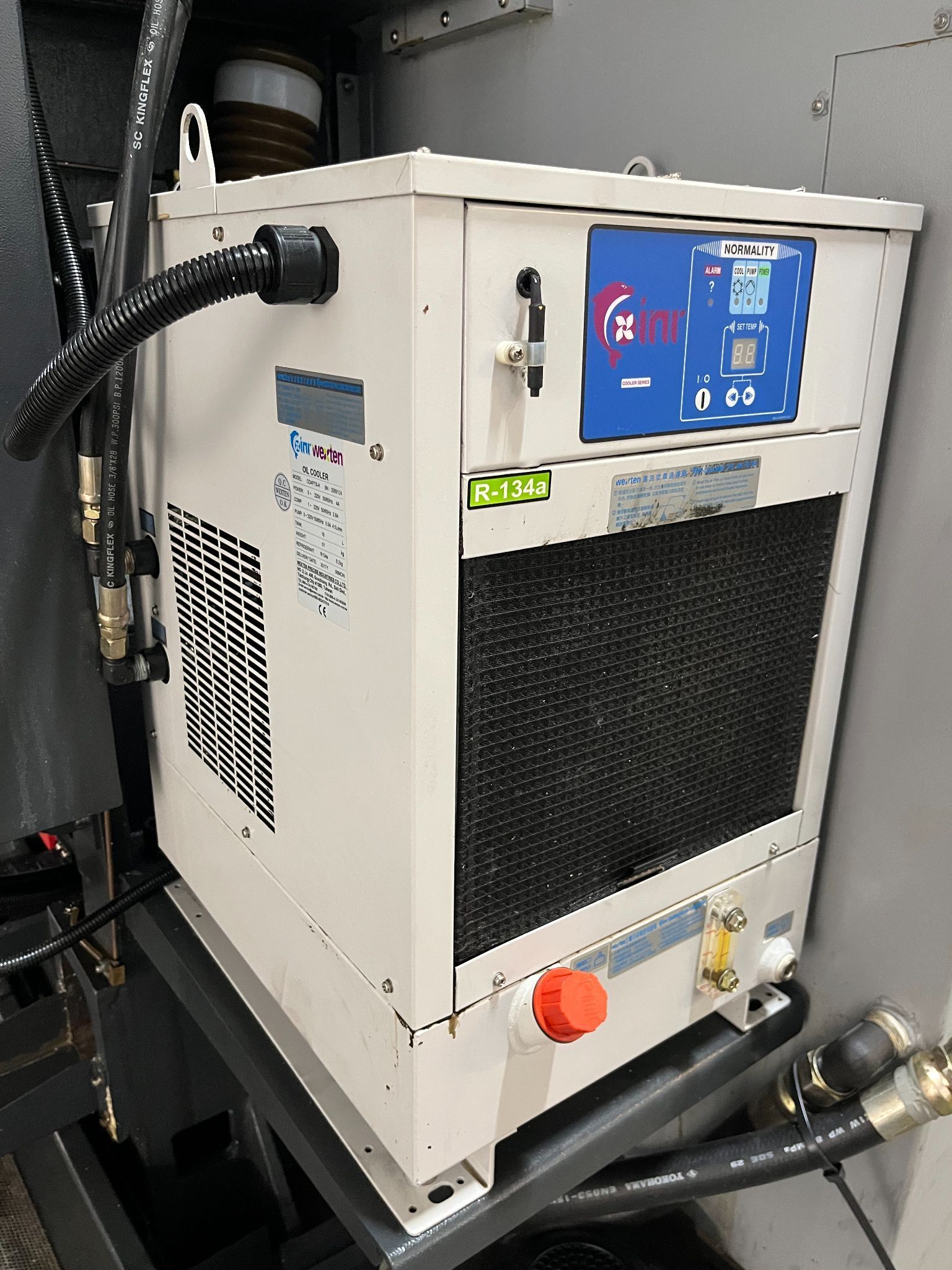

| Spindle Chiller Unit |
| Rigid Tapping |
| USB Port & RS-232 Port |
| PCMCIA Card Slot |
| MPG Handwheel Control |

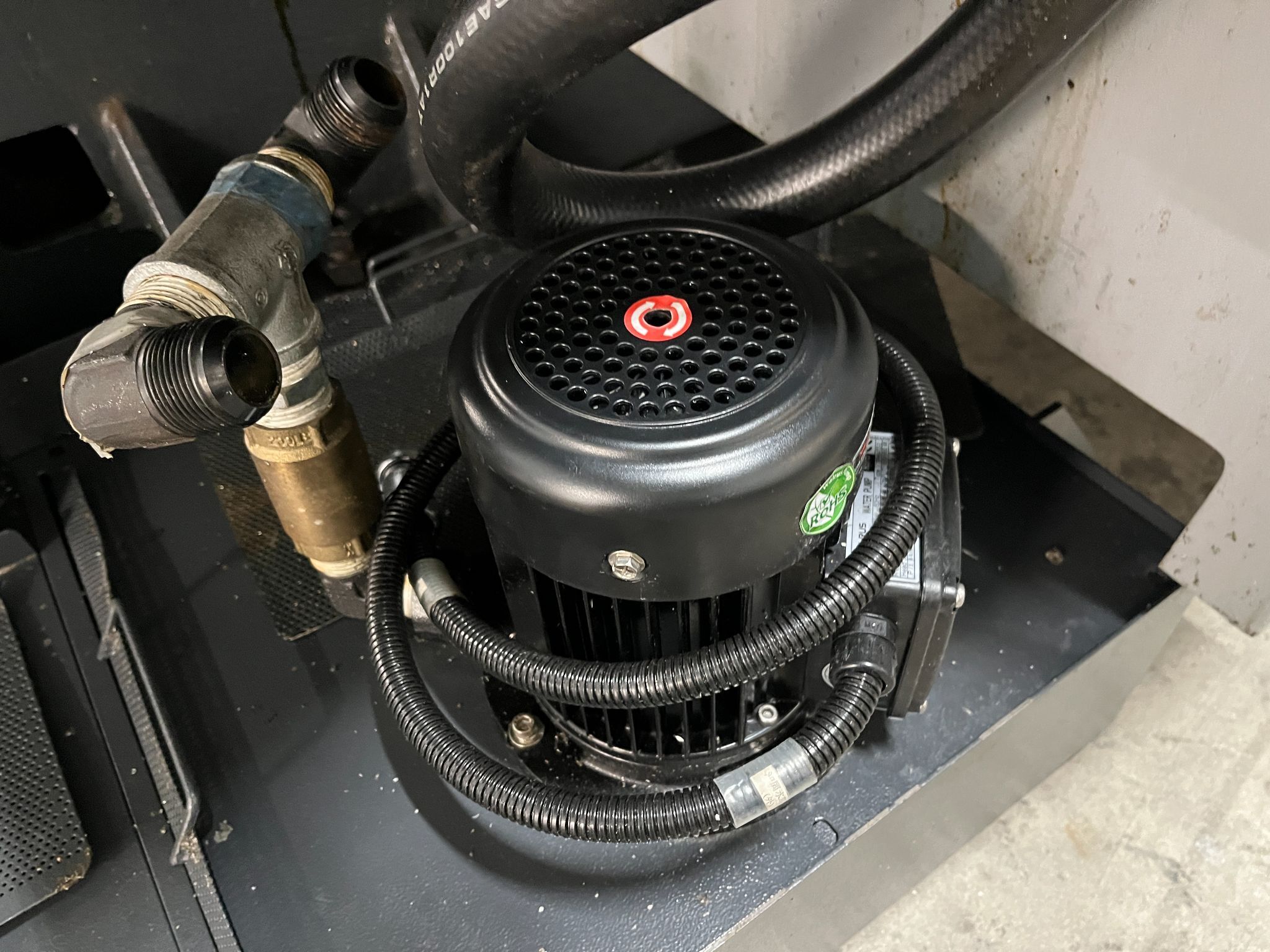

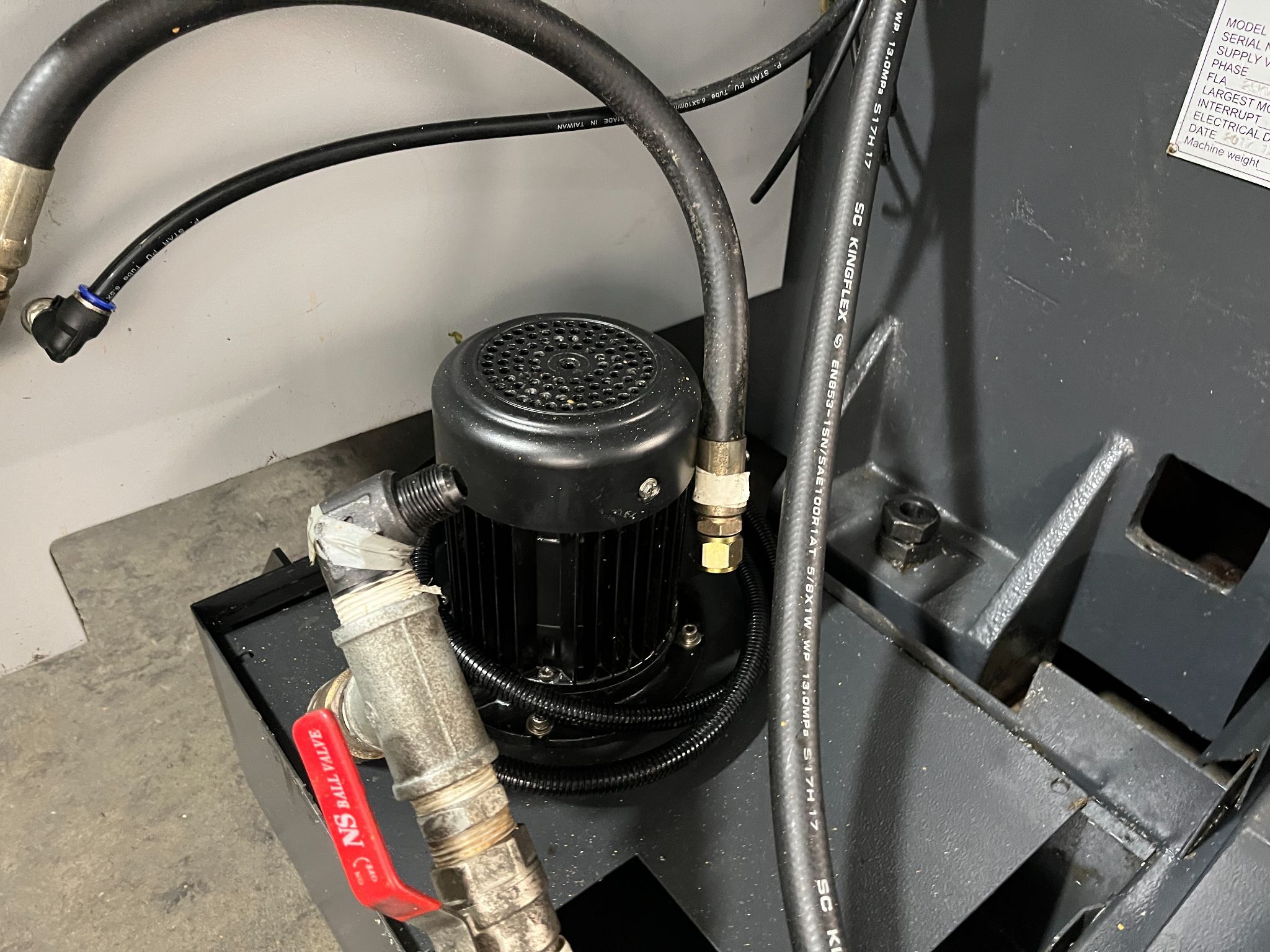

| Coolant System |

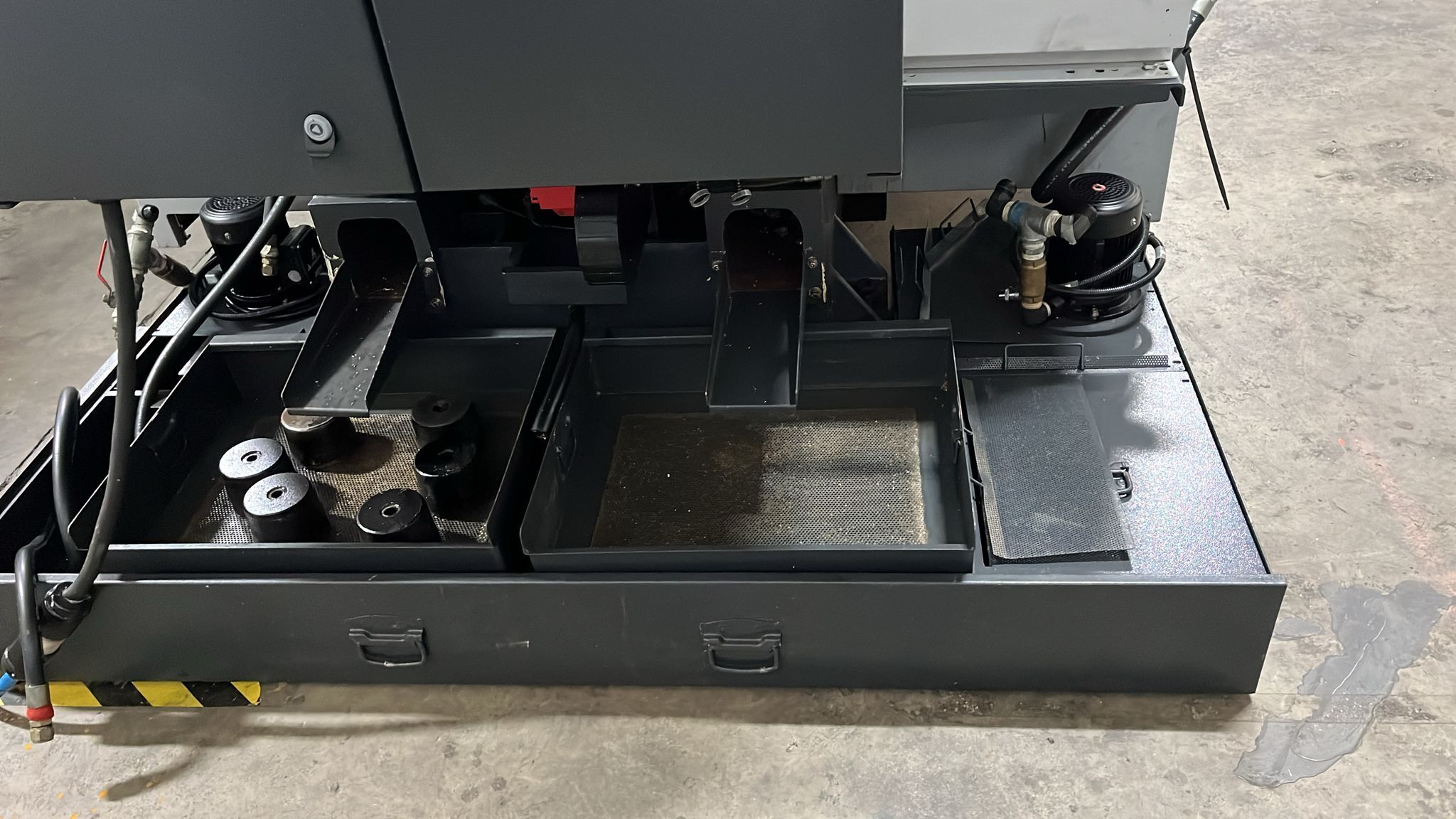

| Chip Tray |

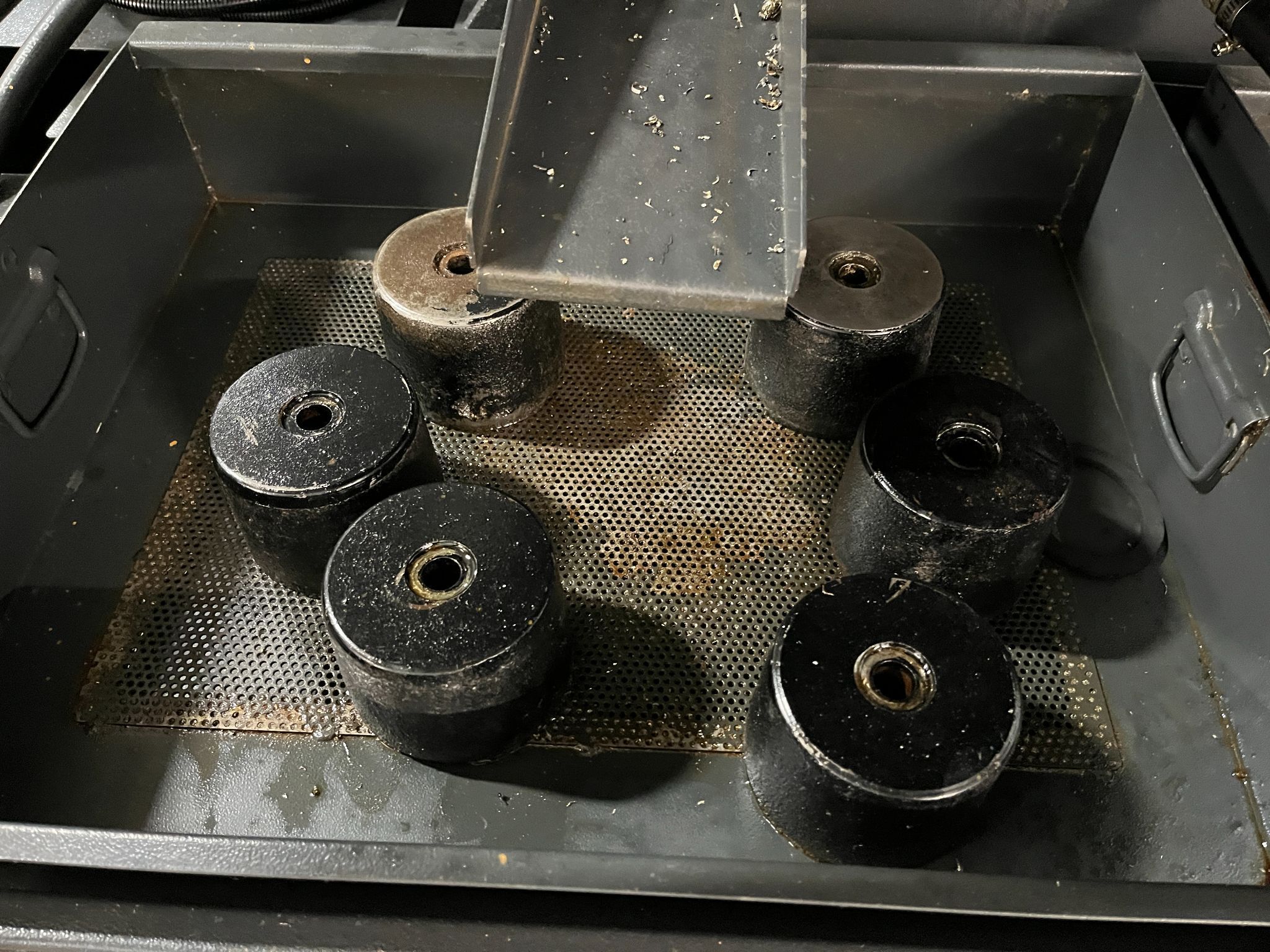

| Levelling Pads |
| Travels: |
|---|
| X-Axis: 25.2″ |
| Y-Axis: 16.9″ |
| Z-Axis: 18.1″ |
| Rapid Traverse Rates: 1417 IPM |
| Cutting Feed Rates: 394 IPM |
| Spindle Nose to Table (Min.- Max.): 3.1″ – 21.2″ |

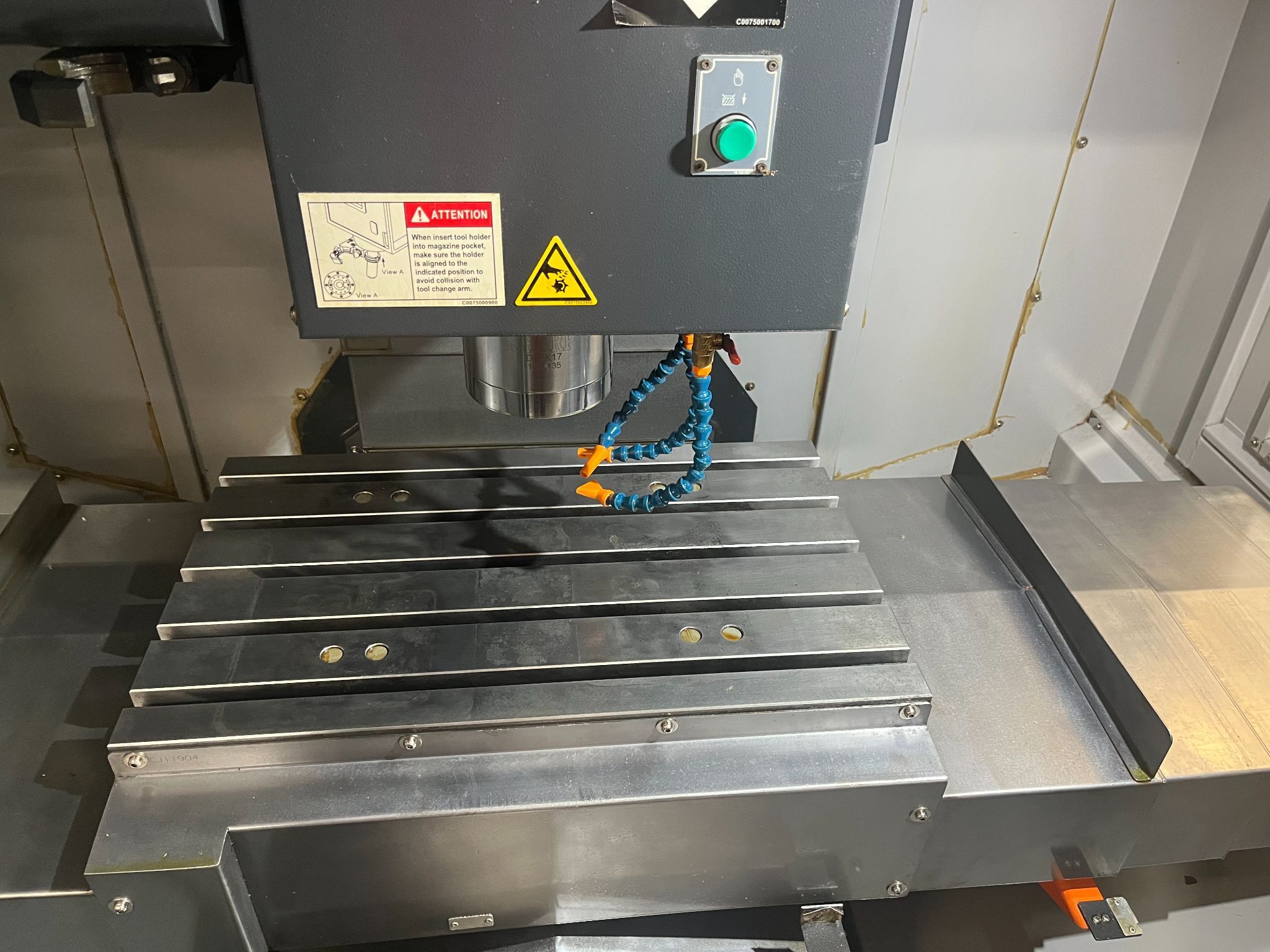

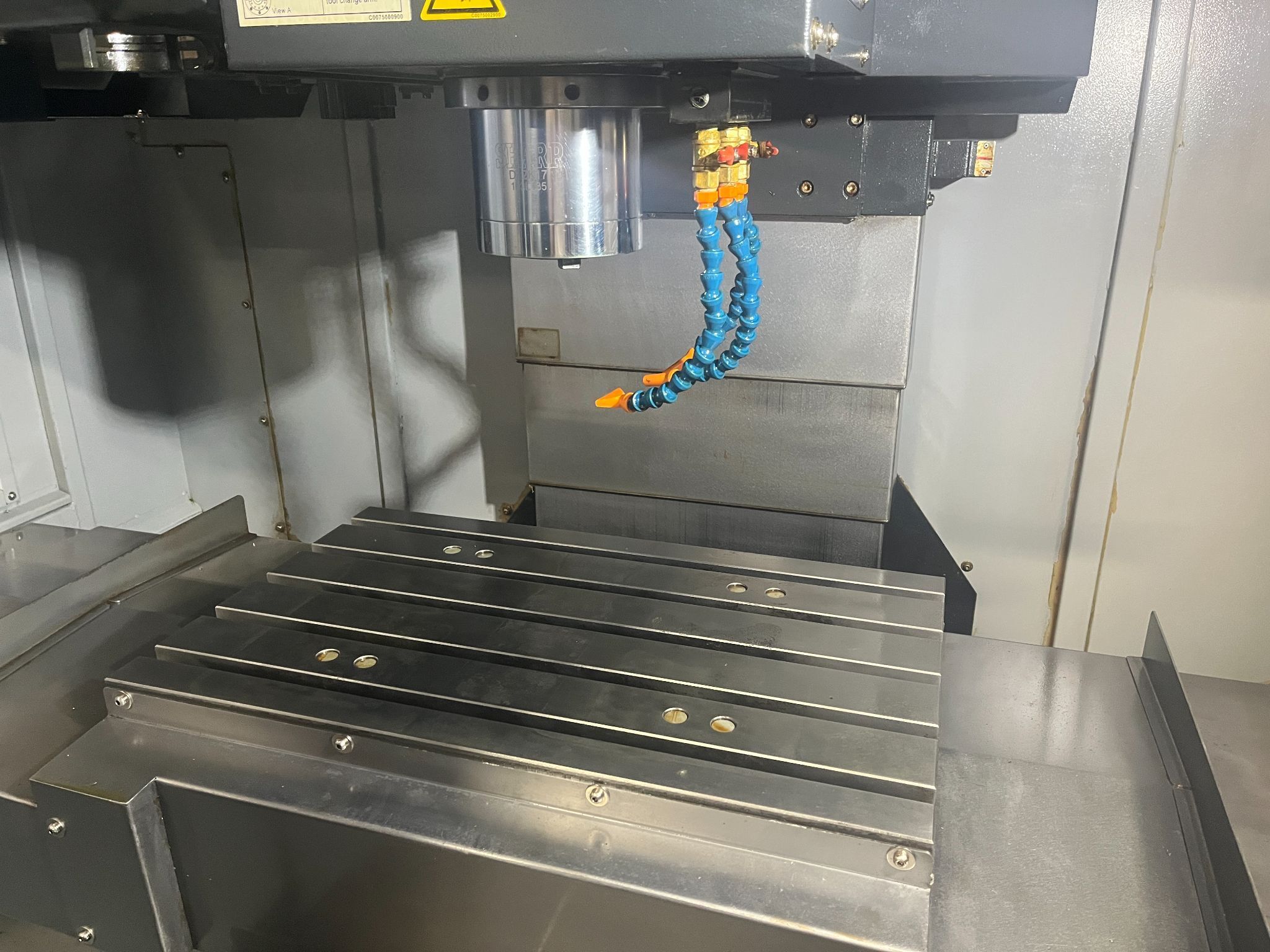

| Table |
|---|
| Length: 27.5″ |
| Width: 16.5″ |
| T-slot (no. x width x pitch): 5 x 0.7″ x 3.14″ |
| Max Weight on Table: 660 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 10 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station |
| Max Tool Weight: 15.4 lbs |
| Max Tool Dia: 2.9″ – 5.9″ |
| Max Tool Length: 11.8″ |
| General: |
|---|

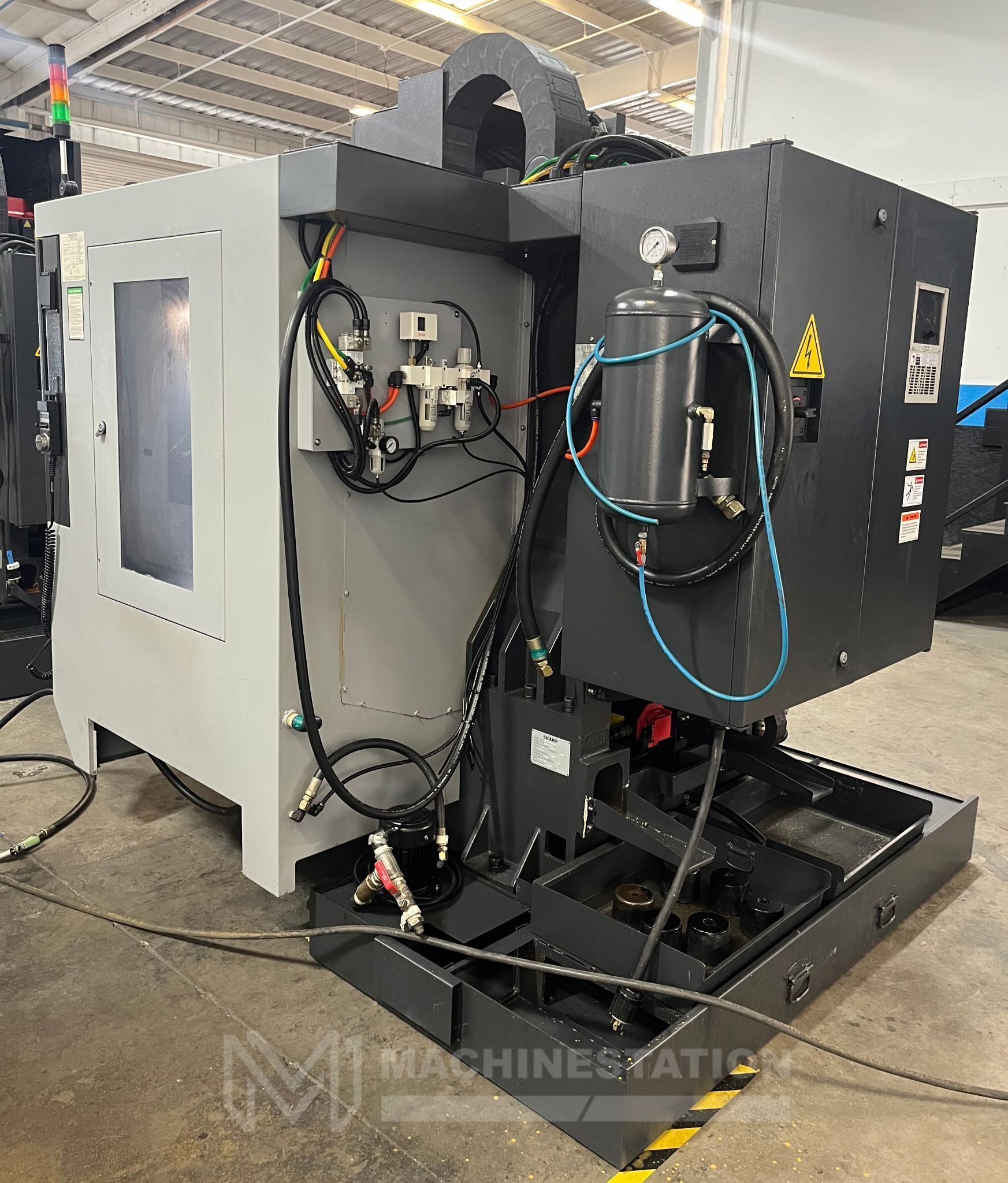

| Air Required: 80 psi, 4 scfm |

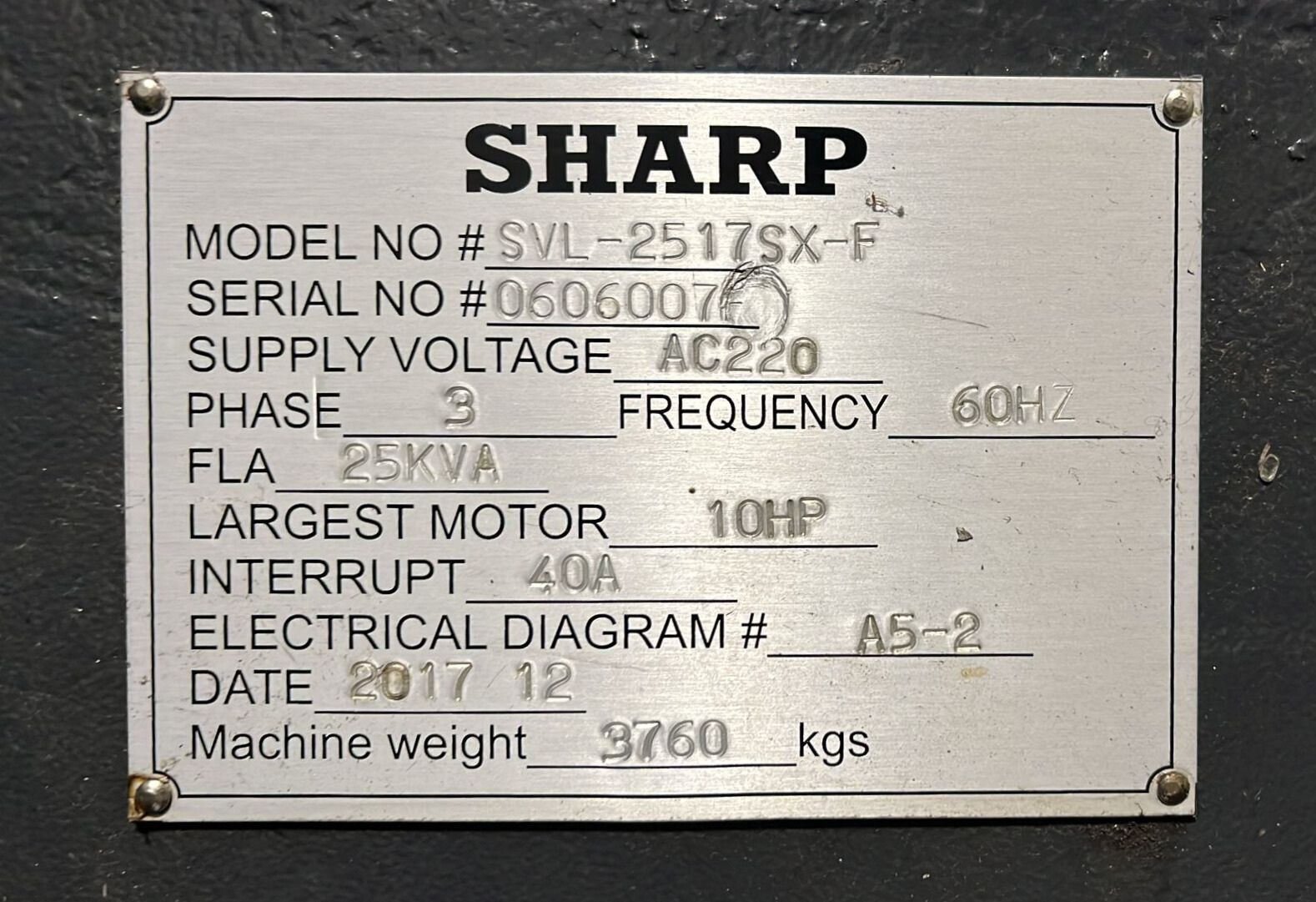

| Power: 220v / 60 Hz / 3-Phase / 25 kva |
| Overall Dimensions: 79″ x 101″ x 100″ High Approx. |
| Weight: 8,290 lbs Approx. |
