*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112013 |
| Make: | Mori Seiki |
| Model: | SL150SMC |
| Year: | 1999 |
| Condition: | Used – Good |
| Equipped With: |
|---|

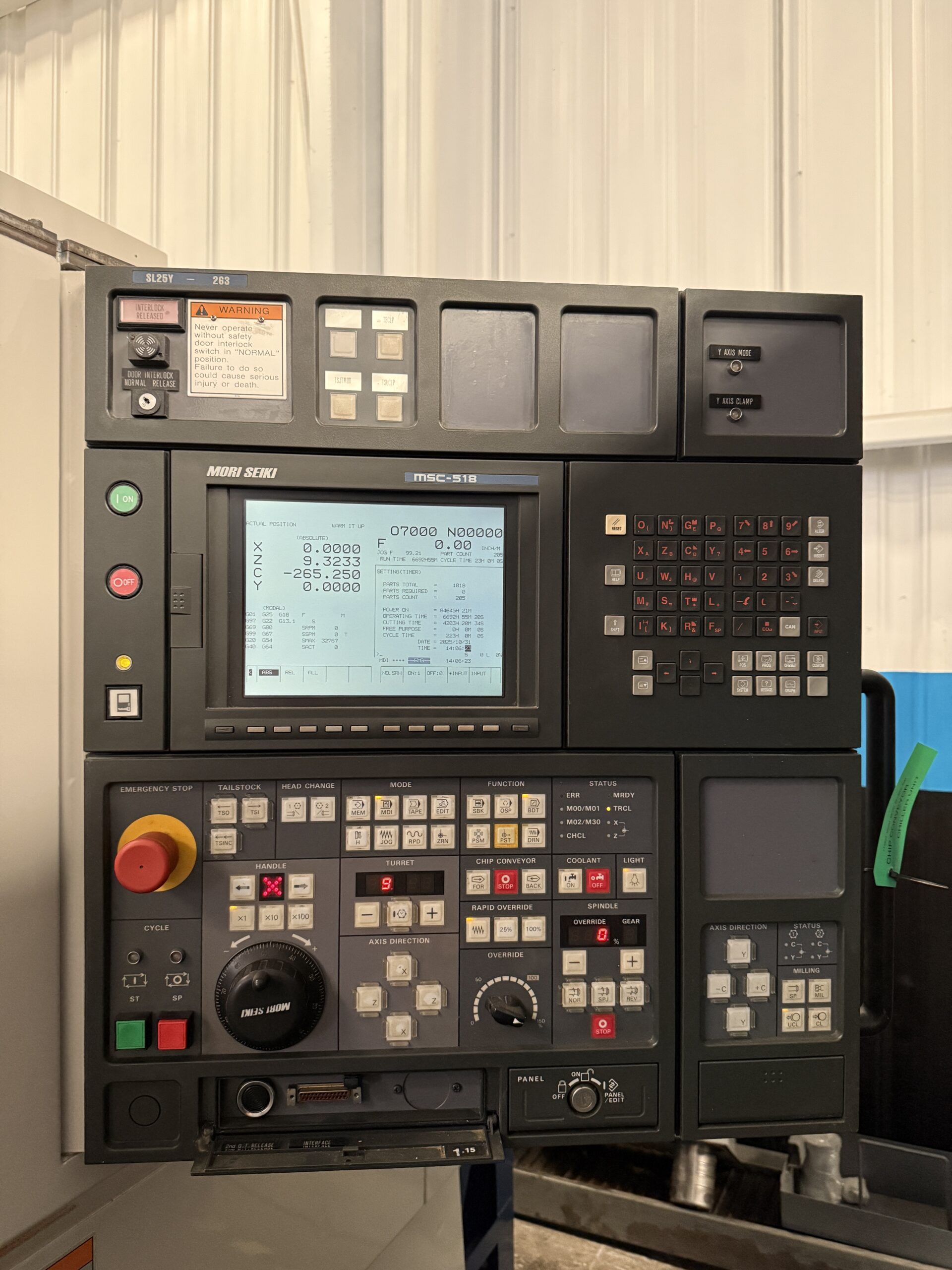

| Fanuc MSC-518 CNC Control |
| 12 Station Live Tool Turret with Tool Holders |
| Collet Chuck Main & Sub Spindle |
| 2 Step Gear Spindle for Powerful Torque |
| Chip Pan & Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Work Light |
| Capacity: |
|---|
| Max Turning Diameter: 16.9″ |
| Max Turning Length: 20.9″ |
| Max Bar Capacity Main Spindle: 2.2″ |
| Max Bar Capacity Sub Spindle: 1.86″ |
| Swing Over Cross Slide: 17.9″ |
| Swing Over Bed: 24.4″ |
| Distance Between Spindles: 24.6″ |
| Travels: |
|---|
| X Axis Travel: 9.1″ |
| Z Axis Travel: 20.4″ |
| B Axis Travel (Sub Spindle): 16.9″ |
| C Axis: 0.001° (Non Functional) |
| Rapid Traverse X Axis: 790 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.65″ |
| Spindle Speed: 60-5000 RPM |
| Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.2″ |
| Spindle Speed: 60-5000 RPM |
| Spindle Motor: 11 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Spindle Speed: 3000 RPM |
| Live Tool Spindle Motor: 3.5 HP |
| Turret Index Time: 0.5 Second |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: ? kva |
| Overall Dimensions: 88″ x 70″ x 80″ High |
| Overall Dimensions: 120″ x 70″ x 80″ High with Chip Conveyor |
