*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

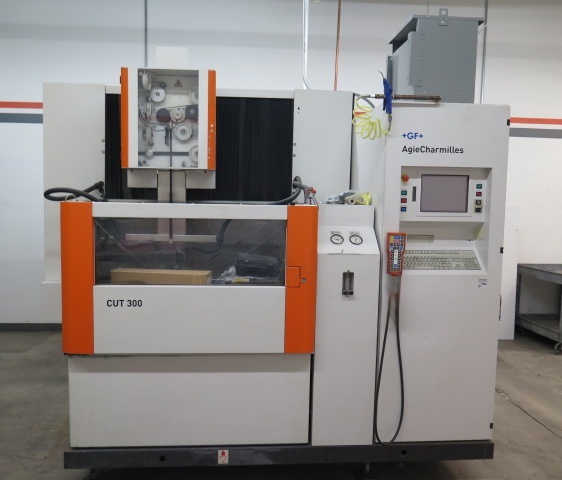

| Make: | Agie Charmilles |
| Model: | CUT 300 |
| Year: | 2011 |
| Machine Type: | CNC Submerged Wire EDM |
| CNC Control: | Millenium CNC |
| Features: |
|---|

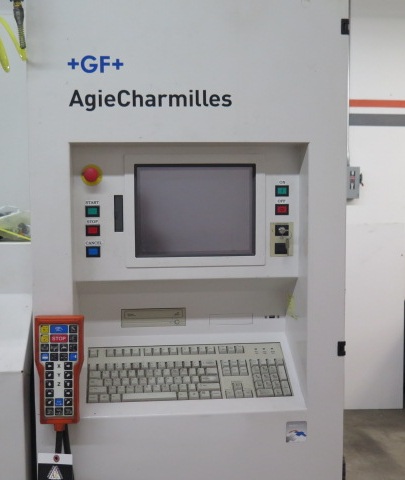

| Millennium CNC Touch Screen Controls |
| Remote Hand Controller |
| Automatic Wire Threading |
| Submerged Wire Cutting |
| Integrated Crash / Collision Protection |
| Linear Glass Scale Feedback |
| 30° Taper Cutting Capability |
| Chiller / Cooling System |
| Coolant / Dielectric Filtration System |
| Large Work Area |
| Enclosed Cutting Chamber |
| Capacity: |
|---|
| Table Size: 35.43″ × 23.62″ |
| Maximum Workpiece Size: 47.24″ × 27.56″ × 15.75″ |
| Maximum Workpiece Weight: 3,307 lbs. |
| Floor-to-Table Height: 39.37″ |
| Maximum Standard Taper: ±30° over 15.75″ height |
| Optional Taper Capability: ±45° over 15.75″ |
| Travels: |
|---|
| X-Axis Travel: 21.65″ |
| Y-Axis Travel: 13.77″ |
| Z-Axis Travel: 15.75″ |
| U-Axis Travel: 21.65″ |
| V-Axis Travel: 13.77″ |
| Rapid Traverse: 9.8 ft/min |
| Wire EDM System: |
|---|
| Machining Type: Submerged Wire EDM |
| Automatic Wire Threading: Yes |
| Wire Diameter: 0.006″–0.013″ |
| Glass Scale Feedback: X, Y, U, V |
| Collision Protection: Integrated 5-Axis Protection |
| Dielectric: Deionized Water |

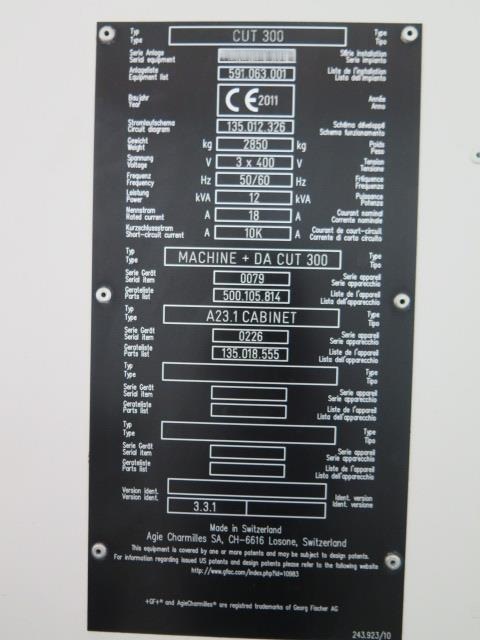

| Electrical: |
|---|
| Voltage: 400 VAC |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Power: 17 kVA |
| Rated Current: 18 A |
| Short-Circuit Current: 10 kA |
| General: |
|---|
| Machine Dimensions (Approx.): 102.36″ L × 100.00″ W × 88.19″ H |
| Machine Weight (Approx.): 6,283 lbs. |
