*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

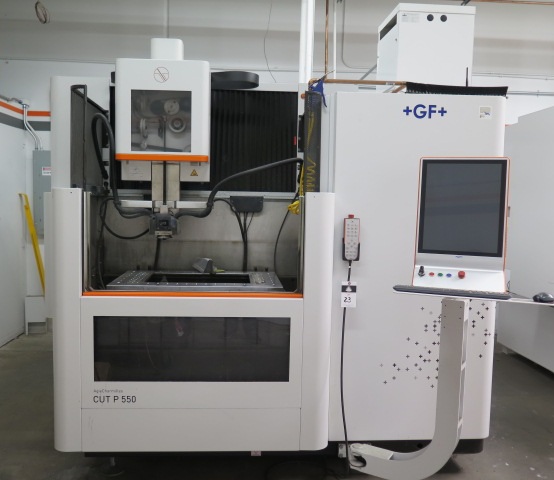

| Make: | Agie Charmilles |
| Model: | CUT P 550 |
| Year: | 2018 |
| Machine Type: | CNC Submerged Wire EDM |

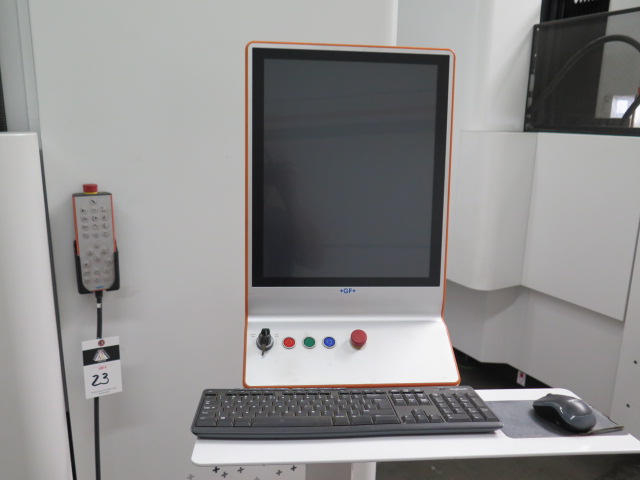

| CNC Control: | AC CUT HMI Touch Screen |
| Features: |
|---|
| AC CUT HMI Touch Screen Controls |
| Remote Hand Controller |
| Automatic Wire Threading |
| Integrated Collision Protection (ICP) |
| Linear Glass Scales |
| Submerged Wire EDM Cutting |
| 30° Taper Capability |
| Coolant / Dielectric System |
| Filtration System |
| Large Work Area |
| Enclosed Cutting Chamber |
| Capacity: |
|---|
| Table Size: 35.43″ × 23.62″ |
| Maximum Workpiece Dimensions: 39.7″ × 27.6″ × 15.75″ |
| Floor-to-Table Height: 39.37″ |
| Maximum Taper: ±30° |
| Taper Height: Up to 15.75″ |
| Travels: |
|---|
| X-Axis Travel: 21.65″ |
| Y-Axis Travel: 13.78″ |
| Z-Axis Travel: 15.75″ |
| U-Axis Travel: 21.65″ |
| V-Axis Travel: 13.78″ |
| Maximum X/Y/U/V Speed: 9.8 ft/min |

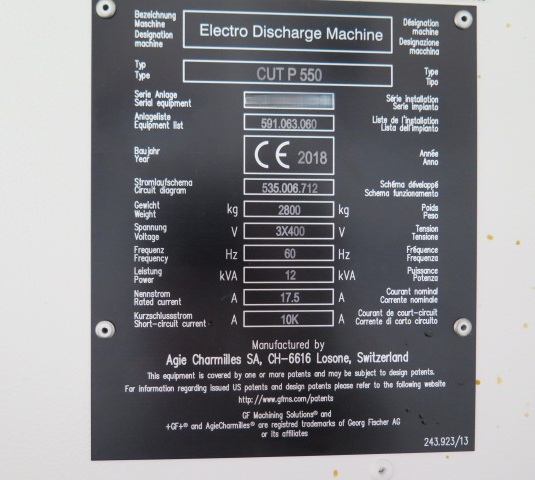

| Electrical: |
|---|
| Voltage: 400 VAC |
| Phase: 3-Phase |
| Frequency: 60 Hz |
| Power: 12 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 102.4″ L × 103.9″ W × 92.1″ H |
| Machine Weight (Approx.): 6,173 lbs. |
