*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

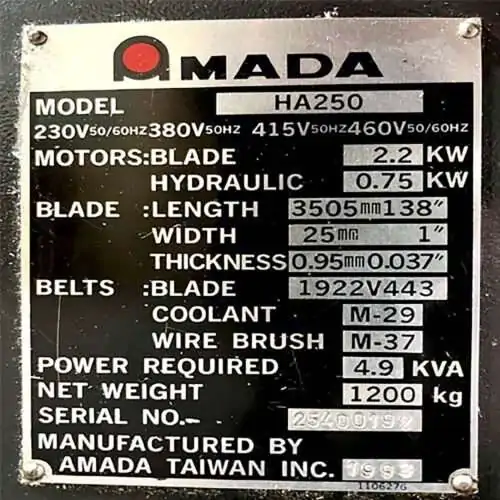

| SKU: | 2359 |

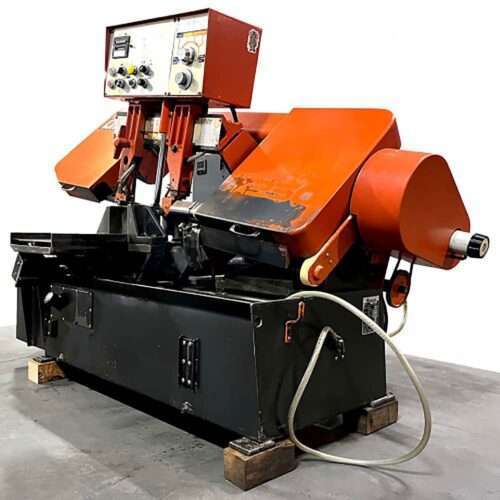

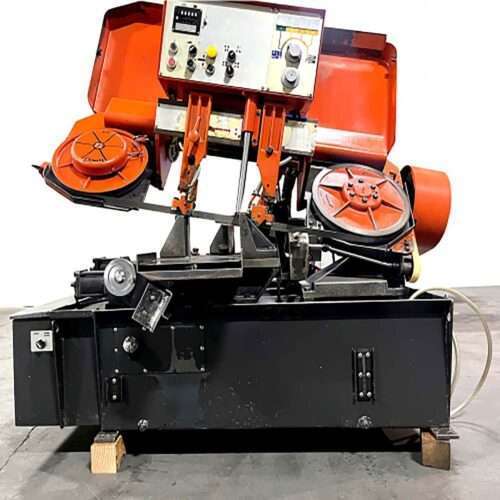

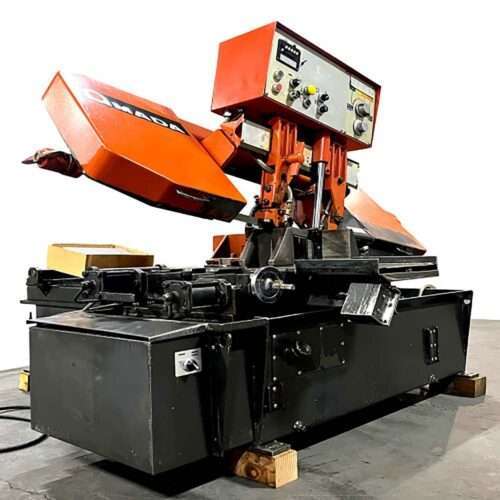

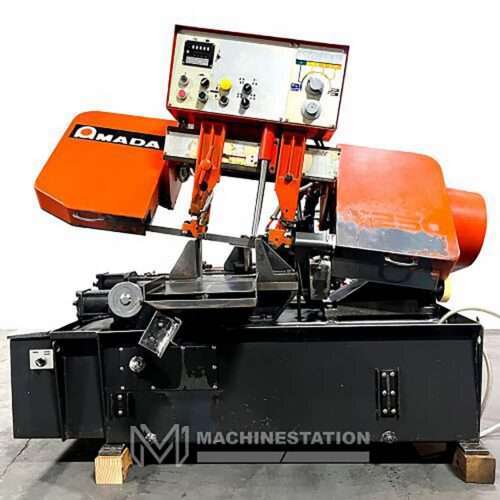

| Make: | Amada |
| Model No: | HA-250 |
| Serial: | 25400192 |
| Condition: | Very Good |
| Year: | 1993 |
| Equipped With: |
|---|

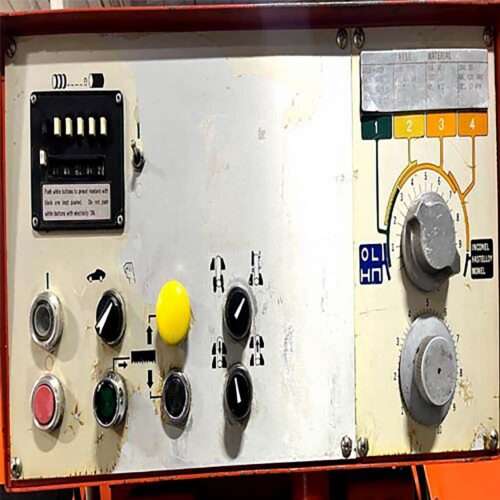

| Amada Automatic Control |
| Heavy Duty Cast Iron Saw Head |
| Automatic & Manual Operation |
| Hydraulic Auto Clamping |
| Automatic Multi-Indexing |
| Chip Disposable |
| Specifications: |
|---|
| Cutting Capacity: |
| Rectangular Capacity At 90°: 12” x 10” |
| Round Capacity At 90°: 10″ |
| Squire Capacity At 90°: 10″ x 10″ |
| Saw Blade: |
|---|
| Blade Dimensions (L x T x W): 11’6″ x 0.042″ x 1-1/4″ |
| Blade Speed: 89-295 ft./min, 60 Hz Stepless |
| Tension Control: Hydraulic |

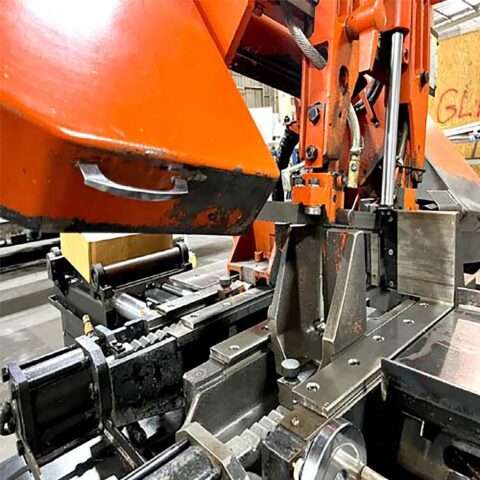

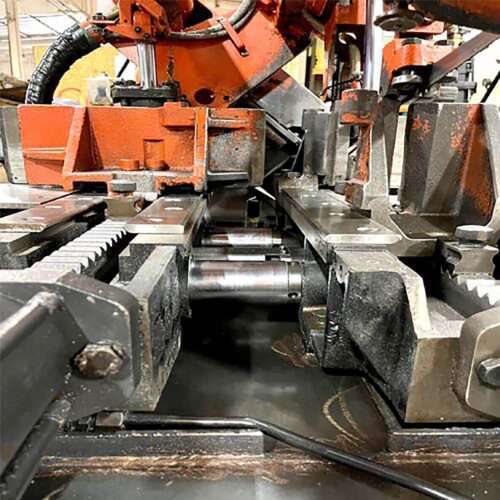

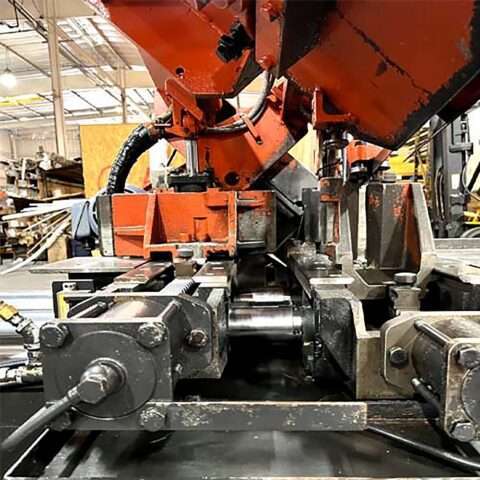

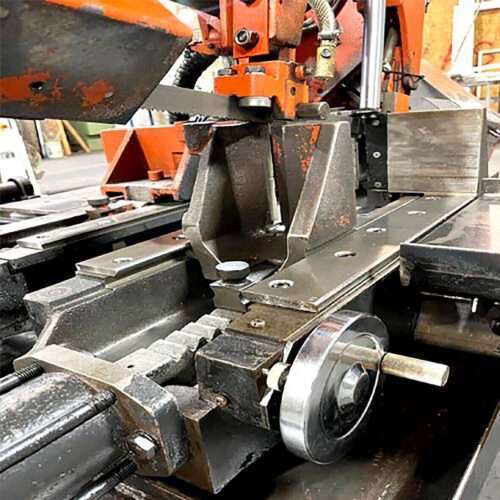

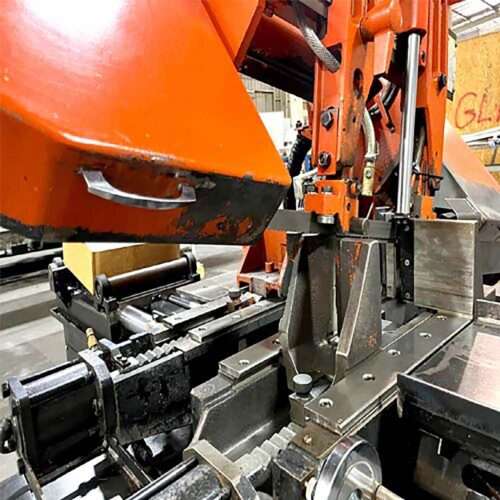

| Vise Operation: |
|---|
| Type: Main Split Vise and Rear Vise |
| Control: Hydraulic Full-Stroke Cylinder |
| Cutting Fluid: |
|---|
| Tank Capacity: 22.5 gal |
| Pump Type: Centrifugal Electric |
| Pump Capacity: 5.3 gal |
| Motors: |
|---|

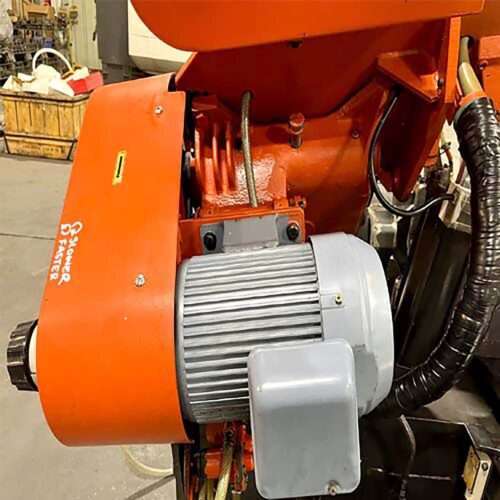

| Saw Blade: 3 HP |
| Hydraulic Pump: 1 HP |
| Cutting Fluid Pump: 1/4 HP |
| Weight : 2200 lbs Approx. |
| Hydraulic: |
|---|
| Tank Capacity: 7.9 gal |
| Pump Type: Variable Discharge Vane Electric Pump |
| Pump Capacity: 4.0 gal/min |
| Pressure Setting: 384 psi |

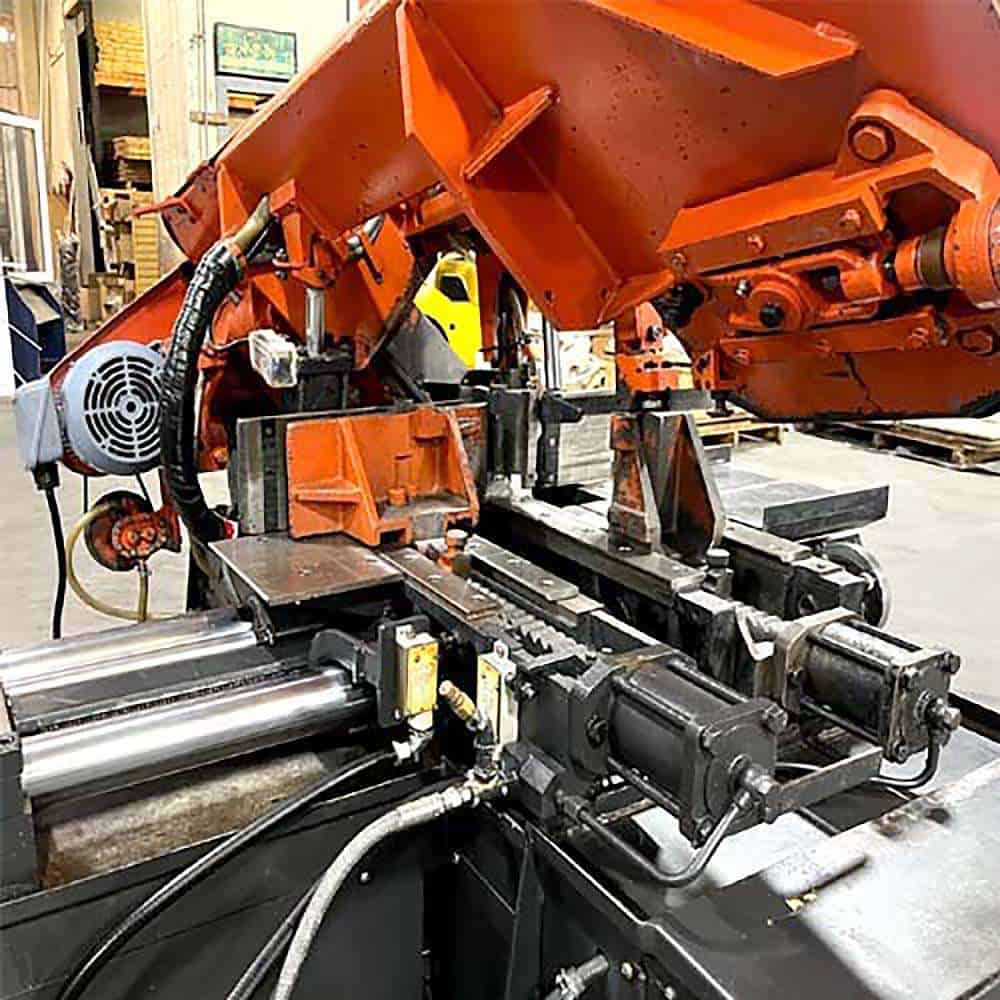

| Material Index: |
|---|
| Index Mechanism: Shuttle Vise |
| Stroke: 15.75″ (Maximum 9 times index) |
| Length: 0.394″-141.7″ |
| No. of Input Station: 1 |
| Remnant Length: 2.24″ Plus Length of Parts |
| General: |
|---|
| Power: 230v-440v / 3-Phase/ 4.9 kva |
| Overall Dimensions: 76.5″ x 93.1″ x 69.8″ High |
| Weight: 2,645 lbs |
