Amada RG-100 CNC Press Brake

SKU 12106

Make/Model Amada RG-100

Year 1994

Out of stock

SKU:	12106
Make/Model:	Amada RG-100
Year:	1994

SKU: 12106

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Amada
Model:	RG-100
Year:	1994
Machine Type:	CNC Press Brake

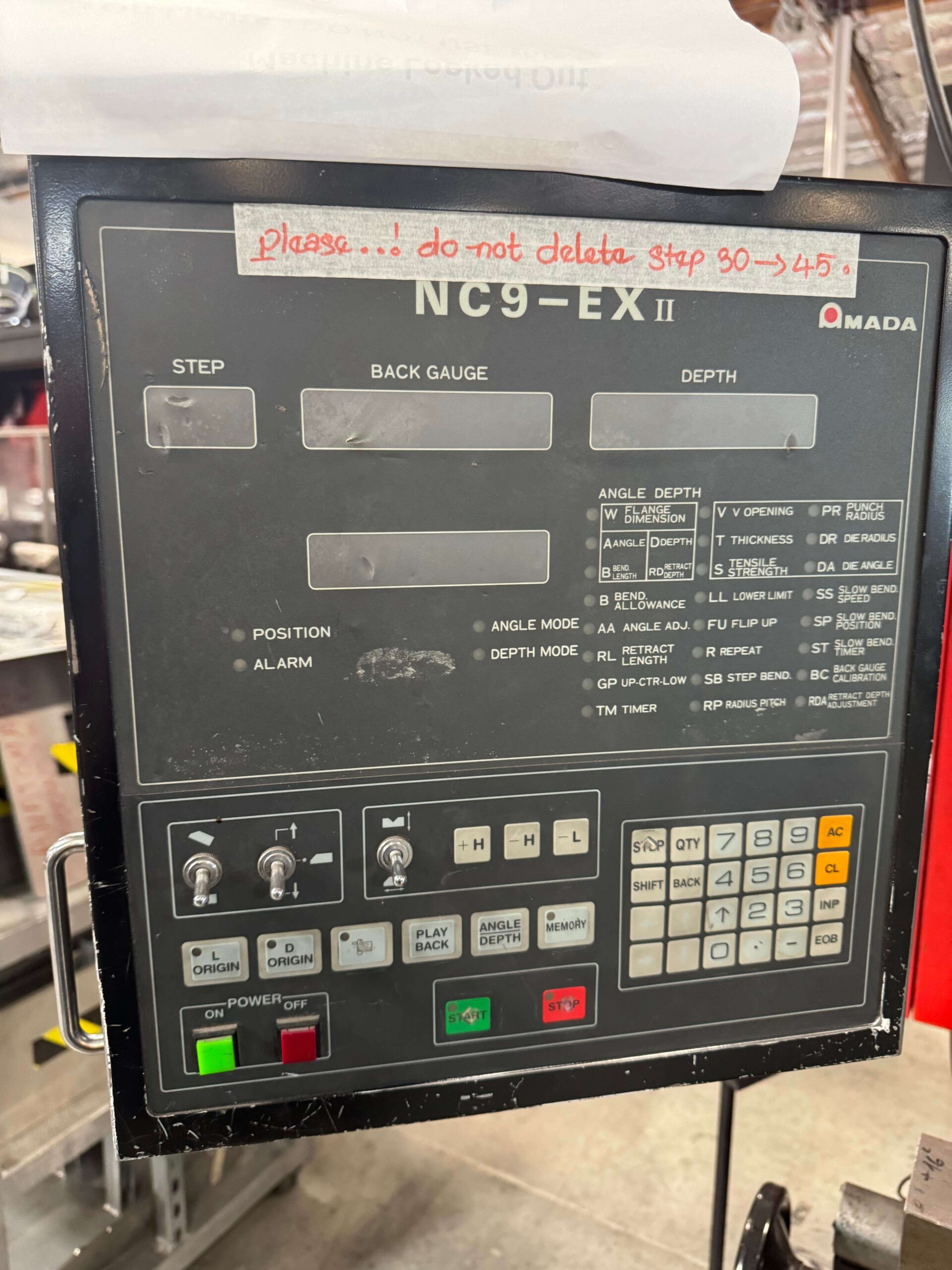

CNC Control:	Amada NC9-EX II

Equipped With:
Amada NC9-EX II CNC Control
100-Ton Pressing Capacity
Hydraulic System
65-Liter Hydraulic Oil Reservoir
Clamping Setup as Visible
Operator Control Panel with Start Button

Capacity:
Pressing Capacity: 100 Tons
Maximum Bending Length: 122.1″
Table Length: 118.2″
Distance Between Uprights: 100.5″
Throat Depth: 15.76″

Stroke & Working Dimensions:
Stroke Length: 3.94″
Open Height: 14.58″

General:
Machine Dimensions: 120.4″ × 61.5″ × 90.6″
Net Weight: 13,600 lbs

Equipped With:
Amada NC9-EX II CNC Control
100-Ton Pressing Capacity
Hydraulic System
65-Liter Hydraulic Oil Reservoir
Clamping Setup as Visible
Operator Control Panel with Start Button

Capacity:
Pressing Capacity: 100 Tons
Maximum Bending Length: 3,101 mm
Table Length: 3,002 mm
Distance Between Uprights: 2,553 mm
Throat Depth: 400 mm

Stroke & Working Dimensions:
Stroke Length: 100 mm
Open Height: 370 mm

General:
Machine Dimensions: 3,058 mm × 1,562 mm × 2,301 mm
Net Weight: 13,600 lbs
