*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

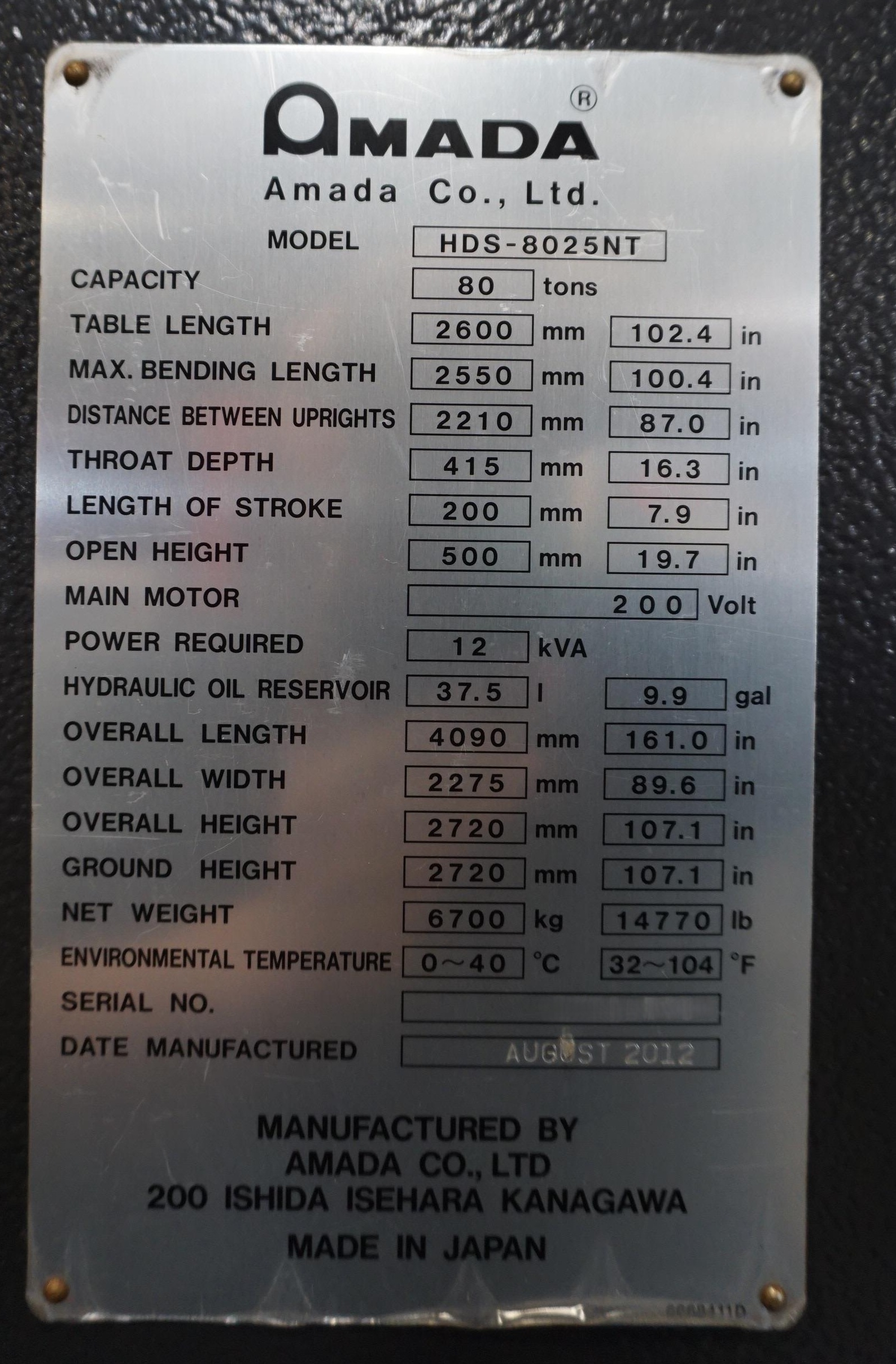

| Make: | Amada |
| Model: | HDS-8025NT |
| Year: | 2012 |
| Machine Type: | CNC Press Brake |
| CNC Control: | Amada CNC Control with AMNCBEND 5.0 Software |
| Equipped With: |
|---|
| Amada CNC Control |
| AMNCBEND 5.0 Software |
| AMNCBEND 5.0 Software Updated in 2022 |
| CNC Back Gauge System |
| Hydraulic Press Brake System |
| Amada HDS-8025NT Press Brake |
| Capacity: |
|---|
| Press Capacity: 80 Tons |
| Table Length: 102.4″ |
| Maximum Bending Length: 100.4″ |
| Distance Between Uprights: 87.0″ |
| Throat Depth: 16.3″ |
| Stroke: |
|---|
| Stroke Length: 7.9″ |
| Open Height: 19.7″ |
| Hydraulic Oil Reservoir: 9.9 Gal. |
| Hydraulic System: CNC-Controlled Hydraulic Press Brake |
| General: |
|---|
| Power Source: 200V / 3-Phase / 60 Hz |
| Machine Dimensions (Approx.): 161.0″ × 89.6″ × 107.1″ H |
| Machine Weight (Approx.): 14,770 lbs. |
