*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Amada |
| Model: | LCG 3015 AJ |
| Year: | 2014 |
| Machine Type: | CNC Fiber Laser Cutting Machine |
| CNC Control: | Amada AMNC 3i CNC |
| Equipped With: |
|---|
| 2,000 Watt AMADA Fiber Laser |

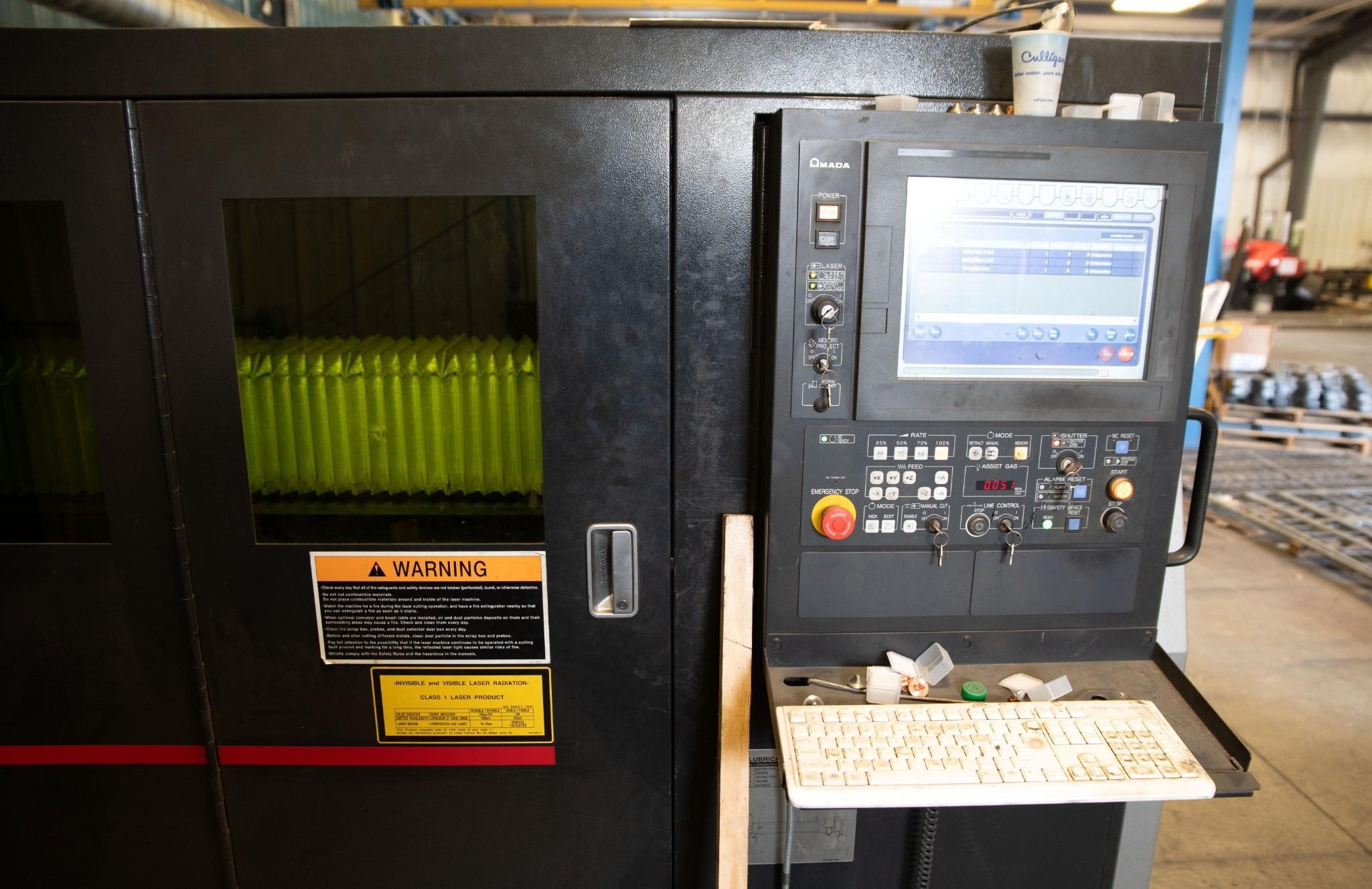

| AMADA AMNC 3i CNC Touch Screen Control |
| 5′ × 10′ Sheet Processing Capacity |
| Dual Pallet System |
| Fully Enclosed Laser Cutting Enclosure |
| Automatic Assist Gas Control |
| NC Pressure-Controlled Assist Gas System |
| High-Speed Capacitive Z-Axis Sensing |
| X/Y Helical Rack-and-Pinion Drive System |
| Z-Axis Ball Screw Drive |
| Automatic Laser Cutting System |
| Integrated Laser Oscillator |
| Chip / Slag Collection System |
| Exhaust and Dust Collection Connection |
| CE Safety System |
| Capacity: |
|---|
| Maximum Sheet Size: 120″ × 60″ |
| Maximum Material Weight: 2,000 LBS |
| Maximum Axis Travel X/Y/Z: 121″ × 61″ × 3.93″ |
| Maximum Positioning Speed X/Y: 4,724 IPM |
| Vector Speed: 6,693 IPM |
| Maximum Z-Axis Speed: 4,724 IPM |
| Laser System: |
|---|
| Laser Type: Fiber Laser |
| Laser Power: 2,000 Watts |
| Laser Source: AMADA AJ-2000 |
| Rated Output: 2 kW |
| Wavelength: 0.08 µm |
| Drive / Motion System: |
|---|
| X/Y Drive: Helical Rack and Pinion |
| Z Drive: Ball Screw |
| X/Y Rapid / Positioning: 4,724 IPM |
| 45° Vector: 6,693 IPM |
| Z Rapid: 4,724 IPM |
| Table: |
|---|
| Table Size: 120″ × 60″ |
| Maximum Workpiece Weight: 2,000 lbs |
| General: |
|---|
| Machine Weight (Approx.): 17,636 lbs |
| Machine Dimensions (Approx.): 399″ L × 112″ W × 95.7″ H* |
| Electrical: 200/220v / 50/60 Hz |
