All specifications are approximations and are subject to verification.
Replacement Cost over $300,000.00

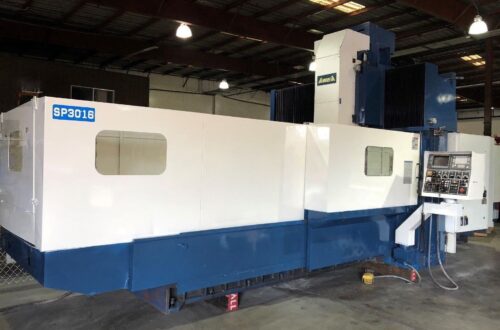

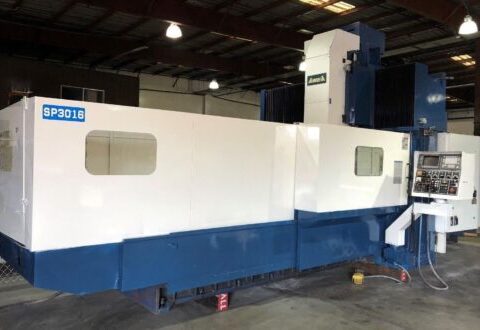

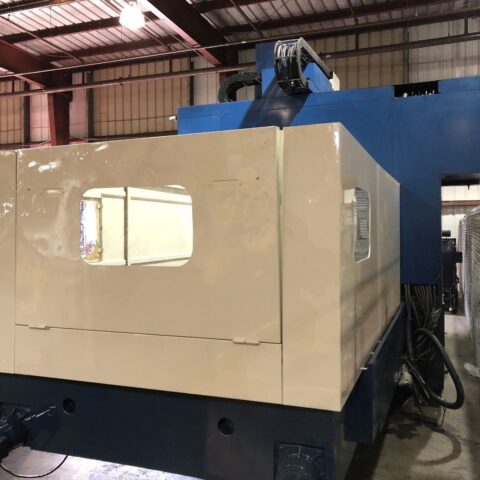

“This One Owner Machine has only 9473 Running Hours. Equipped with Fanuc OM, 50 Taper, 60 Tool Upgraded changer, Chip Conveyor and many more features. Replacement Cost over 300K.”

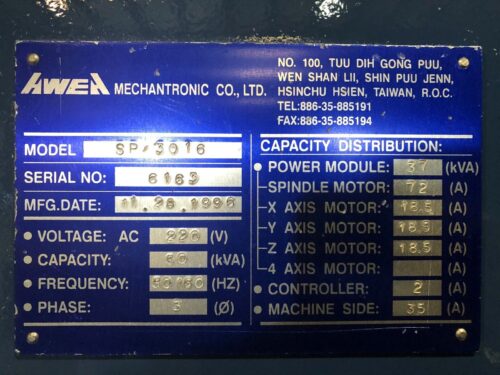

| Make | AWEA |
| Model No. | SP-3016 |
| Year | 12.1996 |
| Serial # | 6163 |
| Condition | Very Good |
-

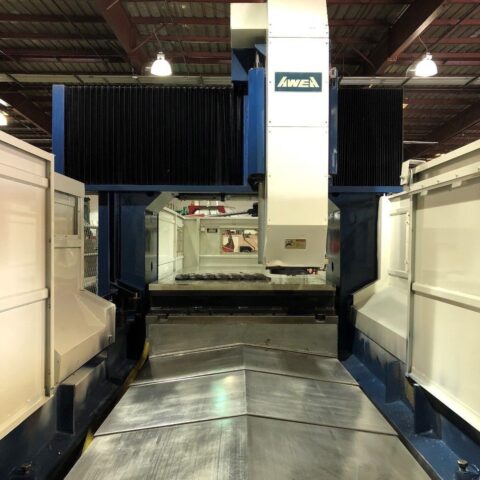

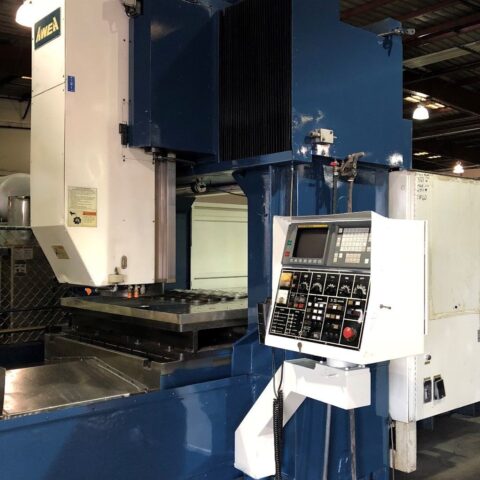

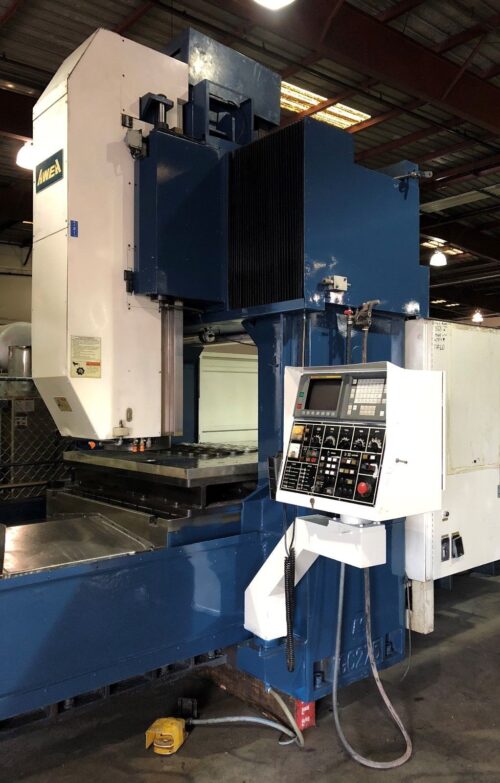

AWEA SP-3016 Equipped With:

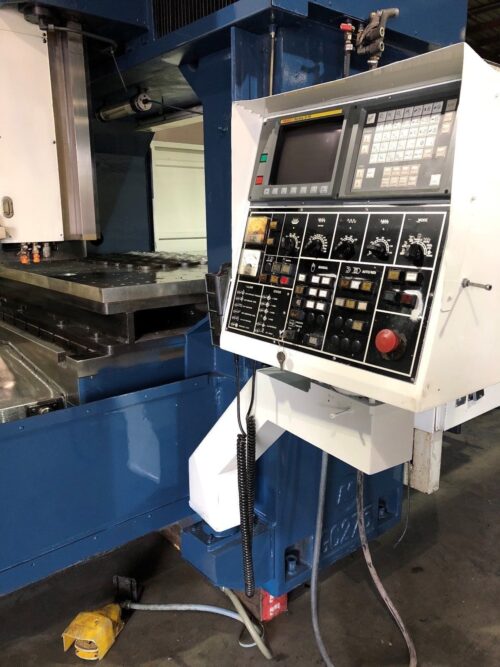

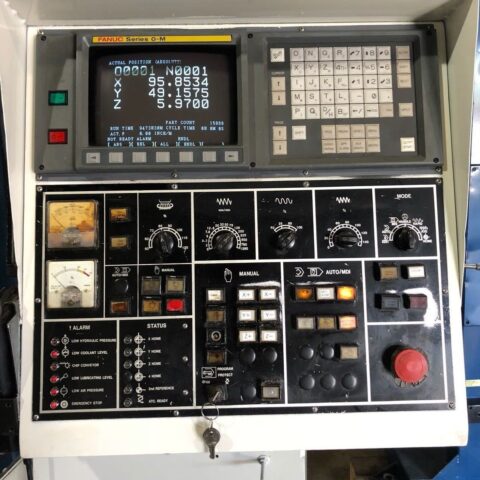

- Fanuc 0M-C CNC Control
- 120″ X 59″ 10″ High Raised Table with Jig Plate
- 60 Station Side Mount Tool Changer ( Upgrade )
- 50 Taper 3500 RPM Geared Head Spindle
- Powerful 35 HP high torque spindle motor
- RS-252 Port
- Full Splash Guards
- Box Way Construction
- Portable manual pulse generator
- Flood coolant with large separate coolant tank
- Base Flush Chip Disposal with Dual Auger
- Chip Conveyor
- Levelling Pads
-
AWEA SP-3016 Specifications:
- Travels:
- X-Axis: 120.5″
- Y-Axis: 63.0″
- Z-Axis: 30.0″
- Distance Between Columns: 67.0″
- Spindle Nose to Table (Min.- Max.): 9.4″- 39.4″
-
Original Base Table:
- Length: 128″
- Width: 59″
- No. of T-Slot: 8
- Max Weight on Table: 11,000 lbs
-

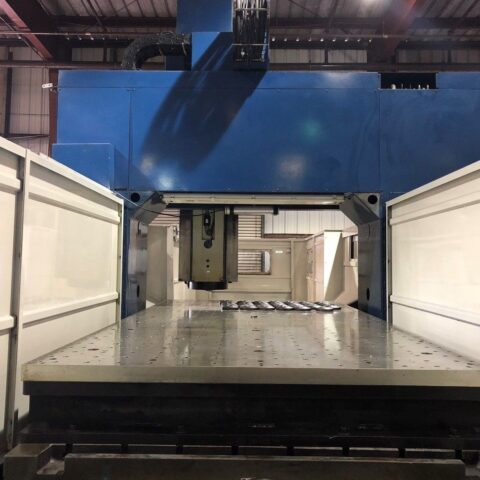

Jig Table:
- Length: 120″
- Width: 59″
- Height: 10″
-
Spindle:
- Taper Size: 50
- Speed Range: 3500 RPM
- Spindle Power: 35 HP
-
Feed rates:
- Rapid X & Y: 787 inch per Min.
- Rapid Z: 393 inch per Min.
- Cutting Feedrate: .04″ – 196″ inch per Min.
-
Automatic Arm Type Tool Changer:
- 50 Taper
- Capacity: 60 Tools
- Max Tool Weight: 44 lbs
- Max Tool Length: 13.8″
- Max Tool Dia.: 5.1″
- Tool change Time: 8 seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 50kva / 3-Phase
- Overall Shipping Dimensions: 332″ x 117″ x 108″ High

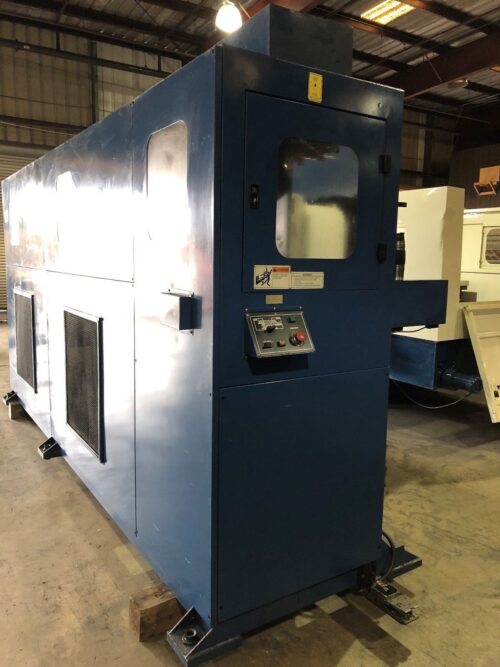

- Hydraulic Unit, Chip Conveyor and Tool Changer unit Extra.
- Weight: 60,500 lbs.
